AN INTERACTIVE TOOL FOR DATA STRUCTURE

VISUALIZATION AND ALGORITHM ANIMATION

Experiences and Results

Rafael del Vado V

ırseda

Departamento de Sistemas Inform

aticos y Computaci

Universidad Complutense de Madrid, Spain

Keywords:

Virtual learning environments, Virtual labs, Virtual universities and classrooms, Learning and teaching

methodologies, Computer supported education, Interactive learning, Data structures, Algorithmic schemes.

Abstract:

We present a visualization tool for the interactive learning of data structures and algorithmic schemes which

can be used as a useful educational environment in Computer Science. The different parts of this tool in-

tend to transmit to the students the importance of separating the speciﬁcation and the implementation of data

structures, facilitating the intuitive comprehension of the most typical implementations by using algorithmic

schemes, and providing examples where such structures are used. The tool has been designed to allow teachers

to monitor the whole educational process of the students, providing a personal training assistant and a range

of tutoring techniques according to the student’s response. Along the academic course 2008/09 we have eva-

luated the part of the tool concerning data structures. The tool evaluation is carried by means of tests, some

of them managed from a Virtual Campus, with open access to all the students, and another one managed in a

computer laboratory with a controlled group. In this paper, we show the results of this educational experience

about the beneﬁts that the students get from the tool in the current teaching of Computer Science.

1 INTRODUCTION

The study of data structures and algorithmic schemes

is both essential and complex for Computer Science

students. In this paper we present a tool which in-

tends to facilitate the understanding of all these top-

ics by means of the visualization and the interac-

tion with the user, allowing teachers to monitor the

educational process. Additionally, it tries to pro-

mote a continuous and personal work of the student

along the academic course in a context where the

convergence with the Bologna process and the new

guidelines of the European Higher Education Area

(http://www.ond.vlaanderen.be/hogeronderwijs/bo logna/)

imply innovative education methods centered in the

student.

The tool has been made available through a Vir-

tual Campus for the students of a Data Structures

course, taught in the second year of the Computer

Science studies at the Faculty of Computer Science

of the Complutense University of Madrid (UCM). In

particular, it may be used by the students of three

groups of the Computer Science degree and by an-

other group of the Computer Science technical degree

in Management. Consequently, along this academic

year we only evaluate that part of the tool concerning

Data Structures.

These students have been provided with a guide

for learning with the tool some of the data types in-

cluded in the course programme. Additionally they

have received some ﬂash animations illustrating par-

ticular applications of the data types. Afterwards the

students may check their level of knowledge by ans-

wering some tests. The development of the abstrac-

tion ability and the capacity of solving new problems

requires practising individually the reasoning and also

solving a big amount of exercises. These tests pro-

mote the individual work fundamental for assimi-

lating the concepts. Their accomplishment is com-

pletely volunteer and its main aim is to help the stu-

dents to learn. Additionally they may answer some

questions about the usefulness of the tool, also avai-

lable through the Virtual Campus.

In this paper we present the tool’s development and its

educational capacities in Computer Science Educa-

tion, and also present some results obtained from the

experience along the academic course 2008/09. The

tool, the animations, and the tests are given in Spanish

del Vado Vírseda R. (2010).

AN INTERACTIVE TOOL FOR DATA STRUCTURE VISUALIZATION AND ALGORITHM ANIMATION - Experiences and Results.

In Proceedings of the 2nd International Conference on Computer Supported Education, pages 13-20

DOI: 10.5220/0002769000130020

 SciTePress

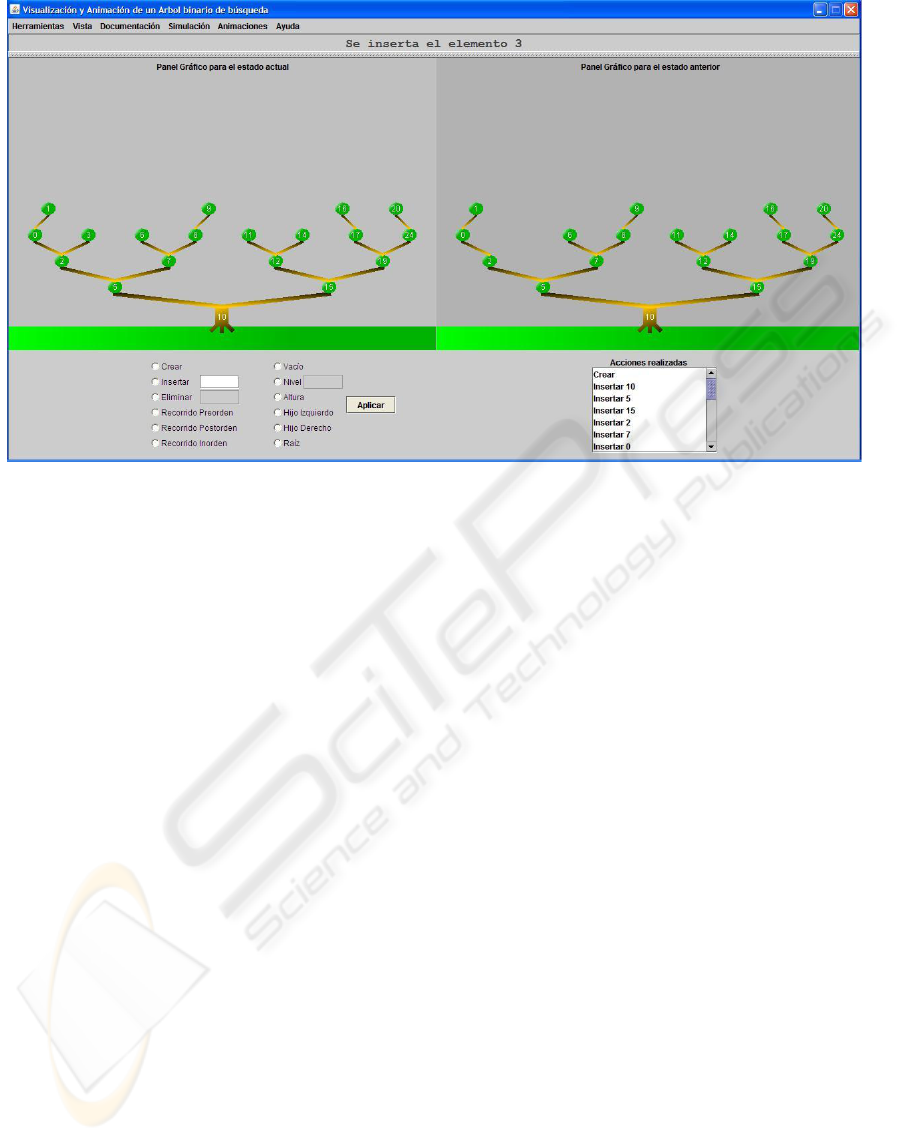

Figure 1: User view of the tool for binary search trees.

so that the students do not consider the language as an

added obstacle in the learning process. In Section 2

we show both the usage and the implementation of

the tool. In Section 3 the ﬂash animations are descri-

bed. Section 4 describes a tutoring system for the tool

to address the whole self-learning process. Section 5

describes in detail the experiences with the students.

Finally, in Section 6, we conclude and present plans

for future work.

2 THE VISUALIZATION TOOL

2.1 Tool Usage

The students and professors may download the vi-

sualization tool from the UCM Virtual Campus

(http://www.fdi.ucm.es/profesor/rdelvado/CSEDU 2010/).

Currently it may be executed in Windows environ-

ments with Java Virtual Machine JDK1.5 (o higher)

but we have also generated a multi-platform version.

When the application is started the user selects one

area: data structures or algorithmic schemes. We con-

centrate in this section on data structures. The student

must choose the particular data structure, being now

available: stacks, queues, binary search trees, AVL

trees, priority queues, ordered tables and hash tables.

When a data type has been selected, for example the

binary search tree data type, we may view in a draw-

ing panel the behavior of the structure, see Figure 1.

It is divided in four parts:

• The Graphical Panel for the current state, after

the execution of the last action.

• The Graphical Panel for the previous state, be-

fore executing the last action.

• A text box where the executed actions are shown,

and a checkbox where the methods of the data

structure may be chosen.

• On the upper part, a label showing the result of

the actions execution.

The user may choose the Simulation option, and then

a sequence of operations provided in a text ﬁle are

executed without interruption. Such ﬁle may be mod-

iﬁed by the user. On the contrary, if the user wants

to execute the operations one by one, she/he must

start by creating an empty structure. The student may

choose one of several simple types for the elements

of the structure (e.g. integers, strings) and then he/she

can execute the different methods over the structure

and introduce the elements interactively.

At the same time the structure is being created, the

user can select the View of the data type: either an

abstract view of the data type at the level of its alge-

braic speciﬁcation (User View) or the structure’s state

used in its implementation (Implementation View). In

the user view the behavior of the structure is shown

independently from the implementation. For exam-

ple, Figure 1 shows the user view for binary search

trees. In the implementation view the tool shows how

the data are kept in a particular implementation. For

example, two implementations for the binary search

CSEDU 2010 - 2nd International Conference on Computer Supported Education

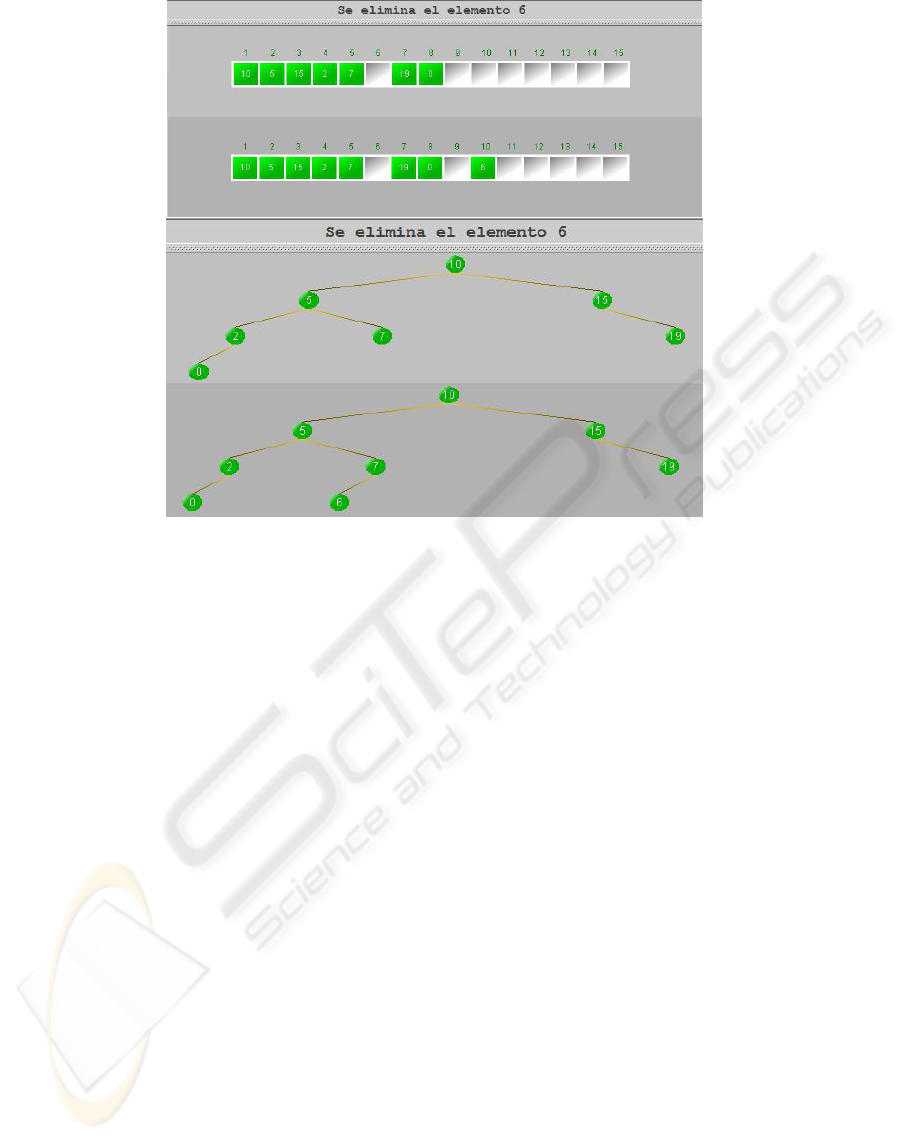

Figure 2: Static and dynamic implementations of binary search trees in the tool.

trees are given: a static implementation by means of

an array, and a dynamic implementation by means of

pointers. They are shown in Figure 2.

The main difference with respect to other related

tools (Chen and Sobh, 2001) is that we intend that

the students assimilate a key concept of the course:

the difference between the behavior description of

a data structure given by the algebraic speciﬁcation,

and its implementation in a particular programming

language. Additionally, the ﬂash animations, which

we will describe in detail later, provide among other

things, examples of the use of data structures to solve

problems. In this way, the three fundamental aspects

of the course are covered: behavior, implementation,

and usage of data types. The tool has documentation

about the data structures including algebraic speciﬁ-

cations, implementations using Java and cost of the

algorithmic methods in a given implementation.

We have shown in this section binary search trees

as a representative example, but the tool also shows:

stacks, queues, AVL trees (including visualization of

the rotations), priority queues and its implementation

using binary heaps on an array (including visuali-

zations of the up and down movements), ordered and

hash (open and closed) tables.

2.2 Tool Implementation

The tool was originally implemented in the context of

the course Software Engineering in the last year of the

Computer Science degree. It has been implemented

in Java and designed in a modular way, so that adding

new data structures (and algorithms) is as easier as

possible for the programmer. Its main components

are: the interface package, the graphical package,

and the implementation package.

The user communicates with the tool through the

interface package, which consists of an interactive

module and a panel where the animations are shown.

The interactive part (depending on the operations ap-

plied by the user) calls the corresponding function of

the implementation module and also the panel func-

tions responsible for painting the action. The panel

communicates with the graphical package, where the

graphics for each different data structure have been

implemented as well as the animations controlled by

Java threads. This modular design allows to easily in-

corporate new knowledge to the tool.

3 ALGORITHM ANIMATIONS

The algorithm animations have been developed in

ﬂash to allow us to show graphically the use of data

AN INTERACTIVE TOOL FOR DATA STRUCTURE VISUALIZATION AND ALGORITHM ANIMATION -

Experiences and Results

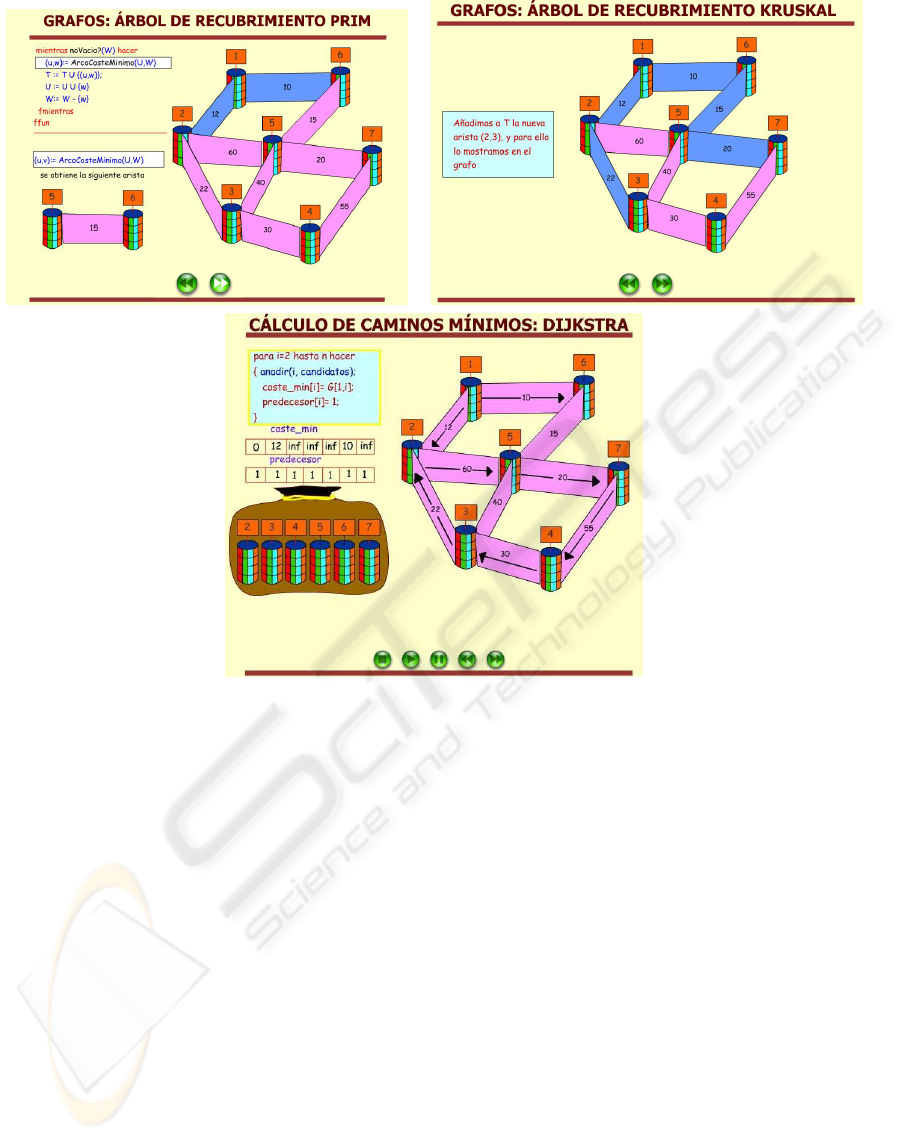

Figure 3: Prim’s and Kruskal’s algorithm animations integrated into the tool.

structures in solving problems (Brown and Hersh-

berger, 1992; Chen and Sobh, 2001; Fleischer and

Kucera, 2002; Kehoe et al., 2001). They can be clas-

siﬁed in three groups:

(1) Animations of algorithms that use data structures;

e.g., the algorithm that transforms an inﬁx expres-

sion to a postﬁx expression.

(2) Animations about the operations of a data struc-

ture; e.g., Kruskal and Prim algorithms for com-

puting the minimum cost spanning tree of a graph.

(3) Tutorials about the behavior of a data structure

and animations of some of its operations: stacks,

queues, binary search trees, red-black trees, and

priority queues.

Animations complement the tool and are offered

to the students with it. Whenever possible, due to the

screen size limitations, the algorithm code is written

in the left-hand side of the screen while the animation

occurs in the right-hand side to facilitate the students

following the algorithm. Most of the algorithms have

been written in a high level pseudocode description,

independent of any particular programming language.

The input data for the animation have been chosen

such that the algorithm executes as many cases as pos-

sible. Besides, the animations execute the algorithm

in detail, instruction by instruction, showing the result

of the boolean expressions that control the execution

ﬂow.

In Figure 3 we show pictures of the Prim’s and

Kruskal’s Algorithms. These animations were given

to a group of students to obtain the minimum span-

ning tree. The results of this experience are shown in

Section 5.2. Other algorithms and data types anima-

tions can be accessed independently from the tool in

http://www.fdi.ucm.es/profesor/rdelvado/CSEDU 2010/.

4 TUTORING SYSTEM

The integration of an intelligent tutoring system turns

our visualization tool into an innovative instrument

of high pedagogical interest in Computer Science

CSEDU 2010 - 2nd International Conference on Computer Supported Education

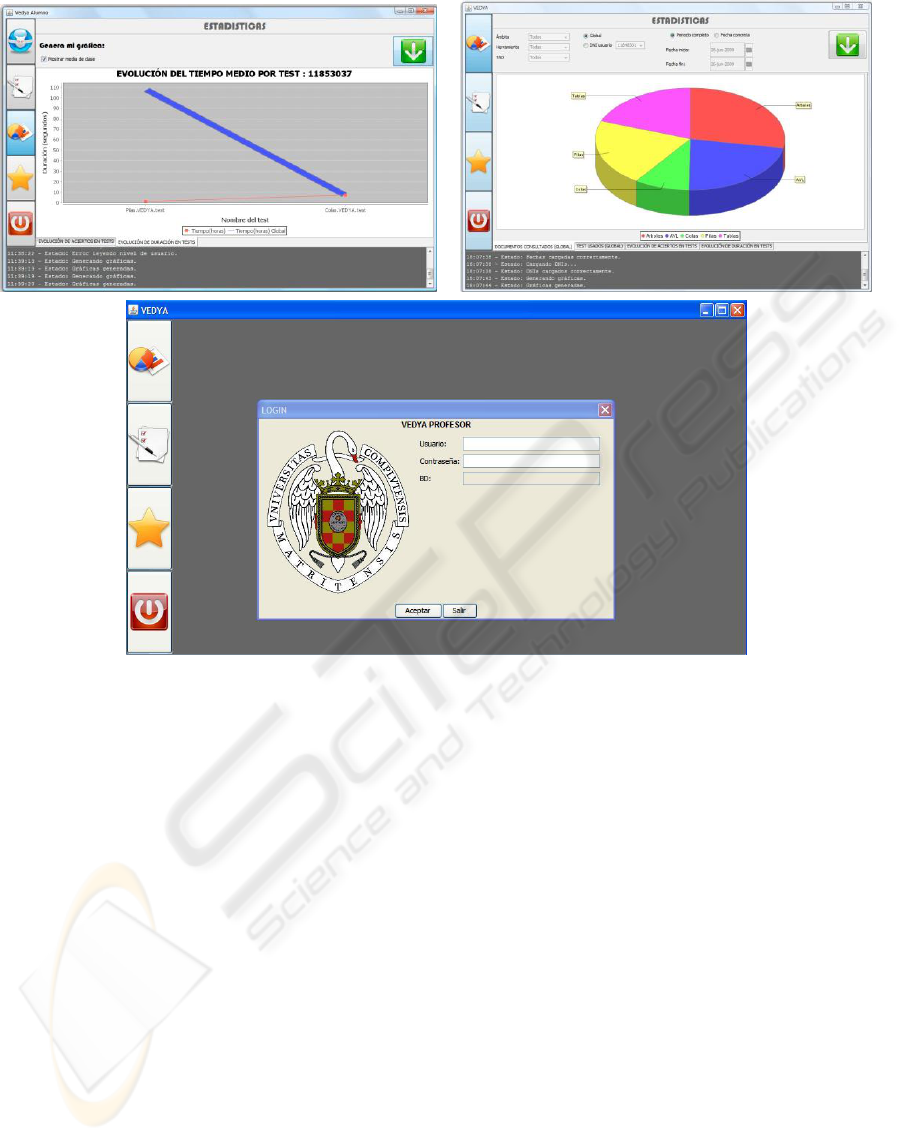

Figure 4: Tutoring system for the visualization tool.

Education in comparison to other related approaches

(Chen and Sobh, 2001; Fleischer and Kucera, 2002;

Kehoe et al., 2001). This tutoring system attempts to

address the whole self-learning process of the main

data structures and algorithmic schemes, from the al-

gebraic speciﬁcation until the real implementation.

The students have their ﬁrst contact with the

data structures and algorithms that they are go-

ing to study by means of the usage of this tutor-

ing system for the tool. In order to control the

student’s self-learning process correctly, an online

database has been built on the tool. For this pur-

pose, an additional module (which can be obtained

from http://gpd.sip.ucm.es/rafav/), has been designed

to allow teachers to monitoring the progress of their

students (see Figure 4), according to the information

stored in the database (time spent on each animation,

or most consulted documents on the help on the tool).

Moreover, the tutoring system also allows seeing de-

tailed information of each speciﬁc student, by select-

ing their identiﬁcation number.

5 EXPERIENCES AND RESULTS

As we have mentioned before, the tool is avail-

able for the students of the topic Data Structures in

the Computer Science Faculty of the Complutense

University of Madrid through the Virtual Campus

(http://campusvirtual.ucm.es/prof/EDI0809.html). In total

they are 486 students.

5.1 Design of the Experiences

We have done two different experiences:

• One non-controlled experience: all the stu-

dents may access the Virtual Campus and par-

ticipate freely in the experience: download and

use the tool, and answer different kinds of

tests.

• One controlled experience: two groups of stu-

dents must answer a test in a controlled ambient

from the point of view of the time and the access

to the material.

AN INTERACTIVE TOOL FOR DATA STRUCTURE VISUALIZATION AND ALGORITHM ANIMATION -

Experiences and Results

With respect to the non-controlled experience, the

students may freely access the Virtual Campus with-

out any restriction of time (but the last delivery time

at the end of the course) or material (slides, tool, bib-

liography) and answer the questions of several tests.

For each of the following data structures

we have provided a suitable test (which can

be obtained from http://www.fdi.ucm.es/profesor/ rdel-

vado/CSEDU2010/) that evaluates the knowledge of

students about the structure: stacks, queues, binary

search trees, balanced trees (AVL and red-black), and

priority queues. Tables have been not included in the

experience as they have been added to the tool very re-

cently. The students may use these tests to verify their

advances in the understanding of the different con-

cepts. The questions are structured in three blocks:

behavior of the structure, implementation of the struc-

ture, and use of the data type by an algorithm.

The resolution of the tests by the students is con-

trolled by the Virtual Campus and our tutoring sys-

tem. The students are recommended to use the tool

and the animations to complement the study of the

data structures and then to answer the test to check

their knowledge. However, if needed, they can con-

sult the educational material: course slides, bibliog-

raphy (Cormen et al., 2001; Weiss, 2005), the tool.

Each test consists approximately of 24 questions dis-

tributed between the three blocks, except the test

about AVL and red-black trees which only pays atten-

tion to implementation, as they are taught as efﬁcient

implementations of binary search trees. Some of the

questions have two possible answers: true or false,

while other has several alternatives. After each ques-

tion, the student tells us whether she/he has needed to

consult some material to answer the question and in

that case which one. When the delivery time is over

the students may know their marks and to the correct

answers also through the Virtual Campus and the tu-

toring system.

Additionally, we have elaborated tests about the

usefulness of the tool for each of the data structures,

where the students manifest the time dedicated to

study the structure, the time dedicated to answer the

test, and also which material is more interesting for

them. The aim of these other tests is to obtain the sub-

jective opinion of the students about the help given by

the tool to learn about the data structures and to know

their study preferences.

In the controlled experience we try to evaluate

more objectively the usefulness of the animations.

In particular we have chosen the animations of the

Kruskal and Prim algorithms for obtaining a mini-

mum spanning tree of a graph. We choose two groups

of students: approximately half of the students are

only given the slides of the course and the data struc-

ture books at class; and the other half are given only

the animations at a computer laboratory. Then, all

the students answered the same questions in one hour

about these algorithms.

5.2 Obtained Results

5.2.1 Non-controlled Experience

We outline here the main conclusions from the re-

sults of the non-controlled experience. With respect

to the material the students used to study, as long as

the structure is more complicated the use of the tool

(simulation, case execution, and tool help) increases

considerably. The better results are obtained in the

AVLs and the red-black trees. The tool helps to visu-

alize the rotations in these balanced trees. In the rest

of the structures they used class material or bibliogra-

phy (Cormen et al., 2001; Weiss, 2005).

When answering the tests questions, the students

were also asked whether they needed additional help

to answer them. In the case of binary search trees and

AVLs they use the tool as much as the class material,

which means that visualization of the operations, such

as eliminations and rotations, are useful for them. In

the case of red-black trees, they used ”other” material

a bit more than the tutorial animation, which presum-

ably consists of a colleague advice.

We can say that although only a small percentage

of students have followed the experience, those who

have done it, both consider the tool as an interesting

material and have used it to complement the rest of the

available material, including the class explanations.

The tool is specially useful for visualizing the most

“complex” operations.

5.2.2 Controlled Experience

This experience was carried out with 59 students. We

gave 32 of them the slides of the course and the data

structure books (Cormen et al., 2001; Weiss, 2005).

The rest were taken to a laboratory, where they could

execute the animations. We gave the same test to both

groups, consisting of 18 questions, 12 of them about

execution aspects of the algorithms, and the rest about

their cost.

In Figure 5 (left) we provide the media and the

standard deviation of the number of correct answers,

the errors, and the number of don’t knows. First, we

observe that students using the animations, answer in

media less questions than the other ones. Besides,

they make more errors than the others. This is due

CSEDU 2010 - 2nd International Conference on Computer Supported Education

All the questions Excluding cost questions

Correct answers errors don’t knows Correct answers errors don’t knows

media σ media σ media σ media σ media σ media σ

Animations 9.63 2.37 6.18 2.2 3.3 2.9 9.18 2.1 4.26 1.7 0.55 1.57

Slides 11.9 3 4.9 2.2 1.1 1.9 9.25 2.6 4.1 2 0.65 1.53

Figure 5: Medias and standard deviations (σ).

to the fact that most of the animations students do

not answer the questions about the cost of the algo-

rithms, while in the other group they give correct an-

swers to these questions. The reason is that students

of the slides/books group obtained the costs of the al-

gorithms directly from the material, while the anima-

tions students had to deduce it from the code.

Figure 5 (right) gives the results excluding ques-

tions about costs. Now both groups present a similar

behavior. The standard deviation of the students be-

longing to the animations group is slightly lower than

that of the other group. The explanation for this re-

sults may be that students who use animations assimi-

lated the concepts in a more homogeneous way, while

the use of more conventional learning material, such

as books or slides, leads to greater differences among

the students. Finally, we observe that most of students

of the animations group have failed the same ques-

tions about the algorithm. This may be attributed to

the fact that the example displayed in the Kruskal an-

imation does not exhibit some cases of the algorithm.

We can conclude that although there are not big dif-

ferences between both groups, animations constitute

an optimum complement to facilitate the comprehen-

sion of the different algorithms. Besides, it has helped

us to detect in the students difﬁculties to derive the al-

gorithms costs.

The most positive aspect of this experience is that

all the students who used the animations indicated the

beneﬁts of using them to understand the implementa-

tion of the algorithms. They also mentioned that con-

sulting written material would also be helpful to ans-

wer the questions about the algorithms costs. Some

of them also complained about the example of the

Kruskal algorithm, as it was not as representative of

all cases of the algorithm as it was desirable. The

examples must exhibit the complete behavior of the

algorithm, avoiding possible misunderstandings of it.

Otherwise, students may be guided by the animation

to make wrong assumptions about the algorithms.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we have presented an interactive tool

for the visualization of data structures and algorith-

mic schemes which can be used for tutoring students

in the ﬁrst years of Computer Science Education. The

main beneﬁt of this kind of software is to facilitate the

student’s grasp of the target procedures in Computer

Science, and to facilitate teamwork and communica-

tion between teachers and students.

We have made two different kind of educational

experiences. In a non-controlled experience we have

priorized that all the students may access the tool and

so get beneﬁt of it and of the tests. This is the rea-

son why they do not have restrictions of time or ma-

terial. However they are also given questions in order

to evaluate the usefulness of the tool. In a controlled

experience however the time and the material are re-

stricted in order to evaluate directly the usefulness of

the tool and/or the animations.

In our opinion the experiences have been very pos-

itive for those students who decided to participate, al-

though we would have liked the number of volunteer

participants was higher. We conﬁrm that the tool is

complementary to both the class explanations and ma-

terial, making easier the visualization of some opera-

tions over data structures and algorithmic schemes.

In the next academic year we will continue using

the tool, not only in the Data Structures course but

also in the Algorithms course, in which the part of

the tool dedicated to algorithmic schemes (dynamic

programming, divide and conquer, greedy methods,

branch and bound) will be as well evaluated. We will

also intend to generate a multi-platform version of the

tutoring system and improve those aspects signaled

by the students in the test.

REFERENCES

Brown, M. and Hershberger, J. (1992). Color and sound

in algorithmic animation. In j-COMPUTER 25(12),

pages 52–63.

AN INTERACTIVE TOOL FOR DATA STRUCTURE VISUALIZATION AND ALGORITHM ANIMATION -

Experiences and Results

Chen, T. and Sobh, T. (2001). A tool for data structure

visualization and user-deﬁned algorithm animation. In

Frontiers in Education Conference.

Cormen, T., Leiserson, C., Rivest, R., and Stein, C. (2001).

Introduction to Algorithms. The MIT Press/The MIT

Press/McGraw-Hill.

Fleischer, R. and Kucera, L. (2002). Algorithm animation

for teaching. In Software Visualization, International

Seminar Dagstuhl Castle, Springer LNCS 2269, pages

113–128.

Kehoe, C., Stasko, J., and Taylor, A. (2001). Rethinking the

evaluation of algorithm animations as learning aids:

an observational study. In International Journal of

Human-Computer Studies 54(2), pages 265–284.

Weiss, M. (2005). Data Structures and Problem Solving

Using Java. Addison-Wesley, 3rd Edition.

CSEDU 2010 - 2nd International Conference on Computer Supported Education
