PIRKA’R: TOOL FOR WEB DESIGNERS

Supporting Development of Multi-platform Web Application

Jun Iio, Hiroyuki Shimizu

Research Center for Information Technology, Mitsubishi Research Institute, Inc.

2-3-6 Otemachi, Chiyoda-ku, Tokyo, 100-8141 Japan

Hisayoshi Sasaki, Akihiro Matsumoto

Gluegent, Inc. 4-1-28 Toranomon, Minato-ku, Tokyo, 105-0001 Japan

Keywords:

Web browser, Interoperability discrepancy, Commnity support, Web content designer.

Abstract:

The elemental technologies of WWW have been standardized as HTML and CSS, recommended by W3C.

Therefore, not only the servers but also web browsers are considered as components independent within the

whole web application system so that they should be interchangeable. However, the actual web application has

not yet led to this ideal situation. The problem of interoperability discrepancies between different implemen-

tation of web browsers still remains. So far we had studied the reason why this problem arose and collected

instances of problem. Based on the result of our previous study, we developed an web-system designers’ tool

which can provide the useful information for them to avoid the pitfalls on the interoperability discrepancy

problems.

1 INTRODUCTION

WWW has become a strong presence that represents

modern information communicating infrastructure as

a huge distributed knowledge environment. Various

technologies were developed for the case where web

browser was working as the client in cooperation with

a wide variety of servers.

System components that consist of the WWW en-

vironment are categorized into functional layers, such

as database-layer, application-layer,and presentation-

layer. The speciﬁcations of protocol to connect each

layer are strictly standardized so that it enables us to

make modules for web application interchangeable.

In the ideal situation, these standards can increase

the efﬁciency for system development. However, due

to many practical reasons, almost all the web appli-

cations have not yet led to such an ideal condition.

That is, each module has dependencies and system

developers have to avoid conﬂicting and/or interop-

erability discrepancies between the modules required

by them. As a result of that, there remains many se-

vere problems, for example, expensive development

due to vendor lock-in.

End-users of web applications are no exceptions

as well. In the cases that modules are deeply depend-

ing on each other, the users have to keep using their

legacy systems because such non-interchangeable

modules prevent the users from migrating into a new

system environment.

We have focused on the problems of the inter-

operability discrepancy between the different imple-

mentation of web browsers and studied to solve these

problems. In this paper, we report the result of our

study and present an overview of the tool that enables

web developers to create multi-browser web applica-

tion easily.

2 PROBLEMS TO SOLVE

Indeed web applications based on WWW technolo-

gies are supportedby many standards, such as HTML,

CSS, ECMAscript, and so on. Regarding any con-

tent that should be rendered in the web browser (ex-

cept special items handled by plug-in component),

its structure is described by HTML, XHTML, and

DHTML, and its representation is deﬁned by CSS. In

addition, algorithm of dynamic content are written in

159

Iio J., Shimizu H., Sasaki H. and Matsumoto A.

PIRKAâ

ZR: TOOL FOR WEB DESIGNERS - Supporting Development of Multi-platform Web Application.

DOI: 10.5220/0002769701590162

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

JavaScript and DOM (Document Object Model). Re-

cently it has became widely common to use AJAX

technology for the user-interface layer.

W3C and ECMA recommended the speciﬁcation

for these technology, therefore it is expected that

there is no difference among the behavior of any web

browsers. However, there are many problems caused

by the interoperability discrepancies between the dif-

ferent implementation of web browsers.

2.1 Problem Types

The problems are categorized into several types.

Typical problems are categorized as the use of

an extra-function, which is implemented by browser

vendors independently and it is not listed in the stan-

dard speciﬁcation. Such a poor context is a sequel

from “the browser war” that arose in more than ten

years ago.

Other defects are caused from the implementation

difference due to the ambiguousness in the speciﬁca-

tions, bugs in software of the browser, and other vari-

ous reasons.

Anyway, these problems force the end-user to use

a speciﬁc browser. It is absolutely inconvenient for

the users. Previously we reported our study that re-

vealed the inconvenience of using non-interoperable

web content in the education ﬁeld.

2.2 Examples of Problems

A typical example of the unconformity problem is il-

lustrated in Figure 1.

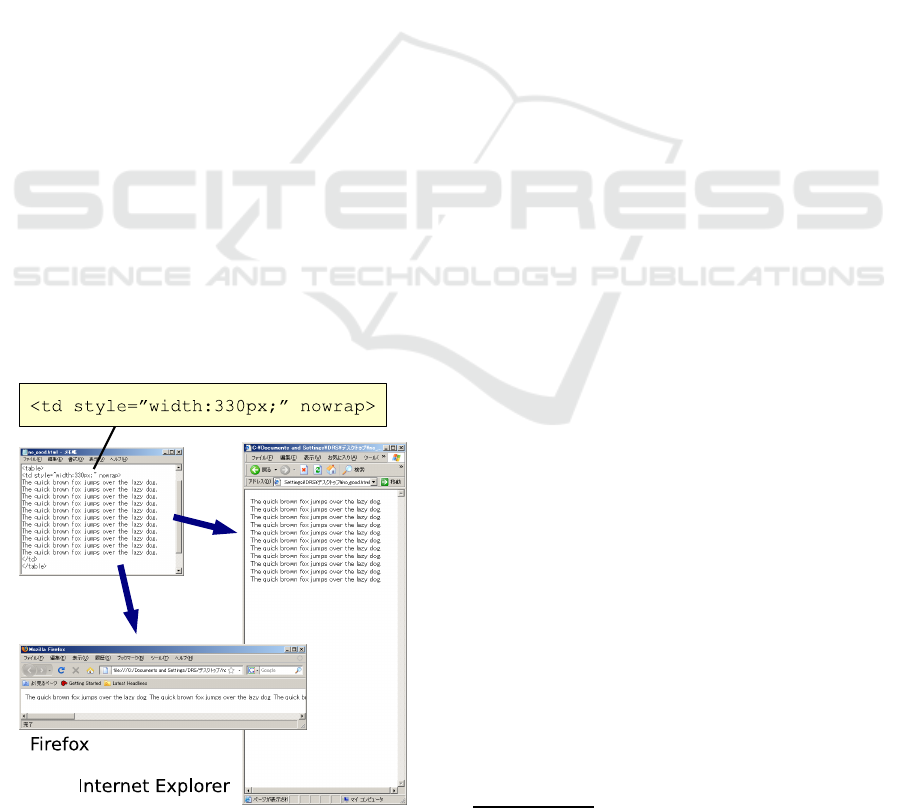

Figure 1: Conﬂiction of “nowrap” and width deﬁnition.

In this example, the designer who wrote this

HTML ﬁle intended to deﬁne column width with 330

pixels. In his/her plan, long sentences are supposed

to be word-wrapped at the right end of the column.

For some reason,

nowrap

attribute was unintention-

ally added.

Nowrap

attribute should be used to in-

hibit word-wrapping so that deﬁning width and using

nowrap

attribute are in an inconsistent state.

According to the speciﬁcation recommended by

W3C, it is essentially correct to prioritize

nowrap

at-

tribute over width deﬁnition. That is, in ﬁgure 1,

the rendering result by Firefox is basically correct.

However, Internet Explorer version 6 prioritizes width

attribute over

nowrap

. Such a defect produces un-

wanted difference in rendering between each browser.

3 BACKGROUND OF

DEVELOPMENT

These problems became serious, since the WWW had

obtained an important position of the infrastructure in

information society.

The Web Standards Project is working actively to

ask for browser vendors to implement their software

that is rigidly following the standard speciﬁcations.

They prepare the Acid test in order to check whether

the implementation of web browsers can meet the

standards or not.

On the other hand, we adopted the other approach

to solve this problem. We developed a system named

TouchUpWeb

, which can modify inappropriate con-

tent within the browser after downloading it from the

Internet.

In our TouchUpWeb project, we tried to propose

the appropriate environmentfor the end-usersby solv-

ing problems within the user’s web browser. The

modiﬁcation process is activated when the problems

are found in our modiﬁcation-database. To operate

the system appropriately, we kept maintaining the

database by collecting information about the web in-

teroperability discrepancies and stored solution for

that problems into the database.

Although TouchUpWeb was considered as an ad

hoc approach, we were able to indicate some effec-

tiveness of local modiﬁcation under the certain situa-

tions. Furthermore we investigated how many prob-

lems existed in the Internet space and how they af-

fected the web application users.

The result of our investigation (IPA, 2007a) re-

vealed that about 170 interoperability problems po-

tentially existed in the Internet. Some problems were

This service was terminated at the end of 2008.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

160

categorized into fatal error. For instance, some of

them were never displayed in speciﬁc browser, and

others were operated inappropriately in the browser.

Based on this result, recommendation document (IPA,

2007b) was published. Table 1 shows the number of

error factors classiﬁed by the impact of unconformity.

Table 1: Number of the detected interoperability discrepan-

cies by impact.

Impact # of # of % of detected

factors cases cases in total

Large 14 3,309 3.0%

Medium 40 18,146 16.6 %

Small 51 69,169 63.4 %

None 13 1,178 1.1 %

N/A 48 17,366 15.9 %

Total 166 109,168 100.0 %

To improve this situation, we designed a tool sup-

porting web designers, web developers, and web ap-

plication programmers, to enable multi-browser web

application developing easy and speedy.

The key point of this tool is information of the un-

conformities, offered to the developer to avoid the pit-

fall that disturbs the interoperability in their web ap-

plications. The system named “Pirka’r,” which we re-

port in this paper, was developed and was released as

open-source software to the Internet. Now it is avail-

able for everyone under the Apache License, Version

2.0 from http://pirkar.ashikunep.org/.

4 SYSTEM OVERVIEW

In this section, we describe an overviewof Pirka’rand

its ecosystem.

4.1 Overview of Pirka’r

Pirka’r consists in three parts, a client running on the

user’s workstation, a veriﬁcation server, and a veriﬁ-

cation data management server. The client and veriﬁ-

cation server can be either installed in one workstation

or in separated two computers.

Pirka’r has many functions that make help for web

developers, such as veriﬁcation against the standards,

assessment of multi-browser interoperability, multi-

browser previewing, automatic rendering, multifunc-

tional editing, auto-downloading a set of web pages.

Figure 2 shows a screenshot of Pirka’r running on

Windows. A user of Pirka’r can oparete ﬁles shown in

the left side pane, and can check multi-browser pre-

views on the top of window. Multifunctional editor

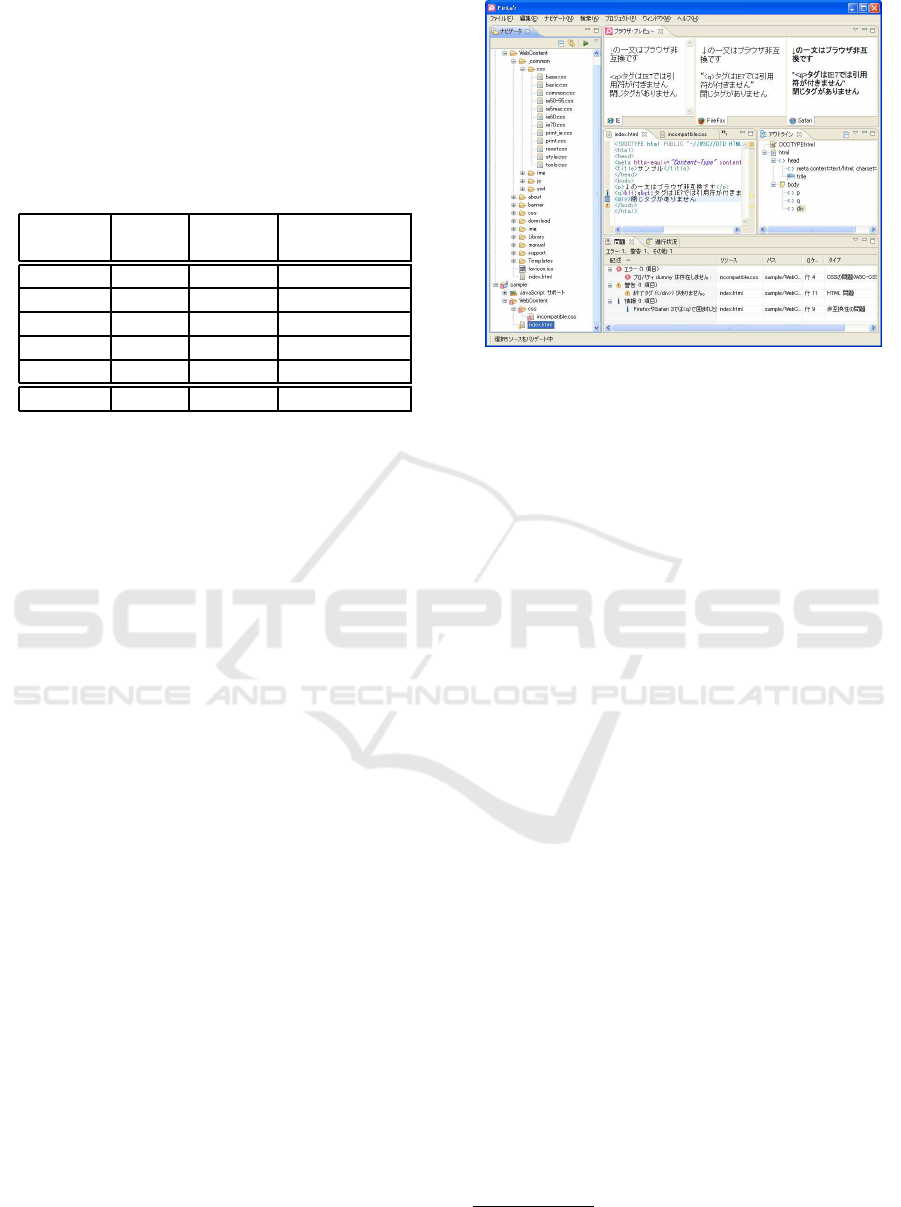

Figure 2: A screenshot of Pirka’r (Japanese version).

and outline processor are located in the middle row

of the screen. The user can check error reports at the

bottom row.

Pirka’r can help developers by veriﬁng HTML /

CSS / JavaScript description in his/her web content

not to contain browser dependent descriptions.

The rendering result of target web pages are dis-

played in multiple browser panes. This function re-

lieves the designers of annoying work handling a

number of browsers and checking results of render-

ing by each browser

4.2 Pirka’r Ecosystem

Figure 3 shows an overview of Pirka’r ecosystem.

The function that veriﬁes interoperability prob-

lems on target web content uses a veriﬁcation en-

gine running separately with Pirka’r client. The veri-

ﬁcation engine answers the result of veriﬁcation pro-

cesses, which are based on veriﬁcation data provided

from the veriﬁcation data management server.

We own the one management server that controls

veriﬁcation data and it can deliver the set of veriﬁca-

tion data to the veriﬁcation engines that are installed

in any local networks.

For the case that a designer ﬁnd a new interop-

erability discrepancy problem, we have prepared the

reporting form in our web site so that he or she has an

opportunity to report the problem. After we received

the report, committers in our team will try to create a

new veriﬁcation data that contains a check script and

a series of document showing how to ﬁx the problem.

Currently multi-browser preview function is not avail-

able on Linux platform.

PIRKA'R: TOOL FOR WEB DESIGNERS - Supporting Development of Multi-platform Web Application

161

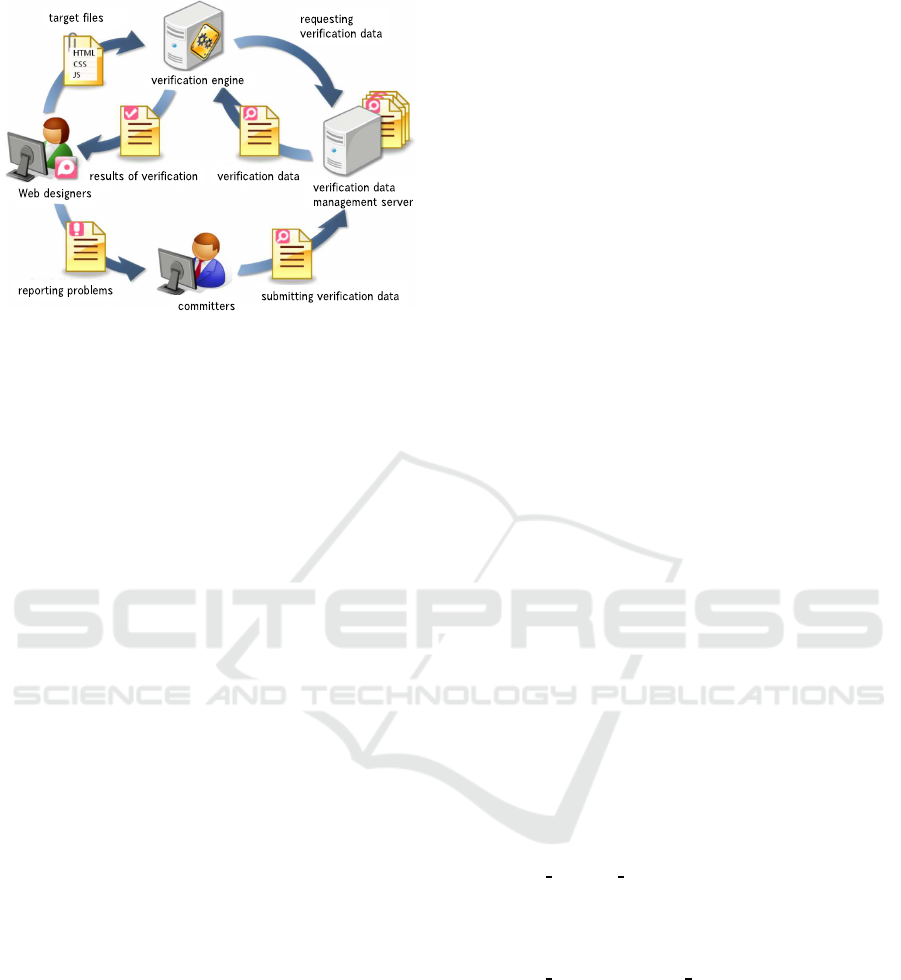

Figure 3: Overview of Pirka’r ecosystem.

4.3 Veriﬁcation Script

The veriﬁcation script is written in JavaScript. It

searches defects in the target web content, traversing

over its DOM.

The veriﬁcation script is quite simple if the prob-

lem is not so complicated. We had already prepared

more than 100 scripts to check the existing problems

and they were stored in the master database.

Although we have more than 100 scripts currently,

they are considered insufﬁcient, since this problem is

categorized as an error correction problem. As we

described previously, there is a demand to add new

veriﬁcation data into the database from comitters.

5 RELATED WORKS

Opera web browser has the ”Opera’s site patching”

function, which enables its user to modify web con-

tent in Opera browser, based on quite similar idea

to TouchUpWeb’ method. Opera browser can mod-

ify downloaded content before rendering it, using

Browser.js equipped in the browser.

A variety of studies such as analyses on the web

service interoperability (Antonellis et al., 2003) or

browser compatibility testing methods (Xu et al.,

2004) have been conducted from the viewpoint of

software engineering.

Several surveys on standardization of web con-

tent were conducted in a couple of years. The result

of these surveys is also useful for our work. Peter

K. conducted massive surveys against U.S. govern-

ment websites (Peter, 2005) and People’s Republic of

China government websites (Peter, 2006). He used

the W3C Validator for his survey. However, we con-

sider that his approach is practically insufﬁcient, be-

cause the real problems like what discussed in this

paper cannot be detected only by checking syntax er-

rors.

6 CONCLUSIONS

The interoperability discrepancy problems regarding

web content were shown in the former section of this

paper. And the system Pirka’r to solve these problems

was proposed. Pirka’r can help web designers in de-

signing multi-browser web application easily.

Modern browsers tend to have better interoper-

ability than before, however it is not ignorable that

there are many legacy users who keep using the old-

fashioned browsers, which have some problems in in-

teroperability that we mentioned in this paper. That is

the reason why we need to develop this tool, Pirka’r.

ACKNOWLEDGEMENTS

This study and the development of Pirka’r were con-

ducted as a part of the Open Source Software Utiliza-

tion InfrastructureDevelopment Project, supported by

Information-Technology Promotion Agency, Japan.

REFERENCES

Antonellis, V. D., Melciori, M., and Plebani, P. (2003). An

approach to web service compatibility in cooperative

processes. In Proceedings of SAINT 2003 Workshops,

pages 95–100.

IPA (2007a). Research on the Improvement of

Web Contents Compatibility Conducive to the

Widespread Use of OSS Desktops, Resarch Report.

http://www.ipa.go.jp/software/open/ossc/download/

Web Research En.pdf.

IPA (2007b). Research on the Improvement of Web

Contents Compatibility Conducive to the Widespread

Use of OSS Desktops, Written recommendations.

http://www.ipa.go.jp/software/open/ossc/download/

Web Recommendations En.pdf.

Peter, K. (2005). Government web standards usage: Usa

– standards-schmandards. http://www.standards-

schmandards.com/2005/government-web-standards-

usage-usa/.

Peter, K. (2006). Government web standards usage:

People’s republic of china – standards-schmandards.

http://www.standards-schmandards.com/2006/gvmt-

standards-prc/.

Xu, L., Xu, B., Nie, C., Chen, H., and Yang, H. (2004). A

browser compatibility testing method based on com-

binatorial testing. In Lecture Notes in Computer Sci-

ence, volume 2722/2003, pages 310–313. Springer

Berlin / Heidelberg.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

162
