INTENTION-BASED CORRECTIVE FEEDBACK GENERATION
USING CONTEXT-AWARE MODEL
Sungjin Lee, Cheongjae Lee, Jonghoon Lee, Hyungjong Noh and Gary Geunbae Lee
Pohang University of Science and Technology (POSTECH), Korea
Keywords: Dialog-based Computer Assisted Language Learning, Dialog System, Conversational Tutoring.
Abstract: In order to facilitate language acquisition, when language learners speak incomprehensible utterances, a
Dialog-based Computer Assisted Language Learning (DB-CALL) system should provide matching fluent
utterances by inferring the actual learner’s intention both from the utterance itself and from the dialog
context as human tutors do. We propose a hybrid inference model that allows a practical and principled way
of separating the utterance model and the dialog context model so that only the utterance model needs to be
adjusted for each fluency level. Also, we propose a feedback generation method that provides native-like
utterances by searching Example Expression Database using the inferred intention. In experiments, our
hybrid model outperformed the utterance only model. Also, from the increased dialog completion rate, we
can conclude that our method is suitable to produce appropriate feedback even when the learner's utterances
are highly incomprehensible. This is because the dialog context model effectively confines candidate
intentions within the given context.
1 INTRODUCTION
Second language acquisition (SLA) researchers have
claimed that feedback provided during
conversational interaction facilitates the acquisition
process (Long, 2005; Swain, 1996). Helpful
interactional processes include the negotiation of
meaning and provision of recasts, both of which can
supply corrective feedback to let learners know that
their utterances were problematic. A further
interactional process that can result from feedback is
known as modified output. For example, consider the
interactional processes, in which the system
negotiates to determine the meaning using a
clarification request in response to the learner’s
unnatural expression (Table 1). The language learner
modified the original utterance to convey the
intended meaning by referring to the recast provided
by the system.
Unfortunately, conversational interaction is one
of the most expensive ways to teach a language.
Thus, interest in developing Dialog-based Computer
Assisted Language Learning (DB-CALL) systems is
rapidly increasing. However, just using conventional
dialog systems in a foreign language would not be
beneficial because language learners commit
numerous and diverse errors. A DB-CALL system
should be able to understand language learners'
utterances in spite of these obstacles. Also, it is
desirable to offer appropriate feedback.
To achieve this goal, rule-based systems usually
anticipate error types and hand-craft a large number
of error rules but this approach makes these methods
sensitive to unexpected errors and diverse error
combinations (Schneider and McCoy, 1998; Morton
and Jack, 2005; Raux and Eskenazi, 2004). A more
serious problem is that just correcting grammatical
errors cannot guarantee that the utterance is fluent
and meaningful. Therefore, we argue that the proper
language tutoring methodology is not to correct
specific errors but to provide native-like utterance
examples which realize the user's intention.
To accomplish this purpose, as human tutors do,
we first infer the actual learners' intention from the
erroneous utterances by taking not only the
utterance itself but also the dialog context into
consideration, and then generate a corrective
feedback based on the inferred intention.
The remainder of this paper is structured as
follows. Section 2 briefly describes related studies.
Section 3 introduces the system architecture and
operation. Section 4 presents the detailed description
of our hybrid intention recognition model. Section 5
describes the experimental results to assess the
method’s potential usefulness. Finally, Section 6
gives our conclusion.
11
Lee S., Lee C., Lee J., Noh H. and Geunbae Lee G. (2010).
INTENTION-BASED CORRECTIVE FEEDBACK GENERATION USING CONTEXT-AWARE MODEL.
In Proceedings of the 2nd International Conference on Computer Supported Education, pages 11-18
DOI: 10.5220/0002773200110018
Copyright
c
SciTePress
Figure 1: System architecture.
Table 1: An example dialog in which the DB-CALL
system returns a feedback recommending use of a native-
like utterance.
Speaker Intention Dialog
System:
wh-question
(trip-purpose)
Wha
t
is the purpose of your trip?
User:
inform
(trip-purpose)
My purpose business
System:
clarify
(under-
standing)
Sorry, I don’t understand. What did
you say?
← Clarification request
On screen: try this expression
“I am here on business”
← Recast
User:
inform
(trip-purpose)
I am here on business
← Modified output
2 RELATED WORKS
There are several studies on general dialog systems
which have examined incorporating the dialog
context into recognizing dialog acts. Due to the
difficulties of extracting and employing rich dialog
context, most of them included just a few types of
context such as previous dialog act (Poesio and
Mikheev, 1998), or dialog state in finite-state model
(Bohus and Rudnicky, 2003). Recently, Ai et. al.
(2007) investigated the effect of using rich dialog
context and showed promising results. The ways to
incorporate the dialog context mostly involved just
combining all features both from the utterance and
the context into one feature set which was then used
to train inference models. For DB-CALL, however,
such approaches can be problematic, because
distinct handling for each of the fluency level is
important in a language learning setting. Given a
dialog scenario, the dialog context model is
relatively invariant; thus we propose a hybrid model
that combines the utterance model and the dialog
context model in a factored form. This approach
allows us to adjust the hybrid model to a required
fluency level by replacing only the utterance model.
3 SYSTEM ARCHITECUTRE
AND OPERATION
The whole system consists of the intention
recognizer and the dialog manager (Fig. 1). The
intention recognizer is a hybrid model of the dialog
state model and one of the utterance models. A
specific utterance model is chosen according to a
learner's proficiency level. When the learner utters,
the utterance model elicits n-best hypotheses of the
learner's intention, and then they are re-ranked by
the results of the dialog state model. The detailed
algorithm will be described at the next section.
The role of the dialog manager is to generate
system responses according to the learner's intention
and also generate corrective feedback if needed.
Corrective feedback generation takes two steps: 1)
Example Search: the dialog manager retrieves
example expressions by querying Example
Expression Database (EED) using the learner's
intention as the search key. 2) Example Selection:
The dialog manager selects the best example which
maximizes the similarity to the learner's utterance
based on lexico-semantic pattern matching.
If the example expression is not equal to the
learner's utterance, the dialog manager shows the
example as recast feedback and conduct a
clarification request to induce learners to modify
CSEDU 2010 - 2nd International Conference on Computer Supported Education
12
their utterance (Table 1). Otherwise, the dialog
manager shows one of the retrieved examples as
paraphrase feedback so that learners may acquire
another expression with the same meaning.
Sometimes, students have no idea about what to say
and they cannot continue the dialog. In such a case,
time out occurs and the utterance model does not
generate hypotheses. Hence, the dialog system
searches EED with only the result of the dialog state
model and shows the retrieved expression as
suggestion feedback so that students can use it to
continue a conversation.
Table 2: Representation of dialog context and an example
for immigration domain.
Dialog Context Features
PREV_SYS_INT
Previous system intention
Ex) PREV_SYS_INT =
wh-question(job)
PREV_USR_INT
Previous user intention
Ex) PREV_USR_INT = inform(job)
SYS_INT
Current system intention
Ex) SYS_INT = confirm(job)
INFO_EX_STAT
A list of exchanged information
states which is essential to successful
task completion; (c) denotes
confirmed, (u) unconfirmed
Ex) INFO_EX_STAT =
[nationality(c), job(u)]
DB_RES_NUM
Number of database query results
Ex) DB_RES_NUM = 0
4 HYBRID INTENTION
RECOGNITION MODEL
Our representation of user intention consists of
dialog act and type of subtask as shown in Table 1.
For example, the first system utterance “What is the
purpose of your trip?” can be abstracted by the
intention wh-question (trip-purpose).
The hybrid model merges hypotheses from the
utterance model with hypotheses from the dialog
context model to find the best overall matching user
intention. In the language production process, user
intentions are first derived from the dialog context;
subsequently the user intentions determine
utterances (Carroll, 2003). By using this dependency
and the chain rule, the most likely expected user
intention , given the dialog context and the
utterance can be stated as follows:
,
|
,
,,
,
(1)
(2)
|
|
,
(3)
By using Bayes’ rule, Eq. (3) can be reformulated as:
,
|
|
,
(4)
P(D) and P(D, U) can be ignored, because they are
constant for all I (Eq. 5):
,
|
|
(5)
In this formula, P(I|D) represents the dialog context
model and P(I|U) represents the utterance model.
The next two subsections discuss each sub-model in
detail.
4.1 Utterance Model
To predict the user intention from the utterance itself,
we use maximum entropy model (Ratnaparkhi, 1998)
trained on linguistically-motivated features. This
model offers a clean way to combine diverse pieces
of linguistic information. We use the following
linguistic features for the utterance model.
y Lexical word features: Lexical word features
consist of lexical tri-grams using current,
previous, and next lexical words. They are
important features, but the lexical words
appearing in training data are limited, so data
sparseness problem can arise.
y POS tag features: POS tag features also include
POS tag tri-grams matching the lexical features.
POS tag features provide generalization power
over the lexical features.
The objective of this modeling is to find the I that
maximizes the conditional probability, P(I|U) in Eq.
(5), which is estimated using Eq. (6):
|
1
,
(6)
where is the number of features,
denotes the
features,
the weighted parameters for features,
and is a normalization factor to ensure
|
1. We use a limited memory version of the quasi-
Newton method (L-BFGS) to optimize the objective
function.
INTENTION-BASED CORRECTIVE FEEDBACK GENERATION USING CONTEXT-AWARE MODEL
13
4.2 Dialog Context Model
Our representation of a dialog context consists of
diverse pieces of discourse and subtask information
as shown in Table 2. The task of predicting the
probable user intention in a given dialog context can
be viewed as searching for dialog contexts that are
similar to the current one in dialog context space and
then inferring to the expected user intention from the
user intentions of the dialog contexts found.
Therefore, we can formulate the task as the k-nearest
neighbors (KNN) problem (Dasarathy, 1990). We
had a number of reasons for choosing instance-based
learning methodology. First, instance-based learning
provides high controllability for tuning the model
incrementally during operation, which is practically
very desirable property. Second, an elaborate
similarity function can be applied. Many of other
approaches, e.g. maximum entropy model used in
the utterance model, express the similarity between
states in a simplest manner through the features that
the states share, losing elaborate regularities between
features. For the dialog context model, we can easily
predict which features become important features to
measure similarity conditioning on certain values of
other features using general discourse knowledge.
For example, if the current system dialog act is
“inform”, the number of database query results
becomes an important feature. If the number of
results is greater than one, the most likely expected
user intention would be “select”. If the number of
results equals one, “ack” would be the most probable
intention. Otherwise, the users might want to modify
their requirements. Another example, if all
exchanges of information are confirmed and the
current system intention is “wh-question”, the
current system intention itself becomes the most
important feature to determine the next user
intention.
However, the conventional KNN model has two
drawbacks. First, it considers no longer the degree of
similarity after selecting k nearest contexts, hence
intentions that occur rarely cannot have a chance to
be chosen regardless of how close they are to the
given dialog context. The second drawback is that if
dialog contexts with, say, intention A, are locally
condensed rather than widely distributed, then A is
specifically fitted intention to the local region of the
dialog context. So the intention A should be given
greater preference than other intentions. To cope
with these drawbacks, we introduce a new concept,
locality, and take both similarity and locality into
account in estimating the probability distribution of
the dialog context model (Eq. 9, 10).
The similarity function is defined as the
following equation:
,
,
(7)
where is the number of features,
denotes the
feature functions,
the weighted parameters for
features. Our feature functions first include the
simplest tests, whether a feature is shared or not, for
each feature of a dialog context (Table 2). For
composite features, individual tests are also included
for each constituent to alleviate data sparseness
problems. For example, we include feature functions
not only for system intention but also for its
constituents, system dialog act and type of subtask.
In addition, we include a number of feature
functions which test the elaborate rules as illustrated
in the examples above. The weighted parameters are
given initial values based on general discourse and
task knowledge and optimized on the development
data set with minimum error rate criteria.
The locality function is the ratio between the
number of elements of the set
,
and the number of
elements of the set
:
,
,
,
(8)
where
|
,
and
,
|
,
and
is the set of k nearest neighbors of the given
dialog context .
The score function calculates the score of the
intention I based on the set of k nearest dialog
contexts using both similarity and locality:
,
,
,
,
(9)
To let the dialog context model be a probability
distribution, the score function is divided by the
normalization factor:
|
,
,
(10)
5 EXPERIMENTS
To verify the proposed model, we conducted a case
study for dialogs in a system devoted to immigration
into an English-speaking country. We used the
example based dialog management method (Lee et.
CSEDU 2010 - 2nd International Conference on Computer Supported Education
14
al., 2009) to build the dialog system. We used the
dialog corpus in an immigration domain which
consists of 192 dialogs (3,517 utterances, 18.32
utterances per dialog). The number of types of
dialog act is seven and the number of types of
subtask is eleven. We annotated each utterance in
dialogs by two steps. In the first step, we manually
annotated each utterance with the speaker’s intention
and component slot-values. In the second step, we
automatically annotated each utterance with the
discourse information (Table 2) using in-house
software.
5.1 An Example Dialog
The following dialog gives a flavor of the system in
real action. A brief commentary is given at key
points in the dialog and is printed in italics.
S1: Hi. This is a dialogue system for English
learning. May I ask your name for
authentication?
U1: My name is Hong Kil Dong
S2: You are a new user. We have four themes
such as immigration, transportation, hotel, and
restaurant theme. Which theme do you want to
learn?
U2: I’d like the immigrant theme
S3: The immigrant theme is selected. Let’s get
started
S4: Hello
U3: Hi
S5: Your passport please
U4: Here this
On screen: [Recast] Here you are
[Recast] is an example utterance provided by
recast feedback. “Here this”, the student’s
utterance, is understandable based on context
but it is not a good expression. The system
recommends a better expression so that the
student becomes better in a next dialogue.
S6: Sorry, I don’t understand. What did you say?
U5: Here you are
S7: What's your nationality?
U6: I am a Korean
On screen: [Paraphrase] I come from Korea
When the user utterance is correct the system
s
hows another possible expression by
paraphrase feedback.
S8: What's the purpose of your visit?
U7: Business
On screen: [Paraphrase] I am here on
business
I
f a user input is simple words or a phrase,
then the s
y
s
tem shows a complete sentence.
S9: How long are you staying?
U8: I stay for three weeks
On screen: [Recast] I will stay for three weeks
The user utterance is semantically
understandable but it is grammatically wrong.
The system shows a grammatically correct
s
entence on screen which is obtained by
searchingEED.
S10: Sorry, I don’t understand. What did you
say?
U9: I will stay for three weeks
S11: Anything to declare?
U10: Pardon me?
S12: Anything to declare?
U11: Nothing
On screen: [Paraphrase] Just my personal
things
S13: What kind of job?
U12: [TIMEOUT]
On screen: [Suggestion] I am a student
[Suggestion] is an example utterance provided
by suggestion feedback. The system knows that
it asked the user about a job in the previous
question. And it also knows that it already got
information about nationality, purpose of visit
and period through the dialog history.
Therefore by using such dialogue history, the
s
ystem can find out a proper example from
Example Expression DB.
U13: I am a computer programmer
S14: Ok, no problem
U14: Thank you. Bye
S15: The immigrant theme has been done. Your
total score is B. In next time, you better use more
comprehensive and complete expressions, and try
to say more quickly. Would you like to continue
learning another theme?
The system provides assessment feedback
which includes total score and specific
messages that inform the student which part
they need to improve.
U15: No.
S16: Study session ends.
5.2 Simulated Language Learner
In this experiment, instead of involving real
language learners, we simulated them by injecting
grammar errors into clear utterances generated using
the user simulation method described in (Jung et. al.,
2009). We did this because we want to freely adjust
the fluency level of users for intensive tests in a
variety of settings, and because the cost of engaging
large numbers of language learners with diverse
fluency levels during development is particularly
INTENTION-BASED CORRECTIVE FEEDBACK GENERATION USING CONTEXT-AWARE MODEL
15
high. Employing a simulated user will greatly
accelerate the development cycles.
To simulate various fluency levels, we examined
the Korean Student English Essay (KSEE) corpus
which is a collection of essays by Korean university
students. The corpus consists of 119 essays (915
sentences). We annotated the corpus with the error
tags defined in (Michaud, 2002). The frequencies of
error types were measured. In total, 65 error types
and 2,404 instantiated errors were discovered. We
classified error types into three categories:
substitution, insertion, and deletion. For each
category, we listed the five most common error
types (Table 3) which account for 73% of the errors.
As Foster (2007; 2005) and Lee (2009) generated a
treebank of ungrammatical English, we also
produced artificial grammar errors systemically. The
error generation procedure takes as input a part-of-
speech tagged sentence which is assumed to be well-
formed, and outputs a part-of-speech tagged
ungrammatical sentence. In the first step of the error
generation procedure, we set the Grammar Error
Rate (GER) between 0 % ~ 100 % and determined
error counts to be produced based on the GER. Then,
we distributed the errors among categories and error
types according to the percentages in the error types
list (Table 3).
Table 3: Three categories of error types and the top 5 error
types in each category.
Category Error type with category
Substitution
(47%)
Spell (71%)
Plural Form (14%)
Subject Verb Agreement (10%)
Incorrect Preposition (3%)
Incorrect Determiner (2%)
Deletion
(36%)
Missing Determiner (62%)
Missing Preposition (18%)
Missing Conjunction (13%)
Missing Verb (4%)
Missing Subject (3%)
Insertion
(17%)
Extra Preposition (36%)
Extra Determiner (26%)
Extra Conjunction (20%)
Extra Verb (15%)
Extra Intensifier (3%)
5.3 Results
5.3.1 Hybrid Model vs. Utterance Model
To verify the effectiveness of the dialog state-
awareness, we compared the hybrid model with the
utterance only model. The utterance only model just
omits the dialog context model from the hybrid
model. We conducted 200 dialogs for each model
per 10 % GER intervals. The hybrid model
significantly outperformed the utterance only model
for overall range of GER. As the GER increased, the
performance of the utterance only model decreased
dramatically, whereas the performance of the hybrid
model decreased smoothly (Fig. 3). It verifies the
effectiveness of dialog state-awareness through our
hybrid approach.
5.3.2 Appropriateness of Feedback
On the contrary to the task oriented dialogs,
language tutoring systems do not need to exactly
recognize the learner’s intention. Even if the inferred
intention is not the same as the actual one, the
feedback can be valuable for language acquisition as
long as the feedback is appropriate to the dialog
context. In fact, human tutors also generate feedback
relying on only the dialog context when the learners’
utterances are
highly incomprehensible. Often,
without such feedback, the conversation even can be
stuck with a learner’s problematic utterance, thereby
cannot successfully finish. As McClelland (1961)
noted the role of success motivation in learning, the
completion of a dialog itself is undoubtedly
important rewards in foreign language learning.
Therefore, we want our hybrid model to provide
feedback appropriate to the dialog context regardless
of whether the inferred intention exactly equals the
original one or not.
Figure 3: Comparison between the hybrid model and the
utterance only model.
To evaluate the appropriateness of the feedback, we
conducted 200 dialogs per 10 % GER intervals from
10 % to 90 %, and observed the Dialog Completion
CSEDU 2010 - 2nd International Conference on Computer Supported Education
16
Rate (DCR) as the GER increased. As the GER
increased, the performance of the hybrid model
decreased, whereas the DCR decreased very slightly
(Fig. 4). Because of the clarification sub-dialogs, the
average dialog length increased as the GER
increased. Based on this result, we can conclude that
our method is suitable to produce appropriate
feedback even when the inferred
intention is not the
same as the actual one. This is because the dialog
context model effectively confines candidate
intentions within the given context.

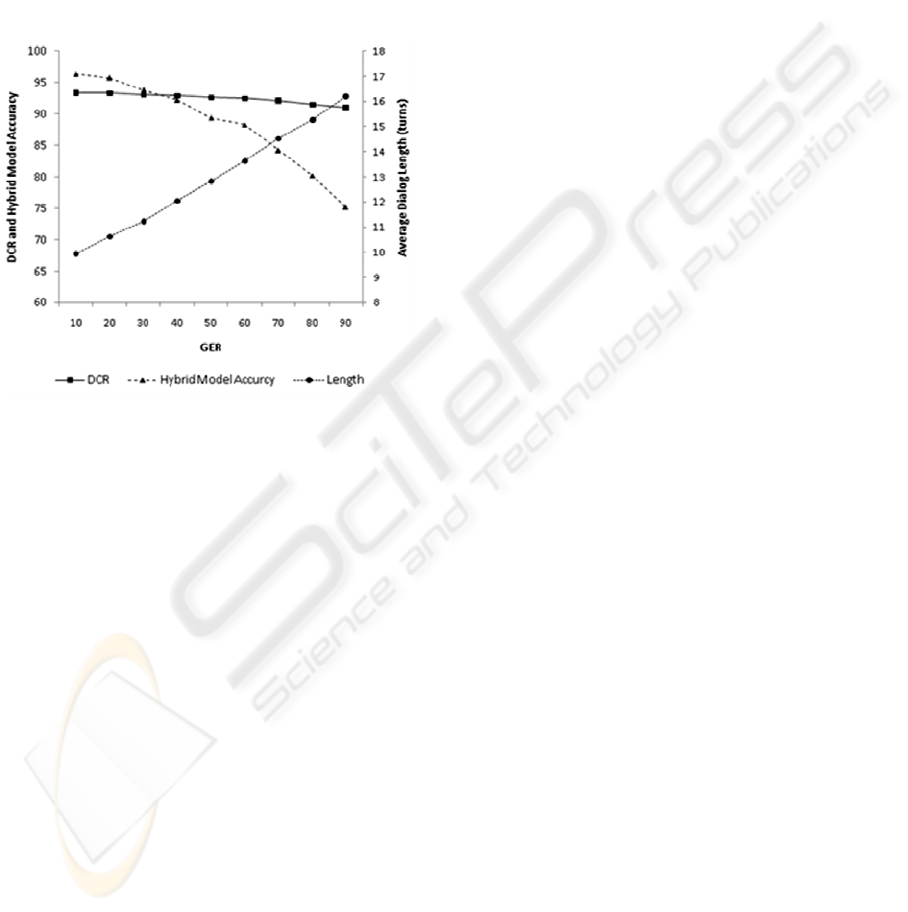

Figure 4: The relation between Dialog Completion Rate
and the performance of the hybrid model and the Average
Dialog Length.
6 CONCLUSIONS
When language learners speak incomprehensible
utterances, a DB-CALL system should provide
matching fluent utterances. We proposed a novel
hybrid model that allows natural decomposition
between the utterance model and the dialog context
model in terms of the psychological language
production process. It led to an efficient way for
adjusting to diverse fluency levels with minimal
efforts. In addition, our elaborate dialog context
model using enhanced k-nearest neighbors algorithm
gave rise to more accurate inference of the language
learners’ intention. Also, it proved to be effective to
provide appropriate context-aware feedback so that
the learners can obtain positive rewards by
successfully completing dialogs.
To further confirm the pedagogic value of the
method, we plan to design the pretest-posttest
comparison of an experimental and a control group.
In addition, we want to simulate ASR errors of non-
native speakers so that we can test whether our
method is also effective in a speech environment.
ACKNOWLEDGEMENTS
This research was supported by the Web-Scale NLP
Theme Program funded by Microsoft Research Asia
REFERENCES
Ai, H., Roque, A., Leuski, A., Traum, D. 2007. Using
Information State to Improve Dialog Move
Identification in a Spoken Dialog System In Proc.
Interspeech 2007, Antwerp
Bohus, D. and Rudnicky, A. 2003. RavenClaw: Dialog
Management Using Hierarchical Task Decomposition
and an Expectation Agenda. In Proc. Eurospeech
2003, Geneva.
Carroll, D. 2003. The Psychology of Language
Wadsworth Publishing Co Inc. 4th edition
Dasarathy, B. V. 1990. Nearest neighbor (NN) norms: NN
pattern classification techniques Los Alamitos: IEEE
Computer Society Press
Foster J. 2007. Treebanks Gone Bad: Parser evaluation
and retraining using a treebank of ungrammatical
sentences. International Journal on Document Analysis
and Recognition, 10(3-4), 129--145.
Foster J. 2005. Good Reasons for Noting Bad Grammar:
Empirical Investigations into the Parsing of
Ungrammatical Written English. PhD Dissertation,
Department of Computer Science, Trinity College,
University of Dublin
Jung S., Lee C., Kim K., Lee G. G. 2009. Data-driven user
simulation for automated evaluation of spoken dialog
systems. Computer Speech and Language. 23(4):479-
509, Oct 2009
Lee C., Jung S., Kim S., Lee G. G. 2009. Example-based
Dialog Modeling for Practical Multi-domain Dialog
System. Speech Communication. 51(5):466-484, May
2009.
Lee S., Lee G. G. 2009. Realistic grammar error
simulation using markov logic. To be published in
Proceedings of the ACL 2009, Singapore, August
2009
Long, M. H. 2005. The role of the linguistic environment
in second language acquisition in W. C. Ritchie and T.
K. Bhatia (eds): Handbook of Second Language
Acquisition. New York: Academic Press, pp. 413–68.
McClelland, D. C. 1961. The achieving society New York:
Van Nostrand
Michaud L. N. 2002. Modeling User Interlanguage in a
Second Language Tutoring System for Deaf Users of
American Sign Language. PhD Dissertation,
Department of Computer and Information Sciences,
University of Delaware
INTENTION-BASED CORRECTIVE FEEDBACK GENERATION USING CONTEXT-AWARE MODEL
17
Morton, H. and Jack, M. A. 2005. Scenario-Based Spoken
Interaction with Virtual Agents, Computer Assisted
Language Learning, 18:3 pp. 171-191.
Poesio, M. and Mikheev, A. 1998. The Predictive Power
of Game Structure in Dialog Act Recognition:
Experimental Results Using Maximum Entropy
Estimation. In Proceedings of ICSLP-98.
Ratnaparkhi, A. 1998. Maximum Entropy Models for
Natural Language Ambiguity Resolution, PhD thesis,
University of Pennsylvania, 1998.
Raux, A. and Eskenazi, M. 2004. Using Task-Oriented
Spoken Dialog Systems for Language Learning.
Potential, Practical Applications and Challenges,
Proceedings INSTIL.
Schneider, D. and McCoy K. F. 1998. Recognizing
Syntactic Errors in the Writing of Second Language
Learners. In Proceedings of the Thirty-Sixth Annual
Meeting of the Association for Computational
Linguistics and the Seventeenth International
Conference on Computational Linguistics (COLING-
ACL), Volume 2
Swain, M. 1996. The output hypothesis: Theory and
research in E. Hinkel (ed.): Handbook of Research in
Second Language Teaching and Learning. Mahwah,
NJ: Lawrence Erlbaum Associates, pp. 471–83.
.
CSEDU 2010 - 2nd International Conference on Computer Supported Education
18
