THE 3D XML BENCHMARK

Mohammed Al-Badawi, Siobhán North and Barry Eaglestone

Department of Computer Science, The University of Sheffield, Sheffield, U.K.

Keywords: XML benchmark, XQuery processing, Performance evaluation.

Abstract: In the context of benchmarking XML implementations, several XML benchmarks have been produced to

either test the application’s overall performance or evaluate individual XML functionalities of a specific

XML implementation. Among six popular XML benchmarks investigated in this article, all techniques rely

on code-generated datasets which disregard many of XML’s irregular aspects such as varying the depth and

breadth of the XML documents’ structure. This paper introduces a new test-model called the “3D XML

benchmark” which aims to address these limitations by extending the dataset and query-set of existing XML

benchmarks. Our experimental results have shown that XML techniques can perform inconsistently over

different XML databases for some query classes, thus justifying the use of an improved benchmark.

1 INTRODUCTION

In the context of XML technology, an XML

benchmark is a tool for evaluating and comparing

the performance of new XML developments with

existing XML technology (Lu et al. 2005). Because

of the nature of XML databases and the variety of

different platforms used to store these databases (e.g.

RDBMS and OO-RDBMS), the benchmarking

process mainly examines the performance of the

underlying storage-model, the associated query

processor and the update handler (Lu et al. 2005). In

terms of query processing, the literature (Schmidt et

al. 2001) identified ten functionalities to be tested:

XML data bulk-loading, XML reconstruction, path

traversals, data-type casting, missing elements, order

access, reference navigation, joins, construction of

large results, containment and full-text searching.

Most of the existing XML benchmarks evaluate

the above functionalities using an XML application

scenario where a benchmark consists of one or more

interrelated XML documents with a limited variation

–in most cases- in terms of the database’s

dimensions including the depth, breadth and size.

The query-set pays little or no attention to the impact

of the document’s nested structure on the XML

querying/updating processes. This paper introduces

a new XML test-model (called “The 3D XML

Benchmark”) that extends the existing benchmarks’

design to include these features. Experiments,

discussed in Section 5, show that the performance of

an individual XML techniques is determined by two

main factors; the nature of the XML database

processed and the inclusion of these features (e.g.

the database’s three dimensions) in the XQuery

syntax.

The rest of this paper is organized as follows.

Section 2 reviews the XML benchmarking while the

new benchmark is introduced and tested in Sections

3 and 5 respectively. Section 4 describes a node-

based scaling algorithm used by the new benchmark

to reduce the size of the XML databases; and

Section 6 concludes the paper.

2 RELATED WORK

XML benchmarks can be divided into application

benchmarks and micro benchmarks. This section

reviews six most popular XML benchmarks from

both categories, showing their strengths and

weaknesses. The characteristics of these benchmarks

are summarised in Table 1.

XMark: This benchmark (Schmidt et al. 2002) is

widely used by the XML development community

because it generates XML databases of any size and

covers all XML query-able aspects identified in

(Schmidt et al. 2001). The underlying dataset

consists of a single, code-generated XML document

of a size controlled by a positive floating-point

Al-Badawi M., North S. and Eaglestone B.

THE 3D XML BENCHMARK.

DOI: 10.5220/0002774300130020

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

Table 1: A Comparison between different XML benchmarks.

Benchmark

Dataset

Query-set

Source

Environment

(TC/DC)

†

#of

Docs

Size

Min/Max

Depth

#of

Queries

#of

Update

Queries

Depth

Aware?

XMark Synthetic

1 TC

rest DC

Controlled

by SF: tiny

(KB)

to huge (GB)

12 20 0 No

XOO7 Synthetic

Majority DC

Few TC

Small

Medium

Large

5 23 0 No

XBench Synthetic Mixed Mixed

Small (10MB)

Normal(199MB)

Large(1GB)

Huge(10GB)

Limited

variation

20 0 No

XMach~1 Synthetic

Mostly TC

Few DC

Multi

(10

-10

docs)

2KB to 100KB

per document

≤ 6 levels 8 3 No

Michigan

(MBench~v1)

Synthetic DC 1

Multiple of

728KB nodes

Max. 100 times

5 to 16 28 3 Yes

TPoX Synthetic

Mix of TC and

3.6

3.6×10

3KB-20KB each

controlled

template

7 10 No

†

→

Document-centric DB, DC

→

Data-centric DB

scaling factor (SF=1.0 produces 100MB), and with a

depth which is always 12.

Although it simulates a real-life database

scenario, elements in the corresponding XML tree

tends to be evenly distributed at each level. This

feature omits several irregular aspects of the

underlying database such as the diversity in the

node’s fanouts. Using fixed-depth XML documents

is also an issue in this benchmark.

XOO7: This benchmark (Li et al. 2001) is the XML

version of the “OO7” (Carey et al. 1993), an

evaluation technique used to benchmark object-

oriented RDBMS. The benchmark’s dataset contains

a single document, translated from its base

benchmark. The XML file can be produced in three

versions: small, medium and large. Regardless its

size, the depth of any generated XML file is always

Using code-generated, fix-depth, and only 3-

levels of document’s size make the benchmark

impractical for scalability tests and other irregularity

evaluation.

XBench: XBench (Yao et al., 2004) is another XML

benchmark which uses code-generated XML

documents. In XBench, the underlying dataset can

be one of four types: single-document/data-centric

(SD/DC), single-document/text-centric (SD/TC),

multiple-documents/data-centric (MD/DC) and

multiple-documents/text-centric (MD/TC). The size

of these documents varies from small (10MB),

normal (100MB), large (1BG) and huge (10GB); but

the depth ranges over a very limited domain.

Although it uses a template-based generation

algorithm which simulates some real database

scenarios, the features of the database produced are

restricted by the features encoded in the generation

templates. The benchmark also does not incorporate

the document’s depth-variation into the XML

querying process.

XMach~1: Among the benchmarks investigated in

this paper, XMach~1 (Böhme and Rahm 2003) is a

benchmark that targets multi-user environments

using a Web-based application scenario. This section

only discusses the structure of underlying dataset

and query-set.

The benchmark’s dataset can contain a huge

number (10

to 10

) of XML documents with file-

size ranges from 2KB to 100KB. The interrelated

XML documents are generated by a parameterised

algorithm which controls the size of the document,

the number of elements and attributes, the length of

textual-contents, and the number of levels in each

document. The number of levels is restricted to 6

levels in all documents, and the variation in the

number of levels is not incorporated in the query-set

design.

Besides the depth-restriction, XML documents

generated by XMach-1 are very small, making the

benchmark inappropriate for evaluating large scale

implementations and/or scalability testing.

Furthermore, the query-set does not cover all XML

query-able functionalities identified in (Schmidt et

al. 2001); examples include path traversal, joins, and

aggregation.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

MBench~v1: The Michigan Benchmark

(Runapongsa et al. 2006) is a micro benchmark used

to test individual system functionalities rather than

the overall system performance. It is the only

benchmark of this category; and it uses a single-

document database scenario.

The size of default XML document used by

XBench~v1 is 728×10

nodes, and the number of

levels is 16. The size of the default XML database

can be doubled up to 100 times by varying the

node’s fanouts (2 to 13) at levels 5, 6, 7 and 8. Also,

the size and depth of the database can be controlled

by rooting the corresponding XML tree at different

levels between 5 and 16.

In the associated query-set, MBench~v1 supports

all XML query-types identified by (Schmidt et al.

2001). Unlike other techniques, the benchmark

incorporates a depth-dimension in the XML

querying process. This is done by scaling the XPath

expressions to match the database’s maximum

depth. MBench~v1 also provides three update

queries: inserting a node, deleting a set of nodes and

bulk-loading a new XML document into the

underlying database.

TPoX: “Transaction Processing over XML” (Nicola

et al., 2007) is another XML benchmark that targets

multi-user environments using an application-

oriented and domain-specific scenario.

The benchmark’s dataset is generated by the

ToXGene (Barbosa et al., 2002) XML generation

tool which uses templates to determine the

characteristics of the XML documents produced.

Three XML Schemas are used to control TPoX’s

generation process, producing millions of tiny XML

documents of size ranging from 3KB to 20KB

depending on the XML Schema used. Additionally,

an XML Schema controls the depth and breadth of

the XML files generated while element types are

preset to be, in general, data-centric with some

having large text values.

Unlike other benchmarks, TPoX query set is

concerned more with XML updates than search

query evaluations. It contains two queries to

insert/delete new/existing XML documents

respectively, and six queries to alter the contents of

existing documents. Seven search queries are used to

retrieve information from the underlying dataset

with no special attention paid to XML irregularities

such as varying the length of XPaths used and

testing missing element functionality.

Based on the above, the benchmark has no

obvious advantage over its predecessor (XMach~1)

in terms of dataset and query set specifications

although it simulates more real life business

transactions. This is also valid for a newer XML

benchmark proposed in (Cohen, 2009) which uses

the same sort of code-generated dataset as well as a

code-generated XPath query set (Wu et al., 2009).

In summary, the above review has identified

three main problems in existing XML benchmarks

(Mlynkova, 2008). These are: the use of synthetic

datasets which may exclude some real XML

irregularities, the use of single-source XML

databases which also restricts the diversity of XML

structures and the use of fixed-depth datasets and/or

query-set which prevents testing of the impact of the

nested XML structure. The following section

describes an XML test-model which aims to address

the above limitations.

3 THE 3D BENCHMARK

3.1 Motivation

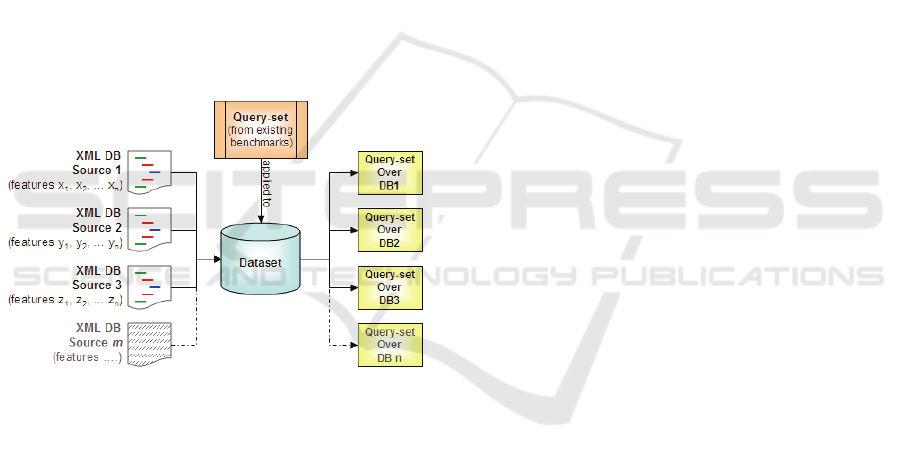

The proposed test-model aims to address the

limitations identified above by using XML

documents from different resources, including

synthetic and real databases, so that a natural and

logical diversity in the databases dimensions (i.e. the

depth, breadth and size) is guaranteed. The proposed

test-model must also reflect these features in the

query-set design. So, the underlying dataset of the

proposed test-model should contain –at least- three

different XML databases simultaneously each of

which incorporates certain XML features. The

dataset and query-set designs are discussed in

Section 3.3 and Section 3.4 respectively. The

following section describes a framework for the

technique’s working-environment.

3.2 The Benchmark Architecture

The basic idea of the proposed test-model is to vary

three XML aspects of the underlying XML dataset:

the size of the database in terms of number of nodes,

the depth (i.e. number of levels) and the breadth (i.e.

average fanouts). Unlike most existing XML

benchmarks (e.g. XMark (Schmidt et al. 2002),

XOO7 (Li et al. 2001) and XBench (Böhme and

Rahm 2003)), varying the database’s depth in the

new test-model is based on using distinct XML

databases from different sources. This also allows

natural diverse irregularity aspects in the underlying

XML databases (see Section 3.3). By keeping the

size of the dataset members used almost constant

with a clear diversity in the number of levels, the

THE 3D XML BENCHMARK

average-breadth degree of each XML database also

becomes diverse (Lu et al. 2005).

The 3D XML Benchmark adapts the XMark’s

(Schmidt et al. 2002) query-set which consists of

twenty queries. Each query (over XMark database)

is translated to match the schema of every XML

database included in the new dataset. For example,

the “Exact Matching” query of the XMark is

translated over the other two databases (i.e. DBLP

and TreeBank) to become three distinct queries (see

Fig 3). Then, each of these queries is reproduced for

the other two versions (i.e. reduced XML databases)

of each database to add another six queries to the

benchmark’s query-set. The total number of queries

in the entire query-set includes 20×3×3 queries.

The framework is illustrated in Fig 1. The

illustration also shows that more XML databases can

be added to the underlying XML data-set to

represent other XML database scenarios.

The following two sections describe the design

of the benchmark’s dataset and query-set

respectively.

Figure 1: The working-environment for the 3D XML

benchmark.

3.3 Dataset Design

The new test-model (also called the “3D XML

Benchmark”) uses multiple XML databases taken

from different sources to test the impact of three

XML structures (i.e. the depth, the breadth, and the

size in terms of the number of nodes). Of the XML

depth, it is well known (Lu et al. 2005, Runapongsa

et al. 2006) that the number of levels affects both the

length of the query-evaluation process and the

utilization of the underlying system resources (e.g.

memory-stack management, CPU usage, I/O devices

workload …etc). The memory-stack management is

also affected by the breadth of the XML tree due to

the nature of the pipelined querying process which

needs to spread over more branches (i.e. more paths)

at each navigational point (Beglund et al. 2007, Lu

et al. 2005). Finally, varying the number of nodes

during the XML benchmarking process is an

essential tool to test the scalability of any XML

implementation (Schmidt et al. 2002, Lu et al.

2005).

3.3.1 Dataset Selection

The base dataset of the 3D XML Benchmark

includes two real, single-document XML databases

and one synthetic, single-document database. The

databases are selected carefully from the existing

XML repositories (e.g. (Miklau 2009)) to reflect

different categories of the three XML dimensions;

that are the depth, breadth and size. At least one

database among dataset members must represent the

low, the average, and the high category for each

dimension respectively. This structure is illustrated

in Fig 2. The characteristics of the XML databases

selected are as follows (also see Tab 2):

DBLP Database: DBLP stands for Digital

Bibliography Library Project, and is a natural, large,

data-centric XML document which contains

bibliographic information about major computer

science publications including journals and

proceedings. The database is widely used in XML

technology evaluation experiments and is freely

downloadable at http://dblp.uni-trier.de/. The size of

this database is 609MB as of 21st June 2009 but the

version used in this study was 127MB and was

obtained from http://www.cs.washington.edu/

website.

XMark Database: This is a code-generated, single-

document XML database produced by the XMark-

generator (Schmidt et al. 2002) as the base XML

database for the XMark benchmarking process. The

database simulates an Internet auction application

for some dummy products from around the world.

The size of the XML documents generated, which

range from few kilobytes to hundreds gigabytes, is

controlled by a positive floating-point scaling-factor.

The majority of this database’s elements are data-

centric with one descriptive element containing

multiple long sentences about the items.

TreeBank Database: This is a single-document,

project-based XML database which stores thousands

of English sentences tagged to very deep levels. The

database is a part of The Penn Treebank Project

(PennProj 2009) which annotates naturally-

occurring text for linguistic structures. The

copyrighted text nodes have been encrypted without

affecting the overall XML structure of the database.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

In addition, the deep recursive structure of this data

makes it an interesting case for many experiments

(e.g. Liefke and Suciu 2000, Härder et al. 2007). The

size of the database used is 82MB and it can be

downloaded from http://www.cs.washington.edu/

website.

Tab 2 provides statistical information about the

base XML databases used in the 3D XML

Benchmark.

Table 2: XML databases used by the 3D XML benchmark.

DBLP

(dblp100)

XMark

(xmark100)

Treebank

(tree100)

Size (nodes) 2439294

2437669 2437667

#of Levels

††

†††

Min Breadth

†

2 2 2

Max Breadth 222381

34041 56385

Avg Breadth

†

11 6 3

#of Elems 2176587

1927185 2437666

#of Attrs 262707

510484 1

†

Calculations exclude leaf nodes

††

#of level is reduced from 12 while eliminating the text-based elements

†††

#of levels is reduced from 36 to enable the database’s management

using the available system resources without affecting the dataset

specifications

3.3.2 Varying XML Dimensions

Tab 2 shows that the diversity in the depth and

breadth of the dataset is ensured by nature of the

databases selected. Rationally, the depth-dimension

and the breadth-dimension of an XML database are

orthogonal given that the database’s size (#of nodes)

is constant. So, in a three-point scale, low, average

and high, the DBLP database represents the low

depth and high breadth categories while the

TreeBank database does the opposite. Similarly,

XMark is a representative of both the average depth

and breadth.

In terms of the size-dimension variation

(essential for the scalability testing), the 3D XML

Benchmark scales down each base XML database

into two more versions: the first contains 50% of the

nodes of the base database and the second contains

25%. The base XML databases are reduced using a

node-based, structure-preserving scaling algorithm

described in Section 4.

Conventionally, the node’s reduction-percentage

is attached to the name of base database to define the

name of the reduced versions. For example, the

‘DBLP100’ is given to the base database of the

DBLP while the ‘DBLP050’ defines the halved

database and the ‘DBLP025’ defines the quarter-

ized database. Fig 2 shows the location of the nine

XML databases in the three-dimensional plane.

Figure 2: The benchmark’s dataset members in the 3D-

plane.

3.4 Query-set Design

The 3D XML Benchmark adapts the XMark’s

(Schmidt et al. 2002) query-set to produce nine

different query-sets each of which is executed over a

specific XML database of the benchmark’s dataset.

Using a set of twenty queries grouped into fourteen

categories, XMark covers all query-able aspects of

XML databases identified by (Schmidt et al. 2001).

This section highlights only the query translation

process while the complete query-set listing is

provided in further publications.

XML queries used by the XMark benchmarking

project are expressed using FLWR XQuery (Boag et

al. 2007) format. Each XQuery is composed of at

least one XPath expression (Beglund et al. 2007)

which navigates through the ‘auction’ XML

database (File: ‘auction.xml’) to reach the desired

XML nodes. In the XQuery example illustrated in

Fig 3(c, d), the XPath expression seeks the name of

an item labelled by ‘item20748’ which can be

purchased from the North of America (namerica)

region. So, the corresponding XQuery (shown in Fig

3(c, d)) tests two XPath expressions in order to

return the name of target item. The first XPath

expression “path 1” is used to locate the searched

item while the second XPath expression “path 2” is

used to return the name of the item that satisfies the

searching criteria.

In the new query-set, the same XQuey syntax

can be used over XMARK100, XMARK050 and

XMARK025 databases, but with different search

criteria in each case. The value of the item_id is

changed for each database version to ensure that the

item sought is found within approximately the same

distance from the root node (e.g. at distance of 27%

of the total number of nodes in the database). This is

THE 3D XML BENCHMARK

Figure 3: An Example of XQuery Translations (Exact-matching).

Input: ‘s’ is the scaling-percentage (1-100%); ‘db1’ is an XML database of ‘n’ nodes

Output: db2 : an XML database of ‘m’ nodes where m ≅ s×n/100

Parse ‘db1’ ⇒ construct the path-set and the individual path’s node-set;

Consider ‘s%’ of each path’s node-set ⇒ an XML tree ‘db2’ with some dangling nodes;

Add all ancestors of dangling nodes ⇒ bigger XML tree ‘db2’ of ‘m’ nodes;

Repeat until m=(s×n/100) ± d, where ‘d’ is a very small integer comparing to ‘n’

Adjust ‘s’ according to the value of ‘m’;

Consider ‘s%’ of each path’s node-set ⇒ an XML tree ‘db2’ with some dangling nodes;

Add all ancestors of dangling nodes ⇒ bigger XML ‘db2’ tree of ‘m’ nodes;

End;

Return db2;

Figure 4: The node-based scaling algorithm.

important because the relative location of the target

data impacts on the overall querying process. For

other database categories (i.e. using DBLP or

TreeBank instead of XMARK), the length of each

XPath expression is scaled down/up to match the

depth of the new XML database, and the location-

steps are replaced with tag/attribute names from the

new database’s schema. The length of any XPath

expression under the TreeBank (or DBLP) databases

is kept (as much as possible) twice (or half) the

length of the corresponding expression in the XMark

database. Fig 3(a, b) and Fig 3(e, f) depict the

translation of the XQuery example in Fig 3(c, d) for

the DBLP and TreeBank databases respectively. In

these examples, the query returns the title of a PhD

thesis identified by the key ‘phd/White94’ in the

first case while in the second case the query returns

the textual contents of the element ‘NNS’ that is

located under the path

‘/FILE/EMPTY/ADJP/PP/NP/VP/PP/PP/NP’ where

the value of the child element ‘JJ’ is

“Had5yxWr+9m+82oVrszXXx==”.

4 A NODE-BASED SCALING

ALGORITHM (NBS)

The algorithm in Fig 4 was used by the 3D XML

benchmark to reduce the size of the dataset members

while keeping the underlying XML schema

unchanged. The algorithm can also be used to add

more XML databases to the base dataset. Because

XML databases can be added from any source

(synthetic or real), there will be conflicts in the size

in terms of number of nodes. Therefore, the

algorithm is first used to bring the size of the new

databases to the scale of the existing dataset

members. Secondly, the algorithm is used to

reproduce two more versions of each new database.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

The algorithm works as follows. Based on the

scaling-percentage “s”, the algorithm selects “s%” of

the node-sets of every path in the XML tree. The

sub-tree selected may then contain some dangling-

nodes (i.e. separated from the root node). The

ancestors of these dangling-nodes are then added to

the sub-tree. If the number of nodes in the new sub-

tree is outside acceptable limits around “s%”, the

scaling-percentage “s” is tuned to increase or

decrease the size of the sub-tree produced.

Fig 5 depicts the experimental results from a test

of the node-based scaling algorithm. Firstly, five

XML documents were produced by the XMark

(Schmidt et al. 2002) generator at scaling-factor (SF)

of 1.0, 0.8, 0.6, 0.4 and 0.2. The same number of

documents were produced using the new algorithm

which scales the base XML documents (produced by

XMark at SF=1.0) at 80%, 60%, 40% and 20%. The

other five XML documents were also produced by

the new algorithm but using the tuning mechanism.

The difference between the numbers of nodes for

similar documents was calculated and is presented in

the graph.

The experiment shows that the number of nodes

in the XML documents generated using the un-tuned

node-based scaling algorithms is usually less than

the number of nodes in the XMark’s documents.

However, by tuning the scaling-percentage, the size

of the documents is always within acceptable limits.

Figure 5: A Comparison between the document-size of

XML documents generated by XMark and NBS algorithm.

Table 3: Experiments’ Query-set.

Q1: Shallow Exact Matching

Q1B: Deep Exact Matching

Q2: Order Access

Q3: RPE using ‘*

’

Q3B: RPE using ‘//

’

Q4: Joins on Values

Q5: Path Traversal

Q6: Missing Elements

5 A PERFORMANCE STUDY

5.1 Experiment Setup

To measure the impact of varying the database’s

dimensions on the XML querying process, an

experimental study was conducted to compare the

relative performance of two well-known mapping

techniques (Edge (Floescu and Kossmann 1999) and

XParent (Jiang et al. 2002) using the 3D XML

Benchmark. The experiment compares the

execution-time of eight queries that were executed

over the benchmark’s base databases. The discussion

of other experimental metrics (e.g. CPU usage) as

well as the results over the reduced database

versions is omitted from this paper due the space

limitation. Finally, a short description of the queries

used is given Tab 3 while results are discussed in the

following section.

5.2 Experimental Results

The result presented in Fig 6 show that the

performance of any XML technique was not always

consistent over the three XML databases for some

query-classes. In the “Shallow Exact Matching” for

example, XParent technique performed better than

Edge technique over the “DBLP100” and

“XMark100” databases but not the “TREE100”

database. The inconsistency was also found in the

“RPE using * Operator” query, the “RPE using //

Operator” query and the “Joins on Values” query.

6 CONCLUSIONS

This paper introduced a new test-model called the

3D XML benchmark which addresses several

limitations found in the existing XML benchmarks

by extending their datasets and query-sets. Rather

than relying on synthetic datasets, the extended

benchmark uses a combination of real and code-

generated XML databases to encounter more XML

structures that are inherited from both XML sources

such as a clear variety in the depth and the breadth

of the XML databases and wider range of irregular

XML structures. In addition, the extended model

provides a more realistic environment for testing the

scalability of XML implementations by preserving

the XML schema of the databases’ versions used.

Unlike other XML scaling algorithms which, for

example, discard some elements’ classes or

regenerate a fresh database in order to reduce its

THE 3D XML BENCHMARK

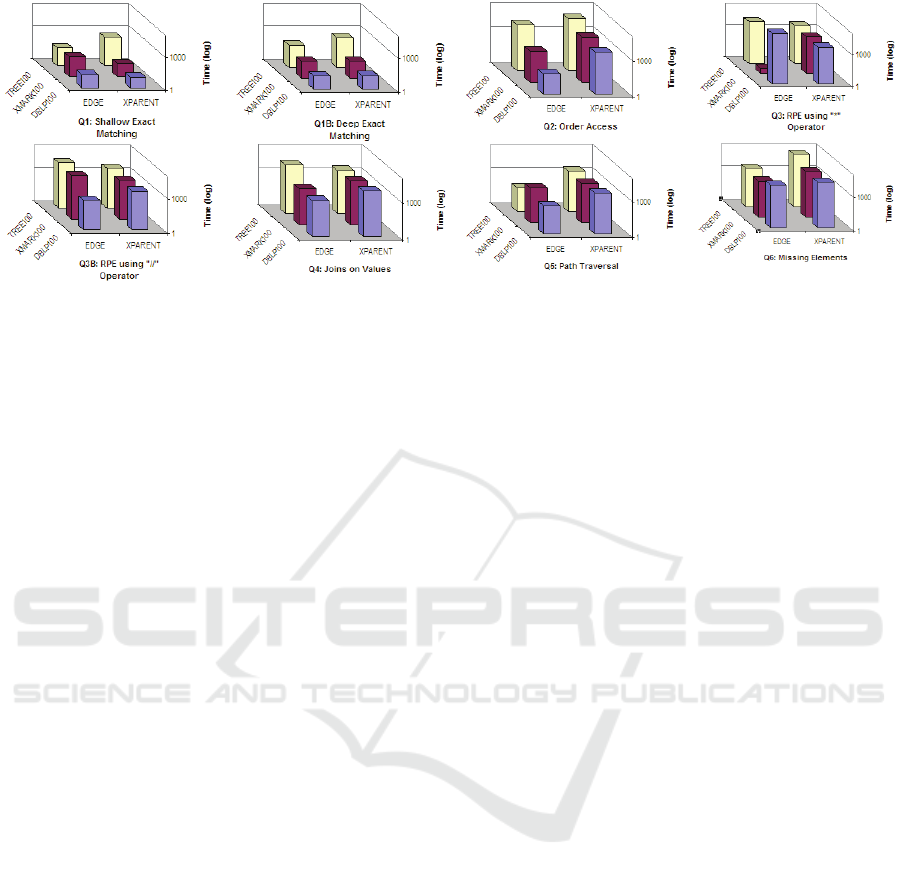

Figure 6: Experimental Results Representation.

size, the 3D test-model uses a node-based scaling

algorithm to proportionally reduce the fanouts at all

tree levels.

The experimental results (discussed in this paper)

have shown that some XML techniques, which were

tested against the new benchmark’s dataset, have

performed inconsistently over different database’s

classes for some query-set members.

REFERENCES

Berglund, A., Boag, S., Chamberlin, D., Fernández, M.,

Kay, M., Robie, J., and Siméon, J. (2007) XML Path

Language (XPath) 2.0, [Online] Avail:

http://www.w3.org/TR/xpath20/ [30/08/2009].

Boag, S., Chamberlin, D., Fernández, M., Florescu, D.,

Robie, J., and Siméon, J. (2007) XQuery 1.0: An XML

Query Language [Online] Avail:

http://www.w3.org/TR/xquery/ [30/08/2009].

Böhme, T. and Rahm, E., (2003) ‘Multi-User Evalaution

of XML Data Management Systems with XMach~1’,

EEXTT’02, pp 148-159.

Carey, M., DeWitt, D. and Naughton, J. (1993), ‘The OO7

Benchmark’, ACM/SIGMOD Record, 22(2), pp 12-21.

Cohen, S. (2008) ‘Generating XML Structure Using

Examples and Constraints’, PVLDB’08, pp 490-501.

Florescu, D., and Kossmann, D. (1999) ‘A Performance

Evaluation of alternative Mapping Schemas for

Storing XML Data in a Relational Database’,

TR:3680, May 1999, INRIA, Rocquencourt, France.

Harder, T., Haustein, M., Mathis, C., and Wagner, M.

(2007) ‘Node Labelling Schemes for Dynamic XML

Documents Reconsidered’. Int’l Journal of DKE,

60(1), pp 126-149.

Jiang, H., Lu, H., Wang, W., and Yu, J. (2002) ‘XParent:

An Efficient RDBMS-Based XML Database System’,

ICDE’02, CA, USA, pp 1-2.

Li, Y., Bressan, S., Dobbie, G., Lacroix, Z., Lee, M.,

Nambiar, U. and Wadhwa, B. (2001) ‘XOO7:

Applying OO7 Benchmark to XML Query Processing

Tool’, ACM/CIKM., Atlanta, USA, pp 167-173.

Liefke, H., and Suciu, D. (2000) ‘XMill: an efficient

compressor for XML data’, ACM/SIGMOD’00, pp

153-164.

Lu, H., Yu, J., Wang, G., Zheng, S., Jiang, H., Yu, G. and

Zhou, A. (2005) ‘What Makes the Differences:

Benchmarking XML Database Implementations’,

ACM/IT., 5(1), NY, USA, pp 154-194.

Miklau, G. (2009) UW XMLData Repository [Online]

Avail: http://www.cs.washington.edu/research/

xmldatasets/ [15/06/2009].

Mlynkova, I. (2008) ‘XML Benchmarking’, IADIS’08, pp

59-66.

Nicola, M., Kogan, I.., and Schiefer, B. (2007) ‘An XML

Transaction Processing Benchmark’,

ACM/SIGMOD’07, pp 937-948.

PennProj. (1999) The Penn Treebank Project [Online]

Avail: http://www.cis.upenn.edu/~treebank/

[21/06/2009].

Runapongsa, K., Patel, M., Jagadish, H., Chen, Y., and Al-

Khalifa. S. (2006) ‘The Michigan Benchmark:

Towards XML Query Performance Diagnostics’, Int’l

Journal of IS, 31(2), pp 73-97.

Schmidt, A., Waas, F., Kersten, M., Carey, D., Manolescu,

I., and Busse. R. (2002) ‘XMark: A Benchmark for

XML Data Management’, VLDB’02, Hong Kong,

China, pp 1-12.

Schmidt, A., Waas, F., Kersten, M., Florescu, D., Carey,

M., Manolescu, J. and Busse, R. (2001), ‘Why and

How to Benchmark XML Databases’,

ACM/SIGMOD’01, CA, USA, pp 27-32.

Yao, B. Özeu, M., and Khandelwal, N., (2004) ‘XBench

Benchmark and Performance Testing of XML

DBMSs’, ICDE’04, pp 621-632.

Wu, Y., Lele, N., Aroskar, R., Chinnusamy, S., and

Brenes, S. (2009) ‘XQGen-An Algebra-based XPath

Query Generator for Micro-Benchmarking’,

ACM/CIKM’09, pp 2109-2110.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies
