AN APPROACH TO MEASURE STUDENT ACTIVITY IN

LEARNING MANAGEMENT SYSTEMS

Marta Zorrilla, Diego García

Department of Mathematics, Statistics and Computation, University of Cantabria, Avda. Los Castros s/n, Santander, Spain

Elena Álvarez

Department of Applied Mathematics and Computer Science, University of Cantabria, Santander, Spain

Keywords: Student activity indicator, Student participation index, Progress feedback, Monitoring tools, Learning

management system, Educational technology.

Abstract: Nowadays most universities and educational centres use LCMSs to support the learning and teaching

process. In the new framework of the European Higher Education Space, in which the student learns to learn

and where the assessment must consider the whole activity carried out by the learner, it is necessary to have

some indicator which measures the attendance and participation of each student in virtual courses. This

work proposes several student activity indicators which are flexible, extendible and independent from the

LMCS. They are based on a parameter which gathers the instructor’s criteria in order to measure the activity

of his course (time spent, hits or a combination of both). These indicators are obtained for each learner in

each resource (content pages, forums, etc.) with relation to the activity carried out by his or her classmates.

These indicators will be shown periodically both to the learners and to the instructors so that each student

can observe the effort/dedication levels he or she has made compared with the rest of the group and the

instructor can assess the grade of activity and participation of each student in the course and furthermore,

detect students at risk of drop-out, gaining insights about the learning style of each student and also check if

the effort level carried out by students is adequate or higher than the instructor estimated for the course.

1 INTRODUCTION

In recent years, more and more, universities offer the

possibility of enrolling in their degrees and masters

in a semi presential or completely virtual (online)

way in order to facilitate the learning along the life

and to make compatible this with other activities.

In general, these organizations use Learning

Content Management Systems (LCMS) –such as

Moodle, Sakai or WebCT/Blackboard– to give

technical support needed to develop the virtual

teaching and learning process, since these systems

support most of the activities that occur in the

classroom and allow the use of different multimedia

resources, generally, interactive ones. Furthermore,

they facilitate the interaction among students and

tutors and make the participation and collaboration

among them possible in order to build their own

knowledge.

Despite the advantages they provide, these

systems present some shortcomings for both

students and instructors. There is a list of problems

encountered by students studying on-line courses,

including the students’ feeling of isolation due to

lack of contact with the instructor, disorientation in

the course hyperspace, and so on (Conrad, 2002;

Mazza et al., 2007). On the other hand, instructors

lack the appropriate tools in order to supervise the

students’ work in the current LCMSs (Hijon et al.,

2006). As a consequence of this, getting a clear

vision of each student or group academic

progression during the course is difficult and time

consuming for instructors. Furthermore, they

generally face a higher number of drop-outs (Xenos

et a., 2002; Jusung, 2005; Levy, 2007) and a

panorama where student performance is lower (Zinn

et al., 2006).

In our opinion, this mainly happens for two

reasons: LCMSs do not suitably report to instructors

the activity that each learner develops, in such a way

Zorrilla M., Garcia D. and Alvarez E. (2010).

AN APPROACH TO MEASURE STUDENT ACTIVITY IN LEARNING MANAGEMENT SYSTEMS.

In Proceedings of the 2nd International Conference on Computer Supported Education, pages 21-28

DOI: 10.5220/0002777800210028

 SciTePress

that they can know how he or she is progressing in

the course and take actions as soon as a lack of

activity or under performance is detected; and

LCMSs only report to instructors when giving

learners some indication of their relative effort

compared with their peers may motivate them to

higher participation rates and success.

Most of the LCMSs have simple modules of

reporting with which instructors can extract a limited

knowledge about how often their students access the

virtual course and what resources they use (Zorrilla

et al., 2009), but they do not provide indicators that

show a clear idea of the activity of each learner with

regard to the rest of the group.

For this reason, the aim of this paper is to

propose some student activity indicators which

gathers the dedication of every learner in the

different resources that the virtual course provides

(forums, contents, wiki…). These indicators will be

shown periodically both to the learners and to the

instructors so that each student can observe the

effort/dedication levels he or she has made

compared with the rest of the group and the

instructor can detect students at risk of drop-out,

discover the learning style of each student, and also

check if the effort level carried out by students is

adequate or higher than he or she estimated for the

course.

It must be said that these activity indicators does

not try to measure performance, but to evaluate the

assistance and participation in the course. The same

way as traditional education instructors do when

they write down who is in the classroom, who

answers his/her questions, who takes part in debates,

who suggests topics of discussion, etc. The

definition of indicators of this style is justified even

more inside the European Higher Education Space

where the whole activity carried out by the learner

must be assessed, attendance and participation being

simply other aspects of the evaluation.

The paper is organized as follows. In Section 2

we review the existing research work related to

monitoring and measuring students’ learning activity

in e-learning environments. Section 3 defines the

proposed student activity indicators and explains and

justifies the selection of each parameter. Section 4

discusses the utility of these indicators using as a

case study a virtual course offered in the University

of Cantabria. Finally, section 5 summarizes and

draws the most important conclusions of our

proposal.

2 RELATED WORK

In this section we provide an overview of the related

literature, focusing our attention on monitoring and

measuring students’ learning activity in e-learning

environments.

As has been mentioned previously, the LCMSs

offer reports with which instructors can extract

certain information about the behaviour of their

students in the virtual course, although according to

Douglas (2008), few teachers use them due to the

difficulty of interpreting the information that they

give. In general, these reports show, in table format,

quantitative information relative to the different

actions that students carry out in the virtual course

such as the number of accesses, the number of

visited pages, the number of read and sent messages

or the total spent time browsing the course. But

these numbers do not say very much if they are not

elaborated measurements that allow instructors to

compare the activity of a student with regard to the

rest of the group.

For this reason, some research groups are

developing software tools that allow this information

to be shown in a more elaborated, graphical and

intuitive way, such as CourseVis (Mazza et al.,

2007), Gismo (Milani et al., 2007), Moodog (Zhang

et al., 2007) and Matep (Zorrilla et al., 2008), at the

same time answering questions that the instructors

are more interested in knowing such as the

participation of students in the forums, the frequency

of use of each resource, the time spent per student

and group in each resource, what resources they

prefer or when and how often they access the virtual

course, etc. But none of them provides an activity

indicator in a strict sense.

We have found few papers directly related to

measuring student activity in LCMS, among these

are:

Pendergast (2006) describes a tool independent

from the LCMS that allows instructors to assess the

activity of the students exclusively in the use of

forums. The formula is quantitative with weight

assigned to the number of sent messages, the number

of received and the length of the messages though it

also includes a qualitative part that the instructor

establishes once he or she has read the messages.

Chan (2004) defines a student participation index

using 5 parameters corresponding to 5 student

actions: number of pages viewed, number of forum

questions read, number of forum questions posted,

number of chat sessions participated in and number

of chat message submitted. The computation of the

index is based on the weight of each pre-defined

student action and the median of the students’ index

CSEDU 2010 - 2nd International Conference on Computer Supported Education

scores. Weights are assigned by the instructor.

In our opinion this indicator presents two

shortcomings. On the one hand, it is focused on

assessing and not measuring the participation in the

course since instructors determine, by means of

weights, what actions are more important for them.

And on the other hand, the indicator is based on the

number of events instead of time spent or in a

combination of both, actions and time. What

measures better the activity in the mail use: reading

or writing two messages or the time spent in doing

it? In our opinion, it depends on how the instructor

wants to assess the activity, considering the time

spent in each resource, the number of clicks carried

out or using a combination of both. Even more it

could happen that the instructor would choose a

different criterion to evaluate the activity in each

resource, since this depends on how the course is

designed and organized.

Finally, Juan et al. (2008) propose a system to

monitor online students’ academic activity and

performance. This, as in the rest of the papers, is

independent from the LCMS and it is based on

sending periodical reports by e-mail to online

instructors and students. It offers three activity

indicators which are calculated based on the number

of events (post or read notes in forums, send or read

e-mails, complete online tests, upload or download

documents, etc).

 Students classification indicator defined as

number of events per student during this week

vs. number of events per student during an

average week.

 Individual student monitoring which monitors

activity levels of each student throughout the

course (weekly)

 Monitoring participation level which monitors

the percentage of students that complete each

test.

The authors show some interesting graphical

reports although, as with the previous reference, they

only use the number of events. Furthermore, as the

index is computed globally, it is not possible to

compare the activity carried out by each learner in

each resource in relation to the group. This would

allow instructors to discover the student learning

style.

3 STUDENT ACTIVITY

INDICATORS

Class attendance and contribution may be

considered as student actions which can be used to

evaluate student participation in the traditional

classroom. However, in online courses, instructors

lack face-to-face contact, so that they only can carry

out this assessment using data about the students’

actions registered in LCMS: accessing course

materials, posting and reading discussion forums,

taking online quizzes, writing in wiki, etc.

The student activity indicators (SAI) which we

propose are generated independently of LCMS but

use the information which e-learning platforms

write down the initial and final time of each action

carried out by a user (instructor, student, and

administrator) in each resource. The action is

considered finished when other action happens in the

same or in another resource. We initially consider

the following resources: content page, forums, mail,

test and quizzes, wiki and chat because they are

offered by the most known and used LCMSs

(Álvarez, 2008).

3.1 Mathematical Function Selection

A measurement of activity could be modelled by

means of a function v=v(t), where t is the value of

the parameter about which the valuation is to be

done, for example, time, and v is the activity

indicator of a student that has dedicated a value t in

the range of dates under study. The function v will

return a value between 0 and 1.

We consider suitable a crescent function (more

time implies more activity) which fulfils the

following conditions:

1. For t=0, v must be 0.

2. In order to measure the activity in relation to

the average and maximum activity of the

group, we establish that

• For a value t=α, v is considered the

average activity, that is 0.5

• For a value t=β, v is considered the

maximum activity, that is 1.

The simplest function with three free parameters

which gathers these characteristics is t=av

+bv+c,

isolating v, we will have

tcabb

)(4

)(

−−+−

where

1. For t=0, v must be 0, so that c must be 0.

2. For v(α)=0.5 and v(β)=1, then b=4α-β and

a=2β-4α.

Next, we explain how to calculate the SAI for

each resource.

AN APPROACH TO MEASURE STUDENT ACTIVITY IN LEARNING MANAGEMENT SYSTEMS

3.2 SAI in Content Pages

,…,A

are the students enrolled in the virtual

course whose activity must be calculated for a range

of dates divided into 1, …, k periods (for example,

weeks). This value is denoted v

For each period k, a set with the time spent for

each student A

in each page viewed is defined.

Next, t

is calculated as the sum of the time spent

for the student j in the period k. Then, an interval

, M

] with the values comprised between 10 and

90 percentile of the t

is defined with the aim that

the average is not affected by extreme values.

Next, α

and β

are defined as:

],[)(α

k kkkjkj

Mmtwheretavg ∈=

(1)

],[)max(

kkkjkjk

Mmtwheret ∈=

(2)

In order to calculate the activity of the student A

in the period k, denoted v

), the number y

) is

considered, where y

(t) is the following crescent

function which returns a value between 0 and 1.

⎪

⎩

⎪

⎨

⎧

≥

≤≤

++−

≥

kkk

Mtm

tabb

)(

(3)

This function fulfils that y

(0)=0, y

(α

)=0.5,

(β

)=1 so that it can be considered as a

measurement that assesses the activity of a student

compared to the rest of the group. A value higher 0.5

is obtained when the student spends more time than

the average. Alpha and beta parameters can be

modified in order to adjust the measurement to other

criteria. For example, α

could be the average time

that students spend in browsing a content page in the

period k multiplied by the number of pages that

students browse on average in this period; and β

the average of the maximum time that students

spend in browsing a content page in the period k

multiplied by the average of the maximum number

of pages that students browse in this period.

3.3 SAI in other Resources

We use the same formula and method of calculation

in the different resources. For each resource, we

choose those actions which better allow us to value

the activity carried out in it. For example, for mail

and forum, the messages read and sent; for wiki, the

web pages edited, etc. Next, we choose the

parameters we are going to use to measure. For

example, the number of accesses, the time, a

combination of both, etc. And finally, we calculate

the indicator following the same steps described in

section 3.2. It is possible to define different criteria

according to how alpha and beta are chosen (see

Table 1).

Table 1: Possible alpha and beta parameters for the

different resources, t

being the time spent by student j in

the period k in the resource and n

is the number of times

that student j carried out the action.

Alpha Beta

)(α

k kj

tavg

)max(

kjk

)(α

k kj

navg=

)max(

kjk

()

kkj

avg x avg n

⎛⎞

⎜⎟

⎝⎠

()

max

avg x n

⎛⎞

⎜⎟

⎝⎠

()

kkj

avg x avg n

⎛⎞

⎜⎟

⎝⎠

()

max

avg n

⎛⎞

⎜⎟

⎝⎠

3.4 Global SAI for Resource and for

Period

The student activity indicators defined until now are

for a resource and a period. But the possibility of

joining them in order to obtain a global indicator for

resource and another for period also exists.

The global SAI for resource could be calculated

as the average of the SAI for resource obtained in

each period. This would allow instructors to

compare each student with respect to the average

activity and gain insights about his or her learning

style.

The global SAI for period could be calculated as

the sum of weighted SAI obtained by the student in

each resource (m) available in the course (see eq. 4).

These weights, with the aim at being independent of

instructor’s criteria, could be calculated, for

example, as a percentage of time invested by all

students in each resource. That means, the time

spent by all students in the course would be summed

up and the weight for each resource would be

proportional to its contribution with respect to the

total. This indicator would offer the instructors a

global valuation of attendance and participation of

each student in a period.

∑

SAISAI

(4)

CSEDU 2010 - 2nd International Conference on Computer Supported Education

4 CASE STUDY

The virtual course entitled “Introduction to

multimedia methods” is a subject of 6 ECTS which

was taught in the first semester of 2009 at the largest

virtual campus in Spain, called G9 (this group is

composed by 9 Spanish universities; one of them is

the University of Cantabria). It is a practical subject

in which a multimedia tool is taught. The course is

SCORM and include some video tutorials, flash

animations and interactive elements. It is registered

in Blackboard LMS.

Although the number of students enrolled in the

course was 80, only 45 made the first assignment,

whose submission was 15 days after the beginning

of the course, and finally, 37 students followed the

course until the end.

For this case study, we calculated the indicators

considering only the time variable. The alpha and

beta parameters were obtained at the end of the

course using a weekly period.

In order to analyze the validity of the proposed

indicators, the instructor selected three students

(mlm90, euh10, rce56), that she suspected had a

very different behaviour in their involvement in the

course. Their way of working, their participation in

the forum and their communication with the teacher

by e-mail was making her suspect an uneven

utilization of the different tools available in the

course. Another additional reason for their selection

was their final mark: mlm90 had a high

qualification, euh10 average and rce56 low.

Next, the instructor discusses the results obtained

in content pages, forum and mail due to the fact that

the course had neither quizzes nor wiki.

As can be observed in Figure 1, the alpha and

beta parameters associated with the content pages

reveal two important facts: the time spent in content

pages is regular enough throughout the course with a

decrease in periods after a submission of an

assignment. The average time spent per week in

content pages is 5000 seconds (approximately 1 hour

20 minutes per week). It is important to highlight

that, because of the practical nature of the course,

most of the proposed tasks do not require students to

be connected. This dedication is considered suitable

by the instructor.

In Figure 2, it can be observed that the activity

carried out by the three learners in content pages

show that they behave differently. Euh10 scarcely

visits the content pages (practically the first two

weeks of course); nevertheless, mlm90 and rce56

have different degrees of activity. The first carries

out an activity superior to the average practically

every week whereas the activity of the second is

lower than the average and concentrated in the dates

before a submission was due (the weeks in which a

submission had to be done are marked in rectangles

in Figure 1).

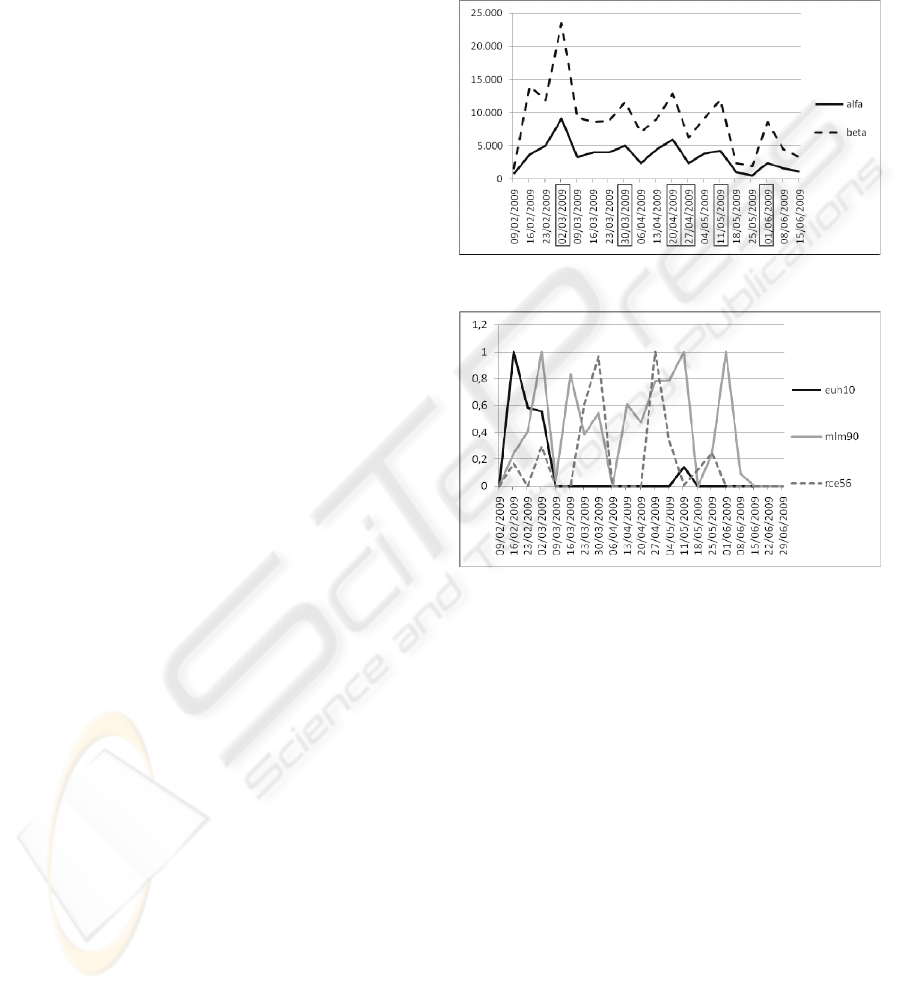

Figure 1: Alpha and beta for SAI in content pages.

Figure 2: SAI in content pages for the three chosen

students.

Forum and mail were the tools used to establish

the communication among the students and the

instructor mainly. The instructor confirmed by

means of the comments written in the required

assignments that students considered the forum very

useful.

In Figure 3, it can be seen that the time spent on

average per student in a week is nearly 2500 seconds

(practically half of time dedicated to content pages).

A higher activity in the period in which students had

to carry out one of the more difficult and longer

(April – March) practical exercises is also observed.

Finally, a decrease in activity when the course is

ending is also appreciated.

In relation to the students’ behaviour it can be

said that euh10, mlm90 and rce56 behave

differently. Euh10 is one of the students who has

been connected most to the forum (for several weeks

his/her valuation is maximum). On the contrary,

AN APPROACH TO MEASURE STUDENT ACTIVITY IN LEARNING MANAGEMENT SYSTEMS

mlm90 and rce56 have less activity and, once again,

rce56 concentrates this in dates near a submission.

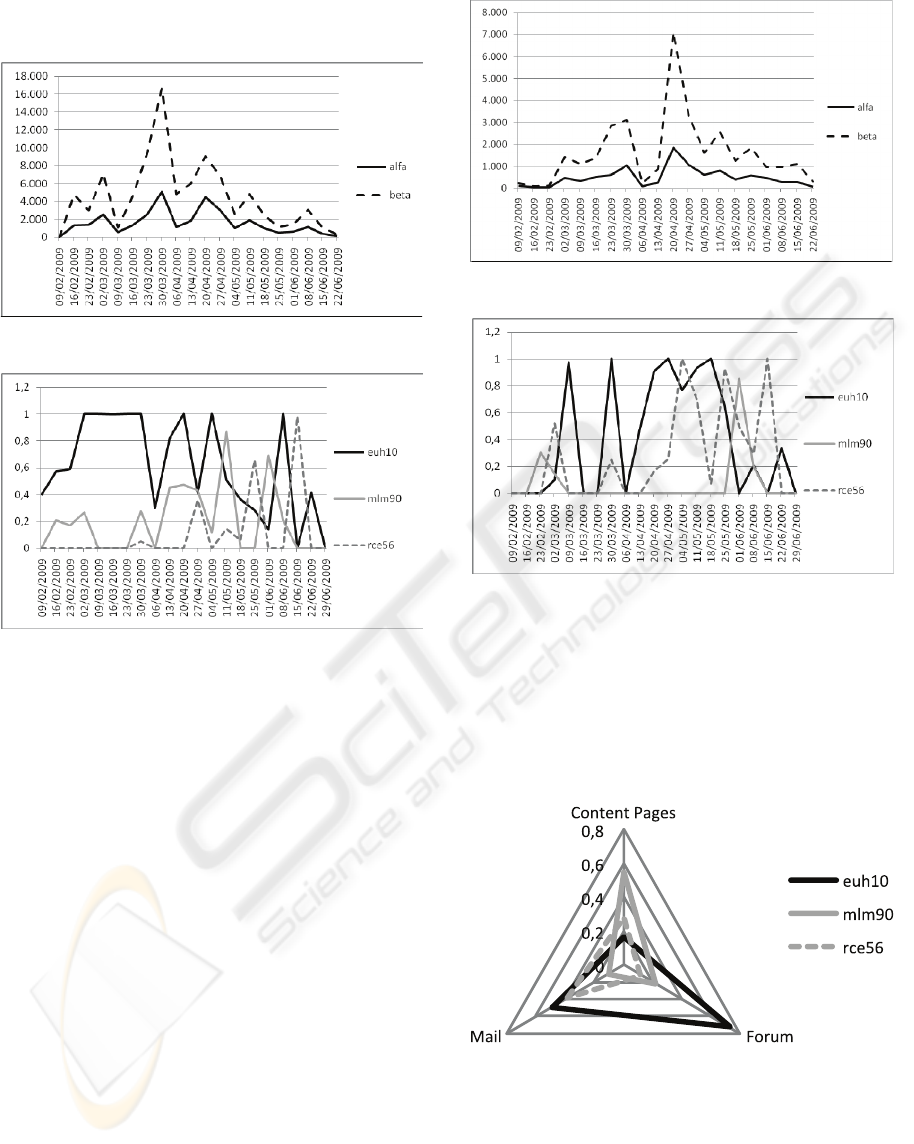

Figure 3: Alpha and beta for SAI in forum.

Figure 4: SAI in forum for the three chosen students.

The use of the mail was more specific, generally

to answer doubts in an individualized way. The

value of alpha associated with the indicator (see

Figure 5) confirms the suspicion of the instructor

that the forum was the tool most used for the

communication (the instructor does not have

knowledge of the messages sent among students).

The behaviour of mlm90 in the mail tool might

be considered the most usual. The student hardly

communicates with the instructor in an

individualized way since he/she has other tools to

consult and solve his/her doubts (content pages and

forums). Nevertheless, rce56 and euh10 behave very

differently. The instructor, after analyzing the three

indicators together, confirms her impression with

regard to how they had carried out the activity in the

course. In case of rce56, his/her activity was centred

on periods near the submissions and since he/she did

not visit the forum regularly, he/she asked the

instructor for help. However, euh10 is a student who

tried to do the tasks without reading the content

pages, looking for the solution in the forum. If the

student did not find the answer, then he or she sent

the instructor an email.

Figure 5: Alpha and beta for SAI in mail.

Figure 6: SAI in mail for the three chosen students.

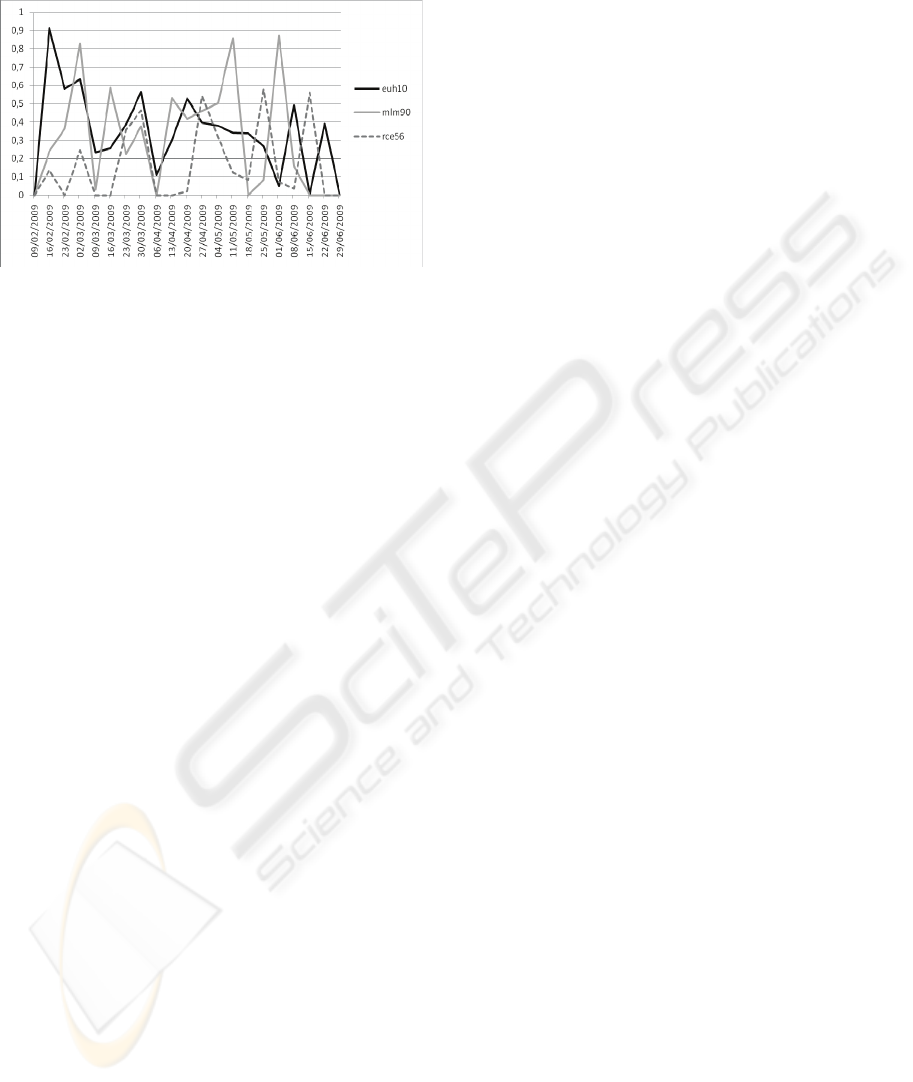

Figure 7 shows the global indicator for each

resource of the three students obtained as the

average of their SAIs throughout the 15 weeks. In

the instructor’s opinion, this graph allows her to see

if a student has carried out an activity above or

below the average and get an idea of his or her

learning style.

Figure 7: Global SAI for resource.

Lastly, Figure 8 shows the global SAI for each

week. This graph illustrates the activity carried out

by the students but hides their behaviour. Rce56 has

a low activity, euh10 is a little more and mlm90 is

the student with the highest activity. We consider

CSEDU 2010 - 2nd International Conference on Computer Supported Education

that the SAI in each resource is more useful for the

instructors.

Figure 8: Global SAI for each week.

5 CONCLUSIONS

Monitoring activities in conventional teaching

environments involves observing students’

behaviour in the classroom and estimating the

effectiveness of pedagogical strategies in a continual

and visual feedback. However, in e-leaning context,

this informal monitoring is not possible, and the

teachers must look for other ways to obtain this

information (Lera-López et al., 2009).

In this sense, our work seeks to offer instructors

a student activity indicator that allows them to gain

insights into the learning style of each student, detect

students at risk of drop-out, and assess the grade of

activity and participation of each student in the

course. Furthermore, students will also be benefited

since they will be able to know what their effort is

with relation to their classmates.

The proposed method for assessing students’

online activity is a) flexible, you can decide what

parameter to use in order to measure the activity

(time, hits, a combination of both) and the frequency

with which the indicators are generated; b)

extensible, you can decide which resources to

measure; and c) independent from the LCMS, which

means, you can use data registered in it or in any

learner trace collector which is available.

The results obtained in our case study show that

our indicators adequately reflect the activity carried

out by the students, according to the instructor’s

criteria.

Our next work will be to obtain the indicators

with other criteria (see Table 1) in order to analyse

the behaviour and the information which they offer,

and the advantages and disadvantages which each

criterion presents. After that, we will automate the

calculation of the student activity indicators and

obtain them in other virtual courses to check their

validity and generality. Next, we will develop a

software module with which instructors can

configure the parameters for their courses and

request the reports which they want to analyse.

Lastly, we will gather the opinion of students and

instructors with respect to how useful these

indicators are.

ACKNOWLEDGEMENTS

The authors are deeply grateful to CEFONT, the

department of the University of Cantabria which is

responsible for LCMS maintenance, for their help

and collaboration. Likewise, the authors gratefully

acknowledge the valuable suggestions of the

anonymous reviewers.

This work has been partially financed by Spanish

Ministry of Science and Technology under project

‘TIN2007-67466-C02-02’ and ‘TIN2008 – 05924’.

REFERENCES

Álvarez, V., 2008. E-learning survey. Available at:

http://www.di.uniovi.es/~victoralvarez/survey/

[Accessed 03 October 2009].

Conrad, D. L., 2002. Engagement, excitement, anxiety and

fear: Learners’ experiences of starting an online

course. American Journal of Distance Education,

16(4), pp. 205–226.

Chan, A., Chow, K.O., Cheung, K.S., 2004. Student

Participation Index: Student Assessment in Online

Courses. Lecture Notes in Computer Science, 3143,

pp.449-456.

Douglas, I., Alemanne, N.D., 2007. Monitoring Student

Participation and Effort. Proceedings of the IADIS

International Conference on Cognition and

Exploratory Learning in Digital Age (CELDA 2007).

Lisbon, Portugal. IADIS Press, pp. 299-302.

Douglas, I., 2008. Measuring Participation in Internet

Supported Courses. International Conference on

Computer Science and Software Engineering, 5, pp.

714-717.

Hijon, R., Velazquez, A., 2006. E-learning platforms

analysis and development of students tracking

functionality. In E. Pearson & P. Bohman (Eds.),

Proceedings of World Conference on Educational

Multimedia, Hypermedia and Telecommunications.

Chesapeake, VA: AACE.

Juan, A., Daradoumis, T., Faulin, J., Xhafa, F., 2008. A

Data Analysis Model based on Control Charts to

Monitor Online Learning Processes. International

AN APPROACH TO MEASURE STUDENT ACTIVITY IN LEARNING MANAGEMENT SYSTEMS

Journal of Business Intelligence and Data Mining,

4(2), pp. 159-174.

Jusung, J., 2005. Understanding e-dropout?. International

Journal on E-Learning 4(2), pp. 229-240.

Lera-López, F., Faulin, J., Juan, A.A., Cavaller, V. 2009.

Monitoring Students’ Activity and Performance in

Online Higher Education: a European Perspective.

Monitoring and Assessment in Online Collaborative

Environments: Emergent Computational Technologies

for E-Learning Support. Angel A. Juan et al. (Eds),

IGI Global.

Levy, Y. 2007. Comparing dropouts and persistente in e-

learning courses. Computers & Education, 48, pp.

185-204.

Mazza, R., Dimitrova, V., 2007. CourseVis: A graphical

student monitoring tool for supporting instructors in

web-based distance courses. International Journal of

Human-Computer Studies 65(2), pp. 125-139.

Milani, C., Mazza, R., 2007. GISMO: a Graphical

Interactive Student Monitoring System for Moodle.

Available at: http://gismo.sourceforge.net [Accessed

03 October 2009].

Pendergast, M., 2006. An analysis tool for the assessment

of student participation and implementation dynamics

in online discussion forums. ACM SIGITE Newsletter,

3(2), pp. 10-17.

Xenos, M., Pierrakeas, C., Pintelas, P., 2002. A survey on

student dropout rates and dropout causes concerning

the students in the course of informatics of the

Hellenic Open University. Computers & Education,

39(4), pp. 361–377.

Zhang, H., Almeroth, K., Knight, A., Bulger, M., Mayer,

R., 2007. Moodog: Tracking Students' Online

Learning Activities. World Conference on Educational

Multimedia, Hypermedia & Telecommunications (ED

MEDIA), Vancouver, Canada.

Zinn, C., Scheuer, O., 2006. Getting to know your student

in distance learning context. In Innovative approaches

for learning and knowledge sharing, Lecture Notes in

Computer Science 4227, pp. 437-451. Berlin,

Germany: Springer.

Zorrilla, M.E., Álvarez, E.E., 2009. Proposal of a set of

reports for Students’ Tracking and Assessing in e-

Learning Platforms. Monitoring and Assessment in

Online Collaborative Environments: Emergent

Computational Technologies for E-Learning Support.

Angel A. Juan et al. (Eds), IGI Global.

Zorrilla, M., Álvarez, E., 2008. MATEP: Monitoring and

Analysis Tool for e-Learning Platforms. Proceedings

of the 8th IEEE International Conference on Advanced

Learning Technologies. Santander, Spain.

CSEDU 2010 - 2nd International Conference on Computer Supported Education
