VTE: THE VIRTUAL TRAINING ENVIRONMENT

Advanced Virtual Lab Authoring and Delivery

C. A. Cois, J. Beckwith, J. Wrubel and J. Herrman

Software Engineering Institute, Carnegie Mellon University, 4500 Fifth Ave, Pittsburgh, PA, U.S.A.

Keywords: Virtual labs, Distance learning, Content authoring, Asynchronous Labs, Automated delivery, VMware.

Abstract: The Virtual Training Environment (VTE, https://www.vte.cert.org) is an online education and training

system developed by the Immersive Learning Technologies group at the Carnegie Mellon University

Software Engineering Institute. VTE offers asynchronous, remote training in cyber-security, information

technology, digital forensics, and other technical areas to over 30,000 users, primarily within the

Department of Defense (DoD) and various branches of the United States Federal Civilian Agencies. A key

aspect of the comprehensive training suite offered by VTE is an on-demand virtual lab system, featuring

automated delivery of complex virtual lab environments to users through a standard web browser, with no

additional client-side software installation required. VTE is able to deliver training environments 24 hours a

day to users in remote locations, operating within various levels of network security. In addition to a virtual

lab system that is uniformly accessible to student users, VTE provides a virtual lab authoring system with

the same ease of use, delivering powerful virtual lab development tools through an accessible interface to

domain experts and educators, eliminating the need for expertise in proprietary virtualization technologies.

This paper will present the design and function of the VTE virtual lab system, including both student and

lab author user experience descriptions.

1 INTRODUCTION

Training students in applied fields such as cyber

security, computer forensics, or information

technology presents a unique set of challenges.

Lectures and reading materials have limited efficacy,

as students will not be comfortable performing

learned techniques until they have experienced

hands-on training on real computer systems.

However, many techniques and software packages,

particularly those related to cyber security, malicious

code, and computer forensics, can pose real threats

to production systems when used by students in

training exercises. Such training is only safely

performed in an isolated network environment,

secured from production networks. While many

have attempted to build isolated physical computer

networks for education and training labs (Robila,

2004; Yang, 2004), this solution is both time-

consuming and costly, as IT professionals must

construct lab environments from purchased

hardware. This approach is also highly inefficient,

allowing only one training exercise to take place at a

time, and requiring manual reconfiguration of the

network or systems hardware to deliver a new

training exercise. Virtual labs have become

increasingly popular in recent years as an alternative

to the imperfect physical training lab, providing

realistic hands-on training in an inexpensive, highly

adaptable system. (Bulbrook, 2006; Greenberg,

2004; D. Hu, 2008; J. Hu, 2004; Nabhen, 2006;

Vollrath, 2004)

Virtual labs consist of virtual machines

configured with the desired operating systems and

software, deployed in a specific virtual network

configuration. Such an environment provides

students with hands-on training in real software

systems in a safe and secure network environment.

This leaves students free to interact in any way with

an immersive environment, isolated from the actions

of other students, without risk to production

networks or fear of damaging systems. When

training students in cyber-security, network

vulnerability, malicious software, or hacking

techniques, this isolation becomes a vital component

of any training system. While isolated physical

networks can be built to serve the same purpose,

they require an exceptional amount of time and

208

A. Cois C., Beckwith J., Wrubel J. and Herrman J. (2010).

VTE: THE VIRTUAL TRAINING ENVIRONMENT - Advanced Virtual Lab Authoring and Delivery.

In Proceedings of the 2nd International Conference on Computer Supported Education, pages 208-214

DOI: 10.5220/0002779102080214

 SciTePress

expense to build and maintain. Additionally,

changes in configuration of a physical training

network can take hours of time from IT experts,

while virtual labs of any configuration can be

created and deployed on the fly by automated virtual

lab management software.

The Virtual Training Environment (VTE,

https://www.vte.cert.org) provides a robust virtual

lab system currently supporting over 30,000 users

around the world. By delivering a virtual desktop

interface to computers in a virtual lab environment

through a standard web browser, VTE is able to give

users access to realistic, immersive training at any

time, from any location. VTE requires no client

software other than a web browser with an Adobe

Flash

plug-in installed, making it highly

accessible to students from within university

networks, at work, or at home. The VTE lab

management platform maintains reusable virtual lab

configurations that can be rapidly created and

deployed on-demand requested through the VTE

website. Each user is given an individual instance of

a virtual lab to interact with, with the goal of

providing an immersive, personalized experience to

users with learning value beyond that of watching

lectures, reading content, or interacting with

simulations. (Greenberg, 2004) A list of tasks to be

performed in a given lab is integrated into the virtual

lab interface, keeping the students focus within the

lab environment.

Further VTE development has extended this

user-friendly, intuitive interface to virtual lab

technology to lab authors as well as students. By

putting the power of virtualization for training and

education into the hands of instructors, without

requiring expertise in virtualization technologies or

platforms, the VTE team hopes to allow authors to

focus their efforts solely on content development,

and to engage authors who might otherwise be

remiss to develop virtual labs. Authors are given an

intuitive visual interface for creating virtual lab

networks and configuring associated virtual

machines. Lab instructions are created as the virtual

machines are configured allowing authors to

perform the lab to verify functionality, while

marking points of progress to be saved as fallback

states for students who have made irreversible errors

while completing the lab. Giving authors complete

control over virtual lab creation allows educational

content to be created and deployed faster, while the

easy-to-use toolkit provided by VTE allows all

domain experts to participate in content creation

without esoteric knowledge or formal training.

2 SYSTEM DESIGN

The ultimate goal of virtual labs is to provide a

completely immersive, secure training environment

to anyone, anytime, anywhere. (Greenberg, 2004)

To achieving this goal, a system must be designed

with three primary attributes:

 Automated content delivery,

 Broad accessibility,

 An intuitive, functional interface.

The following sections will discuss how VTE arrives

at the first two goals. Descriptions of the user

interfaces in VTE will be presented in later sections

featuring the student and author experiences in the

VTE system.

2.1 Architecture and Storage

A complex lab management system is necessary to

facilitate on-demand automated delivery of virtual

labs. The platform driving VTE is made up of four

primary architectural components:

 Web tier,

 Application tier,

 Virtualization tier,

 Data tier.

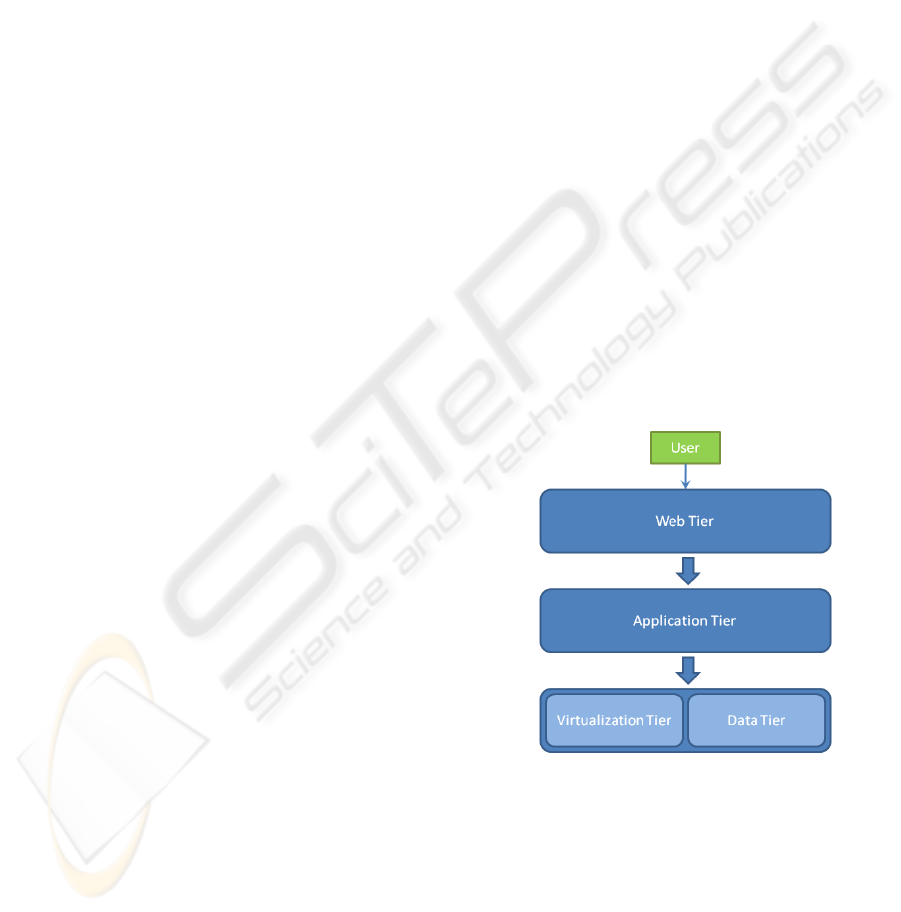

Figure 1: shows a basic representation of the system

architecture.

The web tier contains web servers that host the VTE

website and accept user commands. All data

presented to and received from the user passes

through these servers. The application tier contains

servers that run the VTE application, which manages

the configuration of virtual labs and communication

with the ESX hosts to issue the commands to create

and destroy virtual machines as required. The

VTE: THE VIRTUAL TRAINING ENVIRONMENT - Advanced Virtual Lab Authoring and Delivery

209

virtualization tier is a scalable pool of virtualization

hosts, consisting of VMware ESX servers in the

present implementation of VTE. These servers

accept commands from the VTE application and

host the virtual machines and virtual network

components that make up each virtual lab.

Ultimately, a user is connected from their web

browser, through the web and application tiers to the

ESX server which hosts the virtual machine they are

currently accessing. The data tier contains database

servers to hold all data for lab configurations, user

accounts, and all other stored application

information. Also contained in the data tier are

storage systems holding data for the virtual

machines used in VTE labs.

System data for each virtual machine is stored in

one or more data files, called virtual disks, which

simulate the hard disk of a physical computer.

Virtual disks contain the operating system and any

other information stored on the virtual machine,

such as software applications or data files, in binary

format. These virtual disks, known as base disks, are

opened in read-only mode by virtual machine

instances using them and can thus be used to define

numerous identical virtual machines. Base disks

must remain concurrent between all users to provide

identical lab experiences, thus no data can be written

to them while they are being referenced by virtual

labs. Any changes made by the user during a virtual

lab session are stored not in the base disk, but in a

separate change file unique to that user. These

changes can be stored separately and when a lab

session is closed and applied again to the virtual

machine when the session is re-opened, creating a

stateful experience for the student while maintaining

the integrity of the base disk. In addition to

managing lab deployment, the VTE lab management

system handles user data storage and retrieval,

providing a seamless experience for the student.

2.2 User Access

VTE virtual labs are networks of virtual machines

deployed on remote VMware ESX hosts. When a

student requests a lab, a new instance of each virtual

machine in the lab configuration is automatically

created and powered on. When the virtual machines

have booted into their operating systems, the user is

given a secure connection to the desktop of a virtual

machine through their web browser, which appears

as the familiar desktop interface of the operating

system installed on the virtual machine. Mouse and

keyboard interactions are handled from within the

browser by Adobe Flash

and passed through to the

virtual machine.

To facilitate delivery to students on secure

networks, such as military personnel, the remote

display session is altered to connect to the server

over port 80 or port 443, the standard ports used to

deliver web pages on the internet. In highly secure

networks, all other ports may be blocked by

firewalls, and thus unavailable to deliver remote

display session data. This adaptation is vital in

allowing VTE to deliver training to U.S. government

and military personnel, and is also of benefit for

organizations with highly secure network practices.

3 STUDENT EXPERIENCE

Upon logging in to the VTE website, students can

content. Once registered for a course, students can

view the content items of that course, including

virtual labs. (Figure 2)

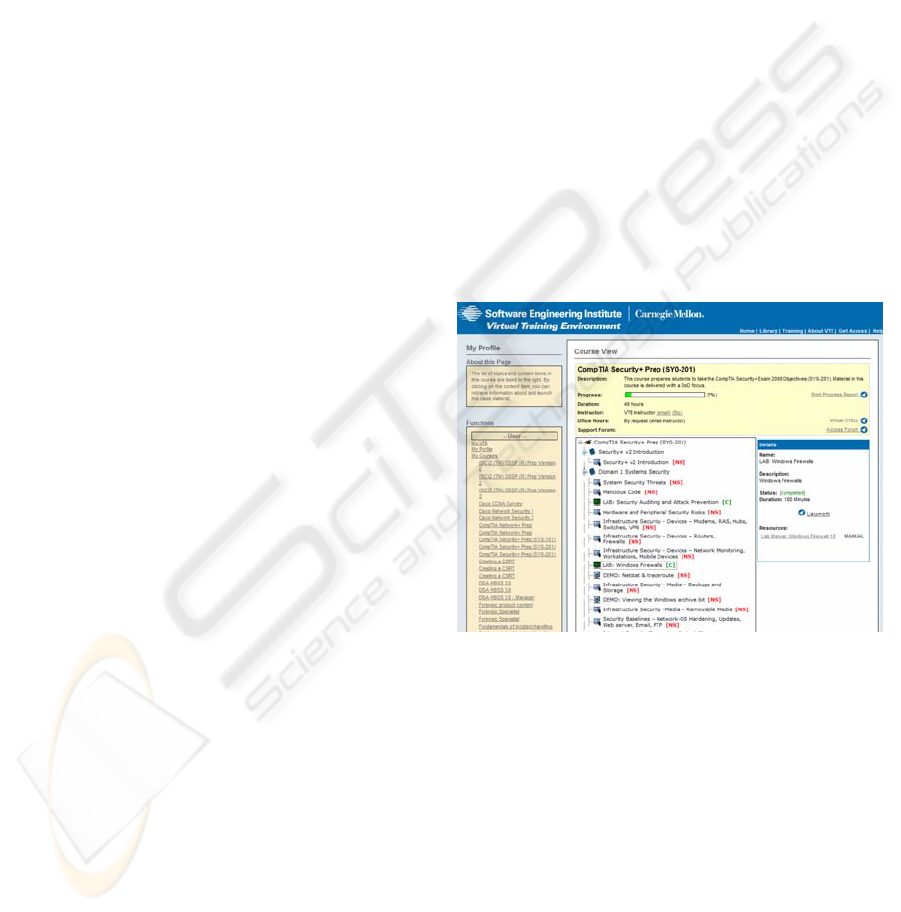

Figure 2: Student course view in VTE. Clicking the

"Launch" button in the right-hand panel will launch the

selected lab, sending the user to the lab interface screen.

Clicking the “Launch” button initiates the process of

generating an instance of the specified lab, and

redirects the user to the virtual lab interface. (Figure

3) The virtual lab interface is designed to be a

unified, immersive environment for all information

and functionality necessary to complete a virtual lab.

On the left side of the interface is a task list,

containing ordered descriptions of tasks to be

performed, including tables, images, and other

metadata. Tasks expand and collapse as the user

records their progress through the lab. On the right

side of the screen is a lab network diagram showing

CSEDU 2010 - 2nd International Conference on Computer Supported Education

210

icons for each virtual machine or virtual switch and

the network connections between them. Double-

clicking on a virtual machine creates a secure

connection to the desktop of the machine and

presents it in a window for the user to interact with.

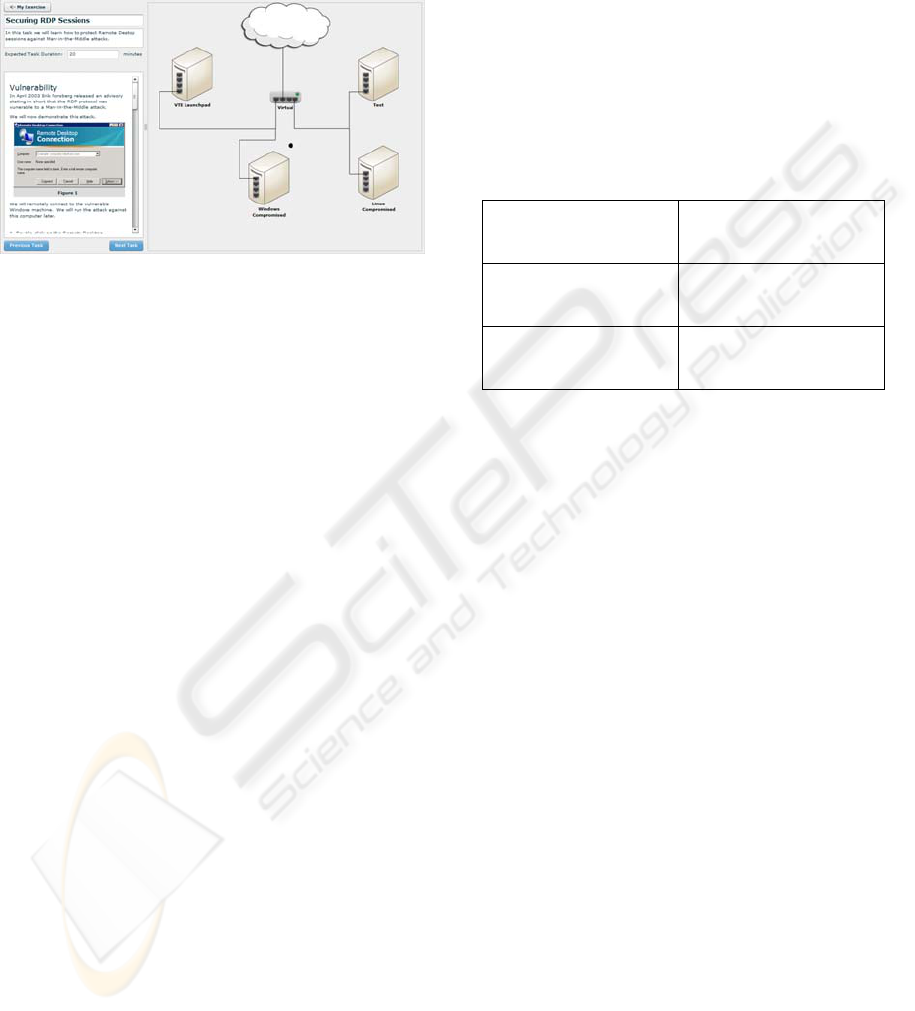

Figure 3: Lab user interface. On the left is a task panel, on

the right is a network diagram of the virtual lab

environment.

This interface is intuitive and easy to understand. It allows

the user to visualize the network they are working with,

and interact with each virtual machine individually while

following an outline of tasks to complete, all without

straying from the same browser window. This allows the

user to maintain focus in one place, creating an immersive

environment conducive to learning and skill retention.

When a lab has been completed, the user can

elect to finish the lab and receive credit for

completion. Should the user want to end a work

session before all tasks are complete, the user has

the option to save their progress and exit the lab. The

lab management system will then take over, storing

all changes the user has made to the base virtual

machine disks since the session began in preparation

for recreating this state for the user the next time

they launch the lab.

4 VIRTUAL LAB AUTHORING

A streamlined virtual lab delivery system allows

rapid, automated deployment of reusable software

environments to students, eliminating expensive and

cumbersome construction of secure network

environments and computer systems for each

learning session. However, this advancement is

shallow without effective methods for creating

virtual lab content to deliver. Virtualization

technology and the usage of platform-specific

virtualization tools are complex domains for which

content authors are unlikely to possess expertise.

Furthermore, should advances or changes to

proprietary virtualization technologies require a

change in underlying virtualization technology,

content authors should not be expected to learn

esoteric new tools to accomplish the same tasks in

an updated system. Abstracting the underlying

virtualization technology away from the content

authoring interface solves both of these issues. To

realize this goal, the VTE team has developed a

powerful, yet intuitive system for the creation and

configuration of virtual labs. A reference for specific

pieces of terminology pertaining to the VTE virtual

lab system can be found in Table 1.

Table 1: Definitions for VTE virtual lab terminology.

Virtual Lab A network of virtual

machines and associated

Exercises.

Exercise A unit of learning in

VTE. Consists of one or

more tasks.

Task An individual action a

student must complete as

part of a larger exercise.

4.1 Shared Authoring Resources

Creating a new virtual machine is often a time-

consuming process, as it requires installing and

configuring an operating system, configuring

network settings, and installing any necessary

software applications. To streamline this process for

virtual lab authors, VTE allows virtual machines to

be shared among multiple labs. When an author

assigns virtual machines to a lab, they may use

existing virtual machines previously created by other

authors and saved in the VTE system, rather than

creating new virtual machines of their own.

Archived virtual machines will have operating

systems and often a collection of software

applications already installed. Common virtual

machine configurations such as domain controllers,

web servers, or vulnerable client systems may be

used from the archives without any additional

changes, saving the author a great deal of time. Even

if an author elects to design his own virtual

machines, they can use any archived virtual machine

as a starting point, including stock installations of

common operating systems provided within VTE.

These options increase the speed and efficiency of

virtual lab creation, allowing more quality content to

be created and delivered to students.

VTE: THE VIRTUAL TRAINING ENVIRONMENT - Advanced Virtual Lab Authoring and Delivery

211

4.2 Interface

A primary goal of the VTE system is to provide as

much quality training as possible to learners. A

functional, intuitive interface for the design of

virtual labs is necessary to allow educators to

effectively create high quality content for students to

consume. The virtual lab authoring interface in VTE

has been designed for ease of use and efficient lab

creation, removing the cumbersome aspects of

creating virtual machines and networks using

traditional virtualization tools designed for IT

professionals, in order to spur content creation.

4.2.1 Virtual Network Configuration

To create a lab, an author logs in to the VTE web

site and is directed to a virtual lab interface similar

to that of a student completing a lab. This design

leads the author to experience the lab in the same

way as the student, in an effort to help the author to

design the lab to communicate the desired

information as effectively as possible.

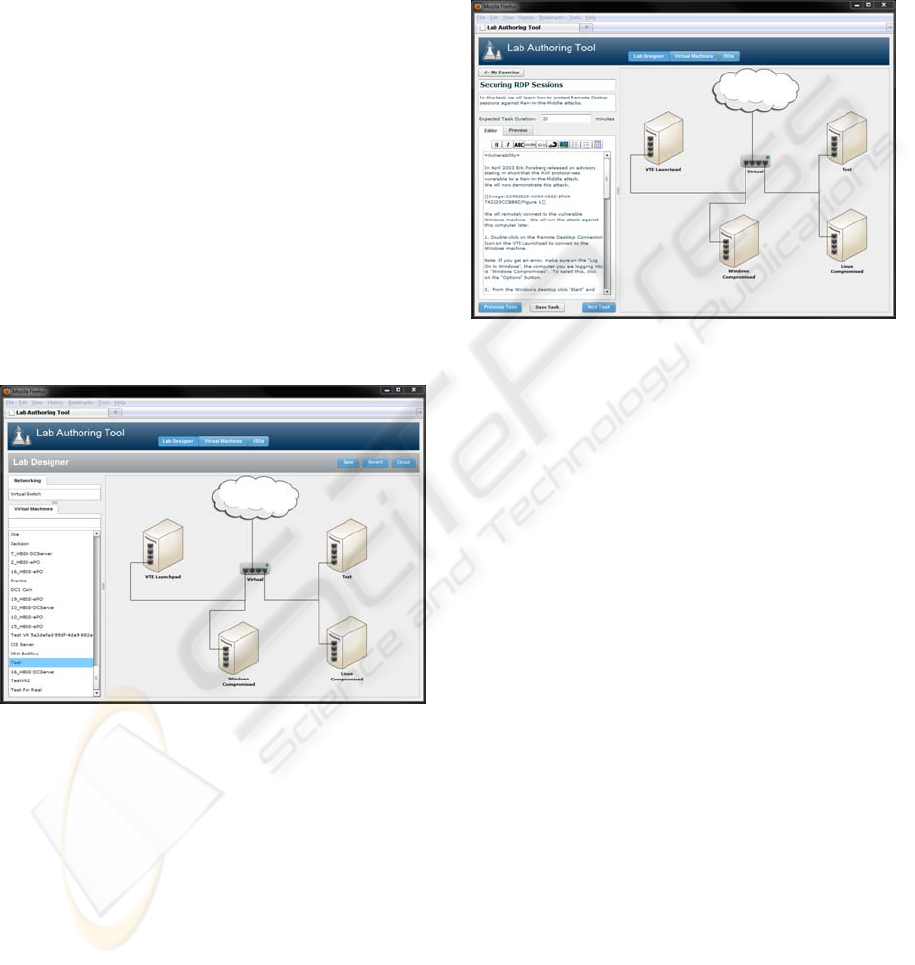

Figure 4: Virtual lab network configuration interface.

Authors select virtual machines and network components

by name from the left-hand panel and drag them into the

lab configuration. Lines are dragged between components

to create a network connection.

An author’s first step is to design the network

configuration of virtual machines that make up the

lab. As seen in Figure 4, authors can select virtual

machines and networking components from a list

and drag them into the lab area, connecting lines

between them to indicate a network connection. This

network diagram system will be familiar to those in

IT and computer security fields, which comprises a

large percentage of the authors for VTE labs. The

author may optionally alter the configuration of the

virtual machines selected to meet the needs of the

lab being created. Often this includes installing

software, changing network settings, or adding data

to the machine for students to use to test various

software tools.

4.2.2 Exercise Creation

Figure 5: Author interface with task creation panel on left.

Instructions can be edited and previewed in the same

format/interface as students will view them.

Once virtual machines have been configured and the

network configuration has been set, the author

initiates the exercise building stage of lab

development. A task interface is brought into view

on the left hand side of the screen, allowing the

author to create Exercises and Tasks (Table 1), as

shown in Figure 5. By double-clicking the mouse on

any virtual machine icon, the author can bring up a

window with a connection to that virtual machine’s

desktop and interact with that virtual machine in the

same way as with a physical computer. (Figure 6)

Thus, while defining these steps to lab completion,

the author is able to personally perform the desired

actions on the virtual machines in the lab, verifying

the expected outcome of each task.

This process also allows the author to take

screenshots of the virtual machine and embed the

images into the task list, by highlighting a region of

screen and simply dragging it into the task panel. At

the end of each exercise, the author is able to save

the state of all virtual machines, creating a known

good starting point for the following exercise. These

saved states allow students to revert to known good

lab states in the case of irreparable errors while

completing the lab, rather than being forced to start

at the beginning and repeat steps previously

completed correctly.

CSEDU 2010 - 2nd International Conference on Computer Supported Education

212

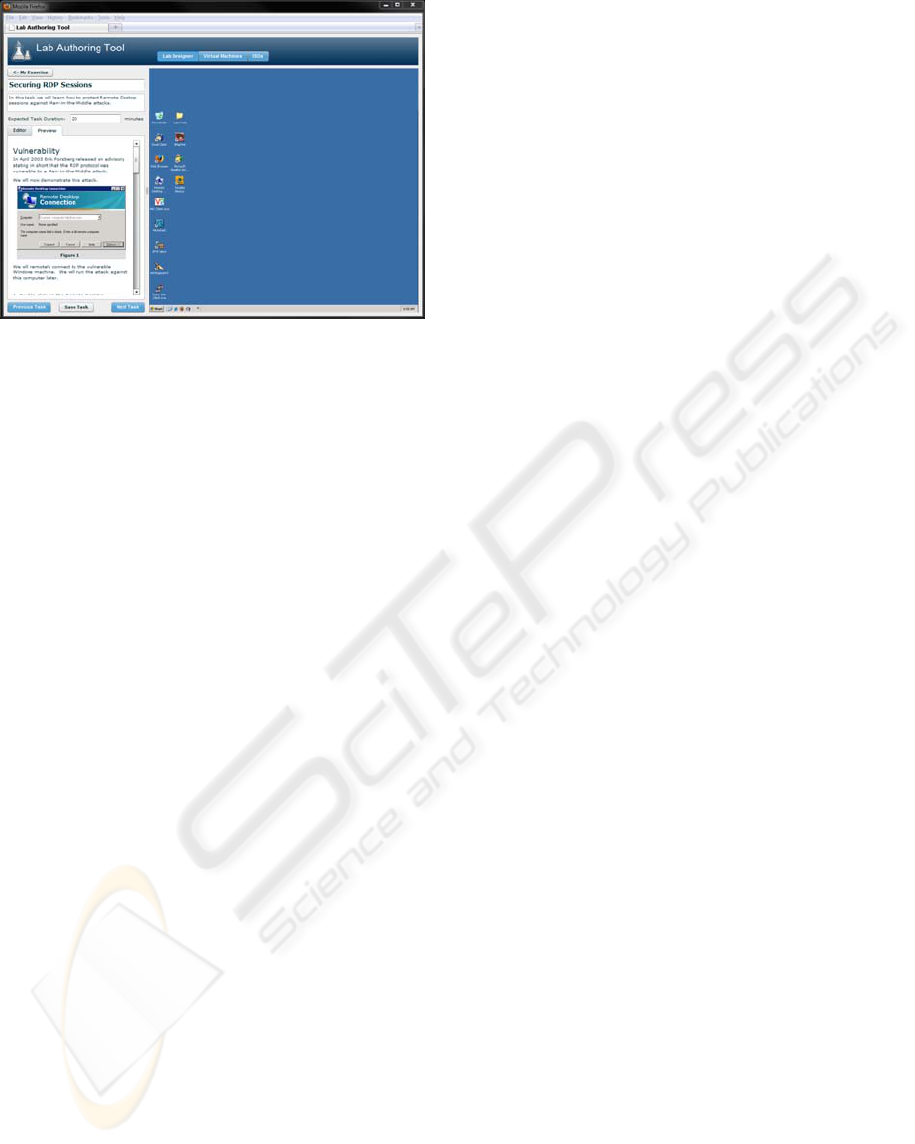

Figure 6: Authoring interface with active connection to the

desktop of a virtual machine. On the left is the task panel,

showing the task the author is currently completing.

Authors can also re-enter this lab creation

interface with existing virtual labs, to alter or fix

parts of the lab. This action creates a new version of

the lab, leaving the old version intact so as not to

affect the work of in-progress students.

5 CONCLUSIONS

Computer education issues a unique challenge to the

educational community. Hands-on training is

necessary in preparing students to perform duties in

fields such as cyber security, computer forensics,

and information technology. However, many

educational exercises, especially in security areas,

pose real risks to production networks. (Bulbrook,

2006) Such exercises are better performed in an

isolated network environment. An isolated physical

training environment is time-consuming and

expensive to build, is restricted to a single physical

location, and requires additional time and expense to

reconfigure for new exercises or to repair damage

done during a training session.

Aside from creating an isolated physical

network, a virtual lab environment is the only

solution to potential security risks. In addition to

safely isolating exercises from production networks,

a virtual lab offers other benefits, such as:

 Access for multiple concurrent users,

 Instant deployment of lab environments,

 Quick reconfiguration of lab environments,

 Safe access from any network environment.

Students are each given access to an independent

instance of the lab environment that can be accessed

from campus networks, production networks, or

even from a student’s home computer. Changing a

lab environment requires no hardware changes, only

reconfiguration of virtual machines and switches,

resulting in a multi-functional lab solution that is

both time- and cost-effective.

The Virtual Training Environment (VTE) was

designed to deliver virtual labs for computer

security, forensics, and information technology

training to United States government professionals,

including those in the Department of Defense and

U.S. Federal Civilian Agencies. To facilitate

delivery of virtual labs to users in most network

environments, VTE has been designed to deliver a

secure connection to virtual machine desktop

sessions in a web browser, and requires no

proprietary software installation on the student’s

system. Lab exercises and tasks have been integrated

into the student’s lab interface, increasing the

immersion of the student by maintaining focus on a

single virtual lab interface. Students are able to save

and resume progress through virtual labs,

functionality made possible by careful management

of virtual disk data in the VTE lab management

software framework.

Future work to this end includes formal studies

of VTE as a learning system. The authors hope to

conduct studies of the efficacy of the VTE system as

a learning tool, comparing knowledge retention and

performance on exams of users trained with VTE to

those trained elsewhere.

In addition to a unified student interface, VTE

has been designed with an intuitive interface to

provide powerful virtual lab creation tools to content

authors and domain experts, giving them the ability

to design virtual labs for education and training

exercises. Pre-configured virtual machines and a

drag-and-drop interface for virtual lab network

design provide a swift and efficient process for

designing training labs. The unification of highly

accessible virtual lab delivery mechanisms and

powerful, intuitive lab authoring tools allows VTE

to provide a completely user-driven virtual lab

system. Content creation and consumption is all

handled by the software and users, allowing learning

to proceed at a pace set by the user community,

rather than that allowed by an overseeing

organization.

VTE: THE VIRTUAL TRAINING ENVIRONMENT - Advanced Virtual Lab Authoring and Delivery

213

REFERENCES

Bulbrook, H. 2006. Using Virtual Machines To Provide A

Secure Teaching Lab Environment. J. Comput. Small

Coll. 20, 1 (Oct. 2004), 332-346.

Greenberg, A. The Emerging Value of Virtual Labs:

Addressing the ‘Pressure Points’ in Technical

Training. Wainhouse Research. November, 2004.

www.wainhouse.com/files/papers/wr-virtuallabs.pdf

Hu, D., Wang, Y. Teaching Computer Security using Xen

in a Virtual Environment, vol., no., pp. 389-392, April,

doi:10.1109/ISA.2008.18

Hu, J., Cordel, D., Meinel, C. A Virtual Laboratory for IT

Security Education. Proceedings of the Conference on

Information Systems in E-Business and Egovernment

(EMISA), Luxembourg, 6-8 Oct 2004, pp. 60-71

http://subs.emis.de/LNI/Proceedings/Proceedings56/G

I-Proceedings.56-5.pdf

Nabhen, R. and Maziero, C. 2006. Some Experience

Using Virtual Machines for Teaching Computer

Networks. International Federation for Information

Processing (IFIP). 210 (2006), 93-104.

Robila, S. A. 2005. Distributed computing and computer

security education. In Proceedings of the 6th

Conference on information Technology Education

(Newark, NJ, USA, October 20 - 22, 2005). SIGITE

'05. ACM, New York, NY, 383-384. DOI=

http://doi.acm.org/10.1145/1095714.1095803

VMware. 2006. Virtual Lab Automation: A Quantum

Leap in IT Cost Reduction and Application

Development Process Improvement. White Paper.

Vollrath, A. and Jenkins, S. 2004. Using virtual machines

for teaching system administration. J. Comput. Small

Coll. 20, 2 (Dec. 2004), 287-292.

Yang, T. A., Yue, K., Liaw, M., Collins, G., Venkatraman,

J. T., Achar, S., Sadasivam, K., and Chen, P. 2004.

Design of a distributed computer security lab. J.

Comput. Small Coll. 20, 1 (Oct. 2004), 332-346.

CSEDU 2010 - 2nd International Conference on Computer Supported Education

214
