GENERATION OF USEFUL SEMANTIC FEEDBACK FOR

STUDENTS AND TEACHERS

M. Sánchez-Vera, F. Frutos-Morales, M. D. Castellanos-Nieves

M. P. Prendes-Espinosa, J. T. Fernández-Breis

Universidad de Murcia, Campus de Espinardo CP30100, Spain

C. Cruz-Corona

Universidad de Granada, CP 18015, Spain

Keywords: Ontology, Feedback, eLearning.

Abstract: Feedback is an important component of assessment in learning environments, because it allows students to

know their learning flaws, and feedback information is also useful for teachers to design learning contents

adapted to the needs of the students. Therefore, the availability of feedback constitutes a new learning

opportunity. In this paper we describe an approach based on Semantic Web technologies for generating

useful semantic feedback for both teachers and students.

1 INTRODUCTION

Student's knowledge or skills evaluation is a basic

activity in both conventional education and e-

learning. To date, different knowledge

representation techniques have been used in

computer-assisted open question assessment, such as

semantic networks or lexical conceptual structures

(see for instance (Whittingdon and Hunt, 1999)).

These ones have made use of complementary

techniques, including statistical techniques, natural-

language processing, information extraction

techniques, clustering, and Hybrid approaches. In

the last years, Topic Maps (Maicher and Park, 2005)

have been widely used for conceptualizing domains

in educative settings. They can represent information

using topics, relationships, and occurrences. They

are thus similar to semantic networks and to both

concept and mind maps in many aspects. However,

their knowledge is not formalized and requires the

definition of the topic map ontology. Non semantic

approaches can also be found in literature. For

instance, fuzzy sets have also been used for

evaluating performance in eLearning settings (see

for instance (Wang and Chen, 2008)).

On the other hand, the Semantic Web (Berners-

Lee et al., 2001) proposes the idea that web contents

are defined and linked not only for visualization but

for being used by applications. Moreover, Semantic

Web technologies have been used in eLearning for

the last years from different perspectives (see, for

instance, (Devedzic, 2006; Fensel et al., 2003;

Stojanovic et al., 2001). In this way, our research

group developed the OeLE platform to support

teachers in the assessment of open questions-based

exams by applying such technologies (Castellanos et

al., 2008). This assessment approach demonstrated

its usefulness in real courses for supporting exam

marking. However, it did not allow students and

teacher to know the main flaws of the students from

the course knowledge perspective.

Feedback is indeed an important part of

assessment processes since they allow both teachers

and students to take actions to overcome the learning

flaws demonstrated in the assessment tests.

Furthermore, its availability is a new learning

opportunity, so enhancing the learning-teaching

process. Hence, in this work we address the

generation of semantic feedback for both agents of

the learning-teaching process. The OeLE platform

will be then extended for providing such feedback.

As a result, students will not only receive the mark

for the exam, but also their learning flaws. On the

other hand, teachers will know the strengths and

221

Sánchez-Vera M., Frutos-Morales F., D. Castellanos-Nieves M., P. Prendes-Espinosa M., T. Fernández-Breis J. and Cruz-Corona C. (2010).

GENERATION OF USEFUL SEMANTIC FEEDBACK FOR STUDENTS AND TEACHERS.

In Proceedings of the 2nd International Conference on Computer Supported Education, pages 221-226

DOI: 10.5220/0002780002210226

 SciTePress

weaknesses of their students by doing the semantic

analysis of the results of the exams.

2 ASSESSMENT IN OeLE

OeLe is an approach based on Semantic Web

technologies for supporting teachers the assessment

of exams. The whole picture of assessment in OeLE

can be seen in Figure 1, and includes the following

basic assessment entities:

• Course ontology: It models the knowledge of

the course, and it must be written in OWL.

• Annotated exam: An exam is comprised of a set

of open and closed questions. Each open

question has a set of semantic annotations

associated by the teacher, which constitutes the

expected answer to that question.

• Annotated student’s response to the exam:

Semantic annotations are extracted from the

response to each open question. This is a

semiautomatic process that follows the

algorithm presented in (Valencia et al., 2004).

Each semantic annotation consists in associating one

or more elements of the course ontology to the

question or to part of the student answer. Once the

annotations have been obtained, OeLE gets

automatically the marks for each question using the

functions presented in (Castellanos et al., 2008).

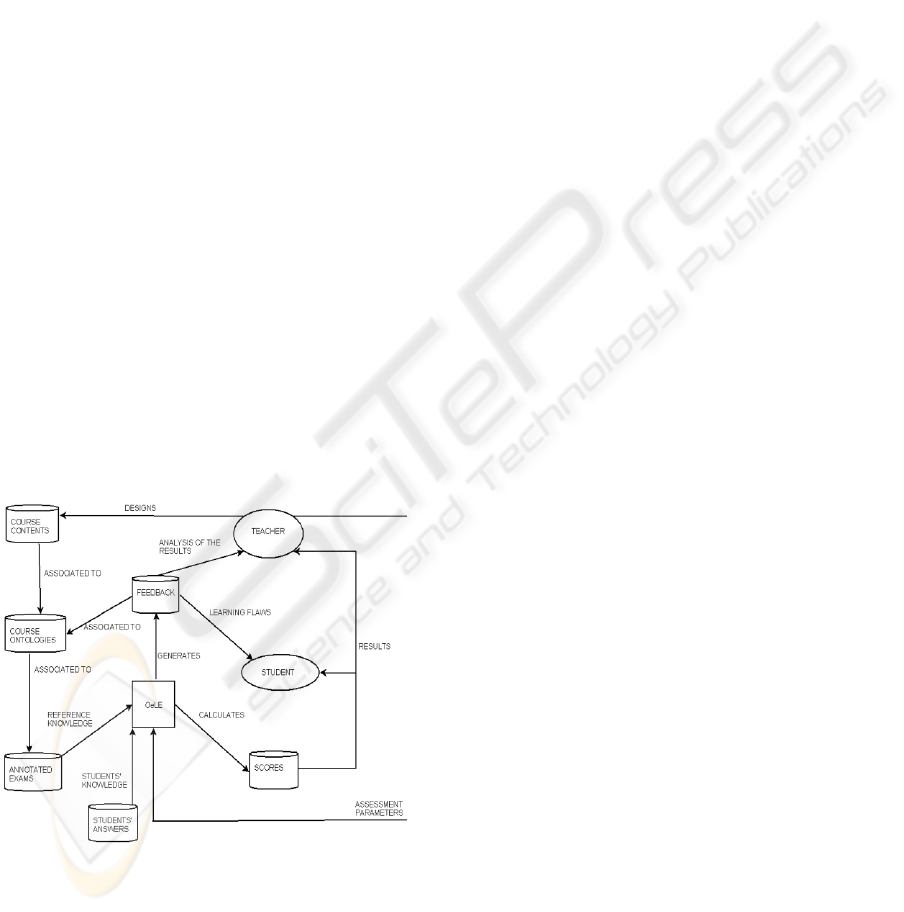

Figure 1: Assessment in OeLE.

As shown in Figure 1, feedback is then approached

as the information received by both teachers and

students after an exam is marked. Feedback is then

obtained analysing the performance of the students

in that exam. The generation of feedback is strongly

related to the marking approach, and it is obtained

by analyzing the same sets of annotations. As a

result of this process, both students and teachers will

receive information about the knowledge the

students do not have learnt, and will be able to

perform actions to overcome such learning flaws.

3 FEEDBACK IN OeLE

In this section we will present how feedback is

represented in OeLE, how it is generated and,

finally, we will describe the particular feedback

information generated for teachers and students.

3.1 Representing Feedback

The relevant concepts managed by OeLE to

represent feedback are presented in this subsection.

Definition 1. Open Question

open_question: <desc, expected_answer,

{open_question_annot

} ,value>

where desc is the name of the question;

expected_answer contains the correct answer to the

question in natural language; open_question_annot

are the semantic annotations defined for such open

question; and finally, value is the number of units

given to the student in case of success.

When an open question is created by a teacher,

its expected response must be annotated with respect

to the course ontology. For this purpose, each open

question has a set of (concepts, relations, attributes

and values) annotations associated.

Definition 2. Open Question Annotation

open_question_annot:<entity_annot,

quantitative_value>

where entity_annot represents the annotation for the

knowledge entity in the course ontology; and

quantitative_value is the numerical score associated

to the question. It stands for the importance of the

knowledge entity in the context of the individual

question.

There are three types of entity_annot, for

concepts, relations and attributes, which associates

the particular knowledge item of the course ontology

to the question.

Definition 3. Open Question Answer

open_question_answer= <text_answer,

{answer_annotation

where text_answer is the answer of the student in

natural language; and answer_annotation

are the

CSEDU 2010 - 2nd International Conference on Computer Supported Education

222

semantic annotations obtained from the textual

answer, which are defined next.

Definition 4. Answer Annotation

Answer_annotation=< entity_annot, ling_exp>

where entity_annot is defined as for

Question_Annotation; and ling_exp represents the

text of the answer associated to the knowledge

entity.

The generation of feedback requires the

definition of new elements, which are defined next.

Definition 5. Feedback Annotation

Feedback_annotation= X, where X in {correct,

wrong}

A feedback annotation has the value wrong in

case the answer annotation is not similar enough to

any annotation of the same open question, what is

determined by the value of the similarity threshold

used. Otherwise, the value is correct.

Once we know which answer annotations are

correct and which are wrong, positive and negative

feedback structures are respectively defined.

Definition 6. Positive Feedback for an Answer

positive_feedback(op)=

{ answer_annotation

, feedback_annotation

}such

that feedback_annotation

=correct.

Definition 7. Negative Feedback for an Answer

negative_feedback (op)=

{ answer_annotation

, feedback_annotation

} such

that feedback_annotation

=wrong.

Then, the combination of both definitions would

provide the definition of the feedback provided to a

student for a particular answer to an open question.

Definition 8. Student Feedback for an Answer

student_feedback(op)=

<text_answer, positive_feedback(op),

negative_feedback(op)>

Finally, we can define the feedback generated for a

teacher for a particular open question:

Definition 9. Teacher Feedback for an Open

Question

teacher_feedback(op)=



_





3.2 Obtaining Feedback

The algorithm for feedback generation works on a

question-by-question basis and feedback items are

generated in parallel to the calculation of the

marking score. Next, we describe how feedback

annotations are generated for a particular answer of

an open question.

For each semantic annotation of the student’s

answer, the following process is executed. First, the

semantic similarity between one semantic annotation

of the student’s answer and all the annotations of the

expected one of the same ontological category is

obtained. The result of this process is a table whose

rows are the annotations of the student’s answer, and

whose columns are the annotations of the expected

one. Each cell has then the value of the semantic

similarity.

For each annotation of the expected answer, the

most similar annotation of the student is selected. If

such similarity is higher than the threshold, it is

marked as correct and included in the positive

feedback group. Otherwise, it is marked as wrong

and included in the negative group. It should be

noticed that the algorithm checks that we can only

select one item of the student’s answer for one item

of the expected one.

3.3 Customised Feedback

Feedback has been incorporated in the OeLE

platform for both teachers and students. The OeLE

platform offers a desktop application for teachers

and a web-based access for students, so the

corresponding software artifacts had to be modified

appropriately. This section has then two streams, one

per type of agent involved in the teaching-learning

process: teacher and student.

3.3.1 Providing Feedback to Teachers

The OeLE platform allows for making several

corrections to the same exam by changing the

assessment parameters. Teachers can receive the

feedback of any of such marking processes, since

each exam has a marking configuration associated.

Hence, once the teacher selects the desired exam, the

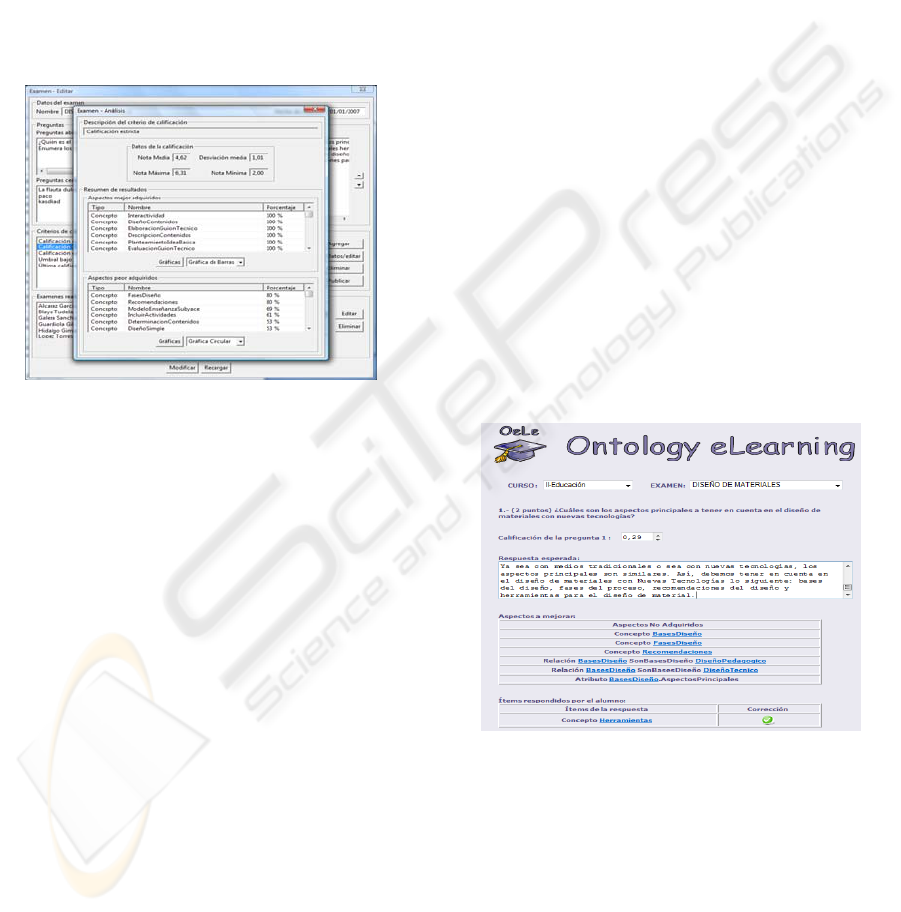

analysis dialog, shown in Figure 2, is displayed.

The upper part of the dialog contains general

information about the exam, showing some statistics

such as mean, standard deviation, highest and lowest

scores, and the description of the marking criterion

used (“Calificación estricta”). This description is

provided by the teacher when the criterion is created.

The lower part of the dialog provides the semantic

interpretation of the exams, using the course

ontology to perform such analysis. This analysis

calculates how many students have answered

correctly each ontological entity associated to the

questions, and how many have done it wrong. To

GENERATION OF USEFUL SEMANTIC FEEDBACK FOR STUDENTS AND TEACHERS

223

this end, such entities are classified into two sets: a)

entities acquired by the students (“aspectos mejor

adquiridos”); and b) entities not acquired by the

students (“aspectos peor adquiridos”). Both sets are

shown in the lower part of the dialog. Hence, the

teacher has access to which concepts, relations and

attributes have been acquired better or worse by the

students, although in the figure only concepts are

shown. In the example shown in the figure, the

concept interactivity (“interactividad”) has been

correctly answered by all the students, whereas

simple design (“diseño simple”) has only been

wrongly answered by 53% of the students.

Figure 2: Providing feedback to teachers in OeLE.

Graphical feedback is also generated for the teacher.

In order to get the graphical feedback, the teacher

has to select the set of entities to analyze

graphically, and the graph is generated. The OeLE

platform generates bar and circular graphs for

teachers. Bar graphs allow for viewing the selected

course knowledge items ordered by decreasing

percentage, whereas circular ones allow for

representing and analyzing course knowledge items

in relative terms.

3.3.2 Providing Feedback to Students

It has already been mentioned that the teachers can

launch several marking processes for the same exam

by changing the marking criteria. However, the

students can only receive the mark and the feedback

from one of them. This will be the one made public

by the teacher. Consequently, the students receive

feedback for this public assessment. This feedback is

generated for each question of the exam. The

feedback for open questions is different than the

closed ones. The feedback for closed questions does

not provide any semantic information; the platform

just shows the user answer and the correct one.

An example of open question feedback is shown in

Figure 3, which shows part of the feedback

generated for the first question of an exam. The

student can see the description of the question, the

score obtained for this question (0.29), the expected

answer in natural language, and the semantic

analysis of his/her answer. The result of such

analysis is comprised of two lists:

- Knowledge not acquired (“aspectos a

mejorar”): This list contains the knowledge items

that were expected to be answered in this question,

but the student did not. In this example, the student

did not answer the concepts “bases of design”,

“phases of design” and “recommendations”, the

relations “bases of design are the bases of

pedagogical design” and also “bases of design are

the bases of technical design”, and, finally, the

attribute “main aspects of the bases of design”.

- Knowledge contained in the answer (“Items

respondidos por el alumno”): The marking process

obtains a set of semantic annotations from the

student answer. The feedback is then generated by

showing the correctness of each ontological entity

extracted from the student answer. The figure only

shows the concept Tools (“herramientas”) which

was correctly answered by the student. Wrong items

have a red cross associated.

Figure 3: The feedback generated for a student.

Moreover, the ontological elements have links

associated, which allow the student to see its

ontological definition. For instance, in case of

clicking on a concept, a web page showing its name,

attributes and relations is shown. In summary, the

feedback provided to each student can be seen as a

personalized recommendation of topics that should

be reinforced.

CSEDU 2010 - 2nd International Conference on Computer Supported Education

224

4 EXPERIMENTAL VALIDATION

The course “Design and Production of Educational

Materials” is one of the e-learning courses in the

Education Degree in the University of Murcia. This

course took place in the second semester of

2008/2009, and had 25 students. All the work is

realized in our virtual campus SUMA

(http://suma.um.es/). The working processes of the

students are evaluated with an e-portfolio and other

different activities throughout the 9 themes of the

program and also the participation of the students in

several communication situations (videoconferences,

forum and collaborative works). The final evaluation

is carried out with two types of exams: multiple

choice, and open question test. For this second

phase, OeLE was used and it served for the

validation of the approach.

Now, we describe the process followed in this

validation experiment:

1) Development of the course ontology. The OWL

ontology has been done using Protégé, and it

has been imported into the OeLE platform. The

ontology has 111 classes, 71 object properties,

51 data type properties, including also disjoint

and cardinality constraints. Its consistency has

been checked using Pellet, and the ontology has

ALCHIN(D) DL expressivity.

2) Preparation of reinforcement contents: A series

of HTML learning objects were designed and

associated to the concepts of the course

ontology.

3) Design of the first exam: An exam containing 5

open questions was created using OeLE, and the

expected answers were annotated.

4) Execution of the exam: The students had to

answer this test using OeLE and with a time

limit. The students could review the contents of

the course in the virtual environment and could

search on internet to find answers during the

realization of the exam. This exam was taken by

21 students.

5) Assessment of the exams: The exams were

marked by a teacher and by OeLE.

6) Feedback: The students and the teacher received

the marks and the feedback generated by OeLE.

The students reviewed the reinforcement

learning objects associated to the knowledge

items suggested by OeLE.

7) Repetition of steps 3, 4 and 5 for the second

exam. This exam was taken by 20 students.

8) Evaluation of the feedback: This was done by

the students. Students were asked to answer a

questionnaire about the effectiveness and

usefulness of the learning objects and the

feedback received.

The whole experiment and the results can be found

at klt.inf.um.es/~oele/feedback. This includes: the

ontology, the questions of the exams, the annotations

of their expected answers, the reinforcement

contents, samples of the annotations extracted from

the students’ answers, samples of the semantic

feedback generated by OeLE for the teacher and for

a particular student, the marks of the students in both

exams, and the questionnaire filled by the students.

Next, some evaluation of the feedback results is

shown.

First, we compared the results obtained by the

students in both exams. If the feedback generated by

the system was effective, then the students should

have obtained a better mark in the second exam. The

maximum possible score in an exam is 10. The

average mark of the first exam was 6.18 (21

students)/6.12 (20 students) and the average mark

for the second one was 6.56 (20 students).12

students obtained a better mark, 4 obtained a worse

mark and 4 obtained a similar mark. For this

classification, we defined that a student obtained a

similar mark is the difference was not greater than

0.25. Consequently, it seems that the feedback

generated was useful for the students. However, this

is a single, and small experiment so strong

conclusions cannot be drawn from such results.

Therefore, we asked the students to answer a

questionnaire. This was designed from a pedagogical

perspective and it included questions related to

different issues such as usability, accessibility,

quality of the learning objects and usefulness of the

feedback.

Next, we discuss the results of the three

questions related to the feedback. A Likert scale was

used for answering to the questions. In this sense,

the students had to assign a value between

1(maximum disagreement) and 4(maximum

agreement). In order to summarize the results, two

groups were created: agreement (3-4) and

disagreement (1-2). The detailed results can be

checked at the aforementioned website. These are

the three questions:

• Question 1: Knowing the errors made in my

exam is a waste of time.

o Agreement: 16.7%

o Disagreement: 83.3%

• Question 2: Showing the feedback information

about the errors in my exam is positive.

GENERATION OF USEFUL SEMANTIC FEEDBACK FOR STUDENTS AND TEACHERS

225

o Agreement:88.9%

o Disagreement: 5,5%

o Do not answered: 5,6%

• Question 3: I think I would have obtained the

same mark in the second exam without the

feedback generated by the system.

o Agreement: 22,2%

o Disagreement: 66,67%

o Do not answered: 11.1%

Consequently, it can be said that the students

found useful and effective the generation of the

semantic feedback and that this can be useful for

helping students in improving their academic

performance.

5 CONCLUSIONS

Assessment is a fundamental part of the teaching-

learning process. Feedback is an important

component of assessment, since it is the process

through which students and teachers can get precise

information about the learning flaws of the students

and then take effective actions. However, most

current eLearning systems does not offer

possibilities for providing feedback, and in most

cases, they only provide a numeric score for the

closed questions.

In this work, mechanisms for providing feedback

based on Semantic Web technologies have been

proposed, and they have been implemented in an

existing software platform, with the aim of

facilitating continuous learning processes and

reducing the workload of teachers in these tasks.

Feedback has been generated by analyzing the

semantic annotations associated to the expected

answer of questions, and to the answer of the

students. On the teacher side, information about the

weaknesses of the student is provided, so teachers

can design new materials, schedule extra lessons, or

extra exercises for students to overcome their

learning flaws. On the other hand, students are

provided with the list of knowledge items that have

been correctly and wrongly answered, so that they

know what they have to reinforce.

Here, semantic feedback is provided for open

questions. We plan to redefine closed questions so

that they will also have semantic annotations

associated, that will be used to generate the feedback

to the student. As further work, we will provide links

to the learning objects associated to the ontological

elements.

ACKNOWLEDGEMENTS

This work has been possible thanks to the Seneca

Foundation, through Project 08756/PI/08, and the

Regional Government of Murcia, through project

TIC-INF 07/01-0001. María del Mar Sánchez Vera

is supported by the Spanish Ministry for Science and

Innovation through the FPU Program.

REFERENCES

Berners-Lee, T., Hendler, J., Lassila, O., May (2001). The

Semantic Web. Scientific American 284 (5), 34-43.

Castellanos-Nieves, D., Fernandez-Breis, J.T., Valencia-

Garcia, R., Cruz, C., Prendes-Espinosa, M.P.

,Martinez-Bejar, R. (2008). Using Semantic Web

Technologies for the Assessment of Open Questions.

Lecture Notes on Artificial Intelligence 5351, 42-53.

Devedzic, V., (2006). Semantic Web and Education.

Springer.

Fensel, D., Staab, S., Studer, R., van Harmelen, F., Davies,

J., (2003). Towards the Semantic Web. John Wiley

and Sons, Ltd, Ch. A Future Perspective: Exploiting

Peer-to-Peer and the Semantic Web for Knowledge

Management, 245-264.

Maicher, L., Park, J. (Eds.), (2005). Charting the Topic

Maps Research and Applications Landscape. Springer.

Stojanovic, L., Staab, S., Studer, R., (2001). elearning

based on the semantic web. In Proceedings of WebNet

2001.

Valencia-García, R., Ruiz-Sánchez, J. M., Vivancos-

Vicente, P. J. , Fernández-Breis, J. T., Martínez-Béjar,

R., (2004). An incremental approach for discovering

medical knowledge from texts. Expert Systems with

Applications 26 (3), 291-299.

Wang, H., Chen, S., (2008). Evaluating students'

answerscripts using vague values. Applied Intelligence

28, 183-193.

Whittingdon, D., Hunt, H., (1999). Approaches to the

computerised assessment of free-text responses. In

Proceedings of 3rd International Computer Assisted

Assessment Conference.

CSEDU 2010 - 2nd International Conference on Computer Supported Education

226
