APPLYING QUERY BY EXAMPLE IN OCL

FOR PLATFORM-INDEPENDENT PROGRAMMING

Grzegorz Fałda, Wiktor Filipowicz, Piotr Habela, Krzysztof Stencel, Kazimierz Subieta

Polish-Japanese Institute of Information Technology, Warsaw, Poland

Krzysztof Kaczmarski

Warsaw University of Technology, Warsaw, Poland

Keywords: Database, Object-oriented, Query language, Visual, Query by example, Model driven architecture, UML,

OCL.

Abstract: Precise modelling of behaviour is an area where programming meets modelling, and textual syntax

competes with a visual one. By developing a UML based platform-independent framework, we aimed to

find a visual syntax aid to make the language more approachable to stakeholders, while taking advantage of

existing UML syntax intuitions and offering a truly higher level of abstraction. Our solution consists of

seamlessly integrated UML Actions and the Object Constraint Language (OCL) as a database query

language, featuring both a textual and a visual syntax. In this paper we describe a declarative, Query by

Example (QBE)-based approach to visualizing OCL expressions over a UML object-oriented model

instance, to be used inside of textual or visual imperative statements. Such visual OCL expressions can also

be used as ad-hoc queries. The paper presents a choice of visual syntax and describes its underlying

semantics.

1 INTRODUCTION

In the VIDE project (Falda et al. 2007, Falda et al.

2008, VIDE 2008) we aimed at investigating the

capability of executable modelling in the spirit of

Model Driven Architecture (MDA), basing on

standardized, general-purpose modelling languages

and applied to the area of enterprise applications

involving persistent data sources. This led us to

selecting OMG UML 2.1 as the basis of the research

and supporting it with more powerful querying

capability offered by OCL 2.0. The state of these

specifications leaves many questions open.

Particularly, no concrete notation for the finer level

UML model elements (like Actions and Structured

Activities) has been standardized. Furthermore, the

use of OCL as a query language inside imperative

constructs of UML has not been extensively

investigated yet, hence research was needed to

provide an answer whether OCL is suitable in this

new role. Joining UML and OCL as a database

programming language required resolving some

ambiguities and shortcomings of those standards.

When extending a modelling language towards

the ability to specify detailed behaviour, we enter the

area that is usually covered by traditional, textual

programming languages. Indeed, introducing

diagrammatic notation may turn out to be an overkill

for typical programming tasks, where textual code

may be sufficiently readable for professionals and -

especially – faster do develop (Ambler 2007). On

the other hand, the characteristics of the VIDE

project required a careful reconsideration of this

attitude. The assumed role of the language – that is

UML-based platform-independent modelling – puts

it halfway between typical programming and

traditional UML modelling. Hence, we had a strong

incentive to look for visualisations that would

correspond to traditional, broadly understood UML

diagrams, more so than in the case of traditional

programming language development.

In the course of the VIDE project at first we have

developed a textual version of the language,

incorporating OCL (Habela 2007, Habela 2008) for

179

FaÅ

Cda G., Filipowicz W., Habela P., Stencel K., Subieta K. and Kaczmarski K.

APPLYING QUERY BY EXAMPLE IN OCL FOR PLATFORM-INDEPENDENT PROGRAMMING.

DOI: 10.5220/0002791601790182

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

its expression part. It became clear that the main

source of code complexity is mainly the expressions,

which motivated the search for useful visualisations

for them. The concept of an object-oriented version

of the Query By Example (QBE) approach was

chosen due to its intuitiveness and successful

adoption of its relational variant, as well as because

of the possibility of fitting it gracefully with UML

by reusing the instance diagram notation. The visual

expressions are intended to be used as ad-hoc

queries, and for embedding them into the imperative

constructs of the language.

The VIDE software has been implemented on

top of ODRA (Adamus 2008), an object-oriented

database management system for rapid application

development. In this project OCL has been

implemented on top of SBQL, an object query and

programming language based on the Stack-Based

Architecture (SBA). For this reason OCL

implemented in VIDE inherits some of the

advantages of SBQL, including strong static type

checking and powerful query optimization methods.

In this paper we describe a declarative, object-

oriented, QBE-based approach to visualizing OCL

expressions over a UML model instance, to be used

inside of textual or visual imperative statements.

2 VISUAL EXPRESSIONS IN

OBJECT QUERY BY EXAMPLE

To improve the approachability and expressiveness

of the language and at the same time to exploit the

concepts of the well-known UML syntax, we have

chosen to follow the QBE paradigm and adopt it to

the object-oriented data model of OCL. The

language design, called Object Query By Example

(OQBE) went beyond the UML/OCL metamodel,

providing instead some new, dedicated constructs

based on the notion of example of an object

(accompanied by link example and attribute

example). The actual OCL expression is produced

through the transformation of such an expression

model. For representing the examples, the UML

instance diagram syntax has been adopted.

The graph of an object, link or attribute example

makes it possible to declaratively specify an

expression that includes a graphical representation

for essential query operators: joins, selections and

projections. In this sense the intuitions from the

traditional QBE solutions are maintained. However,

as will be explained, OQBE introduces a number of

new important solutions specific to the object-

oriented data model and to OCL. These features

include:

• Support for both object identity and value

comparisons.

• Specifying expressions that return complex

results of nested structures (tuples in the OCL

terminology).

• A dedicated construct for representing the general

quantifier (->forAll iterator operation in OCL).

• Object retrieval from class extents or from

variables / attributes visible in the environment of

query evaluation.

To illustrate the OQBE constructs, we use a sample

model consisting of 7 classes. It represents a simple

auction site, including the notions of a User,

Auction, Bid, Purchase, Comment and Category.

The AuctionSite class with the «module» stereotype

represents the application’s global data store and

functionality. The ad-hoc queries shown in the

subsequent part of this section are to be evaluated in

that global environment.

Object examples connected with link examples

can represent respective data structure examples. If

more than one mutually unconnected part of the

example diagram exists, they are considered to

represent a Cartesian product of their results. An

attribute example may play different roles:

• Predicate – if the attribute itself or the result of

an operation applied to it (including various kinds

of comparisons) provides a Boolean value and no

specific flag is attached to the attribute example.

• Output Element – if an attribute example has the

output flag attached.

• Sorting Criterion – if the sort flag with

necessary properties (priority, order) is attached

(see the figure below for example of its usage).

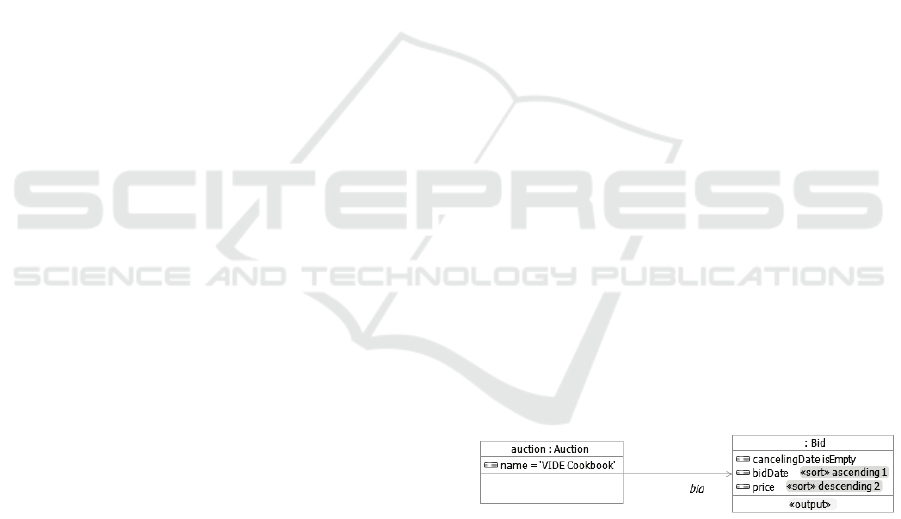

Figure 1: OQBE expression involving selection,

navigation, sorting and projection (“get non-cancelled bids

for ‘VIDE Cookbook’ and order them according to date

and price”).

Figure 1 shows a simple OQBE expression that

involves two object examples connected with a link

example, including two predicates based on attribute

examples and using further two attribute examples to

determine the result sorting. The result of the

expression is constructed through the projection

from the whole example structure onto the element

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

180

marked with the output flag. In this case the type of

the expression result will be OrderedSet<Bid>.

Before we present a detailed algorithm in the

next section, let’s describe the evaluation of an

expression declared in OQBE as a sequence of the

following steps (disregarding optimisations):

1. Constructing expressions that retrieve objects

represented by the entry points of the graph.

2. Performing joins according to the navigation

through link examples.

3. If more than one graph has been drawn,

constructing a Cartesian product of their results.

4. Performing selections according to the constraints

included in the examples.

5. Sorting the result.

6. Building the final result by performing a

projection into one or more fields indicated by

output flags.

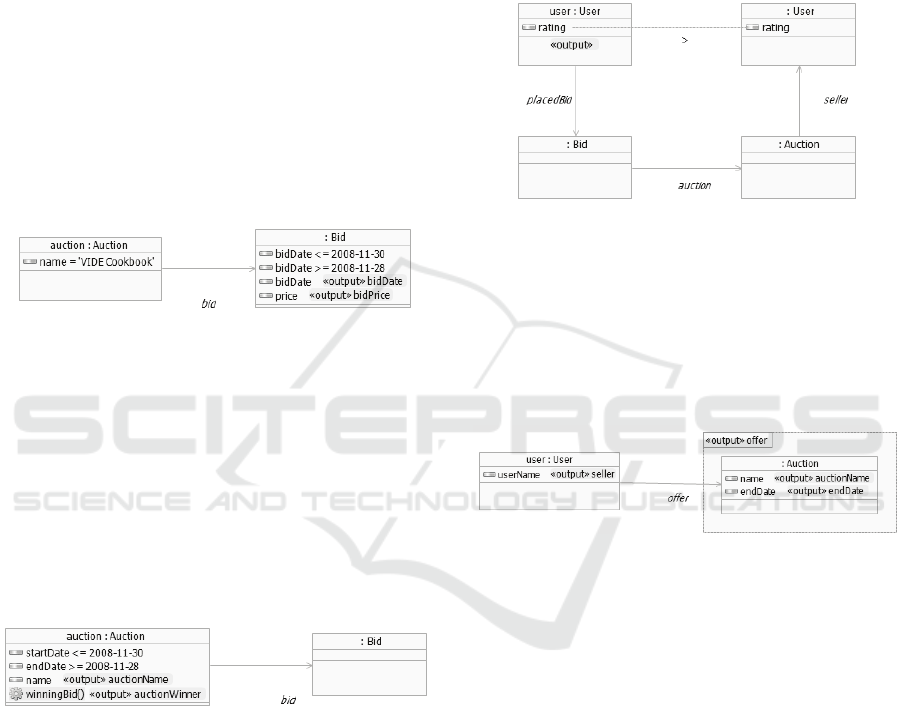

Figure 2: OQBE expression with a tuple result consisting

of two named fields (“get dates and prices of bids placed

for ‘VIDE cookbook’ between the given dates”).

The output flag can be applied to an object

example as a whole (in that case it marks a whole

object to constitute an element of the result of the

expression) or to an attribute. More than one output

flag can be used in a single expression. In that case

however, the result is assumed to be of a Tuple type

and hence the particular flags need to be

accompanied with appropriate tuple field names, as

shown in Figure 2.

Figure 3: OQBE expression including an embedded OCL

code (“get names and winning bids for auctions active in

the period specified”).

Since using single names and operations on them

can be too limiting for some of the abovementioned

applications of an attribute example, the language

provides a second similar construct, where instead of

an attribute name, an arbitrary OCL code can be

embedded. Figure 3 shows this construct used for

operation invocation.

An embedded OCL code is evaluated in a way

analogous to the plain attribute example names. This

feature allows us to overcome some technical

limitations of the built prototype tool (as in the

above simple case, i.e., by providing a dedicated

support for parameter-less method calls), however it

can also be useful as a shortcut or when an

expression is too complex to be fully visualized (for

example, multiplication or adding several values

stored in attributes of the same or a different object

and returning them as the expression result).

Figure 4: OQBE expression involving the comparator

construct (“get users who used to bid for items sold by

users with a lower rating”).

Although the readability considerations limit the

usage of connections between attribute examples, a

simple construct called Comparator was introduced

in order to represent comparisons between attribute

or object examples. Its usage is shown in Figure 4.

Figure 5: OQBE expression with a nested structure result

(“get user names together with sets of names and end dates

of their auctions”).

One of the features that makes OQBE different

from traditional QBE solutions based on the

relational model, is the availability of nested

structures in the construction of expression results.

In the textual OCL this is realized by nesting

subexpressions inside an explicit Tuple constructor.

In OQBE a tuple is constructed implicitly by

providing names to the output flags. Hence, the only

element that was necessary to achieve nested result

structures was a visual region inside which a

respective part of the diagram (containing its own

output flags) could be nested. Note that the nested

output region requires providing the field name for

it. The result type of the expression depicted in

Figure 5 would be the following:

Set<Tuple{ userName : string,

offer = Set<Tuple {name : string,

endDate : Date }> }>

APPLYING QUERY BY EXAMPLE IN OCL FOR PLATFORM-INDEPENDENT PROGRAMMING

181

3 CONCLUSIONS

In this paper we have outlined the concept of the

object query by example solution which serves for

visualising OCL expressions in the VIDE UML-

based action language. Combining OCL with UML

Actions and Activities provides a standard-

compliant and powerful language for processing

object-oriented data structures. Contrary to UML as

a whole however, OCL is known by relatively few

professionals, and may pose a barrier for a broader

adoption of a UML based programming language.

Hence we have proposed a QBE-inspired visual

language that offers a yet higher level of abstraction

compared to OCL. It builds upon UML syntax

metaphors and fits the visual syntax proposed for the

imperative constructs of the language (actions and

activities). The solution includes a concrete syntax

inspired by UML instance diagrams, underlying

metamodel for object examples, the algorithm for

OCL code generation and optimisation by rewriting.

We have also developed a prototype implementation

within the Eclipse framework. The prototype is a

fully-fledged IDE which facilitates designing queries

and running them directly on the target platform. In

the current version we have chosen, designed and

implemented a set of features that is not exhaustive,

but on the other hand, avoids the complexity that

would undermine the intuitiveness of the syntax and

the general usability of the tool.

Several further features have been identified and

are considered for enhancing the next release of the

prototype.

The evaluation workshop conducted with

students during the VIDE project (VIDE 2008)

seems to confirm that the syntax is intuitive for

inexperienced users who have UML background.

We have also observed that OQBE allowed users to

construct the queries whose complexity in textual

OCL and SQL constituted a barrier.

We are currently approaching a more direct

integration of UML-based modelling with our

ODRA platform, with visual expression construction

with OQBE being a part of the environment. Note

that even in case the resulting query code does not

need to be reviewed by an application developer, its

simplicity and clarity is important for performance

reasons. Hence, a work on the optimisation of the

generated queries has been also initiated.

The underlying concept of visual querying is also

more generally applicable. We are going to take

advantage of this fact when designing a generic data

exploration tool (involving navigation, querying and

intermediate results storage (basket)) for a SQL

database which is going to be used for motion data

search. Further important details of our solution

including the semantics, implementation solutions,

intended usage and the design of the diagram-to-

OCL code generator, remaining out the scope of this

short paper, have been described in other works

available at (VIDE 2009).

REFERENCES

Adamus, R., Daczkowski, M., Habela, P., Kaczmarski, K.,

Kowalski, T., Lentner, M., Pieciukiewicz, T., Stencel,

K., Subieta, K., Trzaska, M., Wardziak, T., Wiślicki,

J., 2008. Overview of the Project ODRA. In

Proceedings of the First International Conference on

Object Databases, ICOODB 2008. pp.179-197.

Ambler, S., 2007. A Roadmap for Agile MDA. Ambysoft.

Falda, G., Habela, P., Kaczmarski, K., Stencel, K.,

Subieta, K., 2008. Executable Platform Independent

Models for Data Intensive Applications. In

Computational Science - ICCS 2008, 8th International

Conference, Kraków, Poland, June 23-25, 2008,

Proceedings, Part III. Springer, pp. 301-310.

Falda, G., Habela, P., Kaczmarski, K., Stencel, K.,

Subieta, K., 2007. Platform-independent programming

of data-intensive applications using UML. In 2nd IFIP

Central and East European Conference on Software

Engineering Techniques, CEE-SET 2007, Springer,

pp. 103-115.

Habela, P., Kaczmarski, K., Stencel, K., Subieta, K., 2007.

Implementing OCL as a Database Query Language. In

On the Move to Meaningful Internet Systems: OTM

2007 Proceedings, Part I. Springer, pp. 17-18

Habela, P., Kaczmarski, K., Stencel, K., Subieta, K., 2008.

OCL as the Query Language for UML Model

Execution. In Computational Science - ICCS 2008, 8th

International Conference, Kraków, Poland, June 23-

25, 2008, Proceedings, Part III. Springer, pp. 311-

320.

VIDE, 2008. VIDE Visualize all moDel drivEn

programming. Industrial Use Cases and Examples.

http://www.vide-ist.eu/reflib/usecases.html

VIDE, 2009. VIDE Visualize all moDel drivEn

programming. Project website http://www.vide-ist.eu

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

182
