A PERSONALIZED INFORMATION SEARCH ASSISTANT

M. Elena Renda

Istituto di Informatica e Telematica del CNR, Via G. Moruzzi 1, Pisa, Italy

Keywords:

Personalized systems, Automatic source selection, Information Filtering, Metasearch, Rank fusion.

Abstract:

A common characteristic of most of the traditional search and retrieval systems is that they are oriented to-

wards a generic user, often failing to connect people with what they are really looking for. In this paper we

present PI SA, a Personalized Information Search Assistant, which, rather than relying on the unrealistic as-

sumption that the user will precisely specify what she is really looking for when searching, leverages implicit

information about the user’s interests. PI SA is a desktop application which provides the user with a highly

personalized information space where she can create, manage and organize folders (similarly to email pro-

grams), and manage documents retrieved by the system into her folders to best ﬁt her needs. Furthermore,

PI SA offers different mechanisms to search the Web, and the possibility of personalizing result delivery and

visualization. PI SA learns user and folder proﬁles from user’s choices, and uses these proﬁles to improve

retrieval effectiveness in searching by selecting the relevant resources to query and ﬁltering the results ac-

cordingly. A working prototype has been developed, tested and evaluated. Preliminary user evaluation and

experimental results are very promising, showing that the personalized search environment PI SA provides

considerably increases effectiveness and user satisfaction in the searching process.

1 INTRODUCTION

Though nowadays more information is easily reach-

able and in a smaller amount of time than years ago,

it is becoming increasingly difﬁcult for individuals to

control and effectively seek for relevant information

among the information resources available on the In-

ternet. The more users are getting on-line, the more

their information needs become complex, the more

difﬁcult it becomes to ﬁnd relevant information in a

reasonable amount of time, unless the user exactly

knows what to get, from where to get it, and how to

get it.

Given the exponential growth in the quantity and

complexity of information sources available on the In-

ternet, over the last years much effort has been put

into the development of approaches to deal effectively

with this complexity: Information Retrieval systems

have evolved from a simple concern with the stor-

age and distribution of information, to encompass a

broader concern with the transfer of “meaningful in-

formation”. In particular, users could beneﬁt from

“personalized” services and systems for ﬁnding rele-

vant information for their interests in a broad sense,

gaining in time, quality of the documents and in-

formation retrieved, and satisﬁed information needs.

Tailoring the information and services to match the

unique and speciﬁc needs of an individual user (Per-

sonalization) can be achieved by adapting the presen-

tation and/or the services presented to the user, taking

into account the task, background, history, informa-

tion needs, location, etc., of the user; i.e., the user’s

context.

1.1 Motivation

A common characteristic of most of the traditional

search and retrieval services is that they are oriented

towards a generic user. If the same query is submitted

by different users to a typical search engine, it will

probably return the same result, regardless of who

submitted the query. Another important aspect of cur-

rent search systems is that they often answer queries

crudely rather than, for instance, learning the long-

term requirements speciﬁc to a given user or, more

generally, to a speciﬁc information seeking task.

In searching the Web, besides the users with their

corresponding information needs, we have other main

actors playing a fundamental role: the Web Infor-

mation Resources. The resources available on the

Web may be extremely heterogeneous in two main

respects: the topic of the information they provide,

and the metadata schema they use to describe the pro-

vided information.

Elena Renda M.

A PERSONALIZED INFORMATION SEARCH ASSISTANT.

DOI: 10.5220/0002793200290039

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

The alternative to querying each resource individ-

ually has been offered by retrieval systems that pro-

vide a uniﬁed interface for searching over multiple

resources simultaneously, called Metasearch Systems

(see, e.g., (Aslam et al., 2005; Meng et al., 2001)).

Metasearch systems have to deal with the two aspects

of resource heterogeneity, giving users the impression

of querying one coherent, homogeneous resource.

Thus, a system for searching and browsing the

Web tailored and customized “ad-hoc” to the user

must “know”:

1. where to search, by selecting a subset of rele-

vant resources among all those that can be ac-

cessed (Automatic Resource Selection) (Huang

et al., 2007; Nottelmann and Fuhr, 2003);

2. how to query different resources, by matching

the query language used by each of the selected

resources (Schema Matching) (Madhavan et al.,

2005; Renda and Straccia, 2006);

3. how to combine the retrieved information from di-

verse resources (Result or Rank Fusion) (Callan

et al., 1995; Dwork et al., 2001; Lee, 1997); and

4. how to present the results to the user, according to

her preferences (Result Presentation) (Chen and

Chue, 2005; Liu and Croft, 2002).

We modeled and developed such a personalized in-

formation seeking system (in the following called as-

sistant), which helps users in retrieving actual rele-

vant information from the Web with minimum cost,

in terms of both effort and time. In order to assist

the user in the information seeking task, the assistant

has to know the user and her proﬁle, a representation

of her background, interests and needs (User Proﬁl-

ing (Amato and Straccia, 1999)). This proﬁle can

be then used by the assistant for ﬁnding matchings

against content proﬁles for retrieving relevant infor-

mation and ﬁltering out the irrelevant ones (Informa-

tion Filtering or Content-based Filtering) (Belkin and

Croft, 1992).

Another orthogonal aspect of personalization we

considered when modeling the assistant was the in-

formation organization, i.e., supporting the users in

the task of organizing the information space they are

accessing to, according to their own subjective per-

spective.

In this paper we present this Personalized In-

formation Search Assistant, called PI SA, an envi-

ronment where the user will not only be able to

search/retrieve/beinformed about documents relevant

to her interests, but she will also be provided with

highly personalized tools for organizing documents

and information into a personal workspace. The ma-

jor novelty of PI SA is that it combines all the charac-

teristics of an on-line metasearch system with work-

ing space organization features in a desktop applica-

tion, providing the user with a single user point of

view personalized search environment. User evalu-

ation and preliminary experimental results are very

promising, showing that the personalized search en-

vironment PI SA provides considerably increases ef-

fectiveness and user satisfaction in the searching pro-

cess.

The paper is organized as follows: the next Sec-

tion provides an overview of the possible PI SA com-

petitors; Section 3 introduces PI SA, describing its

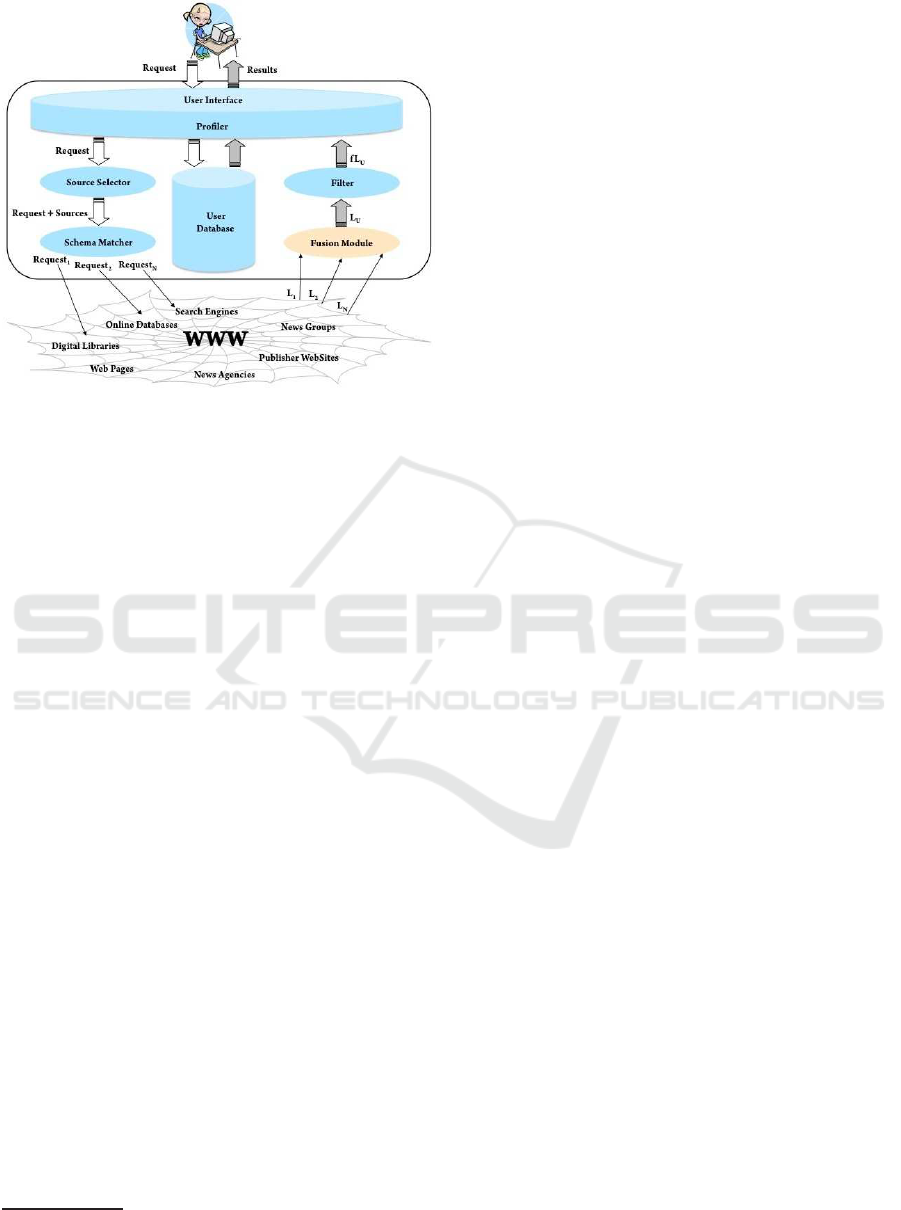

functionality; Section 4 describes PI SA architecture

in detail; in Section 5, the evaluation methodology is

described and the experimental results are reported;

ﬁnally, Section 6 concludes, providing an outline for

further developing this work.

2 PERSONALIZED SYSTEMS

The personalization task is becoming fundamental in

searching and ﬁnding relevant information, as the

amount of information and providers increases at

vertiginous rates. The environments where person-

alization is being used are databases, newsgroups,

discussion lists, electronic journals, search engines,

e-commerce Web sites, and so on. The require-

ment for personalization is well known, for instance,

in the context of Digital Libraries (DLs). Some

DLs provide simple personalized search functional-

ity, such as providing the so-called alerting services

(see, e.g., (Faensen et al., 2001)), i.e., services that

notify a user (typically by sending an e-mail) with a

list of references to new documents deemed relevant

to some of the user topic of interest (manually spec-

iﬁed). Other DLs, for instance, give users the pos-

sibility to organize their personal information space

(see, e.g., (Fernandez et al., 2000)), and collaborate

within community of users with similar interests (see,

e.g., (Renda and Straccia, 2005)).

Many commercial information ﬁltering systems

use the approach of user-deﬁned proﬁles, used to per-

sonalize search results. Other systems, reﬂecting the

desire to place most of the burden of constructing the

user proﬁle on the system, rather than on the user, rely

on the development of “models” that are collections

of good guesses about the user (see, e.g., the PIA

system (Albayrak et al., 2005), PENG (Baillie et al.,

2006)). These systems are on-line personalized ser-

vices, which often provide only part of the features

PI SA has, or require collaborative ﬁltering among

the users of similar groups. Differently, the Person-

alized Information Search Assistant we will present

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

in this paper is personalized from a single user point

of view.

In (Teevan et al., 2005), the authors present a sys-

tem for personalizing search via client-side automated

analysis of user’s interests and activities, re-ranking

the ﬁnal results according to different ways of repre-

senting the user, the corpus and the documents. Simi-

larly, PI SA is a desktop application, thus it is always

available on the machine the user is using, and pro-

vides user proﬁling and document ﬁltering. On the

other hand, PI SA also provides automatic source se-

lection, rank fusion, different search mechanisms, and

the working space organization feature. Furthermore,

PI SA is a working prototype with a fully featured

user interface. To the best of our knowledge, there is

no desktop application presented in the literature pro-

viding proﬁling, ﬁltering and metasearch features as

the PI SA desktop application presented here.

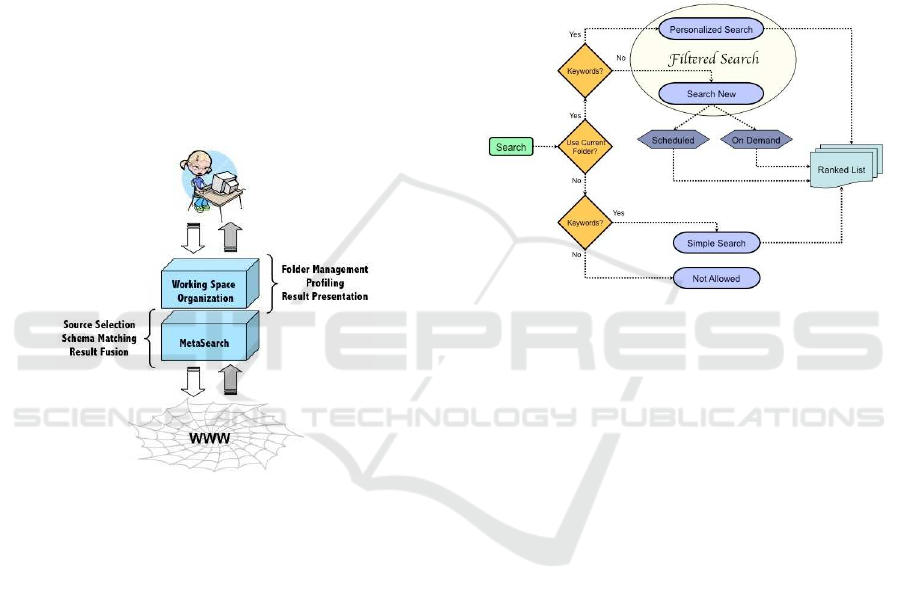

Figure 1: Logical view of PI SA functionality.

3 THE ASSISTANT

PI SA acts as go-between the user and the informa-

tion resources, when searching the Web. The main

principle underlying the personalized environmentwe

propose is based on the folder paradigm. That is, the

user can organize the information space into her own

folder hierachy, using as many folders as she wants,

named as she wants, similarly to what happens, e.g.,

with directories in operating systems, and folders in

e-mail programs. In our system, a folder is a holder

of documents relevant to the user and, tipically, con-

tains semantically related documents. This means that

the content of a folder implicitly determines the topic

of the folder. For this reason, we associate to each

folder its proﬁle, a compact representation of what the

folder is about. Thus, folder proﬁles, which depend

on the documents the corresponding folder currently

contains, determine the documents that will be re-

trieved for that folder. The user’s set of folder proﬁles

represents the collection of topics the user is inter-

ested in; consequently, the user proﬁle consists of the

collection of proﬁles related to the folders she owns.

3.1 System Functionality

PI SA functionality can be logically organized into

two main categories (Figure 1): working space

organization, and metasearch.

Figure 2: PI SA search mechanisms.

Working Space Organization. The working space

organization functionality allows the user to login to

the system, manage folders and documents, update

proﬁles, and set up her personal data and system

preferences; on the other hand, the assistant, based on

the user behaviors, tries to “understand” her interests

and automatically generates a “proﬁle” representing

the user (the user proﬁle), and a set of proﬁles

representing her interests (the folder proﬁles). These

proﬁles, along with the user preferences, are then

used as ﬁlters over the results obtained for the spe-

ciﬁc user request, in order to deliver only the “right”

information, and present the personalized result list

in the way that is more suitable for the user. Folder

proﬁles and the user proﬁle are updated from time

to time (Scheduled Proﬁle Updating). When a user

has considerably changed the content of a folder, she

may also request an immediate update (On-demand

Proﬁle Updating) of the proﬁle.

Metasearch. The search mechanisms (Figure 2) pro-

vided by PI SA are essentially of two types:

1. Filtered Search: the user is interested in ﬁnding

new documents not yet retrieved for the current

folder and she is:

- looking for new documents (Search New) -

relevant to the folder- published on the re-

A PERSONALIZED INFORMATION SEARCH ASSISTANT

sources after the last search was performed (in-

formation maintained, for each folder, by stor-

ing the SEARCHTIMESTAMP); or

- looking for new documents related to the folder

by providing one or more keywords (Personal-

ized Search).

2. Simple Search: the user does not associate any

folder to the keywords she looks for, i.e., she is-

sues a “simple query” like through Web search en-

gines.

The Search New mechanism can be performed On-

Demand for a speciﬁc folder at user request, or for all

the folders the user owns at a scheduled time (Sched-

uled Search New), according to the settings the user

conﬁgured in her system preferences.

Filtered Searches may be accomplished in at

least two ways: (i) through query expansions tech-

niques (Carpineto et al., 2001), i.e., by expanding the

query with signiﬁcant terms of the folder proﬁle and

then submitting the expanded query; or (ii) issuing

the query, and then ﬁltering the result list w.r.t. the

folder proﬁle (Belkin and Croft, 1992; Callan, 1998).

The latter approach is used in Personalized

Search, where the proﬁle is used as a post-ﬁlter, i.e.,

after the results have been retrieved, while in Search

New the folder proﬁle is used as a pre-ﬁlter, by select-

ing some of the signiﬁcant terms of the proﬁle and

using them as the query (recall that the user does not

provide any keyword). Another important difference

between these search mechanisms is the folder-query

association: while in the Filtered Searches the user

explicitly declares to use the folder proﬁle as a ﬁlter,

and the folder will be the ﬁnal repository of the re-

sults, in the Simple Search only the user proﬁle can

be used, if possible, for ﬁltering the retrieved doc-

uments and the repository of the results will be the

user HOME folder (folder created by default together

with the TRASH folder). It is worth noting that there

is always a current folder: if no folder is selected, the

current folder is the HOME folder.

The metasearch functionality allows the user to

decide what kind of search she wants to perform over

the Web; on the other hand, when a search is started

either on-demand or at a scheduled time the assis-

tant automatically selects the information resources

to query, applies schema matching (if necessary),

queries the selected resources, combines the results

in a single result list and ﬁlters the results, either by

means of the folder proﬁle -if the query is associated

with a given folder, or by means of the user proﬁle

otherwise.

As an example, here we show what happens when

the user wants to perform a Personalized Search. The

user selects a folder and wants to search for doc-

uments relevant to that folder containing the KEY-

WORDS she provides. PI SA:

1. automatically selects the resources relevant to the

proﬁle of the selected folder or uses -if any- the

resources selected by the user;

2. applies the schema matching for each selected re-

source;

3. searches the selected resources and combines the

result lists into a single ranked list;

4. uses the folder proﬁle for ﬁltering out some of the

results;

5. delivers the results to the user into the selected

folder according to the user preferences;

6. updates the SearchTimeStamp for the selected

folder.

4 IMPLEMENTATION

PI SA has been entirely developed using the Java Pro-

gramming language, to guarantee the portability of

the application across different platforms. Further-

more, in developing the prototype we took care of

its modularity: each component can be easily mod-

iﬁed/enriched or substituted with minimal effort. In

particular, the prototype is based on the following de-

velopment environment and libraries:

- Java Platform, Standard Edition, and the Java De-

velopment Kit (JDK), version 6.0

;

- MySQL version 5.0.51 and the MySQL Connec-

tor/JDBC version 3.1.8

;

- Apache Lucene library version 2.2

The architecture (Figure 3) consists of the Graphi-

cal User Interface (GUI); the User Database, for stor-

ing user, folders, documents, preferences and proﬁles

data; the Proﬁler; the Source Selector; the Schema

Matcher; the Fusion Module; and the Filter. In the

following we describe each PI SA component and

corresponding functionality in detail.

4.1 Graphical User Interface

From the user’s perspective, PI SA GUI consists of a

main menu and a set of windows and actions allowing

the user to personalize the system step by step, via the

folder and document management, the ﬁlters and the

set of preferences she can modify. The application has

http://java.sun.com/

http://www.mysql.com/

http://lucene.apache.org/

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

Figure 3: PI SA architecture.

a main pull down menu, with each entry of the menu

corresponding to a user action. Every action can be

also invoked through keyboard shortcuts.

Each componentin PI SA has a tooltip text, which

comes out by moving the mouse over it, for providing

instant help to the user.

sented with PI SA is the login window. After logging

in, the user will be presented with the main user in-

terface window and she can use the system, until she

decides to quit. When the user accesses the assistant

for the ﬁrst time (after registering), the assistant auto-

matically creates the HOME and TRASH folders.

Main Window. The main window is composed of

three parts: the folder listing panel (on the left), the

document listing panels (on the right), and the search

panel (at the bottom) (Figure 4).

The folder listing panel is a tree representing the

user hierarchical folder structure. By selecting one

folder, the user can: (i) have a view of the documents

the folder contains; (ii) rename the selected folder

;

(iii) create a new folder as a child of the selected one

;

(iv) delete the selected folder

; (v) empty the selected

folder; (vi) empty the TRASH folder; (vii) move a

folder from an existing parent folder to a new parent

folder

(by simply moving the folder in the folder tree

- drag&drop).

The document listing panel is a table representing

the documents contained in the folder. The table has

several columns, each one describing an attribute of

the document: the NAME, i.e., the title of the docu-

ment retrieved, the URL, the RESOURCE from which

Forbidden for HOME and TRASH folders.

Forbidden for TRASH folder.

the document has been retrieved, the SCORE of the

document within the result list, the DATE of delivery,

and the QUERY the user performed for retrieving that

document. Since the documents are not created via

user operations, but delivered by the system after a

search session, the user cannot modify any of the doc-

ument attributes. By selecting one of the rows of the

document table, the content of that document will be

displayed in the bottom side of the document panel.

Furthermore, the user can delete the document(s), and

cut and paste one or more documents from one folder

to another.

In the bottom side of the main window there is the

search panel, a tabbed pane with two tabs: WHAT and

WHERE.

In the WHAT tab the user can choose to search

documents with the provided GLOBAL SCHEMA, i.e.,

search one or more keywords within one or more of

the given attributes; alternatively, the user can ini-

tiate a search without any schema, i.e., search one

or more keywords irrespective of the attribute where

they are located in the target schema of the queried

resource(s). The GLOBAL SCHEMA PI SA provides

is composed of three attributes: TITLE, AUTHOR, and

DESCRIPTION.

In the WHERE tab the user can chose one or more

resources to query if she has some preferences; alter-

natively, automatic resource selection is performed if

the user has not selected any resource.

In the search panel the user can also choose the maxi-

mum number of documents to be returned in the result

list. Figure 4 shows, as an example, the main applica-

tion window with the WHAT tab selected.

Finally, the user clicks on the SEARCH button

for performing a Simple Search, or on the FILTERED

SEARCH button for performing a Filtered Search. If

the user does not type any keyword and clicks on the

FILTERED SEARCH button she issues a Search New

search w.r.t. the currently selected folder, while if she

clicks on the SEARCH button, she will be warned of

the action inadmissibility (recall Figure 2).

Personal Settings Window. In this window, the user

can ﬁll in a form with her ﬁrst name and last name,

the country, the gender, the birth-date, and the email.

Note that none of these data is mandatory, but they can

be used for personalization too if available (think, for

instance, at the Country when looking for information

strictly bounded with the geographic location of the

user).

Preferences Window. In this window the user can

explicitly deﬁne some action the system performs. In

particular, the user can set:

- when the system periodically updates the user

proﬁle;

A PERSONALIZED INFORMATION SEARCH ASSISTANT

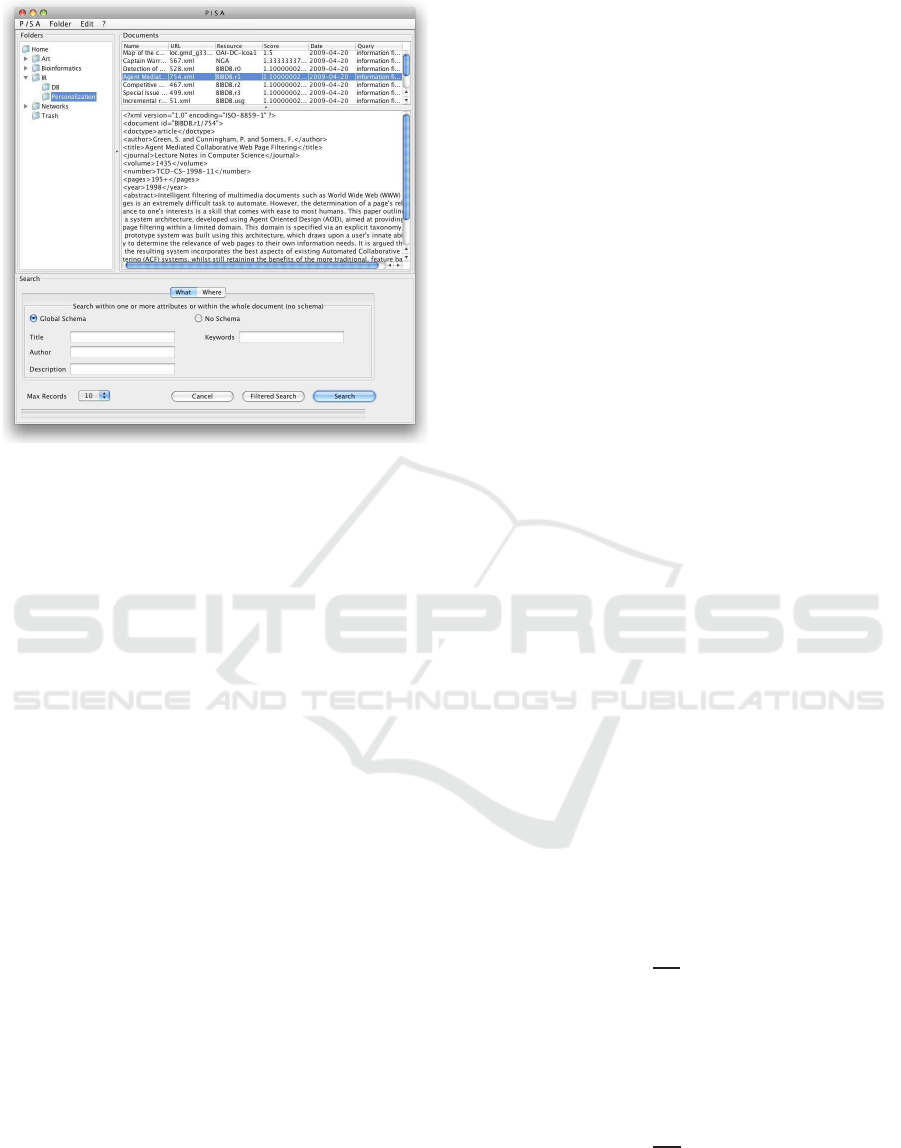

Figure 4: PI SA Graphical User Interface: main application

window. The folder listing panel (on the left), the document

listing panels (on the right), and the search panel (at the

bottom), with the WHAT tab selected.

- when the system periodically updates the folder

proﬁles;

- when the system periodically search for new doc-

uments for each folder owned by the user;

- how the system notiﬁes new documents (the op-

tions are: a pop-up window, a sound, or nothing;

the default setting is: no event);

- how the system ranks the new documents found

(the options are: by score, by date, by resource, or

no preference; the default setting is by score).

Both the Preferences and the Personal Settings win-

dows can be accessed by the user both via the pull

down menu on the main window or via the corre-

sponding keyboard shortcut.

Warning Windows. These windows are used by

the system to warn the user on an invalid -or

unsuccessful- operation.

Conﬁrm Windows. These windows are used by the

system to ask the user to conﬁrm some actions, like,

e.g., quitting the application.

Acknowledgment Windows. These windows are

used by the system to acknowledge the user of the

outcome of an action she started.

4.2 User Database

For each user, PI SA locally creates and maintains

a database with several tables, and provides meth-

ods for creating, reading and updating them. The

USER DATABASE has been realized with the MySQL

open source database. The connection and interac-

tions with the database has been realized with the

MySQL Connector/J, a native Java driver that con-

verts JDBC (Java Database Connectivity) calls into

the network protocol used by the MySQL database.

When the user ﬁrst register herself to PI SA, the

system automatically creates (i) the Preferences Ta-

ble, for storing the system preferences (set by the user

or provided by default by the system); (ii) the Settings

Table, for storing the personal information provided

by the user; (iii) the Folders Table, for storing all the

information related to the folders owned by the user;

(iv) the Documents Table, for storing all the informa-

tion related to the documents already retrieved for the

user; (v) the Proﬁles Table, for storing the user pro-

ﬁle and the folder proﬁle of each folder owned by the

user.

4.3 Proﬁler

The Proﬁler’s task is to create user and folder proﬁles,

and update them either on-demand or at a scheduled

time. In the following we will describe how to build

and maintain these proﬁles by adopting the approach

proposed in (Renda and Straccia, 2005).

Let’s denote by t

, d

, and F

a text term, a docu-

ment, and a folder, respectively. Following the well-

known vector space model, each document d

in a

folder F

is represented as a vector of weights:

= hw

,...,w

i , (1)

where 0 ≤ w

≤ 1 corresponds to the “importance

value” of term t

in document d

, and m is the total

number of terms occurring in at least one document

saved in the folder (Salton and McGill, 1983). The

folder proﬁle f

for folder F

is computed as the cen-

troid (average) of the documents belonging to F

, i.e.:

∑

∈F

. (2)

This means that the proﬁle of F

may be seen as a

data item itself (Belkin and Croft, 1992) and, thus,

is represented as a vector of weighted terms as well:

=< w

,...,w

>, where

∑

∈F

. (3)

The proﬁle p

of the user u is built as the centroid of

the user’s folder proﬁles, i.e., if F

is the set of folders

belonging to the user u, then:

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

∑

∈F

. (4)

As for folder proﬁles, the proﬁle p

of user u is

represented as a vector of weighted terms as well:

=< w

,...,w

Besides the folder and user proﬁles, the Proﬁler

is also responsible for the personal data the user pro-

vided (if any) and the system preferences she set.

4.4 Source Selector

Automatic Resource Selection is based on the assump-

tion of having a signiﬁcant set of documents available

from each information resource (see, e.g., (Callan,

2000)). Usually, these documents are obtained by

issuing random queries to the resource (information

resource sampling, see, e.g., (Callan and Connell,

2001)). This allows to compute an approximation of

the content of each information resource, i.e., a rep-

resentation of what an information resource is about

(information resource topic or language model of the

information resource).

As a result, a sample set of documents for each

information resource is gathered. This set is the re-

source description or approximation of the informa-

tion resource. This data is then used in the next step

to compute the resource score for each information

resource, i.e., a measure of the relevance of a given re-

source to a given query. In the following we describe

how PI SA computes the resource goodness for auto-

matic resource selection by using an adapted version

of the CORI (Callan, 2000; Callan et al., 1995) re-

source selection method.

Consider query q = {v

,...,v

}. For each resource

∈ R, we associate the resource score, or simply

the goodness, G(q,R

), which indicates the relevance

of resource R

to the query q. Informally, a resource

is more relevant if its approximation, computed by

query-based sampling, contains many terms related

to the original query. However, if a query term oc-

curs in many resources, this term is not a good one

to discriminate between relevant and not relevant re-

sources. The weighting scheme is:

G(q,R

) =

∑

∈q

p(v

)

|q|

, (5)

where |q| is the number of terms in q. The belief

p(v

) in R

, for value v

∈ q, is computed using the

CORI algorithm (Callan, 2000; Callan et al., 1995):

p(v

) = T

i,k

· I

· w

(6)

i,k

d f

i,k

d f

i,k

+ 50+ 150 ·

(7)

log



|R|+0.5



log(|R| + 1.0)

(8)

where:

is the weight of the term v

in the query;

d f

i,k

is the number of documents in the approxi-

mation of R

with value v

;

is the number of values in the approximation

of R

;

cw is the mean value of all the cw

;

is the number of approximated resources

containing value v

;

|R| is the number of the resources.

In the above formulae, T

i,k

indicates the number of

documents that contain the term v

in the resource R

As c f

denotes the number of resources in which the

term v

occurs, called resource frequency, I

is de-

ﬁned in terms of cf

inverse resource frequency: the

higher c f

the smaller I

, reﬂecting the intuition that

the more a term occurs among the resources the less

it is a discriminating term. The belief p(v

) com-

bines these two measures.

Finally, given the query q, all information re-

sources R

∈ R are ranked according to their resource

relevance value G(q,R

), and the top-n are selected as

the most relevant ones.

4.5 Schema Matching

Given a user query q = {A

= v

,...,A

= v

}, writ-

ten with a speciﬁc schema T, called target or global

schema, and a resource R with its own schema S,

called source schema, the Schema Matching prob-

lem (Dhamankar et al., 2004; Renda and Straccia,

2006) can be deﬁned as the problem of transforming

each attribute A

∈ T of the query in the correct at-

tribute A

∈ S, in order to submit the query to R.

PI SA relies on a simple and effective method

to automatically learn schema mappings proposed

in (Renda and Straccia, 2006). It is based on a refor-

mulation of the CORI resource selection framework

presented in the previous Section. Renda and Strac-

cia (Renda and Straccia, 2006, page 1079) state than,

“similarly to the resource selection problem, where

we have to automatically identify the most relevant li-

braries w.r.t. a given query, in the schema matching

problem we have to identify, for each target attribute,

the most relevant source attribute w.r.t. a given struc-

tured query”. Given a resource S and its metadata

A PERSONALIZED INFORMATION SEARCH ASSISTANT

schema with attributes S

,...,S

, the resource selec-

tion task can be reformulated in the schema match-

ing problem as follows: given an attribute-value pair

= v

, with A

being an attribute of the target schema

T, select among all the attributes S

those which are

most relevant to the attribute A

given its value v

, and

map A

to the most relevant attribute.

Let R

∈ R be a selected resource. The prob-

lem is to ﬁnd out how to match the attribute-value

pairs A

= v

∈ q (over the target schema) into one or

more attribute-value pairs A

= v

, where A

is an at-

tribute of the (source) schema of the selected resource

. Now consider the resource R

and the documents

,...,r

of the approximation of R

Approx(R

)

(computed by query-based sampling). Each docu-

ment r

∈ Approx(R

) is a set of attribute-value pairs

= {A

= v

,...,A

= v

From Approx(R

), we make a projection on each

attribute, i.e., for each attribute A

of the source

schema we build a new set of documents:

k, j

[

∈Approx(R

)

{r | r := {A

= v

},A

= v

∈ r

} .

(9)

The idea proposed in (Renda and Straccia, 2006) is

that each projection C

k,1

,...,C

k,k

can be seen as a

new library, and CORI can be applied to select which

of these new resources is the most relevant for each

attribute-valuepairs A

= v

of the query q (see (Renda

and Straccia, 2006) for more details).

4.6 Rank Fusion

In PI SA, we adopted the rank-based method called

CombMNZ, considered as the best ranking fusion

method (Lee, 1997; Renda and Straccia, 2003).

CombMNZ combination function heavily weights

common documents among the rankings, based on the

fact that different search engines return similar sets of

relevant documents but retrieve different sets of non-

relevant documents.

Given a set of n rankings R = {τ

,...,τ

}, denote

with

τ the fused ranking (or fused rank list), which is

the result of a rank fusion method applied to the rank

lists in R. To determine

τ, it is necessary to deter-

mine the fused score s

(i) for each item i ∈ U, being

U =

τ∈R,i∈τ

{i}, and order

τ according to decreas-

ing values of s

. In linear combination ranking fusion

methods, the fused score s

(i) of an item i ∈ U is de-

ﬁned as follow:

(i) = h(i,R)

∑

τ∈R

· w

(i) , (10)

where (i) all the rank lists τ ∈ R have been nor-

malised according to the same normalization method;

(ii) y ∈ {0,1} indicates whether hits are counted or

not; and (iii)

∑

τ∈R

= 1 where α

≥ 0 indicates

the priority of the ranking τ. In (Renda and Strac-

cia, 2003) the authors report experimental results on

comparing several rank-based and score-based fusion

methods. According to the results reported in that pa-

per, in PI SA: (i) each rank list τ ∈ R has been nor-

malized and the normalised weight w

(i) of an item

i ∈ τ has been computed according to the rank nor-

malization method:

(i) = 1−

τ(i) − 1

|τ|

; (11)

(ii) y = 0, i.e., hits have not been counted; (iii) α

1/|R|, i.e., all rank lists have the same priority.

4.7 Filter

When the ranked results are available, the Filter role

is to ﬁlter out some of the results. In particular, if the

search issued was the Personalized Search, the Filter

has to compare each document w.r.t. the folder proﬁle.

Recall that each document d

is represented as a vec-

tor of weights d

= hw

,...,w

i, where 0 ≤ w

≤ 1

corresponds to the “importance value” of term t

document d

(Table 1), and that each proﬁle is rep-

resented as a vector of weighted terms as well, i.e.,

= [w

,...,w

] (Table 2).

Table 1: The document matrix.

... t

... w

... ... ... ... .. . ...

... w

Table 2: The folder proﬁle matrix.

... t

... w

... ... ... ... .. . ...

... w

In order to compute the content similarity sim

between the folder proﬁle f

and the document d

we compute the well-know cosine metric, i.e., the

scalar product between two row vectors, and select

only those documents with sim

> 0.

Furthermore, the Filter will deliver up to the max-

imum number of documents, as requested by the user,

and visualize them according to the user settings, as

set in the System Preferences Window.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

5 USER EVALUATION

In order to provide a preliminary evaluation of

PI SA usability, we asked 10 users, after a short pre-

sentation of the functionality, to use the system and

test the GUI. The users ﬁrst highlighted that such a

personalized system is safer to use locally, in terms of

privacy (i.e., they did not like the idea of being pro-

ﬁled on the server side or by on-line services). All the

users reported that PI SA resemblance with a com-

mon email program helped them to quickly under-

stand how several GUI components work. The GUI

has been classiﬁed as intuitive and robust.

To evaluate PI SA effectiveness in providing

personalized services, we asked the users to create

a certain number of folders, populate them with

“pertinent” documents, update the correspondent

proﬁles, and issue a number of queries ranging from

1 to 10 for each proﬁle. They created 30 different

proﬁles, and issued a total number of 150 queries.

The returned results have been scrutinized and classi-

ﬁed by the users as either relevant or irrelevant for the

corresponding proﬁle, and the precision performance

metric (which, we recall, is deﬁned as the ratio of the

number of relevant documents to the total number

of retrieved documents) has been evaluated. The

maximum number of returned query results has been

set to 10. In order to evaluate the beneﬁts of PI SA

personalized search mechanisms, we asked the user

to run the same set of queries without a proﬁle,

when they ﬁrst accessed the system, with empty

HOME folder and issuing a simple query (i.e., with

no proﬁle, no automatic source selection, no ﬁltering).

Data Sets. On-line web information resources peri-

odically modify their interfaces, so that the wrappers

to their result pages have to be maintained constantly

up-to-date. In order to avoid spending time in such

a tedious activity and concentrate on the personaliza-

tion evaluation, we decided to download the content

of some resources and implement a “static” interface

to these local resources. For this purpose, we imple-

mented an indexing engine for locally storing a cer-

tain number of information resources.

The INDEXER has been implemented taking ad-

vantage of the Lucene libraries, which provide Java-

based indexing and search technology, as well as

spellchecking, hit highlighting and advanced analy-

sis/tokenization capabilities. In the indexing process,

we have analyzed the individual documents and their

content, split into terms, applied stemming, and elim-

inated stopwords. In the retrieval phase, Lucene li-

braries allow us to get back statistical information on

the resources, such as the frequencies of the individ-

ual terms at the ﬁeld level and at the document level,

and the resource size.

We have locally downloaded and indexed 8 resources

for a total of about 45,000 searchable documents:

1. BIBDB, containing more than 5000 BibTeX en-

tries about information retrieval and related areas;

2. DUBibDB, containing almost 3463 documents

with bibliographic data from the Uni Duisburg

University BibDB;

3. HCI, containing 26381 documents with biblio-

graphic data from the Human-Computer Interac-

tion (HCI) Bibliography;

4. DC, containing 6276 OAI documents in

Dublin

Core

format;

5. ETDMS, containing 200 OAI electronic theses;

6. RFC1807, containing 467 OAI documents in

RFC1807

format;

7. WGA, containing 265 documents from the euro-

pean Web Gallery of Art

;

8. NGA, containing 864 documents from the ameri-

can National Gallery of Art

, Washington, DC.

Part of these resource collections have been provided

by INEX - Initiative for the Evaluation of XML Re-

trieval

. In particular, DUBibDB and HCI collec-

tions are part of the INEX Heterogenous Collection

Track 2006.

For the proﬁling and ﬁltering tasks, we computed

term weights of the documents by applying the well

known t f ·id f term weighting model (ﬁrst introduced

in (Sparck Jones, 1972)). The term frequency t f

term t

in document d

is deﬁned as:

t f

∑

, (12)

where n

is the number of occurrences of the consid-

ered term t

in document d

, and the denominator is

the sum of the number of occurrences of all terms in

document d

. The inverse document frequency id f

a measure of the general importance of the term t

the corpus of documents D and is deﬁned as:

id f

= log

|D|

d f

, (13)

where |D| is the total number of documents in the cor-

pus, and the denominator is the document frequency

of term t

, i.e., the number of documents where the

term t

occurs: d f

= |{d ∈ D : t

∈ d}|.

http://www.wga.hu

http://www.nga.gov

http://inex.is.informatik.uni-duisburg.de

A PERSONALIZED INFORMATION SEARCH ASSISTANT

A high weight in t f · id f is reached by terms with

a high term frequency in the given document and a

low document frequency in the whole collection of

documents. Thus this model is a good discriminant

of common terms.

Results. The average and variance of precision for

the sets of queries submitted are reported in Table 3.

As seen from the Table, PI SA is very effective in im-

proving precision, which is almost doubled w.r.t. the

case of no personalization. In particular, PI SA re-

sulted very effective in: (i) ﬁltering out irrelevant re-

sults; and (ii) delivering relevant results in presence

of very general queries. The effectiveness of PI SA in

discarding irrelevant results can be deduced by Ta-

ble 3, which reports the average (and variance) of the

number of returned documents in case of personal-

ized and non-personalized queries (we recall that the

maximum number of returned documents was set to

10 in both cases). As seen from the Table, the av-

erage number of returned documents dropped from

9.79 without personalization to 8.23 with personal-

ization, with higher variance in the latter case. As for

(ii), we mention a speciﬁc query a user highlighted

(several similar queries displayed the same behavior):

the query “model” (an intendedly very general query)

had precision improved from 0 to 0.7 when executed

in the “database” folder, w.r.t. the case of no person-

alization.

Table 3: PI SA experimental results.

Precision No. of Documents

Proﬁle No Proﬁle Proﬁle No Proﬁle

Average 0.72 0.38 8.23 9.79

Variance 0.08 0.06 7.57 0.49

6 CONCLUSIONS

In this paper we presented PI SA - a Personalized

Information Search Assistant, a desktop application

which provides the user with a highly personalized

information space where she can create, manage and

organize folders, and manage documents retrieved

by the system into her folders to best ﬁt her needs.

Furthermore, PI SA offers different mechanisms to

search the Web, and the possibility of personalizing

the result delivery and visualization. PI SA learns

user and folder proﬁles from user’s choices, and these

proﬁles are then used to improve retrieval effective-

ness in searching, by selecting the relevant resources

to query and ﬁltering the results accordingly. Prelimi-

nary user evaluation and experimental results are very

promising, showing that the personalized search en-

vironment PI SA provides considerably increased ef-

fectiveness and user satisfaction in the searching pro-

cess.

The PI SA prototypehas been developedpursuing

the goal of realizing modularity, so that each compo-

nent can be easily modiﬁed or substituted with mini-

mal effort. We are currently working to extend PI SA

by including more sophisticated result presentation

techniques. Suppose the documents retrieved are con-

sidered not relevant by the user, it could be useful not

to entirely download the documents. The assistant

could highlight important passages within the docu-

ments, presenting the user only with the “best” doc-

ument passage (Passage Retrieval) (Liu and Croft,

2002), or summarize the documents, presenting the

user only with the document summary (Summariza-

tion) (Chen and Chue, 2005). After analyzing the pas-

sages or the summaries, the user can decide whether

it is worth downloading the documents and save it

in her information space. Furthermore, we plan to

investigate different ways of modeling the user, the

documents and the corpus (as proposed, for instance,

in (Teevan et al., 2005) and references therein), in or-

der to further improve search effectiveness.

ACKNOWLEDGEMENTS

We wish to thank all the people who volunteered to

test, debug and evaluate PI SA. A special acknowl-

edgment to P. S., whose suggestions and inestimable

support helping us to improve this work.

REFERENCES

Albayrak, S., Wollny, S., Varone, N., Lommatzsch, A., and

Milosevic, D. (2005). Agent technology for person-

alized information ﬁltering: the pia-system. In Proc.

of the 2005 ACM Symposium on Applied Computing,

pages 54–59, Santa Fe, New Mexico. ACM.

Amato, G. and Straccia, U. (1999). User proﬁle and ap-

plications to digital libraries. In Proc. of the 3rd Eu-

ropean Conference on Research and Advanced Tech-

nology for Digital Libraries, pages 184–197, Paris,

France. Springer-Verlag.

Aslam, J. A., Pavlu, V., and Yilmaz, E. (2005). Measure-

based metasearch. In Proc. of the 28th Annual Inter-

national ACM SIGIR Conference on Research and De-

velopment in Information Retrieval, Salvador, Brazil.

ACM Press.

Baillie, M., Crestani, F., and Landoni, M. (2006). Peng: in-

tegrated search of distributed news archives. In Proc.

of the 29th annual international ACM SIGIR confer-

ence on Research and development in information re-

trieval, pages 607–608, Seattle, WA, USA. ACM.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

Belkin, N. and Croft, B. W. (1992). Information ﬁltering

and information retrieval: Two sides of the same coin?

Communications of the ACM, 35(12):29–38.

Callan, J. (1998). Learning while ﬁltering documents. In

Proc. of the 21th Annual International ACM SIGIR

Conference on Research and Development in Informa-

tion Retrieval, pages 224–231, Melbourne, Australia.

Callan, J. (2000). Distributed information retrieval. In

Croft, W., editor, Advances in Information Retrieval,

pages 127–150. Kluwer Academic Publishers, Hing-

ham, MA, USA.

Callan, J. and Connell, M. (2001). Query-based sampling

of text databases. ACM Transactions on Information

Systems, 19(2):97–130.

Callan, J., Lu, Z., and Croft, B. W. (1995). Searching dis-

tributed collections with inference networks. In Proc.

of the 18th Annual International ACM SIGIR Con-

ference on Research and Development in Information

Retrieval, pages 21–28, Seattle, WA, USA.

Carpineto, C., De Mori, R., Romano, G., and Bigi, B.

(2001). An information-theoretic approach to auto-

matic query expansion. ACM Transactions on Infor-

mation Systems, 19(1):1–27.

Chen, L. and Chue, W. L. (2005). Using web structure and

summarisation techniques for web content mining. In-

formation Processing and Management, 41(5):1225–

42.

Dhamankar, R., Lee, Y., Doan, A., Halevy, A., and Domin-

gos, P. (2004). iMAP: discovering complex semantic

matches between database schemas. In Proc. of the

ACM SIGMOD International Conference on Manage-

ment of Data, pages 383–394. ACM Press.

Dwork, C., Kumar, R., Noar, M., and Sivakumar, D. (2001).

Rank aggregation methods for the web. In Proc. of

the 10th International Conference on the World Wide

Web, pages 613–622. ACM Press and Addison Wes-

ley.

Faensen, D., Faulstich, L., Schweppe, H., Hinze, A., and

Steidinger, A. (2001). Hermes: a notiﬁcation service

for digital libraries. In ACM/IEEE Joint Conference

on Digital Libraries, pages 373–380.

Fernandez, L., Sanchez, J., and Garcia, A. (2000). MiBib-

lio: personal spaces in a digital library universe. In

ACM DL, pages 232–233.

Huang, R., Casanova, H., and Chien, A. A. (2007). Au-

tomatic resource speciﬁcation generation for resource

selection. In Proc. of the 2007 ACM/IEEE confer-

ence on Supercomputing, pages 1–11, New York, NY,

USA. ACM.

Lee, J. H. (1997). Analysis of multiple evidence combina-

tion. In Proc. of the 20th Annual International ACM

SIGIR Conference on Research and Development in

Information Retrieval, pages 267–276, Philadelphia.

Liu, X. and Croft, W. (2002). Passage retrieval based on

language models. In Proc. of the 11th International

Conference on Information and Knowledge Manage-

ment, pages 375–382. ACM Press.

Madhavan, J., Bernstein, P., Chen, K., and Halevy, A.

(2005). Corpus-based schema matching. In Proc. of

the 21st International Conference on Data Engineer-

ing, pages 57–68. IEEE Computer Society.

Meng, W., Wu, Z., Yu, C., and Li, Z. (2001). A higly

scalable and effective method for metasearch. ACM

Transaction on Information Systems, 19(3):310–335.

Nottelmann, H. and Fuhr, N. (2003). Evaluating different

methods of estimating retrieval quality for resource

selection. In Proc. of the 26th Annual International

ACM SIGIR Conference on Research and Develop-

ment in Information Retrieval.

Renda, M. E. and Straccia, U. (2003). Web metasearch:

Rank vs. score based rank aggregation methods. In

Proc. 18th Annual ACM Symposium on Applied Com-

puting, pages 841–846, Melbourne, Florida, USA.

ACM.

Renda, M. E. and Straccia, U. (2005). A personalized col-

laborative digital library environment: a model and an

application. Information Processing & Management,

41(1):5–21.

Renda, M. E. and Straccia, U. (2006). Automatic structured

query transformation over distributed digital libraries.

In Proc. of the 21st Annual ACM Symposium on Ap-

plied Computing, pages 1078–1083, Dijon, France.

ACM Press.

Salton, G. and McGill, J. M. (1983). Introduction to Mod-

ern Information Retrieval. Addison Wesley Publ. Co.,

Reading, Massachussetts.

Sparck Jones, K. (1972). A statistical interpretation of term

speciﬁcity and its application in retrieval. Journal of

Documentation, 28:11–21.

Teevan, J., Dumais, S. T., and Horvitz, E. (2005). Person-

alizing search via automated analysis of interests and

activities. In Proc. of the 28th annual international

ACM SIGIR Conference on Research and Develop-

ment in Information Retrieval, pages 449–456, New

York, NY, USA. ACM.

A PERSONALIZED INFORMATION SEARCH ASSISTANT
