EMOTION-BASED MUSIC RETRIEVAL

USING CONSISTENCY PRINCIPLE

AND MULTI-QUERY METHOD

Song-Yi Shin, Joonwhoan Lee

Department of Computer Engineering, Chonbuk National University, Jeonju, Chonbuk, South Korea

Kyoung-bae Eum

Department of Computer Eng., Kunsan National University, Kunsan, Chonbuk, South Korea

Eun-Jong Park

Electronics and Telecommunications Research Institute, Daejeon, South Korea

Keywords: Features of MPEG-7, Emotion-based music retrieval, Multi-query method, Consistency principle.

Abstract: In this paper, we propose the construction of multi - queries and consistency principal for emotion-based

music retrieval. Existing content-based music retrievals which use a single query reflect the retrieval inten-

tion of user by moving the query point or updating the weights. However, these methods have the limitation

to represent the complicated factors of emotion. In the proposed method, additional queries of music are

taken in each feedback process to express the user’s emotion. We classify the music by the emotions. And

the music is clustered by the MKBC(Mercer Kernel-Based Clustering) method. After that, the inclusion de-

gree of each descriptor is obtained. This means the weight that represents the importance of each descriptor

for each emotion in order to reduce the computation. We got the excellent result within the 2nd retrieval

through the feedback. In the feedback process, we used the consistency principle and multi- queries.

1 INTRODUCTION

Much audio data are supplied by diverse electronic

devices in modern society. It is hard to find the

music the user want to listen because much audio

data are supplied. Content-based retrieval system has

researched to solve this problem. In content-based

retrieval method, the physical features of

information corresponding to query are determined

in advance and extracted. The user can fast and

easily retrieve when comparing with the retrieval

method by the conventional web-robot. This method

is convenient because the supervisor only select and

extract the physical features.

The emotion-based retrieval system has researche

d in accordance with increasing the need on one’s

own information. It is retrieved by the emotion

which is felt in the music. It is more advance method

than the content-based retrieval. Recent approaches

in music information retrieval have studied the

relationship between low-level perceptual/acoustic

features and semantic emotional/affective concepts

such as mood (Lu et al., 2006; Leman, 2007; Leman

et al., 2004). Lu et al. (Lu et al., 2006) has presented

a mood detection system, where a GMM(Gaussian

Mixture Model) was adopted to classify the mood of

music clips into four cluster.

In this system, intensity, timbre, and rhythm were

extracted from acoustic music data. Leman et al.

(Leman et al., 2004) presented some low level

acoustic features such as loudness, centroid, and

interonset interval, and studied their correlation with

three factors of emotion expressions. But, the

conventional emotion-based music retrieval has only

classified the mood and used the MIDI(Musical

Instrument Digital Interf ace), MFCC(Mel-frequency

cepstral coefficients), an d LPC(Linear prediction

coding) data, which is diffic ult for standardization.

207

Shin S., Lee J., Eum K. and Park E.

EMOTION-BASED MUSIC RETRIEVAL USING CONSISTENCY PRINCIPLE AND MULTI-QUERY METHOD.

DOI: 10.5220/0002802802070213

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

Recently, the timbre data of MPEG-7 has been used.

However, it is also difficult for standardization

because it is mixed with MFCC and LPC. In this

paper, we use only audio features supported in

MPEG-7 to solve the problem.

We use the optimal features for each emotions to

reduce the computation for retrieval process. The

consistency is maintained during the feedback. If the

music is discriminated as relevant by user, it should

be retrieved constantly. Otherwise, it should not be

retrieved any more. The performance of retrieval is

improved through the feedback using consistency

principle and multi-queries.

2 MANUSCRIPT PREPARATION

2.1 Emotion Model of Thayer

In our method, we use the emotion based on the

model of Thayer (Thayer, 1989). According to the

emotion model, the emotion can be divided by the

two elements of “Arousal” and “Valence”. Arousal

means the strength of emotion. We can feel trium-

phant when its value becomes large. We can feel

calm when its value becomes small. Valence means

the degree of positive/negative of emotion. It means

the negative emotion when becoming small by (-).

Fig. 1 shows that the emotions are classified by

the (+) degree and (-) degree of “Arousal” and “Va-

lence”.

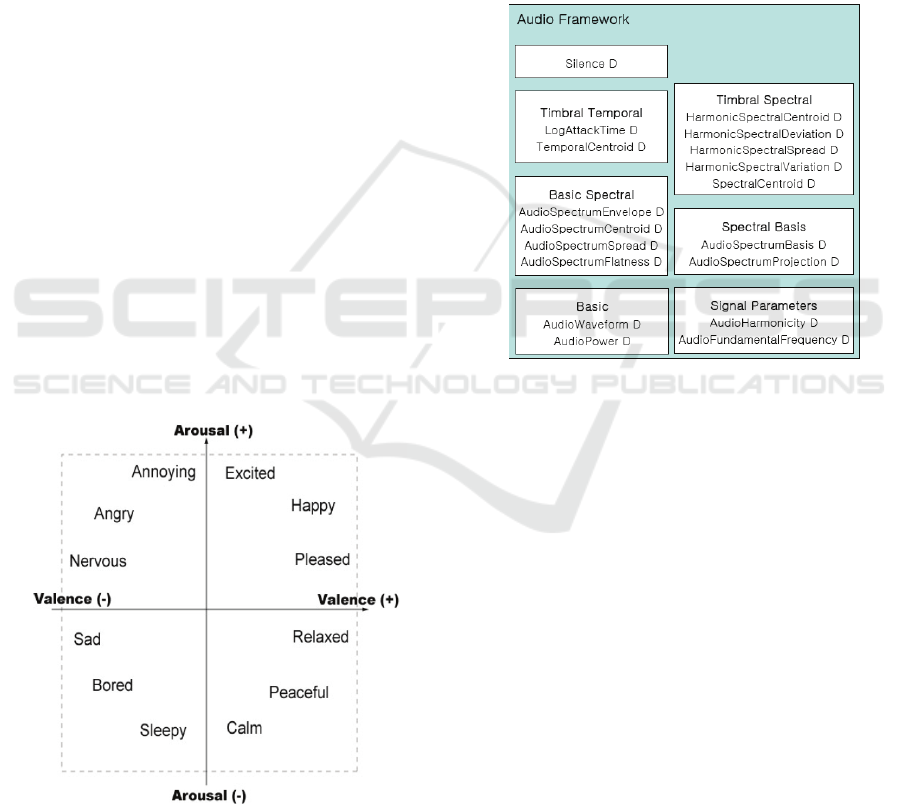

Figure 1: Emotion Based of Thayer.

In this paper, we use the emotional adjectives

such as “Annoying”, "Angry", "Nervous", "Sad",

"Bored", "Sleepy", "Calm", "Peaceful", "Relaxed",

"Pleased", "Happy", and "Excited". Those emotional

adjectives are comprised of six-pairs having opposite

emotions.

2.2 Low level Descriptor of MPEG-7

Audio

The low level descriptor of MPEG-7 Audio used in

the paper can express various features of audio sig-

nal (

I. T. M. C. D. I. Part 4). It expresses the timbre of

music and musical instrument. It is composed by the

eight groups. They include the 18 temporal and spec-

tral descriptors.

Figure 2: Low level descriptor of MPEG-7 Audio.

Fig. 2 shows the framework of low level descrip-

tor of MPEG-7 Audio. The “D” means the descriptor

(Overview of the MPEG-7 Standard). The 17 fea-

tures are as follows.

AudioSpectrumBasis Type: The AudioSpectrumBasis

D contains basis functions that are used to project

high-dimensional spectrum descriptions into a low-

dimensional representation

AudioSpectrumCentroid Type: The AudioSpectrum-

Centroid D describes the center of gravity of the log-

frequency power spectrum. The SpectrumCentroid is

defined as the power weighted log-frequency centro-

id.

AudioSpectrumEnvelopeType: The AudioSpectru-

mEnvelope D describes the spectrum of the audio

according to a logarithmic frequency scale.

AudioSpectrumFlatnessType: The AudioSpectrum-

Flatness D describes the flatness properties of the

spectrum of an audio signal within a given number

of frequency bands.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

208

AudioHarmonicityType: The AudioHarmonicity D

describes the degree of harmonicity of an audio sig-

nal.

AudioSignatureType: A structure containing a con-

densed representation as a unique content identifier

for an audio signal for the purpose of robust auto-

matic identification of audio signals (contains statis-

tical summarization of data of AudioSpectrumFlat-

nessType)

AudioWaveformType: Description of the waveform

of the audio signal.

AudioFundamentalFrequencyType: The AudioFun-

damentalFrequency D describes the fundamental

frequency of the audio signal.

DcOffsetType: The DcOffset is each channel of max-

imum AudioSegment relative to the average technol-

ogy.

InstrumentTimberType: The InstrumentTimbreType

is a set of Timbre Descriptors established in order to

describe the timbre perception among sounds be-

longing simultaneously to the Harmonic and Percus-

sive sound families

HarmonicSpectralCentroidType: The HarmonicS-

pectralCentroid is computed as the average over the

sound segment duration of the instantaneous Har-

monicSpectralCentroid within a running window.

The instantaneous HarmonicSpectralCentroid is

computed as the amplitude (linear scale) weighted

mean of the harmonic peaks of the spectrum.

HarmonicSpectralDeviationType

The HarmonicSpectralDeviation is computed as the

average over the sound segment duration of the in-

stantaneous HarmonicSpectralDeviation within a

running window. The instantaneous HarmonicSpec-

tralDeviation is computed as the spectral deviation

of log-amplitude components from a global spectral

envelope.

HarmonicSpectralSpreadType: The HarmonicSpec-

tralSpread is computed as the average over the

sound segment duration of the instantaneous Har-

monicSpectralSpread within a running window. The

instantaneous HarmonicSpectralSpread is computed

as the amplitude weighted standard deviation of the

harmonic peaks of the spectrum, normalized by the

instantaneous HarmonicSpectralCentroid.

HarmonicSpectralVariationType: The HarmonicS-

pectralVariation is defined as the mean over the

sound segment duration of the instantaneous Har-

monicSpectralVariation.

The instantaneous Harmo-

nicSpectralVariation is defined as the normalized

correlation between the amplitude of the harmonic

peaks of two adjacent frames.

LogAttackTimeType: The LogAttackTime is defined

as the logarithm (decimal base) of the time duration

between the times the signal starts to the time it

reaches its stable part

SpectralCentroidType: The SpectralCentroid is

computed as the power weighted average of the fre-

quency of the bins in the power spectrum.

TemporalCentroidType: The TemporalCentroid is

defined as the time averaged over the energy

envelope.

In our method, we selected several descriptors

which express the emotion well among these 18 low-

level descriptors. We got the retrieval result for each

emotion by the 1 to 5 descriptors. In order to reduce

the computation time, we determined the number of

descriptors showing best retrieval result for each

emotion.

2.3 Feedback using Consistency

Principle and Multi-queries Method

Most EBMR/CBMR(Emotion Based Music Re-

trieval / Content Based Music Retrieval) systems use

only physical features that can be expressed as vec-

tors (

Wold

et al., 1996; Foote, 1997). These methods

make it easy to update weights or to construct query

points. However, these methods are difficult to ex-

pect the consistent retrieval results because the com-

plex emotion is expressed by the vector feature space

extracted from the simple query music.

In this paper, we suggest the principle of consis-

tency for relevance feedback. The emotion query of

the user is made by constructing multiple-queries in

every feedback process.

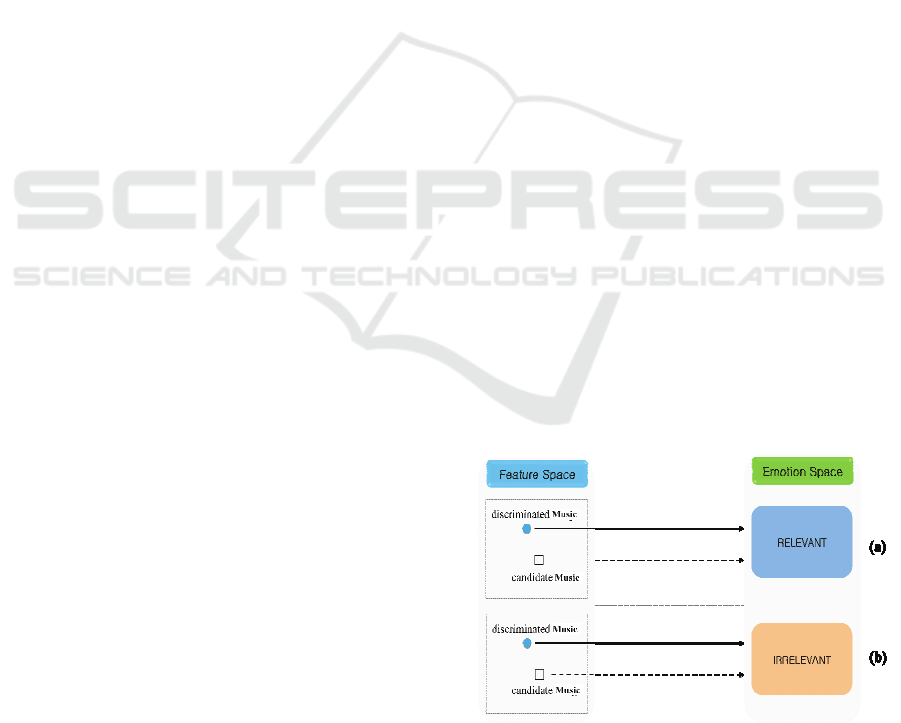

Figure 3: Principle of consistency.

Fig.3 shows the principle of consistency. If the

music discriminated as suitable by the user and can-

EMOTION-BASED MUSIC RETRIEVAL USING CONSISTENCY PRINCIPLE AND MULTI-QUERY METHOD

209

didate music are similar in feature space as Fig. 3(a),

those should be similar in emotion space. If the mu-

sic discriminated as unsuitable by the user and can-

didate music is similar in the feature space as Fig.

3(b), the candidate music should be distinguished as

the irrelevant in emotion space to maintain consis-

tency.

During the feedback process, one more important

principle to maintain this consistency is as follows.

If the music is discriminated as relevant by user, it

should be retrieved continuously. Otherwise, it

should not be retrieved any more.

Figure 4: Necessity of multiple queries.

As Fig. 4(a), the music that is similar in the fea-

ture space must have the similar emotion. But, the

inverse is not true. As Fig. 4(b), there is much music

having the similar emotion even though they are dif-

ferent in the feature space. Therefore, we can say

that the emotion of human can’t be explained by just

limited number of music features. If we use only the

single query, we can not sufficiently express the

complex emotion of human.

In this paper, we regard relevant or irrelevant

music evaluated by user as the new query during the

feedback. We construct multiple-queries to express

the user’s emotion by maintaining the principle of

consistency.

We calculated the similarities for all music in DB

by using the equation (1) and found all music that sa-

tisfies the condition

SimSim ≥

. Finally, we got

the N-result music by ascending order.

∑∑

⋅

∈=

⋅

∈=

cki

else

IRi ifSim

else

Ri ifSim

0.1

(1)

descriptor ofWeight

descriptor c.r.t w

Musick and ibetween of Similarity

sDescriptor 7MPEG used ofNumber

Music irrelevant ofNumber

Musicrelevant ofNumber where

ki,

−=

The user can always retrieve the candidate music

that closes to relevant query music and remote to ir-

relevant query music. The total retrieval procedure is

as follows.

Select representative query Music of

each adjective queries.

Select features of music for each

adjective query.

k=1, retrieval_rate=0,

total_retrieval_num=10.

Repeat

k-th retrieval;

Evaluate the music by user;

Reconstruct multiple queries for

relevant/irrelevant music by (1);

Calculate retrieval_rate;

k = k + 1;

Until retrieval_rate >= 0.9.

2.4 Weights Decision using Inclusion

Degree of Audio Descriptors

The

of equation (1) is a parameter. It decides

which physical feature provides more influence on

the emotion in any emotion query music. We get the

weights of the physical features. After that, we se-

lected necessary features by these weights of the

physical features. So, we can prevent not only com-

putation time but also complicate retrieval system.

In this paper, for adjective pairs respectively, we

calculated the inclusion degree for the physical fea-

ture of MPEG-7. We used MKBC(Mercer kernel-

based clustering) algorithm as the algorithm for clus-

tering (Cirolami, 2002; Park, 2008). There are sever-

al MPEG-7 audio features. The number of properties

is also different. So, this similarity measure will be

fallen to the curse of the dimension. The MKBC is

kernel-based clustering. Therefore, the MKBC is the

best algorithm-m that does not fall into the curse.

},{

adjadj

HCHCR =

2,1,

)(

∈

= i

Xcard

HCXcard

adj

(2)

adj

means the i-th cluster information classi-

fied in a view of emotion

adj

by human. 



indi-

Feature Space

Emotion Space

Similar

(a)

(b)

Similar

Dissimilar

Feature SpaceFeature Space

Emotion SpaceEmotion Space

Similar

(a)

(b)

Similar

Dissimilar

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

210

cates the cluster information classified by the system

using the feature of



is a standard representing how it explains the

classified cluster information. If we assume that

cluster information classified by human is an ideal

result, we can calculate the inclusion degree for any

physical feature 



Figure 5: Membership function of 





In equation (3), x represents 





adjk

HC to belongs X degree xB

HC to belongs X degree xA

)(

⎪

⎩

⎪

⎨

⎧

≤≤−

502

x) when .(x

x when

A(x),B(x)

(3)

The equation (4) means how much correspond

between the cluster classified by human and the clus-

ter classified by the system.









∑





















,

(4)





0.1c1.2,when2  c  10

0,whenc  10























∑





 

(5)

3 EXPERIMENT

Fig 6 shows the overall flow of the proposed emo-

tion-based music retrieval system. We used the 360

songs in the experiment. They were not classified by

genre and classified by the emotion using Thayer

model. The music has the emotion such as “Annoy-

ing”, "Angry", "Nervous", "Sad", "Bored", "Sleepy",

"Calm", "Peaceful", "Relaxed", "Pleased", "Happy",

and "Excited". A song has one emotion and it can

have over one emotion. Therefore, the duplicate re-

trieval is possible by another emotion. We used the

temporal and spectral descriptors.

Figure 6: Proposed emotion-based music retrieval system.

In this paper, we used the 17 descriptors with the

exception of “Silence D”. The Euclidean similarity is

used as the similarity for descriptors, because the

audio features supported by MPEG-7 are provided as

a vector. Therefore, we used the Cosine or Euclidean

similarity among the vector similarity methods. Ta-

ble 1 shows the result of experiment. In this paper,

the performance evaluation was done by the surveys

of three students. As a result, the Euclidean similar-

ity is better than Cosine similarity.

Table 1: The result obtained by each similarity (%).

Cosine Euclidean

Angry 21.4 75.7

Calm 22.9 62.9

Excited 18.6 88.6

Sad 64.3 25.7

The features for retrieval are used by varying the

number and importance degree for each emotion ad-

jective. Table 2 shows the weight decided by MKBC.

Representative music used in the 1st retrieval is

selected through the previous survey. The number of

representative music is five. The user select whether

the music is relevant or irrelevant. The relevant mu-

sic is the training set and the test sets are the 360

songs stored in database. In the 1

retrieval method,

we can search by using the similarity of these fea-

tures.

EMOTION-BASED MUSIC RETRIEVAL USING CONSISTENCY PRINCIPLE AND MULTI-QUERY METHOD

211

After that, the similarity value is sorted by the

descending order and the 10 music are found. From

the 2nd retrieval, we used the feedback using consis-

tency principle and multi-queries method. The can-

didate music is searched by the ascending order. If

the music is satisfied by the

SimSim >

Table 2: The weight of the features.

Adjective Descriptor and weights

Angry AudioFundamentalFrequency 1.000

nnoying

AudioBasis, AudioFlatness,

AudioSignature AudioWave,

AudioEnvelope, AudioCentroid

0.884 ,0.876,

0.807, 0.639,

0.618, 0.584

Bored SpectralCentroid 0.813

Calm

AudioBasis, AudioFlatness, Au-

dioSignature, AudioWave,

AudioEnvelope, AudioCentroid,

InstrumentTimbre, HarmonicS-

pectralSpread, Dcoffset,

HarmonicSpectralCentroid,

SpectralCentroid

0.884, 0.876,

0.807, 0.639,

0.618, 0.584,

0.484,

0.481, 0.477,

0.450, 0.442

Excited AudioEnvelope 0.959

Happy

SpectralCentroid, HarmonicS-

pectralCentroid

0.813, 0.789

Nervous HarmonicSpectralSpread 1.000

Peaceful AudioFundamentalFrequency 1.000

Pleased

HarmonicSpectralCentroid,

SpectralCentroid

0.860, 0.857

Relaxed

HarmonicSpectralSpread,

AudioFlatness,

Dcoffset,

HarmonicSpectralCentroid,

TemporalCentroid,

AudioSignature,

AudioEnvelope,

HarmonicSpectralDeviation,

AudioBasis, AudioFF

1.000, 0.875,

0.872, 0.856,

0.823, 0.816,

0.747, 0.728,

0.663, 0.659

Sad

HarmonicSpectralCentroid,

SpectralCentroid, AudioBasis

0.860, 0.857,

0.663

Sleepy

AudioEnvelope, AudioFlatness,

AudioFF

0.959, 0.951,

0.912

Figure 7: Emotion based Music retrieval system.

Fig 7 shows the emotion based music retrieval

system about “Angry”. The one of retrieval music is

checked like “√” by the user in case of relevant.

Fig 8 is the survey of 12 students and shows the

result that retrieve until 90% when searching the 10

songs by the feedback using consistency principle

and

multi-queries. The 90% retrieval results are sat-

Figure 8: Until the 90% average number.

isfied within 2.5 times as Fig. 8. We did not listen to

these kinds of music in case of "Angry" or "Nerv-

ous". It is hard to define these kinds of music. So,

these emotions have the high number of times for re-

trieval than other emotions. For these reasons, there

is the highest number of times for retrieval in case of

searching the "Nervous". There are the lowest num-

ber of times for retrieval in case of searching the

"Peaceful".

4 CONCLUSIONS

The existing researches could distinguish only gen-

res. The data-types such as MIDI, MFCC, LPC, and

the MPEG-7 timbre data with them are difficult to

standardize. In this paper, only MPEG-7 descriptors

are used to solve this problem. The emotion based

music retrieval can be performed in the proposed

method. We classify the music by the emotions. And

the music is clustered by the MKBC method. After

that, the inclusion degrees of the features are ob-

tained by comparing above two results. These mean

the weight that represents the importance of each de-

scriptor for each emotion in order to reduce the

computation. These are used to select the optimal

descriptors for retrieval by each adjective.

We got the excellent result within the 2nd re-

trieval through the feedback using consistency prin-

ciple and multi-queries method.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

212

In this paper, we used the 12 emotions based on

Thayer model. The emotion adjectives used in music

are the adjectives such as “Rainy day”, “Exciting

day” besides Thayer model. In the future, we will re-

trieve by using the diverse emotion adjectives be-

sides 12 adjectives and study on the method for im-

proving the 1

retrieval result.

REFERENCES

En-jong Park. (2008). Emotion Based Image Retrieval Us-

ing Multi-Query Images and Consistency Principle, A

doctor degree dissertation of Chonbuk National Uni-

versity.

Information Technology Multimedia Content Description

Interface Part 4: Audio, ISO/IEC FDIS 15938-4.

Jonathan T. Foote. (1997). Content-Based Retrieval of

Music and Audio, Multimedia Storage and Archiving

Systems II, Proceedings of SPIE, Vo. 3229, pages 138-

147.

L. Lu, D. Liu, and H. J. Zhang. (2006). Automatic mood

detection and tracking of music audio signals. IEEE

Trans. Audio Speech Language Process, vol. 14, no.1.

Mark Cirolami. (2002). Mercer kernel-Based Clustering in

Feature Space, IEEE TRANSACTIONS ON NEURAL

NETWORKS, Vol.13, No.3, pages 780-784.

M. Leman. (2007). Embodied Music Cognition and Me-

diation Technology, Cambridge, MA; MIT Press. 2007

M. Leman, v. Vermulen, and M. Lesaffre. (2004). Correla-

tion of gestural musical audio cues and perceived ex-

pressive qualities, in Gesture Based Communication in

Human Computer Interaction, A. Camurri and G.

Volpe, Eds. New York: Springer Verlag.

Overview of the MPEG-7 Standard (version 6.0), ISO/IEC

JTC1/SC29/WG11/N4509.

R. E. Thayer. (1989). The Biopsychology of Mood and

Arousal, New York, Oxford University Press.

Wold, E., Blum, T., Keislar, d., and Wheaton, J. (1996).

Content-based Classification, Search, and Retrieval of

Audio, IEEE Multimedia, Vol. 3, No. 3, pages 27-36.

EMOTION-BASED MUSIC RETRIEVAL USING CONSISTENCY PRINCIPLE AND MULTI-QUERY METHOD

213
