SITEMAPS

FROM A MODEL DRIVEN PERSPECTIVE

A First Step for Bridging the Gap between Information Architecture

and Navigation Design

Antonia M. Reina-Quintero and Jes

us Torres-Valderrama

Department of Languages and Computer Systems, University of Seville, Avda. Reina Mercedes, s/n, Seville, Spain

Keywords:

Metamodelling, Model transformations, Information architecture, Navigation design, Sitemaps, Web design.

Abstract:

Researchers claim that there is a disconnection between information architecture and navigation design. One

way of approaching these two ﬁelds is to share deliverables. However, it is difﬁcult to change the minds

of audiences to make them use deliverables they are not used to. Thus, we propose let audiences use those

deliverables they are more comfortable with, and then transform one deliverable into another, as far as possible.

To get this aim, ﬁrstly, we need to have a deep knowledge of deliverables, and secondly, a set of mappings have

to be deﬁned in order to translate the information the source deliverable is covering into the target deliverable.

Our approach uses metamodelling as the technique to deﬁne the pieces that compose deliverables and their

relationships, and model transformations for mapping deliverables. In this context, the paper focuses on one

of the most widely used information architecture deliverables, sitemaps, and its main contributions are: (1) a

sitemap metamodel, which deﬁne the minimum set of elements that can be used for specifying sitemaps; and,

(2) a set of model to model transformations to obtain a XHTML skeleton of structural and utility navigation.

1 INTRODUCTION

The two disciplines that face up to some of the

greatest challenges when developing internet sites are

Information Architecture (IA) and Navigation De-

sign (ND). They try to answer non-technical questions

such as: What kind of information should be included

on a website? How should the site be organized? Or

how will users be able to ﬁnd their way around? IA is

more related to organizing, structuring and labeling

information, while ND involves technical develop-

ment and visual design. However, researchers have

argued that there is a disconnection between these two

disciplines (Azam et al., 2005), and as a result, bad

designs are obtained because information technology

is too separated from the design process or too far in-

tegrated in it.

A good way to bring these two disciplines closer

is to share deliverables. But there are two main pro-

blems when different audiences work with delivera-

bles: on the one hand, consumers of documentation

do not read deliverables, but they look for nuggets

of information they can use to complete their own

work (Curtis, 2008); and, on the other hand, it is di-

fﬁcult to change the mind of audiences to make them

utilize deliverables they are not used to. In this con-

text, we propose letting the members of the deve-

lopment team use those deliverables they are more

comfortable with, and then, transform one deliverable

into another, as far as possible. Thus, for example,

one common scenario can be the transformation of

sitemaps, one of the most widely used IA delivera-

bles. Sitemaps specify the structure of a website, but

also hold information related to structural navigation.

With our approach the navigational information ob-

tained from sitemaps will be mapped to other deli-

verables that deal with navigation, such as state ma-

chines or ﬂow charts. This strategy makes easier the

navigation designer’s job, because he or she will not

read sitemaps, but deliverables he or she is comforta-

ble with.

Our approach is composed of two main groups of

activities: ﬁrstly, we need to have a deep knowledge

of deliverables, and secondly, a set of mappings have

to be deﬁned in order to translate the source deliver-

able into the target deliverable. To address the ﬁrst

group of activities, metamodelling is proposed, be-

cause metamodels capture the essential features and

properties of the deliverables that are being mod-

eled (Clark et al., 2008). The translation is obtained

by means of a set of model to model transformations.

Thus, this paper is focused on sitemaps, which

111

M. Reina-Quintero A. and Torres-Valderrama J.

SITEMAPS FROM A MODEL DRIVEN PERSPECTIVE - A First Step for Bridging the Gap between Information Architecture and Navigation Design.

DOI: 10.5220/0002804701110117

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

 2010 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

are not only one of the most widely used delivera-

bles in IA, but also one of the deliverables understood

by a great number of different stakeholders. Firstly,

a sitemap metamodel has been speciﬁed by means

of the Ecore Modeling Framework (EMF) (Stein-

berg et al., 2008). And, secondly, some transforma-

tions speciﬁed by means of QVT Operational Map-

ping (OMG, 2005) are deﬁned. The result of the

transformations is a skeleton of a set of XHTML

pages. This skeleton is focused on structural and util-

ity navigation and it is used for validation purposes.

The rest of the paper is structured as follows: Sec-

tion 2 introduces sitemaps as an information architec-

ture deliverable. Sections 3 and 4 describe the source

and the target metamodel, respectively. After that, the

model to model transformations are speciﬁed in Sec-

tion 5. Then, a general overview of related work is in-

troduced in Section 6. Finally, the paper is concluded

and some further lines of research are pointed out.

2 SITEMAPS

Sitemaps are one of the most widely used IA delive-

rables and deﬁne structural navigation. One of their

main values is that they allow designers to anticipate

information organization errors. As a consequence,

these errors can be corrected prior to time and money

investment. However, there is no a standard best prac-

tice for creating sitemaps. The initial sketches are

usually drawn by hand, and then, a neater version

could be drawn with some kind of visual editor. Some

information architects and designers use Visio to lay

out pages hierarchies and create connections between

them, but they could be also created in Word, Power

Point or any other tool the designer is comfortable

with.

The most basic sitemap (Brown, 2006) is similar

to an org-chart where boxes represent pages or diffe-

rent areas of the site (Figure 1 shows an example of

a simple sitemap). Boxes are connected by lines that

show the semantic relationships between the areas of

the site and may also represent navigation, but they

do not have to. For example, in some sitemaps lines

represent relationships between content without ex-

plicitly suggesting navigation. The place and connec-

tions imply that there is a hierarchy between pages, in

such a way that the site’s home page is usually at the

top of the chart. Although there is no standard best

practice, there are a set of common elements that usu-

ally are speciﬁed in many sitemaps (Kalbach, 2007):

nodes, representing pages in the site; connectors, that

show nodes relationships; numbering scheme, used

for identifying pages in an unique way; labels, which

Home

News

Contact

Teaching

Consulting

Hours

3.1

Courses

3.2

Ms. Thesis

3.3

Proposals

3.3.1

Finished

3.3.2

Research

Publications

Leisure

Papers

5.1

Collaborations

5.2

All

5.3

Citations

5.4

Main Navigation

Local Navigation

Ms. Thesis

3.3

Consulting

Hours

3.1

Home

Utility Navigation

Figure 1: A high-level sitemap for a researcher web page.

represent nodes titles; page attributes, showing other

page characteristics; notes and annotations; scope

and, ﬁnally, title and key, that are sitemap properties.

Sitemaps can be represented in a coarse-grained

or a ﬁne-grained way. On the one hand, high-level

sitemaps (also called blueprints) show how the main

sections of a web site ﬁt together. They do not show

all pages. On the other hand, detailed sitemaps docu-

ment the site ﬁner-grained. As it is impractical to dia-

gram hundreds of pages, detailed sitemaps are written

in separated documents, one for each sitemap section.

3 SITEMAP METAMODEL

Sitemaps specify site structure and navigation, two re-

lated concerns. A detailed sitemap shows all pages

of a site, but the navigation is a limited view into

that structure. From any given page in the site,

navigation is a constrained window of all available

pages (Kalbach, 2007). The metamodel speciﬁed in

this section models coarse-grained sitemaps. In ad-

dition to this constraint, three additional assumptions

have been made: (1) not all pages in a site are go-

ing to be modeled. (2) The pages represented in the

sitemap imply navigation. That is, if there is a rela-

tionship between two nodes, then there will be a link

in the web site. And, (3) only a minimum set of the

common sitemap elements introduced in the previous

section are going to be modeled, in order to simplify

the metamodel and to be the least restrictive as possi-

ble.

In order to guarantee these assumptions, the

sitemap metamodel shown in Figure 2 has been pro-

posed

. The Sitemap metaclass is the root of the

metamodel. One sitemap is composed of one or more

sitemap elements. This is represented by means of

the reference named elements. SitemapElement is the

abstract metaclass that contains the properties that are

The ecore ﬁle that holds the metamodel can be down-

loaded from: http:// www.lsi.us.es/ ∼reinaqu/ org.mwacsl/

siteMap/metamodel/SiteMap.ecore

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

112

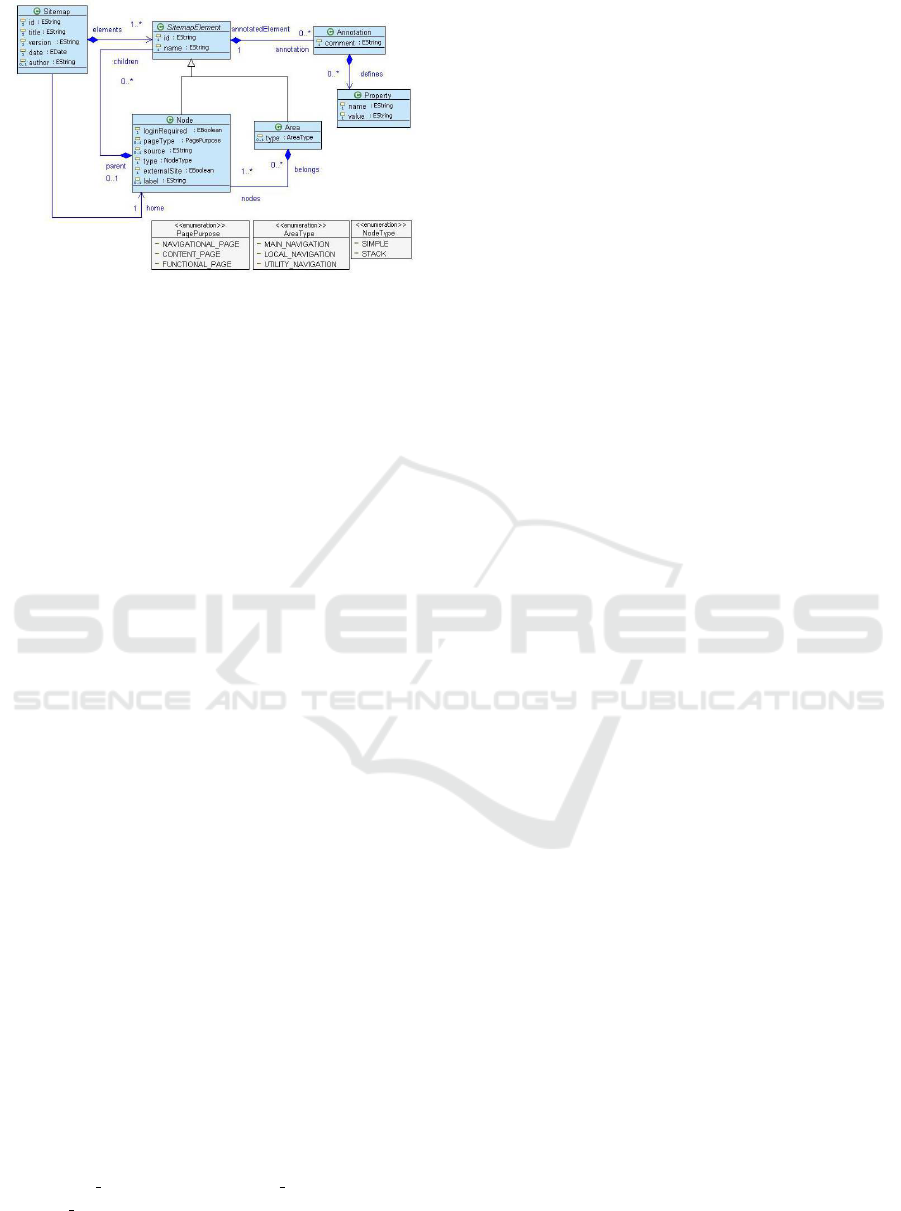

Figure 2: Sitemap metamodel.

common to all the sitemap elements. That is, every

sitemap element has an id and a name. There are two

kinds of elements: Node and Area. One node repre-

sents a page or set of pages in a web site, while an

Area models a set of nodes that have a similar na-

vigation function. Node and Area are subclasses of

SitemapElement. The id attribute represents a unique

identiﬁer, and, in the case of nodes, it is usually a hier-

archical numbering scheme. The root of the sitemap

has been modeled by means of the home relationship

that specify which relates Sitemap and Node.

Areas and nodes can have a parent (parent associ-

ation) or not. One node can access to its children by

means of the children reference (the opposite to par-

ent). Furthermore, one Area can contain one or more

nodes (nodes reference). Figure 1 shows three areas

that have been labeled as Main Navigation, Local Na-

vigation and Utility Navigation, respectively. The navi-

gational aim of an area has been modeled by means of

the enumeration named AreaType. These navigatio-

nal aims are inspired on (Kalbach, 2007), where three

main categories are deﬁned: structural navigation, as-

sociative navigation and utility navigation. Usually,

sitemaps represent structural navigation, that is, na-

vigation that links pages that belong to the site hier-

archy. We have made an extension and our sitemap

metamodel also addresses utility navigation. Utility

navigation connects pages that help users utilize the

site and it supplements main navigation. Usually, it

contains links to pages that you would like to have on

every page, but do not have the same visual weight as

main navigation. Utility navigation is out of the site

hierarchy. As a consequence, utility navigation is de-

picted as an area that is drawn out of the site hierarchy

(Figure 1).

The AreaType enumeration has three different va-

lues: MAIN NAVIGATION, LOCAL NAVIGATION and

UTILITY NAVIGATION. Main navigation and local na-

vigation are two kinds of structural navigation. Main

navigation is the menu or set of links that appears on

every page of the site and links to all of the main sec-

tions. Local navigation guides a user to certain sec-

tions in a long page. As it can be seen, local and main

navigation have a behavior a bit different; as a conse-

quence, they have been modeled separately. Finally,

it has to be highlighted that associative navigation has

not been modeled because this kind of navigation is

out of the scope of sitemaps.

Annotations are the mechanism used to attach ad-

ditional information to a sitemap element (Annotation

metaclass). Annotations are composed of proper-

ties (Property metaclass) that represent a pair name-

value which is used to express additional node prop-

erties. The annotations association represents that one

sitemap element can contain zero or more annota-

tions. As this association is bidirectional, an Annota-

tion can access to its SitemapElement via its opposite

reference, annotatedElement.

Finally, two enumerations have been deﬁned:

PagePurpose and NodeType. PagePurpose speciﬁes

the main aim of a node. According to this criterion,

pages (and, as a consequence, nodes) can be classiﬁed

in three main categories (Kalbach, 2007): navigatio-

nal pages, content pages and functional pages. The

aim of navigational pages is to show the user the path

to its ﬁnal destination. Examples of this kind of pages

are the home page or some gallery pages. Content

pages are those ones that users are looking for, while

functional pages are the ones that allow users to ﬁnish

certain tasks, such as searching for some information

or sending an e-mail. Node Type indicates if the node

represents a simple page (SIMPLE) or a similar set of

pages (STACK).

In order to maintain the metamodel as simple as

possible, some design decisions have been speciﬁed

by means of OCL constraints. As the metamodel

has been speciﬁed by means of EMF, the OCL con-

straints have been added to the metamodel with the

implementation of the Object Constraint Language

(OCL) for EMF-based models (EMP, 2007). These

constraints express the following ideas: (I) as utility

navigation is out of the sitemap hierarchy, utility na-

vigation areas do not have a parent. (II) The main na-

vigation area must have a parent. (III) A node cannot

be parent of itself. (IV) The node that is the sitemap

home cannot be the children of any other node. (V)

A node that belongs to an area has the same parent

as the area in which is included, only if the area is

not a utility navigation area. (VI) Nodes that be-

long to the main navigation area cannot be included

in other areas. Links that belong to the main naviga-

tion area have to appear in every page, so it has no

sense that nodes in the main navigation area are in

other areas, because they will appear twice. (VII) If

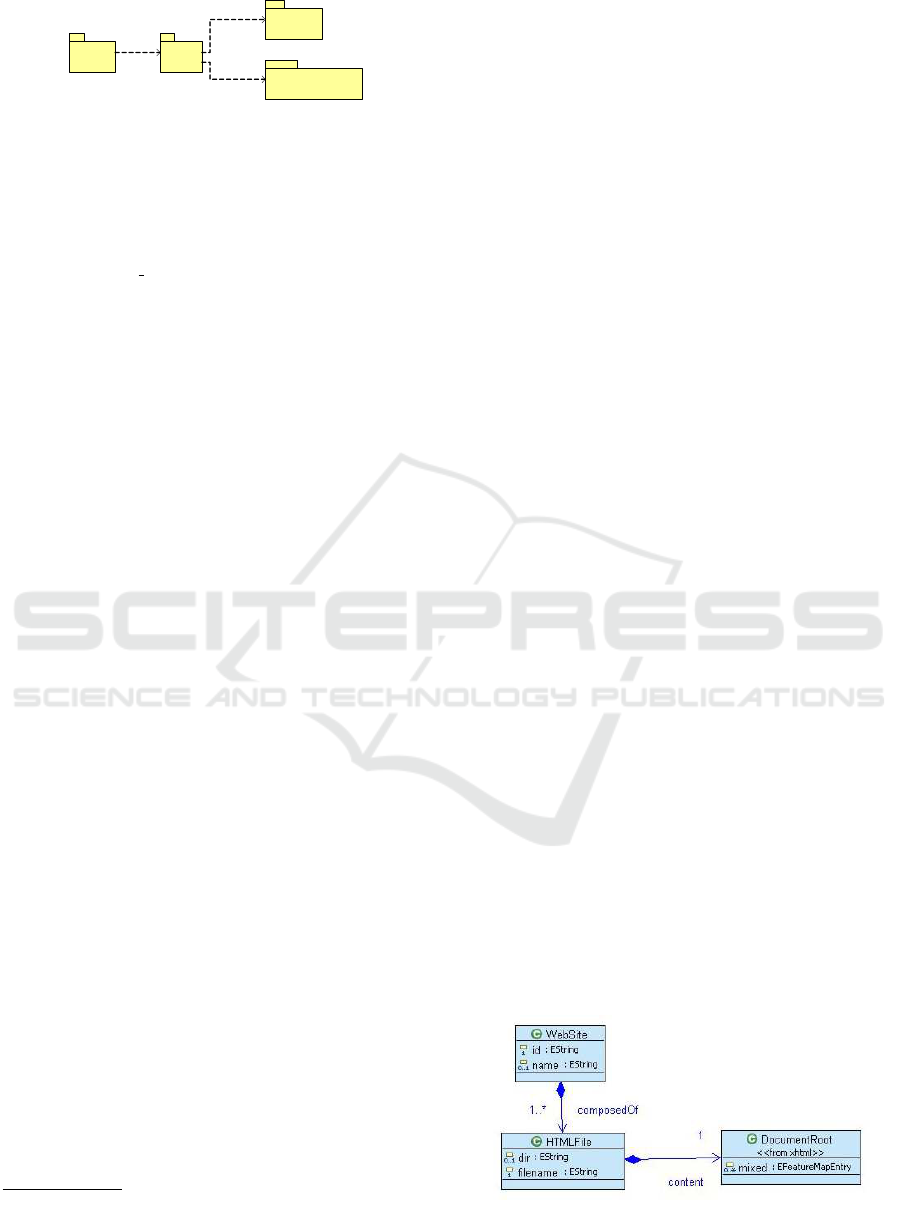

SITEMAPS FROM A MODEL DRIVEN PERSPECTIVE - A First Step for Bridging the Gap between Information

Architecture and Navigation Design

113

website xhtml

XMLType

XMLNamespace

«import»

Figure 3: Metamodels Relationship.

the node is an external site, then its source property

must have a value (the URL that points to that ex-

ternal site). (VIII) The root of the sitemap does not

have a parent; its pageType property should be set

to FUNCTIONAL PAGE and its type to SIMPLE. (IX)

There only can be one main navigation area in the

whole site. (X) Nodes and areas are disjointed ele-

ments.

4 WEBSITE METAMODEL

In order to avoid building the whole website meta-

model from scratch, three other metamodels have

been reused. Thus, the only package deﬁned from

scratch has been website. Figure 3 shows the rela-

tionships among the different packages which con-

tain the metamodels. The ecore ﬁle that holds the

website package has been deﬁned manually

, while

the other three metamodels have been obtained au-

tomatically. The xhtml, XMLType and XMLNames-

pace packages have been obtained by means of the

XSD model importer component included in the EMF

Eclipse plug-in, as it is mentioned in (Gronback,

2009). The importer only needs a XML Schema

Deﬁnition ﬁle which deﬁnes the structure and con-

straints of XHTML ﬁles. One of these ﬁles is the

one speciﬁed by the W3C consortium and it can be

found at http://www.w3.org/2002/08/xhtml/xhtml1-

strict.xsd. As a result of the importation an

xhtml.

ecore

ﬁle is obtained.

Figure 4 depicts the metaclasses included in the

website metamodel. The WebSite metaclass is the

root of the metamodel. A website is composed of a

set of HTMLFile. An XHTML ﬁle holds some content.

The content is modeled by means of the relationship

named content. The DocumentRoot metaclass is at

the other end of this relation. This metaclass belongs

to the xhtml metamodel, which has been depicted by

means of the

<<from xhtml>>

stereotype. The Doc-

umentRoot metaclass is also related to the HTMLType

metaclass, but as these two metaclasses belong to the

xhtml, the relation has not been depicted in Figure 4.

This ﬁle can be downloaded from: http://

www.lsi.us.es/∼reinaqu/ org.mwacsl/webSite/metamodel/

website.ecore

In addition to this, a set of minor modiﬁcations

have been done to the original

xhtml.ecore

ﬁle ob-

tained from the importation. The AContent, Flow, In-

line and TitleType metaclasses are affected by these

modiﬁcations as it is stated in (Gronback, 2009). This

set of changes is needed because there is no way to

declare text elements between XHTML labels such as

<li>

<p>

. Finally, there is also another set of mo-

diﬁcations whose goal is to make easier the model to

model transformations that will be introduced in the

next section. The AType metaclass is affected by this

changes, concretely, there is an attribute named class

whose type has been modiﬁed from NMTOKENS to

NMTOKEN.

5 M2M TRANSFORMATION

The transformation has as input a model that con-

forms to the sitemap metamodel explained in Sec-

tion 3 and returns a model that conforms to the web-

site metamodel explained in Section 4. The main idea

behind the transformation is that, objectively, utility

and structural navigation are a list of links to vari-

ous pages on the website (Grannell, 2007). As the

focus of the transformation itself is to obtain a draft

of utility and structural navigation, the web pages

that are going to be generated are only a skeleton

containing the structural and utility navigation links

without any other content. Thus, the generated pages

are structured into different areas that have been se-

parated by means of XHTML

<div>

tags (Figure 5).

These tags are part of the

<body>

section and each

one will have a class attribute whose value will be

used later to apply some visual style, by means of

Cascade Stylesheets (CSS) ﬁles. Figure 5 depicts the

values of the class attributes corresponding to the di-

fferent

<div>

sections. Thus, container is the class

of the outer

<div>

, while the class of the inner ones

are: header, utilityNavigation, mainNavigation, local-

Navigation, mainContent and footer.

Figure 6 shows how a node is transformed into

an xhtml ﬁle. The left hand of the ﬁgure shows the

Figure 4: Website package in the website metamodel.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

114

#container

#utilityNavigation

#header

#mainNavigation

#localNavigation

#mainContent

#footer

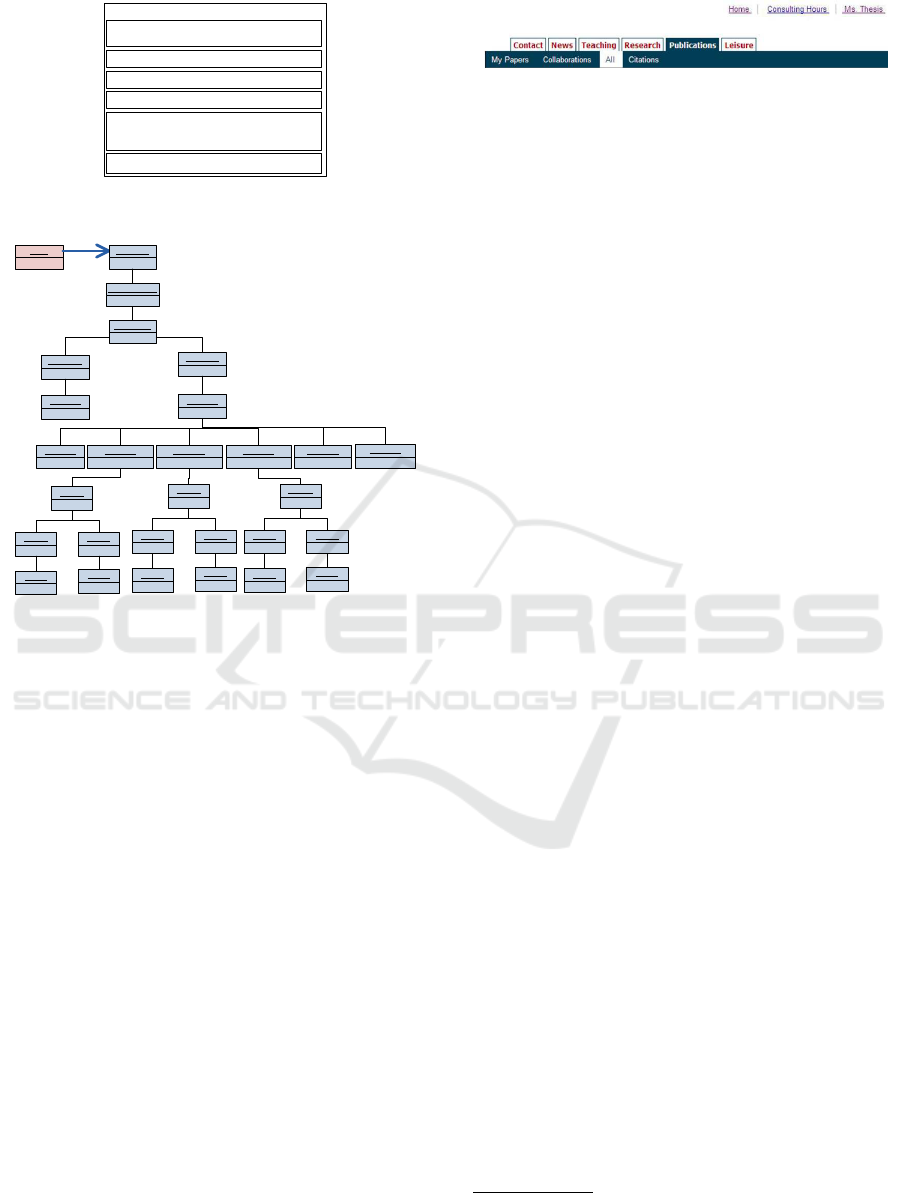

Figure 5: Structure of the generated web pages.

:Node :HTMLFile

:DocumentRoot

:HTMLType

:HeadType

:BodyType

:TitleType

id = container

: DivType

id = header

: DivType

id = utilityNavigation

: DivType

id = mainNavigation

: DivType

id = localNavigation

: DivType

id = mainContent

: DivType

id : String = footer

: DivType

:UlType

:LiType :LiType

:AType

...

:UlType

:LiType :LiType

:AType

...

:UlType

:LiType :LiType

:AType

...

Figure 6: Result of the mapping applied to a node.

piece of the source model that is going to be trans-

formed, while the right hand shows the result of the

mapping. As it can be seen, each node generates an

instance of the HTMLFile metaclass. A HTML ﬁle has

a content, whose type is DocumentRoot. The root of

the HTML document is related to an instance of the

HTMLType metaclass, which represents the

<html

tag. The ﬁgure also shows how different instances

of the DivType metaclass are generated, one for each

<div>

tag mentioned in the previous paragraph. It is

also worth to be noticed that the only instances of Di-

vType related to instances of UlType are the ones that

represent utility, main and local navigation. In this

case, the UlType metaclass models

<ul>

tags. Finally,

each UlType instance is related to a number of LyType

instances. The number of instances will depend on

the number of nodes included in each navigation area.

Thus, for example, if the utility navigation area in-

cludes three nodes, three instances of LyType will be

generated; each one will represent a

<li>

tag contain-

ing a link (modeled by means of AType). If we look

at the node 5.3 (Figure 1), the XHTML ﬁle generated

should looks like the one depicted in Figure 7.

The transformation has been implemented with

the Operational QVT (The Eclipse Foundation, 2010)

included in the M2M subproject of the Eclipse Mod-

Figure 7: File 5.3-all.html obtained from the node whose id

is 5.3.

eling Project. The transformation

is composed of

nine mappings, two constructors and twelve queries.

Finally, it can be noticed that until now there are

no details about presentation. They are speciﬁed

by means of different CascadeStyleSheet (CSS) ﬁles.

Thus, a set of CSS ﬁles have been deﬁned for diffe-

rent presentations and layouts of navigation. This in-

formation is included in the transformation by means

of four conﬁguration properties, named cssContainer,

cssUtilityNav, cssMainNav, cssLocalNav. Each pro-

perty should hold the URI of the CSS ﬁle that will

deﬁne the visual aspect of the item. For example, the

property cssMainNav will have the URI of the CSS

ﬁle that deﬁnes the visual aspect of the main naviga-

tion.

6 RELATED WORK

As one of the aims of the approach is to bring closer

two areas of research, information architecture and

navigation design, different areas of knowledge have

been surveyed in order to found related work. As

far as we know, information architecture researchers

do not formalize sitemaps, as there is no a standard

best practice. The only attempt of formalizing infor-

mation architecture deliverables can be found in (Bo-

gaards, 2004), where the building blocks of many IA

deliverables are speciﬁed using Dublin core attributes.

Therefore, it can be stated that the focus of most of the

IA publications is on describing how sitemaps can be

used. Thus, for example, in (Brown, 2006), sitemaps

are explained in a communication design context. In

this book, and also in (Kalbach, 2007), the Visual Vo-

cabulary deﬁned by J.J. Garret (Garrett, 2002) is pro-

posed as a modeling notation. This notation is broader

than the one we have proposed in this paper, because

in addition to sitemaps it deals with web ﬂows. We

prefer to use the separation of concerns principle and

deﬁne a metamodel whose concerns are related only

to sitemaps.

Concerning to Web Engineering, there are seve-

ral approaches that bet for a model-driven develop-

ment process such as WebML (Ceri et al., 2003),

The source code can be downloaded from: http://

www.lsi.us.es/ reinaqu/org.mwacsl/siteMap/transformations/

sitemap2website.qvto.

SITEMAPS FROM A MODEL DRIVEN PERSPECTIVE - A First Step for Bridging the Gap between Information

Architecture and Navigation Design

115

UWE (Koch, 2001), OOWS (Pastor et al., 2005),

OOHDM (Schwabe and Rossi, 1998).

WebML authors have not deﬁned an explicit meta-

model. The concepts managed in this approach have

been deﬁned in the XML technical space by means of

a Document Type Deﬁnition (DTD). However, other

authors have deﬁned these concepts by means of an

explicit metamodel (Schauerhuber et al., 2006) or a

UML 2.0 proﬁle (Moreno et al., 2007).

UWE also has been speciﬁed by means of a meta-

model implemented as a UML proﬁle (Kroib and

Koch, 2008). Furthermore, a set of model to model

transformations has been proposed (Koch, 2006).

The transformations map Web requirement models to

UWE functional models. They also deﬁne mappings

between requirement models and architectural mod-

els. Finally, they provide mappings to platform spe-

ciﬁc models.

OOHDM has been extended to follow an approach

based on MDA (Schmid and Donnerhak, 2005).

Thus, in (Schmid, 2004) a behavioral semantics deﬁ-

nition of the OOHDM core features and business pro-

cess is made. The models proposed in this approach

are used as PIM in a MDA-based development pro-

cess.

OOWS has also been extended by means of a

model-driven extension in order to support business

processes integration (Torres and Pelechano, 2006).

The business process model is the start point for trans-

formations. This model is mapped into a default

navigation model. Later, the designer has to reﬁne

this model in order to be transformed into a concrete

web technology. Transformations have been speciﬁed

using QVT Operational Mappings.

Other approaches that are applying a model-

driven approach for web development are: Hy-

perDE (Nunes and Schwabe, 2006), MIDAS (C

aceres

et al., 2004), Moreno et al. (Moreno and Valle-

cillo, 2005), Muller et al. (Muller et al., 2005),

W2000 (Baresi et al., 2006) and WebSA (Meli

a and

Cachero, 2004).

As it can be seen in the previous paragraphs, there

is a great number of web engineering approaches.

In order to bring closer many of these approaches,

a project named MDWEnet has come up (Vallecillo

et al., 2007). One of the main aims of this project

is to achieve interoperability of the different model-

driven web engineering methods. We also want to

achieve interoperability between web engineering de-

liverables and information architecture deliverables.

Thus, we can state that the main difference between

our approach and the previous ones is that they do not

have into account information architecture delivera-

bles and concepts.

7 CONCLUSIONS AND FURTHER

WORK

The main contribution of this paper is to take a step

forward to bring closer information architecture and

navigation design in the context of a model driven ap-

proach. The general approach consists in metamodel-

ing and transforming by means of model transforma-

tions the deliverables used by the different audiences

in a project, specially information architects and de-

signers. The paper is centered on sitemaps, one of the

most widely used IA deliverables, and it proposes a

metamodel focused on structural and utility naviga-

tion, in such a way that thanks to a set of model to

model transformations, a skeleton of XHTML pages

is obtained. Although the aim of the transformations

proposed in the paper is to obtain XHTML, this ap-

proach is being applied to other deliverables, such as

statecharts or webﬂows.

ACKNOWLEDGEMENTS

This work has been partially supported by the Span-

ish Ministery of Science and Technology and FEDER

funds: TIN-2007-67843-C06-03 and TIN2007-64119.

REFERENCES

Azam, F., Li, Z., and Ahmad, R. (2005). Introducing UML

proﬁle for modelling information architecture of web

applications. In Proceedings of the 11th Joint Interna-

tional Computer Conference - JICC 2005, pages 245–

250.

Baresi, L., Colazzo, S., Mainetti, L., and Morasca, S.

(2006). Web Engineering, chapter W2000: A Mod-

eling Notation for Complex Web Applications, pages

335–408. Springer.

Bogaards, P. J. (2004). Info design/arch deliver-

able schemas. http://www.bogieland.com/ infode-

sign/resources/misc/iadelschemas.htm.

Brown, D. M. (2006). Communicating Design: Develo-

ping Web Site Documentation for Design and Plan-

ning, chapter 8, Site Maps. New Riders.

aceres, P., de Castro, V., and Marcos, E. (2004). Naviga-

tion modelling from a user services oriented approach.

In Proceedings of the Conference on Advances in In-

formation Systems (CAISE04), pages 150–160.

Ceri, S., Fraternali, P., Bongio, A., Brambilla, M., Comai,

S., and Matera, M. (2003). Designing Data-Intensive

Web Applications. Elsevier Science.

Clark, T., Sammut, P., and Willans, J. (2008). Applied Meta-

modelling. A Foundation For Language Driven Deve-

lopment. 2nd Edition. Ceteva.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

116

Curtis, N. (2008). Audiences & artifacts. Bulletin of the

American Society for Information Science and Tech-

nology, 34(6):20–26.

EMP (2007). EMF Technology OCL Project. Avalaible at:

http://www.eclipse.org/emft/projects/ocl]ocl.

Garrett, J. J. (2002). Visual vocabulary for infor-

mation architecture. version 1.1b. Avalaible at:

www.jjg.net/ia/visvocab.

Grannell, C. (2007). The Essential Guide to CSS and HTML

Web Design, chapter 5. Using Links and Creating Na-

vigation, pages 147–232. friendsof. APress.

Gronback, R. C. (2009). Eclipse Modeling Project: A

Domain-Speciﬁc Language (DSL) Toolkit. Addison-

Wesley Professional.

Kalbach, J. (2007). Designing Web Navigation. O’Reilly

Media, Inc.

Koch, N. (2001). Software Engineering for Adaptive

Hypermedia System: Reference Model, Modeling

Techniques and Development Process. PhD thesis,

Ludwig-Maximilian-Universitat Munchen.

Koch, N. (2006). Transformations techniques in the model-

driven development process of uwe. In In Proc. Of 2nd

Model-Driven Web Engineering Workshop (MDWE

2006), volume 155.

Kroib, C. and Koch, N. (2008). UWE metamodel and pro-

ﬁle: User guide and reference. Technical Report 0802,

Ludwig-Maximilians-Universitt Mnchen (LMU).

Meli

a, S. and Cachero, C. (2004). An MDA approach for

the development of web applications. In Proceedings

of the International Conference on Web Engineering

(ICWE04), pages 300–305.

Moreno, N., Fraternali, P., and Vallecillo, A. (2007).

WebML modelling in UML. IET Software, 1(3):67–

80.

Moreno, N. and Vallecillo, A. (2005). A model-based ap-

proach for integrating third party systems with web

applications. In Proceedings of International Confer-

ence on Web Engineering (ICWE’05), number 3579,

pages 441–452.

Muller, P. A., Studer, P., Fondement, F., and B

ezivin, J.

(2005). Platform independent web application mod-

eling and development with Netsilon. Software and

System Modeling, 00:1–19.

Nunes, D. A. and Schwabe, D. (2006). Rapid prototyp-

ing of web applications combining domain speciﬁc

languages and model driven design. In Proceed-

ings of International Conference on Web Engineering

(ICWE’06).

OMG (2005). Meta Object Facility (MOF) 2.0

Query/View/Transformation Speciﬁcation. Technical

report, OMG.

Pastor, O., Pelechano, V., Fons, J., and Abrahao, S.

(2005). Conceptual Modelling of Web Applications:

the OOWS Approach. In Web Engineering. Theory

and Practice of Metrics and Measurement for Web De-

velopment, pages 277–302.

Schauerhuber, A., Wimmer, M., and Kapsammer., E.

(2006). Bridging existing web modeling languages to

model-driven engineering: A metamodel for webml.

In Proceedings of the 2nd Int. Workshop on Model-

Driven Web Engineering (MDWE’06).

Schmid, H. A. (2004). Model Driven Architecture with

OOHDM. In Matera, M. and Comai, S., editors,

ICWE Workshops, pages 12–25. Rinton Press.

Schmid, H. A. and Donnerhak, O. (2005). OOHDMDA. an

MDA approach for OOHDM. In Proceedings of Inter-

national Conference on Web Engineering (ICWE’05),

number 3579, pages 569–574.

Schwabe, D. and Rossi, G. (1998). Developing Hypermedia

Applications using OOHDM. In Proceedings of Work-

shop on Hypermedia Development Processes, Meth-

ods and Models, Hypertext’98.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks, E.

(2008). EMF: Eclipse Modelling Framework, 2nd Ed.

Addison-Wesley.

The Eclipse Foundation (2010). Operational QVT. Avail-

able at: http://www.eclipse.org/m2m/qvto/doc/.

Torres, V. and Pelechano, V. (2006). Building business

process driven web applications. In Dustdar, S., Fi-

adeiro, J., and Sheth, A., editors, Proceedings of the

BPM2006, volume 4102 of Lecture Notes in Com-

puter Science.

Vallecillo, A., Koch, N., Cachero, C., Comai, S., Fraternali,

P., Garrigs, I., Gmez, J., Kappel, G., Knapp, A., Mat-

era, M., Meli, S., Moreno, N., Pr

oll, B., Reiter, T.,

Retschitzegger, W., Rivera, J. E., Schauerhuber, A.,

Schwinger, W., Wimmer, M., and Zhang, G. (2007).

MDWEnet: A practical approach to achieving inter-

operability of model-driven web engineering meth-

ods. In In Proc. of 3rd Model-Driven Web Engineering

Workshop (MDWE 2007), volume 261. CEUR-WS.

SITEMAPS FROM A MODEL DRIVEN PERSPECTIVE - A First Step for Bridging the Gap between Information

Architecture and Navigation Design

117
