MINIMAL-FOOTPRINT MIDDLEWARE FOR THE CREATION OF

QUALIFIED SIGNATURES

Martin Centner, Clemens Orthacker

Institute for Applied Information Processing and Communication (IAIK)

Graz University of Technology, Inffeldgasse 16a, Graz, Austria

Wolfgang Bauer

XiTrust Secure Technologies GmbH, Grazbachgasse 67, Graz, Austria

Keywords:

Qualiﬁed electronic signatures, e-Government.

Abstract:

Qualiﬁed electronic signatures are recognized as being equivalent to handwritten signatures and are supported

by EU legislation. They require a secure signature creation device (SSCD) such as a smart card. Unfortunately,

there are neither standard means for the integration of SSCDs with Web applications, nor are the exiting means

widely deployed. Web application providers are still faced with a lack of deployment of such means and a

lack of integration with standard software. This paper will present a novel approach to address these issues by

a middleware that does not require users to install dedicated software for the creation of qualiﬁed electronic

signatures. The middleware is deployed as a web application and splits the signature creation process into

two parts: One part is performed on the server side and the other part (requiring access to functions of the

secure signature creation device) is deployed and executed as a lightweight component in the user’s browser

on demand.

1 INTRODUCTION

Handwritten signatures play an important role in day-

to-day business. They are typically used to authenti-

cate the origin of a document and to give evidence of

the intent of the signatory with regard to that docu-

ment. Electronic signatures may provide an adequate

equivalent in electronic business. This is also sup-

ported by the EU directive on electronic signatures

(1999/93/EC, 1999), which deﬁnes a legal framework

for electronic signatures and has been adopted into

national legislation by the EU member states. The re-

quired infrastructure is already available in a number

of the EU member states and other countries. How-

ever, electronic signatures as electronic equivalent to

handwritten signatures have not yet reached a wide-

spread use beyond speciﬁc application areas such as

e-government.

In this paper we present an approach that aims at

facilitating the further dissemination of Qualiﬁed Sig-

natures. In particular we address the issues of inte-

grating the means required for signature creation with

Web applications and the deployment of such means.

The proposed minimal-footprint middleware may

be deployed with a web application or as a central ser-

vice and handles the details of signature creation. It

enables a user to create Qualiﬁed Signatures as de-

ﬁned by the EU directive without requiring dedicated

software to be installed by the user. To access a se-

cure signature creation device (SSCD) as required for

Qualiﬁed Signatures, a lightweight component is on

demand deployed and executed in the user’s browser.

The minimal-footprint middleware is a technology

neutral concept. To study the concept and to provide

an open-source implementation the MOCCA project

was initiated by the Austrian Federal Chancellery and

the Graz University of Technology. Although other

web technology would be conceivable, the MOCCA

implementation relies on Java Applets and the PC/SC

interface to stay as platform and browser independent

as possible. Meanwhile MOCCA has been deployed

in production for important e-government services in

Austria.

In the following this paper will give a short in-

troduction to Qualiﬁed Signatures and their require-

ments in section 2 and to Secure Signature Creation

http://mocca.egovlabs.gv.at

Centner M., Orthacker C. and Bauer W.

MINIMAL-FOOTPRINT MIDDLEWARE FOR THE CREATION OF QUALIFIED SIGNATURES.

DOI: 10.5220/0002808300640069

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

Devices as required for Qualiﬁed Signatures in sec-

tion 3. Section 4 discusses ways of integrating the cre-

ation of Qualiﬁed Signatures with applications. The

minimum-footprint middleware concept and it’s refer-

ence implementation MOCCA is discussed section 5.

2 QUALIFIED SIGNATURES

The EU directive on electronic signatures

(1999/93/EC, 1999) deﬁnes special requirements

for advanced electronic signatures, secure signature

creation devices (SSCD), qualiﬁed certiﬁcates (QC)

and certiﬁcation service providers issuing qualiﬁed

certiﬁcates. The requirements aim at high level of

security.

Advanced electronic signatures based on QC and

which are created by a SSCD—commonly referred to

as Qualiﬁed Signatures—are required to

. . . (a) satisfy the legal requirements of a sig-

nature in relation to data in electronic form

in the same manner as a handwritten signa-

ture satisﬁes those requirements in relation to

paper-based data; and (b) are admissible as

evidence in legal proceedings. (1999/93/EC,

1999, Article 5)

Studies by the European Commission (e.g. (IDABC

6485, 2007)) show that corresponding legislation and

infrastructure is available in a majority of the EU

member states. However, Qualiﬁed Signatures have

not yet found widespread use beyond speciﬁc appli-

cation areas such as e-government.

(Roßnagel, 2009) studies the reasons for the slow

adoption ratio of Qualiﬁed Signatures. As electronic

signatures do not provide much beneﬁt by themselves,

their dissemination is largely dependent on availabil-

ity of corresponding applications. On the other hand,

the effort required for integration of electronic signa-

tures with applications must usually be justiﬁed con-

sidering the potential usage ratio. Hence, the adop-

tion of electronic signatures currently suffers from a

chicken-and-egg problem. The problem is intensiﬁed

by the fact, that currently there is a signiﬁcant effort

required by application providers for integrating and

deploying the means required for the creation of qual-

iﬁed signatures.

3 SECURE SIGNATURE

CREATION DEVICES

Almost all SSCDs provided for the creation of Qual-

iﬁed Signatures are based on smart-card technology.

They are either implemented as chip-cards in credit-

card size with an interface according to ISO/IEC 7810

and ISO/IEC 7816, use a contactless interface accord-

ing to ISO/IEC 14443 or are directly integrated with

a corresponding terminal device to be used as USB

token. Therefore almost all SSCDs share at least a

common low level interface deﬁned by ISO/IEC 7816

parts 3, 4 and 8. In practice however, this just means

that communication with an SSCDs is based on the

exchange of Application Protocol Data Units (AP-

DUs). To be able to access the functions of an SSCD a

lot of additional information is required. Smart cards

implementing ISO/IEC 7816 part 15 try to provide

this required information in a standardized way. How-

ever only a few SSCDs implement ISO/IEC 7815–15

and even if they do, it remains rather impossible to in-

terface SSCDs in a complete generic way. Therefore,

either applications have to know how to access a spe-

ciﬁc SSCD or need layer of abstraction and another

component doing so.

PC/SC

has become the de facto standard for in-

tegration of smart cards and smart-card readers into

mainstream operating systems, with other technolo-

gies such as CT-API

losing importance. PC/SC al-

lows for communication with smart-cards on the ba-

sis of APDUs. On the contrary, a number of com-

peting solutions exist for the abstraction and integra-

tion of electronic signatures and other cryptographic

functions based on smart cards into operating systems

and applications. To name just a few, there are op-

erating system dependent solutions like Microsoft’s

CSP/CNG

, Keychain Services

in Apple OS X and

more operating system independent solutions such as

PKCS#11

. All these solutions have in common, that

they require a module implementing the speciﬁcs for

each particular SSCD they are going to support. Of

course, these modules look quite different for any of

the solutions. Thus it is not surprising, that none of

them is currently able to support all or even most of

the available SSCDs. In fact, there is also a number

of SSCDs for which not any such module is available.

Additionally, the installation and update of speciﬁc

modules can also be a challenging task for end users

if this is not performed by the operating system or ap-

plications automatically.

http://www.pcscworkgroup.com/

CardTerminal Application Programming Interface

http://www.tuvit.de/downloads/Tuev-IT/CTAPI11EN.pdf

Crypto Service Provider / Crypto Next Generation

http://msdn2.microsoft.com/en-us/library/aa380256.aspx

http://developer.apple.com/mac/library/documentation/

Security/Conceptual/Security Overview/Security Services/

Security Services.html

http://www.rsa.com/rsalabs/node.asp?id=2133

MINIMAL-FOOTPRINT MIDDLEWARE FOR THE CREATION OF QUALIFIED SIGNATURES

The EU directive on electronic signatures requires

that SSCDs must ensure that “the signature-creation-

data used for signature generation can be reliably pro-

tected by the legitimate signatory against the use of

others” (1999/93/EC, 1999, ANNEX III). Most SS-

CDs implement this by requiring the user to provide a

secret personal identiﬁcation number (PIN). Any so-

lution accessing the SSCD must therefore also be able

to provide the user with a possibility to enter the PIN

to authorize the signature. This might be done by an

appropriate user dialog or by activating a PIN-pad on

the smart-card terminal if available.

4 APPLICATION INTEGRATION

SSCDs implement only basic cryptographic algo-

rithms. Signatures on electronic documents usu-

ally require a signature format such as CMS

and

XMLDSig

(or their corresponding formats for Ad-

vanced Electronic Signatures, CAdES and XAdES

If applications directly interface SSCDs or access

their functions by interfaces discussed in section 3,

they also need to implement the processing of the re-

quired signature formats. Abstraction of this func-

tionality can be provided by libraries which have to be

integrated with the application or can be achieved by

the use of a middleware that provides signature cre-

ation services.

To enable users to create Qualiﬁed Signatures in

Web applications, these applications need a way to

employ the user’s SSCD. There are however no stan-

dard means provided by Web browsers for the cre-

ation of electronic signatures. Therefore, middleware

solutions have been developed that need to be in-

stalled on the user’s machine and allow to be triggered

through a Web browser. The middleware then takes

over the task of creation a Qualiﬁed Signature with

the user’s SSCD and returns it back the application.

Such solutions are for instance used by the Austrian

Citizen Card (Hollosi and Karlinger, 2004),(R

ossler,

2008) and the German e-Card-API-Framework (BSI

TR-03112, 2008). Of course such middleware may

also be accessed by local applications on the user’s

machine.

The EU directive on electronic signatures man-

Cryptographic Message Syntax (CMS) – IETF RFC

3852 http://tools.ietf.org/html/rfc3852

XML Signature Syntax and Processing – W3C Recom-

mendation http://www.w3.org/TR/xmldsig-core/

CMS Advanced Electronic Signatures – ETSI TS 101

733 and XML Advanced Electronic Signatures – ETSI TS

101 903 http://www.etsi.org/WebSite/Technologies/

ElectronicSignature.aspx

dates that “Secure signature-creation devices must not

alter the data to be signed or prevent such data from

being presented to the signatory prior to the signature

process” (1999/93/EC, 1999, ANNEX III). Therefore

middleware for the creation of Qualiﬁed Signatures

usually also provides the possibility to view the to-be

signed data.

The traditional middleware approach represents a

convenient way to integrate Qualiﬁed Signatures with

applications and especially with Web applications.

However, conventional middleware software needs to

be installed on the user’s machine as a prerequisite.

The minimum-footprint middleware approach elimi-

nates this requirement by providing the required com-

ponents for accessing the user’s SSCD on demand.

5 MINIMAL-FOOTPRINT

MIDDLEWARE

The general concept of the approach is to split the sig-

nature creation process into two parts, use a small

component executed in the user’s browser to per-

form the part that needs access the functions of the

SSCD and deploy this component on demand. Every-

thing that may be performed securely on the server is

kept out of this component, to allow for a minimal-

footprint on the user’s machine. From the applica-

tion’s point of view however, there is just a conven-

tional middleware taking over the task of creating an

electronic signature.

The Austrian Federal Chancellery and the Graz

University of Technology have initiated the project

“MOCCA” in 2008 with the aim to provide an open

source implementation of a minimal-footprint mid-

dleware.

5.1 SSCD Access

In the context of the MOCCA project several tech-

nologies for implementation of the browser compo-

nent and accessing the SSCD have been assessed.

The goal was to support the mainstream operating

systems (Windows, Mac OS X and Linux) and at

least the three most used Web browsers (Internet Ex-

plorer, Firefox and Safari). Firefox and Internet Ex-

plorer would principally allow access to SSCD func-

tions using scripting technologies such as Java-Script

and VB-Script. However, this requires appropriate

modules for integration of the SSCD with the operat-

ing system (Internet Explorer: CSP) and the browser

(Firefox: PKCS#11), respectively. The appropriate

modules have to be installed and conﬁgured by the

user. As an alternative browser plug-in technologies

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

such as Flash, Silverlight and Java Applets where

evaluated. A possibility for accessing an SSCD us-

ing Flash or Silverlight in the available versions was

not found.

Java Applets provide operating system and

browser independent access to smart cards via the

Java Smart Card I/O API using the PC/SC interface.

The targeted operating systems provide out of the box

support for PC/SC and for many of the smart-card

readers on the market. Therefore, a user only needs

to plug a supported smart-card reader and is not re-

quired to install additional software.

Statistics show, that more than 50% of internet

users are using a browser with a Java-Plugin in the

relevant version

. For those not having a Java-Plugin

installed, Java provides an easy installation procedure

that could also be triggered by the middleware di-

rectly. As Java is general technology not only re-

quired for the creation of electronic signatures and

already available on more than the half of the users’

machines, the requirement not needing to install ded-

icated software is considered to be met. Therefore,

Java Applets where chosen for the implementation of

the browser component of MOCCA.

5.2 Architecture

The architecture of MOCCA is designed to be as tech-

nology neutral and open as possible. This should al-

low for future adaptations if required. It is organized

into four different layers as shown in ﬁgure 1.

For integration with applications it was chosen to im-

plement the Security-Layer interface (SL) and a trans-

port binding of HTTP(S) as deﬁned by the Austrian

Citizen Card speciﬁcation. SL is an open concept

comparable with OASIS-DSS

and not restricted to

Austrian citizen cards. Additional interfaces (such as

OASIS-DSS) could easily be implemented by extend-

ing or adapting the two uppermost layers.

The Security-Layer interface allows for the cre-

ation of CMS and XAdES signatures. Currently,

MOCCA only implements the creation of XAdES sig-

natures. The corresponding SL request consists of el-

ements specifying the signature key to be used, the

data to be signed and the XML document the cre-

ated signature should ﬁnally be embedded in. There

is great ﬂexibility in specifying how the middleware

should retrieve and transform the data for signing and

whether the data should be embedded into the signa-

ture or referenced externally.

Source: http://riastats.com/

OASIS – Digital Signature Service

http://www.oasis-open.org/committees/dss/

MOCCA – Prinzipieller Aufbau

Wien, 12.1.2008

W. Bauer, M. Centner, C. Orthacker

Request Processing (SL)

Security Token Abstraction (STAL)

Transport Binding

HTTP / HTTPS

Transport Binding

…

SL-Request

Smart Card Communication (SMCC)

User

Interface

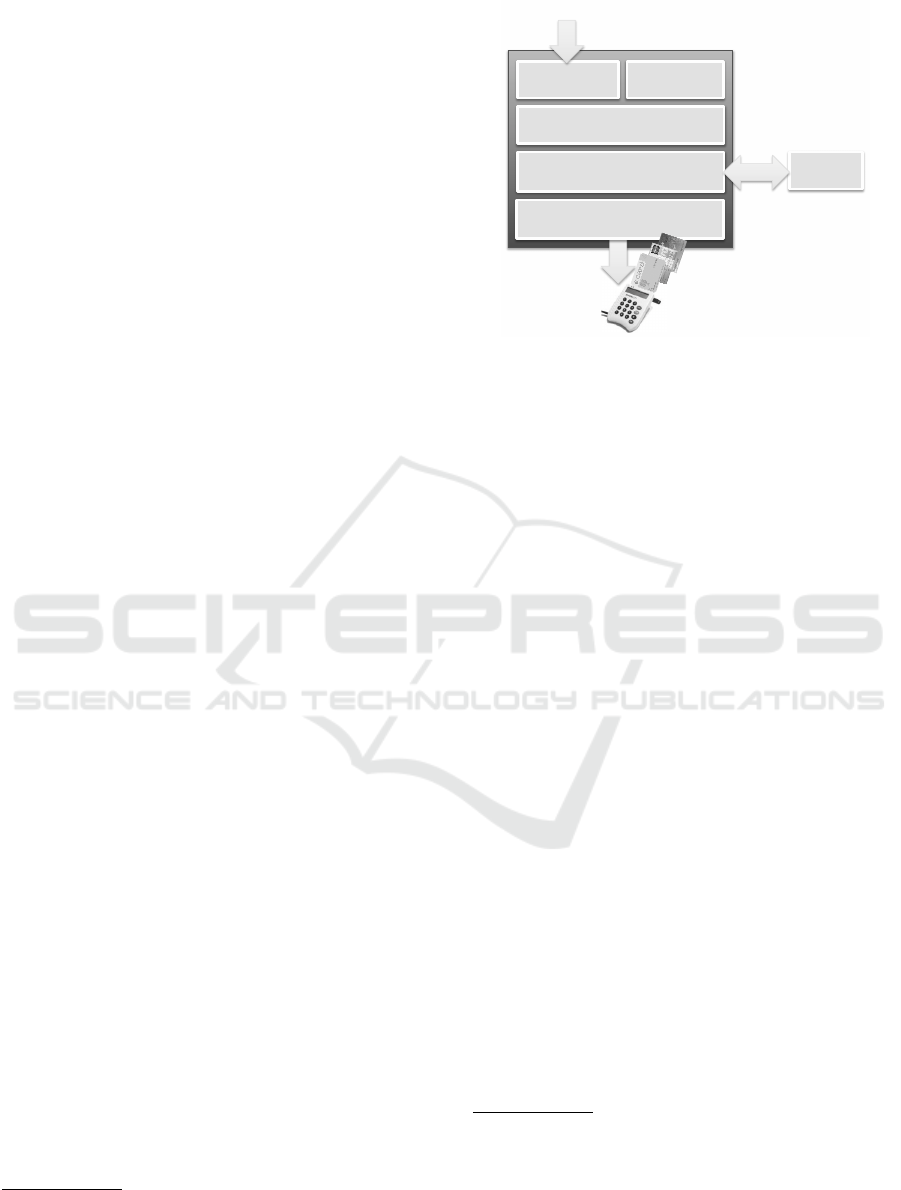

Figure 1: Layers of MOCCA.

Transport Binding Layer. A transport binding of

HTTP/HTTPS is provided to enable an application to

access the middleware through the browser by using

simple Web forms carrying an SL request.

Request Processing Layer (SL). performs all the

steps required for the creation of an XAdES signature

except for the calculation of the signature value.

Security Token Abstraction Layer (STAL). con-

sists of a client and a server part. The server part of-

fers a Web service. The client part is included in the

Java Applet. The client connects back to the Web ser-

vice of the server when the Applet has been started.

The Web service is then used to send commands from

the server to the client part of the STAL.

Smart Card Communication Layer (SMCC). is

also included in the Java Applet and called by the

STAL to handle communication with SSCDs and

smart-card readers via PC/SC.

All XML processing required for the creation of a

XAdES signature is performed in the request process-

ing layer. This allows for very simple STAL com-

mands. Currently, the STAL supports only two basic

commands. One for retrieving certiﬁcates and other

information stored on a SSCD and one for the cre-

ation of a signature using the SSCD. Additionally, the

STAL may call back to the Request Processing layer

for retrieving the data referenced by the to-be signed

A standard SOAP based Web service with swapped

roles of server and client has been chosen in favor of a re-

versed SOAP (PAOS) binding. This allows for a standard

Java client implementation and for non-Java clients (e.g.

Java Script, Flash, etc.) to connect to the server. This may

become relevant if other technologies would allow SSCD

access in the future and should be integrated.

MINIMAL-FOOTPRINT MIDDLEWARE FOR THE CREATION OF QUALIFIED SIGNATURES

signature. This is used to enable the user to retrieve

and view the data to-be signed as explained below.

5.3 Security Model

A Java Applet may be signed to ensure it’s integrity

and to allow the user to verify that it is from a reliable

source. If a Java Applet also needs access to local

resources it must be signed. The ﬁrst time a signed

Applet is loaded by the Java-Plugin the user needs to

give consent for executing it and may choose to al-

ways trust the issuer of the Applet.

It was chosen to encapsulate all security relevant

parts of the process of creating a Qualiﬁed Signature

within the signed Java Applet. The Applet may be

signed by a trusted third party and different service

instances may provide the same signed Applet.

For

the purpose of creating a Qualiﬁed Signature, users

therefore only need to trust the issuer of the signed

Applet. This is considered to be equivalent with the

requirement to trust the issuer of other convention-

ally installed software used for the creation of Qual-

iﬁed Signatures (e.g. locally installed middleware-

software, PKCS#11 modules, etc.).

The entire XML processing is performed outside

the Java Applet, to keep it as small and simple as pos-

sible. The Applet only receives the SignedInfo part of

the XAdES signature, which contains the references

and hash values of the to-be signed data. However,

the Applet allows the user to retrieve and view the to-

be signed data. When it retrieves this data it calculates

the hash value and compares it with the hash value of

the corresponding reference in the SignedInfo. That

way, the Applet can ensure the data retrieved for view-

ing is actually the data going to be signed. When the

user decides not view the to-be signed data, there is

also no need to compare the hash values.

The security relevant communication with smart

cards and smart-card readers is handled entirely

within the Applet. The Applet is relying on PC/SC

communication only. Therefore, it needs to know

how to employ the functions of a particular SSCD.

To keep the footprint of the Applet to a minimum, it

does not rely on additional modules such as PKCS#11

that would need to be deployed with the Applet. The

SSCD abstraction is therefore implemented directly

by the SMCC layer of the Applet.

The Applet provided with the ofﬁcial MOCCA distri-

bution is actually signed by the Secure Information Tech-

nology Center – Austria (A-SIT), which is the Austrian con-

ﬁrmation body for electronic signature solutions.

5.4 State of Implementation and

Findings

So far the ofﬁcial MOCCA release supports, the Aus-

trian health-insurance cards and other Austrian Cit-

izen Cards. A number of SCCDs from other EU

countries has already been integrated in the context

of the pan european project on electronic identities

“STORK”

. This includes the Belgian “Belbic” and

smart-cards form Italy, Portugal and Estonia. Support

for these and other smart-cards is going to be inte-

grated with the ofﬁcial release.

Along with the creation of Qualiﬁed Signatures,

MOCCA also supports the requests required for au-

thentication using the Austrian Citizen Card (R

ossler

and Leitold, 2005) (R

ossler, 2008). MOCCA has al-

ready been deployed in production for authentication

and the creation of Qualiﬁed Signatures for a number

of e-government services in Austria. This includes,

the Austrian online tax declaration service FinanzOn-

line

, which is the most used e-government service in

Austria. Additionally it has been successfully used in

the past student union election in Austria, which was

the very ﬁrst lawful election in Austria using remote

e-voting facilities.

6 CONCLUSIONS

The presented minimal-footprint middleware repre-

sents a concept to leverage the use of Qualiﬁed Sig-

natures in Web applications. It enables users to create

Qualiﬁed Signatures without requiring them to install

dedicated software as a prerequisite. At the same time

it encapsulates the details of the signature creation

process and hides them from the application. This

allows for an easy integration with applications.

The authors have proven the concept by an open-

source implementation “MOCCA”, which is now an

important building block of Austrian e-government

services.

The principle concept is technology neutral—for

the implementation of MOCCA a Java Applets and

the PC/SC interface have been chosen. These two

technologies are available across browsers and oper-

ating system platforms.

There are other solutions for the creation of elec-

tronic signatures available on the market, which also

use Java Applet technology. However, to the best

of our knowledge, none of these solutions is imple-

mented as middleware. The middleware concept,

http://www.eid-stork.eu/

https://ﬁnanzonline.bmf.gv.at

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

would yet allow to switch technologies without af-

fecting application integration. If technologies should

emerge in the future that would allow for an even bet-

ter handling of the SSCD integration, it would sufﬁce

to adapt just the middleware. The minimal-footprint

middleware concept therefore has all the advantages

of a conventional middleware without the need to be

installed by the user.

REFERENCES

1999/93/EC (1999). Directive 1999/93/EC of the European

Parliament and of the Council of 13 December 1999

on a Community framework for electronic signatures.

European Parliament and Council.

BSI TR-03112 (2008). BSI - Technische Richtlinie: eCard-

API-Framework (BSI TR-03112). Bundesamt fr

Sicherheit in der Informationstechnik.

Hollosi, A. and Karlinger, G. (2004). The

Austrian Citizen Card. AG B

urgerkarte.

http://www.buergerkarte.at/konzept/securitylayer/

speziﬁkation/20040514/introduction/Introduction.

en.html.

IDABC 6485 (2007). Preliminary Study on Mutual Recog-

nition of eSignatures for eGovernment applications,

Report. European Commission / European eGoverne-

ment services (IDABC).

Leitold, H., Hollosi, A., and Posch, R. (2002). Secu-

rity architecture of the austrian citizen card concept.

In Computer Security Applications Conference, 2002.

Proceedings. 18th Annual, pages 391–400.

ossler, T. (2008). Giving an interoperable e-ID solution:

Using foreign e-IDs in Austrian e-Government. Com-

puter Law & Security Report, 24(5):447 – 453.

ossler, T. and Leitold, H. (2005). Identiﬁkationsmodell

der

osterreichischen B

urgerkarte. In Proceedings of

the D-A-CH Security Conference 2005, University of

Technology Darmstadt, Germany.

Roßnagel, H. (2006). On diffusion and confusion – why

electronic signatures have failed. Lecture Notes in

Computer Science – Trust and Privacy in Digital Busi-

ness, pages 71–80.

Roßnagel, H. (2009). Mobile qualiﬁzierte elektronische Sig-

naturen. Datenschutz und Datensicherheit.

MINIMAL-FOOTPRINT MIDDLEWARE FOR THE CREATION OF QUALIFIED SIGNATURES
