Start and End Point Detection of Weightlifting Motion

using CHLAC and MRA

Fumito Yoshikawa

, Takumi Kobayashi

, Kenji Watanabe

Katsuyoshi Shirai

and Nobuyuki Otsu

AIST Tsukuba, C2, 1-1-1 Umezono, Tsukuba, Ibaraki 305-8568, Japan

Japan Institute of Sports Sciences, 3-15-1 Nishigaoka, Kita-ku, Tokyo 115-0056, Japan

Abstract. Extracting human motion segments of interest in image sequences is

essential for quantitative analysis and effective video browsing, although it

requires laborious human efforts. In analysis of sport motion such as

weightlifting, it is required to detect the start and end of each weightlifting

motion in an automated manner and hopefully even for different camera angle-

views. This paper describes a weightlifting motion detection method employing

cubic higher-order local auto-correlation (CHLAC) and multiple regression

analysis (MRA). This method extracts spatio-temporal motion features and

leans the relationship between the features and specific motion, without prior

knowledge about objects. To demonstrate the effectiveness of our method, the

experiment was conducted on data captured from eight different viewpoints in

practical situations. The detection rates for the start and end motions were more

than 94% for 140 data in total even for different angle views, 100% for some

angles.

1 Introduction

Detecting and segmenting human action and behavior of interest in video sequences is

necessary in various applications such as quantitative motion analysis and video

browsing. It is a fundamental procedure for understanding the motions in question.

In sport motion analysis, especially for weightlifting, athlete’s sport-motions are

often analyzed for improving their sport performance by using video sequences

captured during competition and training. In biomechanical studies of weightlifting,

much research efforts have been made to explore the relations between several

kinematic parameters, such as time from barbell lift-off to its maximum height, and

the winning lifts by conventional approaches involving manual indexing operations [1,

2]. In practical situations, however, quick feedback of the resultant quantitative data

and/or videos is expected to be conducted for the relevant coaches and athletes

without using any intrusive manner in data acquisition, for example by placing

markers on the human body. In order to reduce the burden imposed on human

operators for more detailed analysis, automation of motion analysis is required. Thus,

first of all, automatic detection of the start and the end of predefined single motions

Yoshikawa F., Kobayashi T., Watanabe K., Shirai K. and Otsu N. (2010).

Start and End Point Detection of Weightlifting Motion using CHLAC and MRA.

In Proceedings of the 1st International Workshop on Bio-inspired Human-Machine Interfaces and Healthcare Applications, pages 44-50

DOI: 10.5220/0002813100440050

 SciTePress

(the snatch, or the clean and jerk) in weightlifting is essential for both the quantitative

analysis and the effective video handling.

For the task to detect and recognize the full-body human motions, many

researchers have investigated the performance of various video-based motion analysis

methods [3 - 6]. These methods require segmentation of the target objects such as

persons, in which the segmentation error tends to affect final recognition. In addition,

the conventional approaches include sequential and procedural processes require too

special and tedious steps. These make it difficult to design adaptive and real-time

systems.

In recent years, on the other hand, a scheme of adaptive vision system has been

presented, which comprises two stages of feature extraction, namely, higher-order

local auto-correlation (HLAC) or its extension CHLAC (Cubic HLAC) [7] and

multivariate analysis [8, 9]. Concerning human motion and behaviour analysis,

CHLAC approach has been successfully applied to motion recognition [7], unusual

motion detection [10, 11] and motion segmentation [12]. The CHLAC approach,

however, has not been applied to detection of predefined motions. In [12], the task of

segmenting single weightlifting motions into detailed primitive motions is addressed

in the experiment; however, the segmentation methods proposed there need image

sequences to be clipped so as to include the entire weightlifting action of interest in

advance.

In this paper, we applied CHLAC and MRA to the start and end time point

detection in weightlifting, obeying the simple statistical scheme framework [9]. In the

experiment we used the dataset which had been acquired by capturing national elite

athletes’ lifts from eight different viewpoints in practical situations. The experimental

results demonstrated the effectiveness of the present method.

2 Method of Weightlifting Motion Detection

The proposed method consists primarily of three steps; preprocessing, motion feature

extraction, and linear regression. In this section, we begin by making brief

explanation of the input images and the tasks to be addressed.

2.1 Input Image and Task

Weightlifting videos captured during competition and training usually contain both of

transient barbell-lifting segments (“work”) in question and the others (“rest”)

including setup of barbell weight. The “work” and “rest” segments are alternatively

concatenated. In addition, the videos are often captured from different viewpoints in

practical environments. Note that they also contain background noise derived from

other moving persons. Fig. 1 shows examples of actual still images in weightlifting

videos captured from different viewpoints during training.

In order to clarify the task addressed in this paper, examples of multi-viewed image

sequences around the start and the end motion in weightlifting are illustrated in Fig.1.

These motion segments are defined in this study as follows; the start motion is from

the time when the barbell plate lifts off the floor until the bar reaches maximum

height above the platform surface while the lifter is moving into squat position to

catch it, on the other hand, the end motion is from the time when the barbell starts to

descend until it once reaches the floor. In practical applications for in-depth motion

analysis, detecting and indexing the time just when the barbell plates are lifted off is

the primary procedure. The rest of this section describes the proposed approach to

automatic detection of these start and end motions in weightlifting.

Fig. 1. Examples of video captured during weightlifting training: eight angle-views (upper),

image sequences around the start (middle) and the end (bottom) of lifting motions.

2.2 Preprocessing

In the preprocessing, we apply frame differencing and then automatic thresholding

[13] in order to detect and binarize motion pixels as in [7]. These processes filter out

both inherent noise and brightness information, which are irrelevant to the motion

itself. Consequently, pixel values in each frame become either 1 (moved) or 0 (static).

The examples of the binary images are shown in Fig.2 at the same scenes as the

middle and bottom of Fig.1.

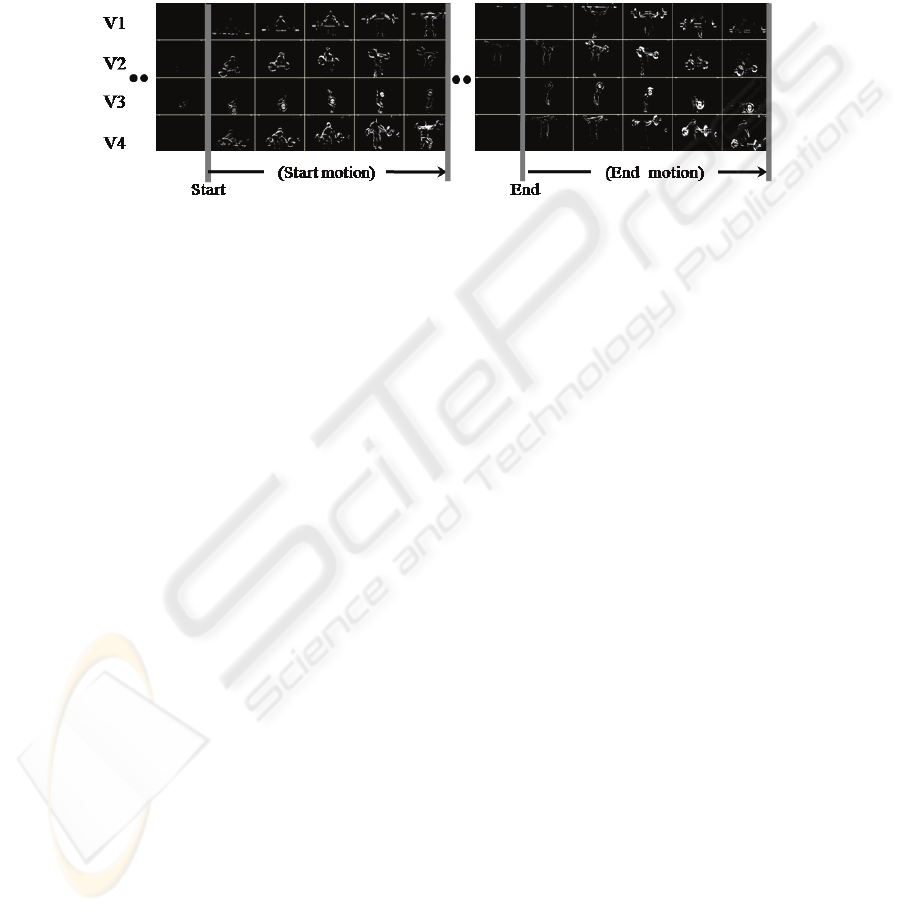

Fig. 2. Examples of the preprocessed image sequences around the start and the end of lifting

motions.

2.3 Motion Feature Extraction

In the stage of feature extraction, we employ Cubic Higher-order Local Auto-

Correlation (CHLAC) [7]. CHLAC enables simultaneous extraction of spatio-

temporal features from the motion image. Let f (r) be three way data defined on the

region (cubic data) D : X x Y x 3 with r= (x, y, t)

, where X and Y are the width and

height of image frame and T is the length of a time-window. Then, the N-th order

auto-correlation can be defined as,

∫∫

+++=

TYX

NNN

dfffftx

2121

)()()()(),,;( rarararraaa ""

(1)

where the a

(i = 1, ···,N) are displacement vectors from a reference point r. Since Eq.

(1) can take many different forms by varying N and a

, we limit N ≤ 2 and a

to a local

region: the configurations of r and a

are represented as mask patterns shown in Fig.3.

The motion features are extracted by scanning the entire data set D with local cubic

mask patterns. Thus, CHLAC feature corresponds to a histogram of local

configuration patterns (auto-correlation) of moving points (pixels) found by frame

difference. The dimension of CHLAC of up to the second order within the local

3x3x3 region is 251 for the binary data. CHLAC has a parameter denoted by

which is the spatial interval of the mask patterns along the x- and y- axes in the image

frame.

CHLAC features possess important properties of shift invariance (rendering the

method segmentation-free) and robustness to noise in data. Moreover, this method

requires no prior knowledge or heuristics about objects. These favourable properties

can benefit all aspects of approach to adaptively detect weightlifting motions

including possible variability in terms of their appearances due to difference in lifter’s

physical attribute, kinematic profile and camera angle.

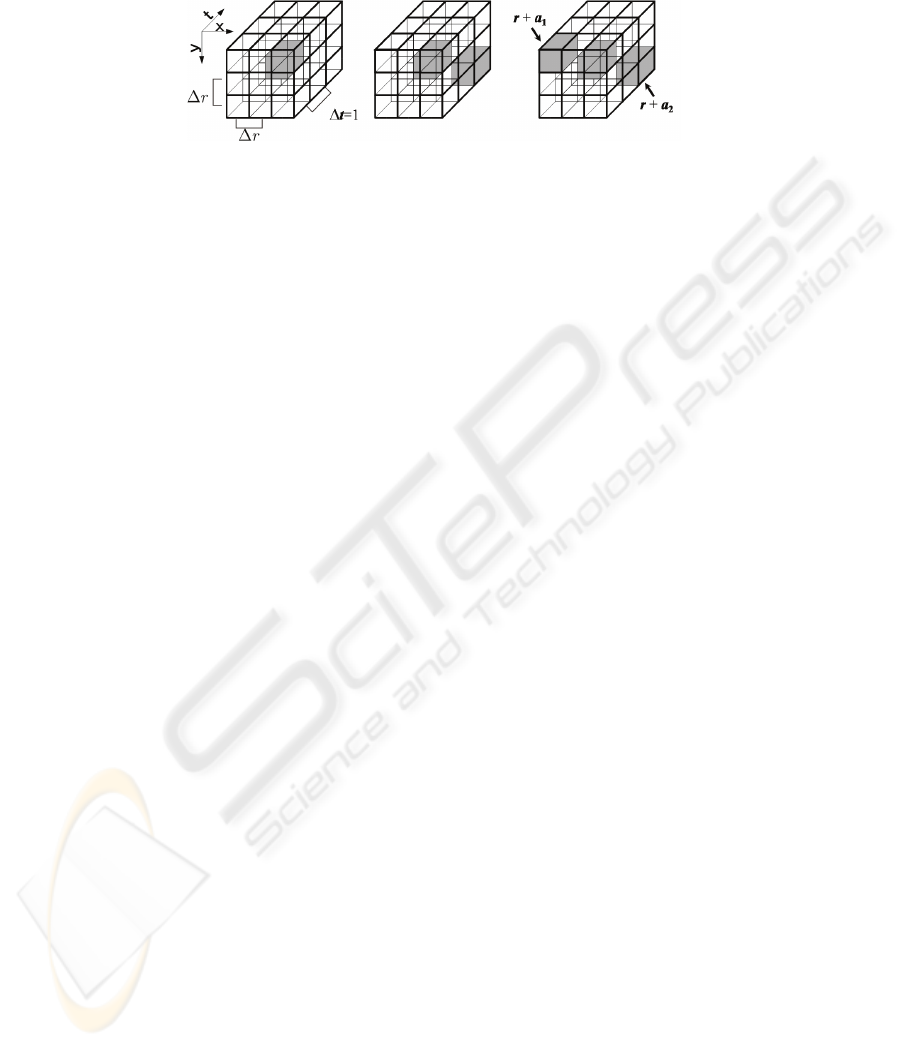

Fig. 3. Examples of mask patterns: (left) N=0; (middle), N = 1, a

= (

, 1)

; (right), N = 2,

= (–

Δ ,–

Δ ,–1)

, a

= (

Δ ,

Δ , 1)

2.4 Linear Regression

In the training phase, effective features for the start and end motion detection are

extracted from the given training example. The pairs of the motion feature vector x

and the teacher signal c

at time i are given. We apply multiple regression analysis

(MRA), which determines the optimal linear coefficients a, to estimate c from x:

xabxac

ˆˆ

′

≈

, where b is constant,

[]

′

= baa ,

[]

′

= 1,

xx . In this study, the teacher

signals are binary, assigning 1 at times during the start and the end motions, and

otherwise assigning 0.

Given the motion feature x, the existence of the target motion segment can be

estimated by

bxac +

′

= . In the method, the target motions are finally identified by

detecting the local peak along the time axis and thresholding it after applying moving

average to the estimated values over a time-window T.

3 Experiments

The proposed method was applied to automatic detection of weightlifting motions

from the image sequences. The dataset utilized in this experiment comprises 140

video sequences of the successful snatch and clean and jerk performed by national

top-level athletes in different categories according to their bodyweight. The dataset

had been acquired by filming lifts from eight different viewpoints in practical

situations, as shown in Fig. 1. These data were captured at 30 frames per second (fps)

and 320 x 240 pixels (QVGA).

For evaluating the performance of the proposed method, a leave-one-out scheme

was applied to video sequences captured from the same camera angle, respectively,

and then precision rates were calculated for both each target motion, i.e. start and end

motion and each camera angle. In this evaluation, the detected point was regarded as

correct if it was within each time duration of the target motion which was strictly

determined by hand as ground truth.

CHLAC features are obtained by using all mask patterns of

9,7,5,3,1

r . The

time-window T for smoothing the estimation results is 27 and 16 for the start and end

detection, respectively, based on the averaged time interval of the target motions in

the dataset. The results are shown in Table 1. The proposed method produces

favorable results on every angle views and different kinds of weightlifting, the snatch

and the clean and jerk. These results can indicate that our method can address the

corresponding needs in the practical situations of weightlifting. The degradation of

the precision rate for the end motion detection in V1 was largely due to that the

vertically higher-positioned barbell was out of frame-view in several input images. In

addition, some sample in the dataset includes an incompletes single lifting movement

because the start or end of a single weightlifting motion is just near the corresponding

start or end of a clipped video sequence.

Table 1. Detection rates (%) over different angle-views for each start and end motion in

weightlifting. Angle views in this experiment nearly correspond to those illustrated in Fig. 1.

Angle-View V1 V2 V3 V4 V5 V6 V7 V8

Start 100 100 94.7 94.1 100 94.4 100 94.7

End 71.4 100 89.5 100 94 88.9 90.0 93.8

From the viewpoint of kinematics, the entire single lift can be subdivided into

several phases and the profiles in each phase are different among athletes, as indicated

in [1]. In order to cope with the diversity in the kinematic profiles, our method

employs various sizes of mask patterns for motion feature extraction, which can

contribute to the performance. On the other hand, the motion orientation in the pulling

phase after the start of each lift is similar to that after squat position to catch the

barbell and that during jerk thrust, and consequently the spatio-temporal features of

these movements extracted locally along the time axis can be not largely varied in

some cases.

We applied this method to other sport motion, such as service detection of

badminton, and obtained the similar results, which shows the validity and generality

of our method [14].

4 Concluding Remarks

We have presented CHLAC approach to automatic detection of weightlifting motions,

which can be mentioned as typical examples of predefined transient motions. The

present method consists of motion feature extraction by CHLAC and prediction by

MRA, and yields favorable detection performances for the start and end motions in

weightlifting. By detecting these two motions, the whole weightlifting motion can be

roughly segmented. Then, the weightlifting motion can be finely segmented, such as

by using the methods proposed in [12]. It is expected that the integration between

these approaches can contribute to more precise analysis of single transient motions

of interest which are not limited to weightlifting motions.

Acknowledgements. We thank Mr. Miyoji Kikuta and Mrs. Kumiko Haseba at Japan

Weightlifting Association for his cooperation on data gathering.

References

1. Garhammer, J.: Biomechanical Profiles of Olympic Weightlifters. International Journal of

Sport Biomechanics, 1, (1985), 122-130

2. Schilling, B. K., Stone, M. H., O’bryant, H. S., Fry, A. C., Coglianese, R. H., Pierce, K. C.:

Snatch technique of collegiate national level weightlifters. Journal of Strength and

Conditioning Research, 16 (4), (2002), 551–555

3. Bobick, A. F., Davis, J. W.: The Recognition of Human Movement Using Temporal

Templates. In: IEEE Transactions Pattern Analysis and Machine Intelligence, Vol. 23, No.

3, (2001) , 257-267

4. Zelnik-Manor, L., Irani, M.: Statistical Analysis of Dynamic Actions. In: IEEE

Transactions Pattern Analysis and Machine Intelligence, Vol. 28, No. 9, (2006), 1530-1535

5. Zhu, G., Xu, C, Huang, Q, Gao, W, Xing L.: Player Action Recognition in Broadcast

Tennis Video with Applications to Semantic Analysis of Sports Game. In: the 14th annual

ACM international conference on Multimedia, (2006)

6. Roh, M.C., Christmas, B., Kittler, J., Lee, S.W.: Gesture Spotting for Low-resolution Sports

Video Annotation. Pattern Recognition 41, (2008), 1124-1137

7. Kobayashi, T., Otsu, N.: Three-way Auto Correlation Approach to Motion. Recognition

Pattern Recognition Letter, Vol. 30, No. 3, (2009), 212- 221

8. Otsu, N., Kurita, T.: A New Scheme for Practical Flexible and Intelligent Vision System.

In: IAPR Workshop on Computer Vision, (1988)

9. Otsu, N.: CHLAC Approach to Flexible and Intelligent Vision Systems. In: ECSIS

Symposium on Bio-inspired, Learning, and Intelligent Systems for Security, (2008)

10. Nanri, T., Otsu N.: Unsupervised Abnormality Detection in Video Surveillance. In: IAPR

Conference on Machine Vision Applications, (2005)

11. Iwata, K., Satoh, Y., Sakaue K., Kobayashi, T., Otsu, N.: Development of Software for

Real-time Unusual Motions Detection by Using CHLAC. In: ECSIS Symposium on Bio-

inspired, Learning, and Intelligent Systems for Security, (2008)

12. Kobayashi, T., Yoshikawa, F., Otsu, N.: Motion Image Segmentation Using Global Criteria

and DP. In: International Conference on Automatic Face and Gesture Recognition, (2008)

13. Otsu, N.: A threshold selection method from gray-level histogram, In: IEEE Transactions

on System Man Cybernetics, Vol. SMC-9, No. 1, (1979) , 62-66

14. Yoshikawa, F., Kobayashi, T., Watanabe, K., Otsu, N.: Automated Serve Scene Detection

for Badminton Game Analysis Using CHLAC and MRA. In: Asian Conference on Physical

Education and Computer Science in Sports, (2009)
