ITERATIVE DENSE CORRESPONDENCE CORRECTION

THROUGH BUNDLE ADJUSTMENT FEEDBACK-BASED ERROR

DETECTION

Mauricio Hess-Flores

, Mark A. Duchaineau

, Michael J. Goldman

and Kenneth I. Joy

1,4

Institute for Data Analysis and Visualization, University of California - Davis, Davis, CA, U.S.A.

2,3

Lawrence Livermore National Laboratory, Livermore, CA, U.S.A.

Keywords:

Dense correspondences, Pose estimation, Scene reconstruction, Bundle adjustment, Resolution pyramid, Error

analysis.

Abstract:

A novel method to detect and correct inaccuracies in a set of unconstrained dense correspondences between

two images is presented. Starting with a robust, general-purpose dense correspondence algorithm, an initial

pose estimate and dense 3D scene reconstruction are obtained and bundle-adjusted. Reprojection errors are

then computed for each correspondence pair, which is used as a metric to distinguish high and low-error cor-

respondences. An afﬁne neighborhood-based coarse-to-ﬁne iterative search algorithm is then applied only on

the high-error correspondences to correct their positions. Such an error detection and correction mechanism

is novel for unconstrained dense correspondences, for example not obtained through epipolar geometry-based

guided matching. Results indicate that correspondences in regions with issues such as occlusions, repetitive

patterns and moving objects can be identiﬁed and corrected, such that a more accurate set of dense correspon-

dences results from the feedback-based process, as proven by more accurate pose and structure estimates.

1 INTRODUCTION

The computation of dense image correspondences has

been of great importance recently in several Computer

Vision applications. For example, the registration of

succesive frames in a video sequence into a common

coordinate system at the pixel level enables applica-

tions such as dense 3D reconstruction of the viewed

scene, segmentation of background and moving ob-

jects and data compression. The main problem with

the use of dense correspondences is that inaccuracies

in their estimation can arise whenever there are cer-

tain conditions such as occlusions and moving objects

present in the scene, and also in regions with little

texture or repetitive patterns. Such conditions do not

necessarily affect algorithmsfor sparse feature match-

ing, but certain applications, like the ones mentioned,

strictly call for the use of dense correspondences, and

any of these adverse conditions ultimately affect the

quality of such applications.

To this end, this paper describes a novel method

for detecting and correcting inaccurate dense cor-

respondences, giving the proof of concept for the

case of two input images. The detection and cor-

rection mechanism is enabled by feedback after es-

timating camera poses and scene structure from the

two views and applying bundle adjustment. Using re-

projection error after bundle adjustment as the met-

ric to separate high-error and low-error correspon-

dences, an afﬁne neighborhood-based coarse-to-ﬁne

iterative algorithm is applied to correct high-errorcor-

respondences. The main assumption is that the in-

put dense correspondence set must be unconstrained;

for example it cannot have been generated from tech-

niques such as guided matching (Hartley and Zisser-

man, 2004) for the algorithm to work. The reprojec-

tion error metric used to detect errors has no mean-

ing for correspondences constructed assuming a per-

fect ﬁt of these to a given epipolar geometry, as will

be detailed later. An important motivation for using

feedback after bundle adjustment is to avoid applying

the correction mechanism to all available correspon-

dences, which would result in 10 − 20x slower pro-

cessing times during this phase. While it is not the ob-

jective of the work presented here to explicitly solve

for the occlusion problem in reconstruction or detect

moving objects, the end goal is to achieve the best

possible correspondenceaccuracy in such problem ar-

eas, even if it implies a higher computational expense,

which makes it important to apply only where neces-

400

Hess-Flores M., A. Duchaineau M., J. Goldman M. and I. Joy K. (2010).

ITERATIVE DENSE CORRESPONDENCE CORRECTION THROUGH BUNDLE ADJUSTMENT FEEDBACK-BASED ERROR DETECTION.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 400-405

DOI: 10.5220/0002816104000405

 SciTePress

sary. Experimental results on real and synthetic data

sets indeed show an overall improvement in the ac-

curacy of the dense correspondence set after applying

the procedure.

Error detection for dense correspondences has

been done in the past, but either under simplify-

ing assumptions or with respect to ground-truth data.

In (Xiong and Matthies, 1997), matching errors are

identiﬁed and corrected, but only one speciﬁc scene

type is handled. The algorithm in (Mayoral and Au-

rnhammer, 2004) evaluates matching algorithms by

introducing an error surface from matching errors.

In both cases, the simplifying assumption of search-

ing for disparity along scanlines is made. An ex-

haustive overview and evaluation of dense correspon-

dence algorithms is given in (Scharstein and Szeliski,

2002), though the comparisons are done with respect

to ground-truth values. As for error correction, an al-

gorithm known as optimal triangulation (Hartley and

Zisserman, 2004) makes an attempt to correct corre-

spondences based on the pre-computed epipolar ge-

ometry between the scenes. However, such a cor-

rection, while mathematically correct and obtained

by minimizing a geometrically meaningful criterion,

does not necessarily produce matches that are correct

in reality; it also reduces reprojection error after re-

construction to zero, thus preventing error detection

using such a criteria.

An initial reconstruction of the scene from the two

input views is needed as part of the algorithm, so a

brief overview of the relevant literature on this sub-

ject is now given. In general, a reconstruction pipeline

consists of obtaining matches (correspondences) be-

tween the images, then computing the relative camera

poses between them and ﬁnally computing the struc-

ture of the scene. The matches used for the initial

pose estimation can either be sparse features (for ex-

ample corners) or dense correspondences, which as-

sign a correspondence in a destination image to each

source image position, and can be computed through

a variety of methods (Scharstein and Szeliski, 2002).

For two views, the epipolar geometry between them,

encapsulated by the fundamental matrix F (Hartley

and Zisserman, 2004), can be computed from the ini-

tial matches. This matrix can be computed through

direct methods, such as in (Stew´enius et al., 2006;

Hartley and Zisserman, 2004) as well as through non-

linear methods (Hartley and Zisserman, 2004). The

RANSAC algorithm can be coupled with these meth-

ods to help obtain more robust estimates for F. Using

the computed epipolar constraints, more matches can

be generated across the images to obtain dense cor-

respondences (details can be found in (Hartley and

Zisserman, 2004)). Again, an issue with such con-

strained correspondences is that the new matches de-

pend directly on the quality of the estimated epipolar

geometry, making them mathematically valid but not

necessarily correct.

Once matches are available, either sparse or dense,

the relative pose (rotation and translation) between the

cameras viewing the scene can be computed. Several

methods exist, and an overview of different pose es-

timators is given in (Rodehorst et al., 2008). In the

particular case that the F matrix is available or has

been computed from matches, and if the camera’s in-

trinsic parameters (such as the focal length, skew and

principal point) are assumed known, the essential ma-

trix E can be computed and decomposed into the rel-

ative rotation and translation. Finally, the scene’s 3D

structure can be obtained using the available sparse

or dense matches. Typically, linear or optimal tri-

angulation (Hartley and Zisserman, 2004) is applied

on each correspondence pair to generate a 3D posi-

tion corresponding to the scene structure. Once pose

and structure estimates are available, a common ﬁne-

tuning step for both estimates is to carry out a bun-

dle adjustment, where the total reprojection error of

all computed 3D points in all cameras is minimized

using non-linear techniques (Hartley and Zisserman,

2004). Fortunately, sparsity in the data has allowed

for great speed-ups in this process (Lourakis and Ar-

gyros, 2000).

By coupling the use of unconstrained dense cor-

respondences in a bundle-adjusted reconstruction

pipeline, a novel mechanism to identify the most inac-

curate dense correspondences and correct them using

an iterativemethod can be achieved. The entire proce-

dure will be described in detail in Section 2, followed

by experimental results (Section 3) and conclusions

(Section 4).

2 PROPOSED ALGORITHM

2.1 Pose and Structure Estimation

based on Dense Correspondences

The ﬁrst step in our algorithm is to compute uncon-

strained dense correspondences between two images,

for which a sub-pixel accuracy direct method which

solves coarse-to-ﬁne on 4 − 8 mesh image pyramids

with a 5x5 local afﬁne motion model was used, as out-

lined in (Duchaineau et al., 2007). There are several

reasons for starting out with such a general-purpose

dense correspondence algorithm. First of all, our in-

tended applications, such as dense scene reconstruc-

tion and image stitching, call for the use of dense

ITERATIVE DENSE CORRESPONDENCE CORRECTION THROUGH BUNDLE ADJUSTMENT

FEEDBACK-BASED ERROR DETECTION

401

as oppposed to sparse matching. Now, by not us-

ing epipolar constraints as in guided matching, it al-

lows for errors in the dense correspondences to be

unmasked in later stages. Additionally, it is a more

general approach that adequately samples the scene;

for example sparse feature matchers could fail to ﬁnd

a signiﬁcant amount of features in regions with little

intensity variation, whereas dense correspondences

could still be obtained. However, as mentioned ear-

lier dense correspondences are prone to errors result-

ing from occlusions, moving objects, texture-less re-

gions and repetitive patterns. For now, the next steps

(pose and structure estimation) must proceed despite

these errors, but it will be explained in Section 2.2

how these issues can be respectively detected and cor-

rected through a novel mechanism based on feedback.

The ﬁrst step in estimating the relative pose be-

tween the two cameras is to estimate the 3x3 funda-

mental matrix F, which encapsulates the epipolar ge-

ometry between the two views. The direct and ro-

bust 5-point method (Stew´enius et al., 2006) embed-

ded in RANSAC is currently being used. It is impor-

tant to mention that even though a large amount of

correspondences are available for estimating F, only

a small number are actually needed. Even if the min-

imal amount is used, the use of RANSAC coupled

with random sampling ensures that a reliable F can

be estimated in a computationally-efﬁcient yet accu-

rate manner. Now, the essential matrix E is obtained

from the fundamental matrix, assuming known intrin-

sic parameters for the camera, and factorized into the

rotation and unit translation (R, t) pair representing

the pose. To obtain the scene structure as a set of

3D points for each correspondence pair, linear trian-

gulation was used. A dense scene structure must be

computed, since it will be used as part of the error de-

tection and correction mechanism based on feedback

that will be described later on.

The objective of the next step, bundle adjustment,

is to adjust pose and structure estimates in such a way

that the total reprojection error of the 3D points with

respect to their corresponding 2D correspondences in

each camera is minimized (Hartley and Zisserman,

2004). The cost function which is traditionally mini-

mized can be expressed as the sum of squares of the

geometric (reprojection) error between each 3D point

and the correspondenceswhich yielded it, as shown in

Equation 1 for the general case of N 3D points seen

in M cameras, though it must be kept in mind that in

this work we use only two cameras.

min(a

, b

)

∑

i=1

∑

j=1

(d(Q(a

, b

), x

))

(1)

Here, x

is the position of the i

correspondence on

image j. The binary variable v

equals ‘1’ if point i is

visible in image j (‘0’ otherwise). The vectors a

and

parameterize each camera j and 3D point i, respec-

tively, with Q(a

, b

) as the reprojection of point i on

image j. Finally, d is the Euclidean distance in each

image between each original correspondence and its

associated reprojection. This minimization involves a

total of 3N + 11M parameters, and can be achieved

using the Levenberg-Marquardt algorithm. An im-

plementation that exploits the sparse block structure

of the normal equations solved at each iteration to

greatly speed up the process was used; details are

presented in (Lourakis and Argyros, 2000). Bundle

adjustment must be applied to the entire structure, in

order to allow for detection of high-error correspon-

dences, as outlined next.

2.2 Outlier Correspondence Detection

and Correction

Once bundle adjustment has been applied on the

structure and two cameras, all correspondences are

now classiﬁed based on the reprojection error of the

3D point each pair generated; those classiﬁed as hav-

ing low reprojection errors will be referred to as in-

liers, and high-error ones as outliers. Since bundle

adjusment is the maximum-likelihood estimator for

zero-mean Gaussian noise, the optimized pose and

structure estimates (plus the known intrinsic param-

eters) allow for the ‘unmasking’ of errors purely in

the correspondences in this step. If very erroneous

initial pose and structure estimates arise from a very

inaccurate input dense correspondence set, optimiza-

tion may actually guide the estimates away from the

global optimum in such cases, thus failing to unmask

pure correspondence errors, but it is assumed that a

reasonable amount of correspondences are accurate

enough such that initial pose and structure estimates

are in the vicinity of their optimal values.

The reprojection error for the i

correspondence

pair is taken as the sum of the absolute values of

the errors obtained by reprojecting its resulting 3D

point into each individual image. Then, a threshold

on the reprojection error r

(Equation 2) given opti-

mized cameras ˆa

and structure

is established, such

that correspondence pairs whose error is above the

threshold are deemed outliers, while the rest are in-

liers. Without this threshold, or with a low one, the

procedure described in the next section (whose pro-

cessing time is linear in the amount of pixels) would

be applied to nearly every pixel in the image, which

is expensive. On the other hand, a higher threshold

would imply faster processing, but with the downfall

that some correspondences with relatively substantial

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

402

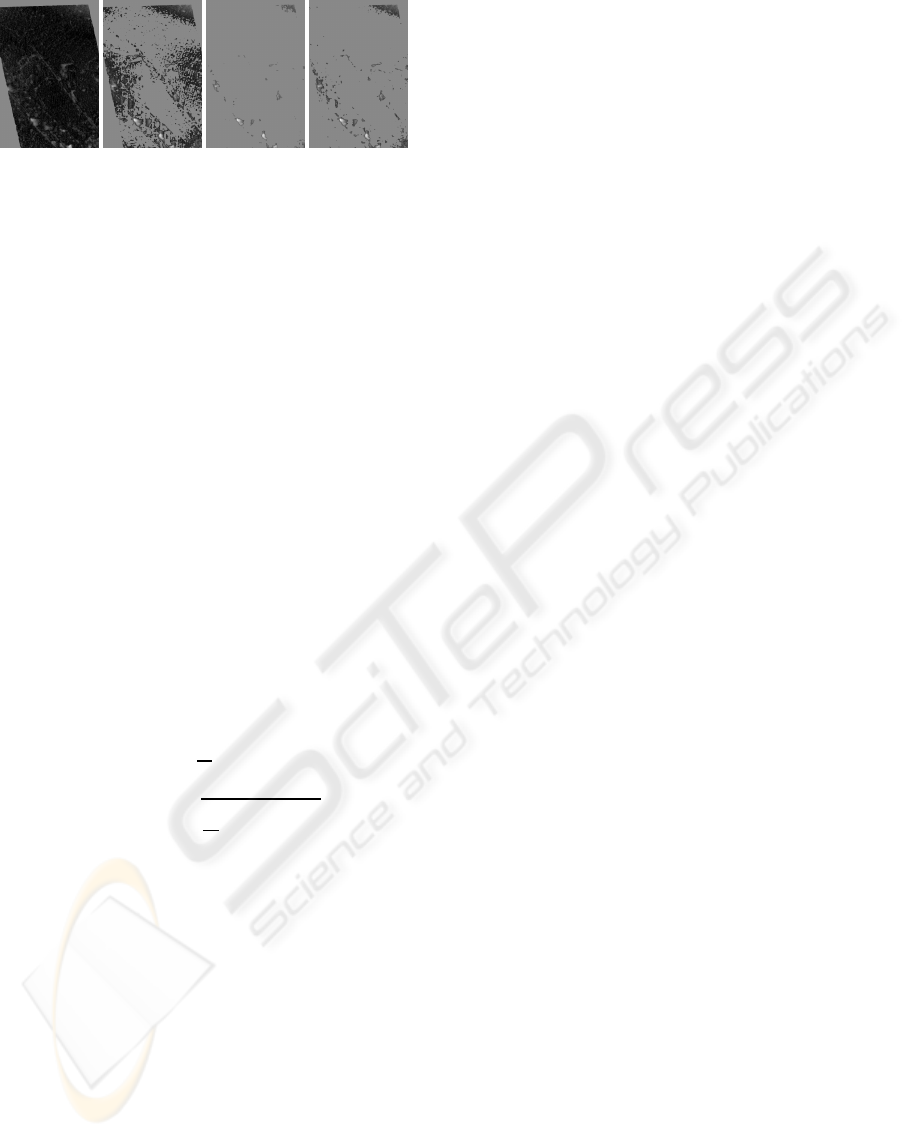

Figure 1: Applying a low threshold to detect outliers from a

set of correspondences (left) results in unnecessary process-

ing (middle left), while a high threshold erroneously yields

very few outliers (middle right). An appropriate threshold

must identify only the problematic regions (right).

errors are left uncorrected. This is shown in Figure 1,

which shows the effect of the used threshold on the

number of detected outliers. The algorithm should

solely detect high-error correspondences in problem-

atic regions. An analysis of the reprojection error his-

tograms for different data sets reveals that the curves

gradually taper off as the reprojection error grows.

This observation is key towards determining an ap-

propriate threshold. From visual observation of the

detected outliers using different thresholds for differ-

ent real and synthetic data sets, along with the cor-

responding histogram information, it was determined

that a threshold t of an average (as deﬁned in Equa-

tion 3) plus 1.5 standard deviations (Equation 4) of

the reprojection errors results in an appropriate out-

lier detection.

∑

j=1

|d(Q( ˆa

), x

)| (2)

∑

i=1

(3)

t = µ

+ 1.5

∑

i=1

− µ

)

(4)

Next, for a given outlier correspondence pair, the

objective is to correct the position of the match in the

second (target) image to the information in the ﬁrst

(source) image, while keeping the position in the ﬁrst

image ﬁxed, to ﬁnd a better match than the one cur-

rently available. The algorithm works on a coarse-to-

ﬁne resolution pyramid, where a ﬁxed amount of it-

erations (typically hundreds) is applied per resolution

level, such that the pixel count doubles at each level.

After constructing the hierarchy, a sub-pixel accurate

iterative, three-phase algorithm is applied at succes-

sively ﬁner levels. Each iteration consists of perturba-

tion, matching (based on gradient descent) and afﬁne-

ﬁtting phases. The resulting transformation for level i

of the hierarchy is used as a starting prediction at level

i+ 1.

Starting at the coarsest level, a ﬁxed-size image

chip from the source image is centered at the start po-

sition on the target image. The ﬁrst phase of one it-

eration, perturbation, consists of adding noise to the

source image chip in order to avoid local minima

which could possibly occur in the next phase, which is

based on gradient descent. In this matching phase, for

each pixel of the source image chip, a local gradient

is computed at its current position in the target image.

This gradient is used to makea linear prediction of the

direction and distance to move the source pixel in the

target image to match its intensity (Duchaineau et al.,

2007). Each pixel moves independently in this phase.

For robustness, the movement step size is only a frac-

tion of a pixel, and further modiﬁed according to the

magnitude of the gradient. As the gradient magnitude

becomes small (as determined by an adaptive thresh-

old), the gradient direction becomes more noise than

signal, and such pixels are eliminated from use in the

next phase. In the ﬁnal phase, a least-squares ﬁt is

applied to ﬁnd an afﬁne transformation to be applied

to the source image chip. Only those pixels inside

the chip that were not eliminated during the matching

phase are used. The three-phase process is iterated a

number of times at this coarsest level ﬁrst and then

at succesively higher resolutions, resulting in a new

and more accurate correspondence position in the tar-

get image once completed. The process is illustrated

in Figure 2. For an aerial view of a small section

of a road with vehicles, the upper left image shows

the initial position of the image chip, where gradi-

ents are color-coded such that the largest gradients

are displayed in lighter colors. Results of the three-

phase algorithm are also illustrated for a given itera-

tion: the upper right image shows the result of noise

perturbation followed by matching, where the image

depicts (via tilts in the pixels) the direction and also

the movement of each individual pixel, and the lower

left image shows the afﬁne ﬁt computed from this

information. The lower right image shows marked

with an ‘X’ those pixels that were eliminated in the

matching phase. Though this correction process is

expensive, the goal is to achieve more accurate cor-

respondences by taking into account the actual struc-

ture of the neighborhood around a given point, which

is more strict than using just the pure epipolar con-

straint, which could be geometrically but not physi-

cally correct.

To determine the most appropriate ﬁxed neighbor-

hood size, the improvement percentage in the aver-

age reprojection error for detected outliers with re-

spect to the average obtained before correction was

tested for different sizes. It was concluded that sim-

ilar results are obtained, which is quite remarkable

and indicates that the correction process is very robust

ITERATIVE DENSE CORRESPONDENCE CORRECTION THROUGH BUNDLE ADJUSTMENT

FEEDBACK-BASED ERROR DETECTION

403

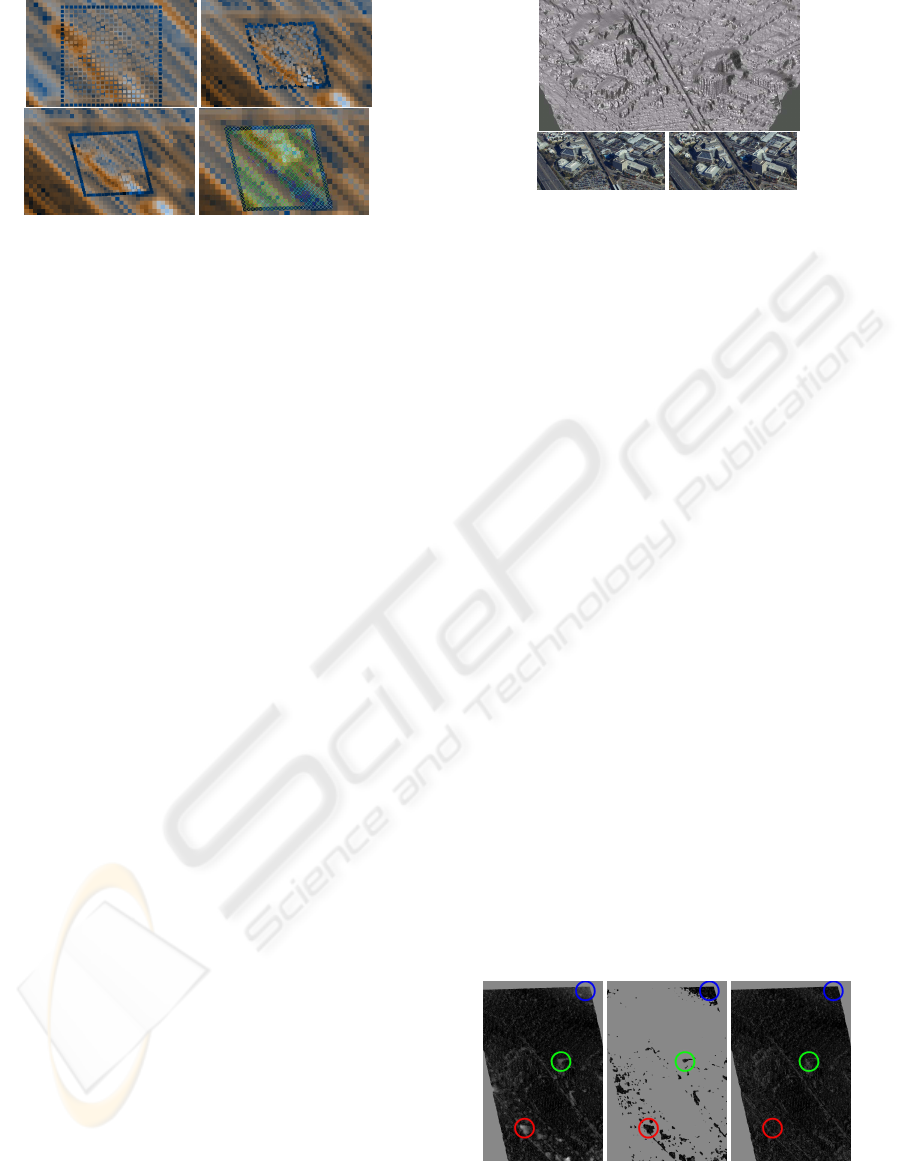

Figure 2: Afﬁne correction process (see text for details).

even when using a relatively small neighborhood. For

the Aerial Views I (Oxford Visual Geometry Group,

2009) data set, though slightly better results are ob-

tained for a large 59x59 neighborhood (3.04% im-

provement), an 11x11 size (2.9% improvement) was

chosen as it yields good results with only a fraction

of the processing time. Results were actually worse

(1.9% improvement) for a 35x35 neighborhood.

3 EXPERIMENTAL RESULTS

In this section the results of the presented approach

are analyzed. Both real and synthetic data sets were

used to test the algorithm. Tests on real imagery in-

cluded an aerial imagery data set, which will be re-

ferred to as Downtown, and two publicly-available

data sets: Aerial Views I (Oxford Visual Geome-

try Group, 2009) and Rocks 2 (Hirschm¨uller and

Scharstein, 2007). Figure 3 shows the resulting 3D

structure obtained after correction using an image pair

from the Downtown data set. Figure 4 shows repro-

jection errors after bundle adjustment (color-coded

such that white means a high error and black a low

one, over a uniform gray background) for the same

image pair. It is clear that the higher errors in gen-

eral are seen on structures that tend to have plain or

repetitive patterns, for example on highways and train

tracks (circled in red), near occlusion edges (green)

and near the edges of the image (blue). After ap-

plying the proposed method, it can be seen that re-

projection errors in these areas are generally lower,

and the reconstruction is very accurate as seen in Fig-

ure 3 for such areas. The highest remaining errors

are seen near occlusion edges, which makes sense

since there is information missing in such areas (as

opposed to texture-less regions, which can potentially

be matched with enough neighborhood information).

A synthetic scene, which will now be referred to

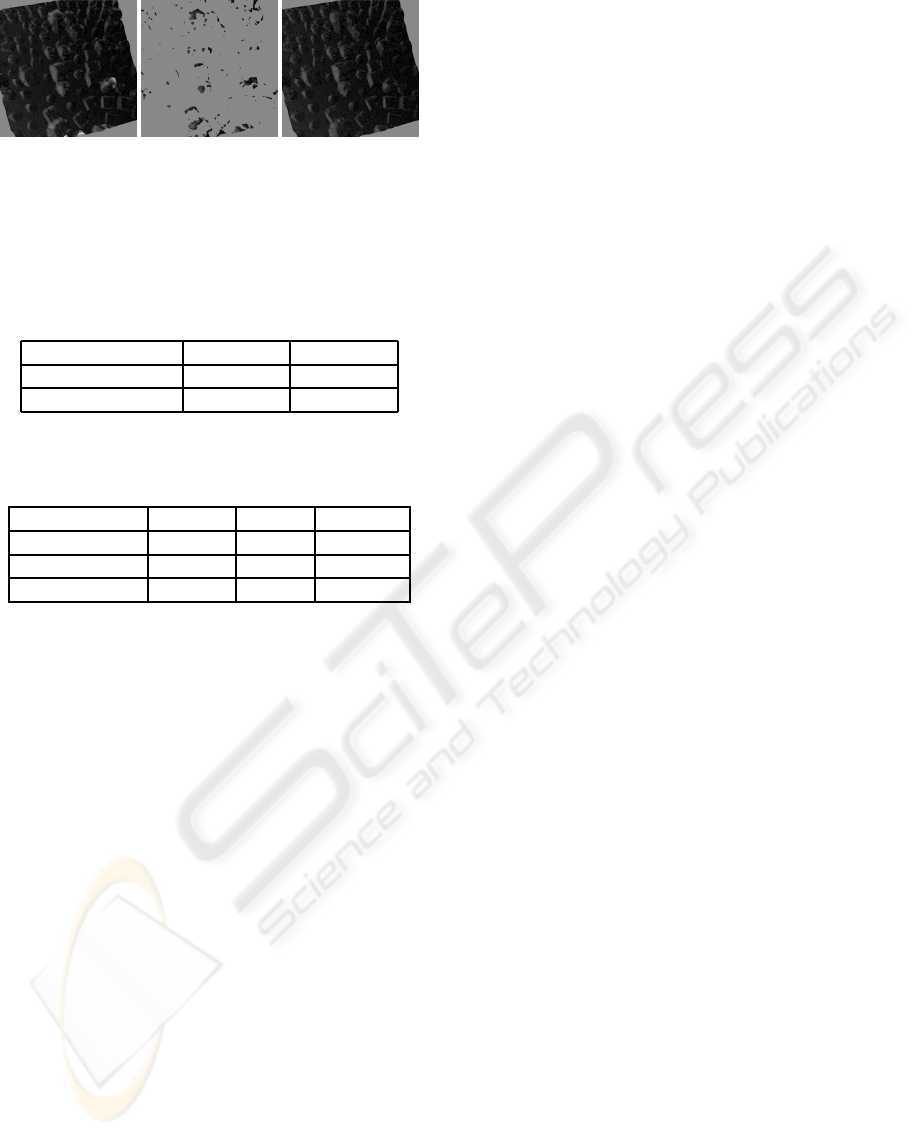

as Coneland was also used to test the proposed al-

gorithm. Figure 5 shows results of the outlier de-

tection and correction from two images of this data

Figure 3: Closeups of a reconstruction (top) and its two in-

put images from the Downtown data set (bottom), after out-

lier correction.

set. A ground-truth evaluation of the proposed algo-

rithm was also performed. Table 1 shows the pose

errors with respect to the ground-truth values when

using the original set of dense correspondences ver-

sus the modiﬁed set after applying the proposed algo-

rithm for the Coneland data set. Translational error

is obtained as the angle in degrees of the dot prod-

uct between the ground-truth translation and each es-

timate. Rotational error is obtained as the angle for

the quaternion corresponding to the difference rota-

tion matrix between ground-truth and estimated rota-

tions for each case. It can be seen that pose estimates

improve, even though the robust RANSAC is used

to estimate F, showing that an overall more accurate

set of correspondences is indeed achieved. Table 2

shows the outlier percentage and outlier reprojection

error improvement percentage when applying the al-

gorithm for some of the test data sets. At ﬁrst glance

the improvements may seem small, but when dealing

with sub-pixel accuracy even small errors can result

in large structural inaccuracies, so in practice the im-

provement is substantial.

One possible improvement for the algorithm is to

use adaptive neighborhood sizes for the outlier cor-

rection process, based on intensity variation statistics

for a given chip position. Using larger chips could

potentially yield more accurate results in texture-less

regions. The use of hardware solutions (such as using

GPU’s) to speed up expensive processes must also be

further analyzed.

Figure 4: Reprojection errors after bundle adjustment (left)

for an image of the Downtown data set. The detected and

corrected outliers are shown (middle), along with errors for

the resulting set of correspondences (right).

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

404

Figure 5: Reprojection errors after bundle adjustment (left)

for an image of the Coneland data set. The detected and

corrected outliers (middle) are shown, along with the errors

for the resulting set of correspondences (right).

Table 1: Pose errors △

for rotation and △

for translation

(in degrees) with respect to ground-truth values using orig-

inal and modiﬁed dense correspondences, for the Coneland

data set.

Correspondences △

△

Original 9.818953

◦

2.443838

◦

Modiﬁed 0.167859

◦

0.418460

◦

Table 2: Outlier percentage, average outlier reprojection er-

ror µ

(in pixels) before correction and error improvement

percentage △

for tested data sets.

Data set Outliers µ

△

Downtown 5.442% 2.072 10.956%

Aerial Views I 8.475% 11.392 3.234%

Coneland 5.753% 2.759 3.404%

4 CONCLUSIONS

This paper presented a new method for detecting

and correcting outlier dense correspondencesbetween

two images. Initial estimates for the pose and scene

structure are obtained from the given dense corre-

spondences, assuming known camera intrinsic pa-

rameters, and are then bundle-adjusted. The result-

ing reprojection errors per correspondence pair are

used as a metric to separate high-error and low-

error correspondences. Then, an afﬁne neighborhood-

based iterative algorithm operating on a coarse-to-

ﬁne resolution pyramid is used to correct outlier cor-

respondences. Results on both real and synthetic

scenes show that a more accurate set of dense cor-

respondences is obtained after applying the proposed

method, which results in an improvement in pose and

structure estimates.

REFERENCES

Duchaineau, M., Cohen, J., and Vaidya, S. (2007). To-

ward fast computation of dense image correspondence

on the GPU. In Proceedings of HPEC 2007, High

Performance Embedded Computing, Eleventh Annual

Workshop, pages 91–92, Lincoln Laboratory, Mas-

sachusetts Institute of Technology.

Hartley, R. I. and Zisserman, A. (2004). Multiple View Ge-

ometry in Computer Vision. Cambridge University

Press, 2nd edition.

Hirschm¨uller, H. and Scharstein, D. (2007). Evaluation of

cost functions for stereo matching. In IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition (CVPR 2007), pages 91–92, Minneapolis,

MN.

Lourakis, M. and Argyros, A. (2000). The design and im-

plementation of a generic sparse bundle adjustment

software package based on the Levenberg-Marquardt

algorithm. Technical Report 340, Institute of Com-

puter Science - FORTH, Heraklion, Crete, Greece.

Mayoral, R. and Aurnhammer, M. (2004). Evaluation of

correspondence errors for stereo. In 17th Interna-

tional Conference on Pattern Recognition (ICPR’04),

volume 4, pages 104–107.

Oxford Visual Geometry Group (2009). Multi-

view and Oxford Colleges building reconstruc-

tion. http://www.robots.ox.ac.uk/ vgg/data/data-

mview.html.

Rodehorst, V., Heinrichs, M., and Hellwich, O. (2008).

Evaluation of relative pose estimation methods for

multi-camera setups. In International Archives of

Photogrammetry and Remote Sensing (ISPRS ’08),

pages 135–140, Beijing, China.

Scharstein, D. and Szeliski, R. (2002). A taxonomy and

evaluation of dense two-frame stereo correspondence

algorithms. International Journal On Computer Vi-

sion, 47(1-3):7–42.

Stew´enius, H., Engels, C., and Nist´er, D. (2006). Recent de-

velopments on direct relative orientation. ISPRS Jour-

nal of Photogrammetry and Remote Sensing, 60:284–

294.

Xiong, Y. and Matthies, L. (1997). Error analysis of a real-

time stereo system. In IEEE Conference on Computer

Vision and Patter Recognition (CVPR), pages 1087–

1093.

ITERATIVE DENSE CORRESPONDENCE CORRECTION THROUGH BUNDLE ADJUSTMENT

FEEDBACK-BASED ERROR DETECTION

405
