DISPARITY MAPS FOR FREE PATH DETECTION

Nuria Ortigosa

Centro de Investigaci

on en Tecnolog

ıas Gr

aﬁcas, Universidad Polit

ecnica de Valencia

Camino de Vera s/n, 46022 Valencia, Spain

Samuel Morillas

Instituto de Matem

atica Pura y Aplicada, Universidad Polit

ecnica de Valencia

Camino de Vera s/n, 46022 Valencia, Spain

Guillermo Peris-Fajarn

es, Larisa Dunai

Centro de Investigaci

on en Tecnolog

ıas Gr

aﬁcas, Universidad Polit

ecnica de Valencia

Camino de Vera s/n, 46022 Valencia, Spain

Keywords:

Computer vision, Stereo vision, Disparity maps, Assisted navigation.

Abstract:

In this paper we introduce a method to detect free paths in real-time using disparity maps from a pair of rectiﬁed

stereo images. Disparity maps are obtained by processing the disparities between left and right rectiﬁed images

from a stereo-vision system. The proposed algorithm is based on the fact that disparity values decrease linearly

from the bottom of the image to the top. By applying least-squares ﬁtting over groups of image columns to a

linear model, free paths are detected. Only those pixels that fulﬁl the matching requirements are identiﬁed as

free path. Results from outdoor scenarios are also presented.

1 INTRODUCTION

Detecting free paths instead of detecting the obsta-

cles of the scene addresses a different and new point

of view regarding the aid for navigation without colli-

sions. Thus, there are a great number of references for

obstacle detection and not so many for free space de-

tection. Free path detection offers an advantage over

the obstacle detection: free pathways are easier to de-

tect looking at the pattern they follow in a disparity

map. Disparity decreases linearly from the bottom of

the image to the top, so free paths can be detected

faster with less computational cost looking for pixels

that match this pattern.

Among the reported works on obstacle-free space

detection we can ﬁnd different approaches. For in-

stance, the method in (T. H. Nguyen and Nguyen,

2007) uses the Sum of Absolute Differences between

images meanwhile (E. Grosso, 1995) uses the time-to-

impact to objects in the scene to determine free-space.

To establish a path to guide a robot (M. Vergauwen,

2003) processes the disparity map and then provides

a measure for the cost of traversal (Travel Cost Map),

choosing the path which has the least associate cost.

(R. Labayrade, 2002) and (Y. Baudoin, 2009) detect

obstacles by means of the “v-disparity” image mean-

while (J.P. Tarel and Charbonnier, 2007) proposes a

direct approach for 3D road reconstruction. Occu-

pancy grids are used in (H. Badino and Franke, 2008)

and (H. Badino, 2007) for free space computation, de-

pending on the likelihood of each grid to be occupied

or not, meanwhile (U. Franke, 2000) applies a dis-

tance dependent threshold to depth maps obtained by

correlation between two stereo images and (A. Wedel

and Cremers, 2008) represents the ground plane as

a parametric B-spline surface. During last years,

obstacle-free space detection has been researched by

many authors, especially for intelligent automotive

and robotic applications, in order to aid automotive

navigation without collisions. Thus, in order to help

navigation, there are authors who detect and classify

obstacles (Y. Huang, 2005), detect the painted lane

markings (M. Bertozzi, 1998), ﬁnd the optimum road-

obstacle boundary (S. Kubota, 2007), deduce the most

appropriate direction to avoid obstacles (L. Nalpan-

tidis and Gasteratos, 2009) or estimate diameters of

310

Ortigosa N., Morillas S., Peris-Fajarnés G. and Dunai L. (2010).

DISPARITY MAPS FOR FREE PATH DETECTION.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 310-315

DOI: 10.5220/0002821603100315

 SciTePress

trees en the scene to determine whether or not they

are traversable obstacles (A. Huertas, 2005).

Most of the reported works use images from a

stereo-vision system, since the use of stereo cameras

allows the calculation of disparities for each pixel in

every frame, which is a key feature to perform an

accurate detection. The disparity of an image pixel

refers the location difference between the pixel in the

left image and the corresponding pixel in the right im-

age after both images have been rectiﬁed. Clearly, the

lower the disparity for a pixel is, the higher the dis-

tance up to the point represented by this pixel.

This paper presents an algorithm for the detection

of free paths in real-time, which is integrated in the

Cognitive Aid System for Blind and Partially Sighted

People (CASBliP) project (

http://www.casblip.

com

). The main aim of CASBliP is to develop a

system capable of interpreting and managing real

world information from different sources to support

mobility-assistance to any kind of visually impaired

users. This way, it assists the users to navigate their

way outdoors along pavements. There are also several

works whose aim is to help people in their naviga-

tion, by means of using GPS (J.M. Loomis, 1998), de-

tecting doorways (M. Snaith, 1998), crosswalks and

staircases (S. Se, 2003) or the obstacles in the scene

(N. Molton, 1998). The difference between CASBliP

Project and other references which also relay scene

information to the blind user (as (P.D. Picton, 2008))

lies in the portability of the system. In CASBliP, the

device works onboard the visually impaired person.

Thus, stereo cameras are constantly moving and the

scene often contains blurred and deformed objects.

The motivation of this work is the necessity of detect-

ing surrounding obstacle-free space in real-time to as-

sist in navigation applications. The proposed method

introduces the innovation of using disparity maps ob-

tained by the stereovision system to detect the sur-

rounding obstacle-free space by matching with a lin-

ear model.

The paper is organized as follows. The system

where the proposed algorithm is included and the

method to obtain disparity maps are described in Sec-

tion 2. The proposed method for free paths detection

is detailed in Section 3. Section 4 presents experi-

mental results and, ﬁnally, conclusions are drawn in

Section 5.

2 DISPARITY MAPS

The stereo-vision system comprises two Firewire

CCD stereo cameras providing 240 × 320 pixel im-

ages which are calibrated so that estimated internal

and external parameters are used to rectify the ac-

quired images. Correspondence between left and

right images takes place while minimizing a cost

function, followed by disparity and depth estimation.

In (D. Scharstein, 2002), existing stereo methods

are compared and their performance is evaluated with

different experiments with indoor images. Further-

more, they keep updated the state-of-the-art in a ta-

ble with the evaluation of up to 65 references of dif-

ferent authors (

http://vision.middlebury.edu/

stereo/

). Many of them, such as (Q. Yang, 2009)

and (C. Lawrence Zitnick, 2007) offer very accurate

disparity maps but can not be used for real-time ap-

plications, since they have runtime of seconds.

We have studied different algorithms for disparity

map estimation and we ﬁnally have chosen (S. Birch-

ﬁeld, 1999) because this approach provides a good

trade-off between computational efﬁciency (about 8-

10 disparity maps per second) and quality of re-

sults. Moreover, it is based on dynamic programming,

which performs better than other approaches for out-

door scenes.

According to (S. Birchﬁeld, 1999), disparity maps

are represented as N× M gray-scale images where the

gray level of each pixel is associated with its nearness,

as we can observe in Equation 1, where Z is the depth,

f is the focal length of the cameras, B is the baseline

of the stereo system and d is the disparity. Hence,

darker disparity map areas are associated to further

regions of the scene.

Z =

f ∗ B

(1)

The performance of the disparity map algorithm is

illustrated in Figure 1, where we show three examples

of stereovision images before being rectiﬁed and its

corresponding disparity maps computed.

We propose to determine free space areas by pro-

cessing only the 25% last rows of the disparity maps

(from row N − N/4 to row N), since these rows rep-

resent the scenario region that the user will ﬁrst walk

through.

3 ALGORITHM DETAILS

The detection algorithm presented in this paper is

based on the fact that disparity map grey levels in

free space areas decrease slightly and linearly from

the bottom of the image to the top. On the other hand,

obstacles for which depth is approximately constant

are represented by ﬂat zones. Figure 2 illustrates this

behaviour.

DISPARITY MAPS FOR FREE PATH DETECTION

311

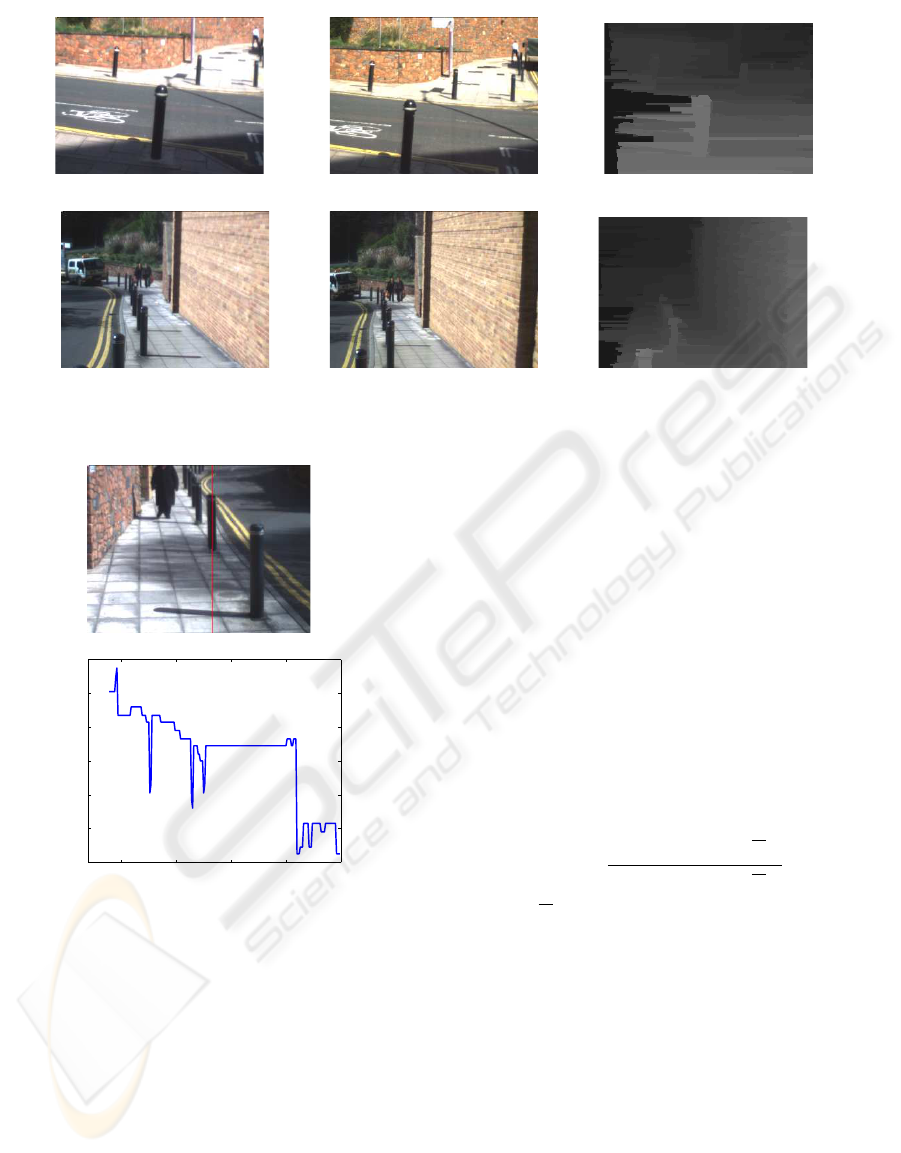

Figure 1: Examples of stereo images and depth maps. Left and right images are shown in ﬁrst and second columns respectively

and third column shows the corresponding disparity maps computed using (S. Birchﬁeld, 1999).

050100150200

100

120

140

Row number

Grey level

Figure 2: First row: Free path example and obstacle in left

image from the stereo system. Second row: grey levels of

the disparity map for the marked column in the image. For

free paths (rows from 130 on), grey levels decrease linearly

from the bottom to the top of the disparity map. The pole

(rows 60 to 130) is represented as a constant grey level.

Obstacle-free area after the pole (rows 0 to 40) has grey

level variations, but these do not match a linear model, since

in this case the disparity map is very noisy for that region.

Given a rectiﬁed left image I

and a rectiﬁed

right image I

from a stereo-vision system, the depth

computed using (S. Birchﬁeld, 1999) for pixel in

(row,column) location (i, j) is denoted by D(i, j). In

order to save computation time and also to reduce the

inﬂuence of present noise, we process the disparity

maps by averaging groups of G pixel columns, where

we set G = 4 which is appropriate for our depth maps

of size 230× 290. Thus, we obtain the averaged col-

umn

D(i,k) from the values of columns D(i, j), j =

4k− 3, 4k − 2,. . .,4k where i = N,N − 1,...,N − N/4

and k = 1,2, ..., M/4. Then, a least-squares ﬁtting

over

D(i,k) is done to ﬁnd the best linear ﬁtting to ad-

just the averaged column points. This model, which

provides an estimate for

D(i,k), is given by:

D(i,k) = a

i+ b

(2)

where i is the row number in the processed column

of the depth map,

D(i,k) is the estimated depth, a

is the gradient and b

is the y-intercept of the linear

model. Regarding the obtained ﬁtting, its correlation

index is deﬁned as

I(k) =

∑

N−N/4

i=N

(

D(i,k) −

∑

N−N/4

i=N

(

D(i,k) −

, (3)

where

D denotes the mean of the values in

D(i,k).

I(k) measures the goodness of the ﬁt for the group of

columns D(i, j), j = 4k − 3,4k − 2,. ..,4k. I(k) may

take values in [0,1], where 0 means no correlation and

1 indicates a perfect correlation. According to above,

we will determine as free path only those groups of

columns for which we obtain a good adjustment to

the linear model. This implies to require a mini-

mum value I(k) > I

for considering the candidate

group of columns D(i, j), j = 4k − 3, 4k − 2,..., 4k as

an obstacle-free path. Also, according to our linear

model, disparity map grey level in free paths should

be decreasing from the bottom of the column to the

top. So, we also require that the value of the gradi-

ent a

should be lower than a negative threshold a

Algorithm 1 details the proposed detection algorithm.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

312

Algorithm 1: Proposed free path detection algorithm.

The image is partitioned into disjoint groups of1

G columns;

foreach disjoint group of G columns in the2

image do

Compute the averaged column

D(i,k);3

Adjust the parameters of the linear model4

D(i,k) by LMS (2);

Compute the value of I(k) (3);5

if I(k) > I

and a

< a

then6

D(i, j),i = N,N − 1,...,N − 4, j =7

4k− 3,4k − 2,..., 4k are marked as free

path;

else8

D(i, j),i = N,N − 1,...,N − 4, j =9

4k− 3,4k − 2,..., 4k are marked as an

obstacle;

end10

end11

0.8cm12

3.1 Computational Analysis

Regarding the fact that the method has to work in real-

time, an analysis of the computation cost has been

made. Table 1 shows the result of processing a N× M

pixels disparity map. In our case, for G = 4, N = 230

and M = 290, it is necessary to compute 66700 sums

and 54190 products.

Table 1: Number of required operations by processed dis-

parity map.

Sums Products

Columns average

N×M(G−1)

N×M

4×G

Least Minimum Squares

9×N×M

4×G

5×N×M

2×G

Correlation index

N×M

2×G

Total

N×M(G+12)

4×G

13×N×M

4×G

The method has been implemented in C program-

ming language. Under an ACER 5612 at 1.73GHz it

spends less than 40ms for each processed depth map,

so it is suitable for real-time processes.

4 EXPERIMENTAL RESULTS

In order to measure the detection algorithm perfor-

mance in an objective way, it was necessary to manu-

ally prepare some groundtruth images, in which each

pixel was marked as free-space or occupied by some

object. This way, the detected areas can be compared

with the groundtruth images pixel by pixel in order

to obtain objective measurements for the detection in

terms of True Positives, True Negatives, False Posi-

tives and False Negatives. True Positives (TP) are de-

ﬁned as the pixels which have been detected as free-

space and they really are. True Negatives (TN) are the

pixels correctly classiﬁed as occupied. False Positives

(FP) are deﬁned as the pixels incorrectly classiﬁed as

free-space. False Negatives (FN) are the pixels which

really are free-space, but have been classiﬁed as occu-

pied.

Due to the application of this detection algorithm,

it is more important not to have False Positives than to

have False Negatives, in order to avoid collisions with

obstacles in the scene. Precision (5) is the proportion

of true results (True Positives) for all pixels detected.

Accuracy (6) is the proportion of correct detections

(both True Positives and True Negatives) in the tests.

Thus, we measure the performance of the method by

these parameters by deﬁning a new statistic that we

name PACC given by

PACC =

Precision+ Accuracy

, (4)

where

Precision =

TP+ FP

, (5)

Accuracy =

TP+ TN

TP+ TN + FP+ FN

(6)

4.1 Parameters Adjustment

A training set of 25 real outdoor training images and

their corresponding groundtruths have been used to

obtain appropriate settings for the algorithm detection

parameters. This set includes the most common sce-

narios that a person can run into outdoors (cars, free

paths, pedestrians, walls, poles...) in different illumi-

nating conditions (sunny and cloudy days, shadows of

surrounding objects...). This has been necessary since

the quality of disparity maps used for the detection

depends on the illumination conditions of the scene.

Disparity maps are less noisy when the scene is well

illuminated, since edges in the image are sharper and

it is easier to ﬁnd the disparity between the left and

right images from the stereo-vision system.

It is very important to optimize the algorithm pa-

rameters in order to maximize the performance that

we measure in terms of PACC. Also, it is desirable to

have settings for the parameters that allow the method

to perform well for a variety of outdoor images. For

DISPARITY MAPS FOR FREE PATH DETECTION

313

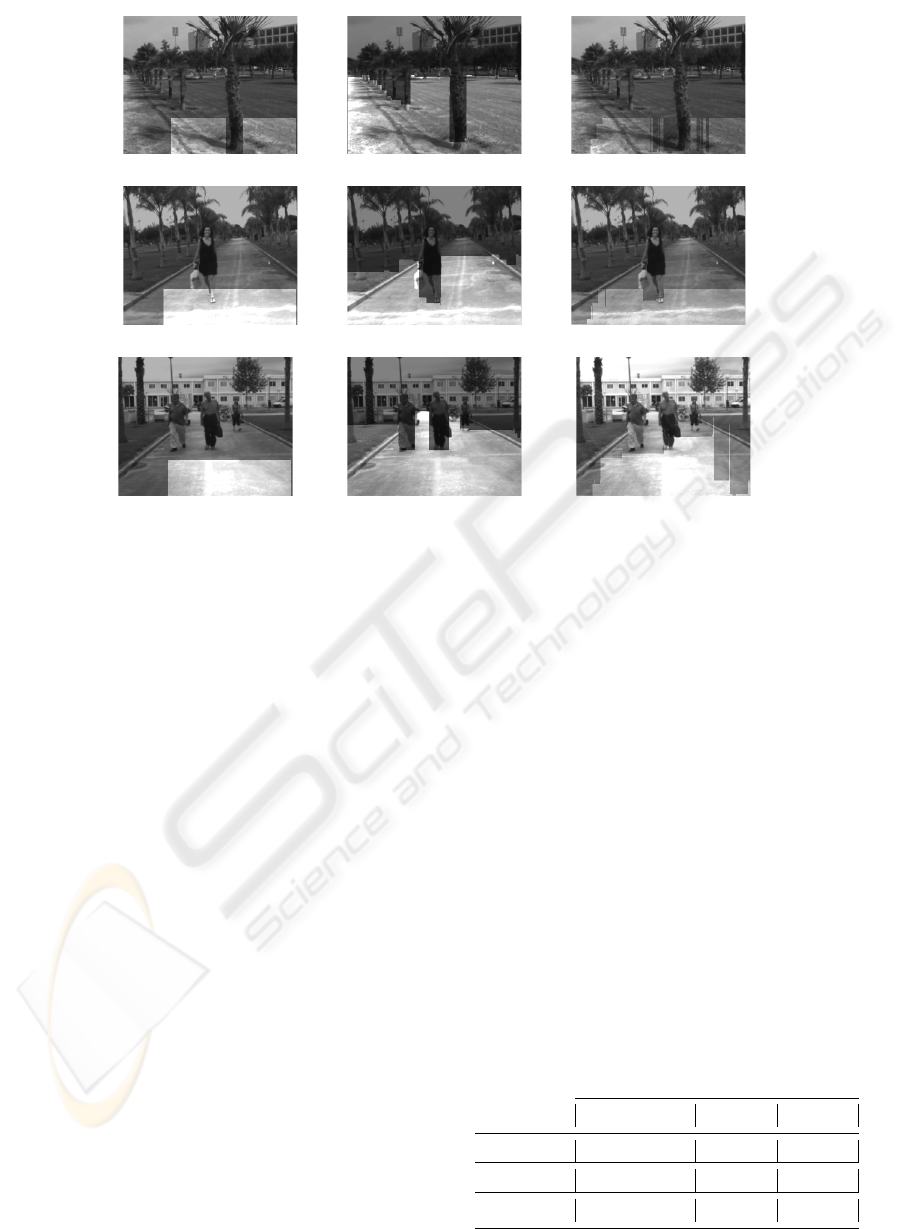

Figure 3: Examples of testing images. Brighter areas show detected free paths.First column shows results of the proposed

method, second column shows (S. Kubota, 2007) results and third column shows (H. Badino and Franke, 2008) results.

this reason, instead of obtaining the optimal values for

each image in the training set, we have found the sub-

optimal values of I

and a

that maximize the average

of PACC performance for the whole training set. The

parameters adjustment has been done in an iterative

way. Thus, once one parameter has been optimized it

is ﬁxed, and we proceed to optimize the rest, repeat-

ing iteratively until convergence is reached.

We have varied I

from 0.2 to 0.99 and a

from -3

to 1, in steps of 0.01. We have obtained that I

= 0.4

and a

= −0.2 to be suboptimal for each image indi-

vidually, but the optimal values over all the training

set. Thus, we obtain about 84% of performance in

terms of PACC.

4.2 Algorithm Performance

In this section we assess the performance of the free

path detection method, using the previous suboptimal

settings for I

and a

We have compared the detection results of

our method with another two recent references

(H. Badino and Franke, 2008),(S. Kubota, 2007) for a

testing image set different from the training set used

for parameters adjustment. Figure 3 shows three dif-

ferent detection results examples for the three meth-

ods and Table 2 shows the Precision and Accuracy

values obtained for the whole testing set. These ﬁg-

ures conﬁrm that the algorithm works and detects free

paths properly.

The visual analysis reveals that sometimes some

free space areas are not detected. Usually, they cor-

respond to borders of the image or corners, untex-

tured areas (areas that can not be matched between

left and right stereoimages) or not well illuminated ar-

eas. However, we can see that in all cases we can de-

tect at least the wider free space area to walk through,

so the method performs appropriately for the purpose

of the project in which it is integrated.

Furthermore, as we have explained before, for our

application it is more important not to have False Pos-

itives than to have False Negatives in order to avoid

having collisions, although sometimes it leads to have

some False Negatives. Thus, maximizing True Posi-

tives means to maximize Precision. We can observe

that our method obtains similar values of Precision

compared with the other two references and it can be

used for real-time applications, owing to the fact of its

low computational cost.

Table 2: Performances for the testing image set.

Our method Kubota Badino

Precision 0.9926 0.9755 0.9981

Accuracy 0.7121 0.9744 0.8021

PACC 0.8523 0.9749 0.9001

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

314

5 CONCLUSIONS AND FUTURE

WORK

In this paper we have presented a new method for free

path detection which is based on an analysis of dispar-

ity maps obtained from processing a pair of stereoim-

ages. The method is based on detecting as obstacle-

free areas the disparity map columns that match a lin-

ear model. For this, the best ﬁrst-degree polynomial

adjusting the cloud of points is obtained by the least-

squares method and the obtained result is checked to

meet the desired requirements. Computational analy-

sis of the method has been done to assess its suitabil-

ity for real-time processing. An experimental study

has been used to derive suboptimal settings for the

method parameters. The method has been compared

with two of the most recent references in free space

detection and it provides good results. Future work

could focus on improving the algorithm performance

by including temporal coherence to track the detected

obstacle-free areas.

REFERENCES

A. Huertas, L. Matthies, A. R. (2005). Stereo-based tree

traversability analysis for autonomous off-road navi-

gation. In IEEE Computer Society. IEEE Workshop

on Applications of Computer Vision.

A. Wedel, U. Franke, H. B. and Cremers, D. (2008). B-

spline modeling of road surfaces for freespace estima-

tion. In IEEE. IEEE Intelligent Vehicles Symposium.

C. Lawrence Zitnick, S. B. K. (2007). Stereo for image-

based rendering using image over-segmentation. In-

ternational Journal of Computer Vision, 75(1):49–65.

D. Scharstein, R. S. (2002). A taxonomy and evalua-

tion of dense two-frame stereo correspondence algo-

rithms. International Journal of Computer Vision,

47(1/2/3):7–42.

E. Grosso, M. T. (1995). Active/dynamic stereo vision.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 17(9):868–879.

H. Badino, U. Franke, R. M. (2007). Free space com-

putation using stochastic occupancy grids and dy-

namic programming. Workshop on Dynamical Vision,

ICCV, Rio de Janeiro (Brazil).

H. Badino, R. Mester, T. V. and Franke, U. (2008). Stereo-

based free space computation in complex trafﬁc sce-

narios. pages 189–192. IEEE Southwest Symposium

on Image Analysis & Interpretation.

J.M. Loomis, R.G. Golledge, R. K. (1998). Navigation sys-

tem for the blind: Auditory display modes and guid-

ance. Presence, 7(2):193–203.

J.P. Tarel, S. L. and Charbonnier, P. (2007). Accurate and

robust image alignment for road proﬁle reconstruc-

tion. In IEEE. IEEE International Conference on Im-

age Processing.

L. Nalpantidis, I. K. and Gasteratos, A. (2009).

Stereovision-based algorithm for obstacle avoidance.

In Lecture Notes in Computer Science. Intelligent

Robotics and Applications.

M. Bertozzi, A. B. (1998). Gold: A parallel real-time stereo

vision system for generic obstacle and lane detection.

IEEE Transactions on Image Processing, 7(1):62–81.

M. Snaith, D. Lee, P. P. (1998). A low-cost system using

sparse vision for navigation in the urban environment.

Image and Vision Computing, 16(4):225–233.

M. Vergauwen, M. Pollefeys, L. V. G. (2003). A stereo-

vision system for support of planetary surface explo-

ration. Machine Vision and Applications, 14(1):5–14.

N. Molton, S. Se, J. B. e. a. (1998). A stereo vision-based

aid for the visually impaired. Image and Vision Com-

puting, 16(4):251–263.

P.D. Picton, M. C. (2008). Relaying scene information to

the blind via sound using cartoon depth maps. Image

and Vision Computing, 26(4):570–577.

Q. Yang, L. Wang, R. Y. e. a. (2009). Stereo match-

ing with color-weighted correlation, hierarchical be-

lief propagation, and occlusion handling. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

31(3):492–504.

R. Labayrade, D. Aubert, J. T. (2002). Real time obstacle

detection in stereo vision on non-ﬂat road geometry

through v-disparity representation. In INRIA. IEEE

Intelligent Vehicle Symposium.

S. Birchﬁeld, C. T. (1999). Depth discontinuities by pixel-

to-pixel stereo. International Journal of Computer Vi-

sion, 17(3):269–293.

S. Kubota, T. Nakano, Y. O. (2007). A global optimization

for real-time on-board stereo obstacle detection sys-

tems. In IEEE. IEEE Intelligent Vehicles Symposium.

S. Se, M. B. (2003). Road feature detection and estimation.

Machine Vision and Applications, 14(3):157–165.

T. H. Nguyen, J.S. Nguyen, D. P. and Nguyen, H.

(2007). Real-time obstacle detection for an au-

tonomous wheelchair using stereoscopic cameras.

Conf Proc IEEE Eng. Med. Biol. Soc., 2007(1):4775–

4778.

U. Franke, A. J. (2000). Real-time stereo vision for urban

trafﬁc scene understanding. In IEEE. IEEE Intelligent

Vehicles Symposium.

Y. Baudoin, D. Doroftei, G. D. C. e. a. (2009). View-ﬁnder:

Robotics assistance to ﬁre-ﬁghting services and crisis

management. In IEEE Computer Society. IEEE In-

ternational Workshop on Safety, Security, and Rescue

Robotics.

Y. Huang, S. Fu, C. T. (2005). Stereovision-based

object segmentation for automotive applications.

EURASIP Journal on Applied Signal Processing,

2005(14):2322–2329.

DISPARITY MAPS FOR FREE PATH DETECTION

315
