PERFORMANCE EVALUATION OF POINT MATCHING

METHODS IN VIDEO SEQUENCES WITH ABRUPT MOTIONS

Wael Elloumi

, Sylvie Treuillet, Remy Leconge and Aicha Fonte

Institut Prisme, Polytech’Orléans, 12 rue de Blois, 45067 Orléans cedex2, France

Keywords: Interest Points, Local Descriptors, Matching, Performance Evolution, Video Sequence, Abrupt Motions.

Abstract: In this paper, we compare the performance of matching algorithms in terms of efficiency, robustness, and

computation time. Our evaluation uses as criterion, for efficiency and robustness, number of inliers and is

carried out for different video sequences with abrupt motions (translation, rotation, combined). We compare

SIFT, SURF, cross-correlation with Harris detector, and cross-correlation with SURF detector. Our

experiments show that abrupt movements perturb a lot the matching process. They show also that SURF is

the most disturbed, by such motions, and which even fails in cases that present a large rotation unlike the

rest of descriptors as SIFT and cross-correlation.

1 INTRODUCTION

While the problem of image matching has been

studied extensively for various applications, the

remaining questions are which feature detector and

descriptor performs the best and which one is the

most appropriate to match images in real time for

camera motion estimation. The field of our interest

is the indoor/outdoor navigation assistance for the

visually impaired with a low cost body mounted

camera. Since vision based localization of mobile

robots can rely on the assumption of the smooth

movements, human motions are rougher and

unpredictable and may cause loss in vision tracking.

It will be wise to investigate the limits of the vision

based localization especially in video sequences

with abrupt motions.

Some previous works propose comparative

studies of descriptors. Carneiro and Jepson (Carneiro

and Jepson, 2002) introduce a phase-based local

feature using Harris corner detector and compare it

to the differential invariant features. They use the

Receiver Operating Characteristic (ROC) curves as

performance criterion and demonstrate that

differential invariants are not the best for common

illumination changes and 2D rotation. A variant of

SIFT algorithm (Lowe, 2004) based PCA performs

better on artificial data according to the recall-

precision criterion (Ke and Sukthankar, 2004).

This study is supported by HERON Technologies SAS and the

Conseil Général du LOIRET.

Another extension of SIFT outperforms many

local descriptors but is more costly in computation

time (Mikolajczyk and Schmid, 2005).

All the references cited above compare

descriptors on image pairs using data set with

artificial or real geometric and photometric

transformations but not on video sequences. In this

paper, we propose a performance comparison of

three popular point matching methods. SIFT (Lowe,

2004), SURF (Bay and al., 2006), and Harris (Harris

and Stephen, 1988) with cross-correlation. All of

these algorithms are evaluated in efficiency,

robustness, and computation time criterion, using the

same scenario. The comparison is based on

sequences acquired with a camera attached to a

robot hand. Efficiency and robustness is evaluated

by the number of inliers (correct matches between

two images). Next section presents the experimental

setup, before results in section 3 and conclusion.

2 EXPERIMENTAL SETUP

Our experimental prototype is composed of USB PC

camera (320×240 pixels) fixed on the gripper of a

6dof robot arm and which are connected to a

desktop. Intrinsic parameters of the camera are

estimated by a prior calibration. The robot arm can

be controlled manually by its remote controller or

automatically by programming dedicated software,

using Cartesian or joint coordinate systems, with an

427

Elloumi W., Treuillet S., Leconge R. and Fonte A. (2010).

PERFORMANCE EVALUATION OF POINT MATCHING METHODS IN VIDEO SEQUENCES WITH ABRUPT MOTIONS.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 427-430

DOI: 10.5220/0002823304270430

 SciTePress

adjustable velocity. This prototype allows us to

capture video sequences with rotations, translations

and combined motions including zoom effect and

abrupt motions.

Experiments data set consists of nine video

sequences acquired at 30 fps frame rate in a real

scene with brightness changes. We have chosen

rotation, translation in the y-direction to create a

zoom effect, and combined motion with rotation and

translation, to compare the different operators,

because these kinds of motions are the most

disturbing for matching process. Table 1 give details

on the video sequences related to 3 types of motion:

number of frame, shift or rotation angle between

frames. Several velocities of the robot arm were

tested during acquisition: low, medium, or high

velocity. Furthermore, to simulate more abrupt

motions and considerable transformations, we

matched distant key frames. Velocities of motions

present in these video sequences are faster than

normal motions of a human being. For example, the

lowest velocity of translation is 45 cm per second

and the lowest velocity of rotation 100 degrees per

second.

Based on the state of art presented in the

previous section, we have chosen to compare SIFT

because it’s the most robust, cross correlation with

Harris corner detector because it’s the fastest and

SURF descriptor which is considered as a good

compromise between computation time and

robustness. To have well distributed Harris points,

we have divided the images in buckets of size 15×15

pixels. The ZNCC correlation score is applied in

11×11 pixels ROI, with a minimum threshold of 0.8.

The cross correlation is used with Harris and also

with SURF detector to highlight the influence of the

detector on matching process.

For evaluation, we observe the robustness and

the computation time. The most popular metrics for

robustness are ROC and Recall-Precision curves.

Both are based on the number of correct matches

and the number of false matches obtained for an

image pair. We use the total number of correct

matches (inliers) and the percentage of inliers

compared to the total number of matched points

(inliers and outliers), described by the equation (1).

esfalsematchchescorrectmat

chescorrectmat

inliers



%

(1)

The number of correct matches and false

matches is determined with Least Median of Square

algorithm (Zhang, 1998) by estimating the

fundamental matrix in the image pair. The maximum

distance from point to epipolar line, beyond which

the point is considered an outlier and is not used for

computing the final fundamental matrix is equal to 1

pixel. The desirable level of confidence that the

matrix is correct is equal to 99%. The only

constraint of this method is that we must have at

least eight matched features. The computation of the

two-view geometry requires that the matches

originate from a 3D scene and that the motion is

more than a pure rotation. That is respected as the

camera is fixed slightly out of the rotation axis on

the robot clip.

To develop our comparative study, we perform

the following process for each video sequence:

1. Fix the number of frames to skip (frame jump)

between images to match.

2. Extract distinctive features in images and match

them using the different descriptors.

3. Select inliers from these candidates by estimating

the fundamental matrix using LMedS method.

3 RESULTS

In this section, we present in Figure 1 and Table 2 an

extract of the results for all carried experiments and

discuss the performance of the tested descriptors.

3.1 Image Rotation

Matching is tested between images with a rotation

angle between 7 and 120 degrees by varying

velocity and image jump. The number of inliers

clearly decreases for higher rotation velocity. SIFT

descriptor is the most robust to rotation followed by

SURF, which fails in fast rotation. Harris based

matching is more disturbed than SURF based

detector.

3.2 Image Scale Change

Scale change is achieved by a translation up to 1370

mm. All descriptors have a similar robustness, (% of

inliers), slightly lower for cross correlation. SURF

presents the lowest number of inliers for all

velocities. The number of inliers decreases when

increasing velocity of robot arm but much less than

for the rotation case.

3.3 Combined Motion

Combined motion is performed by simultaneously

rotating and translating the robot arm (between 4

and 92 degrees with 1370 mm shift). The performan-

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

428

Table 1: Video sequences data set.

Motion Video sequences Number of frames Motion range per frame

Translation (scale

change)

Translation_v25 90 frames 15.22 mm

Translation_v50 49 frames 27.96 mm

Translation_v100 32 frames 42.81 mm

Rotation

Rotation180_v25 55 frames 3.39 degrees

Rotation180_v50 24 frames 8.18 degrees

Rotation180_v100 11 frames 20 degrees

Combined

Combined_v25 47 frames 8.51 mm and 4 degrees

Combined_v50 27 frames 14.81 mm and 7.2 degrees

Combined_v100 14 frames 28.57 mm and 15 degrees

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

7 10,5 14 17,5 21 24,5 28 31,5 35 38,5 42 45,5 49 52,5 56 59,5 63 66,5 70 73,5 77 80,5

% inliers

Angle rotation

SIFT

SURF

cross correlation with Harris detector

cross correlation with SURF detecto r

100

120

140

160

180

200

7 10,5 14 17,5 21 24,5 28 31,5 35 38,5 42 45,5 49 52,5 56 59,5 63 66,5 70 73,5 77 80,5

Number of inliers

Angle rotation

SIFT

SURF

cross correlation with Harris det ector

cross correlation with SURF det ector

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

2345678910152025

% inliers

Ima ge jump

SIFT

SURF

cros s correlatio n with Ha rris d etector

cros s correlatio n with SURF detector

100

120

140

160

2345678910152025

Nbre in liers

Image jump

SIFT

SURF

cross correlation with Harris detector

cross correlation with SURF detecto

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

15 22,5 30 37,5 45 52,5 60 67,5 75 82,5 90

% inliers

Angle rotation

SIFT

SURF

cros s correlatio n with Ha rris d etector

cros s correlatio n with SURF detector

100

120

140

160

15 22,5 30 37,5 45 52,5 60 67,5 75 82,5 90

Nbre inliers

Angle rotation

SIFT

SURF

cross correlation with Harris detector

cross correlation with SURF detecto

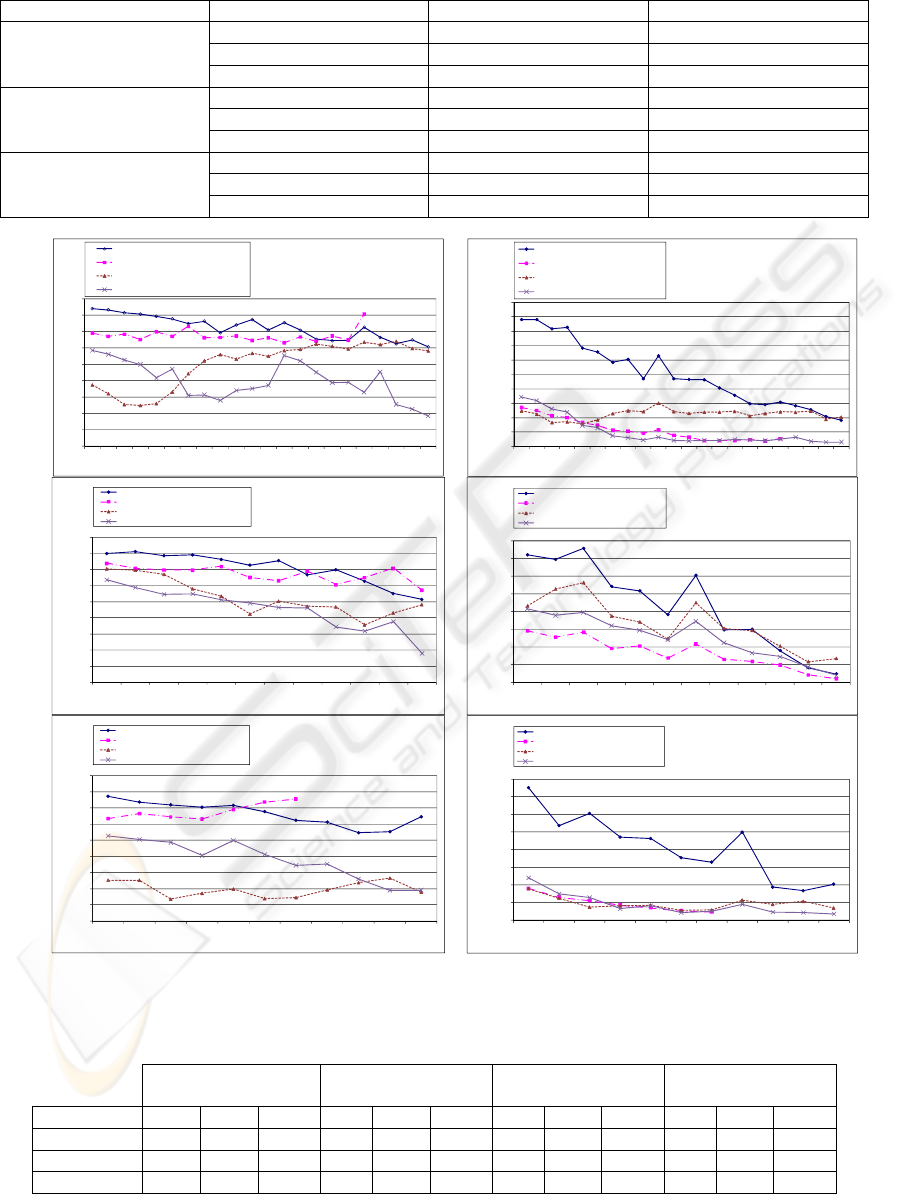

Figure 1: Evaluation of the robustness: % of inliers (left) and number of inliers (right).

a/ Rotation180_v25 (first line) b/ Scaling Translation _v100 (second line) c/ Combined _v50 (third line).

Table 2: Computation time for an Intel

dual core, 3 GHz, and 2GB memory (in milliseconds).

SIFT SURF Cross correlation

with Harris

Cross correlation

with SURF

Datasets Min Max Mean Min Max Mean Min Max Mean Min Max Mean

Trans_v25 1382 2065 1724 778 1411 1064 646 1817 918 718 1818 944

Rot180_v50 1433 2302 1706 610 1503 853 591 1229 888 564 1307 792

Comb_v100 1279 2354 1782 530 1732 886 604 1389 850 545 1327 814

PERFORMANCE EVALUATION OF POINT MATCHING METHODS IN VIDEO SEQUENCES WITH ABRUPT

MOTIONS

429

mance of all operators is worse than for simple

transformation. SIFT clearly outcomes other

descriptors in number of inliers. SURF is better than

cross correlation based descriptor only for low

velocity (v25) and even fails for large rotation

velocity. Rotation is more disturbing than scale

changes.

4 CONCLUSIONS

An experimental comparison of the famous

matching descriptors is proposed to identify the most

appropriate to estimate camera motion. To be as

close as possible to our application, we have used

several real video sequences with abrupt motions

(rotation, scale change, and combined). SIFT

performs the best results in terms of number of

inliers, but it can not be used for real time

applications. SURF and cross correlation are worse

than SIFT but can be improved in order to be

applied for real time applications. SURF is

interesting in the case of scale change. However, its

performance becomes similar to the cross correlation

in the case of large rotations. In our tests, the

matching process is achieved around one second for

the best in half VGA images. This matching time

remains too high for localizing a person in real time

with a body-mounted camera. To overcome this

issue, we can use the GPU programming for

additional speed up. We also plan to exploit the

extra capabilities of the latest smart phones to

improve performance. New smart phones contains

fast camera which can be combined with

accelerometer and a GPS receiver, and future

devices will contain magnetic compasses and

gyroscopes.

REFERENCES

Bay, H., Tuytelaars, T., Van Gool, L., 2006. SURF:

Speeded Up Robust Features, ECCV.

Carneiro, G., Jepson, A. D., 2002. Phase-Based Local

Features. ECCV, 282-296.

Harris, C., Stephens, M., 1988. A combined corner and

edge detector. In Alvey Vision Conf., 147–151.

Ke, Y., Sukthankar, R., 2004. PCA-SIFT: A More

Distinctive Representation for Local Image

Descriptors. CVPR'04, vol. 2, 506-513.

Lowe, D., 2004. Distinctive Image Features from Scale-

Invariant Keypoints. In Int. J. of Computer Vision,

vol.2, 91-110.

Mikolajczyk, K., Schmid, C., 2005. A performance

evaluation of local descriptors. In IEEE Trans. on

PAMI, 27(10), 1615–1630.

Zhang, Z., 1998. Determining the Epipolar Geometry and

its Uncertainty. A Review in International Journal of

Computer Vision, volume 27, n° 2, pages 161-198.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

430
