TESSELLATING OCEAN SURFACES

Anna Puig-Centelles, Francisco Ramos, Miguel Chover

Universitat Jaume I, Castellon, Spain

Oscar Ripolles

Universitat Politecnica de Valencia, Valencia, Spain

Mateu Sbert

Universitat de Girona, Girona, Spain

Keywords:

Ocean simulation, Tessellation, GPU, Geometry Shader.

Abstract:

Modeling and rendering realistic ocean scenes has been thoroughly investigated for many years. Its appearance

has been studied and it is possible to ﬁnd very detailed simulations with a high degree of realism. Nevertheless,

real-time management of the huge heightmaps that are necessary for rendering ocean is still not solved. We

propose a new technique for tessellating the ocean surface on GPU. This technique is capable of offering

view-dependent approximations of the mesh while maintaining coherence among the extracted approximations

when reﬁning or coarsening the mesh. This feature is very important as most solutions previously presented

must re-tessellate from the initial mesh.

1 INTRODUCTION

Simulating ocean surfaces is a very complicated chal-

lenge, as ocean is composed of different elements that

form a very complex system. Most authors simulate

an ocean as an unbounded water surface that is rep-

resented as a heightmap. In these simulations, the

height of each vertex is modiﬁed in real time to of-

fer the sensation of wave movement. Figure 1 de-

picts a snapshot of a mesh simulating ocean move-

ment in a given instant of the animation. Other com-

plex phenomena, such as foam, spray or splashes are

usually modeled and rendered using particle systems

(Peachey, 1986; Darles et al., 2007).

Managing the mesh representing the ocean still

poses a limitation in simulating ocean. A technique

that several authors propose is the tessellation of the

surface. Moreover, it is possible to ﬁnd adaptive solu-

tions where some areas of the mesh are more detailed

than the others, depending on the criteria used by the

application. It is possible to ﬁnd in the literature many

solutions aimed at tessellating by exploiting GPU fea-

tures, although not many have been applied to ocean

surfaces.

This paper introduces a new adaptive tessellation

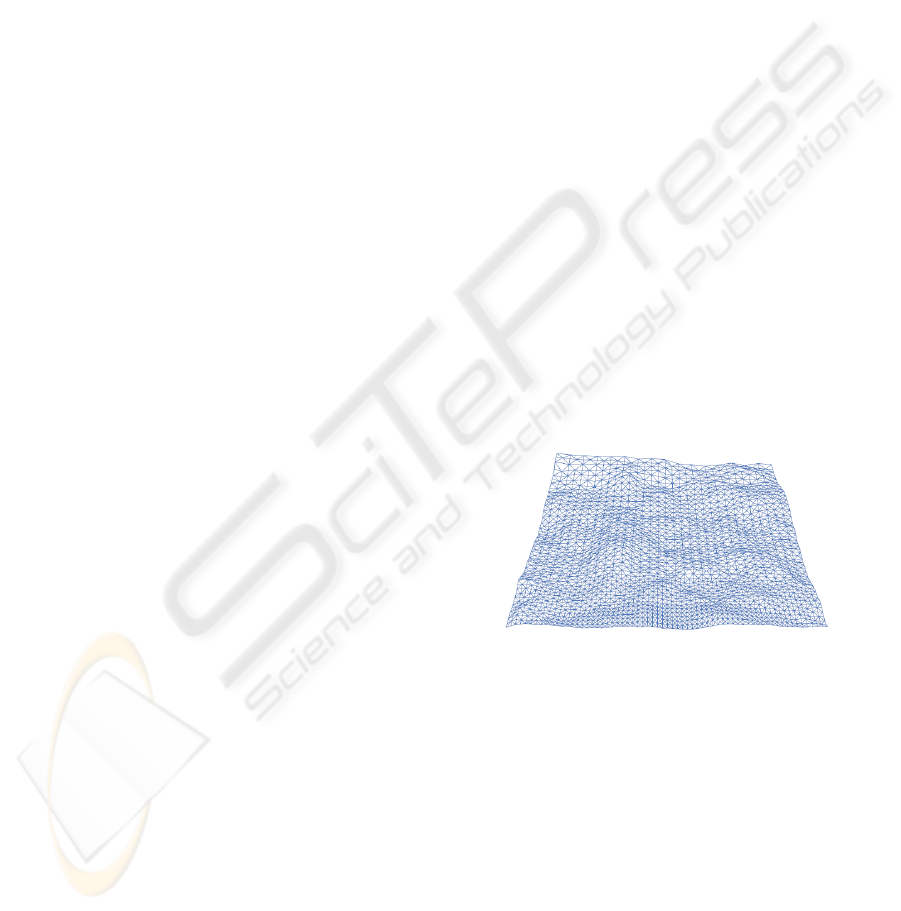

Figure 1: An ocean can be seen as an animated heightmap.

scheme which works completely on GPU. Figure 1

presents an example of our algorithm where those ar-

eas closer to the camera are more reﬁned. In addi-

tion, our proposed algorithm is capable of maintain-

ing coherence among the extracted approximations as

it can re-use the latest calculated approximation when

increasing or decreasing the detail. Lastly, the simula-

tion that we propose simulates wave movements with

Perlin noise (Perlin, 1985) calculated on GPU.

This paper has the following structure. Section 2

presents the state of the art on ocean simulation and

tessellation. Section 3 thoroughly describes the tes-

sellation technique that we present. Section 4 offers

some results on the presented technique. Lastly, Sec-

319

Puig-Centelles A., Ramos F., Chover M., Ripolles O. and Sbert M. (2010).

TESSELLATING OCEAN SURFACES.

In Proceedings of the International Conference on Computer Graphics Theory and Applications, pages 319-322

DOI: 10.5220/0002827003190322

 SciTePress

tion 5 includes some conclusions on the developed

techniques and outlines our future work.

2 RELATED WORK

In this state of the art we will describe GPU tessel-

lation techniques that have been developed for ren-

dering ocean scenes. There have been several re-

cent attempts to generate in real-time adaptive wa-

ter surfaces on graphics hardware. Hinsinger et al.

(Hinsinger et al., 2002) rely on an adaptive sampling

of the ocean surface and the wave animation, dictated

by the camera position. The tessellation and wave-

form superposition is performed on the CPU and up-

loaded to the GPU each frame, which is the bottleneck

of their approach. Johanson (Johanson, 2004) pre-

sented the projected grid concept, which creates a grid

whose vertices are even-spaced in post-perspective

camera space. This representation provides spatial

scalability and the possibility of developing a fully-

GPU implementation is described. In paper (Yang

et al., 2005), the authors offer GPU-based tessella-

tion by using a previous adaptive scheme for ter-

rain rendering. Their tessellation scheme uses a re-

stricted quad-tree where two neighbouring areas with

different resolutions can only vary to a limited ex-

tent. Lastly, in (Demers, 2005) Demers et al. pre-

sented a simulation which is adaptively tessellated in

eye space, mapping a regular grid to the intersection

of the ocean plane and the camera viewport.

3 OUR GPU-BASED

TESSELLATION SCHEME

Many of the tessellation algorithms presented before

modify the detail of the triangles following some cri-

terion applied to the triangle. The calculations in-

volved could consider the distance of the triangle to

the camera or its position in the screen. Neverthe-

less, applying the level-of-detail criterion in a trian-

gle basis implies a limitation for adaptive solutions,

like the appearance of noticeable cracks and holes in

the mesh. These cracks are due to the introduction of

T-vertices, which appear commonly in tessellation al-

gorithms when a vertex is positioned on the edge of

another triangle.

In order to avoid crack problems, some authors

have proposed to apply the reﬁnement criterion only

to the edges of the triangle. Therefore, if an edge

needed reﬁnement, then both triangles sharing the

edge would act accordingly. Schmiade et al. de-

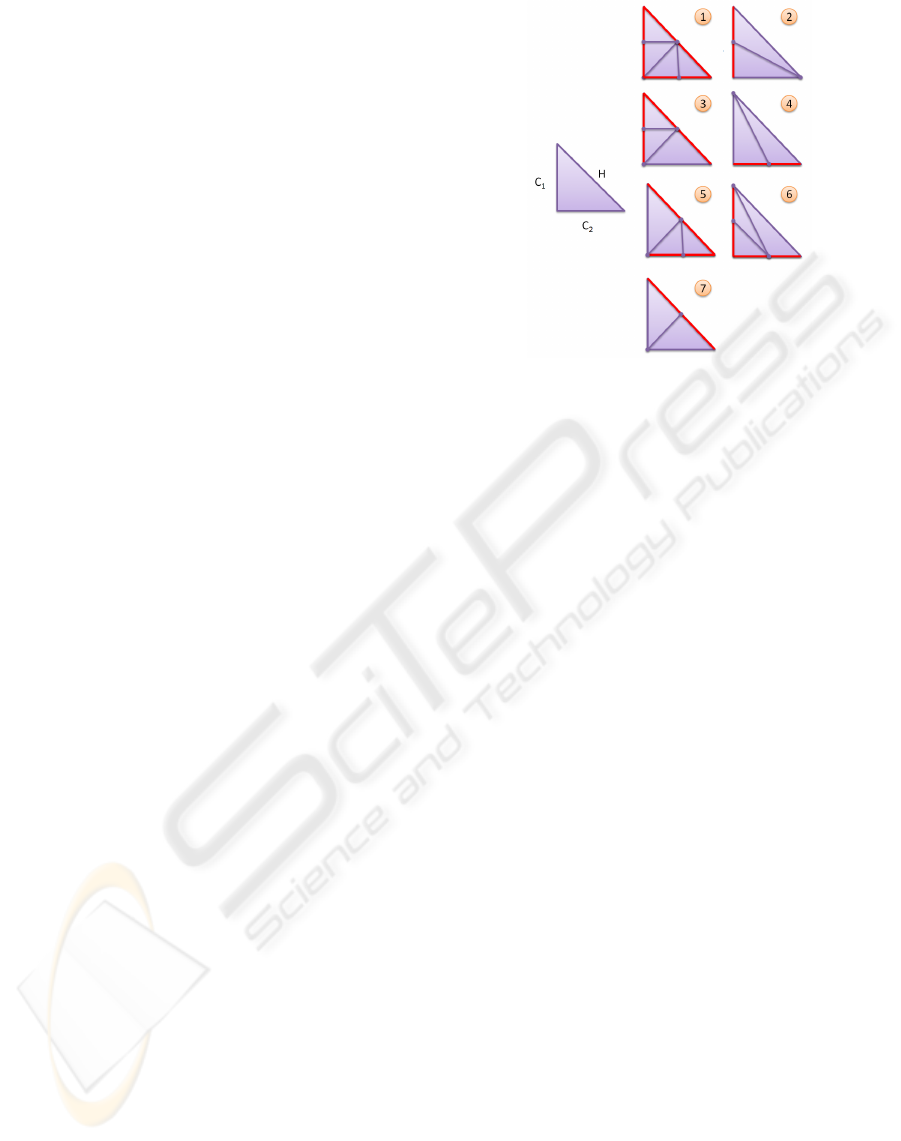

Figure 2: Tessellation patterns (Schmiade, 2008).

scribed some edge-based patterns for tessellating tri-

angles which completely avoided the appearance of

T-vertices (Schmiade, 2008). Figure 2 presents, on

the left side, an initial rectangular triangle where its

hypotenuse and catheti (or legs) are depicted anti-

clockwise as H, C

and C

. Next, the seven tessel-

lation patterns introduced by Schmiade et al. are pre-

sented (labeled from 1 to 7), where the edges of the

original triangle that need reﬁnement are depicted in

red. Each pattern shows the tessellation that would be

necessary depending on the combination of edges that

need reﬁnement.

In our proposal we will use these patterns, as

they can assure that no T-vertices are introduced and

that the continuity of the mesh is maintained. It

is worth mentioning that we will not store precom-

puted patterns on GPU memory as other solutions do

(Boubekeur and Schlick, 2005). We just code in the

Geometry Shader the seven cases that we follow so

that the coordinates of the new vertices can be eas-

ily calculated from the coordinates of the two vertices

that deﬁne the edge.

3.1 Our Proposed Algorithm

The main feature of the framework that we are pre-

senting is the possibility of reﬁning or coarsening the

mesh while maintaining coherence. By coherence we

refer to the re-use of information between changes in

the level-of-detail. In such way, the latest extracted

approximation is used in the next step, optimizing the

tessellation process and improving the performance.

When reﬁning the mesh, the algorithm checks

each edge to see whether they need reﬁnement. De-

pending on the combination of edges that need more

detail, the algorithm selects a pattern (see Figure 2).

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

320

Each of these generated triangles stores the spatial co-

ordinates, the texture information and any other infor-

mation needed for rendering. In addition, it is nec-

essary to output for each new triangle two pieces of

information:

• A number indicating the tessellation depth for the

triangle.

• A number coding the tessellation patterns that

have been applied, keeping this information in

patternIn f o.

The need of storing these two values is due to the

fact that we must know how a particular triangle was

created in order to know how we should modify it

when swapping to a lower level of detail. On the one

hand, the depth value will simply indicate how many

tessellation steps have affected a particular triangle.

On the other, the patternIn f o number is used to store

all the patterns that have been applied to reﬁne a trian-

gle. This value is obtained following Equation 1. In

this equation appliedPattern refers to the type of the

latest pattern, the one that we have used to create this

triangle. The value numberO f Patterns refers to the

number of available patterns that we can apply in our

tessellation algorithm. In our case we will use the 7

patterns presented in Figure 2 and, as a consequence,

numberO f Patterns will be equal to 7.

patternIn f o = patternIn f o + appliedPattern · numberO f Patterns

depth

(1)

This patternIn f o value will not be the same for all

the triangles belonging to the same parent. When tes-

sellating a triangle, for example with the pattern used

when the hypotenuse and both legs are reﬁned (see

pattern 1 in Figure 2), four triangles are output. Nev-

ertheless, only one of these triangles will be needed

when diminishing the detail. Three of them will be

discarded and the other one will be modiﬁed to recre-

ate the geometry of the parent triangle. Therefore, the

patternIn f o value will be calculated with Equation 1

for the triangle that survives and will be 0 for the ones

that will be eliminated. We will see the coarsening

process in more detail in the following subsection.

3.1.1 Coarsening the Mesh

A different process should be applied when dimin-

ishing the detail of the mesh. The depth and

patternIn f o values presented above are the elements

that enable our algorithm to recover less detailed ap-

proximations without having to start again from the

coarsest approximation. It is important to underline

that this is one of the main features of the method we

are proposing.

The ﬁrst step would be to ﬁnd out whether the pro-

cessing triangle can be discarded or if it is the triangle

in charge of retrieving the geometry of the parent tri-

angle. A positive patternIn f o value indicates that it

is the latter case, the triangle will calculate the spatial

coordinates of its parent triangle.

In order to retrieve the spatial coordinates of the

parent triangle we must know which pattern was ap-

plied to create the existing triangle. This is due to the

fact that for each pattern we will perform different cal-

culations for retrieving the three vertices of the parent

triangle. In this situation the patternIn f o value helps

us to know which pattern was applied, as the latest

pattern can be obtained with the next equation:

latestPattern =

patternIn f o

numberO f Patterns

depth−1

(2)

Once we know which pattern was applied, we cal-

culate the position of the vertices and we output the

new geometry with the new patternIn f o value ob-

tained with Equation 3. The way we calculated this

value assures that we will be able to continue coars-

ening the mesh or reﬁning it without any problem.

patternIn f o = patternIn f o − latestPattern · numberO f Patterns

depth−1

(3)

3.2 Camera Movement

We have described how the tessellation process works

but we have considered that the location of the plane

splitting the area where the mesh is and is not tessel-

lated remains unaltered. Nevertheless, in a real case

this line keeps moving all the time as it is usually re-

lated to the camera position.

In these cases, a slightly different process is ap-

plied to correct the appropriate triangles. This algo-

rithm checks each triangle to see whether, with the

new criterion, their parent triangle would need a dif-

ferent tessellation. In that case, the algorithm will

coarsen the triangles and reﬁne them again. It is

important to underline that both processes (coarsen-

ing and reﬁning again) are executed at the same time

and can be continuously executed while the camera is

moving. In this particular case the depth value is very

important as it enable us to know how many tessella-

tion coarsements and reﬁnements must be executed in

those areas that are affected by the camera movement.

4 RESULTS

In this section we will study the performance of our

tessellation method. Our scheme was programmed

with GLSL and C++ on a Windows Vista Operating

TESSELLATING OCEAN SURFACES

321

(a) Second tessellation step (1,024 triangles).

(b) Third tessellation step (3,644 triangles).

Figure 3: Sample tessellation using a distance criterion.

System. The tests were carried out on a Pentium D

2.8 GHz. with 2 GB. RAM and an nVidia GeForce

8800 GT graphics card.

First, we offer some visual results of the tessella-

tion algorithm. Figure 3 presents some snapshots of

a tessellation case where an initial mesh composed of

four triangles is reﬁned according to the distance to

the camera. In the more reﬁned meshes it is possible

to see how the tessellation is not uniform, as those ar-

eas of the mesh which are closer to the observer are

more tessellated than those that are farther. These ﬁg-

ures show how the tessellation process increases the

detail of an input mesh without introducing cracks or

other artifacts. Figure 1 shown at the beginning of this

article presented the most detailed tessellation (Figure

3(c)) with Perlin noise applied to simulate waves.

In order to test the performance of our technique,

Figure 4 presents the time needed for tessellating, an-

imating and rendering the example depicted in Figure

3. This Figure shows how the noise calculations in-

volve increasing the rendering time in 10% while the

tessellation supposes an increase of 60%.

5 CONCLUSIONS

We have presented a method for simulating ocean in

real-time. The presented approach is based on the use

of a new adaptive tessellation scheme which exploits

Figure 4: Performance obtained using a distance criterion.

coherence among extracted approximations. Accord-

ingly, by storing some information, we are capable of

reusing the latest extracted mesh when reﬁning and

coarsening the surface. For future work we are fo-

cused on the inclusion of more effects like refraction

or the interaction of objects with the surface.

ACKNOWLEDGEMENTS

This work has been supported by the Spanish Min-

istry of Science and Technology (TIN2007-68066-

C04-02, TIN2007-68066-C04-01) by Bancaja (P1

1B2007-56) and by ITEA2 (IP08009).

REFERENCES

Boubekeur, T. and Schlick, C. (2005). Generic mesh re-

ﬁnement on GPU. In Proc. of the EUROGRAPHICS

conference on Graphics hardware, pages 99–104.

Darles, E., Crespin, B., and Ghazanfarpour, D. (2007). Ac-

celerating and enhancing rendering of realistic ocean

scenes. In Proc. of WSCG 2007, pages 287–294.

Demers, J. (2005). The making of clear sailing, secrets of

the NVIDIA demo team. http://www.nzone.com/

object/nzone clearsailing makingof1.html.

Hinsinger, D., Neyret, F., and Cani, M. (2002). Interactive

animation of ocean waves. In Eurographics sympo-

sium on Computer animation, pages 161–166.

Johanson, C. (2004). Real time water rendering-introducing

the projected grid concept. Technical report, Master of

Science Thesis, Lund University.

Peachey, D. R. (1986). Modeling wave and surf. Computer.

Graphics, 20(4):75–83.

Perlin, K. (1985). An image synthesizer. SIGGRAPH Com-

put. Graph., 19(3):287–296.

Schmiade, T. (2008). Adaptive GPU-based terrain render-

ing. Master’s thesis, University of Siegen.

Yang, X., Pi, X., Zeng, L., and Li, S. (2005). Gpu-based

real-time simulation and rendering of unbounded

ocean surface. In Int. Conf. on Computer Aided De-

sign and Computer Graphics, pages 428–433.

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

322
