MOTION SEGMENTATION OF ARTICULATED STRUCTURES BY

INTEGRATION OF VISUAL PERCEPTION CRITERIA

Hildegard Kuehne and Annika Woerner

Institute for Anthropomatics, Karlsruhe Institute of Technology, Kaiserstr. 12, Karlsruhe, Germany

Keywords:

Motion segmentation, Articulated body tracking, Motion recognition.

Abstract:

The correct segmentation of articulated motion is an important factor to extract and understand the functional

structures of complex, articulated objects. Segmenting such body motion without additional appearance infor-

mation is still a challenging task, because articulated objects as e.g. the human body are mainly based on ﬁne,

connected structures. The proposed approach combines consensus based motion segmentation with biological

inspired visual perception criteria. This allows the grouping of sparse, dependent moving features points into

several clusters, representing the rigid elements of an articulated structure. It is shown how geometric and

time-based feature properties can be used to improve the result of motion segmentation in this context. We

evaluated our algorithm on artiﬁcial as well as natural video sequences in order to segment the motion of

human body elements. The results of the evaluation of parameter inﬂuences and also the practical evaluation

show, that good motion segmentation can be achieved by this approach.

1 INTRODUCTION

The recovery of articulated structures from moving

elements is one of the main abilities of the human per-

ception system. In this context segmentation of artic-

ulated motion is an important factorto recognize com-

plex motion and to understand the underlying func-

tional structures.

Biological vision systems are able to understand

complex structures from only few motion informa-

tion. Just by seeing some moving features, we are

able to understand the structure of the moving object

and to recognize the perceived motion. One crucial

step in this context is the correct grouping of motion

information, in order to identify elements that are as-

sumed to represent a rigid object, and to use this in-

formation to combine the motion elements for higher

level recognition processes. An example for this has

been given by Johansson’s moving light displays (Jo-

hansson, 1973). The understanding of these biolog-

ical mechanisms is still an open problem in neuro-

science, but its importance for any vision system be-

comes increasingly clear and the work on this subject

is still going on as can be seen e.g. at Giese and Pog-

gio (Giese and Poggio, 2003).

Common motion segmentation algorithms are

usually to unspeciﬁc to keep up with the abilities of

biological vision systems. Many motion segmenta-

tion approaches are dealing with object tracking or

scene understanding, so they are focused on the seg-

mentation of compact, independent moving objects.

When it comes to the handling of dependent motions

of thin elements with only few data points as e.g. in

gesture recognition, they will usually fail.

One step towards the segmentation of these struc-

tures could be the combination of well know consen-

sus based motion segmentation with the constrains

and connectivity rules of biological vision system. It

is well known, that the visual perception usually fol-

lows a system of principles for the grouping of sta-

tionary and moving elements what has been described

e.g. by Ullman (Ullman, 1983). Using these princi-

ples, we usually get a fast accurate guess about our

environment.

In the here presented approach, a RANdom SAm-

ple Consensus (RANSAC) algorithm is used to com-

bine geometric criteria e.g. the afﬁne projection of

motion features with biological inspired constrains

like center of mass distance, distance from main axis

or motion vector distance to group sparse, dependent

moving features to clusters, representing the rigid el-

ements of articulated structures. It is shown how geo-

metric and time-based feature properties can be used

to improvethe result of motion segmentation and help

to overcome common problems in this context.

Kuehne H. and Woerner A. (2010).

MOTION SEGMENTATION OF ARTICULATED STRUCTURES BY INTEGRATION OF VISUAL PERCEPTION CRITERIA.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 54-59

DOI: 10.5220/0002829900540059

 SciTePress

2 RELATED WORK

As motion segmentation is a broad ﬁeld with appli-

cations in a lot of different contexts, we want to re-

strict the following overview to methods dealing with

the clustering and grouping of feature points based on

motion information.

A survey of common motion segmentation algo-

rithms has been given by Tron and Vidal(Tron and

Vidal, 2007). The main algorithms are explained and

their performance is compared based on the results

obtained with a benchmark set. The strengths and

weaknesses of algorithms are also discussed here.

An example for RANSAC in context of motion

segmentation is given by Yan and Pollefeys (Yan and

Pollefeys, 2005), using RANSAC with priors to re-

cover articulated structures. The presented algorithm

is tested with a truck sequence with up to four de-

pended moving segments. But motion segmentation

by consensus can also be used to merge already seg-

mented groups. Such an approach is proposed by

Fraile et al. (Fraile et al., 2008). Here, a consensus

method is used to merge feature groups tracked on

video in order to analyze scenes from public transport

surveillance cameras. Another reference is the ap-

proach presented by Pundlik and Birchﬁeld (Pundlik

and Birchﬁeld, 2008) for motion segmentation at any

speed. Here an incremental approach to motion seg-

mentation is used to group feature points by a region-

growing algorithm with an afﬁne motion model.

3 MOTION SEGMENTATION BY

CONSENSUS

One of the most popular applications of the RANSAC

algorithm is probably the stitching of two or more

overlapping images to a panoramic view. This is done

by comparing a lot of different point correspondences

in order to ﬁnd the set that ﬁts best into a projection

to ﬁnd the largest group of elements with the most

uniform motion. This makes the algorithm very ac-

curate with a high robustness against outliers. Trans-

lating this idea to the problem of articulated motion

segmentation, we can assume more than one moving

region which can be approximated by different pro-

jection matrices. For a video sequence with articu-

lated body motion it is obvious that there is usually

more than one motion projection. Given a set of 2D

feature points F

= f

,..., f

at frame n, the aim is to

ﬁnd all projections P

= P

,...,P

that approximate

the translations of the feature set from frame n over

the next m frames.

It can be assumed that an articulated motion can

be deﬁned as a set of projections each determining a

set of inliers, which is also called consensus set CS,

so that the projection P

represents the projection of

the points f

CS(i)

over the frames n to n+ m. As there

is also no information about the number of expected

projections, an iterative approach is chosen that does

not need any prior knowledge about the number of

regions but terminates when the largest regions are

found. The iterative random sample consensus works

as follows:

1. Estimate random minimal sample set mss from all

given feature points F

2. Calculate the projection P

mss

from f

mss

over the

next m frames

3. Apply the projection P

mss

to all feature points F

4. Calculate the error of every feature point deﬁned

by the error function E( f

) (see sec.5, equ.6). All

features whose error is below the predeﬁned threshold

thresh are building the new consensus set f

5.Calculated the overall cost of the consensus set by

cost function C( f

). (see sec.5, equ.9)

6. If the cost of the new consensus set is decreased or

if the costs are the same and the size of the new con-

sensus set has increased, update the ﬁnal consensus

set and its cost with the new one

7. Repeat the steps 1-6 until either all feature points

had been assigned to a consensus set or the consen-

sus set hasn’t been updated for a predeﬁned number

of iterations or a predeﬁned maximum number of it-

erations is reached

The ﬁnal consensus set is assumed to be the best

projection of the largest set of remaining feature

points. So, the projection as well as the consensus set

is deﬁned as a new group and the features assigned

to this group are removed from the feature set. This

procedure is repeated until either the size of the last

found consensus set or the number of remaining fea-

ture points becomes to small.

4 VISUAL PERCEPTION

CRITERIA

Perceiving a group of moving features the biologi-

cal perception systems usually depends a number of

perceptual constrains, that help to group clusters of

moving features. The following criteria are based on

human interpretation of perception of rigid objects

from 2D motion described by Ullman (Ullman, 1983).

Assuming features are situated on one rigid element,

they will probably follow one or more of follow crite-

ria:

MOTION SEGMENTATION OF ARTICULATED STRUCTURES BY INTEGRATION OF VISUAL PERCEPTION

CRITERIA

Geometric Projection. A feature point f

is rather

located on the same rigid element as the random min-

imum sample set f

mss

if the symmetric reprojection

error e

of f

of the projection P

mss

from f

mss

over all

m frames is small:

( f

) =

m− 1

n+m−1

∑

i=n

((P

mss

) − f

i+1

)

((P

mss

/ f

i+1

) − f

)

(1)

Local Distance. A feature point fa is rather located

on the same rigid element if its distance d from the

center of mass of the minimum sample set M( f

mss

)

over m frames is small:

d( f

,M( f

mss

)) =

n+m

∑

i=n

( f

− M( f

mss

))

(2)

Motion Vector. A feature point f

is rather located on

the same rigid element if it has the same or a similar

motion vector as the minimum sample set f

mss

( f

) =

m− 1

n+m−1

∑

i=n

(d( f

, f

i+1

) − d( f

, f

i+1

))

(3)

Axial Distance. A feature point fa is rather located

on the same rigid element if the distance da to the

axis spanned by the minimum sample set axis( f

mss

)

is small:

( f

) =

n+m

∑

min(d( f

(i),axis( f

mss

))) (4)

All these criteria are then integrated in the random

sample consensus algorithm.

5 INTEGRATION OF

PERCEPTION CRITERIA

The listed parameters are integrated in the RANSAC

algorithm by using them as penalty factor for the over-

all error estimation. In a common RANSAC approach

the error function (see sec.3, step 4) is based on the

symmetric reprojection error, as has been described

in equ.1. So, the common error function is deﬁned

by:

org

( f

) = e

( f

) (5)

To integrate the predeﬁned visual perception criteria,

the related distances of the feature point to the actual

minimum sample set are integrated in this function.

To achieve this, all factors are weighted and added to

the original error estimation. So the new consensus

set error function is deﬁned by:

new

( f

) = e

( f

) + w

· d( f

,M( f

mss

))+

· d

( f

) + w

· d

( f

)

(6)

Here, w

, w

and w

represent the weighting factors

for the local distance, motion vector and axial dis-

tance. The feature distance as well as the distance

from the principal axis is normalized over the half im-

age diagonal, whereas the motion vector distance is

normalized from [0...1]. Additionally, the visual per-

ception criteria is applied to the overall cost function

of the consensus set (sec.3, step 4). Usually the cost

function is based on the error function (equ.5) and is

deﬁned as:

C( f

) =

n+m

∑

i=n

C( f

) (7)

where n is the number of elements of the consensus

set. The cost function for every element is deﬁned as:

C( f

) =



org

( f

),i fE

org

( f

) < thresh

thresh,ifE

org

( f

) ≥ thresh

(8)

where thresh refers to the predeﬁned threshold that

has been used to select the consensus set (see sec.3,

step 4). The visual perception criteria are integrated

in the cost function by replacing the original error

formulation by the new error function formulated in

equ.6:

C( f

) =



new

( f

),i fE

new

( f

) < thresh

thresh,ifE

new

( f

) ≥ thresh

(9)

So both, the selection of the consensus set as well as

the overall cost function are adapted and the inﬂuence

of every criterium is controlled by the error function.

6 IMPLEMENTATION

The realization of the here presented approach has

been done as follows: First, the feature points of a

video sequences are detected and tracked by a motion-

based feature tracking algorithm (Koehler and Wo-

erner., 2008), which is mainly based on the pyramidal

implementation of the KLT feature tracking method

described by Bouget (Bouguet, 2002), following the

’good features to track’ method of Shi and Tomasi

(Shi and Tomasi, 1994).

For every frame n, the feature set is reduced to

those changing continuously their position over the

next m frames to estimate a projection. Only, if the

number of those features is larger than a predeﬁned

minimum, the RANSAC algorithm is applied.

The RANSAC implementation of the here pre-

sented approach is mainly based on the Matlab open

source library by Marco Zuliani (Zuliani, 2008) and

follows the description in section 3. The result for ev-

ery frame is a set of groups representing the motion

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

segments for this frame. To avoid an over segmenta-

tion a maximum number of groups can be deﬁned, so

that only the largest groups are considered. This pre-

vents the segmentation of groups with only few fea-

tures that can also result from outliers or noise.

7 EVALUATION

The algorithm is evaluated on several video sequences

with artiﬁcial and natural human body movements: an

artiﬁcial rendered motion with a textured avatar lifting

up his hands (Figure 1a), an artiﬁcial rendered motion

with a walking avatar (Figure 1b) and a real human

motion (Figure 1c) captured with a BumbleBee cam-

era with 20

fps and a resolution of 640x480px with

duration of ca. 3 seconds. Each video sequence com-

prises ca. 60 frames. The features of the evaluated

motion sequences are labeled by hand to get a ground

truth for the clustering algorithm. For the hand label-

ing up to 10 clusters (head, body, left upper and lower

arm, right upper and lower arm, left upper and lower

leg, right upper and lower leg) are deﬁned represent-

ing the signiﬁcant rigid parts of the human body as

shown in Figure 2. To evaluate the different percep-

tion criteria, we analyzed the correctness and speci-

ﬁcity of the clustering of the labeled body segments.

7.1 Evaluation of Perception Criteria

The inﬂuence of the described perception criteria, lo-

cal distance and mean motion as well as axial dis-

tance, on the clustering result is analyzed. There-

fore, the feature points of the all video sequences are

segmented on basis of a rotation-scaling-translation

(RST) based-projection. For every frame, the feature

motion over the last three frames has been considered.

The segmentation results of everyframe are compared

to the ground truth and true positive and false positive

rate is calculated. The true positive and false positive

rate of the complete video sequence is calculated by

the mean true positive and false positive rate over all

frames.

To evaluate the clustering quality with regard to

different weighting factors, w

, w

and w

, all com-

binations of weighting factors are tested for the val-

ues 0.0, 0.5, and 1.0 with increasing thresholds (0.1,

0.3, 0.5, 0.7, and 0.9). The best and the worst re-

sult, as well as the original RANSAC segmentation

is shown in Figure 3. As can be seen the receiver

operator characteristics (ROC) of segmentation with

additional perception criterions vary to the original

RANSAC segmentation. Best performance can be

found for a weighting factor of w

= 1, w

= 0

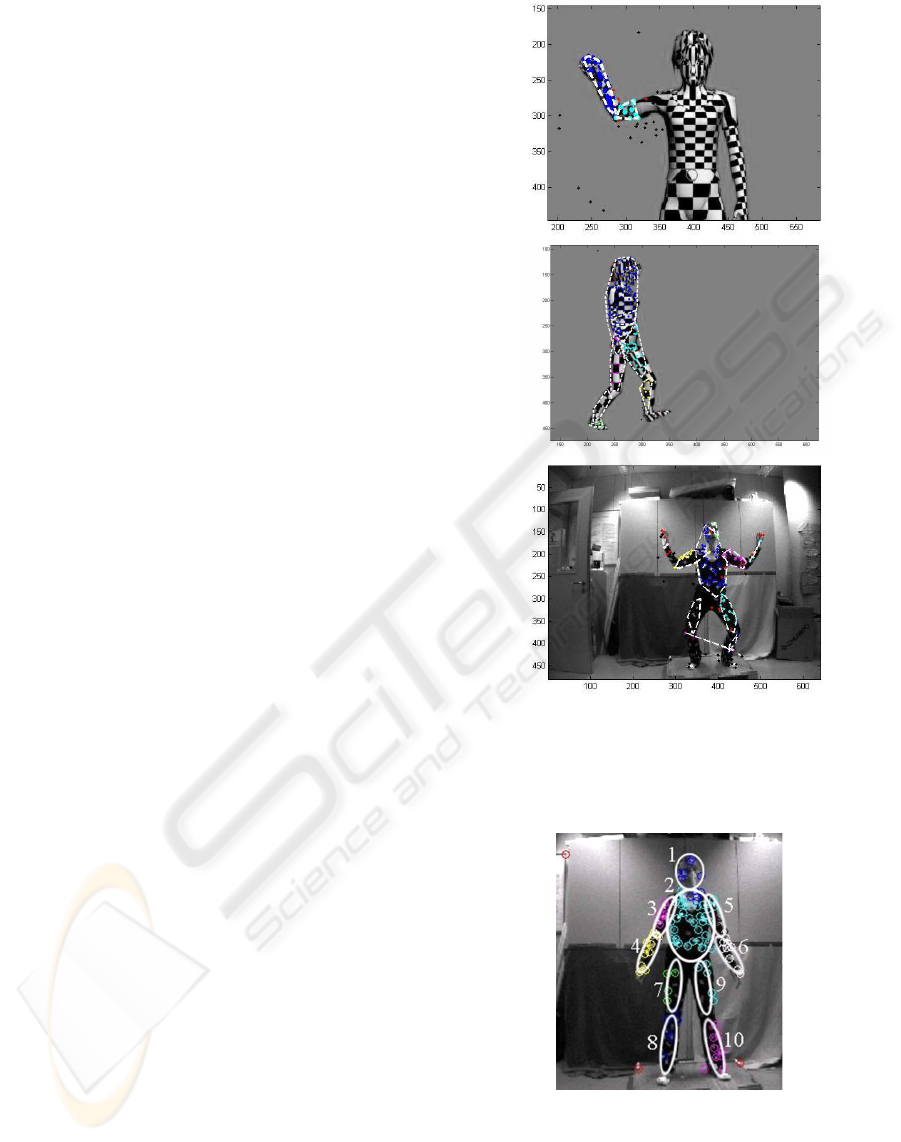

Figure 1: Results for the three different video sequences

used for evaluation, a) and b) are artiﬁcial rendered waving

and walking motions, c) is a video sequence with natural

full body motion. The segmented regions are shown by dif-

ferent feature color.

Figure 2: Ground truth for the evaluation of clustering and

corresponding labeling of body segments: 1. head, 2. body,

3. upper right arm, 4. lower right arm, 5. upper left arm,

6. lower left arm, 7. upper right leg, 8. lower right leg, 9.

upper left leg, 10. lower left leg.

MOTION SEGMENTATION OF ARTICULATED STRUCTURES BY INTEGRATION OF VISUAL PERCEPTION

CRITERIA

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

False Positive Rate

True Positive Rate

Example for ROC results − Waving

Usual Ransac result

Worst segmentation result

Best segmentation result

Worst Result:

= 0, w

= 1

Ransac result without

perception criteria

Best result:

= 1, w

= 0

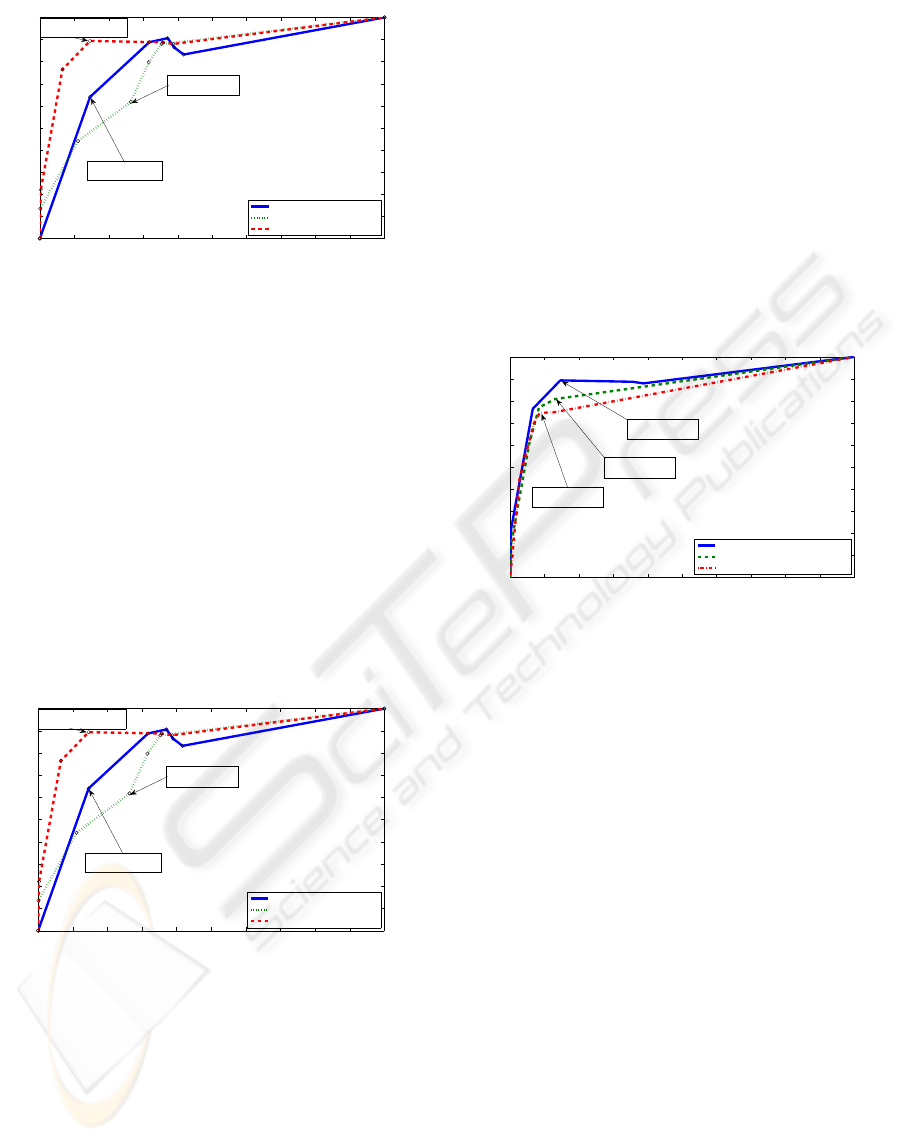

Figure 3: Best and worst ROC curves for RST based seg-

mentation with different weights for artiﬁcial avatar motion

’Waving’. Best result has a weighting factor of w

= 1,

= 1, w

= 0 at thresh = 0.3, worst has a weighting fac-

tor of w

= 0, w

= 1 at thresh = 0.3.

and thresh = 0.3 with a true positive rate of 0.8937

and a false positive rate of 0.1458. The samples in-

cluding only the axial distances (w

= 0, w

= 0,

= 1, thresh = 0.3), are performing worse than

usual RANSAC segmentation results. The best results

of the true-positive and false-positive rate for the dif-

ferent criterions for the different video sequences are

shown in Figure 4. The relation of true positive and

false positive rate is usually better, the higher local

distance w

and mean motion w

are weighted. They

also show better performance when the weighting of

the axial distance is low.

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

False Positive Rate

True Positive Rate

Example for ROC results − Waving

Usual Ransac result

Worst segmentation result

Best segmentation result

Worst Result:

= 0, w

= 1

Ransac result without

perception criteria

Best result:

= 1, w

= 0

Figure 4: Comparison of best ROC results for RST based

segmentation of different video motion sequences with the

used weighting factors.

7.2 Evaluation of Segmentation over

Three, Five and Ten Frames

As the segmentation is done over time, we have to

consider the tradeoff between a long time period,

which would be good to get reliable motion estima-

tion and the problem that features tend to vanish be-

cause of occlusions etc. So, if the time period is cho-

sen to long, it can happen that not enough features

exist to reconstruct the motion. To analyze this trade-

off, we compared the best results of segmentations

over three, ﬁve and ten frames. The feature points of

the ﬁrst video sequence are segmented with different

weighting factors, and for every frame, the properties

of the last three, ﬁve or ten frames are considered.

We can see that, comparing the best results of ev-

ery segmentation (Figure 5), the true positive as well

as the false positive rate decreases the more frames

are used. Noteworthy is that the best result over ten

frames, has been achieved without the integration of

any additional weighting factors (w

= 0, w

= 0,

= 0, thresh = 0.3).

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

False Positive Rate

True Positive Rate

Comparsion of best ROC results for different frame counts

Best ROC result over 3 frames

Best ROC result over 5 frames

Best ROC result over 10 frames

3 frames:

= 1, w

= 0

5 frames:

= 1, w

= 0

10 frames:

= 0, w

= 0

Figure 5: Comparison of best ROC result for segmentation

of artiﬁcial avatar motion Waving over 3, 5 and 10 frames.

True positive as well as the false positive rate of best results

decrease with a higher number of frames used for segmen-

tation.

7.3 Evaluation of RST and

Homographic based Segmentation

To ﬁnd elements which could be underlying by a rigid

element, two different geometric projections can be

used. From a geometrical point of view, it would

be accurate to estimate the homographic projection

of the feature motion, which needs at least 4 points

to calculate the transformation. But from a per-

ceptional point of view, also a Rotation-Translation-

Scaling transformation, which only needs two points

to be computed, can be assumed. This can be seen on

a simple example of Johansson point light displays.

Usually, the human perception system only needs one

point at every joint to build up a human pose. This

means that for the reconstruction and recognition of

a rigid element, only two points are enough. So it is

likely, that biological vision systems are recognizing

information on the basis of RST transformations as

well as on the basis of homographic projections.

To evaluate this characteristic, both projection cri-

teria had been analyzed. To do this, the feature points

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

of the ﬁrst video sequence are segmented on basis of

a RST as well as on a homographic projection with

different weighting factors.

Comparing the results which had been achieved

with a RST projection with those of a homographic

projection as can be seen in Figure 6, we can see that

the segmentations on the basis of an RST projection

has a much better relation of true positive and false

positive rate than those on basis of a homographic

projection. This could amongst others be caused by

the fact that a RST projection is more robust against

noise, because here, smaller variations don’t have so

much inﬂuence on the overall result as they would

have considering a homographic projection.

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

False Positive Rate

True Positive Rate

Best ROC result for RST and homographic projection

Best ROC result RST projection

Best ROC result homographic projection

RST−based

= 1, w

= 0

homograpy−based

= 0.5, w

= 1, w

= 0

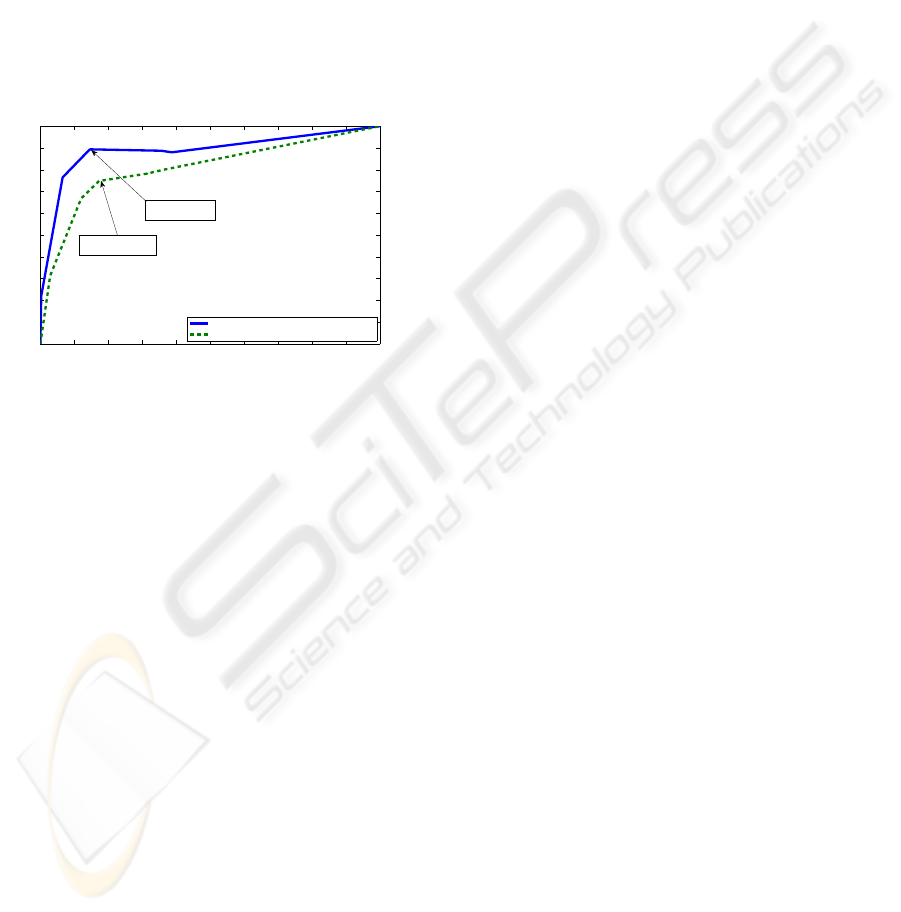

Figure 6: Comparison of best ROC results of RST based

segmentation with homographic based segmentation for ar-

tiﬁcial avatar motion Waving.

8 CONCLUSIONS

We presented a motion segmentation approach that

combines a consensus based motion segmentation al-

gorithm with criteria from biological vision system in

order to cluster sparse groups of feature points only

by their motion information. It is show, that this com-

bination has the potential to cluster also small, depen-

dent moving features.

The results of the performance evaluation of pa-

rameter inﬂuences as well as the practical evaluation

on artiﬁcial and real human motion video sequences

show that good motion segmentation can be achieved

by this approach

REFERENCES

Bouguet, J. Y. (2002). Pyramidal implementation of the

lucas kanade feature tracker: Description of the algo-

rithm.

Fraile, R., Hogg, D., and Cohn, A. (2008). Motion seg-

mentation by consensus. international conference on

pattern recognition. ICPR.

Giese, M. and Poggio, T. (2003). Neural mechanisms for

the recognition of biological movements. Nature Re-

views Neuroscience, 4:179–192.

Johansson, G. (1973). Visual perception of biological mo-

tion and a model for its analysis. Perception and Psy-

chophysis, 14:201–211.

Koehler, H. and Woerner., A. (2008). Motion-based feature

tracking for articulated motion analysis. In IEEE Int.

Conf. on Multimodal Interfaces (ICMI 2008), Work-

shop on Multimodal Interactions Analysis of Users a

Controlled Environment., Chania, Greece.

Pundlik, S. J. and Birchﬁeld, S. T. (2008). Real-time motion

segmentation of sparse feature points at any speed.

IEEE Transactions on Systems, Man, and Cybernet-

ics, 38(3):731–742.

Shi, J. and Tomasi, C. (1994). Good features to track. In

IEEE, editor, IEEE Conference on Computer Vision

and Pattern Recognition, Seattle.

Tron, R. and Vidal, R. (2007). A benchmark for the com-

parison of 3-d motion segmentation algorithms. IEEE

Conference on Computer Vision and Pattern Recogni-

tion, CVPR, pages 1–8.

Ullman, S. (1983). Computational studies in the interpreta-

tion of structure and motion: Summary and extension.

Human and Machine Vision.

Yan, J. and Pollefeys, M. (2005). Articulated motion seg-

mentation using ransac with priors. ICCV Workshop

on Dynamical Vision.

Zuliani, M. (2008). Ransac toolbox for matlab.

http://www.mathworks.com/matlabcentral/ﬁleex

change/18555.

MOTION SEGMENTATION OF ARTICULATED STRUCTURES BY INTEGRATION OF VISUAL PERCEPTION

CRITERIA
