INTERACTIVE DESIGN AND DEBUGGING

OF GPU-BASED VOLUME VISUALIZATIONS

Jennis Meyer-Spradow, Timo Ropinski, J

org Mensmann and Klaus Hinrichs

Visualization and Computer Graphics Research Group (VisCG), University of M

unster, Germany

Keywords:

GPU-based volume rendering, Visual programming, Data ﬂow networks.

Abstract:

There is a growing need for custom visualization applications to deal with the rising amounts of volume data

to be analyzed in ﬁelds like medicine, seismology, and meteorology. Visual programming techniques have

been used in visualization and other ﬁelds to analyze and visualize data in an intuitive manner. However, this

additional step of abstraction often results in a performance penalty during the actual rendering. In order to

prevent this impact, a careful modularization of the required processing steps is necessary, which provides

ﬂexibility and good performance at the same time. In this paper, we will describe the technical foundations

as well as the possible applications of such a modularization for GPU-based volume raycasting, which can

be considered the state-of-the-art technique for interactive volume rendering. Based on the proposed mod-

ularization on a functional level, we will show how to integrate GPU-based volume ray-casting in a visual

programming environment in such a way that a high degree of ﬂexibility is achieved without any performance

impact.

1 INTRODUCTION

In many domains the amount of volume data is ris-

ing due to new or reﬁned sensing and simulation tech-

nologies and the more widespread use of data acquisi-

tion techniques. For example, well established imag-

ing techniques such as computed tomography (CT)

and magnetic resonance imaging (MRI) and more

recent functional imaging techniques like positron

emission tomography (PET) are increasingly used in

daily medical routine. In addition, due to the om-

nipresence of volume data and the increasing familiar-

ity with these data the problems posed and the ques-

tions asked by the users become more and more com-

plex.

To answer such a question often new visualiza-

tion techniques need to be designed. Many mod-

ern volume visualizations employ GPU-based ray-

casting (Kr

uger and Westermann, 2003), which can

be considered the state-of-the-art technique for ren-

dering volumetric data. Its main advantages are the

high ﬂexibility and the achieved image quality. By

utilizing modern graphics processing units (GPUs)

for all computations performed during the ray traver-

sal, interactive frame rates are achievable even when

applying quite complex effects. However, graphics

programming and especially GPU programming is

complex, error-prone, and time-consuming.

Applications intended for the design of new vi-

sualization techniques often use visual programming

paradigms in order to manage the described complex-

ity. The rendering process is decomposed into func-

tional components which can be ﬂexibly arranged in

data ﬂow networks. Since usually this decomposition

is done on a rather high level, the resulting entities

are quite complex, e. g., a component which performs

a complete GPU-based volume raycasting. This level

of abstraction results in rather general components,

which consequently leads to reduced performance.

In this paper, we present a careful modularization

of the GPU-based volume raycasting process and its

realization on current graphics hardware. By decom-

posing the raycaster itself into small-grained func-

tional components (called processors), we are able to

exploit the visual programming paradigm on a lower

level and are thus able to achieve unbiased rendering

performance. By introducing the visual programming

concept to low-level GPU-rendering, we are able to

transparently interweave it with the visual program-

ming concepts used on a higher level, e. g., for appli-

cation prototyping. Thus, complex visualization ap-

plications can be generated exploiting a single perva-

sive visual programming paradigm, which gives full

control on the application level as well as the GPU

239

Meyer-Spradow J., Ropinski T., Mensmann J. and Hinrichs K. (2010).

INTERACTIVE DESIGN AND DEBUGGING OF GPU-BASED VOLUME VISUALIZATIONS.

In Proceedings of the International Conference on Computer Graphics Theory and Applications, pages 239-245

DOI: 10.5220/0002832302390245

 SciTePress

level. The latter is essential in order to generate

applications, which can visualize today’s data sets at

interactive frame rates. To further support the rapid

development of such applications, we introduce vi-

sual debugging functionality, which gives access to

intermediate results otherwise not accessible in the ﬁ-

nal application. All the described concepts are avail-

able as open source within the Voreen

volume ren-

dering engine (Meyer-Spradow et al., 2009). Within

this framework, new visualization applications can be

generated in the development mode, in which the user

has full access to all available processors, the under-

lying data ﬂow network as well as a preview visual-

ization (see Figure 1 (a)). To test these applications,

the visualization mode can be used, which gives only

access to the user interface components speciﬁed by

the application developer (see Figure 1 (b)). In the re-

mainder of this paper, we will describe the proposed

modularization of the GPU-based volume raycasting

and demonstrate the implications on the application

development.

2 RELATED WORK

The analysis and visualization of volume data has

become a frequent task for scientists, and therefore

many libraries, applications, and rapid prototyping

environments (RPEs) are available. Since the use

of libraries requires extensive programming skills

and applications are limited to built-in tasks, RPEs

are very popular. They often use visual program-

ming (Johnston et al., 2004) to let the user graph-

ically combine objects in order to achieve the de-

sired goals. All concepts described in this paper

are realized within the Voreen volume rendering en-

gine (Meyer-Spradow et al., 2009), which is freely

available.

The established RPEs like Amira (Stalling et al.,

2005), AVS/Express (Hewitt et al., 2005), Mevis-

Lab (Rexilius et al., 2006), SCIRun (Weinstein et al.,

2005), and VisTrails (Bavoil et al., 2005) focus on

the entire process of analyzing data; the visualiza-

tion is only the ﬁnal step and in some systems even

a minor aspect. Mostly slice-based methods are used

for the visualization of volumetric data which have

algorithm-immanent disadvantages such as less ﬂexi-

bility and worse image quality in comparison to ray-

casting. MevisLab also provides a GPU-based ray-

casting block which supports reconﬁguration of the

renderer on a per-object basis (Link et al., 2006),

but it does not allow to decompose the raycaster.

www.voreen.org

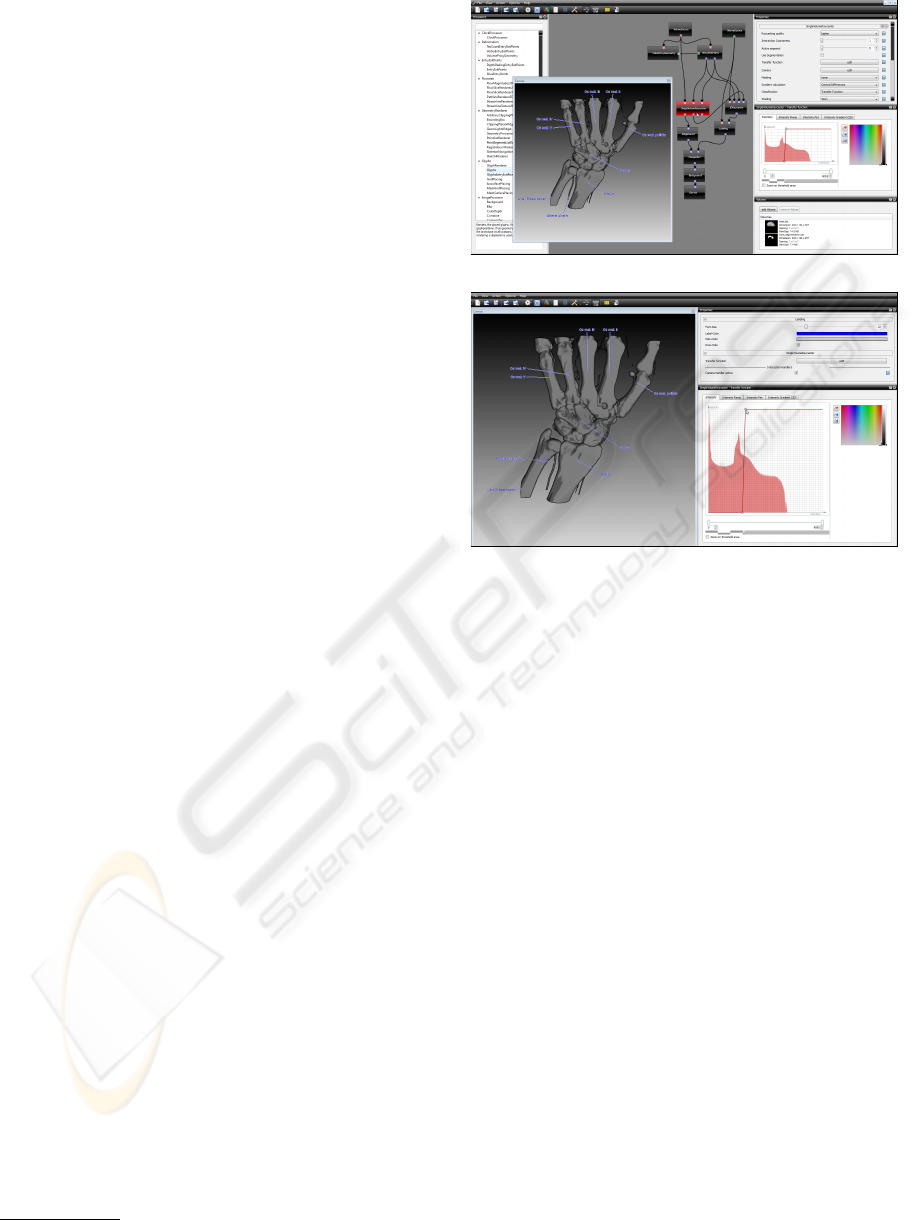

(a) development mode.

(b) visualization mode.

Figure 1: Visual programming is possible on multiple lev-

els of abstraction: in the development mode, the user can

modify the data ﬂow network and choose, which properties

are editable in the visualization mode. In the visualization

mode only these properties are shown while the data ﬂow

network is hidden.

Furthermore, the relatively new open source RPE

XIP (Prior et al., 2007) also uses only slicing for

volumetric rendering. Overviews and comparisons

of some of these packages are given in (Hahn et al.,

2003; Bitter et al., 2007). Caban et al. compared sev-

eral open-source libraries and applications in (Caban

et al., 2007). Botha presented an RPE in his PhD

thesis (Botha, 2005); a special feature is the hybrid

scheduling approach which supports event-driven as

well as demand-driven scheduling (Botha and Post,

2008). It uses the VTK library for visualization which

supports slicing only.

A rendering framework for using different

GPU-based raycasting techniques is presented

in (Stegmaier et al., 2005), it provides some basic

functionality and achieves its ﬂexibility by replacing

the shaders. Since raycasting is not split into sub-

tasks, the advantage of combining small blocks is

missing. R

oßler et al. present a framework (R

oßler

et al., 2008) which allows the dynamic creation of a

volume rendering graph. Speciﬁc fragment programs

are derived from the graph to obtain and combine

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

240

various GPU-based rendering techniques. However,

these systems only focus on the shader development

and do not provide the visual programming paradigm

on all abstraction levels. Plate et al. introduced

a framework for rendering arbitrarily intersecting

volumes with the support of volume lenses (Plate

et al., 2007). Each conﬁguration is tiled into convex

regions, which are rendered separately using a

slicing algorithm. By using a graphical editor each

region can be treated individually, and the resulting

renderings are combined into the ﬁnal image.

To summarize, several visual programming envi-

ronments support modularized data processing, but to

the best of our knowledge there is no one which pro-

vides a sufﬁcient interweaving of GPU programming

and application development, which is essential in or-

der to generate interactive applications used for visual

exploration.

3 ENABLING MULTI-LEVEL

VISUAL PROGRAMMING

In this section, we describe our modularization

of GPU-based raycasting (Kr

uger and Westermann,

2003), which allows to apply the visual programming

paradigm on multiple abstraction levels in order to

generate high-quality interactive visualization appli-

cations. GPU-based raycasting can be considered the

state-of-the-art technique for interactive volume ren-

dering. For each screen pixel a ray is cast from the

virtual camera through the pixel into the scene, and

the emission and absorption characteristics of each

voxel intersecting the ray are calculated. In general, a

voxel’s intensity is not used directly, but as an argu-

ment of a color and transparency transfer function.

The rendering is performed on the graphics pro-

cessing unit (GPU), the volume data is stored in a

3D volume texture. Since knowledge about the con-

cepts behind GPU-based volume raycasting is essen-

tial, we brieﬂy review the technique. A proxy geom-

etry is used to represent the geometric shape of the

data set. For each ray the intersection points with

the proxy geometry, i. e., an entry point and an exit

point, have to be determined. To do this, the color

parameters of the vertices of the proxy geometry are

initialized with the (color-coded) coordinates neces-

sary for fetching the voxels from the 3D texture. In

order to calculate the entry points the proxy geome-

try is transformed into the current view, rendered, and

the result is stored in a 2D texture. Due to the ini-

tial color-coding of the vertices of the proxy geom-

etry, during rendering the GPU’s color interpolation

unit automatically produces for each pixel’s ray the

color-coded position information of its entry point.

The exit points are created in a second pass by render-

ing only the back-faces. During the subsequent ray-

casting performed within a fragment shader, the entry

and exit points are used to calculate a ray’s direction

and length.

In our system, complex volume visualizations can

be composed by visually combining several func-

tional building blocks called processors, each per-

forming a speciﬁc task. Data, such as images and vol-

umes, ﬂow between the processors, i. e., the output of

one processor is transferred as input to one or more

other processors through processor ports. Inports are

used for input and outports for output. Different types

of ports are deﬁned to determine which inport/outport

pairs are compatible and thus can be connected for

transfer. Typical port types allow to transfer volume,

image, or geometry data. So far several processors

exist for processing volumes or images, similar as in

the systems discussed in Section 2. However, addi-

tionally we have transferred the processor concept to

the GPU level, by decomposing GPU-based raycast-

ing into separate processors, which can be combined

ﬂexibly without. The challenge of this decomposition

is to gain ﬂexibility through abstraction by still allow-

ing interactive frame rates, which requires to incorpo-

rate the boundary conditions of GPU programming.

Furthermore, our decomposition leads almost auto-

matically to an object-oriented design: processors are

objects, they encapsulate information, and inheritance

can be used to extend their functionality. However,

the architecture of the underlying graphics system,

OpenGL, is not object-oriented. For efﬁciency rea-

sons OpenGL’s state is determined by global vari-

ables, and polygonal data or textures are accessible

via references from anywhere within an OpenGL pro-

gram. Encapsulating such data into objects would re-

sult in a signiﬁcant loss of performance. Thus, we had

to carefully trade-off between achieving high graphics

performance and following guidelines for pure object-

oriented design.

3.1 Decomposing GPU-based

Raycasting

We have decomposed the raycasting process into

three modules: proxy geometry management (PGM),

entry and exit point generation (EEPG), and the ac-

tual ray traversal (RT). The EEPG uses the PGM to

create entry and exit point textures from which the RT

processor fetches the entry point and the exit point for

each ray and performs the raycasting. This decompo-

sition gives us a ﬂexibility on the GPU level, which

allows to reuse as well as adapt selected functional-

INTERACTIVE DESIGN AND DEBUGGING OF GPU-BASED VOLUME VISUALIZATIONS

241

ities. Thus, for each of these three components dif-

ferent implementations can be generated which per-

form speciﬁc tasks. For instance, by modifying the

proxy geometry, the part of the volume data to be

visualized can be changed. An example is apply-

ing clipping planes to a cuboid-shaped proxy geom-

etry. This leaves a clipped proxy geometry, and the

entry and exit points are adjusted automatically be-

cause they are calculated using the color-coded posi-

tions of the changed vertices. More complex effects

can be achieved by applying a proxy geometry pro-

cessor which uses a more elaborate mesh represen-

tation for the proxy geometry and relaxes the rela-

tion between vertex positions and colors. Thus, keep-

ing the colors constant and changing the vertex posi-

tions can produce a rendering of a deformed volume.

Similarly the EEP generation can be modiﬁed to pre-

pare a volume rendering for the integration of polyg-

onal objects, e. g., glyphs. Assuming that the polyg-

onal objects are opaque, it is sufﬁcient to initialize

the colors of the vertices with their positions (in tex-

ture coordinates—just the same as in the PGM) and

render them onto the exit point image. Rays which

intersect such polygonal objects will terminate at the

foremost intersection points, and the resulting volume

rendering can be combined later with an image of the

polygonal objects.

Thus, the raycasting process is split into mainly

three functional components, which have been real-

ized as individual C++ classes. Instances of these

classes form the processor network. To propagate the

decomposition further towards the GPU, the proces-

sors themselves are also decomposed into combinable

functional modules, which can be realized through

shader code. For instance, the ray traversal proces-

sor uses a GLSL fragment shader for the actual com-

putations. This shader code is separated into logical

tasks whose replacement might be desired. Thus, we

are for instance able to easily change the compositing

without affecting the rendering performance. In the

following subsection we describe this decomposition

on a shader level.

3.2 Modularization of the Ray Traversal

In order to identify the necessary logical units, we

have analyzed several shader implementations and

identiﬁed four points in which they typically differ:

• Gradient calculation: gradients can be calcu-

lated with different methods or pre-calculated

ones can be used; possibly a visualization method

does not need any gradients.

• Transfer function: a transfer function can be one

or multi dimensional; some visualization methods

1 vec4 r ayT ra ver sa l ( in vec3 first , in vec3 la st )

2 {

3 vec4 result = vec4 (0 .0 ) ;

5 // calculate ray parameters

6 float t Inc r , tE nd ;

7 vec3 rayDir ;

8 raySe tu p ( first , las t , r ayDi r , tI ncr , tE nd ) ;

10 float t = 0 .0 ;

11 RC_ BE GIN _L OOP {

12 vec3 sam pl eP os = f ir st + t* ra yD ir ;

13 vec4 vo xe l = get Vo xe l ( vol_ , vo lP ar am s_ ,

14 sam pl eP os );

16 // calculate gradients

17 vo xe l . xy z = RC_ CA L C_ GRA DI E NT S ( v ox el . xyz ,

18 sa mp le Po s , vol_ , vo lP ar am s_ ,

19 t , r ayDi r , e nt ryPts _ );

21 // apply classification

22 vec4 co lo r = R C_ A PL _CL ASS IF I CA TIO N ( v ox el ) ;

24 // apply shading

25 co lo r . rg b = RC_ AP L_S HA DIN G ( v oxel . xyz ,

26 sa m p l e P o s , volParams_ ,

27 colo r . rgb , color . rgb ,

28 colo r . r gb ) ;

30 // if opacity greater zero,

31 // apply compositing

32 if ( c o l o r . a > 0 .0)

33 result = R C_ A P L_ C O MP O S I T I N G ( r esul t ,

34 color , sa m p l e P o s , voxel . xyz ,

35 t, tDepth ) ;

36 }

37 RC _ E N D_L O O P ( resu l t ) ;

38 return result ;

39 }

Listing 1: The generic fragment program for ray traversal.

The methods named RC * are replaced at shader compile

time with specialized methods.

may use the intensity values directly without us-

ing a transfer function.

• Shading: the shading can be calculated in differ-

ent ways (local, local with shadows, global); some

visualizations do not need any shading.

• Compositing: the compositing determines how

the current value will be combined with the al-

ready calculated ones, e. g., DVR differs from

MIP.

By providing different alternatives for one or more

of these functional blocks a lot of ﬂexibility can be

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

242

gained. An obvious solution is to implement for

each alternative a separate function, which is exe-

cuted at runtime. However, when introducing such a

degree of abstraction, the limitations of GPUs have

to be taken into account in order to achieve good

performance results. For instance, a switch-case

block (resp. an equivalent if-else if structure since

GLSL does not support the former) in each case

would be the straight-forward but unacceptable solu-

tion, since due to the branching this would be excep-

tionally time-consuming on GPUs. Since OpenGL

shader programs are not compiled together with the

host program during application development but by

the graphics driver at runtime of the application, we

have decided to generate the shader from arbitrary

components at runtime. In contrast to using uni-

forms, this approach is especially beneﬁcial when

dealing with changes occurring at a low frequency.

Listing 1 shows the fragment program skeleton we

use. Method placeholders can be replaced at runtime

with speciﬁc versions that begin with the preﬁx RC .

The #define directive of GLSL is used for deﬁning

macros for these placeholders.

This approach gives us the ﬂexibility to replace

function calls during runtime. To still achieve a com-

prehensive shader, which is not fraught by all deﬁned

alternatives for a function, we have extended GLSL

with an #include directive known from the C prepro-

cessor in order to be able to store different implemen-

tations of the methods in separate ﬁles. Thus we pro-

vide a set of shader includes, which deﬁne the func-

tions to be used. To illustrate the reuse of the shader

decomposition, the placeholder for the compositing

methods (lines 33–35) is speciﬁed as an example be-

low.

RC _ A PP L Y _ C O MP O S IT I N G ( r esul t , c olo r , sa m p l e P o s ,

vo x e l . xyz , t , t Depth ) ;

The parameters passed to the method contain the fol-

lowing information: result represents the accumu-

lated values of the ray traversal up to now, color is

the processed (i. e., classiﬁed and shaded) data value

of the current position, samplePos is the current ab-

solute position in the volume, voxel.xyz stores the

gradient information, t is the current position on the

ray, and tDepth contains the currently designated

depth value for this parameter. The signatures of the

implementing methods vary and depend on the inter-

nally needed variables. For DVR, MIP and isosurface

raycasting, they look as follows:

vec4 co m p osi t e DV R ( in vec4 r esul t , i n vec4 c olo r ,

in float t , in o u t float t D epth ) ;

vec4 co m p osi t e MI P ( in vec4 r esul t , i n vec4 c olo r ,

in float t , in o u t float t D epth ) ;

vec4 co m p osi t e IS O ( in vec4 r esul t , i n vec4 c olo r ,

1 hdrSrc += " # d e f ine R C _ A P P L Y _ C OM P O S I T IN G ( r esul t ,

2 color , sa m p l e P o s , grad i e n t ,

3 t, tDepth ) " ;

4 switch ( com p o s i t ing M o d e _ - > get () ) {

5 case 0:

6 hd rSrc += " c o m pos i t eDV R ( color , resu l t , t ,

7 tD e pth ) ;\ n " ;

8 break;

9 case 1:

10 hd r Src += " c o m pos i t eMI P ( color , resu l t , t ,

11 tDepth ) ;\ n ";

12 break;

13 case 2:

14 hd r Src += " c o m pos i t eIS O ( color , resu l t , t ,

15 tDept h , is o V a l u e ) ;\ n " ;

16 break;

17 }

Listing 2: Placeholders such as RC APPLY COMPOSITING

are replaced by creating a header which substitutes them

with functional methods.

in float t , in o u t float t Dep t h ,

in float is o V a l u e ) ;

All these return the composited value; changes of

other variables can be returned by declaring them

as inout as it is done for tDepth. To choose one

of these function alternatives, we generate an appro-

priate shader header, which deﬁnes the placeholder

RC APL COMPOSITING. This header is recreated by a

C++ function each time one of the replaceable func-

tions should be exchanged (see Listing 2).

The ray initialization (raySetup()) as well as the

begin and the end of the loop are also deﬁned sepa-

rately (RC BEGIN LOOP and RC END LOOP) in order to

make them reusable in other raycasters (the variable

tDepth which is used in the compositing header is

also deﬁned there).

4 VISUAL DEBUGGING

Debugging shader programs is complex, since besides

the general problem of debugging parallel programs

and the lack of debugging features such as break-

points, often the interplay between different proces-

sors does not work as expected. To help software en-

gineers to debug GLSL code, several GPU-oriented

debuggers such as gDEBugger (Graphic Remedy,

2010), glslDevil (Strengert et al., 2007), or Total Re-

call (Sharif and Lee, 2008) are available, which al-

low to inspect variables, to set breakpoints and so on.

INTERACTIVE DESIGN AND DEBUGGING OF GPU-BASED VOLUME VISUALIZATIONS

243

Figure 2: Shader programs can be edited in the development

mode, while shader errors can be accessed (bottom right).

Furthermore, intermediate output images can be inspected

through tooltip windows by hovering with the mouse cur-

sor over an arbitrary connection (middle) and the content of

selected rendering targets can be inspected (top left).

Our visual debugging features are not intended to re-

place such tools but rather to rapidly localize possible

bugs on a higher level by inspecting intermediate re-

sults which are created as outputs of the processors.

In a second step the conspicuous processors can then

be analyzed using one of the before mentioned pro-

grams.

We support the diagnosis of this kind of errors by

giving the user visual access to the output images of

all processors. This can be done in different ways,

either by hovering the mouse cursor over a connec-

tion between processors in the network editor where

a tooltip window then shows the image which is cur-

Figure 3: All produced images can be inspected using the

texture container window. Besides the color channels also

the alpha channel and the depth buffer can be visualized

using pseudo-colors.

rently transferred through this connection (see Fig-

ure 2), or by inspecting the texture container window

(see Figure 3). This window shows the content of all

images stored in the texture container. Each proces-

sor can label its output images and therefore makes

it possible to relate each image to the processor by

which it was generated. Furthermore, also the alpha

channel and the depth buffer can be visualized using

pseudo-colors.

Once an error is recognized it needs to be re-

solved. Since shader programs are generally com-

piled at runtime, a user can just reload the shader pro-

gram without having to restart the application. There-

fore, we have decided to integrate the used shaders

as properties of the according processors. Thus, it

becomes possible to simply edit a shader within our

environment (see Figure 2) and serialize the changes

together with the network. Thus it becomes easily

possible to have different versions of the same shader,

which have been adapted to the needs of a speciﬁc

application case. Together with the visual debugging

feature, this allows development on a GPU level di-

rectly within our visual programming environment.

5 CONCLUSIONS

In this paper we have presented a framework for the

rapid prototyping of GPU-based volume visualiza-

tions with special focus on raycasting. By decom-

posing the GPU-based raycasting process into dif-

ferent functional components—which are realized by

different processors—visual programming can be ap-

plied to easily create new visualizations. Thus, the

paradigm can be used on all abstraction levels which

need to be considered during application develop-

ment. To our knowledge, this is the ﬁrst approach,

which allows rapid prototyping of interactive visual-

ization applications, by providing a convenient and

ﬂexible abstraction layer, while still allowing high-

quality volume ray-casting at interactive frame rates.

ACKNOWLEDGEMENTS

This work was partly supported by grants from

Deutsche Forschungsgemeinschaft (DFG), SFB 656

MoBil, Germany (project Z1). The presented con-

cepts have been integrated into the Voreen volume

rendering engine (www.voreen.org).

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

244

REFERENCES

Bavoil, L., Callahan, S., Crossno, P., Freire, J., Scheidegger,

C., Silva, C., and Vo, H. (2005). VisTrails: enabling

interactive multiple-view visualizations. In Proceed-

ings of IEEE Visualization ’05, pages 135–142.

Bitter, I., Van Uitert, R., Wolf, I., Ib

nez, L., and Kuhnigk,

J. (2007). Comparison of four freely available frame-

works for image processing and visualization that use

ITK. IEEE Transactions on Visualization and Com-

puter Graphics, 13(3):483–493.

Botha, C. P. (2005). Techniques and Software Architectures

for Medical Visualisation and Image Processing. PhD

thesis, Delft University of Technology.

Botha, C. P. and Post, F. (2008). Hybrid scheduling in the

DeVIDE dataﬂow visualisation environment. In Pro-

ceedings of Simulation and Visualization, pages 309–

322. SCS Publishing House Erlangen.

Caban, J. J., Joshi, A., and Nagy, P. (2007). Rapid devel-

opment of medical imaging tools with open-source li-

braries. Journal of Digital Imaging, 20(Suppl 1):83–

93.

Graphic Remedy (2010). Graphic remedy, gDEBugger.

www.gremedy.com.

Hahn, H. K., Link, F., and Peitgen, H. (2003). Concepts

for rapid application prototyping in medical image

analysis and visualization. In Simulation und Visu-

alisierung, pages 283–298.

Hewitt, W. T., John, N. W., Cooper, M. D., Kwok, K. Y.,

Leaver, G. W., Leng, J. M., Lever, P. G., McDerby,

M. J., Perrin, J. S., Riding, M., Sadarjoen, I. A.,

Schiebeck, T. M., and Venters, C. C. (2005). Vi-

sualization with AVS. In Hansen, C. D. and John-

son, C. R., editors, The Visualization Handbook, chap-

ter 35, pages 749–767. Elsevier.

Johnston, W. M., Hanna, J. R. P., and Millar, R. J. (2004).

Advances in dataﬂow programming languages. ACM

Comput. Surv., 36(1):1–34.

uger, J. and Westermann, R. (2003). Acceleration tech-

niques for GPU-based volume rendering. In Proceed-

ings of IEEE Visualization ’03, pages 287–292.

Link, F., Koenig, M., and Peitgen, H. (2006). Multi-

resolution volume rendering with per object shading.

In Proceedings of Vision, Modeling, and Visualization

2006 (VMV06), pages 185–191.

Meyer-Spradow, J., Ropinski, T., Mensmann, J., and Hin-

richs, K. H. (2009). Voreen: A rapid-prototyping envi-

ronment for ray-casting-based volume visualizations.

IEEE Computer Graphics and Applications (Applica-

tions Department), 29(6):6–13.

Plate, J., Holtkaemper, T., and Fr

ohlich, B. (2007). A ﬂexi-

ble multi-volume shader framework for arbitrarily in-

tersecting multi-resolution datasets. Transactions on

Visualization and Computer Graphics, 13(6):1584–

1591.

Prior, F. W., Erickson, B. J., and Tarbox, L. (2007). Open

source software projects of the caBIG in vivo imaging

workspace software special interest group. In Journal

of Digital Imaging, volume 20(Suppl 1), pages 94–

100.

Rexilius, J., Kuhnigk, J. M., Hahn, H. K., and Peitgen, H. O.

(2006). An application framework for rapid prototyp-

ing of clinically applicable software assistants. In Lec-

ture Notes in Informatics, volume P-93, pages 522–

528.

oßler, F., Botchen, R. P., and Ertl, T. (2008). Dynamic

shader generation for GPU-based multi-volume ray

casting. IEEE Computer Graphics and Applications,

28(5):66–77.

Sharif, A. and Lee, H.-H. S. (2008). Total recall: a debug-

ging framework for GPUs. In GH ’08: Proceedings of

the 23rd ACM SIGGRAPH/EUROGRAPHICS sympo-

sium on Graphics hardware, pages 13–20. Eurograph-

ics Association.

Stalling, D., Westerhoff, M., and Hege, H.-C. (2005).

Amira: A highly interactive system for visual data

analysis. In Hansen, C. D. and Johnson, C. R., edi-

tors, The Visualization Handbook, chapter 38, pages

749–767. Elsevier.

Stegmaier, S., Strengert, M., Klein, T., and Ertl, T. (2005).

A simple and ﬂexible volume rendering framework

for graphics-hardware–based raycasting. In Proceed-

ings of the International Workshop on Volume Graph-

ics ’05, pages 187–195.

Strengert, M., Klein, T., and Ertl, T. (2007). A Hardware-

Aware Debugger for the OpenGL Shading Lan-

guage. In Proceedings of the ACM SIGGRAPH/EU-

ROGRAPHICS conference on Graphics Hardware,

pages 81–88. Eurographics Association.

Weinstein, D. M., Parker, S., Simpson, J., Zimerman, K.,

and Jones, G. M. (2005). Visualization in the SCIRun

problem-solving environment. In Hansen, C. D. and

Johnson, C. R., editors, The Visualization Handbook,

chapter 31, pages 749–767. Elsevier.

INTERACTIVE DESIGN AND DEBUGGING OF GPU-BASED VOLUME VISUALIZATIONS

245
