IMPLEMENTATION ANALYSIS FOR A HYBRID PARTICLE

FILTER ON AN FPGA BASED SMART CAMERA

I. Zuriarrain, N. Arana

Signal Processing and Communications Group, University of Mondragon, Loramendi 4, Mondragon, Spain

F. Lerasle

Groupe Robotique, Action et Perception, Laboratoire d’Analyse et d’Architecture des Systemes, Toulouse, France

Keywords:

Multitarget tracking, SystemC, Smart camera, Field programmable gate arrays, Transaction level modeling.

Abstract:

Design and development of embedded devices which perform computer vision related task presents many

challenges, many of which stem from attempting to ?t the complexity of many higher level vision algorithms

into the constraints presented by programmable embedded devices. In this paper, we follow a simulation-

based methodology in order to develop an architecture which will allow us to implement a mixed Particle

Filter/Markov Chain Monte Carlo tracking algorithm in an FPGA-based smart camera, using tools such as

SystemC and Transaction LevelModeling (TLM). Use of these tools has allowed us to make some preliminary

predictions as to the memory usage and performance of the system, which will be compared to the results of

more detailed simulations obtained in the way towards implementing this system.

1 INTRODUCTION

Implementing any sort of complex vision algorithm

within the restrictions imposed by use of an embed-

ded platform is not a trivial task. There are many

challenges that stem both from the limited resources

(processing time, memory, power), and from unde-

ﬁned architectures (when compared, for example, to

a desktop computer, where the architecture is both

well-known and standard). Deciding which architec-

ture suits a particular algorithm the best is often, in

itself, a challenge.

With that in mind, simulation turns out to be an

invaluable tool. It allows the developers to coalesce

the known data (e.g., functional characteristics of the

algorithm, quality restrictions, physical limits of the

platform) of the different elements that compose the

system, and explore and analyze different architec-

tures that might ﬁt the problem at a fraction of the

cost of actual implementation.

In Zuriarrain et al. (2008) a hybrid Particle Fil-

tering/Markov Chain Monte Carlo algorithm was pro-

posed that performs the detection and tracking of mul-

tiple humans in an indoors environment, which was

developed using a PC. In this paper, we take that al-

gorithm as a base and present a design for its imple-

mentation in an FPGA based smart camera, following

a simulation-based methodology.

This methodology intends to take advantage of the

resources that simulation provides us in order to de-

tect conﬂict areas in the implementation early on (e.g.,

does the algorithm require more memory than the sys-

tem can provide?), as well as develop an architecture

for the implementation of said algorithm within the

limits imposed by the hardware platform. We will

present some results from the preliminary simulation,

and compare them to results obtained from simula-

tions that are more detailed (by virtue of being closer

to being an RTL implementation of the algorithm) for

a subset of the architecture, in order to establish the

reliability of the original data.

First, in Section 2 we will explain the smart cam-

era architecture we are working with. Then, in Sec-

tion 3 we will explain the hybrid tracking algorithm

and its structure. In Section 4 we will take a look at

the methodology used to arrive to a working model of

the hardware system. In Section 5 we will discuss the

experimental results derived from the simulations and

the accuracy of said results, by comparing them with

the results of the simulation of a more detailed model.

Finally, we will close with the conclusions and a few

comments on future works.

174

Zuriarrain I., Arana N. and Lerasle F. (2010).

IMPLEMENTATION ANALYSIS FOR A HYBRID PARTICLE FILTER ON AN FPGA BASED SMART CAMERA.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 174-179

DOI: 10.5220/0002834101740179

 SciTePress

2 THE SMART CAMERA

PLATFORM

The ﬁeld of smart cameras has become very popu-

lar thanks to its advantages in scalability, both in pro-

cessing power (since an important part of the process-

ing is done by each sensor, there is no need for an

overly powerful central station) and network perfor-

mance (as the cameras can transmit only the informa-

tion they extract from the images, and avoid actually

transmitting video until it becomes necessary). This

has led to the development of a number of approaches

to smart camera development, as we are going to de-

scribe in the next paragraphs.

The integration of a microprocessor (whether an

embedded one, or the more powerful desktop proces-

sors) within the camera is perhaps the most intuitive

form of developing a smart camera, and there are cur-

rent off-the-shelf comercial smart cameras that fol-

low this design (Bramberger et al., 2004). However,

most common microprocessors have very limited par-

allelization options, being mainly sequential, and do

not take advantage of the parallelization possibilities

of many low level image processing algorithms.

A variation on this theme is to use a SIMD (Sin-

gle Instruction Multiple Data) processor. SIMDs are

basically an array of simple processors, which can ex-

ecute the same operation on multiple pieces of data at

the same time (Kleihorst et al., 2004). This allows the

system to operate on multiple pixels in parallel, mak-

ing it very well suited for low-level image processing,

and other cases in which we need to process multiple

pieces of completely independent data.

Another possibility for smart camera design is

based on reconﬁgurable hardware, such as FPGAs

(Leeser et al., 2004). This enables a great amount

of ﬂexibility, since the device can be programmed to

best suit our architecture, as well as offering posi-

bilities for online reconﬁguration(Dias et al., 2007).

However, FPGAs are best used in processing paral-

lel algorithms, as they are not quite as well suited to

sequential algorithms as classic microprocessors.

There is nothing constraining a design to using

only one of these approaches, and various hybrid ap-

proaches have been developed that integrate an ele-

ment well suited for parallel processing with an em-

bedded processor or a DSP for the sequential process-

ing, such as the camera used by Fleck et al (Fleck et

al., 2007).

Since particle ﬁltering is a popular approach for

human tracking, there have been previous efforts to

implement particle ﬁlters in FPGA based devices.

Hong et al. (2004) utilize block level pipelining

and dataﬂow structure transformations in order to im-

Figure 1: DTSO smart camera.

plement different kinds of particle ﬁlters, taking ad-

vantage of common blocks in the different particle ﬁl-

ter variants. However, so far this methodology has not

been extended to multiple target tracking and is not

particularly oriented towards vision-based tracking.

In this vein, but oriented towards human tracking,

we can ﬁnd the work of Cho et al. (2006), who im-

plement a grayscale particle ﬁlter in an FPGA. The

main differences with our work are three: ﬁrst, the

algorithm is different, since we use a hybrid particle

ﬁlter, also making use of colour cues while they work

in grayscale; also, in our case, the FPGA module is

integrated in the camera, while Cho et al. keep it sep-

arate, which makes the communication with the cam-

era more complex; third, no mention is made of which

methodology Cho et al. followed in their work. In our

case, the methodology is explicitly explained in Sec-

tion 4.

The camera we have selected to work with is

an FPGA based smart camera (Figure 1) by Delta

Technologies Sud Ouest (DTSO), a company from

Toulouse, France. DTSO has taken part in the project

that has resulted in this research, and they have

also been collaborators in earlier computer vision

projects(Fillatreau et al., 2009).

The DTSO iCam camera is currently ﬁtted with

two FPGA modules. Each of these modules is based

on an Altera Cyclone-II FPGA, and includes a 18

megabit memory module (with 18 bit words), as well

as the communications with the neighbouring mod-

ules. Currently, all programming of the FPGA mod-

ules must be done using the JTAG cable while the

camera is out of its enclosure, so there is no means

for online reconﬁguration.

Communications between the camera and other

external devices is currently done using wither an

Ethernet communications module or a Wi-Fi module,

since the camera is intended not as a stand-alone prod-

uct, but as a member of a network of cameras. This

also allows for some of the processing to be done in

a more conventional processor, since the communica-

tions module includes a Freescale processor.

IMPLEMENTATION ANALYSIS FOR A HYBRID PARTICLE FILTER ON AN FPGA BASED SMART CAMERA

175

The ﬁrst version of the camera could only take im-

ages in greyscale, but it has been extended for colour

image capture as well. The colour sensor of our smart

camera captures images in a bayer mosaic format, so

a part of the ﬁrst FPGA module has been dedicated to

a debayering block, using a simple value average for

neighbouring pixels.

3 THE MIXED MCMC/PF

TRACKING ALGORITHM

In Zuriarrain et al. (2008), a mixed Markov Chain

Monte Carlo/Particle Filtering algorithm was pro-

posed in order to track a variable number of people

in an indoors scene. An overview of the algorithm

follows, though with implementation details mostly

omitted.

The principle of the tracker is depicted in algo-

rithm (1). It is based on the original ICONDENSA-

TION framework (Isard and Black, 1998) which has

nice properties for sampling thanks to both visual de-

tectors and target dynamics.

Algorithm 1: Hybrid MCMC/PF algorithm at

frame k.

1: Generate detection saliency maps

2: Generate dynamic model saliency map

3: Generate uniﬁed saliency map S

4: for i = 0 to N

5: repeat

6: Draw position for particle x

7: Draw threshold α

8: until S(x

) > α

9: for j = 0 to N

10: Draw new state x

and threshold α

11: Evaluate proposal probability for x

12: if Proposal probability ≥ α

then

13: x

= x

14: else

15: x

= x

16: end if

17: end for

18: end for

19: Calculate particle weights

20: Calculate MAP estimator

The importance function for this algorithm is

based on saliency maps which encode information

about target dynamics and visual detectors. These

maps are then merged (step 3) in a single saliency

map that shows all high probability areas for particle

placement. All these saliency maps (except for the ﬁ-

nal merged map, for obvious reasons) are completely

independent and so can be computed in parallel.

The particle sampling is done using a process

of rejection sampling (step 5). This combination of

saliency maps and rejection sampling ensures that the

particles will be placed in the relevant areas of the

state space.

The process so far assumes the number and identi-

ties of the targets remain constant. In order to manage

such discrete variables, a Markov chain is used(step

9). In this step, changes to the conﬁguration of the

target set are proposed for each particle, which are

accepted or rejected based on their proposal probabil-

ities. Traditionally, a MCMC process requires a high

number of burn-in iterations. In this case, the itera-

tion number N

can be reduced drastically as: (1) the

particle set introduces diversity in the jump dynamics,

(2) the continuous parameters are handled by the im-

portance sampling. Given the particles sampled in the

previous step, the initial state conﬁguration is usually

close to the ﬁnal one.

In the weighting phase (step 19), the likelihood

of each particle is measured and a weight is assigned

to each particle. These measurements are detailed in

(Zuriarrain et al., 2008), but in general sufﬁce to say

that both colour and motion cues are used.

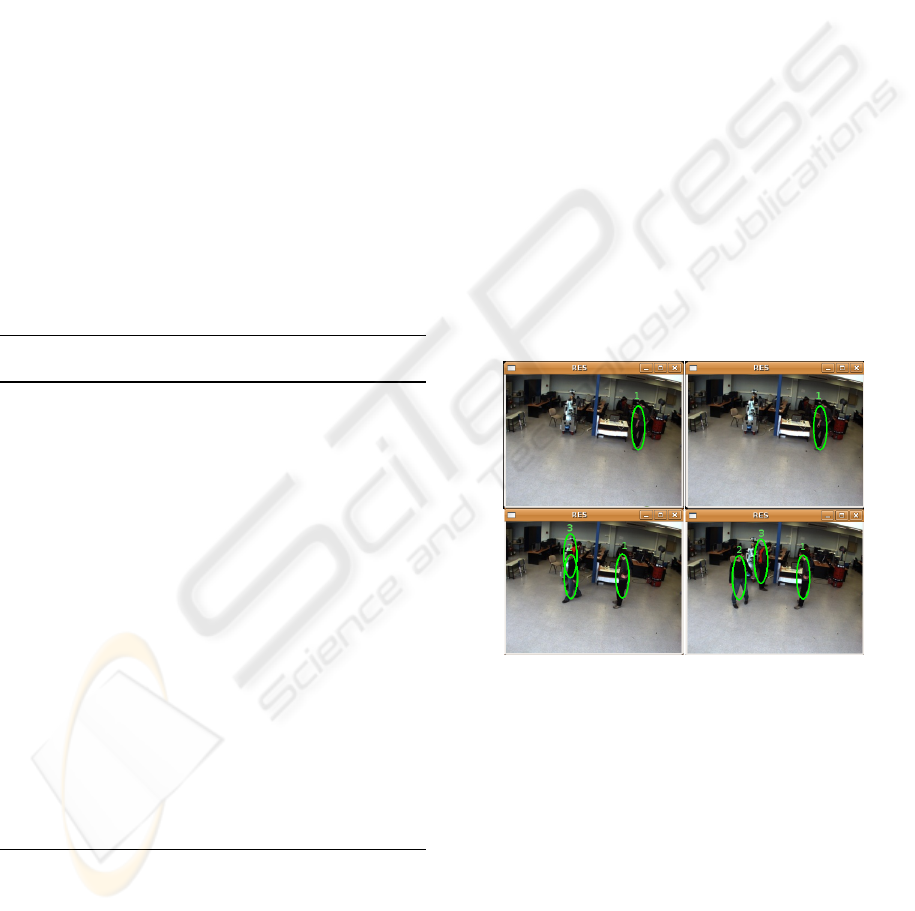

Figure 2: Snapshots of a test sequence involving three peo-

ple.

Finally, the most probable state vector is selected

from between the particles (step 20).

In a 2.4GHz Pentium IV computer, this algorithm

ran unoptimized at around 1 fps. While this is not

fast enough for real time video monitoring efforts, and

would certainly slow even further if more process-

ing was added (e.g., for pose and activity interpreta-

tion), simulations show that performance is much im-

proved when implemented in an FPGA-based device

(as shown in section 5).

The architecture of the software model for the

above algorithm can be divided in two phases: de-

tection and tracking. In the detection phase, we run

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

176

all the detectors for a given image, generating the

saliency map. Then, in the tracking phase, we draw

the particles based on that saliency map, and then a

short MCMC process is applied to predict changes in

the number of targets.

4 SYSTEMC AND TLM

MODELING

Implementing any non-trivial algorithm in hardware

is in itself a non-trivial problem that requires both a

good knowledge of low level design and program-

ming techinques, and a very intimate knowledge of

the target algorithm. Even then, there are a number of

design decision that might have unforeseen effects on

the ﬁnal implementation.

In order to lessen the effect of these factors, a

working model of how the algorithm will behave

when implemented in a certain manner is an invalu-

able tool, in that it allows us to test the outcome of

changes performed to the implementation in a frac-

tion of the time and cost it would take to actually im-

plement and test it, as well as giving us a clear idea

of what the non-functional parameters of the process

(such as execution speed or reliability) will be. Also,

for those cases where the system has both a hardware

and a software component, having a clear model al-

lows for easier and more efﬁcient partitioning (Jin and

Sin-Chong, 2006).

In this context, we can ﬁnd efforts such as the

Hardware Resource Model promoted by the Object

Management Group (Taha et al., 2007), which of-

fers a framework in which the developers may de-

scribe a model of the hardware. This model is part

of a bigger framework for the modeling of real time

systems named MARTE (Modeling and Analysis of

Real-Time and Embedded systems). On the other

hand, there are also a variety of languages oriented

towards codiﬁcation of the model in a high level lan-

guage, such as HandelC or SystemC.

SystemC has been used in a number of works,

such as Gerin et al. (2006), Jin et al. (2006), Helm-

stetter et al. (2008) and Amer et al. (2005), perhaps as

a result of the introduction of TLM (Transaction Level

Modeling). The basis behind TLM is that, when mod-

eling a hardware system, having models at different

abstraction levels enables the developer to maintain a

working model at all times during the development of

the system, from the functional model down to a cycle

accurate RTL model. A common classiﬁcation of the

different abstraction levels for these models is shown

in Table 1.

In order to arrive to a working model of the al-

Table 1: Detail levels of Transaction-Level Models(Black

and Donovan, 2004).

Model Communication Functionality

SAM Untimed Untimed

Component Assembly Untimed Approximated

Bus Arbitration Approximated Approximated

Bus Functional Cycle Accurate Approximated

Cycle Accurate Computation Approximated Cycle Accurate

RTL Cycle Accurate Cycle Accurate

gorithm explained in Section 3, we have followed an

iterative methodology based on SystemC and TLM.

The workﬂow for the methodology we have used

is shown in 3, and follows a common iterative pat-

tern. The model starts as a functional model with no

information of how the system is going to be imple-

mented (i.e., a C++ implementation of the algorithm),

and goes through several iterations of increasingly de-

tailed analysis, with each of these iterations produc-

ing a new model with greater implementation infor-

mation.

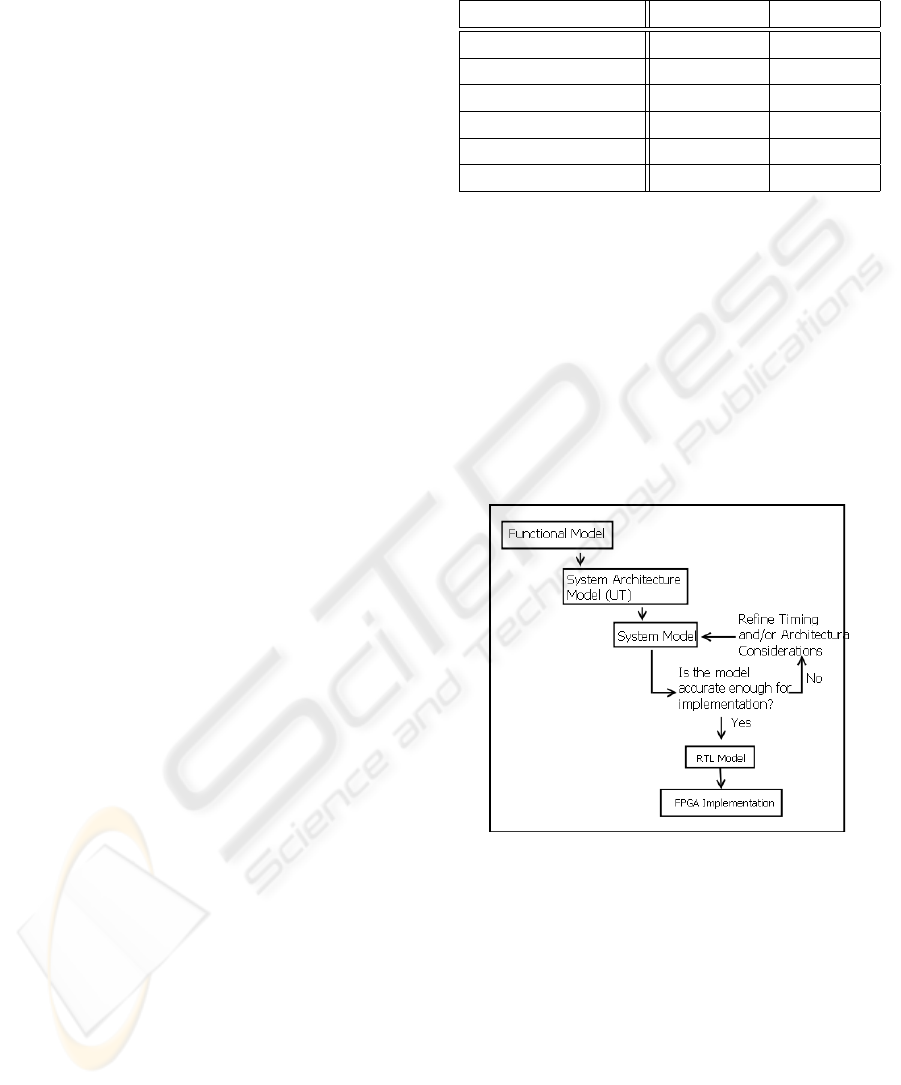

Figure 3: Simpliﬁed workﬂow for the implementation of an

algorithm in hardware using TLM.

In our case, we have started with the Functional

Model, which has been reﬁned into a System Archi-

tecture model by iterative partitioning of the different

subsystems: at the highest levels, the whole system is

comprised of a single block, which allows us to model

input and output to the whole system. Further reﬁning

shows the major blocks of the algorithm, until ﬁnally,

the end architecture somewhat mirrors the original al-

gorithm, as shown in Figure 4.

A similar process is followed when adding timing

information to the different parts of the design, in that

we begin with general timing information (e.g., ”the

system takes 9.6 milliseconds to receive a frame”) and

IMPLEMENTATION ANALYSIS FOR A HYBRID PARTICLE FILTER ON AN FPGA BASED SMART CAMERA

177

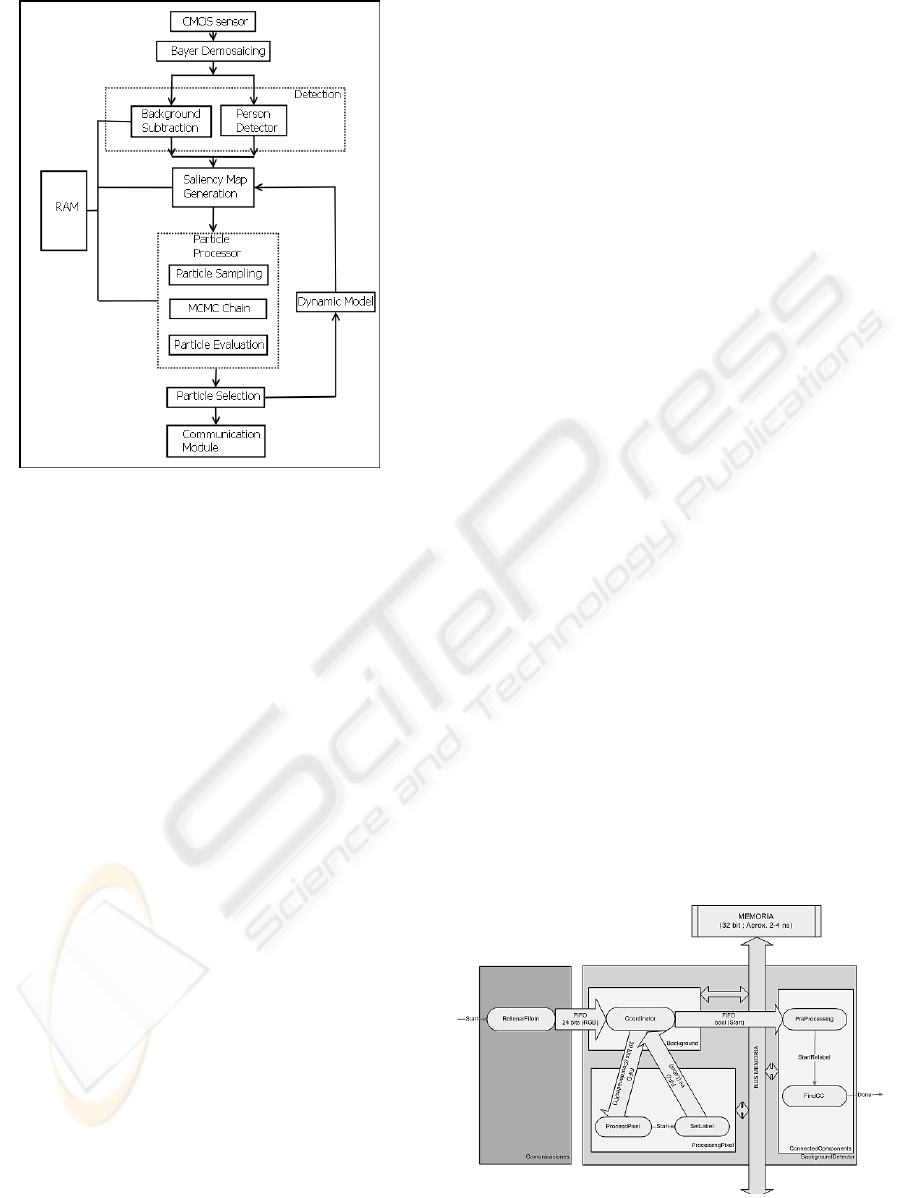

Figure 4: Architecture of the tracking algorithm hardware

after reﬁnement with the simulation.

keep adding detail as we move to lower level models.

Obviously, the initial prediction is not perfectly accu-

rate except in trivial cases, being a global generaliza-

tion, but as we reﬁne the model and start adding tim-

ing information to more precise operations (e.g., the

transmission of a single pixel, as opposed to the whole

image), the accuracy of the predictions increases.

5 SIMULATION RESULTS

According to the simulation, the algorithm has a max-

imum runtime of 55 ms (approximation made by as-

suming the most pessimistic case for all processes

with a variable number of iterations), which would al-

low it to run at slightly better than 18 fps. Further op-

timisation of the design (e.g., by using multiple parti-

cle processing modules, introducing pipelining at cer-

tain points of the particle probability calculation, and

using the data generated in previous calculations of

the histogram to reduce the number of necessary op-

erations) is still possible, and would be desirable in

order to allow for the ampliation of the functionality

of the tracker.

Although initially it was believed that the camera

(with the current amount of FPGA modules) would

not be able to run this particular algorithm due to an

insufﬁcient amount of onboard memory, simulations

have shown that assumption to be incorrect. The cam-

era has one 18 mbit memory chip per FPGA board,

totalling 36 mbits of internal memory. According to

the simulation, operation of the algorithm can be done

in 31.5 mbits, which would put it well inside the ca-

pabilities of the camera.

The main obstacle to implementation of the al-

gorithm in the selected smart camera is that the cur-

rent communication modules for connecting the dif-

ferent FPGA boards were designed to allow for uni-

directional communication. The feedback loop in the

particle ﬁltering algorithm that allows the system to

calculate the dynamic model for the targets becomes,

then, very inconvenient, since it means a redesign of

the communication modules would be necessary in

order to implement the full algorithm in the camera.

In order to establish the validity and accuracy of

these results, a component of the algorithm has been

taken further along the model chain than the rest of the

model. The component chosen was the background

subtraction module, which we believe has enough

complexity to be a representative sample of the algo-

rithm, while still being simple enough that the imple-

mentation effort would not be overly demanding.

The detailed hardware architecture model for this

component can be seen in Figure 5. It is divided

in three areas, corresponding to reception of images

(left), background subtraction (middle) and connected

components clustering (right).

The results of this new model are threefold: ﬁrst,

it has become clear that an assumption in an ear-

lier model (that there would be no memory conﬂicts)

doesn’t hold, and so there are a number of waiting

times that need to be taken into account that were ig-

nored in earlier models. While this doesn’t really af-

fect the runtime, since this section of the algorithm

still runs faster than it receives data, it does imply

that other sections of the model might be likewise

affected. Second, the connected component cluster-

ing part of the system would perform better in a se-

quential processor, as opposed to an FPGA, due to its

Figure 5: Detailed HW architecture model for the Back-

ground Subtraction component.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

178

inherently sequential nature. Third, the memory re-

quirements of the system were correctly modeled in

the original model, so the camera should still be able

to run the algorithm with the available memory (once

the feedback communication problem is solved).

6 CONCLUSIONS

Computer vision is an area where implementation in

hardware is highly beneﬁcial, due to the parallel na-

ture of many vision algorithms. However, this is not a

trivial task, and a variety of methodologies and tools

have been used during the years in order to limit the

amount of effort necessary.

In this paper, we have presented the results of a

simulation model for a hybrid particle ﬁlter/markov

chain monte carlo algorithm to be implemented in

an FPGA-based smart camera. This model was

built using the SystemC modeling language and TLM

methodologies, which help reduce the amount of

work necessary before having concrete results.

These results show that the camera will need some

modiﬁcations to be able to run the algorithm, due

to some design constraints and the amount of mem-

ory available in each FPGA module, but also show a

marked improvement in execution performance when

compared to the same algorithm running in a PC (18

fps in the simulation vs 1 fps in the PC).

In more general terms, the results conﬁrm that

simulation, even from an early level in the develop-

ment, can provide us with information that can help

make informed decisions w.r.t. system architecture

and capabilities at a fraction of the effort necessary

for actual implementation in a HDL language.

REFERENCES

I. Amer, M. Sayed, W. Badawy and G. Jullien, (2005)

”On the way to an H.264 HW/SW reference model:

A SystemC modeling strategy to integrate selected

IP-blocks with the H.264 software reference model”,

IEEE Workshop on Signal Processing Systems, SiPS:

Design and Implementation, Athens, Greece.

D. C. Black and J. Donovan, (2004) ”SystemC: From the

Ground up”, Springer.

M. Bramberger, J. Brunner, B. Rinner, and H. Schwabach,

(2004) ”Real-time video analysis on an embedded

smart camera for trafﬁc surveillance” in Proc. RTAS

2004, pp. 174-181.

Jung Uk Cho, Seung Hun Jin, Xuan Dai Pham, and Jae

Wook Jeon, (2006) ”Object Tracking Circuit using

Particle Filter with Multiple Features”, SICE-ICASE.

F. Dias, F. Berry, J. Serot, and F. Marmoiton, (2007) ”Hard-

ware, design and implementation issues on a FPGA-

based smart camera”, First ACM/IEEE International

Conference on Distributed Smart Cameras, Vienna,

Austria.

S. Fleck, F. Busch, and W. Straßer, (Jan. 2007) ”Adap-

tive Probabilistic Tracking Embedded in Smart Cam-

eras for Distributed Surveillance in a 3D Model” in

EURASIP Jounal on Embedded Systems, vol. 2007.

P. Fillatreau, N. Arana, E. Saenz de Argandoa, A. Izagirre,

I. Zuriarrain, and R. Pop, (2009) ”An Industrial Val-

idation of Artiﬁcial Vision Techniques for the Con-

trol of Future High Speed Forming Processes”, Flex-

ible Automation & Intelligent Manufacturing, Mid-

dlesbrough, UK.

P. Gerin, Shen Hao, A. Chureau, A. Bouchhima, and

A. Jerraya, (2007) ”Flexible and executable hard-

ware/software interface modeling for multiprocessor

SoC design using SystemC”, Asia and South Paciﬁc

Design Automation Conference, Yokohama, Japan.

C. Helmstetter and V. Joloboff, (2008) ”SimSoC: a Sys-

temC TLM integrated ISS for full system simulation”,

IEEE Asia Paciﬁc Conference on Circuits and Sys-

tems, Macao, China.

S. Hong, X. Liang, and P.M. Djuric, (2004) ”Reconﬁg-

urable particle ﬁlter design using dataﬂow structure

translation”, IEEE Workshop on Signal Processing

Systems, Austin, TX, USA.

M. Isard and A. Blake, (1998) ”ICONDENSATION: Uni-

fying low-level and high-level tracking in a stochastic

framework” in European Conf. on Computer Vision,

London, UK.

Lee Jin and Park Sin-Chong, (2006) ”Transaction

level modeling for hardware architecture exploration

with IEEE 802.11n receiver example”, International

Conference on Communication Technology, Guilin,

China.

R. Kleihorst, M. Reuvers, B. Krose, and H. Broers, (2004)

”A smart camera for face recognition”, Internation

Conference on Image Processing, Singapore.

M. Leeser, S. Miller, and Yu Haiqian, (2004) ”Smart cam-

era based on reconﬁgurable hardware enables diverse

real-time applications” in Proc. 12th Annual IEEE

Symposium on Field-Programmable Custom Comput-

ing Machines, pp. 147-155.

S. Taha, A. Radermacher, S. Gerard, and J.-L. Dekeyser,

(2007) ”An open framework for detailed hardware

modeling” in Proc. 2007 Symposium on Industrial

Embedded Systems, pp. 118-125.

I. Zuriarrain, F. Lerasle, N. Arana, and M. Devy, (2008)

”An MCMC-based Particle Filter for Multiple Per-

son Tracking”, International Conference on Pattern

Recognition, Tampa, FL, USA.

IMPLEMENTATION ANALYSIS FOR A HYBRID PARTICLE FILTER ON AN FPGA BASED SMART CAMERA

179
