A COMPRESSION SCHEME FOR EFFICIENT REMOTE

STREAMING OF DYNAMIC 3D CONTENT

Giuseppe Marino, Paolo S. Gasparello, Davide Vercelli, Franco Tecchia and Massimo Bergamasco

PERCRO, Scuola Superiore Sant’Anna, Pisa, Italy

Keywords:

Distributed rendering, Distributed applications, Remote graphics, Delta compression, Geometric compression.

Abstract:

Real-time 3D content distribution over a network (either LAN or WAN) requires facing several challenges,

most notably the handling of the large amount of data usually associated with 3D meshes. The scope of

the present paper falls within the well-established context of real-time capture and streaming of OpenGL

command sequences, focusing in particular on data compression schemes. However, we advance beyond

the state-of-the-art improving over previous attempts of “in-frame” geometric compression on 3D structures

inferred from generic OpenGL command sequences and adding “inter-frame” redundancy exploitation of the

trafﬁc generated by the typical architecture of interactive applications.

1 INTRODUCTION

In this paper, we propose a method to allow efﬁcient

distribution of OpenGL streams over the Internet by

means of various form of data compression. This

work stems from our previous research in the context

of cluster-based immersive visualisation; in this ﬁeld,

intercepting OpenGL or Direct3D calls by means of

custom system drivers and distribute them over a net-

work has proved to effectively decouple the applica-

tion architecture from the underlying rendering sys-

tem, allowing for a reconﬁgurable rendering nodes ar-

rangement.

While previous work in this ﬁeld (Humphreys

et al., 2001)(Humphreys et al., 2002)(Yang et al.,

2002) focused on multicasting command streams

over Local Area Networks, our goal was to extend

this kind of cluster-based rendering architectures to

work over WAN networks too, as this would allow

for a new generation of network streamed 3D ap-

plications. We propose here an approach that ad-

dresses the low-bitrate requirement and the real-time

constraint challenges using a combination of inter-

frame and intra-frame compression of OpenGL com-

mand streams as well as using light-weight compres-

sion/decompression schemes.

2 RELATED WORK

A number of approaches have been proposed to

stream graphical commands over a network in a dis-

tributed rendering architecture. WireGL (Humphreys

et al., 2001), is one of the most relevant examples. It is

a software system developed to distribute the graphic

load of an OpenGL application to a cluster of ma-

chines. A graphical command stream is generated by

means of a custom device driver library capable of in-

tercepting the OpenGL API calls invoked by a generic

application.

The software project Chromium (Humphreys

et al., 2002) is a further reﬁnement of the WireGL

concept. It inherits the interception mechanism of its

predecessor, but system conﬁguration become more

ﬂexible, allowing to build a graph that describes the

complete network structure and can be used to con-

ﬁgure each single node.

AnyGL (Yang et al., 2002), a large-scale hybrid

distributed graphics system, deals with the problem

of managing the large amount of data generated by a

OpenGL streaming application, introducing the con-

cept of data compression for the ﬁrst time. In this

case geometry data redundancies are reduced by using

simple position predictors. Vertex normals (Deering,

1995) and colors are compressed in similar ways.

In our approach we propose the adoption of state-

of-the-art geometry compression techniques (Alliez

and Gotsman, 2005). In particular, we concentrate

on the mesh connectivity compression. We adopt the

267

Marino G., Simone Gasparello P., Vercelli D., Tecchia F. and Bergamasco M. (2010).

A COMPRESSION SCHEME FOR EFFICIENT REMOTE STREAMING OF DYNAMIC 3D CONTENT.

In Proceedings of the International Conference on Computer Graphics Theory and Applications, pages 267-270

DOI: 10.5220/0002834802670270

 SciTePress

A B

Frame data flows from computer A

to computer B in traffic chunks

...

Frame 0

Frame 1

Frame 2

Frame n

...

Figure 1: Streaming OpenGL comands over a network

connection from A to B: each frame generate a chunk of

OpenGL data. Larger frames are usually generated at appli-

cation bootstrap time.

valence driven approach, ﬁrst introduced by Touma

and Gotsman (Touma and Gotsman, 2000) and subse-

quently improved by Alliez and Desbrun (Alliez and

Desbrun, 2001). In this technique the output symbol

stream is the sequence of the vertex valence values,

whose order is given by the conquest process. The

mesh connectivity is compressed on average with 1.5

bits per vertex for regular meshes.

Differential compression is another approach to

face the issue of data transmission. It consists in

representing the differences between a source and

a target ﬁle in a compact way. This technique is

mostly based on the diff algorithm (Hunt and McIl-

roy, 1976). It produces, given a target and a source

ﬁle, a patch containing a sequence of delete, change

and append operations. In their work, Korn and Vo

(Korn and Vo, 1995) proposed vdelta, an algorithm

based on the Lempel-Ziv’77 approach (Ziv and Lem-

pel, 1977). Afterwards they proposed a newer version

vdelta called vcdiff (Korn and Vo, 2002). In our work

we employ a Google code open source implementa-

tion of this algorithm (Open-vcdiff, 2008).

3 CAPTURING OPENGL

STREAMS

We organized our work around our own software sys-

tem for the capture and distribution of OpenGL calls

performed by a graphical application. Our system ex-

ploits a Chromium-like network scheme: there is a

master node, where the graphical application is run-

ning, and a number of slave nodes, that receive the

OpenGL stream generated by the master node and

broadcasted into the network. The master node uses

a custom device driver interposed between the appli-

cation and the OpenGL system library, capable of in-

tercepting any call performed. Every time a call is in-

tercepted and before its execution, the custom driver

creates a ghost command code to be streamed over

the network. In this way each slave, once received

the stream, can replicate all the OpenGL calls, re-

Geometric

compressor

glSwapBuffers()

Generic

OpenGL calls

Geometry

description

frame data

diff LZO (Zlib)

Data sent

across the

network

compressed

geometry

Figure 2: Overall system working scheme (master).

constructing the master’s OpenGL state and graphical

output.

4 THE OVERALL

ARCHITECTURE

Once the OpenGL calls have been intercepted with

the mechanism described in the previous section, they

are passed to the packetizer module (Figure 2). This

component is in charge to encode all the informa-

tion about performed calls and then stores them into a

command buffer. If the frame contains geometry de-

scription commands, a geometric compression mod-

ule will handle them, and send the compressed output

to the packetizer. Once this process has been com-

pleted, the buffer content is compared against the pre-

vious frame by the diff module, as described in Sec-

tion 6. The output of this operation is then com-

pressed with a general purpose compressor (LZO or

Zlib) and sent over the network. On the slave node

the original data is reconstructed by decompression

phases performed in reverse order with respect to the

master side.

5 COMPRESSING FRAMES

GEOMETRY

Transferring complete 3D model descriptions over the

Internet may represent a serious problem. If models

are large and/or the network link is not fast enough,

slave node applications may stutter, being interrupted

by long pauses spent for model synchronization.

We approach this issue by introducing a mesh en-

coder component, based on the combination of sev-

eral general purpose and speciﬁc known compres-

sion techniques (Figure 3). Connectivity and geom-

etry data is recognised by analyzing a sequence of

OpenGL API calls, and then compressed with our

scheme.

Some functional block of the process requires for

the input model to be manifold. Therefore, in the

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

268

Output

Buffer

Arith Coder

Model

Attrs

Quant

Conn

Vertex

Predict

VBE

Conn

Symbol

Attrs

Symbol

1° Stage 3° Stage2° Stage

Manifoldize

Figure 3: The architectural scheme of the 3D mesh com-

pressor.

ﬁrst stage, the mesh topology is checked and adapted

(Gueziec et al., 1998) to comply with the manifold

constraint. In this phase, vertex attributes and con-

nectivity data are separated to feed the next stage.

In the second stage, the valence based approach

(VBE block) (Touma and Gotsman, 2000)(Alliez and

Desbrun, 2001) drives a mesh traversal using con-

nectivity information, and outputs symbols whenever

new topological elements are encountered. As soon

as a vertex gets conquered, its attributes are quantized

and predicted with the parallelogram rule (Touma and

Gotsman, 2000), so that only differences are transmit-

ted. A ﬁnal compression stage provides entropy min-

imization by means of a fast adaptive context-based

arithmetic coder (Salomon, 2004).

6 EXPLOITING FRAME TO

FRAME COHERENCE

The OpenGL frame structure of a typical 3D appli-

cation begins with some frames dedicated to the de-

scription of the 3D objects composing the scene. A

lot of data is generated at this point, ant it can be

compressed as described in the previous sections. Af-

ter that, if the 3D model is no longer modiﬁed, the

following frames often consist in the exploration of

the model itself. Each frame is mainly a collec-

tion of drawing calls and calls to change the camera

placement. It is clearly visible how the “exploration

frames” are similar: they only differ by the position

of the camera. So, once the drawing calls are sent for

the ﬁrst time (inside the OpenGL stream associated

to the ﬁrst frame) the only information really needed

to reconstruct the subsequent frames are the updated

camera positions.

To exploit frame-to-frame coherence we use a diff

algorithm, as described in Section 2. Figure 4 shows

how the diff operation is performed by our system.

The OpenGL stream associated to each “exploration”

frame can be seen as the sum of its geometry (G) and

camera setting (C) sections. G sections are the same

for all the frames, while the C sections are frame de-

pendent. While the ﬁrst frame is sent unmodiﬁed, for

each of the subsequent frames an incremental packet

G C1 G C1

G C2 C2diff patch G C2

G C3 C3diff patch G C3

Master DLL

Slave application

G Cn Cndiff patch G Cn

Frame n-1

G Cn+1 Cn+1diff patch G Cn+1

Frame n-1

Frame 1

Frame 2

Frame 3

Frame n

Frame n+1

Figure 4: Working scheme of the diff compression. Dashed

arrows represent packet sending over the network.

Figure 5: Some view of the testbed applications.

is generated and sent over the network.

With this technique it is possible to avoid sending

a large percentage of the frame data every time. In

many cases frames with sizes of the order of several

kilobytes can be represented with just a few dozen

bytes.

7 MEASUREMENTS

We have conducted formal testing of the compression

methods: measurements were taken using as a test-

bed a chromium-like cluster rendering system that we

have developed in house over the years. We selected

three test applications to be rendered on our frame-

work, selected for their visual complexity, in order

to cover a wide range of real-life scenarios: a simple

scene with just a small number of moving objects, a

complex CAD model being manipulated in real-time

and a complex scenario traversed by the camera with a

A COMPRESSION SCHEME FOR EFFICIENT REMOTE STREAMING OF DYNAMIC 3D CONTENT

269

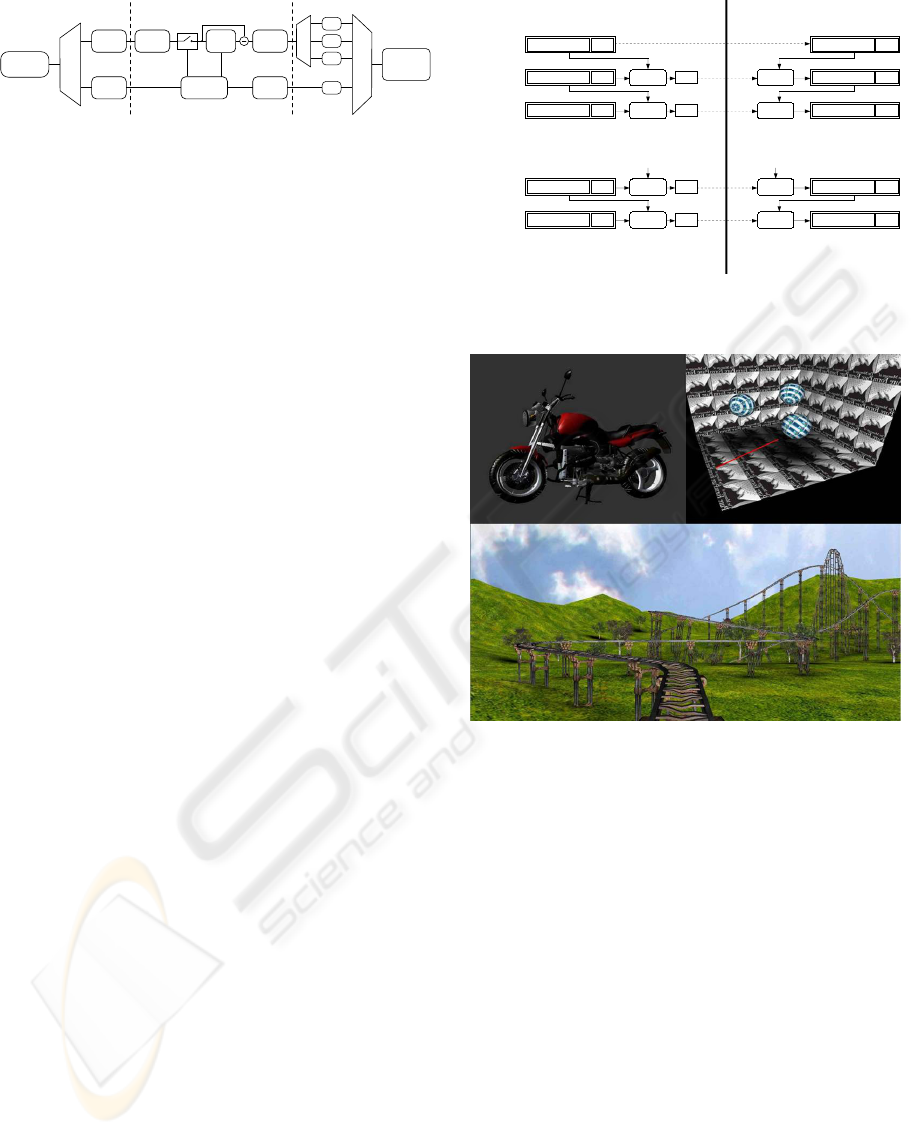

ﬁrst-person perspective (Figure 5). We connected two

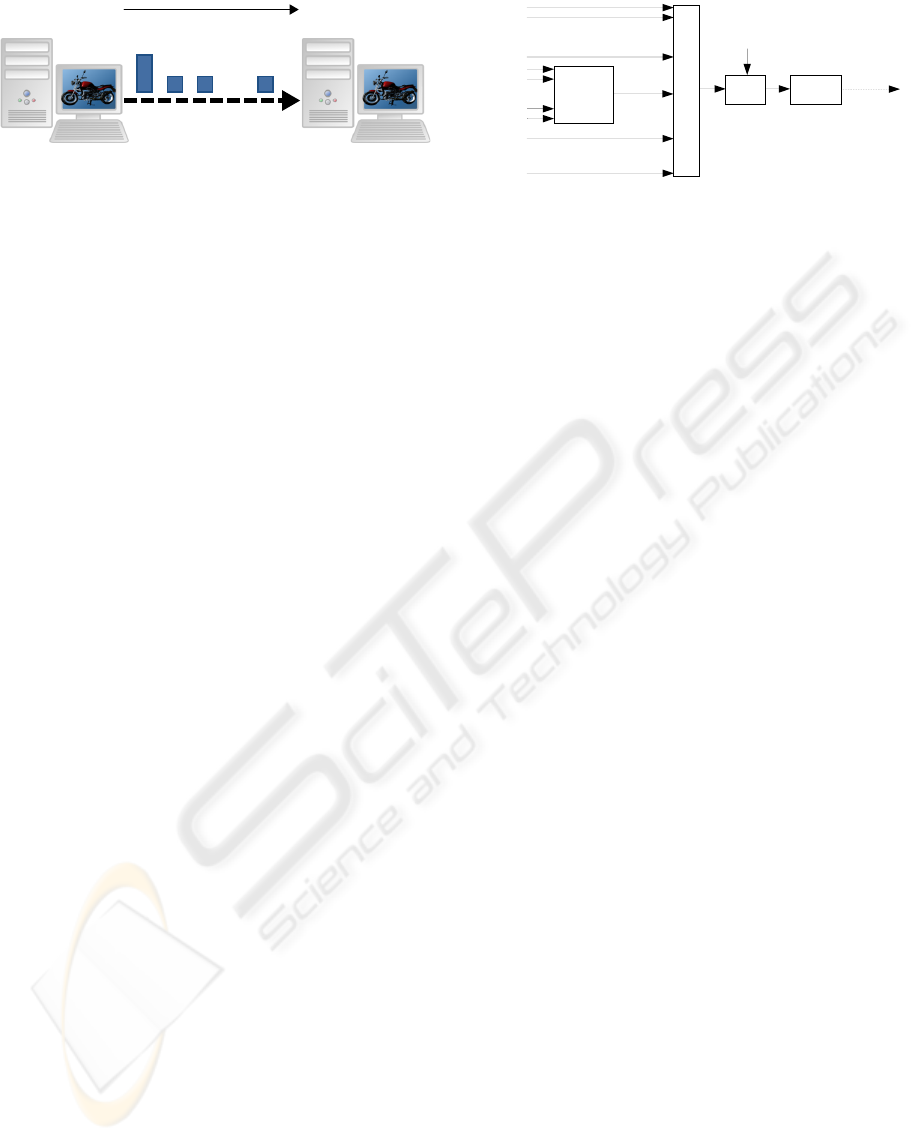

computers over a network as in Figure 1: at one side

of the connection (A) the original application runs. Its

OpenGL command stream is intercepted and sent to

the slave node (B) for being remotely executed. The

goal of our test is to evaluate if the generated trafﬁc is

compatible with typical Internet bandwidth, therefore

we measured the size of the data chunks in various

conditions.

Preliminary results show that geometric compres-

sion reduces the trafﬁc load at application boot-

strap (and every time some new geometry is kicked-

in), while frame-to-frame compression minimizes the

amount of incremental data that needs to be ex-

changed as frames advance, exploiting the high re-

dundancy in data ﬂow for interactive applications.

Numbers obtained suggest an average reduction for

the ﬁrst frame to 1/3 of the original data size and for

subsequent frames to 1/8.

8 CONCLUSIONS

We have presented a method to allow efﬁcient dis-

tribution of real-time generated content using on the

ﬂy compression and decompression of OpenGL com-

mand streams. We advance beyond the state-of-

the-art improving over previous techniques of in-

frame geometric compression on 3D structures in-

ferred from generic OpenGL command sequences

and adding inter-frame redundancy exploitation of the

trafﬁc generated by the typical architecture of interac-

tive applications. Measurements reveal for this com-

bination of techniques a very effective reduction of

network trafﬁc obtained with a modest CPU over-

head. This suggest a signiﬁcant application potential

of the technique whenever the amount of data band-

width is limited, such in the case of Internet-based 3D

streaming.

REFERENCES

Alliez, P. and Desbrun, M. (2001). Valence-Driven Connec-

tivity Encoding for 3 D Meshes. Computer Graphics

Forum, 20(3):480–489.

Alliez, P. and Gotsman, C. (2005). Recent advances in com-

pression of 3D meshes. Advances in Multiresolution

for Geometric Modelling, pages 3–26.

Deering, M. (1995). Geometry compression. In Pro-

ceedings of the 22nd annual conference on Com-

puter graphics and interactive techniques, pages 13–

20. ACM New York, NY, USA.

Gueziec, A., Taubin, G., Lazarus, F., and Horn, W. (1998).

Converting sets of polygons to manifold surfaces by

cutting and stitching. IEEE Visualization, 98:383–

390.

Humphreys, G., Eldridge, M., Buck, I., Stoll, G., Everett,

M., and Hanrahan, P. (2001). Wiregl: a scalable

graphics system for clusters. In SIGGRAPH ’01: Pro-

ceedings of the 28th annual conference on Computer

graphics and interactive techniques, pages 129–140,

New York, NY, USA. ACM.

Humphreys, G., Houston, M., Ng, R., Frank, R., Ah-

ern, S., Kirchner, P. D., and Klosowski, J. T. (2002).

Chromium: A stream-processing framework for inter-

active rendering on clusters.

Hunt, J. W. and McIlroy, M. D. (1976). An algorithm for

differential ﬁle comparison. Technical Report CSTR

41, Bell Laboratories, Murray Hill, NJ.

Korn, D. and Vo, K. (1995). vdelta: Differencing and com-

pression. Practical Reusable UNIX Software. John

Wiley & Sons.

Korn, D. G. and Vo, K.-P. (2002). Engineering a differenc-

ing and compression data format. In ATEC ’02: Pro-

ceedings of the General Track of the annual confer-

ence on USENIX Annual Technical Conference, pages

219–228, Berkeley, CA, USA. USENIX Association.

Open-vcdiff (2008). An encoder/decoder for the vcd-

iff (rfc3284) format. http://code.google.com/p/open-

vcdiff.

Salomon, D. (2004). Data Compression: The Complete

Reference. Springer.

Touma, C. and Gotsman, C. (2000). Triangle mesh com-

pression. US Patent 6,167,159.

Yang, J., Shi, J., Jin, Z., and Zhang, H. (2002). Design

and implementation of a large-scale hybrid distributed

graphics system. In Proceedings of the Fourth Euro-

graphics Workshop on Parallel Graphics and Visual-

ization, pages 39–49. Eurographics Association Aire-

la-Ville, Switzerland, Switzerland.

Ziv, J. and Lempel, A. (1977). A universal algorithm for

sequential data compression. IEEE Transactions on

Information Theory, 23:337–343.

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

270
