HOLISTIC AND FEATURE-BASED INFORMATION TOWARDS

DYNAMIC MULTI-EXPRESSIONS RECOGNITION

Zakia Hammal

International Laboratory for Brain Music and Sound Research (BRAMS), Université de Montréal

Pavillon 1420 boul. Mont Royal, Montréal, Canada

Corentin Massot

Department of Physiology, McGill University, 3655 Prom. Sir William Osler, Montréal, Canada

Keywords: Facial Expressions, Multiscale Spatial Filtering, Holistic Processing, Features Processing, Classification,

TBM.

Abstract: Holistic and feature-based processing have both been shown to be involved differently in the analysis of

facial expression by human observer. The current paper proposes a novel method based on the combination

of both approaches for the segmentation of “emotional segments” and the dynamic recognition of the

corresponding facial expressions. The proposed model is a new advancement of a previously proposed

feature-based model for static facial expression recognition (Hammal et al., 2007). First, a new spatial

filtering method is introduced for the holistic processing of the face towards the automatic segmentation of

“emotional segments”. Secondly, the new filtering-based method is applied as a feature-based processing

for the automatic and precise segmentation of the transient facial features and estimation of their orientation.

Third, a dynamic and progressive fusion process of the permanent and transient facial feature deformations

is made inside each “emotional segment” for a temporal recognition of the corresponding facial expression.

Experimental results show the robustness of the holistic and feature-based analysis, notably for the analysis

of multi-expression sequences. Moreover compared to the static facial expression classification, the

obtained performances increase by 12% and compare favorably to human observers’ performances.

1 INTRODUCTION

Significant efforts have been made during the past

two decades to improve the automatic recognition of

facial expressions in order to understand and

appropriately respond to the users intentions.

Applied in every day life situations (for example

monitoring facial expression of Pain), such a system

must be sensitive to the temporal behavior of the

human face and able to analyze consecutive facial

expressions without interruption. Yet, few efforts

have been made so far for the dynamic recognition

of multiple facial expressions in video sequences.

Indeed, most of the past work on facial expressions

recognition focused on static classification or at best

assume that there is only one expression in the

studied sequences. Recent studies have investigated

the temporal information for the recognition of facial

expressions (Pantic et al., 2009). For example Pantic

et al., 2006; Valstar et al., 2007; Koelstra et al.,

2008 introduced the temporal information for the

recognition of Action Units (AUs) activation into 4

temporal segments (e.g. neutral, onset, apex, offset)

in a predefined number of frames, while Tong et al.,

2007, introduced the temporal correlation between

different AUs for their recognition. However, in our

point in view these systems bypass the problem of

facial expression recognition (which requires an

additional processing step after detecting the AUs)

and they do not allow to explicitly recognize more

than one facial expression in a video sequence.

Compared to these models, Zhang et al., 2005;

Gralewski et al., 2006; Littlewort et al., 2006,

introduced the temporal information for facial

expression recognition. However, the temporal

information was mainly introduced in order to

improve the systems’ performances. None of the

proposed methods take explicitly into account the

temporal dynamic of the facial features and their

asynchronous deformation from the beginning to the

300

Hammal Z. and Massot C. (2010).

HOLISTIC AND FEATURE-BASED INFORMATION TOWARDS DYNAMIC MULTI-EXPRESSIONS RECOGNITION.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 300-309

DOI: 10.5220/0002837503000309

 SciTePress

end of the facial expressions. Moreover, all the

proposed methods are either holistic (analysis of the

whole texture of the face, Littlewort et al., 2006;

Tong et al., 2007) or feature-based (analysis of

facial features information such as eyes, eyebrows

and mouth, Pantic et al., 2006; Valstar et al., 2007;

Koelstra et al., 2008), or at best combine the

permanent and transient facial features (i.e. wrinkles

in a set of selected areas, Zhang et al., 2005) for the

automatic recognition of facial expression. However,

it has been established in psychology that holistic

and feature-based processing are both engaged in

facial expressions recognition (Kaiser et al., 2006).

Compared to these methods, the current contribution

proposed a new video based method for facial

expressions recognition, which exploits both holistic

and feature-based processing. The proposed holistic

processing is employed for the automatic

segmentation of consecutive “emotional segments”

(i.e. a set of consecutive frames corresponding to a

facial muscles activation compared to a Neutral

state), and consists in the estimation of the global

energy of the face by a multiscale spatial-filtering

using log-Normal filters. The feature-based

processing consists in the dynamic and progressive

analysis of permanent and transient facial feature

behavior inside each emotional segment for the

recognition of the corresponding facial expression.

The dynamic and progressive fusion process allows

dealing with asynchronous facial feature

deformations. The permanent facial features

information is measured by a set of characteristic

points around the eyes, the eyebrows and the mouth

based on the work of Hammal et al., (Hammal et al.,

2006). A new filtering-based method is proposed for

transient facial features segmentation. Compared to

the commonly proposed canny based methods for

wrinkles detection (Tian et al., 2001; Zhang et al.,

2005), the proposed spatial filtering method provides

a precise detection of the transient features and an

estimation of their orientation in a single pass. The

fusion of all the facial features information is based

on the Transferable Belief Model (TBM) (Smets et

al. 1994). The TBM has already proved its

suitability for facial expression classification

(Hammal et al., 2007) and to explicitly model the

doubt between expressions in the case of blends,

combinations or uncertainty between two or several

facial expressions. Given the critical factor of the

temporal dynamics of facial features for facial

expressions recognition, a dynamic and progressive

fusion process of the permanent and of the transient

facial features information (dealing with

asynchronous behaviour) is made inside each

emotional segment from the beginning to the end

based on the temporal modelling of the TBM.

2 HOLISTIC AND FEATURE

BASED PROCESSING

Facial expression results from the contraction of the

permanent facial feature (such as eyes, eyebrows

and mouth) and the skin texture deformations

leading to the appearance of transient features (such

as nasolabial furrows and nasal root wrinkles) (Tian

et al., 2005). Based on these considerations, a

holistic (whole face analysis) and feature based

(individual analysis of each facial feature)

processing are proposed for measuring expressive

deformation, transient feature segmentation and

facial expression recognition.

2.1 Holistic Face Processing for

Emotional Segment Detection

An emotional segment corresponds to all the frames

between each pair of beginning and end of each

facial expression. Facial muscle activation during

facial expressions induces local changes in spatial

frequencies and orientations of the face compared to

the relaxation state (i.e. Neutral). These global

changes can be measured by the energy response of

a bank of filters at different frequencies and

orientations. The current paper presents a holistic

face processing technique based on a Log-Normal

filtering process for dynamic detection of pairs of

beginning and end of multiple emotional segments

in video sequences.

Log-Normal Filtering. The studied face is first

automatically detected in video streams using the

method proposed by (Fasel et al., 2005) and tracked

in the remaining of the sequence (Hammal et al.,

2006). To cope with the problem of illumination

variation, a preprocessing stage based on a model of

the human retina (Beaudot, 1994) is applied to each

detected face (see Figure 1.b). This processing

enhances the contours and realizes a local correction

of the illumination variation. To take away the frame

border information and to only measure the facial

deformations, a Hamming circular window is

applied to the filtered face (Figure 1.b). The power

spectra of the obtained face area is then passed

through a bank of Log-Normal filters (15

orientations and 2 central frequencies), leading to a

collection of features measuring the amount of

energy displayed by the face at different frequency

bands and across all orientations (Figure 1.c). The

HOLISTIC AND FEATURE-BASED INFORMATION TOWARDS DYNAMIC MULTI-EXPRESSIONS

RECOGNITION

301

Log-Normal filters are chosen because of their

advantage of being easily tuned and separable in

frequency and orientation (Massot et al., 2008)

which make them well suited for detecting features

at different scales and orientations (see section

2.2.2). They are defined as follow:

i, j

( f,

)

= G

( f).G

(

)

= A.

.exp −

ln(f / f

)

⎛

⎝

⎜

⎞

⎠

⎟

⎛

⎝

⎜

⎞

⎠

⎟

.exp −

−

⎛

⎝

⎜

⎞

⎠

⎟

⎛

⎝

⎜

⎞

⎠

⎟

(1)

Where

i, j

is the transfer function of the ﬁlter,

(

)

and

(

)

, respectively, represents the frequency and

the orientation components of the ﬁlter;

is the

central frequency,

, the central orientation,

, the

frequency bandwidth,

, the orientation bandwidth

and A, a normalization factor.

Emotional Segments: Detection. Facial muscle

activity is measured by the energy of the obtained

filters’ responses. The amount of energy displayed

by the face at two high frequencies (

= 0.25

and

= 0.17

) and across all orientations are summed

and called global energy as follow:

global

i=1..2

∑

||S

frame

( f,

)*G

i, j

( f,

)

j=1..15

∑

(2)

Where

global

is the global energy of the face and

frame

(

)

, the power spectra of the current frame.

The obtained results (Figure 1.d) show high-energy

response (white areas) around the permanent facial

features (such as eyes, eyebrows and mouth) and

transient facial features (such as nasolabial furrows

and nasal root wrinkles). These examples show that

facial feature behaviors effectively induce a change

of the measured global energy.

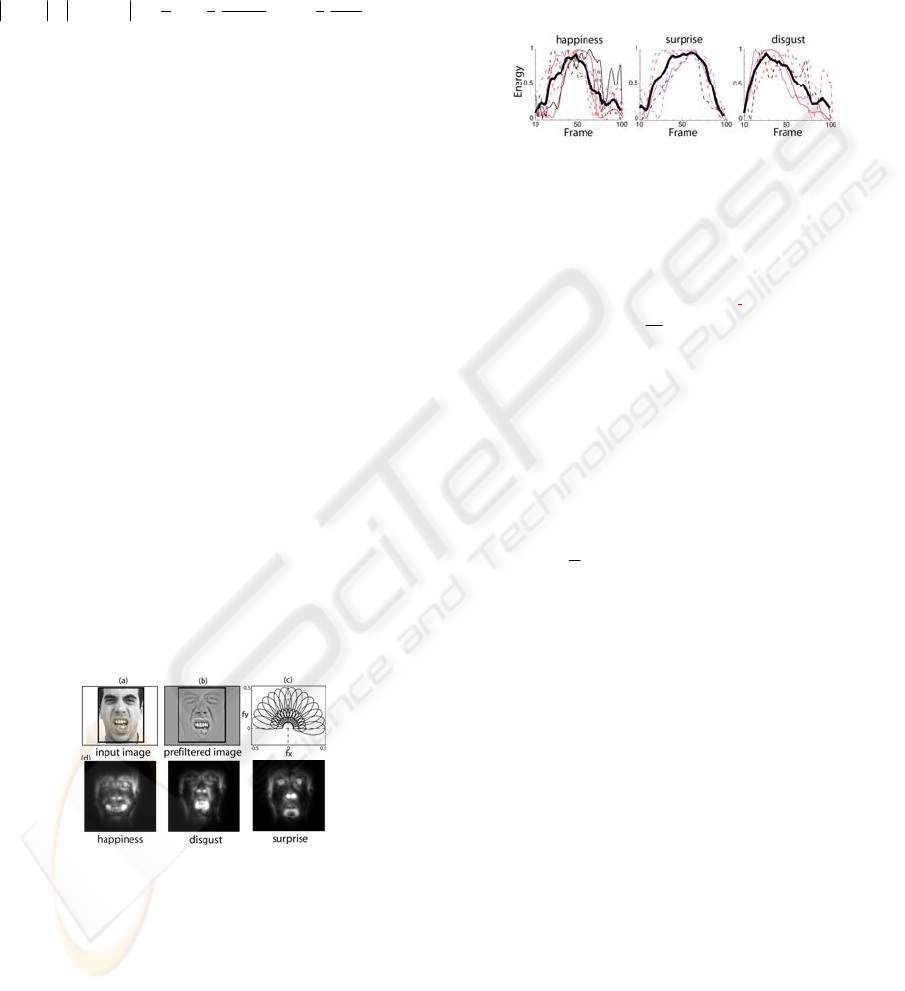

Figure 1: (a) input image, (b) after retinal filtering and

with a hamming window, (c) bank of Log-Normal filters,

(d) global energy response of Log-Normal filter during

three facial expressions.

Figure 2 shows examples of the temporal evolution

of the global energy of different subjects and for

different facial expressions going from Neutral to

the apex of the expression and coming back to

Neutral. Similar evolutions can be observed for all

the subjects independently of individual

morphological differences and facial expressions.

The global energy is then used to detect each

emotional segment as the set of frames between each

pair of beginning and end. The beginning of each

facial expression is characterized by the increase of

the global energy of the face and the end as the

coming-back of this energy to its value at the

beginning taken as a reference value.

Figure 2: Time course of the global energy (normalized in

amplitude and length) for 3 facial expressions and for 9

subjects from the Hammal–Caplier database. Black curves

correspond to the mean curve of all the subjects.

The detection of the beginning

of each emotional

segment is computed based on the derivative of the

global energy signal

global

)

. Indeed, a positive

peak of the corresponding derivative function

directly traduces an increase of the global energy.

The temporal average

of the derivative function

of the global energy and its standard deviation

from the beginning of the sequence (or from the end

of a previous segment) are computed progressively.

The beginning

corresponds to the first frame

verifying:

global

))>(M

)

(3)

The detection of the end of each emotional segment

is made after each beginning frame. The end of

each segment is considered as the coming back of

the global energy to a reference value. To do so, the

detection process begins 12 frames after the

beginning of the segment (i.e. the minimum time

necessary for a complete muscle activity

(contraction and relaxation), see (Ekman et al.,

1978) and section 2.1.3). A temporal sliding window

of 6 frames (time for muscle contraction, see section

2.1.3) is then used to measure the local average of

the global energy signal. The first frame verifying

equation 4 is considered as the end of the current

emotional segment.

(

−

)

global

(

) <=(

)

(4)

It is important to notice that the proposed method

allows the detection of each pair (

) on-line,

without any post-processing step, and makes it

independent of the absolute level of global energy

that can be dependent of the expression intensity or

face morphology. Figure 3 shows examples of

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

302

detection of expressive segments from the Hammal-

Caplier and the MMI databases (the MMI-Facial

Expression Database collected by M. Pantic and her

group (www.mmifacedb.com), Pantic et al. 2005).

The automatic segmentation appears very

comparable to a manual segmentation and robust to

variable duration of the expressive segments.

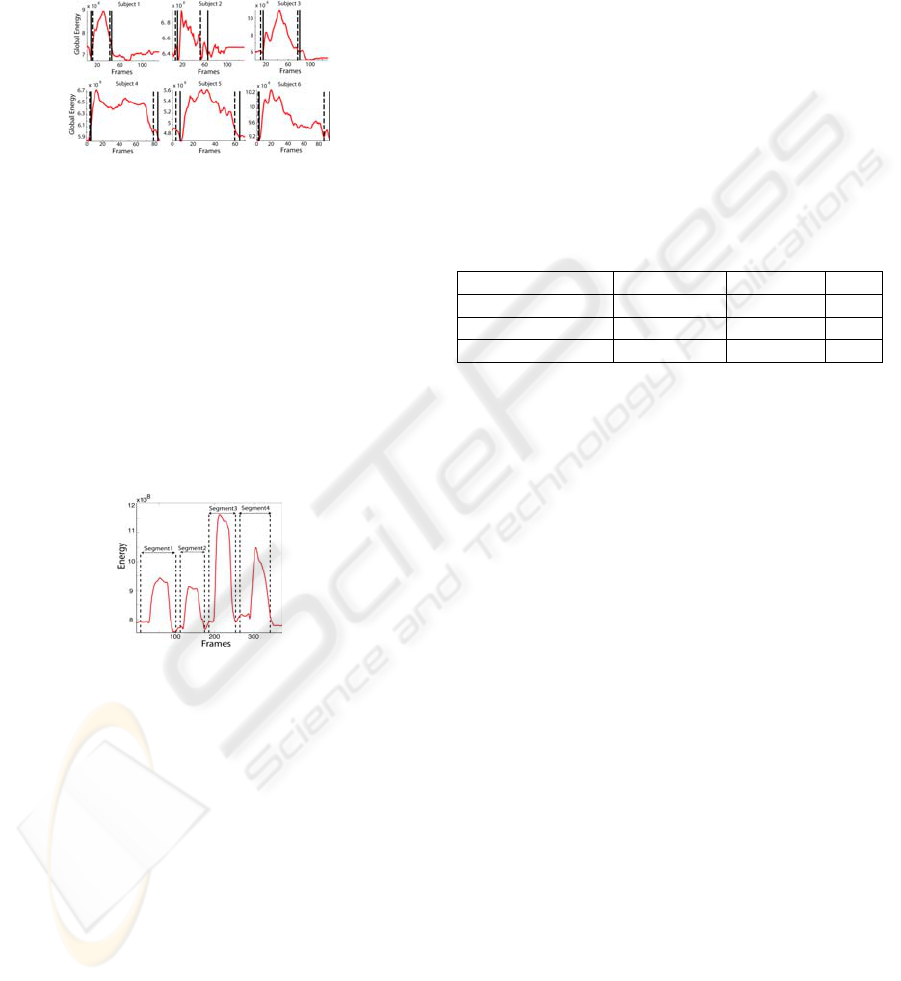

Figure 3: Example of detection of the beginning and the

end on Hammal-Caplier (top) and MMI (bottom)

databases. Dashed lined correspond to the automatic

results and plain lines to expert manual segmentation.

The detection of the beginning and the end of facial

expressions can also be applied several times during

a multi-expression sequence. Figure 4 shows the

evolution of the global energy during a sequence

where the subject expressed 4 different facial

expressions sequentially. Each beginning is detected

(using equation 3) starting either at the first frame of

the sequence or at the frame following immediately

the last detected end (using equation 4).

Figure 4: Example of automatic segmentation result of one

sequence containing 4 expression segments. Dashed lines

correspond to each detected pair of beginning and end.

The obtained result shows how the proposed method

successfully detects the different emotional

segments. At best of our knowledge, this is the first

time where several facial expression segments are

automatically detected in a video sequence. After the

segmentation process each expressive segment is

automatically and independently analyzed to

recognize the corresponding facial expression based

on a feature-based processing.

Emotional Segments: Performances. Intensive

tests on dynamic facial expression sequences (single

facial expression sequences such as Hammal-Caplier

and MMI databases) and multi-expressions

sequences (4 facial expression sequences acquired in

our laboratory) show the robustness of the proposed

method to different acquisition conditions,

individual differences and displayed facial

expressions. Table 1 summarizes the mean frame

differences between the automatic detection of the

beginning and the end compared to a manual

detection (which may also vary for different

experts). Over all the used sequences (96 in total)

the mean frame difference for the beginning and end

detection is 8.1. This result can be related to findings

that suggested that temporal changes in

neuromuscular facial activity are from 0.25s to

several minutes (Ekman et al., 1978). The obtained

error based on a minimum video frame rate of 24

frames/s is comparable to the shortest facial muscle

activity duration (i.e. 6 frames).

Table 1: Detection errors of the beginning and the end of

emotional segments and number of tested sequences.

beginning end errors # seq.

Hammal_Caplier 9.24 frames 12.6 frames 63

MMI 3.42 frames 7.5 frames 29

Multi-expression 5.6 frames 10 frames 4

Considering that each result with an error less then 6

frames as a good detection, the performances of the

emotional segments detection reach 89%. It is

difficult to compare the obtained results to the few

proposed works for the automatic recognition of

multiple expressions because they either classify

segments of AUs of did not report a quantitative

evaluation of an expressive segment detection.

2.2 Feature-based Processing of

Emotional Segments

Feature-based processing consists in the

combination of the information resulting from the

permanent and the transient facial feature

deformations for the recognition of facial

expressions during each emotional segment.

2.2.1 Permanent Facial Feature Information

The permanent facial feature behavior is measured

based on the work of Hammal et al., 2007. First,

face and permanent facial features (eyes, eyebrows

and mouth) are automatically segmented (see

Hammal et al., 2006 and Figure 5.a). Secondly, five

characteristic distances

1 ≤ i ≤ 5

coding the

displacement of a set of selected facial feature points

according to the Neutral state are measured (Figure

5.b, see Hammal et al., 2007 for detailed explanation

of this choice). Facial expressions are then

HOLISTIC AND FEATURE-BASED INFORMATION TOWARDS DYNAMIC MULTI-EXPRESSIONS

RECOGNITION

303

Areas Regions description

1 Y11=a(y)-0.7*W;X11= b(x)+2

Y12=a(y)+0.4*W;X12= d(x)-2

2 Y21=Y12; X21=c(x)+R

Y22=Y12+1.5*W;X22=X11

3 Y31=Y12; X31=f(x)+R

Y32=Y12+1.5*W; X32=X12

characterized by the behavior of the measured

characteristic distances.

(a) (b)

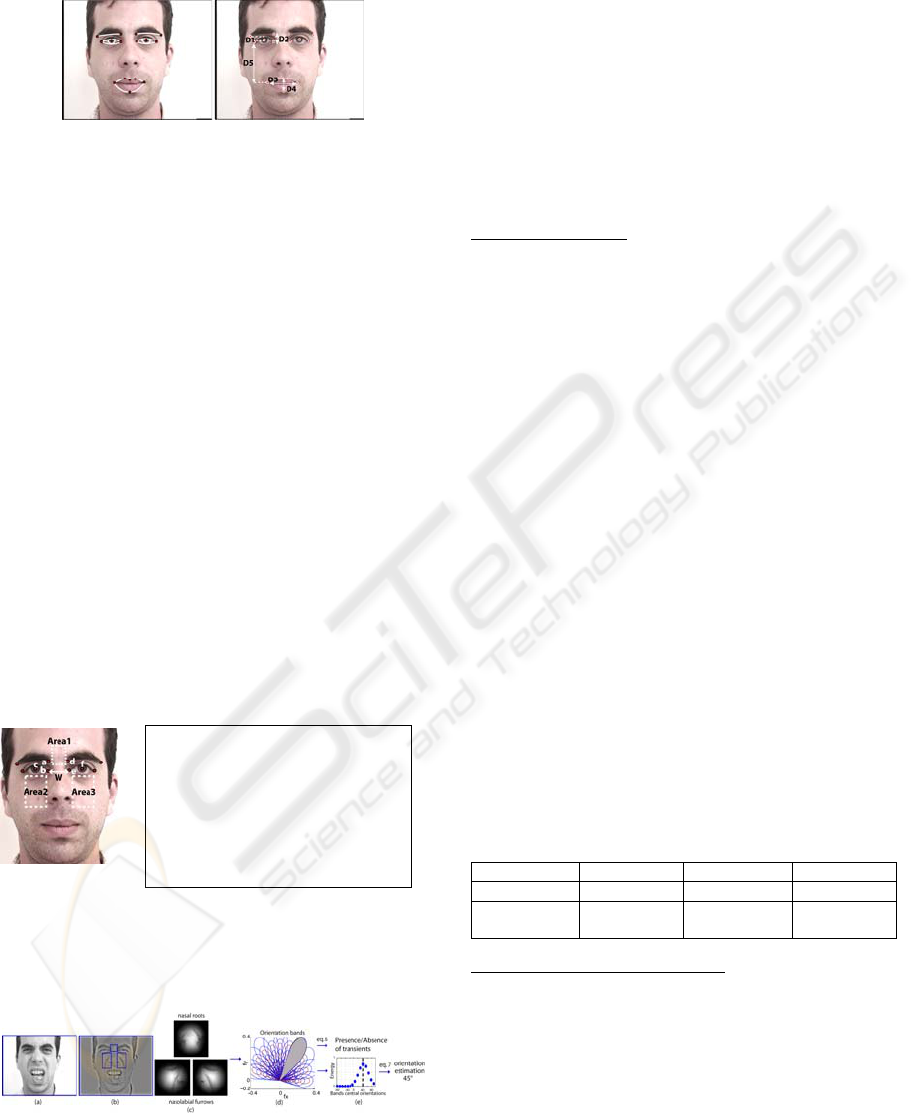

Figure 5: (a) Example of facial features segmentation

(Hammal et al., 2006); (b) associated characteristic

distances (Hammal et al., 2007).

2.2.2 Transient Facial Feature Information

In addition to the permanent facial features (Hammal

et al., 2007) and in order to provide additional

information to support the recognition of facial

expressions, the analysis of the transient facial

features such as nasal root wrinkles (Figure 6 Areas

1) and the nasolabial furrows (Figure 6 Areas 2,3)

(being part of the most important visual cues used by

human observer for facial expression recognition

(Smith et al., 2005)) is introduced. Transient facial

feature areas are first located based on the

permanent facial features segmentation (Figure 6).

The filtering based-method proposed in section 2.1

is then applied inside each selected area for the

estimation their appearance and the corresponding

orientation when necessary. Figure 7 shows the

different processing steps.

After the selection process (Figure 7.b), a Hamming

window is applied to each area (Figure 7.c).

(a) (b)

Figure 6: (a) detected wrinkles regions, (b) transient

feature areas, R: eyes radius, W the distance between eyes

corners.

Figure 7: Transient features detection and orientation

estimation.

The response of orientation bands

j,t

that

corresponds to the sum of the responses of all filters

sharing the same central orientation at different

spatial frequencies (Figure 7.d grey) is measured as:

j,t

= ||S

( f,

).G

i, j

( f,

)

1..7

∑

(5)

This allows analyzing an oriented transient feature

independently of its spatial frequency making the

detection more robust to individual morphological

differences.

Wrinkles detection

: for each frame t, nasal root

wrinkles and nasolabial furrows are detected based

on the sum of total energy

over all the

orientation bands j inside each selected area as:

= B

j,t

j=1..15

∑

(6)

Wrinkles are “present” if

is higher than a

predefined threshold and “absent” otherwise.

Threshold values on the energy measure are

obtained after learning process over three

benchmark databases (Cohn-Kanade, Dailey-Cottrel

and STOIC databases) and generalized on the

Hammal-Caplier database. Table 2 shows the

detection performances. The obtained results are

more than sufficient to reinforce the permanent

facial features information.

Indeed as explained in section 3.1.2, if they are

present the corresponding information will be taken

into account as a refinement of the classification

process otherwise the doubt resulting from the

permanent facial feature analysis is kept rather than

making a wrong decision.

Table 2: Detection performances of the transient features;

the threshold value has been chosen equal to 0.12 in order

to minimize false alarms’ rate.

Recall % Precision % F-measure

Nasal Roots 73 71 72

Nasolabial

Furrows

86 85 86

Nasolabial furrows orientation: once the nasolabial

furrows detected, their orientation (the angle

between their edge line and the horizontal plan of

the corresponding area) is measured by linear

combination of the orientation bands responses as:

= B

j,t

j=1..15

∑

(7)

Figure 8 shows examples of dynamic detection of

nasolabial furrows and nasal roots wrinkles during

sequences of Happiness and Disgust expressions.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

304

(a) (b)

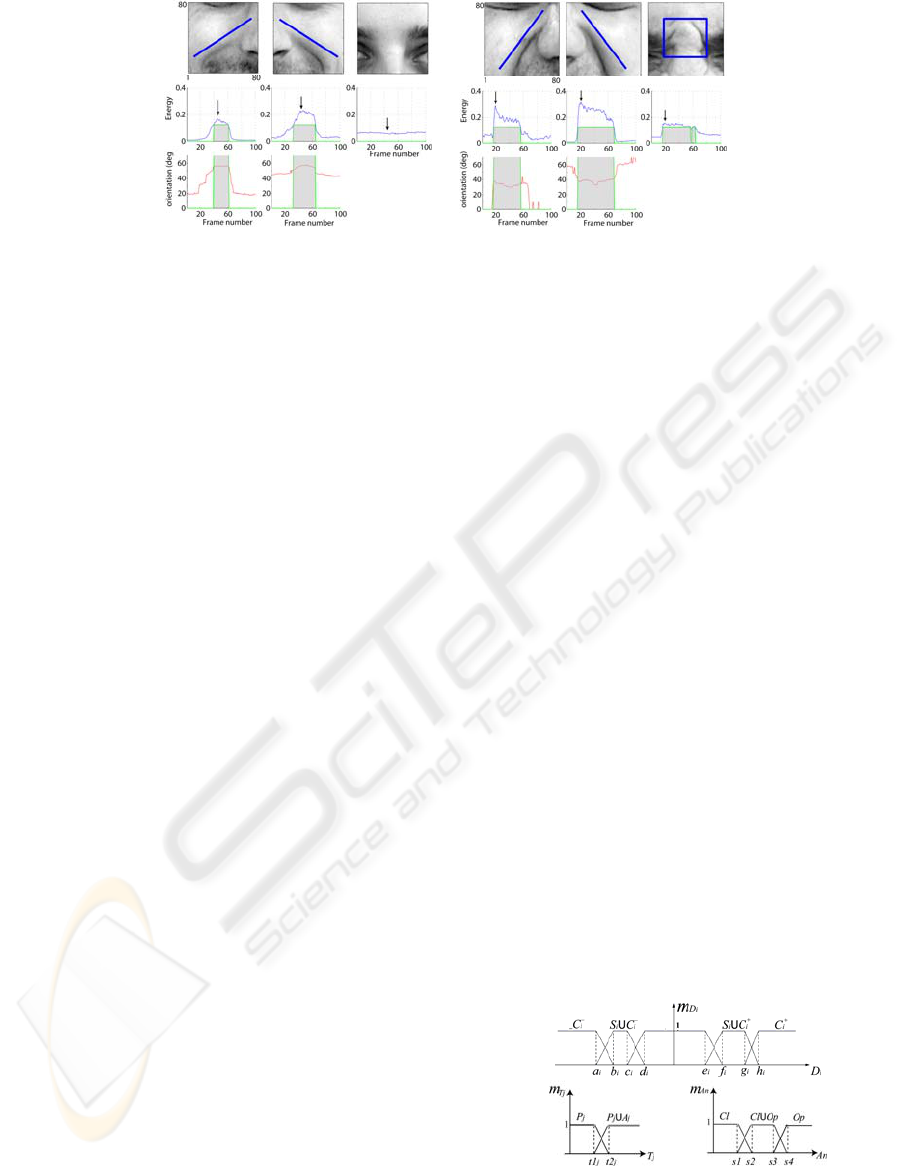

Figure 8: Example of nasolabial furrows and nasal roots detection during Happiness (a) and Disgust (b) sequences; gray

temporal windows (second rows) indicate the temporal presence of the transient features based on the energy threshold

(0.11, validated on three databases); third rows display the measured angles of the nasolabial furrows (around 60° for

Happiness and 45° for Disgust).

One can see that nasal roots appear for Disgust but

not for Happiness and that nasolabial orientations

are different according of the expression. These

examples show the usefulness of these wrinkles to

characterize the corresponding facial expressions.

2.3 Numerical to Symbolic

Conversion of Facial Features

Behavior

A numerical to symbolic conversion translates the

measured distances, transient features and the

corresponding angles into symbolic states

reflecting their behavior. First, the value of each

characteristic distance

is coded with five

symbolic states (based on the work of Hammal et

al., 2007) reflecting the magnitude of the

corresponding deformations:

is roughly

equal to its value in the Neutral expression,

(vs.

−

) if

is significantly higher (vs. lower) than its

value in the Neutral expression, and

∪

(vs.

∪

−

) if the

is neither sufficiently higher (vs.

lower) to be in

(vs.

−

), nor sufficiently stable

to be in

. Following this symbolic association,

two states are introduced for Nasal root and

nasolabial furrows behaviors: “present”

“absent”

1≤

≤ 2

according to the

corresponding energy measure as described in

section 2.2.2. The explicit doubt of their state

∪

(

) is introduced and allows

modeling the uncertainty of their detection (see

section 3.1). Finally, two symbolic states are also

introduced for nasolabial furrows angles: “opened”

and “closed”

. If the angle is

higher (resp.

lower) than a predefined value the state

(resp.

) is chosen. As for the wrinkles detection a

doubt state

Op∪ C

is also introduced to model

the uncertainty of the measured angles (see section

3.1).

Table 3 summarizes the characteristic distances,

the transient feature and the nasolabial furrow

angle states for each facial expression. However, a

logic-based system is not sufficient to model the

facial expressions. Indeed, an automatic facial

expression system should explicitly model the

doubt and uncertainty of the sensors (such as

∪

states) generating its conclusion with

confidence that reflects uncertainty of the sensors

detection and tracking. For this reason, the

Transferable Belief Model (TBM) is used.

3 TBM BELIEF MODELING

The TBM (Smets et al., 1994) considers the

definition of the frame of discernment

of N

exclusive and exhaustive hypotheses

characterizing

the six basic facial expressions and Neutral Ω =

{Happiness (

), Surprise (

), Disgust (

Fear (

), Anger (

), Sadness (

), Neutral

(

)}. The TBM requires the definition of the

Basic Belief Assignment (BBA) associated to each

independent source of information.

(a)

(b)

(c)

Figure 9: (a): model of BBAs for the characteristic

distances (Hammal et al., 2007); (b): model of BBAs for

the transient features detection; (c): model of BBAs of

the Nasolabial furrow angles.

HOLISTIC AND FEATURE-BASED INFORMATION TOWARDS DYNAMIC MULTI-EXPRESSIONS

RECOGNITION

305

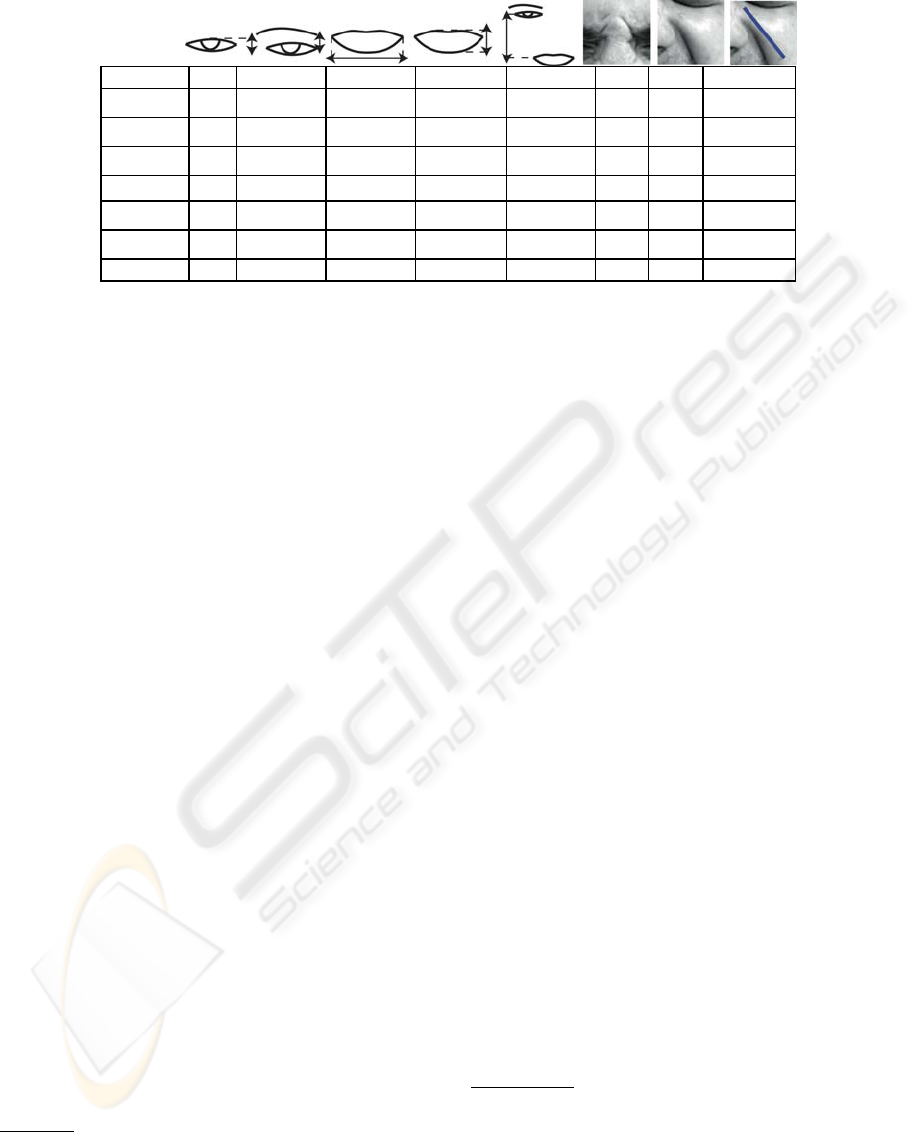

Table 3: Rules table defining the visual cues states corresponding to each facial expression.

Happiness

−

∪

−

Surprise

−

Disgust

−

∪ C

Anger

−

∪

−

Op∪ C

Sadness

−

Fear

∪ C

∪

−

∪ C

Neutral

3.1 Belief Modeling

The belief definition means the definition of the

BBAs of each visual cue and is equivalent to the

probabilities definition in the Bayesian model.

3.1.1 Beliefs of the Permanent Facial

Features

The BBA of the permanent facial features

(characteristic distances) is based on the work of

Hammal et al., 2007. The BBA

of each

characteristic distance state

is defined as:

→ 0, 1

[]

→ m

(A),

∈2

ΩDi

∑

1 ≤ i

≤

(8)

Where

= {C

−

}

is the power set,

= {{C

},{C

−

},{S

−

},{S

−

}}

the frame of discernment,

}

(vs.

−

}

) the

doubt state between

(vs.

−

) and

(A)

the belief in the proposition

∈ 2

without

favoring any proposition of A in case of doubt

proposition. This is the main difference with the

Bayesian model, which implies equiprobability of

the propositions of A. The piece of evidence

associated with each symbolic state given the

value of the characteristic distance

is defined by

the model depicted in Figure 9.a.

3.1.2 Beliefs of the Transient Facial Features

Presence: The BBA

TF j

of the states of each

transient feature

is defined as:

TF j

TFj

→ 0, 1

[]

TF j

→ m

TF j

(B),

TFj

∈

ΩTFj

∑

1 ≤

≤ 2

(9)

Where

means the nasal root wrinkles,

, the

nasolabial furrow,

= {

}

TF j

{{P

},{ A

},{P

, A

}}

. From the frame of

discernment

TF j

only the states

(the wrinkles

are present without any doubt) and the state

{

}

(there is a doubt in their detection and noted

∪

) are considered. Then if the wrinkles are

detected as present (the energy threshold is higher

than the defined value) the corresponding state is

if not, the corresponding state is

∪

. The piece

of evidence

TFj

of each state is derived according

to the model depicted in Figure 9.b. The nasal root

wrinkles are used as a refinement process and are

associated to Disgust and Anger expressions

(without favoring any of them). If they are present

the current expression is Disgust or Anger with the

piece of evidence:

TF1

) = m

TF1

∪ E

) =1

. If they

are not present, the current expression can be one of

the 7 studied expressions with the piece of evidence:

TF1

∪ A

)

TF1

∪ E

)

If present, the nasolabial furrows are associated to

Happiness, Disgust and Anger expressions with the

piece of evidence:

TF2

) = m

TF2

∪ E

) =1

. If

they are absent: the current expression is one of the

7 expressions with the piece of evidence:

TF2

∪A

)

TF2

∪E

)

Orientation

: The BBAs of the nasolabial furrow

angle states are defined as:

→ 0, 1

[]

→ m

(C),

∈

ΩAn

∑

(10)

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

306

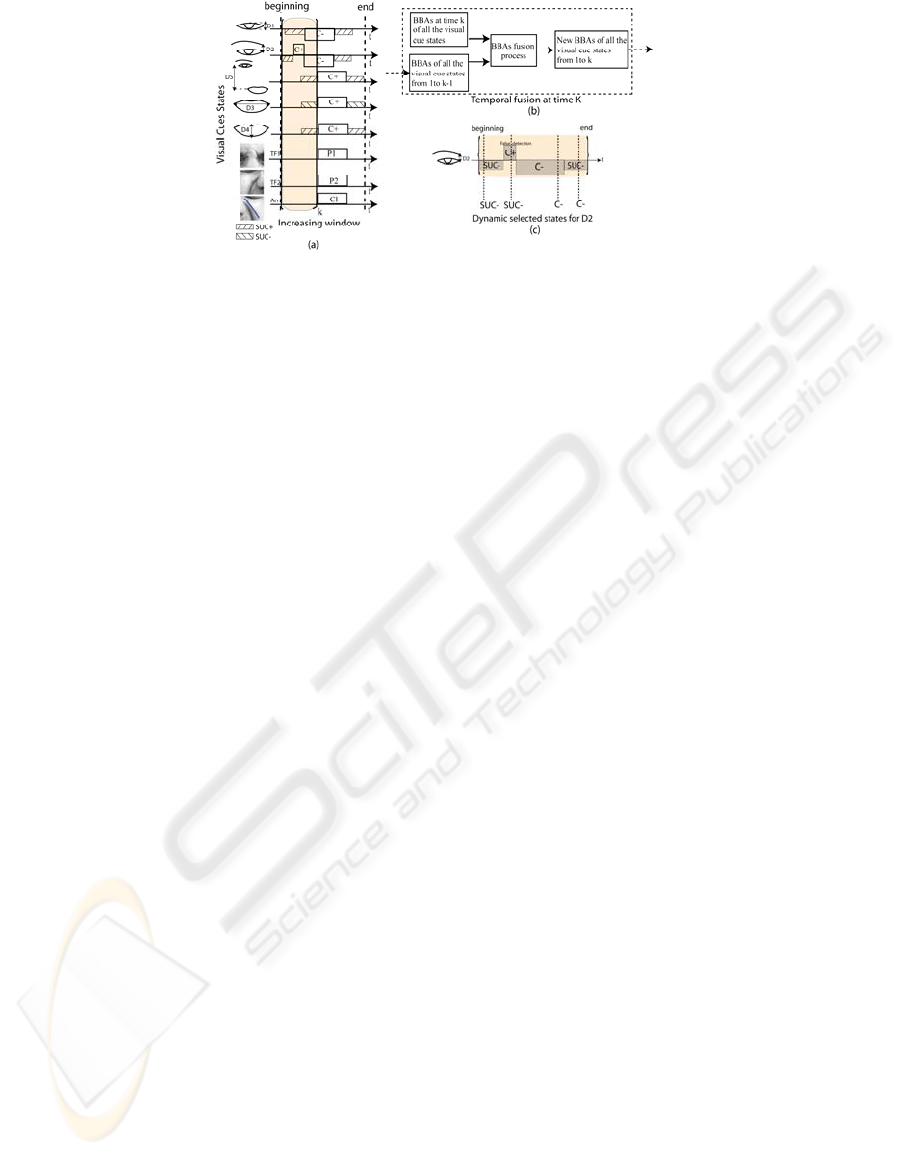

Figure 10: (a) Example of the increasing temporal window during a sequence of Disgust expression; (b) BBAs selection

refinement process at time k; (c) Example of the selection of the characteristic distance states inside the temporal window.

Where

is the angle,

= {Op,Cl}

= {{Op},{Cl},{Op,Cl}}

and

mean

opened and closed angles (see section 2.2.2)

{Op,Cl}

means

and corresponds to the

doubt between

and

(noted

Op∪C

). The

pieces of evidence associated to the states of the

computed detected angles are defined using the

model proposed in Figure 9.c. Based on the BBAs of

the nasolabial furrow angle states, the piece of

evidence associated to each one of the 3 expressions

Happiness (

), Anger (

) and Disgust (

) is

based on the fuzzy-like model of Figure 9.d as:

(An ≤ s1) = m

(Cl) = m

) =1

(An ≥ s4) = m

(Op) = m

) =1

(s2 ≤ An ≤ s3) = m

(Op∪Cl) = m

∪ E

)

In the other cases the piece of evidence of the

expression or subset of expressions is equal to the

projection of the angle value on the proposed model.

4 TEMPORAL INFORMATION

The dynamic and asynchronous behavior of the

facial features is introduced by combining at each

time t their previous deformations from the

beginning until the end of each emotional segment

(see Section 2) to take a decision. The analysis of the

facial feature states is made inside an increasing

temporal window Δt (Figure 10. a). The size of the

window Δt increases progressively at each time from

the detection of the beginning until the detection of

the end of the expression. Then, at each time t inside

the window Δt, the current state of each facial

feature (i.e. characteristic distances and transient

features) is selected based on the combination of

their current state at time t and of the whole set of

their past states since the beginning which then takes

into account their dynamic and asynchronous facial

feature deformations (Figure 10.b). The dynamic

fusion of the BBAs is made according to the number

of appearance of each symbolic state noted

Δt

(

tate)

and their integral (sum) of plausibility

noted

Δt

(

tate)

computed progressively inside the

temporal window

. For instance, for a

characteristic distance

and for the state =

−

) =

1 if m

−

) ≠ 0

0 otherwise 1≤ t ≤Δt

⎧

⎨

⎪

⎩

⎪

Δt

−

) = K

−

)

Δt

∑

(11)

Δt

−

) = (m

−

) +

∑

(S ∪ C

−

))

(12)

From the two parameters

Δt

(

tate)

and

Δt

(

tate)

the selected states of each visual cues at each time t

inside the temporal window Δt are chosen as:

State(

)

Δt

max(Pl

Δt

(

tate

)/Nb

Δt

(

tate

))

state

∈ C

−

∪ C

−

{

}

1 ≤ i ≤ 5

(13)

State(TR

)

Δt

max(

Δt

(

tate

TRj

)/Nb

Δt

(

tate

TRj

))

tate

∈

∪ A

{

}

1 ≤

≤ 2

(14)

State(

Δt

max(P

Δt

(

tate

Δt

(

tate

))

tate

∈

∪ Cl

{

}

(15)

Figure 10.c shows an example of the temporal

selection of the states of the characteristic

distance

. One can see the correction of the false

detection state (

) by the temporal fusion process

(equation 13). The piece of evidence associated to

each chosen state corresponds to its maximum piece

of evidence inside the temporal window as:

HOLISTIC AND FEATURE-BASED INFORMATION TOWARDS DYNAMIC MULTI-EXPRESSIONS

RECOGNITION

307

(a) (b) (c)

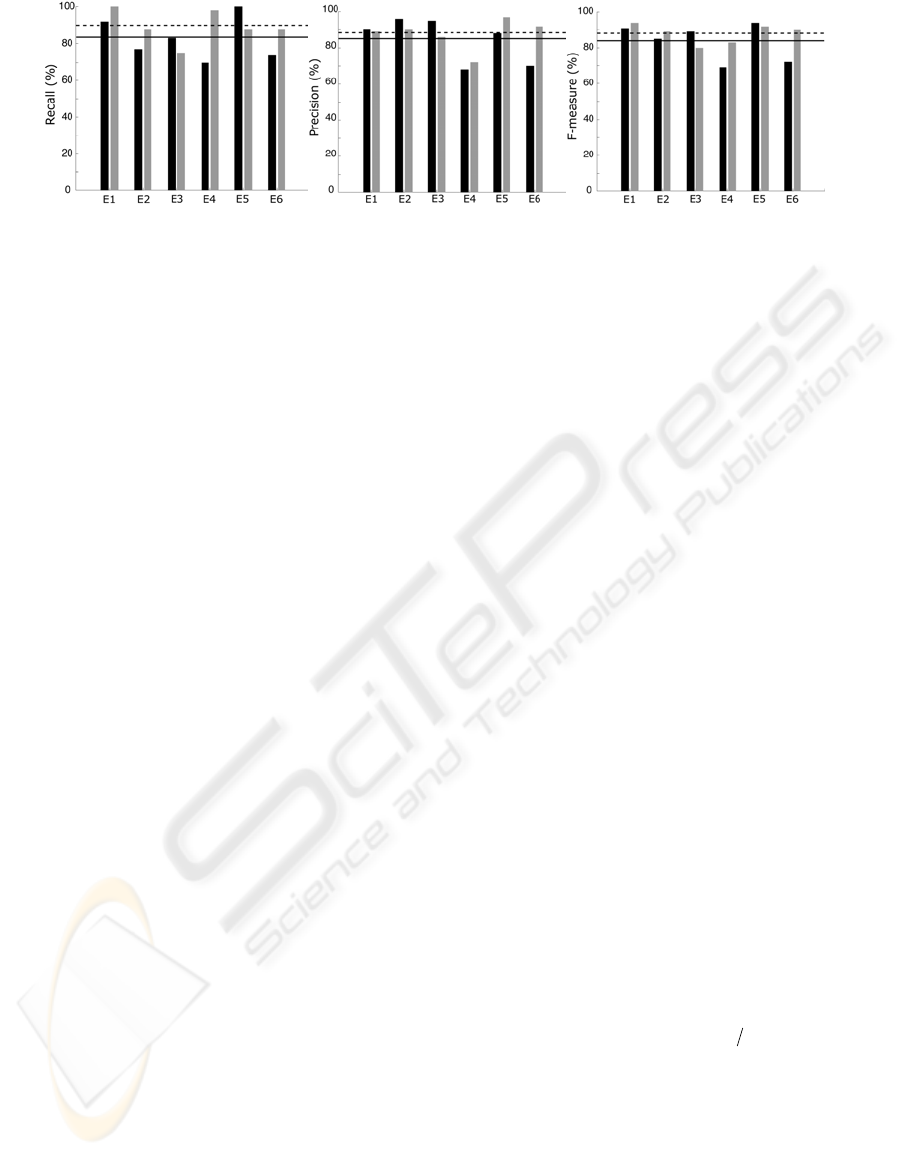

Figure 11: Recall, Precision and F measures (in %) of the model and human performances (Happiness (

), Surprise (

Disgust (

), Fear (

), Anger (

), Sadness (

), Neutral (

)). Black bars: model performances; grey bars, human

performances. Plain and dashed horizontal lines mean model and human performances over all the expressions respectively.

State

Δt

(Cues),Δt

= max(m

Cues

i,1...Δt

)

Cues ∈ D

,TF

, An

{}

1 ≤ i ≤ 5, 1 ≤

≤ 2

(16)

Then at each time t from the beginning to the end of

the expression sequence, once the basic belief

assignments of all the visual cues are refined, the

corresponding expression is selected according to

the rules table 3.

5 BELIEFS FUSION

The fusion process of all the visual cue states is done

at each time (Figure 10.a) using the conjunctive

combination rule (Denoeux, 2008) and results in

the BBA of the corresponding expression or

subset of expressions:

=⊕m

Cues

(17)

From Table 3 and the BBAs of the sensor states: the

characteristic distance states

, the transient

features’ states

TFi

and the angles’ states

, a

set of BBAs on facial expressions is derived for each

sensor as:

TFi

and

. The fusion process of

the BBAs

TFi

and

is performed

successively using the conjunctive combination rule

(equation. 17). For example, for two characteristic

distances

and

the joint BBA

i,t

using the

conjunctive combination is:

i,t

(A) =(m

⊕m

)(A) = m

(E)∗m

(F)

∩

∑



(18)

The obtained results are then combined to the BBAs

of the transient features’ states as:

,TF

(G) = (m

⊕ m

TFj

)(G) = m

( A) ∗ m

TFj

(B)

A ∩ B =

∑



(19)

The obtained results are finally combined to the

BBAs of the angles’ states as:

D,TF

,An

(H)=(m

,TFj

⊕m

)(H)= m

,TF

(G)∗m

(C)

G∩

∑

(20)

Where

denote propositions and

∩

the conjunction (intersection)

between the corresponding propositions. This leads

to propositions with a lower number of elements and

with more accurate pieces of evidence.

The decision is the ultimate step and consists in

making a choice between various hypotheses

and their possible combinations. The decision is

made using the credibility as:

Bel:2

→[0, 1]

I → Bel(I) = m

(B),

∑

∀ I ∈Ω

(21)

6 CLASSIFICATION RESULTS

In order to measure the introduction of the transient

features and the temporal modeling compared to the

model proposed by Hammal et al., 2007, the

classification results were performed on the six basic

facial expressions from three benchmark databases,

Cohn-Kanade, Hammal-Caplier and Stoic databases

(a total of 182 videos). Recall (R), Precision (P) and

F-measure (F), which combines evenly Recall and

Precision as:

2*Recall*P

ecision (Recall+ P

ecision)

are used for the evaluation of the proposed method.

Figure 11 shows the performances obtained by the

proposed model (black bars). The mean

classification recall and precision reaches 83% and

85% respectively and the mean f-measure (f) 84%

(horizontal plain lines). The best performances are

obtained for Anger (f=94%) and Happiness

(f=91%). The lowest performances are obtained for

Fear (f=72%) and Sadness (f=69%) expressions.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

308

These results can be explained by two doubt states

that appear frequently: the doubt between Fear and

Surprise and the doubt between Sadness and Anger

expressions. Interestingly, these expressions are also

notoriously difficult to discriminate for human

observers (Roy et al., 2007). Compared to the model

of Hammal et al., 2007 the introduction of the

temporal modeling of all the facial features

information leads to an average increase of 12% of

the performances. To better evaluate the quality of

the obtained results, the model performances are

compared with those of human observers on the

same data. 15 human observers were asked to

discriminate between the six basic facial expressions

on 80 videos randomly interleaved in 4 separate

blocks. Figure 11 reports the human performances

(grey bars). The human and model performances are

not significantly different (two-way ANOVA,

P>0.33).

7 CONCLUSIONS

The current paper proposes a model combining a

holistic and a feature-based processing for the

automatic recognition of facial expressions dealing

with asynchronous facial feature deformations and

multi-expression sequences. Compared to the static

results, the introduction of the transient features and

the temporal modeling of the facial features increase

the performances by 12% and compare favorably to

human observers. This opens promising perspectives

for the development of the model. For example,

preliminary results on spontaneous pain expression

recognition proved its suitability to generalize to

non-prototypic facial expressions

. A future direction

would be the synchronization of the facial and the

vocal modalities inside each detected emotional

segment and the definition of a fusion process

towards a bimodal model for multi-expression

recognition.

REFERENCES

Hammal Z., Couvreur L., Caplier A., Rombaut M., 2007.

Facial expressions classification: A new approach

based on transferable belief model. International

Journal of Approximate Reasoning, 46(3), 542-567.

Hammal Z., Eveno N., Caplier A., Coulon, P-Y., 2006.

Parametric models for facial features segmentation,

Signal processing, 86, 399-413.

Smith M., Cottrell G., Gosselin F. Schyns P.G, 2005.

Transmitting and decoding facial expressions of

emotions, Psychological Science, 16, 184–189.

Pantic M., Patras I., 2006. Dynamics of Facial Expression:

Recognition of Facial Actions and Their Temporal

Segments from Face Profile Image Sequences, IEEE

Trans. SMC- Part B, 36(2), 433-449.

Smets P., Kruse R., 1994. The transferable belief model,

Artificial Intelligence, 66, 191–234.

Tian Y., Kanade T., Cohn J.F., 2001. Recognizing Action

Units for Facial Expression Analysis, IEEE Trans.

PAMI, 23(2), 97-115.

Massot C., Herault J., 2008.Model of Frequency Analysis

in the Visual Cortex and the Shape from Texture

Problem, Int. Journal of Computer Vision, 76(2).

Denoeux T., 2008. Conjunctive and disjunctive

combination of belief functions induced by non-

distinct bodies of evidence, Artiﬁcial Intelligence,

172:234–264.

William Beaudot, 1994. Le traitement neuronal de

l'information dans la rétine des vertébrés : Un creuset

d'idées pour la vision artificielle, Thèse de Doctorat

INPG, Laboratoire TIRF, Grenoble (France).

Tian Y. L., Kanade T., Cohn J.F., 2005. Facial expression

analysis, In S” Z. Li & A.K. Jain (Eds), Handboock of

face recognition, 247-276. NY: Springer.

Littlewort G., Bartlett M. S., Fasel I., Susskind, J. &

Movellan J. 2006 Dynamics of facial expression

extracted automatically from video. J. Image Vis.

Comput. 24, 615–625.

M.F. Valstar and M. Pantic, 2007. Combined Support

Vector Machines and Hidden Markov Models for

Modeling Facial Action Temporal Dynamics, in Proc.

IEEE Workshop on Human Computer Interaction, Rio

de Janeiro, Brazil, 118-127.

Zhang Y., & Qiang, J. 2005. Active and dynamic

information fusion for facial expression understanding

from image sequences. IEEE Trans. PAMI, 27(5),

699–714.

Gralewski L., Campbell N. & Voak I. P. 2006 Using a

tensor framework for the analysis of facial dynamics.

Proc. IEEE Int. Conf. FG, 217–222.

Tong Y., Liao W. & Ji Q. 2007 Facial action unit

recognition by exploiting their dynamics and semantic

relationships. IEEE Trans. PAMI. 29, 1683–1699.

Pantic M., Valstar M.F., Rademaker R. & Maat L. 2005

Web-based database for facial expression analysis.

Proc. IEEE Int. Conf. ICME'05, Amsterdam, The

Netherlands, July.

HOLISTIC AND FEATURE-BASED INFORMATION TOWARDS DYNAMIC MULTI-EXPRESSIONS

RECOGNITION

309
