USING PHYSX FOR SIMULATION-BASED ENDOSCOPIC

HARDWARE DESIGN

Felix Dingeldey, Karsten Isakovi

c and Ilja Teiche

Fraunhofer Institute for Computer Architecture and Software Technology (FIRST)

Kekul

estraße 7, 12489 Berlin, Germany

Keywords:

Surgical simulation, Simulation-based hardware design, PhysX, Physics engine integration.

Abstract:

Computer-assistance becomes increasingly important in minimally invasive surgery. Automation and image-

processing techniques are employed for assisting surgeons with their highly skilled tasks. Our research is

aimed at developing a novel system for laparoscopic surgery consisting of a new type of endoscope and aug-

mented reality components. In order to facilitate the design of the hardware and the algorithms, we developed

a virtual endoscopy simulator. It utilizes the capabilities of NVIDIA’s physics engine “PhysX” for simulating

the physical behavior of soft tissue, instruments, and smoke. In this paper, we present our proposed solu-

tions for modeling the objects using PhysX and discuss possible problems speciﬁc to the domain of medical

simulation.

1 INTRODUCTION

Over the last decades, minimally invasive surgery

(MIS) has become more and more important, as it re-

quires smaller incisions and causes less pain to the pa-

tient than open surgeries. However, in MIS surgeons

have to deal with limited orientation and difﬁcult nav-

igation. The 2D camera image of the endoscope pro-

vides the only visual feedback. Additionally, instead

of being able to use their hands, surgeons have to use

long instruments that only give indirect sensation of

the movements and contacts.

The advances in medical imaging and computer

technology let computer-assisted surgery (CAS) ﬁnd

its way into the operating rooms. Especially for un-

experienced surgeons, CAS has the potential to sup-

port the navigation in novel manners by utilizing tech-

niques from image processing, computer vision, and

virtual or augmented reality (VR/AR).

The “Endoguide” project (Endoguide, 2010) aims

to develop a novel computer-assisted system for la-

paroscopic surgery, consisting of two major parts: a

new type of endoscope with variable viewing direc-

tion and a processing unit for offering VR/AR support

and intuitive user input paradigms. The CAS unit will

be able to automatically capture and stitch panoramic

overview scans that can be augmented with additional

information, such as the current viewing rectangle or

the area already inspected. By tracking the position

and orientation of all instruments and the endoscope,

the system will allow augmenting the camera output

with navigation aids, such as indicators that simplify

the localization of the instruments with the camera.

In addition, the tracking data will allow to overlay in-

formation from patient-speciﬁc imaging data, such as

segmented organs, CT/MRI slices, or annotations that

have been added during pre-surgical planning.

We developed a virtual simulator in order to sim-

plify the development of both the new endoscope

hardware and VR/AR algorithms. The simulator sup-

ports representative laparoscopic surgery scenarios,

such as navigating in the abdomen or lifting up tis-

sue. The simulation lets us evaluate hardware con-

cepts before actually realizing, and lets us assess the

robustness, accuracy, and speed of the algorithms be-

ing developed.

The use of simulated camera output and track-

ing data allows to start designing the algorithms very

early, even before data from the real physical system

is available. For detecting possible instabilities of the

image processing due to poor visibility or variations

and movements in the scene, the simulator has to pro-

vide a high degree of visual realism and, additionally,

model the physical behavior of scene objects, such as

instruments, soft tissue, or smoke.

In order to maintain interactive frame rates, we

use the PhysX real time physics engine (Corp., 2009a)

and integrate it into our rendering framework. PhysX

358

Dingeldey F., Isakovi

c K. and Teiche I. (2010).

USING PHYSX FOR SIMULATION-BASED ENDOSCOPIC HARDWARE DESIGN.

In Proceedings of the International Conference on Computer Graphics Theory and Applications, pages 358-363

DOI: 10.5220/0002840103580363

 SciTePress

is a production-ready and well-established physics

engine that has been used in various video games,

such as “Batman: Arkham Asylum” or“Unreal Tour-

nament 3” (Corp., 2009b). In fact, the Microsoft

Robotics Development Studio also uses PhysX for

physics simulations (Morgan, 2008).

After reviewing related work in section 2 and giv-

ing a very brief overview of laparoscopic interven-

tions in section 3, we discuss how to model the dif-

ferent aspects of the laparoscopic simulation using

PhysX in sections 4 and 5. We show results in sec-

tion 6 before drawing a conclusion and giving direc-

tions for future work in section 7.

2 RELATED WORK

Numerous highly specialized and advanced commer-

cial systems are available for practicing various min-

imally invasive interventions, e.g. (Immersion, 2009)

(Simbionix, 2009). (C¸ akmak et al., 2005) showed

how to use their virtual trainer for designing and

testing instruments, such as graspers. Training sys-

tems generally reach a very high degree of visual and

physical realism. However, as proprietary solutions

they are not suitable for our purposes. (Reichenbach,

2009) uses PhysX for simulating and testing the de-

sign of humanoid robots, particularly the rigid body

mechanics. In addition, (Reichenbach, 2009) dis-

cusses how to combine real and virtual sensors by

communicating sensor feedback between the actual

robot and the simulator. (Rieffel et al., 2009) demon-

strate how to utilize PhysX for simulating soft-bodied

robot designs and gaits — where the high deforma-

bility usually requires computationally very complex

models — by empirically determining behavioral pa-

rameters for the soft body system in PhysX.

In the ﬁeld of medical simulation, (Ermisoglu

et al., 2009) present a ﬁrst study for using PhysX to

practice the scooping procedure during cervical disc

replacement surgeries. A thorough discussion of how

to utilize PhysX for a virtual laparoscopic training

simulator with haptic feedback is given by (Maciel

et al., 2009). One focus of their work is how to han-

dle the different update rates required for the haptic

feedback (∼1 kHz) and those achieved with PhysX

(∼20 Hz in their implementation).

(Ott et al., 2007) use PhysX’s rigid body engine in

conjunction with an advanced VR haptic workstation

with two data gloves for manipulating physically ani-

mated objects. The haptic feedback is computed from

the deviation of the tracking data of the gloves and

the simulated position of the PhysX rigid body actors

that model the hands. Deviations occur if the actors

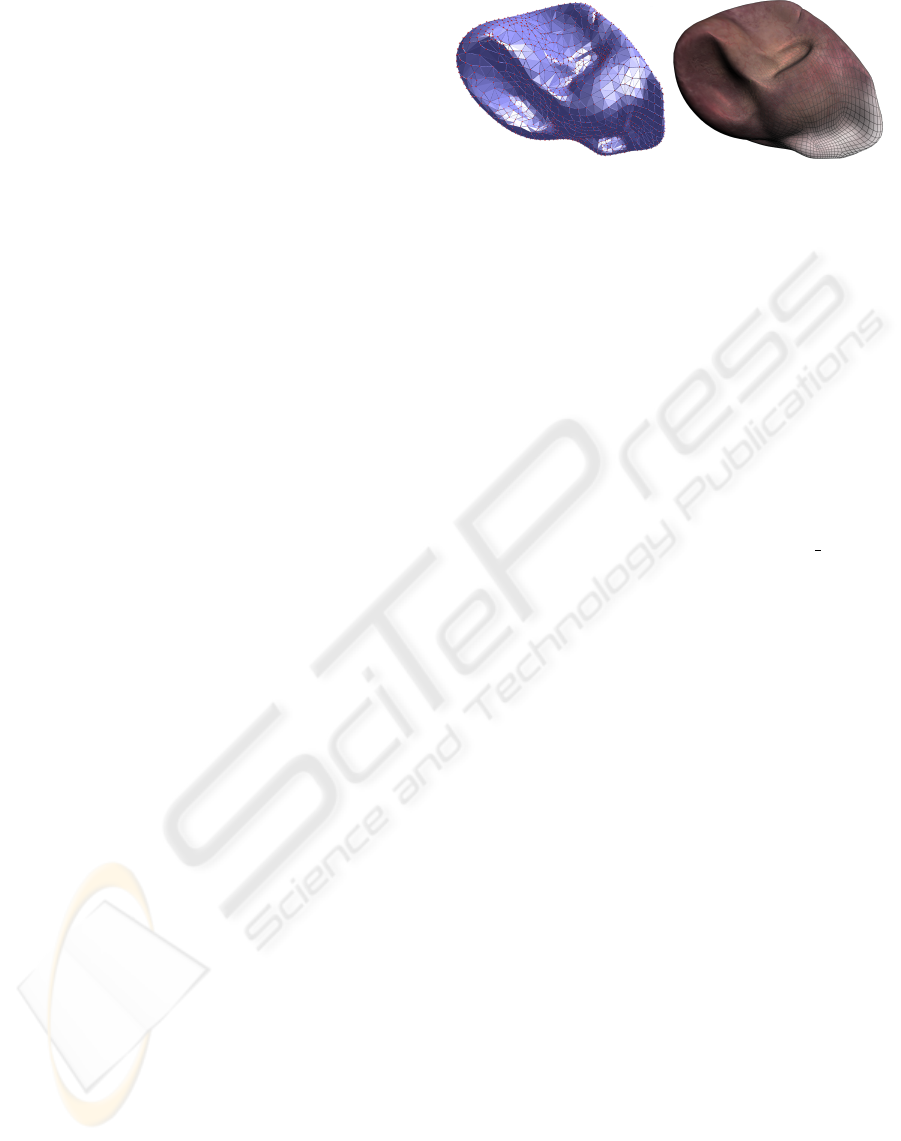

Figure 1: Example of a tetrahedral mesh used in PhysX

(left) and its graphical representation (right).

are blocked by other virtual objects in the simulated

scene.

3 BRIEF OVERVIEW OF

LAPAROSCOPIC

INTERVENTIONS

At the beginning of a minimally invasive laparoscopic

intervention, several small incisions are made for in-

serting trocars (basically tubes that seal the cut and

allow inserting instruments or the endoscope). After-

wards, the abdomen is insufﬂated using CO 2 in or-

der to create a working space between the abdominal

wall and the organs. Next, the instruments and the

endoscope with the camera are inserted through the

trocars.

During the intervention, the surgeon might have

to perform various tasks using different instruments,

such as: grasping, lifting, and cauterizing tissue; clip-

ping arteries; sucking out blood; or suturing lesions

using curved needles.

4 SIMULATION OF ORGANS

AND TISSUE

We simulate all organs and soft tissue using soft bod-

ies, which are simulated on GPU by PhysX. The en-

gine uses a volumetric model for describing the defor-

mation of soft bodies. The edge constraints between

mass vertices are organized in tetraheda. For detect-

ing collisions, a collision sphere is placed around each

vertex. The radius of the spheres (the particle radius)

can be speciﬁed per soft body object. Figure 1 shows

an example of a tetrahedral soft body mesh and the

corresponding graphical mesh.

After each simulation step, we update the posi-

tions of the graphical vertices according to the cur-

rent deformation computed by PhysX. For this, each

vertex of the graphics mesh is “linked” to the enclos-

ing (or closest) tetrahedron. The barycentric coordi-

nates of the vertex within the tetrahedron deﬁne the

USING PHYSX FOR SIMULATION-BASED ENDOSCOPIC HARDWARE DESIGN

359

inﬂuence (i.e. the weight) of each of the four tetra-

hedron’s mass vertices on the graphical vertex. The

update can be formulated as: v

∑

i = 0

b i · t i,

where v

denotes the graphical vertex being updated,

b i the barycentric coordinate (weight), and t i the po-

sition of the i’th tetrahedron’s mass vertex of the soft

body. In order to increase the rendering performance,

we update the normals only if the total displacement

has been larger than a user-deﬁnable threshold.

Our 3D model of the human abdomen consists of

all important inner organs, bones and muscles. In re-

ality, most abdominal organs are embedded by the

peritoneum (a thin membrane) and connected to the

abdominal wall. In the simulation, however, each or-

gan is represented by a separate soft body and, hence,

the embedding is disregarded. In consequence, the

soft bodies would fall down once the simulation loop

starts. Thus, we attach some of the mass vertices at

the back of the organs at their initial position in world

space. The attachments efﬁciently keep the soft bod-

ies at their original position, but still allow deforma-

tions of the organs.

4.1 Problems and Drawbacks

A major problem when using PhysX is the lack of

two-way soft body interaction. In the current release

(version 2.8.1), collision detection between two sep-

arate soft body objects is not supported. However, in

our simulator we need to model different organs that

are likely to collide with each other (e.g. the liver and

the gall bladder).

A common approach to tackle this is to introduce

rigid body actors that are placed and attached within

the soft body, as it is also shown in the PhysX sample

applications. During the simulation, each soft body

then collides with the rigid bodies attached to other

soft body objects. However, for the complex (con-

cave) geometry of the organs many small rigid bodies

would need to be attached, which makes the param-

eterization extremely challenging if not impossible,

and results in a highly instable simulation.

Our solution to this problem relies on the self-

collision supported by PhysX (i.e. the collision de-

tection between the object’s own particles) and the

fact that soft body objects may consist of totally dis-

joint groups of tetrahedra. In the simulator, we merge

neighboring organs into a single soft body and enable

self-collision. Although the merged organs then have

the same parameterization, we found this solution to

work very well for our purposes.

Another problem arises from the fact that collision

detection is only performed at the soft body particles

and not at the outer faces of the tetraheda. If the par-

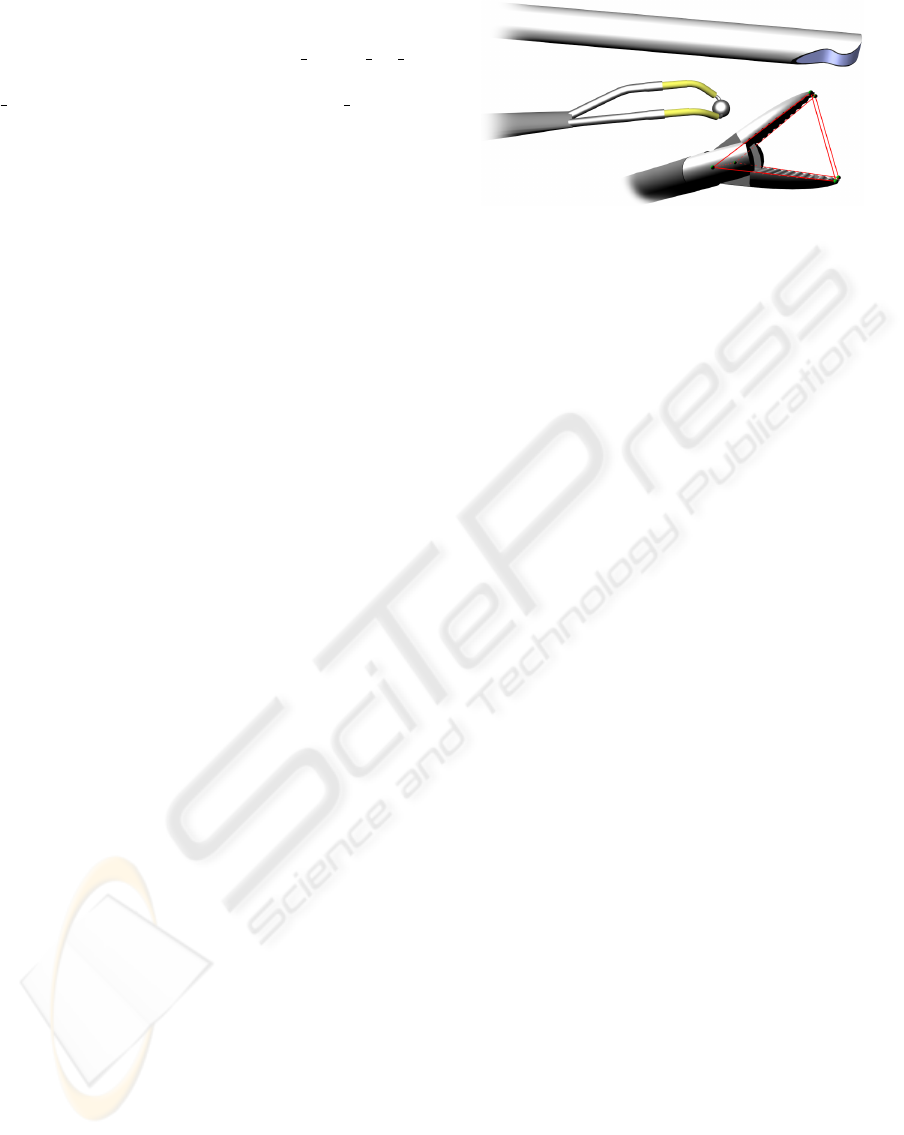

Figure 2: The tips of the instruments available in our sim-

ulator. From top to bottom: The endoscope, the cauterizer,

and the grasper. The red lines depict the virtual wedge we

use for detecting soft body vertices between the two jaws of

the grasper.

ticle radius is too small, thin soft body structures tend

to cut or fall through themselves. If the particle radius

is quite large, overlapping structures seem to hover

on top of each other, since the mass vertices cannot

touch.

For us, these effects have been of particular im-

portance when modeling the small intestine. The lack

of continuous collision detection forced us to partly

connect the tetraedra of thin touching structures.

5 SIMULATION OF

INSTRUMENTS

Our research is motivated by developing a new type

of computer-assisted endoscopy system. At the cur-

rent stage, the simulator supports two kinds of instru-

ments: A grasper for lifting tissue and a cauterizer for

burning tissue. These two actions (lifting and burn-

ing) signiﬁcantly alter the view and are, therefore,

very suitable for assessing our image processing algo-

rithms (e.g. autofocus control or instrument tracking).

Figure 2 shows the graphical meshes of the two in-

struments and of an endoscope prototype being eval-

uated. The physical simulation relies on kinematic

rigid bodies, whose positions are set explicitly ac-

cording to the user input.

As discussed in section 2, (Ott et al., 2007) use a

pair of kinematic and dynamic actors for calculating

haptic feedback based on the deviation of the actors.

We plan to utilize this method for calculating haptic

feedback for our instruments by connecting additional

dynamic actors to the instruments’ kinematic actors.

5.1 The Endoscope

The geometry of the endoscope consists of a cylindri-

cal shaft with a curved cut-out at the tip, at which a ro-

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

360

tating prism is located (see ﬁgure 2, top). For the en-

doscope, the graphical simulation is much more com-

plex than the physical simulation. In order to be able

to evaluate the concept of the rotating prism camera

optics, we need to model the camera behavior as accu-

rate as possible. For example, we model the complex

movement of the view frustum caused by the internal

reﬂections in the prism, and apply radial lens distor-

tion, depth-of-ﬁeld, and chip noise as post-processing

effects.

5.2 The Grasper

Our grasper is composed of a shaft and two jaws that

open and close (ﬁgure 2, bottom). In PhysX, the in-

strument is represented by a capsule for the shaft and

two boxes for the jaws. When opening or closing the

grasper, we request PhysX to rotate the boxes of the

jaws around their base at the tip of the shaft.

Pinching can be realized by attaching soft body

vertices that lie between the jaws. Unfortunately,

PhysX does not report contacts between rigid bodies

and soft bodies, which made it necessary to imple-

ment the pinching by hand.

Finding soft body vertices between the jaws could

be implemented by casting rays from the jaws against

the soft bodies. However, it turned out that the ray

casting routine in PhysX is computationally too ex-

pensive and signiﬁcantly drops the frame rate. As

shown in ﬁgure 2 we span a virtual wedge between the

jaws. This wedge deﬁnes ﬁve planes with which we

basically perform a view-frustum culling operation in

order to ﬁnd all vertices inside the wedge. Once these

vertices are detected, they are attached to the grasper

and follow it in the continuing simulation.

For the grasping, we attach the vertices as tear-

able, which allows the attachment to break as soon as

the force acting on it becomes large enough. In order

to model forceful grasping when the jaws are almost

closed, the tear factor depends on the opening angle

of the jaws. Once the user opens the grasper, we de-

tach all attached vertices and thereby release the soft

body from the grasper.

5.3 The Cauterizer

The geometry of the cauterizer consists of a tip with

a loop at which a sphere is attached with which the

surgeon can cauterize (ﬁgure 2, middle). When push-

ing the tip against an organ, the tissue is burned

and smoke rises. In PhysX, smoke can be modeled

using its GPU-based ﬂuid simulation, which imple-

ments particle-based smoothed-particle hydrodynam-

ics (SPH) (M

uller et al., 2003). During rendering,

each particle can be rendered as textured billboard,

using the positions from the ﬂuid simulation.

In our simulator, we attach a PhysX ﬂuid emit-

ter at the tip of the cauterizer. As soon as the user

activates the cauterizer, we start to check if any soft

body vertex is in immediate proximity of the tip, in

which case we slowly start emitting particles and let

the emitter’s ﬂow rate increase constantly from near-

zero to a maximum. If no soft body vertex is close to

the cauterizer tip, we switch off the emitter again. Ad-

ditionally, we deﬁne a fade-out time in order to avoid

sudden disappearance of smoke particles.

6 RESULTS

We implemented our simulator in C++ using DirectX

for rendering and input handling and PhysX version

2.8.1 for the physical simulation. Figure 3 shows a

screenshot of the simulator, which consists of two

windows. On the left, the control window renders

with an overview camera. On the right, the output

of the simulated endoscope camera is presented. The

position and orientation of this camera is controlled

when moving the endoscope geometry. As can be

seen, the simulation takes into account various prop-

erties of the camera, such as ﬁeld of view, lens dis-

tortion, chip noise, or the image circle that does not

cover the entire chip depending on the zooming level.

For testing our image-processing algorithms, we di-

rect the simulation window onto the secondary moni-

tor port and grab the video on a second computer, as

it would be done with the video stream coming from

the actual endoscope camera.

Our testing platform uses one core of an Intel

Core2 Duo CPU at 3 GHz and 3.2 GB main memory.

For rendering and the PhysX simulation, an NVIDIA

GeForce 9600 GT graphics card with 512 MB RAM

is used. For a scene with roughly 540,000 polygons

and 4,300 tetraheda, the application renders at about

40 frames per second. The physics simulation runs at

about 20 frames per second. Note that we run PhysX

asynchronously for better performance.

As shown in ﬁgure 4, our grasper allows to lift or-

gans and inspect the underlying areas. Depending on

the placement of the camera, this can signiﬁcantly al-

ter the image. In the same way, the implemented cau-

terizer and smoke (see ﬁgure 5) also helps testing the

robustness of image-processing algorithms and their

reaction to fast-changing views.

We have already been able to evaluate different

aspects of the endoscope prototype with our simula-

tor. For example, we found that the rotation of the

endopscope camera has to use at least eight steps, and

USING PHYSX FOR SIMULATION-BASED ENDOSCOPIC HARDWARE DESIGN

361

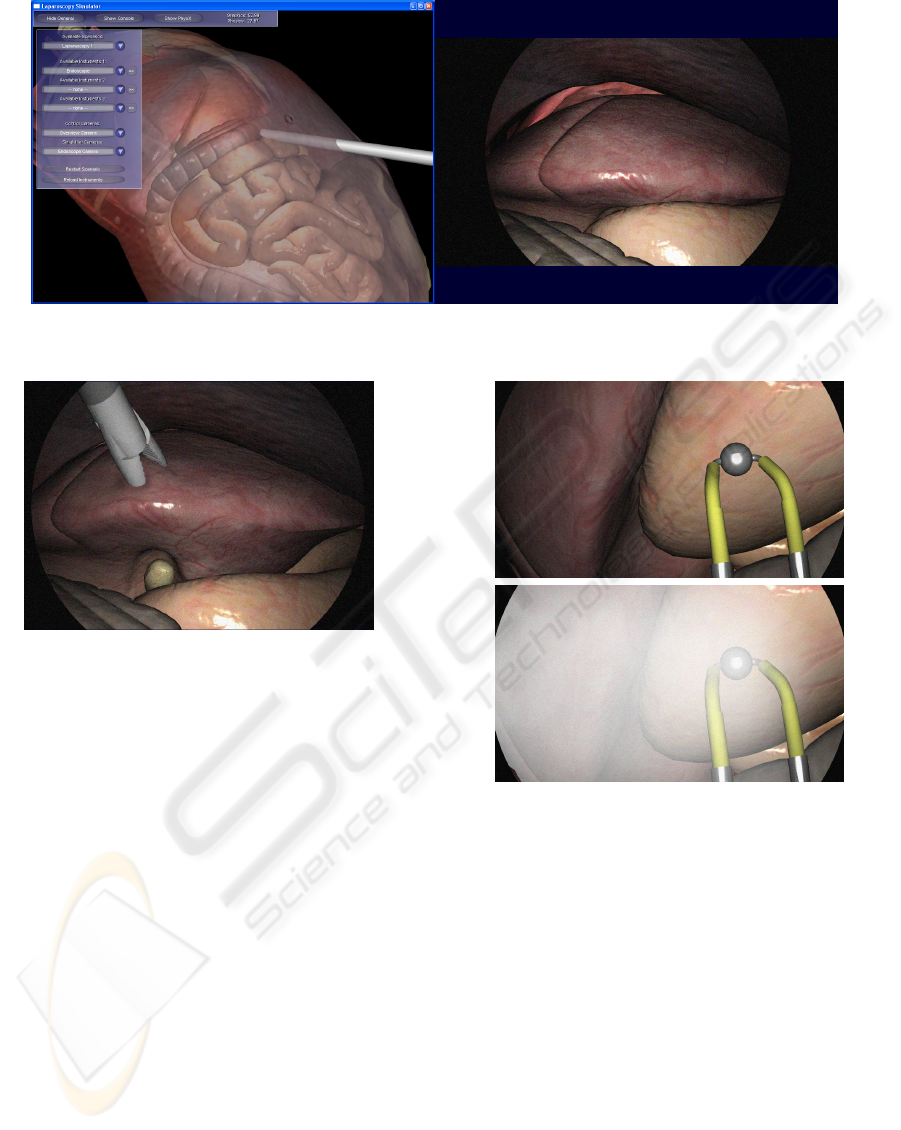

Figure 3: Screenshot of our simulator showing the control window (left) and the simulated output of the endoscope camera

(right).

Figure 4: Screenshot of our simulator demonstrating the use

of the grasper for lifting organs. The camera view corre-

sponds to ﬁgure 3 (right).

should ideally be continuous. Otherwise, the surgeon

might lose orientation. In contrast, for zooming it is

sufﬁcient to provide only a few levels, which will sim-

plify the design of the electric motors.

7 CONCLUSIONS AND FUTURE

WORK

In this paper, we showed how to use NVIDIA’s

physics engine PhysX for realizing a laparoscopic

simulator that we use for evaluating hardware con-

cepts and algorithms for a novel computer-assisted

endoscopy system. We utilize the real time capabil-

ities of PhysX for simulating soft bodies (organs),

rigid bodies (instruments and the endoscope), and ﬂu-

ids (rising smoke).

The major drawback of the current release of

PhysX (version 2.8.1) is the lack of both collision de-

tection between different soft body objects (two-way

interaction) and collision detection on outer faces of

the soft bodies. In consequence, we were forced to

Figure 5: Screenshot of our simulator demonstrating the use

of the cauterizer and the rising smoke.

implement several workarounds. For our purposes of

evaluating the endoscope hardware, the entailed re-

duction of physical plausibility is not very critical.

For a medical training simulator, however, we assume

the current limitations to be much more important.

In the future, we will evaluate alternatives to

PhysX, such as “Bullet Physics” (Coumans, 2009) or

the “SOFA” framework (Allard et al., 2007). Further-

more, we want to improve our simulator and increase

its realism by including other aspects of laparoscopic

interventions, such as cutting tissue. We also plan

to model bleedings caused by the cutting using SPH

ﬂuids, as proposed by (van der Laan et al., 2009).

Besides this, we will integrate haptic feedback into

our application that applies forces on the input device

when pushing against objects in the scene.

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

362

ACKNOWLEDGEMENTS

The “Endoguide” project is funded by the Federal

Ministry of Education and Research, Germany (pro-

motion reference 01IM08005D).

REFERENCES

Allard, J., Cotin, S., Faure, F., Bensoussan, P.-J., Poyer,

F., Duriez, C., Delingette, H., and Grisoni, L. (2007).

SOFA – an open source framework for medical simu-

lation. In Medicine Meets Virtual Reality (MMVR’15),

Long Beach, USA.

C¸ akmak, H. K., Maaß, H., and K

uhnapfel, U. (2005).

VSOne, a virtual reality simulator for laparoscopic

surgery. Minimally Invasive Therapy and Allied Tech-

nologies, 14(3):134–144.

Corp., N. (2009a). Physx. Retrieved 10/29/2009, from

http://www.nvidia.com/object/physx new.html.

Corp., N. (2009b). Physx games list. Retrieved 10/29/2009,

from http://www.nzone.com/object/

nzone physxgames home.html.

Coumans, E. (2009). Physics Simulation Forum - View

topic - Bullet 2.75 beta1: GPU, SPH ﬂuids pre-

view, new constraints. Retrieved 11/15/2009, from

http://bulletphysics.org/Bullet/phpBB3/

viewtopic.php?f=18&t=3625&start=0.

Endoguide (2010). Endoguide. Retrieved 02/03/2010, from

http://www.ia-vt.de/index.php?id=20.

Ermisoglu, E., Sen, F., Kockara, S., Halic, T., Bayrak, C.,

and Rowe, R. (2009). A scooping simulation frame-

work for artiﬁcial cervical disk replacement surgery.

In Proceedings of SMC ’09. IEEE.

Immersion, C. (2009). Surgical simulator: The

laparoscopyvr virtual-reality system. Retrieved

10/29/2009, from http://www.immersion.com/

markets/medical/products/laparoscopy.

Maciel, A., Halic, T., Lu, Z., Nedel, L. P., and De, S.

(2009). Using the physx engine for physics-based vir-

tual surgery with force feedback. The International

Journal of Medical Robotics and Computer Assisted

Surgery, 5:341–353.

Morgan, S. (2008). Simulating the world with Microsoft

robotics studio. MSDN Magazine, 6.

uller, M., Charypar, D., and Gross, M. (2003). Particle-

based ﬂuid simulation for interactive applications. In

Proceedings of SCA ’03, pages 154–159, Aire-la-

Ville, Switzerland. Eurographics Association.

Ott, R., De Perrot, V., Thalmann, D., and Vexo, F. (2007).

MHaptic: a haptic manipulation library for generic

virtual environments. In Proceedings of CW ’07,

pages 338–345, Washington, DC, USA. IEEE.

Reichenbach, T. (2009). A dynamic simulator for humanoid

robots. Artiﬁcial Life and Robotics, 13:561–565.

Rieffel, J., Saunders, F., Nadimpalli, S., Zhou, H., Has-

soun, S., Rife, J., and Trimmer, B. (2009). Evolving

soft robotic locomotion in PhysX. In Proceedings of

GECCO ’09, pages 2499–2504, New York, NY, USA.

ACM.

Simbionix, L. (2009). Lap mentor laparoscopic

surgery simulator for general surgery, gynecol-

ogy and urology. Retrieved 10/29/2009, from

http://www.simbionix.com/LAP

Mentor.html.

van der Laan, W. J., Green, S., and Sainz, M. (2009). Screen

space ﬂuid rendering with curvature ﬂow. In Proceed-

ings of I3D ’09, pages 91–98, New York, NY, USA.

ACM.

USING PHYSX FOR SIMULATION-BASED ENDOSCOPIC HARDWARE DESIGN

363
