HARDWARE ARCHITECTURE FOR OBJECT DETECTION BASED

ON ADABOOST ALGORITHM

Hui Xu, Feng Zhao and Ran Ju

School of Microelectronics, Shanghai Jiao Tong University, Dongchuan Road, Shanghai, China

Keywords:

Hardware, Object detection, AdaBoost algorithm.

Abstract:

This paper implements a hardware architecture for object detection based on AdaBoost learning algorithm and

Haar-like features. To increase detection speed and reduce hardware consumption, an integral image calcu-

lation array with pipelined feature data ﬂow are introduced. Input images are scanned by sub-windows and

detected by cascade classiﬁers. Moreover, special design is made to enhance the parallelism of the architec-

ture. In comparison with the original design, detection speed is improved by three, with only 5% increase in

hardware consumption. The ﬁnal hardware detection system, implemented on Xilinx V2pro FPGA platform,

reaches the detection speed of 80f ps and consumes 91% resources of the platform.

1 INTRODUCTION

Cascade AdaBoost object detection algorithm, ﬁrst

proposed by Viola and Jones (Viola and Jones, 2001;

Viola and Jones, 2004), is widely used in object detec-

tion. The algorithm builds a strong classiﬁer by taking

in a set of training images and assigning weights to a

series of weak classiﬁers based on Haar-like features.

As long as the system is well-trained, detection can

be made for all concerning objects afterward. Sev-

eral software realizations of the algorithm already ex-

ist, including an open-source library, OpenCV(Intel,

2009), for general development. However, due to the

prevailing trend of real-time object detection, soft-

ware realization cannot catch up with the requirement

on detection speed. Thus embedded system with fast

performance becomes an alternative. To construct an

efﬁcient embedded system for object detection, two

problems should be solved. First, a reasonable map-

ping from software algorithm to hardware architec-

ture with high parallelism is needed. Second, the con-

sumption of hardware resources should be affordable

to the platform. Usually, trade-off needs to be made

between these two aspects.

As one of the major ﬁelds of object detection, face

detection based on hardware implementation is re-

ported in serval literatures (T. Theocharides and Ir-

win, 2006; H.-C. Lai and Chen, 2007; M. Hiromoto

and Miyamoto, 2009). A pipelined module of fea-

ture calculation was ﬁrst introduced in (H.-C. Lai and

Chen, 2007). Paper (M. Hiromoto and Miyamoto,

2009) discussed the parallelism of feature calcula-

tion. However, the hardware data ﬂow in (M. Hiro-

moto and Miyamoto, 2009) was stillsoftware-like and

the logic consumption was large. A CDTU (Collec-

tion and Data Transfer Unit) array was proposed in

(T. Theocharides and Irwin, 2006) to speed up the in-

tegral image calculation, but the architecture is full-

graph based (i.e., data of whole graph need to be

stored and manipulated in the array), which is unre-

alistic to most hardware system due to the large re-

source consumption.

Recently, Shi et al. (Y. Shi and Zhang, 2008) pro-

posed an architecture with fast integral image calcu-

lation and sub-window based feature detection. Elec-

tronic system level (ESL) simulation showed that the

pipelined architecture was quite efﬁcient and the sub-

window based architecture avoided large hardware

consumption. In this paper, based on this novel ar-

chitecture, a hardware face detection system is im-

plemented on Xilinx V2pro FPGA platform. Special

design is made to enhance the parallelism of the ar-

chitecture. The parameters of classiﬁers used in our

system originate from Intel OpenCV Library (Intel,

2009). Testing on 16000 face pictures, same accu-

racy is achieved in comparison with OpenCV, mean-

while the hardware detection speed reaches 80 frames

per second at 100MHz clock frequency, 4 times faster

than OpenCV running on a PC with 2.0GHz CPU.

This paper is organized as follows: Section 2 will

review the architecture in (Y. Shi and Zhang, 2008)

and discuss the hardware implementation. Then fur-

420

Xu H., Zhao F. and Ju R. (2010).

HARDWARE ARCHITECTURE FOR OBJECT DETECTION BASED ON ADABOOST ALGORITHM.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 420-424

DOI: 10.5220/0002841204200424

 SciTePress

ther improvements are presented in section 3. Experi-

mental result is illustrated in section 4. Finally, a con-

clusion is drawn in the last section.

2 SUB-WINDOW BASED

HARDWARE ARCHITECTURE

In this section, a brief review on cascade AdaBoost

algorithm (Viola and Jones, 2001) will be presented.

Then the implementation of hardware architecture

based on sub-window detection will be introduced.

2.1 Review on AdaBoost Algorithm

An cascade AdaBoost object detection system is com-

posed by a series of strong classiﬁer stages. Mean-

while, each strong classiﬁer consists of several weak

classiﬁers with different weights. Usually, the system

can be depicted as the following equations.

C(x) =







∑

t=1

· h

(x) ≥ σ· α

otherwise

(1)

Result(x) =







#stage

∑

t=1

≥ β

0 otherwise

(2)

,where w

is the weight of every weak classiﬁer. h

denotes the feature function, which can be calculated

from the integral image (Viola and Jones, 2001). σ

is the deviation of the concerning sub-window image.

α and β are thresholds of strong classiﬁer and stage

respectively.

Unlike in (Viola and Jones, 2001; Viola and Jones,

2004), we choose γ

and γ

instead of 1 and 0 as pos-

itive and negative factor respectively. (Intel, 2009)

shows that with a reasonable value of γ

and γ

, the

detection rate of the system will be improved. If the

summation of strong classiﬁer values is larger than

the stage threshold, the concerning image passes the

stage and will be sent to the next stage. Otherwise, it

is rejected by the stage and no further detection will

be made on this sub-image.

2.2 Hardware Implementation

Figure 1 describes the sub-window (24 × 24pixel

)

based hardware architecture. The pipeline on the

top is designed to propagate the feature information

stored in the ROM. The central array aims to calcu-

late the integral image of the sub-window according

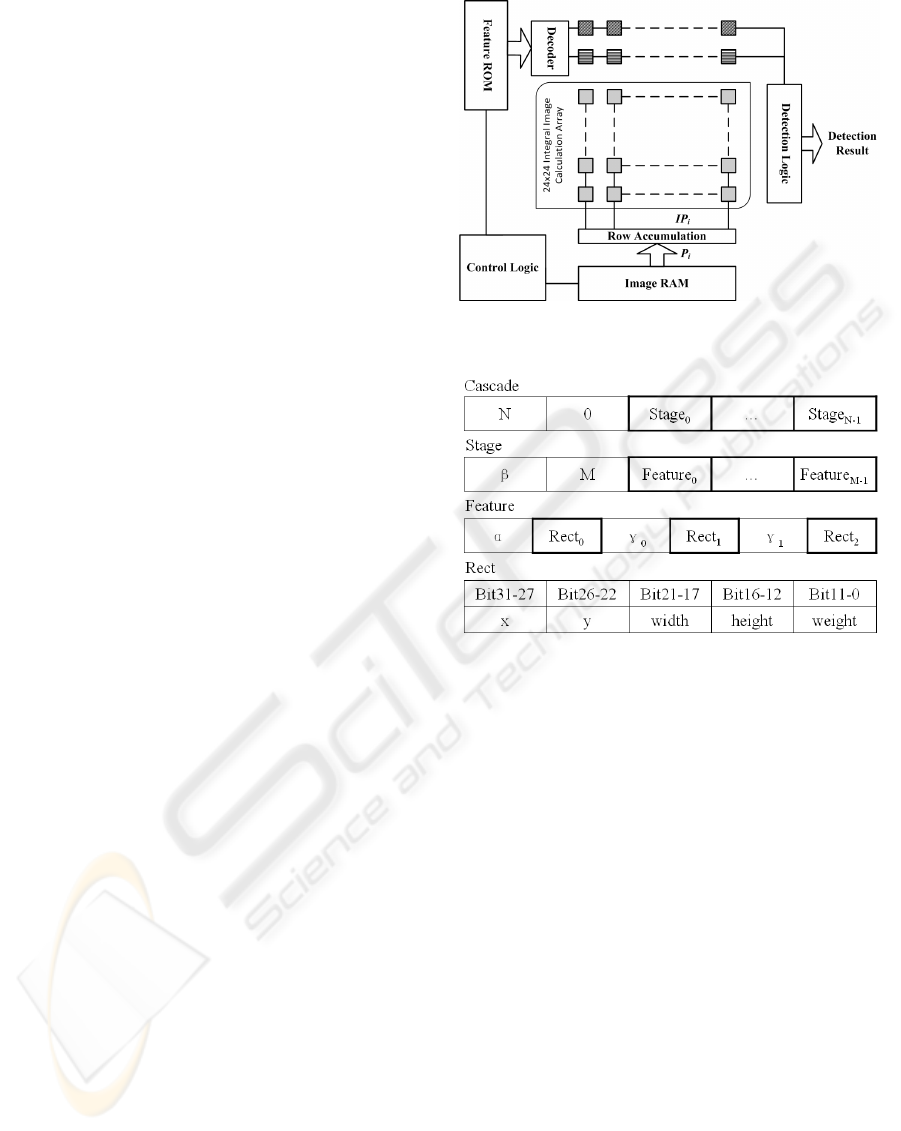

Figure 1: Pipelined hardware architecture for face detec-

tion.

Figure 2: Hierarchical data structure of features.

to the data in the Image RAM. Detection logic de-

termines whether the sub-window image passes the

cascade stages.

As proposed in (Y. Shi and Zhang, 2008), the in-

tegral image calculation array, with a paralleled ar-

chitecture, can obtain the integral image efﬁciently

(only one clock cycle is needed to calculate integral

image of next sub-window). The hierarchical data

structure of features stored in the ROM is shown in

Figure 2. The top structure Cascade is composed by

N stages, each of which has a stage threshold β and

M features. Meanwhile, each feature, described by a

feature function (Eq. 1), contains three Rects which

denote the rectangles in Haar-like features (Viola and

Jones, 2001; Intel, 2009). When the data of Rect pass

through the pipeline, each cell can switch to the inte-

gral image array according the data and calculate the

summation of pixels of the Rect (Y. Shi and Zhang,

2008). Once ﬁlled with data, the pipeline can output

sum of pixels of one Rect every clock cycle.

Next, as shown in Figure 3,

∑

Rect

will be sent to

the detection logic, which is composed by two stages,

weak classiﬁer stage and strong classiﬁer stage. No-

tice that each feature contains three rectangles and

HARDWARE ARCHITECTURE FOR OBJECT DETECTION BASED ON ADABOOST ALGORITHM

421

Figure 3: Object detection block.

three parameters (α, γ

and γ

which propagates

with Rect1, Rect2 and Rect3 respectively through the

pipeline), thus value of strong classiﬁer (Eq. 1) needs

three clock cycles to obtain. Similarly, the second

stage of the detection logic is a direct mapping of Eq.

2. After checking all M features, the logic will deter-

mine whether the concerning sub-window passes this

stage according to the stage threshold β. If the current

sub-window does not pass, next one will be loaded to

the array. Otherwise the current sub-window will be

checked by the next stage of classiﬁers.

3 IMPROVEMENTS ON

DETECTION SPEED

With the novel approach to calculate integral image

and multi-stage pipeline, the architecture above can

achieve fast performance compared to software real-

ization. However, further improvements can be drawn

thanks to the ﬂexibility of the architecture.

In the above architecture, since every window

will be checked to the same cascade classiﬁers, it

is straightforward to think that if N windows can be

checked at the same time, namely, multi-window de-

tection, the performance will be improved proportion-

ate to N. Shi et al, in (Y. Shi and Zhang, 2008), pro-

posed that this goal can be achieved by adding N − 1

rows to the integral image array. For instance, if one

row (N = 2) is added to the array, then row 1 to row

24 compose the ﬁrst sub-window and row 2 to row 25

compose the other.

However due to the fact that total detection time

of n windows is determined by the particular sub-

window which passes the largest number of stages,

the actual speedup rate is not proportionate to the

number of additional rows. In the worst case, when

two sub-window are detected simultaneously, the ac-

celerate ratio will be only (#stages + 1)/#stages if

one sub-window is rejected at the ﬁrst stage while the

other passes all stages. A software simulation result is

shown in Figure 4. The accelerate ratio is 1.35 when

N = 2.

To address the problem in multi-window detec-

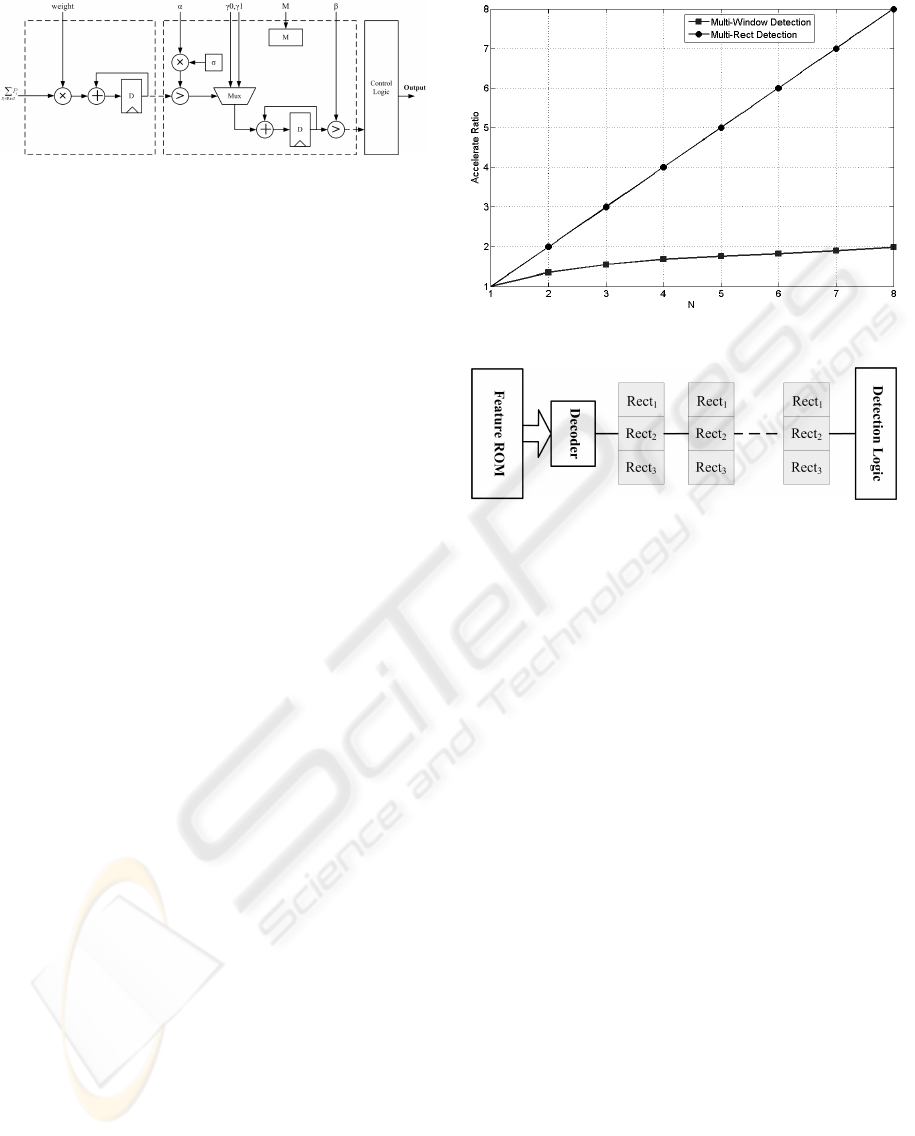

Figure 4: Accelerate ratio versus N.

Figure 5: Improved pipeline structure.

tion, multi-rectangle detection is implemented in this

paper. Recall that the throughput of the pipeline is

one

∑

per clock cycle, which limits the detection

speed since calculation of a strong classiﬁer needs 3

clock cycles. As a result, if the width of pipeline is

broadened to transmit n rectangles each clock cycle,

the speedup ratio will be improved n times (Figure

4). Certainly, additional hardware consumption is in-

evitable due to the enlarged bit width of the pipeline,

more complex control logic, and the new detection

logic block. Thus balancing the cost and speed, this

paper implements an improved architecture with n =

Figure 5 depicts the new pipeline structure. The

bit width is broadened three times, thus data of three

Rects and weights can be transmitted simultaneously.

Besides, a more complex control logic is designed to

select integral image data from the central array to

calculate the sum of pixels of each Rect. Control cells

in the pipeline have an index, i ranging from 1 to 24,

and a register, Sum, to store the sum of pixels within

the rectangle. Meanwhile, each Rect has four coordi-

nates, x

. When one Rect propagates from

the ﬁrst cell to the last cell in the pipeline,

∑

Rect

can

be obtained according to the following equation:

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

422

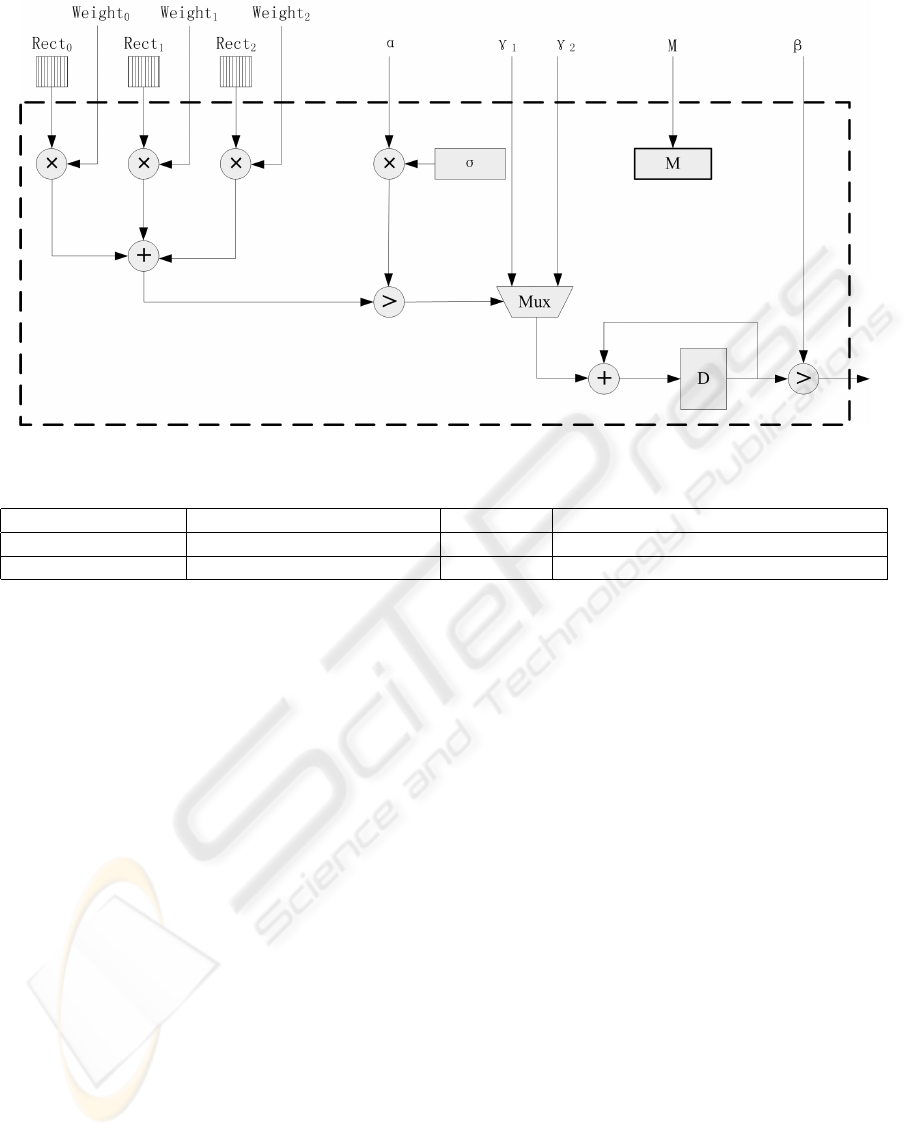

Figure 6: Improved detection logic.

Table 1: Summary of sub-window based hardware face detection system.

Method Detection/False Positive Rate Speed (fps) Hardware Consumption (Xilinx V2pro)

Original detection 91.3%/3.2% 27 11765 slices/13696 slices

Multi-Rect detection 91.3%/3.2% 80 12470 slices/13696 slices

Sum =











Sum+ SAT(x

) − SAT(x

)

, when i = X

Sum+ SAT(x

) − SAT(x

)

, when i = X

Sum, else.

(3)

SAT(x,y) means the integral image (Viola and Jones,

2001), which is stored in the central array. A multi-

plexer is used here to switch to the corresponding row

of the array according to the y coordinates of Rect.

Thus when three Rects transmitted together, the bus

width of the multiplex should also be broadened.

Figure 6 shows the new detection logic. Now in-

formation of three Rects arrives at the same time. As

a result, by adding two more multipliers, value of the

strong classiﬁer can be calculated every clock cycle.

No register is needed to store the intermediate data

and the speedup ratio, in comparison with the origi-

nal design, reaches three.

4 EXPERIMENTAL RESULT

We have implemented both the original and the multi-

rect detection system on Xilinx V2pro FPGA plat-

form. The learning classiﬁers, including weights and

thresholds, were constructed according to OpenCV

(Intel, 2009). Same set of input images, including

5000 positive and 11000 negative sample images in

CIF style, were tested on the two platform. Table

1 summarizes the comparison between the two ap-

proaches.

Since both the system is based on AdaBoost al-

gorithm and classiﬁers in OpenCV (Intel, 2009), the

detection and false positive rate are same to the re-

sult of OpenCV. Meanwhile the detection speed of

the two approaches reaches 27f ps and 80f ps respec-

tively, which is much faster than software realization.

Moreover it is notable that the accelerate ratio be-

tween the improved multi-rect detection to the orig-

inal one is approximately three (80/27 ≈ 3), which

is identical to the analysis in the pervious section.

More importantly, the additional hardware burden of

the improved architecture is only 5% of the original

consumption. The total hardware consumption of the

multi-rect detection system is 12470slices, 91% of re-

sources on Xilinx V2pro FPGA platform.

Besides, video camera and VGA display block

were integrated to the whole system so that real-time

face detection can be achieved. An output of our de-

tection result is shown in Figure 7.

HARDWARE ARCHITECTURE FOR OBJECT DETECTION BASED ON ADABOOST ALGORITHM

423

Figure 7: Result of real-time face detection system.

5 CONCLUSIONS

In this paper, an efﬁcient object detection system is

implemented. The sub-window based architecture

avoids large hardware consumption. Meanwhile, the

integral image calculation array and pipelined data

ﬂow improve the detection rate drastically. Due to the

ﬂexibility of the novel architecture, we further exploit

the parallelism of the system. Reasonable trade-off

is made to accelerate the detection with only a slight

increase in hardware consumption. Implemented on

Xilinx V2pro FPGA platform, the detection system

runs at a speed of 80f ps and consumes 12470slices,

91% of the total resources on the platform.

REFERENCES

H.-C. Lai, M. S. and Chen, T. (2007). Proposed fpga hard-

ware architecture for high frame rate (≤ 100f ps) face

detection using feature cascade classiﬁers. In IEEE

International Conference on in Biometrics: Theory,

Applications, and Systems, pages 1–6.

Intel (2009). Open computer vision library [online].

http:

//sourceforge.net/projects/opencvlibrary/

M. Hiromoto, H. S. and Miyamoto, R. (2009). Partially

parallel architecture for adaboost-based detection with

haar-like features. In IEEE Transactions on Circuits

and Systems for Video Technology, volume 19, pages

41–52.

T. Theocharides, N. V. and Irwin, M. (2006). A parallel ar-

chitecture for hardware face detection. In Proceedings

of the IEEE Computer Society Annual Symposium on

Emerging VLSI Technologies and Architectures, vol-

ume 00, page 2.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. In IEEE Com-

puter Society Conference on Computer Vision and

Pattern Recognition, volume 1, pages 511–518.

Viola, P. and Jones, M. (2004). Robust real-time face de-

tection. In Int. J. Comput. Vision, volume 57, pages

137–154.

Y. Shi, F. Z. and Zhang, Z. (2008). Hardware implementa-

tion of adaboost algorithm and veriﬁcation. In 22nd

International Conference on Advanced Information

Networking and Applications, pages 343–346.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

424
