EMBEDDING HIERACHICAL DEFORMATION WITHIN A

REALTIME SCENE GRAPH

A Simple Approach for Embedding GPU-based Realtime Deformations using

Trilinear Transformations Embedded in a Scene Graph

M. Knuth, J. Kohlhammer

Fraunhofer Institute for Computer Graphics Research (IGD), Germany

A. Kuijper

Interactive Graphics Systems Group, TU Darmstadt, Germany

Keywords:

Realtime rendering, Deformation, Scenegraphs, GPU.

Abstract:

Scene graphs are widely used as a description of spatial relations between objects in a scene. Current scene

graphs use linear transformations for this purpose. This limits the relation of two objects in the hierarchy to

simple transformations like sheer, translation, rotation and scaling. In contrast to this, we want to represent

and control deformations that result from propagating the dynamics of objects to deformable attached objects.

Our solution is to replace the linear 4x4 matrix-based transformation of a scene graph by a more generic

trilinear transformation. The linear transformation allows the composition of the transformation hierarchy

into one transformation. Our approach additionally allows the handling of deformations on the same level.

Building on this concept we present a system capable of real-time rendering. The computations of the applied

deformations of the scene graph are performed in real-time on the GPU. We allow the approximation of

arbitrary nonlinear transformations and deformations by utilising grids of trilinear transformations in our

system. As an application we show geometric attachments on deformable objects and their deformation on a

scene graph level.

1 INTRODUCTION

In complex scenes it is useful to organise the scene

elements in a hierarchy to achieve a structured scene

management. These scene graphs bundle the objects

in groups and assign spatial relations between them.

This allows a simple approach for the grouping and

construction of larger building blocks, which are rep-

resented by linear transformations. While grouping

relates objects spatially to each other, it is sometimes

necessary to attach an object to the surface of another

object. For this problem the grouping mechanism of

the graph is sufﬁcient, as long the surface of the ob-

ject does not change. An example of such a scenario

is the attachment of accessories on a piece of gar-

ment or an animated 3D avatar or object in a computer

game. In this cases it is necessary to update the acces-

sories’ transformation in respect to the surface of the

animated object.

If the accessory has a static nature (for example

a button) this problem can be still solved using a lin-

ear transformation system. However, it is often nec-

essary to attach elements on several points on a de-

forming object. Several examples can be shown when

modelling garments or in computer games: Acces-

sories on an animated character or garment, objects

following the curvature of a landscape, etc. For solv-

ing the deformation problem itself there exist a lot of

techniques that can handle this problem (Chen et al.,

2005). However, there is still the problem of hav-

ing a hierarchy of deformations, created by grouping

of objects within the scene graph. This hierarchy is

problematic, since several deformations need to be

applied. It is necessary to ﬂatten this hierarchy into

one deformation per Object instance in order to draw

it efﬁciently. This motivates us to use a deformation

system, which can be concatenated over the hierarchy

in the same sense as it is performed with the linear

246

Knuth M., Kohlhammer J. and Kuijper A. (2010).

EMBEDDING HIERACHICAL DEFORMATION WITHIN A REALTIME SCENE GRAPH - A Simple Approach for Embedding GPU-based Realtime

Deformations using Tr ilinear Transformations Embedded in a Scene Graph.

In Proceedings of the International Conference on Computer Graphics Theory and Applications, pages 246-253

DOI: 10.5220/0002843102460253

 SciTePress

transformations within a standard scene graph. Addi-

tionally, we propose to choose a deformation system

capable of simulating linear transformations as well.

This allows the scene graphs’ linear transformation

system to be replaced by the more general one. Due

to its simplicity, we have chosen trilinear transforma-

tions for this replacement.

Figure 1: Wrapping a 2D grid of tubes around a torus using

the scene graph’s transformation capabilities only: Using

linear transformations this results in single tubes sticking

out from the torus. With our approach the tubes stay in

contact with each other as they did in the 2D grid.

The used transformation describes a warping of

the 3D space. So any kind of geometrical structure

can be used in conjunction with this transformation

type.

There are two beneﬁts when using this approach.

First, the whole process of a deformation is simpli-

ﬁed, since the scene graph is now able to handle the

deformation itself without the need of external struc-

tures. Second, it allows simple GPU based imple-

mentations, while the handling of the transformation

system itself stays similar to matrix based systems.

Using GPU based transformation, geometry can be

directly deformed during rendering, removing the ne-

cessity to produce and store intermediate deformation

results, see Figure 1.

Our main contribution is an approach for embed-

ding a deformation into a scene graph system by re-

placing the linear 4x4 matrix based transformation of

a scene graph by a more generic trilinear transforma-

tion. Just as linear transformations can be combined

through composition, trilinear transformations can be

composed to allow hierarchical transformations. Ad-

ditionally, we allow assembling several transforma-

tions into a grid for the approximation of arbitrary

non-linear transformations. While the composition of

transformations is performed inside the CPU during

scene graph traversal, all geometric transformations

are computed on the GPU. The composition allows

the GPU to transform the vertices of the geometry in

constant time. This is independent of the depth and

complexity of the transformation hierarchy attached

to it. It is independent of the number of applied defor-

mations over the hierarchy. This is shown in Figure

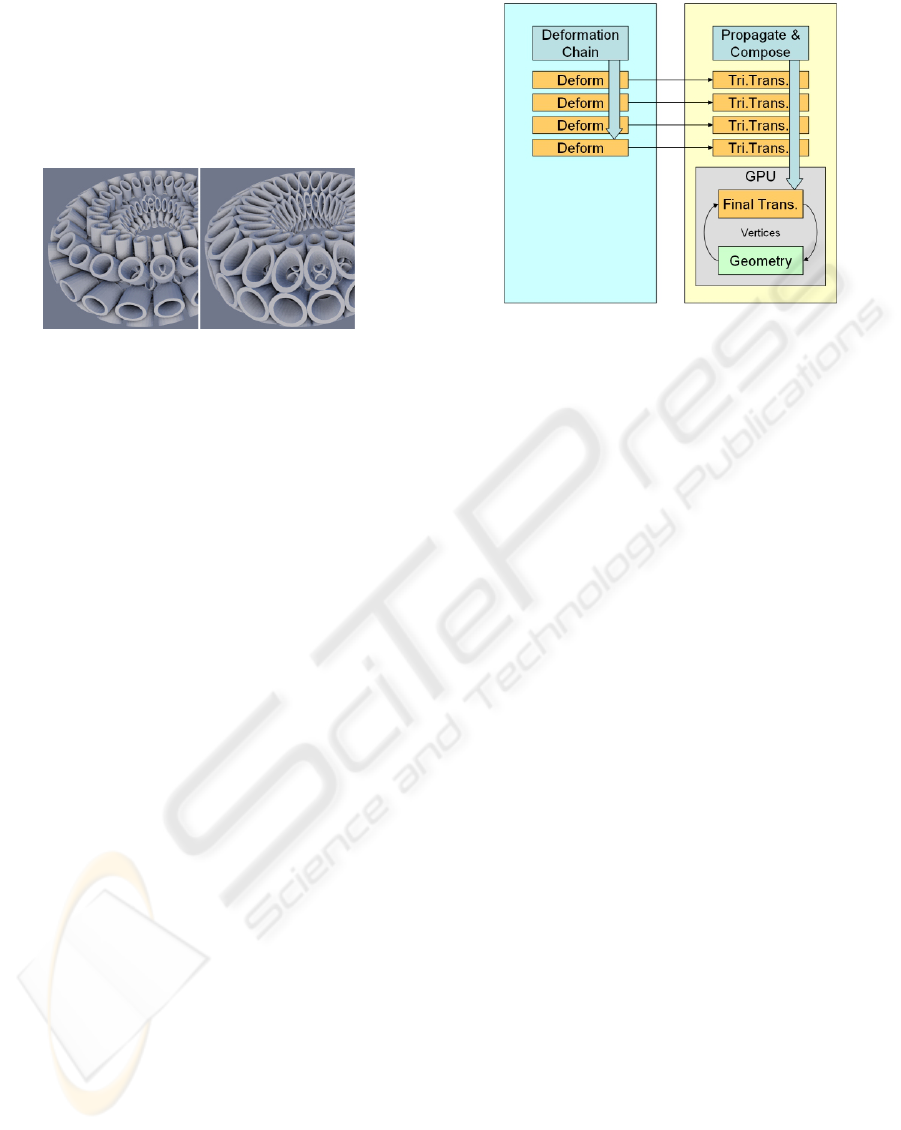

Figure 2: Our approach: Instead of transforming each ge-

ometry vertex in each deformation node, we ﬁrst approxi-

mate the arbitrary non-linear transformations with our tri-

linear transformation system (left box to right box). During

the scene graph traversal we can now use propagation and

composition of the trilinear transformations. This leads to

one combined transformation used within the vertex trans-

formation stage inside the GPU (right box).

In the next section we review and describe basic

concepts for deformation and scene graphs. Then we

refer to the concept behind trilinear transformations

and we describe our usage of this kind of transfor-

mation. In the implementation section we present the

composition mechanism we use in the transformation

process of geometry and normals. As an application

we present the use of this transformation concept to

handle geometric attachments on the surface of de-

formable geometries. The results section discusses

the abilities and results of the presented approach and

is followed by conclusions and future work.

2 BACKGROUND

2.1 Scene Graphs

Graph structures deal efﬁciently with hierarchical

relations of objects within scenes. These days,

scene graphs are widely used within graphic applica-

tions. Several systems and application programming

interfaces (APIs) like X3D, Open Inventor (Wang

et al., 1997), OpenGL Performer (Rohlf and Helman,

1994), Java3D (Sowizral et al., 1998), OpenSG (Rein-

ers et al., 2002), Open Scene Graph or the NVIDIA

NVSG provide scene graph based scene management

functionality. Being powerful toolkits, scene manage-

ment and the rendering subsystem are often mixed

and difﬁcult to exchange. To circumvent this, (Ru-

binstein et al., 2009) present a scene graph system

EMBEDDING HIERACHICAL DEFORMATION WITHIN A REALTIME SCENE GRAPH - A Simple Approach for

Embedding GPU-based Realtime Deformations using Trilinear Transformations Embedded in a Scene Graph

247

which is especially designed to ﬁt to different render-

ing methods. This is done by allowing the rendering

process to use a retained mode, to start the rendering

rendering process itself after scene traversal.

2.2 Transformation and Deformation

Candidates for replacing the linear transformation

system of a scene graph are presented in (Gomes

et al., 1998). The authors give a survey over differ-

ent transformation techniques with a focus on warp-

ing and morphing techniques. The presented 2D tech-

niques can be easily extended to 3D. An overview of

existing deformation and animation techniques for 3D

objects is given in (Chen et al., 2005). Physical simu-

lation often uses deformation techniques to apply the

simulation result to a target mesh from a lower reso-

lution control mechanism (Nealen et al., 2005)

An early deformation technique with a focus on

proper handling of the surface normals can be found

in (Barr, 1984). The author presents a group of defor-

mation methods, which additionally allow the com-

putations of proper deformations of the normal. The

nesting of several subsequent deformations is pre-

sented in (Raviv and Elber, 1999) with a focus on

freeform sculpting and modelling. Free Form Defor-

mations (Sederberg and Parry, 1986) allow an intu-

itive way to manipulate objects with deformation us-

ing a control grid. Both methods use local und global

deformations to create level of detail mechanisms for

modifying an object.

Nowadays, deformation topics have moved from

deﬁnition and structuring to a more animation and

modelling related view. A number of different ap-

proaches have been proposed to control the deforma-

tion of high polygon models. In (Sumner et al., 2007)

a handle-based approach for manipulating high poly-

gon models is presented. In (Eigensatz and Pauly,

2009) the authors present a different deformation

method based on the manipulation of parts of the

surface’s properties. In (Langer and Seidel, 2008)

the authors propose a deformation method, which ex-

tends the concept of barycentric coordinates in order

to achieve smooth transition between the deformation

elements. In (Botsch et al., 2007) the authors present

a method which is based on elastic coupling of cells to

achieve a smooth transition between user constraints.

In order to generate skin deformation on 3D charac-

ters, user speciﬁed chunks are deformed by using a

ﬁnite element method to create realistic looking de-

formations of the mesh (Guo and Wong, 2005).

A highly efﬁcient GPU-based approach for cre-

ating wrinkles on textile materials using deformation

was proposed by (Loviscach, 2006). (Popa et al.,

2009) use deformations as a tool to model wrinkles

of garments, which have been captured from video

frames resulting in highly detailed 3D capture result.

2.3 Deformation Embedded Within the

Scene Graph

The presented methods show scene handling and the

use cases for deformation and deformation processes.

As the presented scene graph systems do not take

into account deformation as a low level transforma-

tion process, the aforementioned publications deal-

ing with deformation focus mainly on animation and

modelling aspects. Even though the idea of using a

hierarchy of deformations is not new (Sederberg and

Parry, 1986) (Raviv and Elber, 1999) , the previous

work leave out the possibility of handling hierarchi-

cal deformations in conjunction with object placing

and grouping in 3D scenes for real time applications

on a scene graph level. Our scenario requires an eval-

uation of all transformations of the whole scene per

frame. The nonlinearity of the transformation adds

the functionality to not only group objects, but to ap-

ply these groups to curvatures, greatly increasing the

scene graph’s functionality. In the next section we

show our approach to embed deformation into the

scene graph of a real time rendering system.

3 EMBEDDING TRILINEAR

TRANSFORMATIONS

In this section we describe the trilinear transformation

and how we use it as replacement of the linear trans-

formation within a scene graph.

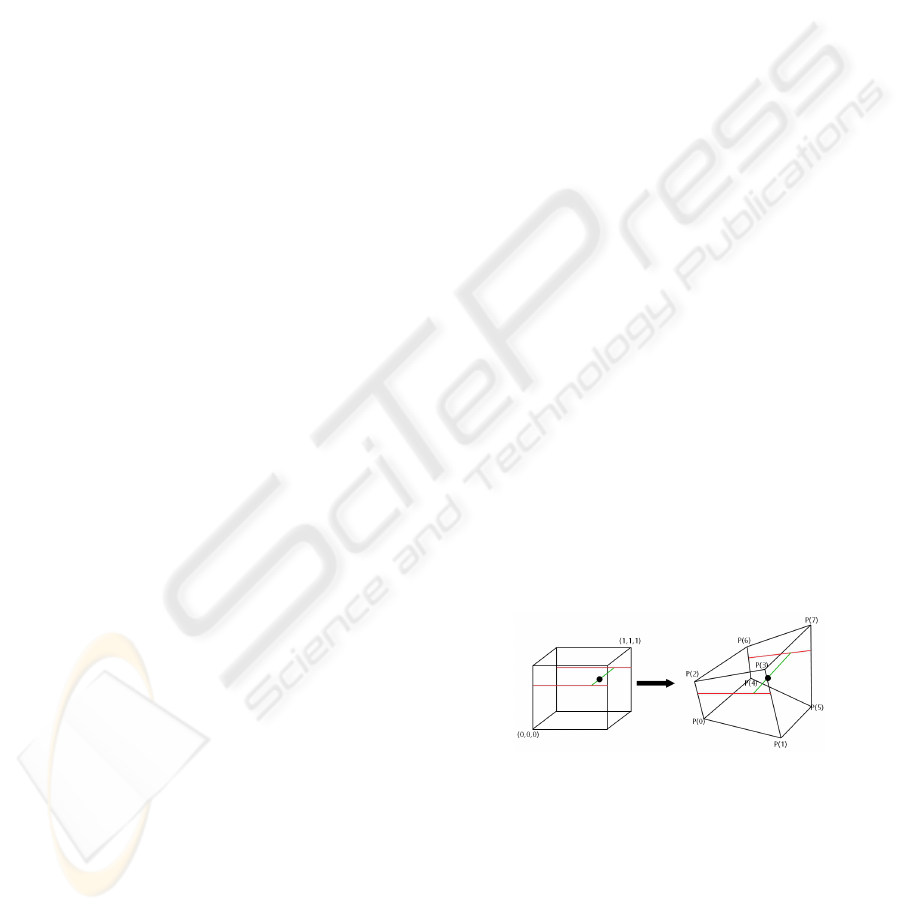

Figure 3: Trilinear transformation: a point within a unit

cube is transformed by using its three coordinates as coefﬁ-

cients for a trilinear interpolation between the eight corners

of the cuboid.

3.1 Trilinear Transformations

As described in (Gomes et al., 1998) the trilinear

transformation is an extended version of the bilinear

transformation. It is a function, mapping points of R

to R

deﬁned by 8 points forming a cuboid, see Figure

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

248

In contrast to linear transformations each corner

point of the cuboid deﬁnes its own coordinate system.

It is created by the three adjacent corner points. A hi-

erarchy of these transformations describes a hierarchy

of local subspaces within a world space. This is com-

pletely different to a linear system, which would de-

scribe a hierarchy of local coordinate systems within

a world coordinate system.

3.2 Vertex Transformations

In general there are two methods to perform the trilin-

ear transformation of a point in space. The ﬁrst one

uses the coordinates of the cuboid directly to trans-

form vertices, the second one uses a polynomial rep-

resentation allowing fast transformation of many ver-

tices. Additionally, the necessary coefﬁcients allow

a simple test, whether the transformation represents a

parallelpiped or a real cuboid.

The ﬁrst methods uses the corner points ~p

..~p

the cuboid (see Figure 3) and the transformation T,

deﬁned as

T (x,y, z) =













∗







(1 − x)(1 −y)(1 − z)

x(1 − y)(1 −z)

(1 − x)y(1 −z)

xy(1 − z)

(1 − x)(1 −y)z

x(1 − y)z

(1 − x)yz

xyz







(1)

Here x,y and z are the coordinates of a point to

transform in the range [0..1]. This equation can be

used to directly transform a point. A nice feature of

this approach is the direct usage of the image (cuboid)

of the transformation.

However, with multiplication and sorting by x,y, z

we get a second transformation process using a poly-

nomial representation, where a coefﬁcient matrix C is

created from the corner points of the cuboid:

C =







− ~p

+ ~p

− ~p

+ ~p

− ~p

+ ~p

− ~p

+ ~p

− ~p

+ ~p

− ~p







(2)

Additionally, a parameter vector~v is built from the

coordinates of the point in space which we want to

transform:

~v = (xyz, yz,xz,xy, z, y, x, 1) (3)

The transformation is now performed by multiply-

ing the vector~v with the matrix C

= C ∗~v (4)

Since matrix C is valid for all points to be trans-

formed, the only computations be to be done are the

construction of ~v and its multiplication with C . We

describe linear transformations as a special case of

the trilinear transformation by keeping the coordinate

systems constant over the volume deﬁned by the

cuboid. This is the case, if the cuboid represents a

parallelpiped. This allows a detection of linear cases

after propagation and composition, see Figure 4.

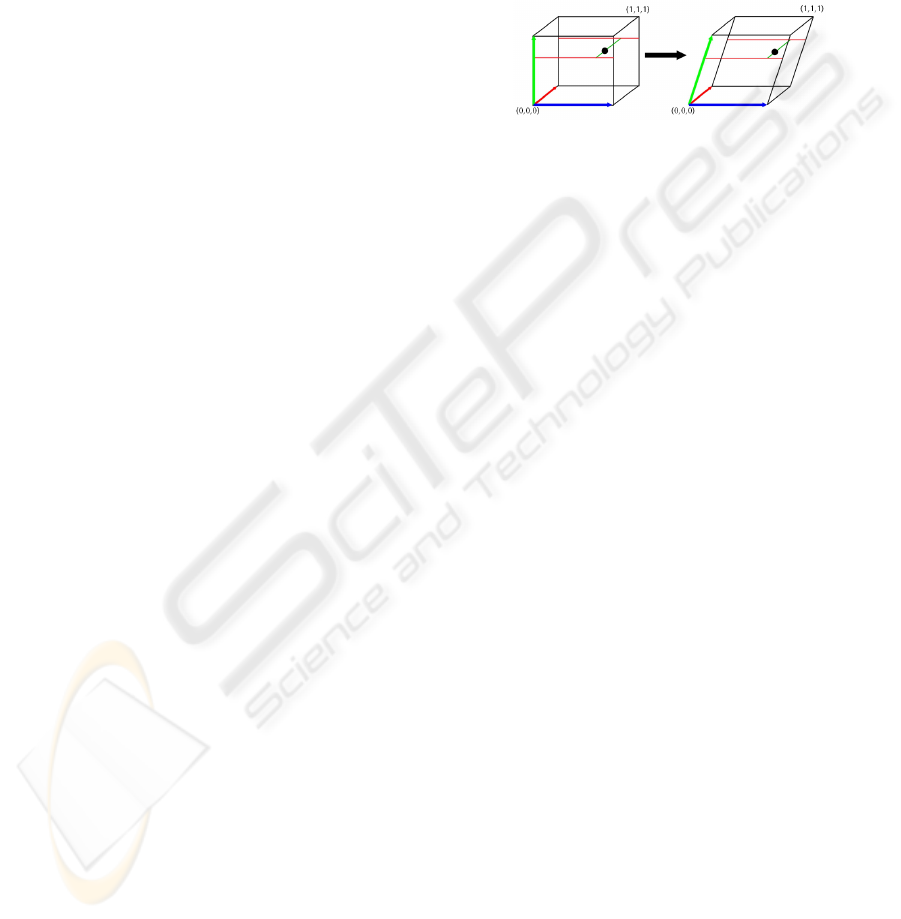

Figure 4: Warping of a unit cube using linear transforma-

tion results in a parallelpiped. This is a special case of a

cuboid.

Taking a closer look at the matrix C and the gen-

eration of coefﬁcients two things are clear. The right

part of C describes a linear 4x3 matrix. It contains

a coordinate system plus an offset. The left side of

C consists of 4 vectors describing the difference be-

tween the parallelpiped deﬁned by the right 4x3 ma-

trix and the intended cuboid. If the transformation de-

scribes a linear transformation this left side of C con-

tains only zeros. This knowledge allows one to test

whether a trilinear transformation is truly a deforma-

tion or just a linear transformation. This is a nice fea-

ture, since this test can be performed after composing

the overall transformation for a geometry directly be-

fore rendering. This test allows one to limit the higher

computational effort necessary for deformation to the

objects really needing deformation without the need

of an extra protocol.

Both methods describe a warping of the whole

space. This allows handling any geometric structure

which can be represented in that space.

3.3 Approximating Arbitrary

Deformations and Composition

Until now we discussed simple trilinear transforma-

tions using only a single cuboid. We will call this

type simple transformation. In order to cope with real

deformations we need a more ﬂexible tool. Fortu-

nately, trilinear transformations have a local charac-

ter and can be attached side by side to form control

grids. These grid structures can be used to approx-

imate complex arbitrary deformations, like it is pro-

posed by (Rezk-Salama et al., 2001). Additional re-

ﬁnements of the grid are presented to allow local de-

tails of the deformation. Since our aim is to directly

EMBEDDING HIERACHICAL DEFORMATION WITHIN A REALTIME SCENE GRAPH - A Simple Approach for

Embedding GPU-based Realtime Deformations using Trilinear Transformations Embedded in a Scene Graph

249

use 3D textures of the GPU to store these grids, we de-

cided to use simple uniform grids. Additionally, this

allows us to use trilinear interpolation of the texture

stage to perform the necessary interpolation within a

single cuboid of the grid.

Since we intend to combine assembled transfor-

mations with simple transformations, we have to take

care of the following sampling issue: transforming

the cuboid of a transformation is a sampling process

that will only approximate the original transforma-

tion. If this is another simple trilinear transformation,

this is no problem. A problem arises when an assem-

bled transformation is sampled by one with lower fre-

quency. This will lead to under-sampling. We prevent

this problem by propagating the transformation with

the highest resolution.

4 IMPLEMENTATION

We additionally use bounding boxes to map parts of

the scene to unit cubes. These additional bounding

boxes are deﬁned for each non-linear transformation.

All content of the bounding box is warped into the

cuboid. So in addition to the transformation hierarchy

of the scene graph there is a bounding box hierarchy.

The images of the child transformations have to be

contained inside the parent’s bounding box.

4.1 The Transformation Process

In order to create propagation and composition we use

one transformation (G ) to warp the other (L). In prin-

ciple the composition (C) of two trilinear transforma-

tions C = G ∗ L is computed by transforming the po-

sitions of L’s cuboid grid by the transformation G.

A problem arises from this composition. Our goal

is to compose two trilinear transformations into a new

one. Since composing a child nodes transformation

with the parent nodes transformation does not result

mathematically in an new trilinear transformation.

This happens due to the ability of the trilinear trans-

formation to be able to map lines to curves, which is

always the case, if the image cuboid does not resem-

ble a parallelpiped. To circumvent this problem we

use the child’s transformation cuboid to approximate

the deformation represented by the parent’s cuboid.

Besides from introducing an approximation error this

allows us to get one ﬁnal composed transformation at

a geometry leaf, which is trilinear, and has to be ap-

plied to the geometry in the vertex processing stage.

Looking at the transformation hierarchy inside a

scene graph we now perform the propagation and

composition process the following way: We propa-

gate the transformation from the world space towards

the local space of the geometry. At each step we have

to transform a more local transformation (L) with the

composition of the more global transformations (G).

The new composed transformation (C ) is now given

by transforming the grid data of the local transforma-

tion L by the old composed transformation G . As a

result the new composition transformation is a trans-

formed copy of L.

As described in section 3.3 this composition of

these transformations resembles a sampling process.

To prevent loss of information we have to choose a

sampling grid for L being equal or ﬁner in structure of

the cells then the grid performing the transformation.

Otherwise we have to handle this problem by increas-

ing the resolution of L’s grid, e.g. by resampling. We

chose the grid size in the following way: Since we use

a bounding box hierachy, L and G having the same

resolution will automatically result in a proper sam-

pling of G since L is smaller in size. Otherwise we

check which transformation uses the highest resolu-

tion and use its grid resolution for computing C . On

the GPU we use interpolated 3D textures to represent

the transformation grids. Since a 3D texture already

has a domain deﬁned in a unit cube, it is only neces-

sary to perform the mapping from the bounding box

to a unit cube in advance. Positions are represented

by ﬂoat values instead of colours in the texture.

We represent linear transformations only by using

transformations with a grid size of one (one cuboid).

As an optimisation this allows us to check whether

the transformation represents a parallelpiped. If the

ﬁnal transformation contains a larger grid we always

consider it to handle a non-linear transformation.

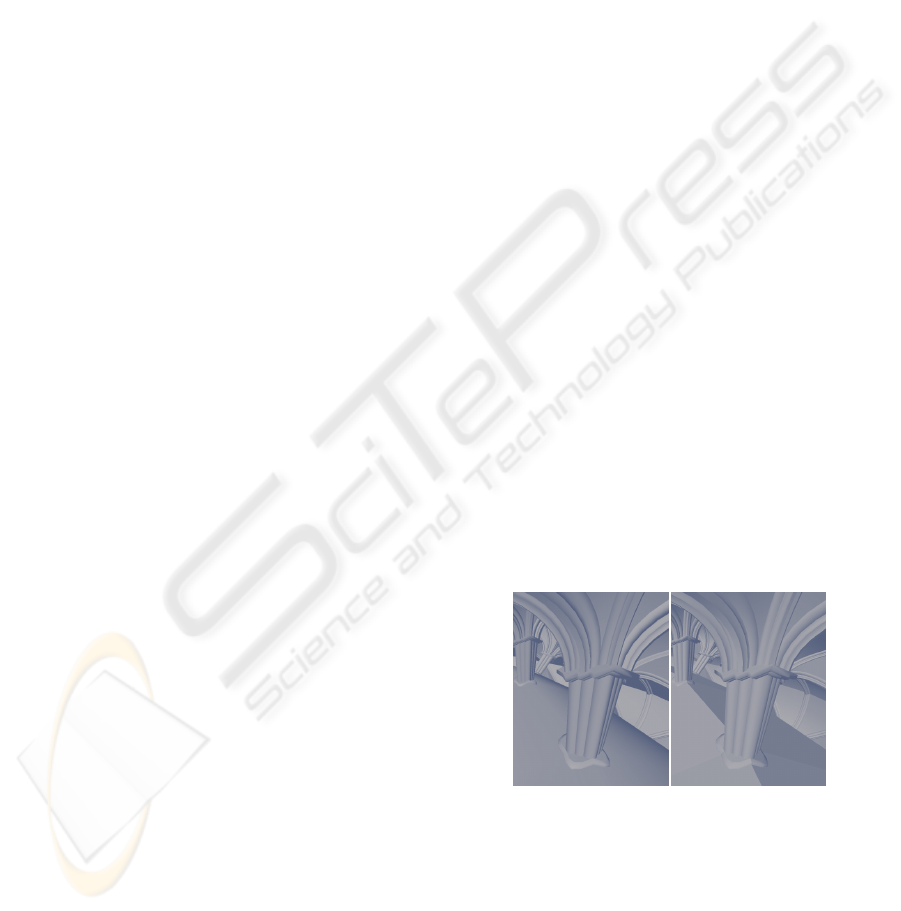

Figure 5: For rendering the lighting of the scene it is neces-

sary to handle the deformation of the geometry’s surface

normals. We use two methods. Method 1 (left) simply

transforms the normal with the given transformation. The

resulting normal is not necessarily orthogonal to the surface,

creating a smooth normal transition at the cuboid’s bound-

ary. Method 2 (right) shows the results transforming the

surface’s tangent space. Since the normal is now orthogo-

nal to the surface, visible seams at the cuboid’s border are

noticeable.

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

250

4.2 Normal Transformations

Since groups of trilinear transformations are of C

continuity at their borders, special care have to be

taken when computing the normals for lighting the

contained objects (Rezk-Salama et al., 2001). There

are several methods for computing the normals used

for shading the surfaces (see (Akenine-M

oller et al.,

2008)). For our implementation we have chosen two

computation methods. Using the ﬁrst method, we

transform the tangent space representation of the nor-

mal. This results in normals orthogonal to the de-

formed surface. With the second method, we trans-

form the normal directly. This results in a smooth

lighting transition between cuboids. In both methods,

transformations have to be performed with respect to

the position of the vertex the normal or tangent space

belongs to. This has to be done due to the position

dependency of the coordinate system in a non paral-

lelpiped cuboid. Both methods are valid and can be

used with this approach (see Figure 5).

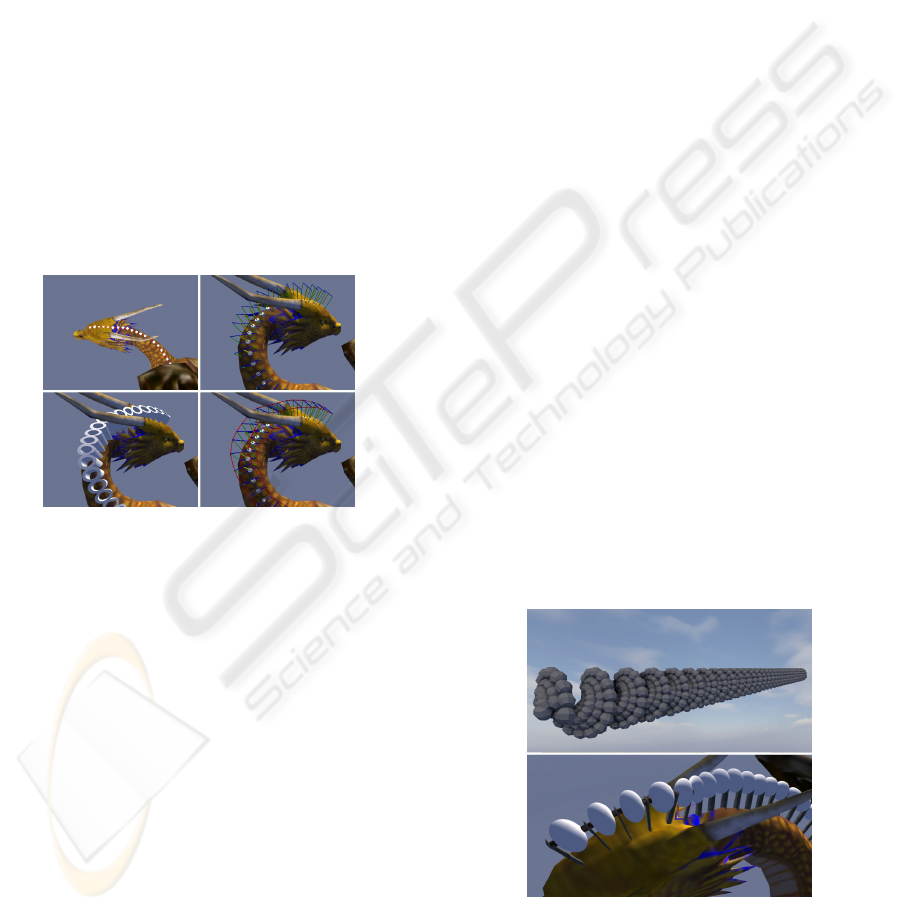

Figure 6: Automated handling of attached geometry in our

method: At ﬁrst we place a set of anchor points on the

ﬁgurine (top left). Barycentric coordinates allow updating

these points if the ﬁgurine is deformed or animated. These

points represent local coordinate system (top right). These

coordinate systems are used to create a deformation grid on

the ﬂy (bottom right). The control grid enables the scene

graph to deform the attached geometry (bottom left).

5 APPLICATION EXAMPLE

In order to attach geometry to another surface we need

additional control structures, keeping the deformation

nodes up to date if the surface position changes, see

Figure 6. An attachment consists of a list of anchors

placed on the surface of the target’s geometry, a trans-

formation controlled by the anchors, and the geome-

try object which has to be attached. An anchor is de-

ﬁned by two points, which are registered and mapped

onto a triangle of the basic mesh using barycentric

coordinates. The ﬁrst point resembles the anchor po-

sition. The second point is used to specify the orien-

tation of the tangent vector. From these two points

and the triangle’s surface normal a coordinate system

is computed. The transformation has to compute a tri-

linear transformation for this list of anchors, depend-

ing on which behaviour the attachment has to have.

An update of the anchors local coordinates system is

performed by barycentric interpolation of the points

of the triangle. This allows the computation of anchor

position and alignment by only using the information

of the geometry, see Figure 6. This concept is inde-

pendent of the animation concept, which is used on

the basic mesh, the anchor is applied to. The coordi-

nate system deﬁned by an anchor resides within the

local space of the geometry. Thus the transformations

dealing with the attachments have to work within the

same space. In our example we use arrays of anchors

to produce a 1D or 2D deformation grids used by the

cuboids.

6 EXPERIMENTAL RESULTS

We have tested the system with several scenes (see

Figure 7). We focused on two aspects of our imple-

mentation. Besides measuring the speed difference

between trilinear transformations and linear transfor-

mations we had to differentiate between the GPU and

the CPU part. In order to measure the vertex through-

put in the GPU we used a high polygon model as de-

formation target. The high polygon count was created

by attaching several highly tesselated spheres to an

animated object. The chain of spheres is deformed

according to the animation of the base mesh. For the

CPU side we created a helix using a large number of

small objects to measure the composition throughput.

Figure 7: The scenes we used for experimentation: For the

CPU tests, we created a helix consisting of many small low

resolution spheres to create a high amount of composition.

For testing the vertex throughput of the GPU, we attached

some high resolution spheres to an animated model. These

spheres are deformed with respect to the animation, using

our method.

EMBEDDING HIERACHICAL DEFORMATION WITHIN A REALTIME SCENE GRAPH - A Simple Approach for

Embedding GPU-based Realtime Deformations using Trilinear Transformations Embedded in a Scene Graph

251

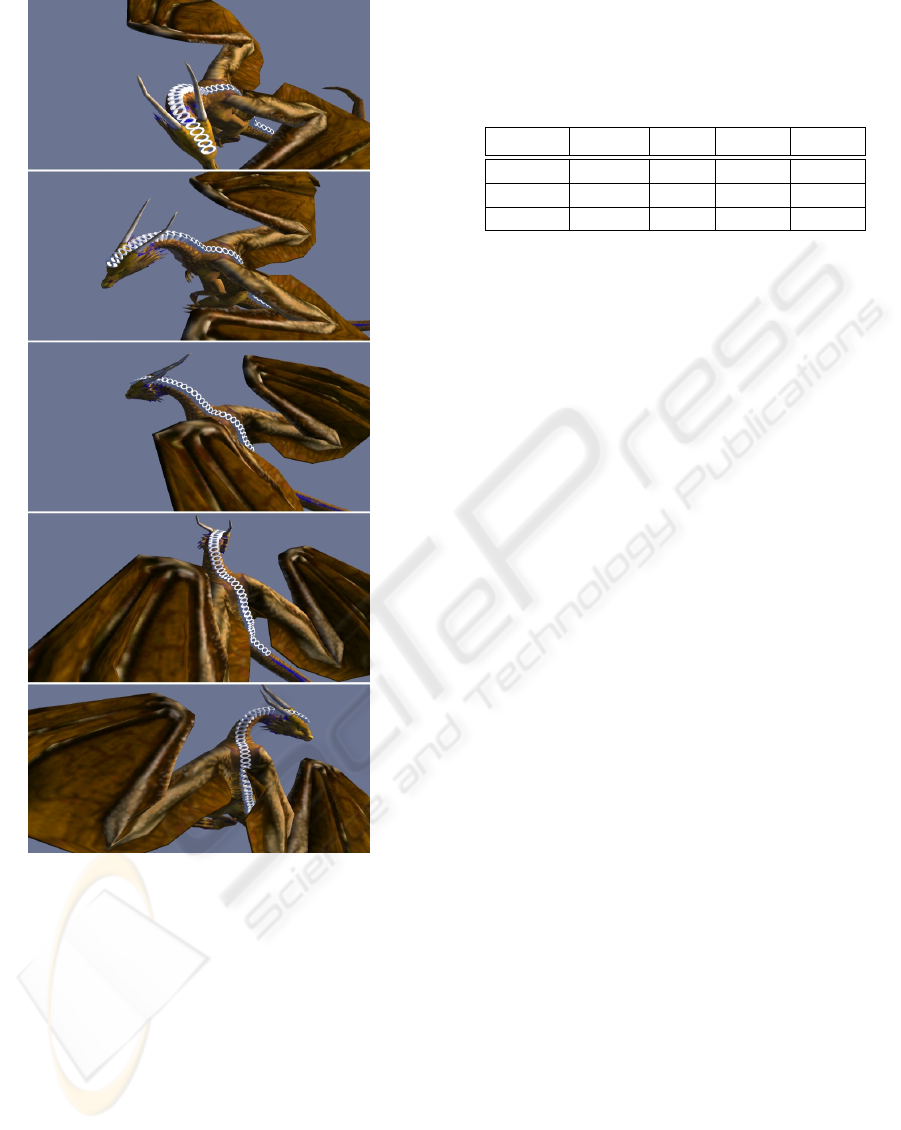

Figure 8: Results: 5 Frames from the vertex animated ﬁg-

urine with a geometric attachment on its back, presenting

the deformation of the attached geometry. The whole pro-

cess is directly managed by the scene graph.

In both tests we compared linear vs. trilinear through-

put in frames per second.

The tests were performed on a system containing

a GForce 8800 and an Intel Core 2 Quad 6600. The

tables show a comparison between the use of trilinear

transformation and the linear transformed scene in

frames per second. Additionally, the number of

objects and triangles are exposed. The software was

implemented in OpenGL. All geometry was stored in

Vertex Buffer Objects (VBO) on the GPU side. The

composition of the trilinear transformations within

the scene graph’s hierarchy is performed on the CPU.

Deformation of the geometry leaf nodes is done per

GPU vertex shader. The trilinear transformation part

of the used shader is roughly two and a half times

more complex compared to the four scalar products

of a linear transformation.

scene objects Tri. FPS/L FPS/T

spheres 185 1.5M 19.5 14.9

helix 4617 164k 16.5 13.3

helix 2566 656k 10.8 8.4

An experiment was performed with a 1.5 mil-

lion triangles object to compare the GPU side of

the transformation stage. Even though the vertex

shader for the trilinear transformation is much more

complex than the linear one, we achieve 75 percent

of the frame rate from the linear vertex shader. The

composition test (CPU) had different results. Using

a large number of low poly models resulted in a

performance decrease to 80 percent (second row).

Increasing the polygon rate by decreasing the amount

of objects (third row) shifts the performance decrease

to 77 percent (third row). Expectedly, this behaviour

results from moving slowly the amount of operations

from composition (CPU) towards transformation

(GPU).

7 CONCLUSIONS AND FUTURE

WORK

We have presented an approach to embed deforma-

tions in a scene graph system by replacing the 4x4

matrix based transformation system by a more generic

one. This extends the usage of transformation nodes

to warping. We achieve this by combining the idea of

trilinear transformation with the hierarchical organi-

sation structure of a scene graph. We support arbitrary

deformations by using an approximation scheme. As

a large beneﬁt we perform all geometric transforma-

tions on the GPU within constant time. The com-

position of the scene graph’s transformations is still

performed inside the CPU. Theoretically, this could

lead to a performance bottlenecks, but only if a huge

multitude of complex transformations have to be com-

posed and send to the GPU. This has not been ob-

served by any of our experiments. As an application

we presented the attachment of arbitrary geometry to

the surface of other deformable or dynamic geometry.

For handling surface normals we have presented two

methods. The ﬁrst one performs a direct deformation

of the normals. The second method guarantees or-

thogonality to the deformed surface by using the tan-

gent space for normal representation. According to

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

252

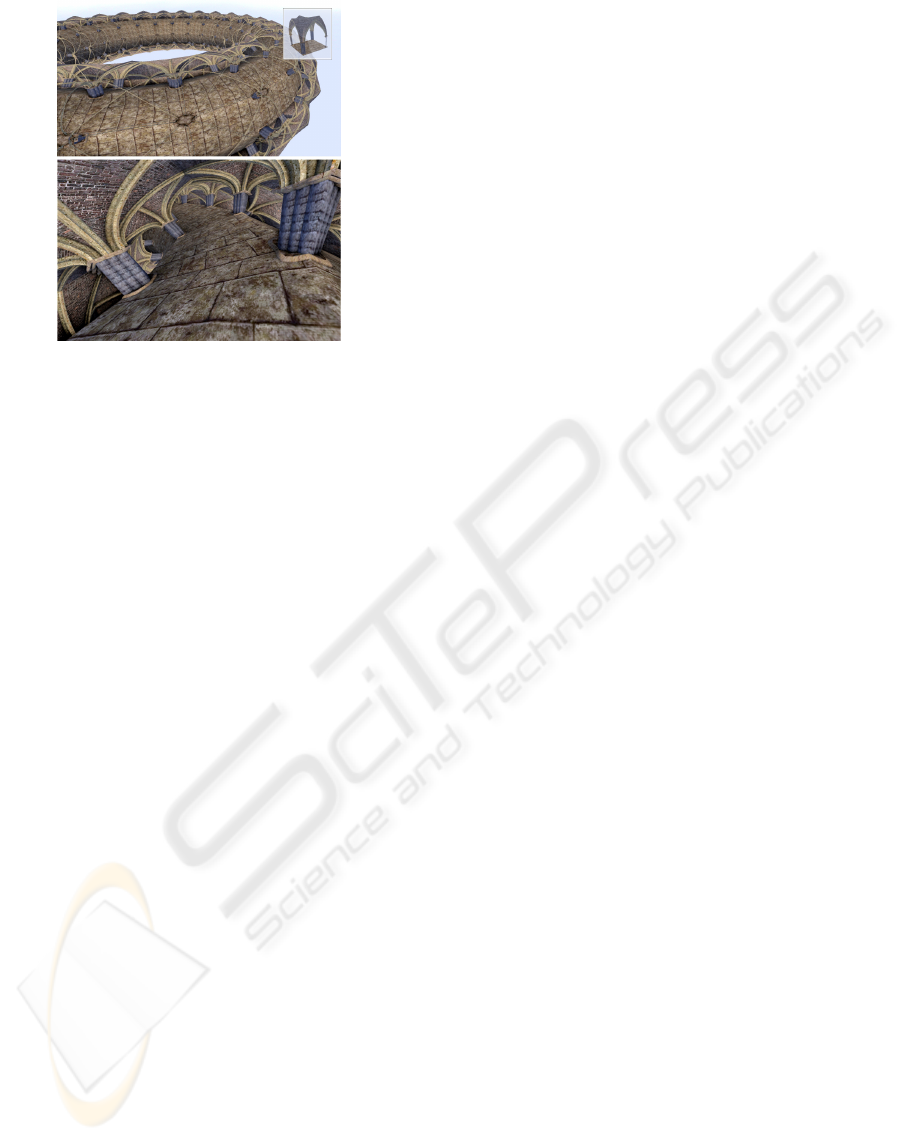

Figure 9: A geometric tile (top right) of a hall mapped on

a torus (top). Inside the 3D model (bottom). The embed-

ded transformation system allows directly the deformation

of the geometric tiles to achieve a seamless (C

) joining at

their borders.

(Gomes et al., 1998) the inverse of a trilinear trans-

formation can be computed analogously to the bilin-

ear transformation’s inverse. As we did not need the

inversion for our rendering concept we did not cover

this issue. However, the inverse is often a critical fea-

ture, for example for ray / objects intersections. Addi-

tionally it allows mapping one deformation onto an-

other. Trough an inversion, the integration of structure

based animation concepts (like skeleton based charac-

ter animation) could be mapped into the scene graph

structure. The inversion problem and C

continuity

are current drawbacks of the used trilinear deforma-

tion. So a more complex, but invertible and more

continuous transformation scheme could be of higher

beneﬁt in these cases.

REFERENCES

Akenine-M

oller, T., Haines, E., and Hoffman, N. (2008).

Real-Time Rendering 3rd Edition. A. K. Peters, Ltd.,

Natick, MA, USA.

Barr, A. H. (1984). Global and local deformations of solid

primitives. SIGGRAPH Comput. Graph., 18(3):21–

30.

Botsch, M., Pauly, M., Wicke, M., and Gross, M. (2007).

Adaptive space deformations based on rigid cells.

Computer Graphics Forum (Proc. EUROGRAPH-

ICS), 26(3):339–347.

Chen, M., Correa, C., Islam, S., Jones, M. W., y. Shen, P.,

Silver, D., Walton, S. J., and Willis, P. J. (2005). De-

forming and animating discretely sampled object rep-

resentations. Eurographics State of the Art Reports.

Eigensatz, M. and Pauly, M. (2009). Positional, metric,

and curvature control for constraint-based surface de-

formation. Computer Graphics Forum (Proc. EURO-

GRAPHICS), 28(2)(2):551–558.

Gomes, J., Costa, B., Darsa, L., and Velho, L. (1998). Warp-

ing and morphing of graphical objects. Morgan Kauf-

man Publishers, San Francisco, CA.

Guo, Z. and Wong, K. C. (2005). Skinning with deformable

chunks. Computer Graphics Forum (Proc. EURO-

GRAPHICS), 24(3):373–382.

Langer, T. and Seidel, H.-P. (2008). Higher order barycen-

tric coordinates. Computer Graphics Forum (Proc.

EUROGRAPHICS), 27(2)(2):459–466.

Loviscach, J. (2006). Wrinkling coarse meshes on the gpu.

Computer Graphics Forum (Proc. EUROGRAPH-

ICS), 25(3):467–476.

Nealen, A., Mueller, M., Keiser, R., Boxerman, E., and

Carlson, M. (2005). Physically based deformable

models in computer graphics. Eurographics State of

the Art Reports.

Popa, T., Zhou, Q., Bradley, D., Kraevoy, V., Fu, H., Shef-

fer, A., and Heidrich, W. (2009). Wrinkling cap-

tured garments using space-time data-driven defor-

mation. Computer Graphics Forum (Proc. EURO-

GRAPHICS), 28(2)(2):427–435.

Raviv, A. and Elber, G. (1999). Three dimensional freeform

sculpting via zero sets of scalar trivariate functions. In

SMA ’99: Proceedings of the ﬁfth ACM symposium

on Solid modeling and applications, pages 246–257,

New York, NY, USA. ACM.

Reiners, D., Vo, G., and Behr, J. (2002). Opensg: Basic

concepts. In In 1. OpenSG Symposium OpenSG.

Rezk-Salama, C., Scheuering, M., Soza, G., and Greiner,

G. (2001). Fast volumetric deformation on general

purpose hardware. In HWWS ’01: Proceedings of

the ACM SIGGRAPH/EUROGRAPHICS workshop on

Graphics hardware, pages 17–24, New York, NY,

USA. ACM.

Rohlf, J. and Helman, J. (1994). Iris performer: a high

performance multiprocessing toolkit for real-time 3d

graphics. In SIGGRAPH ’94: Proceedings of the 21st

annual conference on Computer graphics and interac-

tive techniques, pages 381–394, New York, NY, USA.

ACM.

Rubinstein, D., Georgiev, I., Schug, B., and Slusallek, P.

(2009). Rtsg: Ray tracing for x3d via a ﬂexible ren-

dering framework. In Proc. of the 14th International

Conference on 3D Web Technology 2009. ACM, New

York, NY, USA.

Sederberg, T. W. and Parry, S. R. (1986). Free-form defor-

mation of solid geometric models. SIGGRAPH Com-

put. Graph., 20(4):151–160.

Sowizral, H., Rushforth, K., and Deering, M. (1998). The

Java 3D API Speciﬁcation. Addison-Wesley.

Sumner, R. W., Schmid, J., and Pauly, M. (2007). Embed-

ded deformation for shape manipulation. ACM Trans.

Graph., 26(3):80.

Wang, D., Herman, I., and Reynolds, G. J. (1997). The open

inventor toolkit and the premo standard.

EMBEDDING HIERACHICAL DEFORMATION WITHIN A REALTIME SCENE GRAPH - A Simple Approach for

Embedding GPU-based Realtime Deformations using Trilinear Transformations Embedded in a Scene Graph

253
