A NEW IMAGE RE-COLORING METHOD

Hye-Yoon Woo and Hang-Bong Kang

Dept. of Digital Media, Catholic Univ. of Korea, 431- Yokkok 2-dong, Wonmi-gu, Bucheon Gyonggi-Do, Korea

Keywords: Color Transformation, Affection, Interactive Genetic Algorithm.

Abstract: In this paper, we propose a new method to transform colors in the image according to the user’s emotion.

First, we labeled the images into four basic emotions such as happy, sad, fear and anger from the users’

evaluation. After that, we compute color histograms using 36 quantized HSV scheme. After that, we

intersect color histograms and finally construct color templates for basic emotions. To reflect the user’s

preferences in color perception for specific emotion, we designed interactive genetic algorithm. First, we

generate first stage individuals using color templates from the input image. From them, we extract

chromosomes for HSV color space and then generate next stage individuals using crossover and mutation

operations. After a few number of iterations, we stop the process and extract personalized color templates

from the finalized image. Using personalized color templates, the user can generate an affection-based color

transformed image according to his own preference. Survey results show that desirable results are obtained

from our proposed personalized color templates.

1 INTRODUCTION

Colors are deeply related to our emotions and

feelings. For example, the color blue is associated

with comfort and yellow is perceived as cheerful

(Mahnke, 1996). In particular, if we can transform

colors in the contents interactively with the user’s

affection, it provides various tools for the intelligent

human computer interaction. So, it is desirable to

analyze color-emotion associations and implement

an effective method to reflect the user’s own

affection in the colors of the contents or media arts.

There have been several attempts to examine

color-emotion associations. Boyatzis and Varghese

found that light colors are associated with positive

emotions and dark colors reveal negative emotions

(Boyatzis and Varghese, 1994). Saito found that

black elicited both negative and positive responses

among Japanese subjects and that black was often a

preferred color among young people (Saito, 1996).

In this paper, we propose a new method to

transform colors in the image according to the user’s

affection. In particular, we construct affection-based

color templates to transform colors in the image

based on the user’s preferences using interactive

genetic algorithm. Section 2 discusses affection

analysis in color information. Section 3 presents

color transformation method according to user’s

affection and Section 4 discusses personalized color

templates using interactive genetic algorithm.

Section 5 shows our experimental results.

2 AFFECTION ANALYSIS IN

IMAGES USING COLOR

INFORMATION

To represent affective content, we use a two-

dimensional model used by Lang (Lang, 1995),

where the horizontal axis represents valence and the

vertical axis represents arousal. Valence refers to the

affective responses ranging from positive state to

negative state. Arousal refers to the responses

ranging from excited to the calm. Figure 1 shows

two-dimensional expression of four basic common

emotions such as fear, anger, sadness, and happiness

(Picard, 1997). Color information can also be

represented roughly in two dimensional emotion

space (Valdez and Mehrabian, 1994, Shreier and

Picard, 1999).

To analyze the relationship between basic

emotions and colors, we have performed the

empirical study on images. First, we showed 150

color images to 42 students and asked the students to

choose the appropriate color images for each

emotion. We labeled the images into four basic emo-

Woo H. and Kang H. (2010).

A NEW IMAGE RE-COLORING METHOD.

In Proceedings of the International Conference on Imaging Theory and Applications and International Conference on Information Visualization Theory

and Applications, pages 35-39

DOI: 10.5220/0002845100350039

 SciTePress

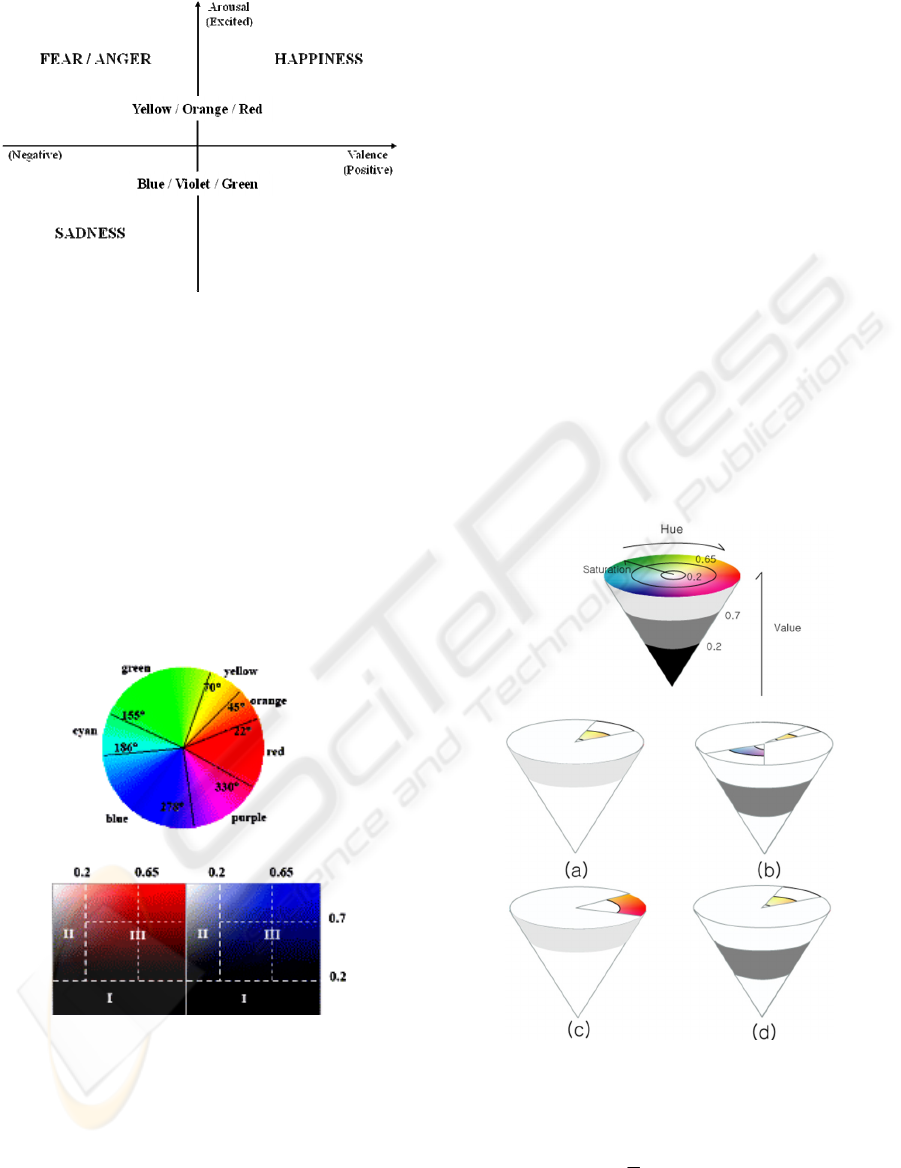

Figure 1: Two Dimensional Emotion Space.

tions such as happiness, sadness, fear and anger

(Picard, 1997). Secondly, we select most favorable

10 images for each emotion based on the survey

results we conducted in the first stage. From selected

color images, we compute histograms in HSV color

space. We used 36 quantization scheme as in Lei

(Lei et al., 1999) because this scheme shows good

performance in representing color based on human

perception. Figure 2 shows Hue and VS panel

quantization scheme. Hue is non- uniformly

quantized into the colors of red, orange, yellow,

green cyan, blue and purple from 0 to 360. In Figure

2, SV panels of two primary colors are shown.

Figure 2: Hue panel quantization (Top) and SV panel

quantization (Bottom).

For example, if V<= 0.2, region-I can be

perceived as a black area regardless of H and S. If

S<0.2, region-II is perceived as a gray area. It can

be quantized into 7 indices. Only region –III can be

perceived as a colored area. 4x7 indices are

obtained from region-III. Using 36 color

quantization scheme, we extract color histograms

from the given images for each emotion. Then, we

execute histogram intersection. Finally, we construct

HSV templates like Figure 3. These color templates

are similar to the color representation in Figure 1.

3 COLOR TRANSFORMATION

USING AFFECTION-BASED

COLOR TEMPLATES

Using affection-based color templates, we generate a

new color transformed image. Because we

constructed HSV color templates, the colors in the

image are transformed according to Hue, Saturation

and Value.

The re-coloring method of hue in images using

templates is similar to the one in Cohen-Or et

al.(Cohen-Or et al., 2006). We re-color the image by

shifting the hues according to the affection-based

hue templates so that transformed hues reside inside

the hue template.

Figure 3: HSV templates (HSV space (top), happiness,

sadness, fear, anger template (clockwise)).

The new hue value is computed by

||)))()((||1()()('

pCpHGpCpH





(1)

where C(p) is the central value of the sector

associated with the pixel, and w is the arc width of

IMAGAPP 2010 - International Conference on Imaging Theory and Applications

the template sector, and



is the normalized

Gaussian function with standard deviation σ.

According to the σ, the concentration of hues is

determined. In our implementation, we use





for the best color balance.

To transform the saturation value in the image,

we shift the whole saturation histogram of the

image instead of shifting each pixel to generate

smoothed transformed image. From the saturation

histogram, we select the pixel value which has the

highest count as the representative saturation value.

The transform saturation value S’ is as follows.

1'0

)(*

max







and

SSwSS

tarcur

(2)

where

max

is the representative value,

tar

denotes

center value of the sector,

cur

is the current

saturation value and

is the weight ranging from 0

to 1.

To transform the brightness value, we implement

a non-linear characteristic function like Weber’s law.

The brightness value at pixel p is transformed by

255)

255

()(







pTp (3)

where in our implementation



is 2.0 for happiness,

0.4 for sadness, 0.5 for anger, and 0.3 for fear,

respectively.

4 PERSONALIZED COLOR

TEMPLATE USING

INTERACTIVE GENETIC

ALGORITHM

Usually, every person has different color preferences

for each emotion. So, it is desirable to modify the

color templates according to the user’s preference.

In this Section, we will discuss the personalized

color template using interactive genetic algorithm.

The interactive genetic algorithm is a Genetic

Algorithm where the evaluation part of it is

subjectively handled by a user (Sugahara et al.,

1998). Actually, the user’s preference cannot be

numerically quantified because it depends on the

perception of the user. So, optimization is performed

by human evaluation.

The chromosome representation of the color

image can be done by histograms of color space. For

example, each color image consists of three

chromosomes such as H, S and V which are shown

in Figure 4. For example, the chromosome of H

consists of 12 genes. Each gene carries numeral

information concerning the Hues at every 30 degrees

because Hue is represented by hue circle. The value

of each gene is computed from normalized

histograms. Saturation and Value chromosomes

consist of 10 genes whose values are computed from

histograms similarly to Hue.

The procedure of the constructing personalized

color templates with interactive genetic algorithm is

shown in Figure 5. The process of each stage is as

follows.

 Generation of the first individual: From the

original image, we generate 7 individuals (or

color transformed images) from H, S and V

templates by using H, S, V, HS, HV, SV and

HSV transforms.

 Evaluation: In response to each presented

individual, the user is asked to use buttons to

give evaluation based on his own subjective view.

The evaluation scores are used as fitness values

within the interactive genetic algorithm. In

addition, if the user select keep button, the

selected individual is transferred to the next

generation.

 Termination: The procedure is terminated by the

user’s decision when the user finds a desirable

individual.

 Selection: The tournament selection is used

where 2 individuals from the population are

randomly selected, leaving only those with the

highest fitness level.

 Crossover: The crossover operation is executed

from mother and father and the crossover point is

determined by the mother and father’s fitness

value. For example, in Figure 6, the crossover

point is 8 because mother’s fitness value is two

times larger than father’s fitness value. From the

generated individuals, we construct Hue,

Saturation and Value templates like Figure 6 by

choosing large genes and converting them to the

H, S and V values.

 Mutation: The gene values in H, S and V are

altered with 1 % rate. The altered values are

randomly decided by the system.

With the termination of the interactive genetic

algorithm, we obtain the desirable image. From this

image, we can extract chromosome information for

H, S and V. Finally, we can construct color

templates which reflected the user’s color preference

for each emotion. Using these templates, we can

generate personalized affection-based color

transformed images.

A NEW IMAGE RE-COLORING METHOD

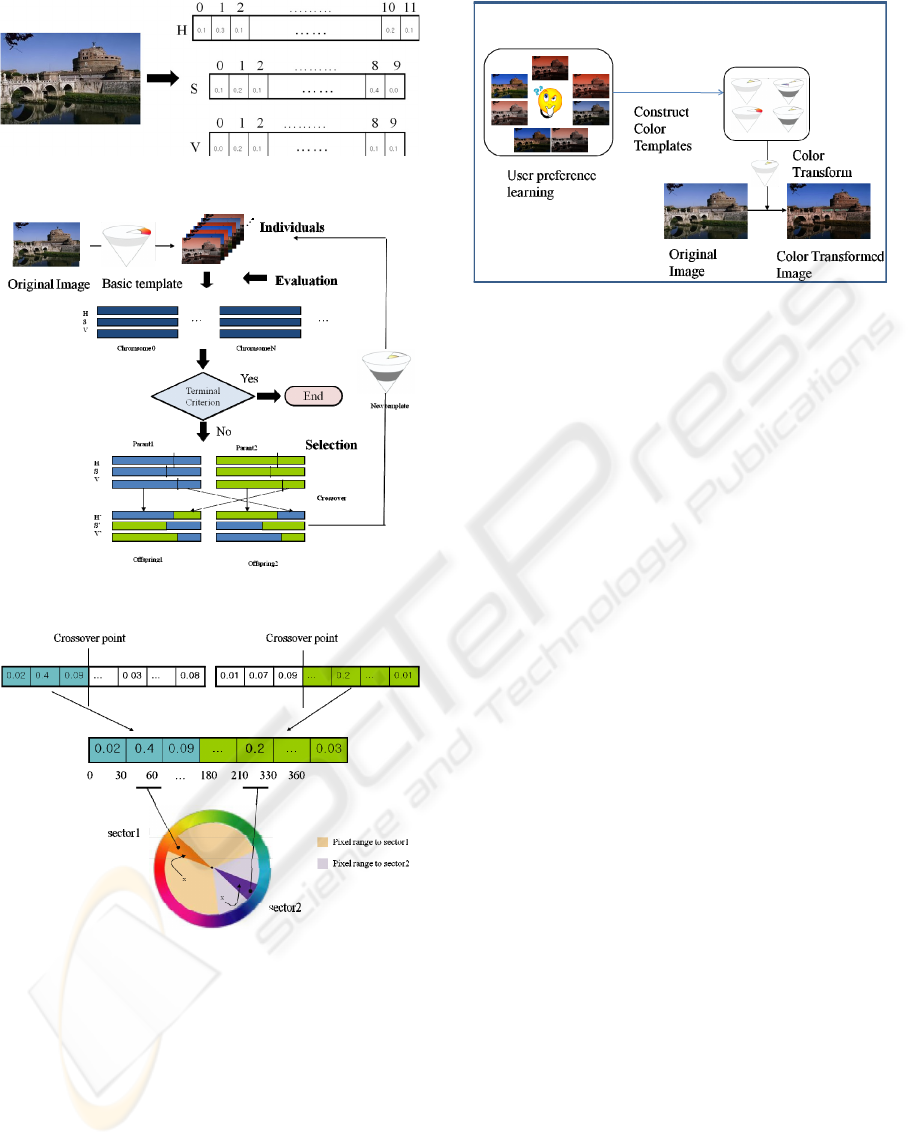

Figure 4: Three chromosomes of the image.

Figure 5: Interactive genetic algorithm procedure.

Figure 6: Crossover operation.

5 EXPERIMENTAL RESULTS

We implemented our method as shown in Figure 7.

First, we construct color templates of H, S and V for

basic emotions such as happiness, sadness, fear and

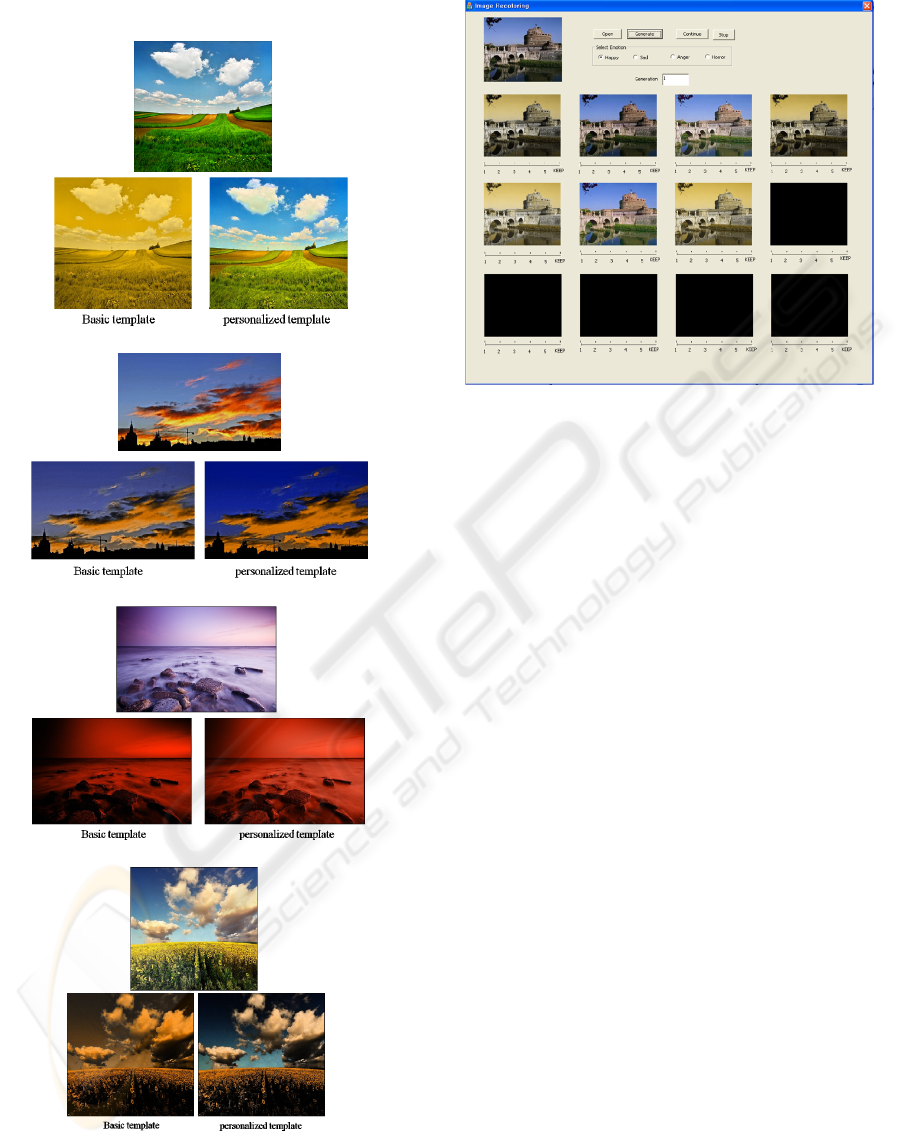

anger Figure 8 shows the results using color

templates. The results are checked with 32 students

and 25 students among them are satisfied with the

color transformed images. The satisfaction percenta

ge is 78% approximately.

Figure 7: Overview of the proposed method.

With these images, we experimented user’s

preferences using interactive genetic algorithm.

Figure 9 shows the user interface. The user inputted

his evaluation score from 0 to 5. If the user pressed

the keep button, the image is transferred to the next

stage. After a few number of iterations, the user

stopped and selected the most favorable image.

From that image, the modified color templates are

constructed. Using these templates, the color

transform is executed. Figure 8 shows the results

using personalized color templates. We also measure

the satisfaction for the generated image. After

testing 32 students, the satisfaction percentage is

rated as 84%. So, the satisfaction rate is increased

compared to the basic color templates. Desirable

results are obtained from our proposed personalized

color templates.

6 CONCLUSIONS

In this paper, we proposed new personalized color

templates to transform colors according to the user’s

affection. Based on the survey results from many

subjects, we construct basic color templates for each

emotion. After that, the user evaluates the generated

images from basic color templates. Based on the

fitness score, the images are selected using

tournament method and the offsprings are generated.

After iterating this process, the user stopped the

process if he finds his favorable image. From that

image, we construct color templates.

These modified templates reflect the user’s

preferences for color. Our experiments show

desirable results.

In the future, it is desirable to examine the

relations between color preferences according to

gender and age. In addition, cross-cultural research

could shed the light on the issues about how cultural

IMAGAPP 2010 - International Conference on Imaging Theory and Applications

differences vary in color-emotion associations.

(a) Happiness

(b) Sadness

(d) Fear

Figure 8: Experimental Results.

Figure 9: User Interface.

ACKNOWLEDGEMENTS

This research is supported by Ministry of Culture,

Sports and Tourism(MCST) and Korea Culture

Content Agency(KOCCA) in the Culture

Technology(CT) Research & Development Program

2009.

REFERENCES

Boyatzis C. and Varghese R., 1994, Children’s emotional

associations with colors, Journal of Genetic

Psychology 155:77-85.

Cohen-Or, D., Sorkine, O., Cal, R., Leyvand, T. and Xu,

Y., 2006, Color Harmonization, ACM Transactions

on Graphics, Vol 25, no.3, 624-630.

Lang, P., 1995, The emotion probe: Studies of motivation

and attention, American Psychologist, 50(5), 372-385.

Lei, Z., Fuzong, L., and Bo Zhang, 1999, A CBIR method

based on color-spatial feature", TENCON 99, 166-169.

Mahnke, F., 1996, Color, environment, human response.

New York: Von Nostrand Reinhold.

Picard, R., 1997, Affective Computing, MIT Press.

Saito M., 1996, Comparative studies on color preference

in Japan and other Asian regions, with special

emphasis on the preference for white, Color Research

and Application 21 (1): 35-49.

Scheirer, J., and Picard, R., 1999, Affective Objects, MIT

Media lab Technical Rep. No 524.

Sugahara, M., Miki, M. and Hiroyasu, T., 2008, Design of

Japanese Kimono using Interactive Genetic

Algorithm, Proc. IEEE Conf. Sys. Man and Cyber.

Valdez, P. and Mehrabian, A., 1994, Effects of color on

emotions, Journal of Experimental Psychology:

General, 394-409.

A NEW IMAGE RE-COLORING METHOD
