CAN ANISOTROPIC IMAGES BE UPSAMPLED?

Mads F. Hansen, Thomas H. Mosbech, Hildur

Olafsd

ottir, Michael S. Hansen and Rasmus Larsen

DTU Informatics, Technical University of Denmark, Richard Petersens Plads, Kgs. Lyngby, Denmark

Keywords:

Image reconstruction, Image registration, Riemannian elasticity, Super resolution penalization prior.

Abstract:

This paper presents a novel method for upsampling anisotropic medical gray-scale images. The resolution

is increased by ﬁtting an image function, modeled by cubic B-splines, to the slices. The method simulates

the observed slices with an image function and iteratively updates the function by comparing the simulated

slices with observed slices. The approach handles partial voluming by modeling the thickness of the slices.

The formulation is ill-posed, and thus a prior needs to be included. Correspondences between adjacent slices

are established using a symmetric registration method with a free-form deformation model. The correspon-

dences are then converted into a prior that penalizes gradients along lines of correspondence. Tests on the

Shepp-Logan phantom show promising results, and the approach performs better than methods such as cubic

interpolation and one-way registration-based interpolation.

1 INTRODUCTION

Image interpolation plays an important role in many

medical image analysis applications by closing the

gap between the true continuous nature of an image

and the practical discrete representation of an image.

Uniform tensor splines (UTS), e.g. tricubic interpo-

lation, is the method of choice for most applications

due to the regular sampling of discrete images. A po-

tential problem with this approach is the inherent as-

sumption of a smooth transition between neighboring

voxels.

The idea of registration-based interpolation was

introduced as a solution to the problem (Penney et al.,

2004). Here, correspondences between neighboring

slices are determined by one-way registrations in 2D.

The interpolation is then performed along these lines

of correspondence to achieve a smooth transition,

rather than using the usual lateral neighborhood.

The method was extended by utilizing both a for-

ward and backward registration – a weighted sum of

two non-symmetric displacement ﬁelds – for the in-

terpolation (Frakes et al., 2008).

Recently, (

Olafsd

ottir et al., 2010) proposed a

method to improve the method even further. The pa-

per presents an interpolation based on weighting both

intensity and deformation by the inter-slice distance

of the interpolation point. The method combines both

a forward and backward interpolation into a less time-

consuming algorithm in comparison to (Penney et al.,

2004) by using an approximation to the inverse de-

formation, while still reporting sufﬁciently accurate

results.

The quality of registration-based interpolation is

highly dependent on the quality of the correspon-

dences obtained. This can be somewhat questionable

as there may not exist a one-to-one mapping between

adjacent slices. That is, structures may disappear be-

tween two slices, and in these situations one must

rely on the nice behavior of the chosen registration

scheme. Another previously untouched problem in

registration-based interpolation is the partial volume

effect; image artifacts occurring as part of the image

digitalization, where images are formed by slices of

thick volumetric blocks rather than inﬁnitely thin 2D

planes.

As an alternative to the common registration-

based interpolation we propose ﬁtting a parametric

function to the thick slices, accounting for the par-

tial volume effect by incorporating the thickness of a

slice. Furthermore, we use symmetric registration be-

tween adjacent slices to form a prior to stabilize the

ill-posed problem.

As the idea behind the method is to identify

the underlying image rather than interpolating the

thick slice voxels, we say the method upsamples the

anisotropic image under reasonable constraints.

F. Hansen M., H. Mosbech T., Ólafsdóttir H., S. Hansen M. and Larsen R. (2010).

CAN ANISOTROPIC IMAGES BE UPSAMPLED?.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 76-81

DOI: 10.5220/0002846500760081

 SciTePress

2 METHODS

The goal of our method is to obtain a better ap-

proximation of the true 3D image R given a slice-

based representation deﬁned by the set of K slices

,...,S

}. Here, a slice is a 2D planar view of

a 3D image integrated over a given thickness. That is,

the expected value of the (i, j)th voxel of the kth slice

image S

i j

is given by

E[S

i j

|R] =

i j

R(x

x)dv, (1)

where V

i j

is the volume element covered by the (i, j)th

voxel. When this volume contains a mixture of mul-

tiple tissue values, the partial volume effect occurs.

This is particularly evident for thicker slices – images

with more anisotropic voxels.

2.1 Upsampling Strategy

Our strategy for upsampling is to iteratively update an

approximation

R of the true image R by comparing the

current approximation with the observed slices. To do

this we formulate the quality of match as

M [

R,{S

}

k=1...K

] =

∑

k=1

∑

i=1

∑

j=1

m(E[S

i j

R],S

i j

), (2)

where m(·) is a measure of similarity between voxels

in the observed and simulated slices. Here, we use

cubic B-splines as the parametric representation of

R(x

x, p

p) = hb

b(x

) ⊗b

b(x

) ⊗b

b(x

), p

pi, (3)

where p

p are the image parameters, and b

b are the B-

splines. The most suitable measure of similarity is

dependent on the underlying noise model of the data.

For intensities in magnetic resonance images (MRI)

with a high signal-to-noise ratio, the noise is ap-

proximately Gaussian (Gudbjartsson and Patz, 1995).

Thus, assuming i.i.d. the squared difference in inten-

sities optimally deﬁnes the similarity between obser-

vation and simulation

m(E[S

i j

R],S

i j

) = (E[S

i j

R] −S

i j

)

. (4)

Given this parametric representation of

R, it is

possible to obtain a continuous representation of R by

minimizing (2) with respect to the parameters. This

can reduce the partial volume effect. Unfortunately,

the minimization is unlikely to produce a better ap-

proximation to the true R as the problem is ill-posed.

Thus, more information needs to be added in order to

solve the problem properly. We seek to handle this

u(x)

-u(x)

Figure 1: Illustration of slice registration setup and direction

of penalization vector ﬁeld.

this by including a prior S in the cost function. That

is, a new approximation

R is obtained by solving

min

M [

R,{S

}

k=1...K

] + βS

[

R], (5)

where the coefﬁcient β governs the effect of the prior.

In this work, we speciﬁcally consider a penalty

term that penalizes high image gradients in certain

directions. We write the prior as the inner product

between the gradient image and a vector ﬁeld v

v, i.e.

[

R] =

Ω

h∇

R(x

x),v

v(x

x)i

x, (6)

That is, v

v determines the direction and magnitude of

the penalty – resulting in less regularization where the

two are approximately orthogonal and/or of low mag-

nitude. We call v

v the penalization vector ﬁeld. The

following section presents a procedure for construct-

ing this vector ﬁeld.

2.2 Constructing a Penalization Vector

Field

Inspired by (Penney et al., 2004; Frakes et al., 2008;

Olafsd

ottir et al., 2010) we obtain the penalization

vector ﬁeld by non-rigid registration of neighboring

slices. We apply a symmetric registration between

slices, assuming that the point φ

x) = x

x −u

u(x

x) in

slice S

corresponds to the point φ

x) = x

x + u

u(x

x) in

slice S

. The concept is illustrated in Figure 1. The

penalization vector ﬁeld is then composed by a half

slice thickness τ, the displacement u

u and a scale fac-

tor γ

v(x

x) = γ(x

[τ, u

u(x

x)]

k[τ, u

u(x

x)]

. (7)

CAN ANISOTROPIC IMAGES BE UPSAMPLED?

The squared difference similarity measure drives

the registration as we assume that intensities in adja-

cent slices are directly comparable, and that the noise

is i.i.d., i.e.

D[S

u] =

Ω



◦φ

x) −S

◦φ



x, (8)

with S

(φ

x)) = S

◦φ

x).

The free-form deformation model (Rueckert et al.,

1999) is used to model the deformation u

u in order to

reduce the dimensionality of the problem. Hence,

u(x

x; w

w) = hb

b(x

) ⊗b

b(x

),w

wi, (9)

where w

w are the deformation parameters, and b

b are

the B-splines.

To ensure a homeomorphic deformation we adapt

the Riemannian elasticity energy (Pennec et al., 2005)

in the registration process. The elasticity energy of a

deformation ﬁeld φ

φ is given by

rie

(φ

φ) =

Ω

µ tr(E

) +

tr(E

x))

x (10)

where E

log((I

I + ∇φ

φ)

I + ∇φ

φ)) is the Hencky

strain tensor.

Thus, correspondences between adjacent slices

are identiﬁed by solving

min

D[S

u] + α(S

rie

(φ

) + S

rie

(φ

)), (11)

where α determines the amount of regularization in-

troduced by the elasticity term.

Homogeneous areas in the image (e.g. back-

ground) contain no information to guide the registra-

tion. Therefore, one should be cautious when putting

great conﬁdence in the local correspondences esti-

mated here. To address this issue we introduce an in-

formation score e for each registration point. This is

included by means of the scale factor γ of the penal-

ization vector ﬁeld (7).

We base e on the edge information available in

the slice around each position, as edges within slices

are valuable in the registration. For a point x

x we ﬁl-

ter around the position in the two neighboring image

slices φ

x) and φ

x) with the ﬁrst order derivative

of a 1D Gaussian kernel (Canny, 1986)

(x)

∂G

(x)

∂x

−x

√

2π

exp−

2σ

. (12)

The kernel covers n pixels on each side of the pixel

and has a standard deviation of σ = n/3.

The score is then computed as the absolute value

of the sum of the two

e(x

x) =



∗



◦φ



+ G

∗



◦φ





. (13)

This means that both slices must contain edge infor-

mation around the matching point in order for the cor-

respondence to be regarded as strong.

The scale factor is then computed as the score di-

vided by a parameter ε plus the similarity measure of

(8)

γ(x

x) =

e(x

ε + (S

◦φ

x) −S

◦φ

x))

. (14)

where the value of ε is related to the intensity level

of the image. As mentioned earlier, the penalization

vector ﬁeld is then constructed by multiplying the cor-

respondence directions from the registration by these

scale factors.

3 EXPERIMENTS

In this section we present a study in 2D comparing our

proposed upsampling approach using the prior of the

penalization vector ﬁeld (UPWP) against the standard

cubic interpolation (CI) (Keys, 1981) and the one-way

registration-based interpolation (RBI) (Penney et al.,

2004). For reference we also include a reconstruc-

tion performed using our method without the prior

(UPNP).

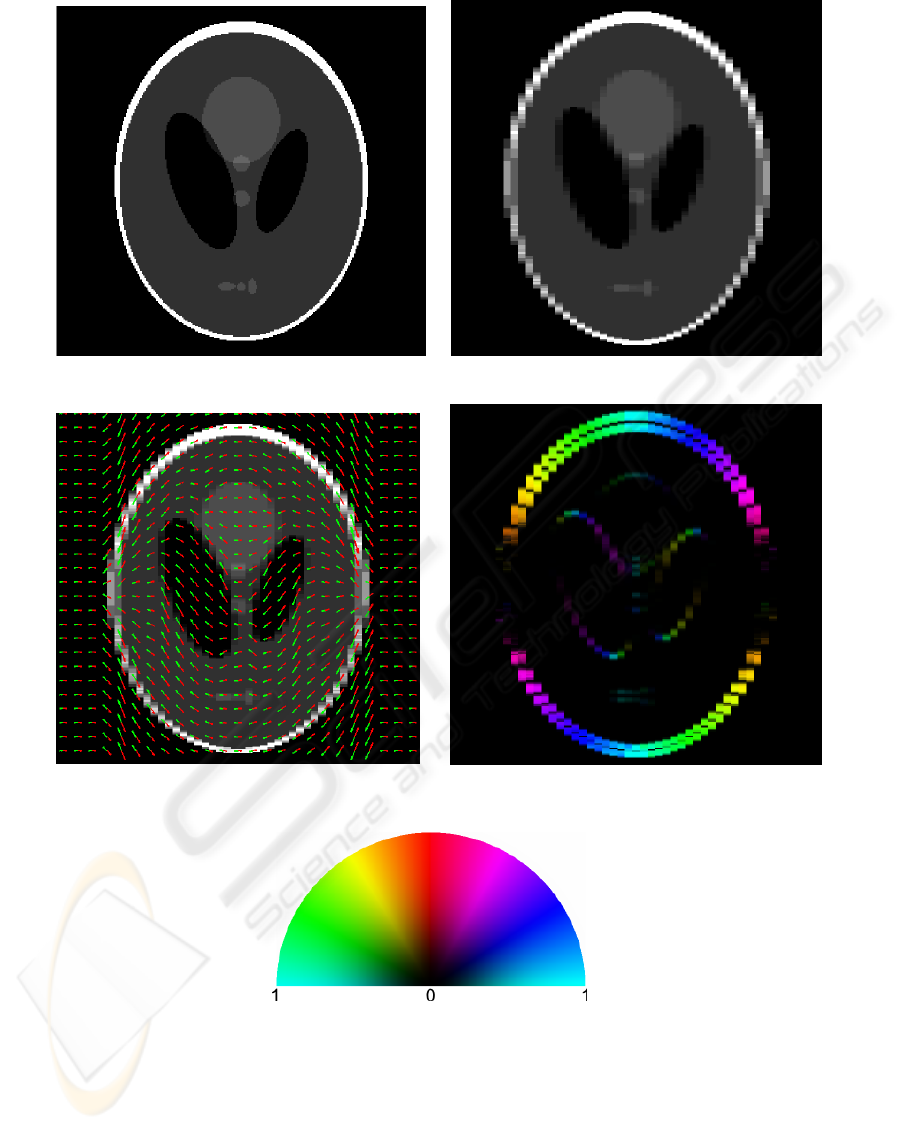

From a 250×250 isotropic-sampled Shepp-Logan

phantom (Shepp and Logan, 1974) we create a down-

sampled anisotropic image by averaging every ﬁve

columns together. Figures 2(a,b) show the isotropic

and anisotropic phantom. That is, the columns act as

the thick slices in the context described in the previous

section. Figure 2(c) displays the registration-based

line correspondences superimposed on the anisotropic

phantom. For the registration the knot spacing of

the B-splines was four pixels and the regularization

weight was 10

−2

. A penalization vector ﬁeld was ex-

tracted from the registration. The columns were ﬁl-

tered using the derivative of a 1D Gaussian kernel

with standard deviation

. The resulting ﬁeld is dis-

played in Figure 2(d).

Four reconstructions were obtained from the

anisotropic-sampled phantom using CI, RBI and our

UPNP and UPWP without and with the penalization

vector ﬁeld shown in Figure 2(d). Figure 3 contains

these reconstructions. For quantitative comparison

we computed the mean squared error (MSE) between

pixel values in the isotropic-generated phantom and

the reconstructions. Table 1 lists the results. From

Figure 3 and Table 1 we acknowledge that UPWP

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

(a) Phantom. (b) Downsampled phantom.

from the registration.

(d) Penalization vector ﬁeld.

(e) Color-map for penalization vector ﬁeld

ﬁeld. The color shows the direction and the

brightness shows the magnitude.

Figure 2: Visualization of phantom data, symmetric registration and the penalization vector ﬁeld.

provides the most visually pleasing result as well as

the lowest MSE. Finally, we see from Figure 3(b) that

the RBI approach provides visually nice interpolation

in areas with good registration, and unsatisfactory in-

terpolation in areas lacking correspondences – areas

where structures runs approximately parallel to the

slices. This problem and the method’s ability to re-

cover from partial volume effects of the upsampling

approach explain the lower MSE of our UPWP.

CAN ANISOTROPIC IMAGES BE UPSAMPLED?

(a) Cubic interpolation. (b) One-way registration (Penney et al., 2004).

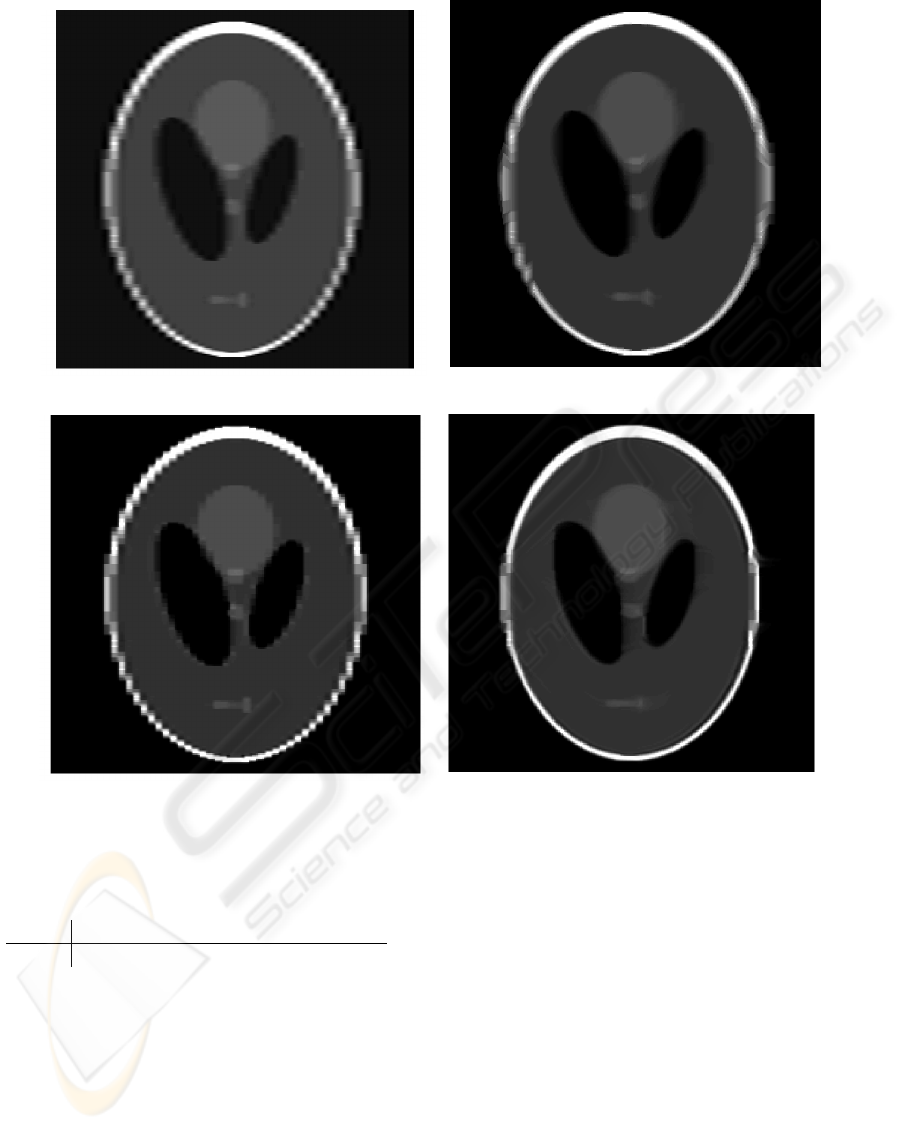

Figure 3: Reconstructions.

Table 1: Mean squared error between reconstructions and

isotropic phantom for the four reconstruction methods.

CI RBI UPNP UPWP

MSE 0.0143 0.0073 0.0080 0.0045

4 CONCLUSIONS

This paper presented a novel approach for improv-

ing the resolution of anisotropic medical images. The

method relies on a prior constructed upon registra-

tions of neighboring slices. As such, the quality of the

prior is undoubtedly dependent on the quality of the

registrations. However, unlike the registration-based

interpolation method, it is possible to limit the effect

of mis-registrations by reducing the length of the pen-

alization vector ﬁeld in areas with little information

or poor ﬁt. The preliminary tests presented in the pa-

per showed promising results, motivating further in-

vestigation and validation.

REFERENCES

Canny, J. (1986). A computational approach to edge de-

tection. IEEE Transactions Pattern Analysis and Ma-

chine Intelligence, 8(6):679–698.

Frakes, D., Dasi, L., Pekkan, K., Kitajima, H., Sun-

dareswaran, K., Yoganathan, A., and Smith, M.

(2008). A New Method for Registration-based Medi-

cal Image Interpolation. IEEE Transactions on Medi-

cal Imaging, 27(3):370–377.

Gudbjartsson, H. and Patz, S. (1995). The rician distribution

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

of noisy mri data. Magnetic Resonance in Medicine,

34(6):910–914.

Keys, R. G. (1981). Cubic Convolution Interpolation for

Digital Image Processing. IEEE Transactions on

Acoustics Speech and Signal Processing, 29(6):1153–

1160.

Olafsd

ottir, H., Pedersen, H., Hansen, M. S., Lyksborg, M.,

Darkner, S., and Larsen, R. (2010). Registration-based

Interpolation Applied to Cardiac MR. Proceedings of

SPIE Medical Imaging 2010: Image Processing.

Pennec, X., Stefanescu, R., Arsigny, V., Fillard, P., and Ay-

ache, N. (2005). Riemannian Elasticity: A Statis-

tical Regularization Framework for Non-linear Reg-

istration. Proceedings of the 8th International Con-

ference on Medical Image Computing and Computer-

Assisted Interventation (LNCS), 3750:943–950.

Penney, G., Schnabel, J., Rueckert, D., Viergever, M., and

Niessen, W. (2004). Registration-based Interpolation.

IEEE Transactions on Medical Imaging, 21(7):922–

926.

Rueckert, D., Sonoda, L. I., Hayes, C., Hill, D. L. G., Leach,

M. O., and Hawkes, D. J. (1999). Nonrigid Registra-

tion using Free-Form Deformations: Application to

Breast MR Images. IEEE Transactions on Medical

Imaging, 18(8):712–21.

Shepp, L. A. and Logan, B. F. (1974). The Fourier recon-

struction of a head section. IEEE Transactions on Nu-

clear Science, 21(3):21–43.

CAN ANISOTROPIC IMAGES BE UPSAMPLED?
