A GENERIC CONCEPT FOR OBJECT-BASED IMAGE ANALYSIS

Andr´e Homeyer, Michael Schwier and Horst K. Hahn

Fraunhofer MEVIS, Institute for Medical Image Computing, Universit¨atsallee 29, Bremen, Germany

Keywords:

Image analysis, Image understanding, Classiﬁcation, Attributed relational graph, Database.

Abstract:

Object-based image analysis enables the recognition of complex image structures that are intractable to con-

ventional pixel-based methods. To date, there is no generally accepted approach for the object-based process-

ing of images, thus making it difﬁcult to transfer developments. In this paper, we propose a generic concept

for object-based image analysis that is broadly applicable and founded on established methodologies, such as

the attributed relational graph, the relational data model and statistical classiﬁers. We also describe a reference

implementation of the concept as part of the MeVisLab image processing platform.

1 INTRODUCTION

Many problems in computer vision require the anal-

ysis of image structures on the basis of their proper-

ties and mutual relations. This requires strategies for

the extraction and abstract representation of the im-

age content. The common pixel-based representation

of images is usually insufﬁcient because the artiﬁcial

discretization of the image does not reproduce its se-

mantic entities. Therefore, we propose a region-based

analysis concept.

By partitioning an image into regions, a structur-

ing is gained which corresponds to the way humans

comprehend an image. Regions exhibit a wealth of

meaningful features (like texture, shape and spatial

context) that single pixels lack. In this manner, the

region-based representation of images simpliﬁes the

application of prior knowledge to their analysis.

The scientiﬁc discipline of the semantic process-

ing of image regions is commonly called object-based

image analysis. An object, in this regard, is an ab-

stract representation of a single image region and

its properties. In the past years, object-based im-

age analysis has become a common practice in the

ﬁeld of geographic information science. For instance,

in (Shackelford and Davis, 2003), object-based im-

age analysis is utilized for urban land cover classiﬁ-

cation from high-resolution multispectral image data.

However, it has shown promise in other disciplines as

well. Hay and Castilla (Hay and Castilla, 2006) list

the strengths and opportunities of object-based im-

age analysis as well as its possible weaknesses and

threats.

To date, there is no generally accepted model for

the object-based representation of images. Therefore,

we proposea generic concept for processing and man-

aging images on the basis of objects, that is supposed

to be broadly applicable and complementary to ex-

isting pixel-based image processing methods. In con-

trast to proprietary solutions like (Sch¨apeet al., 2003),

the proposed methodology is entirely founded on es-

tablished and commonly known concepts, such as the

attributed relational graph, the relational data model

and statistical classiﬁers.

In the following sections, we outline our con-

cept for object-based image analysis and give a short

overview of a reference implementation on the basis

of the MeVisLab image processing platform.

2 CONCEPT

For representing knowledge that is extracted from the

image or acquired through reasoning, the proposed

concept incorporates a well-known data model—the

attributed relational graph. Attributed relational

graphs are abstract networks in which both nodes

and edges are labelled with numerical or nominal

attributes. Although attributed relational graphs are

simple and intuitive data models, they are capable of

representing complex structures and have been suc-

cessfully used for modelling image content before

(Aksoy, 2006; Chang and Fu, 1979).

530

Homeyer A., Schwier M. and K. Hahn H. (2010).

A GENERIC CONCEPT FOR OBJECT-BASED IMAGE ANALYSIS.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 530-533

DOI: 10.5220/0002848105300533

 SciTePress

Every node in the graph corresponds to a single

image object, that is, one or multiple connected re-

gions in the image. Image objects can arbitrarily span

across the spatial dimensions of the image. For each

image object, there has to exist a unique mapping to

the corresponding pixels in the image. In the most

basic case, this mapping is established through a la-

beled image in which pixels from one object store a

common integer value identifying the object. In ad-

dition to this kind of direct mapping, objects can be

mapped indirectly through directly mapping objects

which constitute their parts.

Edges in the attributed relational graph represent

contextual relations between image objects, such as

adjacency, overlap and parthood. While the mean-

ing of relations is typically subject to the application,

there is a set of generally deﬁned relations that are

commonly used. Examples of these are neighbor re-

lations between image objects that share a common

border and part of relations between indirectly and

directly mapped objects.

Both image objects and relations can be associated

with numeric and nominal attributes. For image ob-

jects, such attributes typically store features like their

size, shape, intensity statistics, orclassiﬁcation labels.

For relations, they store inherent parameters, like the

border length between adjacent objects (see Figure 1).

2.1 Persistence and Query

For real world applications, it is essential to have

means of making the data model persistent and to

query subsets of its content. Attributed relational

graphs can naturally be expressed in terms of the rela-

tional data model (Chang and Fu, 1979)—the founda-

tion of all relational databases. Relational databases

have the favorable properties of being well estab-

lished, scalable beyond the limits of working memory

and to enable fast and complex queries on the basis of

SQL. On this account, the presented concept relies on

relational databases for data management.

Since it turned out to be difﬁcult to devise a gen-

eral database schema for a broad range of applica-

tions, the database layout is left to be adapted specif-

ically to the application. However, for reasons of in-

teroperability and clarity, the database layout is ex-

pected to comply to the following conventions. The

presented concept distinguishes between three types

of database tables for objects, relations and attributes.

Object tables store the identiﬁers of image objects

with a common mapping. Accordingly, object tables

contain only a single integer column “id”. Directly

mapped image objects, that is, objects whose identi-

ﬁers correspond to pixels values in the labeled image,

are stored in a special “base objects” table. Indirectly

mapped image objects are stored together when they

belong together semantically.

Relation tables store a common type of relations

between image objects. They contain two integer

columns “src” and “dest” that store the identiﬁers of

the source and destination objects joined by one rela-

tion. For undirected relations, the table contains two

entries in opposite directions.

Attribute tables store the attributes of image ob-

jects and relations. For objects attributes, the ﬁrst col-

umn “id” contains the identiﬁer of the image object.

For relation attributes, the ﬁrst two columns “src” and

“dest” contain the identiﬁers of the connected objects.

In addition to these key columns, attribute tables can

have an arbitrary number of integral, real or string

columns that store the values of the actual attributes.

While it would be possible to have one attribute ta-

ble to store the attributes of all objects, it is generally

advised to provide one table per extraction method.

Since most attributes are only computed for subsets

of objects, the distributed storage of attributes reduces

redundancy and, in turn, the size if the database and

computational costs of queries.

2.2 Reasoning

Typically, image analysis requires knowledge on the

objects in an image like their size, shape, intensity

characteristics, or spatial distribution patterns. The

computation of such information is commonly called

“feature extraction” while the evaluation of objects on

the basis of such features is commonly called “classi-

ﬁcation”.

The ﬁrst step in every object-based analysis

method is to derive an initial set of objects. This re-

quires a segmentation of the original image that de-

lineates the basic semantic entities. For this purpose,

common methods like the watershed transformation

(Vincent and Soille, 1991) are feasible. However,

depending on the domain, customized segmentation

methods might also be considered.

After the initial set of objects has been inserted

into the database, all further steps complement the

database with additional attributes, objects or rela-

tions. In the beginning, the calculation of features

and relations helps to group base objects that repre-

sent parts of bigger structures. By merging these ob-

jects, more complex structures can be identiﬁed, thus

gaining more contextual information. By extracting

spectral or structural features for the merged objects,

further classiﬁcations are possible on which, again,

feature extraction and classiﬁcation can be performed.

That way, the object-based analysis of images be-

A GENERIC CONCEPT FOR OBJECT-BASED IMAGE ANALYSIS

531

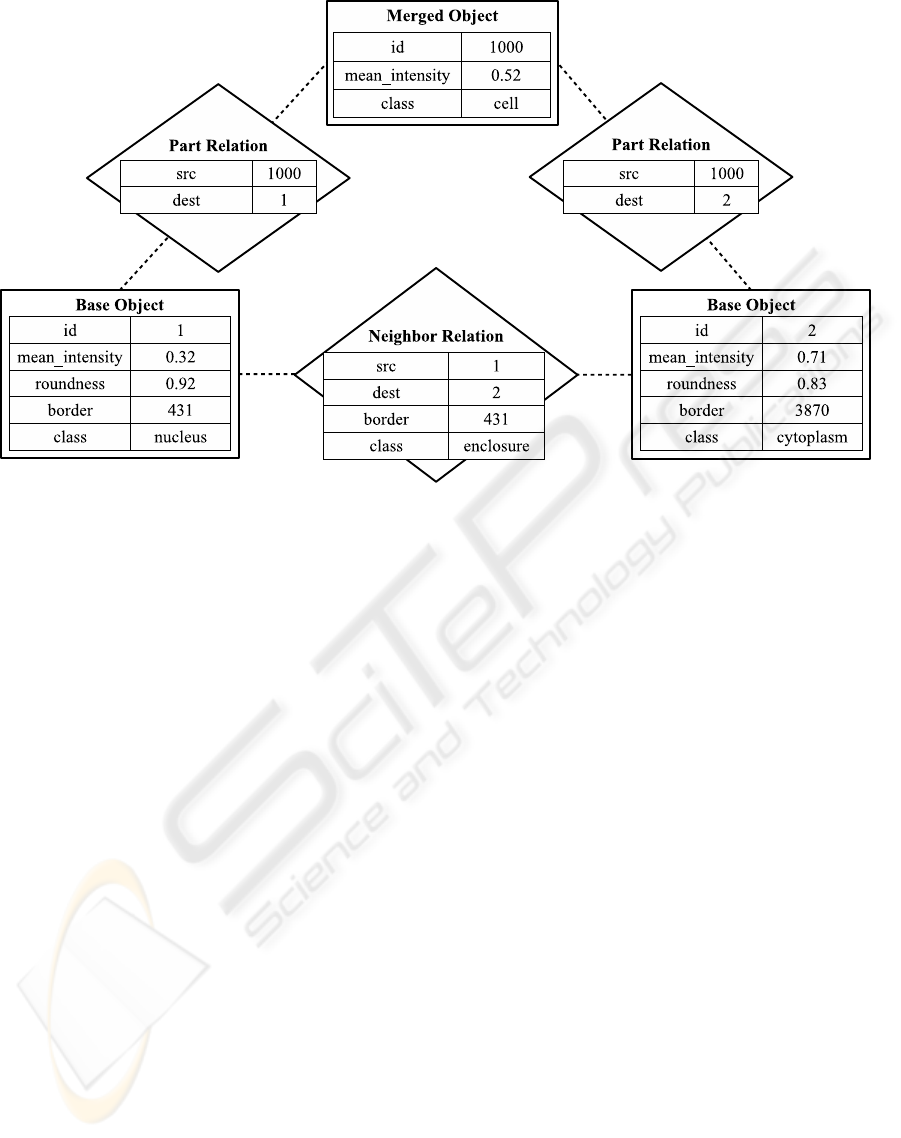

Figure 1: Image representation through an attributed relational graph. Image objects are depicted as rectangles, relations

are depicted as diamonds. Both image objects and relations are associated with numeric and nominal attributes which store

identiﬁers, feature values or classiﬁcation labels. The example graph represents two adjacent image objects—classiﬁed as

“nucleus” and “cytoplasm”—which constitute one “cell” object.

comes an iterative process of information extraction

and classiﬁcation.

Since every step builds on information gained in

the previous step, the object-based analysis of im-

ages results in a reasoning process that ends when the

structures of interest have been identiﬁed. It is during

this process, where domain knowledge should drive

the selection of meaningful features and classiﬁcation

schemes.

3 REFERENCE

IMPLEMENTATION

For practical evaluations, we created a reference im-

plementation of the proposed concept in form of a

C++ programming library. While the methodology is

independent of any software platform, we integrated

the library into the MeVisLab platform (MeVisLab,

2010) in order to take advantage of its comprehensive

pixel-based image processing and prototyping capa-

bilities. The general design of the library follows a

procedural style with every basic analysis operation

being implemented as one function. In addition, a

special Selection class was conceived which enables

the symbolic deﬁnition of subsets of objects or re-

lations. Data management and persistence are ac-

complished by incorporating the embedded SQLite

database—a popular open-source software, that is

very efﬁcient in terms of memory requirements and

speed.

Since the extraction of meaningful features plays

a crucial role in object-based image analysis, the ref-

erence implementation provides a fundamental set of

feature extraction algorithms. For characterizing the

intensities within objects, it enables the extraction of

intensity statistics and texture features like local bi-

nary patterns (Ojala et al., 2002). For characterizing

structural properties of objects, it enables the extrac-

tion of shape features like the volume, surface or ori-

entation. Besides features that relate to objects, the

reference implementationalso includes algorithms for

the extraction of relation features, such as the com-

mon border area between two objects.

During the reasoning process, domain knowledge

is applied via the classiﬁcation of objects or relations

in dependence of their features. If the knowledge can

be stated in terms of attribute conditions, the refer-

ence implementation enables the explicit classiﬁca-

tion of objects or relations. If the knowledge can-

not be expressed explicitly, machine learning meth-

ods can be utilized, like the K-Nearest Neighbors, the

Naive Bayes, and the Random Forests classiﬁer (Jain

et al., 2000; Breiman, 2001). Knowledge that con-

cerns the spatial context of objects, can be applied

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

532

by merging related objects to form new indirectly-

mapped composite objects.

While this basic set of feature extraction and clas-

siﬁcation methods provides a good foundation for

object-based image analysis, it cannot meet all de-

mands of any image type and problem. Therefore, the

reference implementation is easily extensible with ad-

ditional algorithms in accordance to custom require-

ments.

An important aspect of object-based image anal-

ysis is the visualization of image objects in the con-

text of the image. For this, the application must be

capable of rapidly determining all objects within the

current ﬁeld of view. While this can be naively per-

formed by intersection testing with all objects in the

database, this becomes unfeasible with a large num-

ber of objects. Therefore, the reference implementa-

tion stores the bounds attributes of base objects in a

special R-Tree data structure (Guttman, 1984) which

enables fast range queries. Fortunately, the SQLite

database is capable of representing R-Trees as virtual

tables, so that the storage of bounds attributes remains

consistent to the relational data model. In this man-

ner, the reference implementation provides means for

highlighting the borders of image objects and for vi-

sualizing the respective attributes in a heat-map-like

fashion.

4 CONCLUSIONS

We believe that object-based image analysis algo-

rithms must always be tailored speciﬁcally to the

problem. Therefore, we propose a generic approach

that provides the foundation for the management and

processing of arbitrary image objects.

The ﬂexibility of the concept is achieved by using

the attributed relational graph as the underlying data

model. This enables us to represent objects and rela-

tions with their features without imposing a speciﬁc

ontology. Their actual meaning can be adapted to the

individual domain of the application.

The use of relational databases for data manage-

ment has several beneﬁts. First of all, it allows us to

use SQL for stating classiﬁcation rules, thus greatly

supportingthe reasoning process. In addition, we gain

scalability beyond the limits of working memory.

Special emphasis was put on keeping the design

clear and simple. Not only does this foster maintain-

ability but also acceptance among users.

The reference implementation is currently em-

ployed in two applications from medical and histo-

logical image processing that are under development.

However, in order to conclusively prove its broad ap-

plicability, the proposed concept has to be evaluated

upon more problems from different domains.

REFERENCES

Aksoy, S. (2006). Modeling of remote sensing image con-

tent using attributed relational graphs. Lecture Notes

in Computer Science, 4109:475–483.

Breiman, L. (2001). Random forests. Machine learning,

45(1):5–32.

Chang, N.-S. and Fu, K.-S. (1979). A relational database

system for images. In Pictorial Information Systems,

pages 288–321. Springer.

Guttman, A. (1984). R-trees: A dynamic index structure

for spatial searching. In Proceedings of the 1984 ACM

SIGMOD international conference on Management of

data, pages 47–57. ACM New York, NY, USA.

Hay, G. J. and Castilla, G. (2006). Object-based image anal-

ysis: strengths, weaknesses, opportunities and threats

(swot). In Lang, S., Blaschke, T., and Sch¨opfer, E.,

editors, 1st International Conference on Object-based

Image Analysis (OBIA 2006).

Jain, A., Duin, R., and Mao, J. (2000). Statistical pattern

recognition: A review. IEEE Transactions on pattern

analysis and machine intelligence, pages 4–37.

MeVisLab (2010). Medical image processing and visual-

ization. http://www.mevislab.de. Retrieved February

24, 2010.

Ojala, T., Pietik¨ainen, M., and M¨aenp¨a¨a, T. (2002). Mul-

tiresolution gray-scale and rotation invariant texture

classiﬁcation with local binary patterns. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

pages 971–987.

Sch¨ape, A., Urbani, M., Leiderer, R., and Athelogou, M.

(2003). Fraktal hierarchische, prozeß-und objekt-

basierte Bildanalyse. Procs BVM, pages 206–210.

Shackelford, A. and Davis, C. (2003). A combined fuzzy

pixel-based and object-based approach for classiﬁca-

tion of high-resolution multispectral data over urban

areas. IEEE Transactions on GeoScience and Remote

sensing, 41(10):2354–2363.

Vincent, L. and Soille, P. (1991). Watersheds in digital

spaces: an efﬁcient algorithm based on immersion

simulations. IEEE transactions on pattern analysis

and machine intelligence, 13(6):583–598.

A GENERIC CONCEPT FOR OBJECT-BASED IMAGE ANALYSIS

533
