BUBBLEWORLD BUILDER

3D Modeling using Two-touch and Sketch Interaction

Amit Joshi, Glen Robertson, Burkhard C. Wünsche and Beryl Plimmer

University of Auckland, New Zealand

Keywords: Two-touch Interaction, 3D Modeling, Radial Basis Functions, Sketch-interface, Iso-surfaces.

Abstract: Commercial 3D modeling applications tend to be difficult and time consuming to use due to complex

interfaces and functionality. In this paper we present a simple and intuitive interface for modeling “blobby”

3D objects using touch input. Objects are defined by sketching and modifying contours of cross-sectional

slices. Two-touch interactions are used to zoom, rotate and slice the object. The resulting application allows

rapid creation of 3D models and looks promising for medical imaging applications. A drawback is that

intuitiveness depends on a user’s mental abilities such as 3D vision and the ability to develop a mental

model and compare it with visual data.

1 INTRODUCTION

Three dimensional (3D) modeling is becoming

increasingly valuable in fields such as entertainment,

medicine and engineering. Despite this, modern 3D

modeling applications remain difficult to use

without extensive training. In order to make 3D

modeling more accessible to inexperienced users we

decided to investigate recent developments in multi-

touch and sketch technologies and apply them to

provide a more intuitive interface for 3D design.

One source of the complexity of current 3D

modeling tools is the mouse and keyboard paradigm.

The standard mouse provides bidirectional motion

whereas input information in three directions is

required to design 3D models. To compensate for

this, existing applications provide a range of

operations to specify this third dimension. This tends

to result in complex interfaces with many buttons,

menus and views of the object model, making them

unintuitive as they lack analogy to real world

interactions. Consequently it takes a significant

effort to attain proficiency with them, and pen and

paper is still preferable for early design stages.

New multi-touch screens surpass traditional

touch screens by registering more than one point of

contact at a time. We used a NextWindow

(http://www.

nextwindow.com) touch screen which provided two

simultaneous touch points. The relative motion of

fingers and touch area recognition provides

increased degrees of freedom to enable a variety of

touch actions. Additionally it gives a greater sense of

directness because the user puts their fingers directly

on the item of interest. These properties can be used

to provide input that is more analogous to real world

actions than the traditional mouse and keyboard.

Sketching, or digital ink, is another recent area of

development and is `the digital analogy to pen and

paper drawings. The motion of a user’s finger or

stylus is captured and converted to a series of on

screen strokes. This is useful for rapidly developing

ideas because the user is less constrained by

application semantics and tends to alter ideas more

often (Black, 1990). Considering that free hand

sketches are a common part of the 3D design process

it may be useful to integrate sketching directly into

the interactive modeling process. And because

sketching can be performed with a touch interaction

it can be combined with multi-touch systems.

Using touch-based techniques we designed and

implemented an interface, where 3D objects can be

modified by editing cross-sectional slices. A new 3D

surface is then rendered from these slices using

radial basis interpolation. By placing more

functionality into the touch actions rather than

buttons and menus we reduce the user’s mental load

and simplify the interface. And by providing design

flexibility with the slice-based approach our solution

is suitable for simple rapid prototyping and design

applications.

116

Joshi A., Robertson G., Wuensche B. and Plimmer B. (2010).

BUBBLEWORLD BUILDER - 3D Modeling using Two-touch and Sketch Interaction.

In Proceedings of the International Conference on Computer Graphics Theory and Applications, pages 116-122

DOI: 10.5220/0002849501160122

 SciTePress

2 RELATED WORK

In the Origami Simulator (Chang et al, 2009) a

virtual piece of paper can be moved and folded using

two-touch interactions analogous to the art of paper

folding known as Origami. Results from user

evaluations on this application suggest that multi-

touch interaction can be intuitive, enjoyable and

useful for interacting with 3D environments. It was

from this concept we decided to explore a more

general 3D modeling interaction.

Previous sketch based tools for 3D modeling

have used rapid and rough sketches with simple

interfaces for fast modeling. For example, in Teddy

(Igarashi et al, 1999) sketched 2D shapes are inflated

to produce 3D shapes – it is suggested that about ten

minutes of practice is required to be able to make

fairly interesting shapes. However editing of the

resulting object is limited.

Alternative input devices have used bimanual

interaction to increase the available degrees of

freedom for 3D environment interaction. In 3-Draw

(Sachs et al, 1991) a remote control-like device is

held in each hand. The 3D motion of the devices

provides 3D input to generate models. This

transcends the limitations of 2D motion of mice,

however, is still limited by 2D display. Virtual

surface models are also bimanually controlled in the

Polygon Surface Design (Shaw & Greeen, 1994)

tool. These tools require special devices which are

less readily available than multi-touch screens.

In the Profile Driven Sketch tool (Bartolo et al,

2008) the profile sketch of an object is annotated

with cross-section views at various points which are

used to generate a wireframe model. However direct

interactin with the wireframe is not provided.

Commercial modeling tools such as AutoCAD

(Autodesk Inc., 2010) provide lofting algorithms

that interpolate surfaces through cross sections.

These rely on fixed position mouse slices.

3 DESIGN

This section covers the early design phase of our

project. It describes the requirements of the project

and key factors considered for the solution design.

The focus of this research was to explore the use

of multi-touch and sketch to develop a simpler and

more intuitive interface for 3D modeling. In the first

stage of our research we created a set of

requirements for the application based on

observations, evaluation of previous work, and

informal interviews. The key usability requirements

derived were a minimal interface and intuitiveness.

The interface should have fewer items on screen,

which is achieved by transferring functionality from

buttons and menus into touch gestures. This allows

more room for model display. For the application to

be intuitive the touch actions must be analogous to

real life actions.

In terms of functional requirements, the key

factors are 2D to 3D mapping, flexibility, simplicity

and shape predictability. Considering the touch

screen provides two spatial dimensions it is

necessary to have a mechanism to provide input for

a third spatial dimension yet have the flexibility to

model a range of objects. Lastly the application

should accurately infer the shape the user wants to

create.

3.1 Solution Design

From the above requirements we designed a cross-

section based solution where the user manipulates

the shape by editing slices of the shape. Cross

sections are a common 3D design approach. They

can be used to provide 2D to 3D mapping because

the orientation of the slice plane (the plane on which

the cross-section rests) and the slice profile (the

profile seen on the cross-section) provides three

spatial dimensions of information.

With a cross-section approach the lofting method

must be chosen: how will a 3D shape be generated

from the cross-sections? The three methods

considered were Morphing, Edge-Minimisation and

Radial Basis Function Interpolation; the later was

choosen as the best balance between flexibility,

simplicity and shape predictability. It would enable a

greater range of objects to be modeled because

unlike the other two, it naturally deals with cross-

sections in arbitrary orientations. And because it

produces curved surfaces based on the idea of

bending energy minimization it better reflects the

curvature of natural objects. As a drawback the

method does not allow straight edges or corners.

However, we felt that users would be more

interested in modeling objects with curves rather

than flat faces. And although we hypothesized that

the other methods may be more understandable, the

flexibility provided by it was more important.

Other investigated design methods were

discarded because they did not meet the

requirements. For example, direct manipulation of

vertices, edges and faces is a common operation,

however, would pose greater challenges in terms of

2D to 3D mapping despite providing more

BUBBLEWORLD BUILDER - 3D Modeling using Two-touch and Sketch Interaction

117

flexibility. Silhouettes are similar to cross-sections

and have been successfully employed for modeling

(Igarashi et al, 1999), but impose restrictions on the

types of shapes. Domain specific solutions can be

very elegant (McCord et al, 2008), but are unsuitable

for general modeling tasks.

Our application is implemented in C# and uses

the OpenTk framework for OpenGL and the

Microsoft Ink API. The system architecture is shown

in Figure 1. The Multi-Touch component manages

an interface to the NextWindow dynamic link

library.

Table 1: Comparison of proposed modeling methods.

2D to 3D

Mapping

Flexibility Simplicity

Cross-

Section

Based

Easy High Expected High

Vertex

Control

Difficult High Low

Domain

Specific

Easy Low High

Figure 1: System architecture of our application.

4 INTERACTION

To create a model the user specifies cross-sectional

profiles that lie in arbitrary orientations in a 3D

space. There are two interaction modes. In object

mode two-touch actions are used to position the

model. In sketch mode the user draws the profile

shape from which a 3D surface is interpolated with a

radial basis function interpolation.

The object is shown in an off-white colour and

the slice planes are shown in pale grey (Figure 2). A

selected slice is green to visually indicate that is is

editable (Figure 3).

The design process occurs in three steps. First

the object is positioned as required by rotation and

zooming. Next a slice plane is specified to define the

area to be edited. Lastly the slice profile is drawn

and the new shape of the object generated. This

process is repeated to extend and edit the shape as

the user sees fit.

4.1 Interaction Gestures

In object mode two-touch actions are used to zoom

and rotate the object and create slices. These are

analogous to real life object interactions. A single

touch gesture across the screen rotates the object like

a spinning globe. Two contact points moved closer

together or further apart zoom the object out and in

respectively, like stretching a rubber band. One

touch, moving around a stationary touch, rotates and

zooms at the same time.

An area touch, formed by a knuckle or three

finger contact, dragged across the screen creates a

slice. The cross-section plane lies along this line

perpendicular to the screen Once cut, the object

rotates to put the slice flat on to the screen for

sketching. Figure 2b shows a slicing action between

two points in the direction of the arrow.

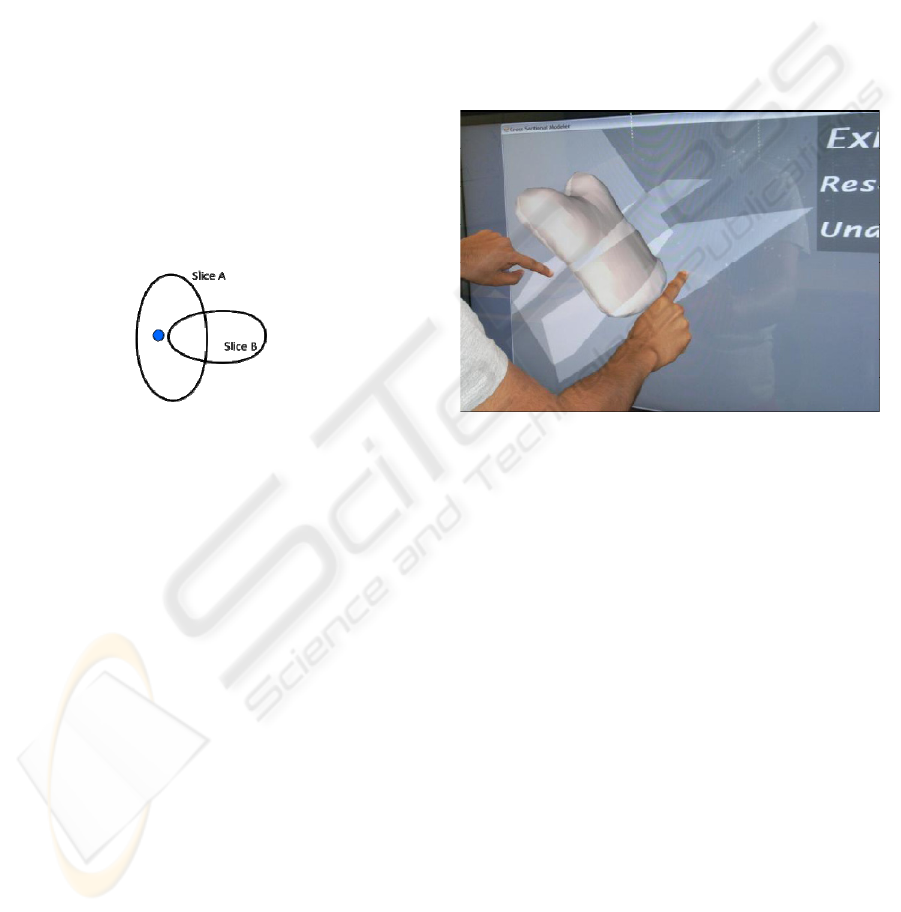

Figure 2: Object actions: a) Zooming and rotation b)

Slicing.

Once in slice mode the user can sketch and erase

the intended profile (Figure 3). Dragging a finger

across the screen sketches a black line along the

finger path. Scribbling quickly over existing lines

erases them (analogous to using an eraser on pencil).

Once erasing begins, any sketched line that the

finger passes over is removed. When the new cross-

section is finished the ‘Done’ button commits the

sketch to the slice and renders the altered object in

object mode.

Figure 3: Sketch actions. a) drawing b) erasing.

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

118

5 RADIAL BASIS FUNCTION

INTERPOLATION

The 3D model corresponding to the sketched slices

is obtained by creating a 3D density field f(x) which

has the property that f(p)=0 for every point p on a

sketched contour, f(p)>0 for every point p inside a

sketched contour, and f(p)<0 for every point p

outside a sketched contour. The 3D surface of the

object defined by these contours is then given as all

points x in the 3D domain where f(x)=0. We extract

this iso-surface using a Marching Cube Algorithm

(Lorensen et al, 1987).

The function f(x) is constructed by generating

sample points which are on a contour, outside a

contour, and inside a contour. We then perform a

radial basis function interpolation such that f(x)=0, -

1 and +1 for points on, outside and inside a contour,

respectively. Using a function f(x) of the form below

results in a visually pleasing surface with minimal

bending energy (Carr et al, 2001):

∑∑

jjii

xpxdRxf

)())(()(

βα

(1)

Here

)(

is the basis function

iiii

rrrrR log**)( =

(2)

By inserting the n sample points with the conditions

that f(x)=0, -1 and +1 (for sample points on, outside

and inside a contour) we get the linear system of

equations

⎟

⎠

⎞

⎜

⎝

⎛

⎟

⎠

⎞

⎜

⎝

⎛

(3)

where

and

are vectors with the

and

coefficients of each equation and f is a vector with

the field values at the sample points (0, -1 or 1). The

unknown coefficients are found by solving the linear

system of equations using an LU decomposition or a

more efficient solver as described in (Carr et al,

2001).

Sample points on the contour are easily obtained

by sampling the underlying parametric curve with an

arclength parameterization. Alternatively a curvature

based measure can be used (not implemented) to

create more sample points in regions of high

curvature.

Points inside and outside of a contour are created

by taking normals to the cross-section shape

vertices. We define that the inside (outside) areas of

the cross-section contours on each slice form the

inside (outside) of the resulting 3D object. In order

to get a well behaved surface we need to find a

sufficient number of sample points on the inside and

outside. We calculate these points using the vertices

defining a contour.

Let us take a vertex P on an arbitrary slice. P has

two adjacent vertices P

and P

. From these three

vertices we form two vectors V

and V

= P

– P (4)

= P

– P (5)

Next we calculate two sample points, one inside

the shape and one outside the shape, as follows.

= P

+ P

(6)

out

= P – V

(7)

We give V

the field value 1 and V

out

the field

value -1. Positive field values occur inside the shape

and negative field values occur outside the shape.

This approach assumes convex contours,

however we perform an extra operation to account

for concave curves. A point inclusion algorithm is

used to ensure the correct selection of V

and V

out

The algorithm is run over V

to check that a point is

actually inside the shape. This is done by firing a ray

from outside the shape to V

. The number edges

passed to reach the point is counted. If the number is

odd the point is considered to be inside. Otherwise,

and V

out

are swapped.

The algorithm is applied to each sample point on

a contour so that we get an equal number of sample

points inside, outside, and on the surface of the

object to be modelled. Note that this algorithm fails

if the distance between two parallel lines is less than

the length of the normalized normal – in that case

the outside point or one contour might lie inside

another contour.

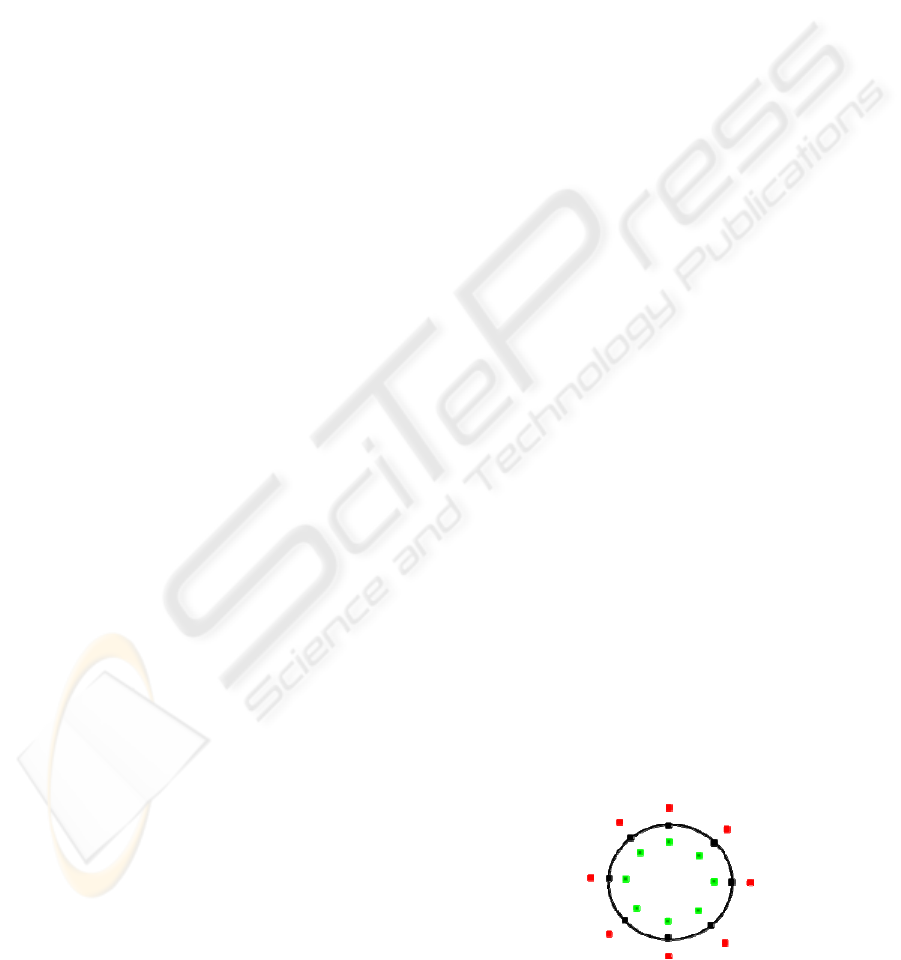

Figure 4 shows a cross-section with generated

sample points. The black dots have field values of 0,

the green dots field values of 1 and red dots of field

values -1.

Figure 4: Density field of sample points of a slice.

BUBBLEWORLD BUILDER - 3D Modeling using Two-touch and Sketch Interaction

119

There are two significant limitations to the

modeling system. First, certain slice combinations

are contradictory and hence result in no surface

being constructed. Second, slices that are too far

apart do not result in a surface that flows between

both slices and instead two separate surfaces are

formed for the contour of each slice.

The contradictory slices include overlapping and

intersecting slices as illustrated in figure 5. In this

example the blue point is considered by slice A to be

inside but by slice B to be outside the shape. Since

the density field function f(x) cannot have two

different values for the same point, no solution exists

and consequently no object surface is constructed

and displayed. In this situation the last valid state of

the object is restored. Getting around this problem

requires a testing of consistency of sketched

contours and appropriate warning messages.

Alternatively conflicting contours could be

automatically adjusted (contours must be disjoint or

correspond where slices intersect).

Figure 5: The blue point has an ambiguous density field

value since it is inside the contour of slice A, and outside

the contour of slice B.

The second problem is due to the bending energy

minimization nature of the radial basis function. If

two slices are a sufficient distance apart bending

energy is minimized by producing two separate

surfaces rather than one large one. The problem

could be resolved by adding interpolated slices, but

this contradicts the nature of the radial basis function

interpolation. Furthermore, it is not clear under what

circumstances a user would expect one combined or

two separate surfaces. Both of these limitations

reduce predictability of the surface and hence its

intuitiveness and usability.

6 RESULTS

We used our application to create a variety of simple

blobby objects (for example figure 6). While the

sketch input is efficient, the control of the shape is

limited. The range of possible shapes is limited

because we don’t allow nested contours on a slice in

order to construct hollow objects

6.1 User Evaluation

A user evaluation was performed in order to

determine the efficacy of Bubbleworld. The factors

of interest were the naturalness of the touch actions,

the ability of users to model objects using the cross-

section approach and a comparison to mouse

interaction for the same process. The evaluation was

conducted by observing users performing modeling

tasks and recording qualitative feedback (from post-

task surveys) and quantitative measurements (time

taken to perform tasks). The details of the study are

presented below and an interpretation is provided in

section 7.

Figure 6: Result of using two horizontal and a vertical

contour.

Ten software engineering students who had

experience with 3D environments (mostly from

computer games), and were familiar with 3D

modeling tools participated in the study. A few

students frequently used two-touch iPhones and

most had previously used a multi-touch screen (at

least a few times). Their experience with technical

drawings varied from ‘a couple of times’ to

‘frequently’. The participants could be considered

very technologically capable with little 3D modeling

and multi-touch experience.

The participants were individually shown

Bubbleworld running on a NextWindow touch

screen and given basic training. This included

demonstrating and teaching them all the main

operations (Zooming, Rotating, Slicing and

Sketching). They were then given two minutes of

free time with the application to familiarize

themselves with the actions and screen.

The participants were then asked to perform four

simple tasks while we video recorded them. The

tasks were zooming the object, rotating the object,

elongating the object and widening the bottom of the

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

120

object. This was to observe their ability to

understand the actions. Next they were asked to

create a banana shape. This was to observe their

ability to design with the application. Finally they

were asked to repeat the process using the mouse

instead of the touch screen. At the end of the

procedure they filled out a questionnaire.

After all the participants had completed the

procedure we extracted the time to complete the

banana task from the video recordings. The time is

recorded as the time between the user understanding

the task and when they were happy with their design

(Table 3). On average, user’s performed the task

faster with the mouse than the with the touch screen.

This is partially explained by the fact that once

user’s had performed the task with the touch screen,

they knew what to do hence could more quickly

complete it with the mouse. An additional factor

would be the difficulties in using this particular

screen. This is discussed further in the next section.

Results for questions from the survey are presented

in Table 3.

Table 2: Task completion times.

Time Taken (min.sec)

Touch Screen Mouse

Mean

1.54 1.48

Range

2.42 3.30

Table 3: Survey results on seven-level Likert scale (-3 =

strongly disagree to 3=strongly agree).

Question Mean Result

Interaction was enjoyable

2.3

Interaction felt natural

0.2

Rendering was predictable

-0.1

Cross-sections are useful for 3D

design

1.8

7 DISCUSSION

The goal of our research was to develop an intuitive

interface for 3D environments. The evaluation

survey results suggest that users found the interface

enjoyable and easy to understand. This suggests a

level of simplicity or intuitiveness of the

interactions hence making them easy to remember.

Additionally the sense of directness of touching the

object may have added to the enjoyability compared

to the traditional mouse method. Interestingly only a

moderate level of naturalness was suggested by the

survey despite our attempts to design real-world

analogous actions. This may relate to the problem of

2D input. The actions are still not closely enough

related to holding and manipulating a real 3D object

in one’s hands. The main problem is the flat screen

being the interaction medium. Another reason for

this may be limitations of the hardware, e.g.

sensitivity and friction, which reduced the sense of

naturalness.

The second goal of our research was to provide a

simple interface which doesn’t have the steep

learning curve encountered with traditional 3D

modeling tools. Our implementation contains at

most four buttons on the screen at any time and the

user is still able to perform a fair amount of

manipulation using it. The minimalistic interface has

enabled us to free screen space for displaying the

modeled object and because of the easy interaction

we found that users do not require the multiple

views usually encountered in traditional tools. The

interface could be minimized further by using

gestures or even speech recognition.

Although we considered the input actions to be

user friendly, the user study showed that the contour

interpolation was not as intuitive as expected. Users

were surprised when distant slices did not join

together or certain slices could not be rendered.

Even for valid user input the predictability was

moderate. It seems that users need some experience

or a mental model (“soap bubbles”) of how the

radial basis function interpolation affects objects.

Indeed, one user suggested in the survey feedback

that intuition would increase with continuing usage.

Although we did not carry out a formal

comparative study we were curious about how

usability would change with mouse input instead of

using a touch screen. Participants commented that

they were more used to the mouse which helped

them to use it well. This suggests that touch screens

may need to reach a greater level of ubiquity in

order to reach their full potential in terms of

effective and natural user input.

The spatial reasoning of users had an impact on

their design skills. There appeared to be little

difficulty in performing basic operations involving a

few slices such as extrusions, however our

observations were that modeling becomes

increasingly difficult the more slices are used. This

is due to the difficulty of visualizing how a surface

can flow through many slices. A way around this

could be to create multiple localized surfaces rather

than one global surface for all the slices. This would

provide greater control of the shape and improve

predictability. Objects could be created from

positioning together many smaller ones which is one

main feature of traditional modeling tools.

BUBBLEWORLD BUILDER - 3D Modeling using Two-touch and Sketch Interaction

121

8 CONCLUSIONS & FUTURE

WORK

Existing commercial 3D modeling applications are

complex to use and hence significant training is

required before users reach proficiency. In response

to this we have designed and implemented a simpler

3D modeling application which utilizes two-touch

and sketch techniques. Our solution was enjoyable

for users and can be used to quickly design a variety

of objects. However, limitations were imposed by

the underlying mathematical model and users’

ability to create 3D mental models and match them

to visual input.

The results of our research indicate that the

concept of 3D modeling based on touch and sketch

input is promising, but more work needs to be done

to make it more effective and natural. One major

obstacle is the lack of 3D vision of many users and

might only be completely overcome with the

emergence of 3D displays and consumer level 3D

gesture recognition.

Even with the above limitations there are already

a lot of useful applications available. We are in

particular interested in medical imaging applications

where slice input is natural (x-rays, CT and MRI

data sets) and where users (medical professionals)

have exceptional 3D vision and 3D mental

capacities. We are currently working on tools for

user-assisted object segmentation using touch input.

REFERENCES

Autodesk Inc. (2010). AutoCAD. www.autocad.com,

accessed January 2010, San Rafael, CA.

Bartolo, A., Farrugia, P., Camilleri, K., and Borg, J.

(2008). A Profile-driven Sketching Interface for Pen-

and-Paper Sketches, VL/HCC Workshop: Sketch Tools

for Diagramming, Herrsching am Ammersee,

Germany.

Black, A. (1990). Visible planning on paper and on screen:

The impact of working medium on decision-making

by novice graphic designers, Behaviour and

information technology, 9(4):283-296.

Chang, S. H., Lachlan, S., Plimmer, B., Wuensche, B.

(2009). Origami Simulator: A Multi-Touch

Experience, Proceedings of the 27th international

conference extended abstracts on Human factors in

computing systems, ACM, New York, pages 3889-

3894.

Igarashi, T., Matsuoka, S., and Tanaka, H. (1999). Teddy:

A Sketching Interface for 3D Freeform Design,

Proceedings of the 26th annual conference on

Computer graphics and interactive techniques, ACM,

New York, 409-416.

Lorensen, W. E. and Cline, H. E. (1987). Marching cubes:

A high resolution 3D surface construction algorithm.

SIGGRAPH Comput. Graph. 21(4):163-169.

McCord, G., Wuensche, B., Plimmer, B., Gilbert, G.,

Hirsch, C. (2008). A Pen and Paper Metaphor for

Orchid Modeling, Proceedings of the 3rd

International Conference on Computer Graphics

Theory and Applications (GRAPP 2008), 22-25

January 2008, Funchal, Madeira, Portugal, pages 119-

124.

Sachs, E., Roberts, A., Stoops, D. (1991). 3-Draw: A Tool

for Designing 3D Shapes, IEEE Computer Graphics

and Applications, 11(6): 18-26.

Shaw, C., Green, M. (1994). Two Handed Polygonal

Surface Design, Proceedings of the 7th Annual ACM

symposium on User Interface Software and

Technology (UIST ’94), ACM, New York, pages 205-

212

GRAPP 2010 - International Conference on Computer Graphics Theory and Applications

122
