SUPPRESSION OF UNCERTAINTIES

AT EMOTIONAL TRANSITIONS

Facial Mimics Recognition in Video with 3-D Model

Gerald Krell, Robert Niese, Ayoub Al-Hamadi and Bernd Michaelis

Otto von Guericke University Magdeburg, PO Box 4120, 39106 Magdeburg, Germany

Keywords:

Man-machine communication, Associative deconvolution, Face analysis, Mimics, Emotion recognition.

Abstract:

Facial expression is of increasing importance for man-machine communication. It is expected that future

human computer interaction systems even include emotions of the user. In this work we present an associative

approach based on a multi-channel deconvolution for processing of face expression data derived from video

sequences supported by a 3-D facial model generated with stereo support. Photogrammetric techniques are

applied to determine real world geometric measures and to create a feature vector. Standard classiﬁcation

is used to discriminate between a limited number of mimics, but often fails at transitions from one detected

emotion state to another. The proposed associative approach reduces ambiguities at the transitions between

different classiﬁed emotions. This way, typical patterns of facial expression change is considered.

1 INTRODUCTION

In recent years, there is a growing interest in human

computer interaction systems. There is a tendency

to develop technical systems which are able to adapt

their functionality to the concrete user and therefore

to assist the human much better than conventionalma-

chines. So called ’companions’ should help people to

solve a certain task.

Such companion systems must be able to commu-

nicate with the operating user on a high level. The

communication should take place as natural as possi-

ble. Therefore, we focus on human communication

on the basis of speech, gesture and mimics. We call

such systems which are able to recognize information

on this level as cognitive systems.

Besides gestures and speech one important part of

man-machine interaction which is addressed by the

desired companion is the recognition of facial expres-

sions of the human operator. Facial expression is one

data mode to derive emotional information. It indexes

physiological as well as psychological functioning.

For instance, in previous works it has been used for

the monitoring of the patient state after a surgery: The

awaking phase and possible pain is detected in the re-

covery room (Niese et al., 2009) .

For reliable facial expression detection, the mea-

surement method must be accurate and robust in order

to derive suitable features. Also the temporal reso-

lution must be high enough to detect changes of fa-

cial expression. These requirements lead to a video

camera-based recognition system. We use a 3-D face

model from stereo for pose estimation and determina-

tion of features to establish a classiﬁcation basis for

the facial expression recognition. Furthermore, the

facial expression detection should take place under

natural conditions. This demand prohibits attachment

of markers to the facial skin. The observed person

shouldn’t be restricted in his movement too much;

head position can therefore vary pretty much. Also

illumination should be normal - the surface detection

can therefore not be based on structured light. These

side conditions represent additional challenges for the

measurement system.

The classiﬁed facial expressions are the basis to

estimate the emotion of the person. The correlation

of facial expression with the expected emotion can

be veriﬁed by other biological measures (see (Ekman,

1994) for example).

In the paper,we investigate color image sequences

of facial expressions which enables us to observe their

dynamics. It is shown that typical temporal dependen-

cies of facial expressions exist which therefore should

be considered in order to increase the robustness of

the correct recognition.

537

Krell G., Niese R., Al-Hamadi A. and Michaelis B. (2010).

SUPPRESSION OF UNCERTAINTIES AT EMOTIONAL TRANSITIONS - Facial Mimics Recognition in Video with 3-D Model.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 537-542

DOI: 10.5220/0002852805370542

 SciTePress

3-d face

data

extracted

features

classified

emotions

associative

filter

Emotion

sequence

- stored behavior at

transitions

("temperament")

- consideration of

history

cleared-up transitions

noisy

outliers,

especially at

transitions

ass

Figure 1: Overview of mimic recognition with associative temporal processing.

2 RELATED WORK

Digital analysis of faces in images has received sub-

stantial effort in recent years. Applications include

face recognition, facial expression analysis, face sim-

ulation, animation etc. (Li and Jain, 2001). Facial

expressions are the natural way to express and to rec-

ognize emotions in human communication. Extensive

studies laid a strong basis for the deﬁnition of univer-

sal facial expressions. Approaches to facial expres-

sion analysis using still images and video sequences

usually apply a common hierarchy which is ﬁrstly to

extract features from the facial images. Please refer

to (Niese et al., 2008) for a more detailed literature

survey on facial feature extraction.

The processing step of feature extraction is usu-

ally followed by the classiﬁcation module. State of

the art techniques for facial expression classiﬁcation

are often limited to more or less frontal poses and

small skin color variations. Further, often they are

sensitive to global motion with resulting perspective

distortions. These restrictions have impact on the ap-

plicability, i.e. for human machine interfaces.

In the used method for feature extraction these re-

strictions are avoided by inclusion of photogrammet-

ric measuring techniques and feature normalization.

Most works focus on the recognition of facial expres-

sions in still images or independently in frames of an

image sequence.

As an alternative to this approach, in this paper

processing of the classiﬁcation probabilities is shown.

By including the transitions from one facial expres-

sion to another, temporal dependencies are included

in the evaluation of the feature data.

Typical changes can be considered as something

like the emotionality which is directly linked with the

”temperament” of a particular person.

(Fragopanagos and Taylor, 2005) uses a neural

network approach for the fusion of different data

modalities in emotion recognition. We apply a multi-

channel deconvolution method for the estimation of

the association ﬁlter in order to consider dependen-

cies in the time series of emotional features and clas-

siﬁcation probabilities.

3 COMBINING CLASSIFICATION

AND TEMPORAL PROCESSING

In this paper, a video-based system for the recognition

of facial expressions with temporal processing of the

classﬁcation probabilities is used. The sketch of the

overall system is shown in Fig. 1.

Additionally to the color image sequences 3-D

context information is used. In particular, photogram-

metric techniques are applied for the determination of

features provided by real world measures. In this way,

we achieve independence of the current head position,

orientation and varying face sizes due to head move-

ments and perspective foreshortening like in the case

of out of plane rotations.

The recognition is based on the detection of facial

points in the image. A camera and surface model is

applied to determine the face position and establish

transformations between 3-D world and image data.

On the basis of detected facial feature points a nor-

malized feature vector is built and fed to a SVM clas-

siﬁer (Chang and Lin., 2009).

The proposed representation of facial feature data

leads to a superior classiﬁcation of different expres-

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

538

sions under real world conditions compared to other

approaches (Cohen et al., 2003). The feature extrac-

tion and classiﬁcation part of the system is described

more in detail in (Niese et al., 2008) but the main

ideas are also shown here.

The number of expressions to detect is dependent

on the application but is strongly affected by the avail-

able training data. Here we discriminate ﬁve classes

as a typical case in face analysis. Additional to four

basic facial expressions we deﬁne the neutral expres-

sion.

Due to measuring errors the extracted features are

of limited accuracyand can therefore be considered as

’noisy’. The classiﬁed emotions possess outliers, es-

pecially at the transition from one recognized emotion

to another. The resulting feature vector and classiﬁed

emotions are therefore passed to a post-processing

system to include a-priori knowledge on the dynam-

ics of emotions. This system could be considered as

an associative memory which is able to restore in-

complete or noisy data. We show a realization with

a multi-channel-deconvolutionmethod processing the

time series of emotion classiﬁcation probabilities of

the different channels.

3.1 Training and Test Data

We trained the SVM classiﬁer on our database, which

contains about 3500 training samples (images) for the

facial expressions of ten persons. Training has been

done for ﬁve facial expressions including the neutral

face.

The measured persons had the task to imitate a

given emotion which is referred to as the expected

emotion below. It can be represented by 5 temporal

vectors with binary elements for each time step.

The shown classiﬁcation results are based on 1000

test samples from 20 image sequences of about 50

frames length, starting from the neutral expression.

We use data of different persons than in the train-

ing phase for the test. The test scenarios contain posi-

tion variations including out-of-plane rotation.

reb

leb

reb

leb

reb

leb

reb

leb

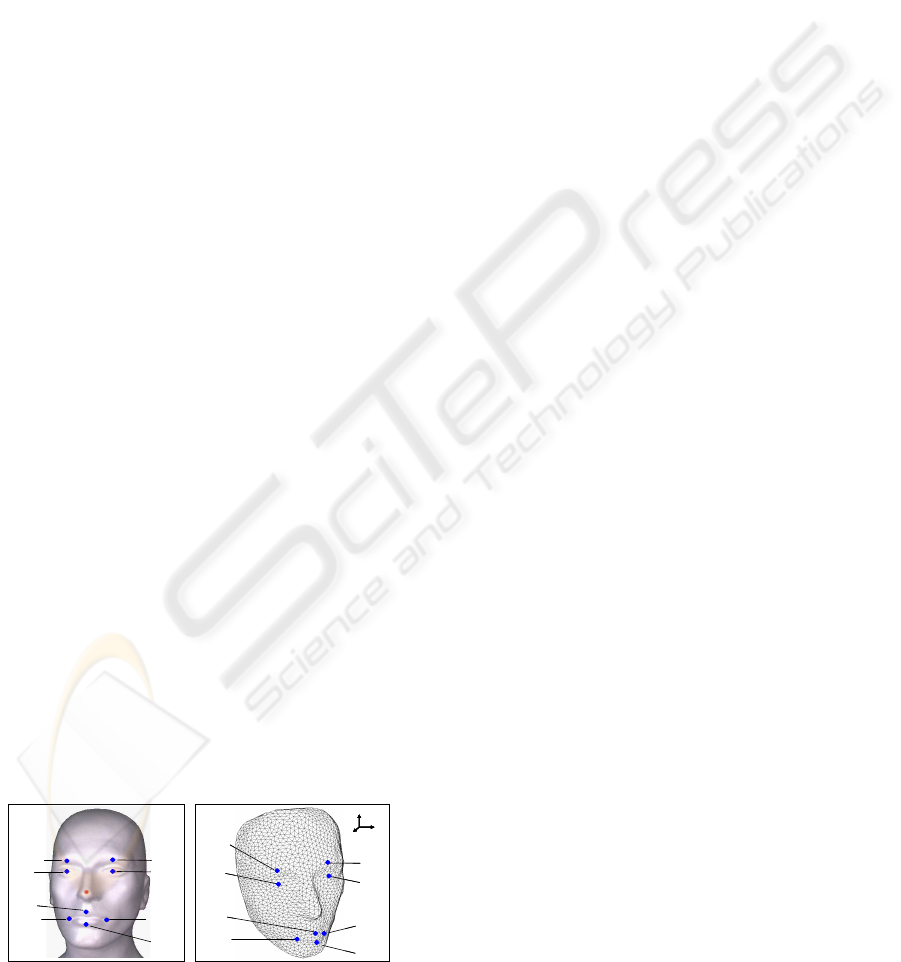

Figure 2: Facial feature points, a) Image, b) World projec-

tion.

3.2 Feature Extraction

The facial expression recognition is based on ﬁducial

points, which are used to establish correspondence

between model and real world data are deﬁned and

referred to as model anchor points (Fig. 2).

The initial Adaboost based face detection (Viola

and Jones, 2001) is used to restrict the facial feature

points search space. Application of the face detector

is only required for re-initialization of the system.

The search space is limited by the previous face

position and the extraction of the eye center points

, i

] and mouth corner points [i

, i

] follows. In

the 2-D image processing part of the system, addition-

ally two eyebrow points [i

leb

, i

reb

] are detected.

The eye, eye brow and mouth detection is based

on evaluation of color information and application

of morphological operators. Assumptions regarding

face geometry are included and image enhancement

is applied.

This method has shown to also work under chang-

ing conditions, like in the appearance of teeth. Mouth

and eye brows are detected reliably.

In order to transform image points to real world

coordinates a surface model is deﬁned which is based

on an initial registration step where the face is cap-

tured once in frontal pose with neutral expression.

Depth values are retrieved by measuring the distance

from the camera plane to the surface model at the

present world pose. A person speciﬁc mesh surface

model of the face is established in this way which con-

sists of a set of vertices and triangle indices (Fig. 2b).

In this face model, the nose tip can be found as

the extreme point in front of the face. This 3-D point

is then projected back and tracked in the 2-D image

sequences. Together with the two eye positions the

head position can be determined uniquely by this way.

Based on the point set we determine the ten-

dimensional feature vector. The features comprise

six Euclidean 3-d distances across the face (eye

- eye brow - mouth for both sides, mouth width

and height) and four angles, which are used to

describe the current mouth shape. The transfor-

mation into world coordinates of a face model is

schematically shown in Fig. 2b: the feature points

found in the (2-D) images [i

, i

leb

, i

reb

] are

used to update the corresponding 3-D model points

, p

leb

, p

reb

In the initial registration step of our system, we

capture the face of the subject with neutral expres-

sion. After the surface model has been created, the

neutral feature vector is determined. On the basis of

this neutral conﬁguration the current expression is an-

alyzed.

SUPPRESSION OF UNCERTAINTIES AT EMOTIONAL TRANSITIONS - Facial Mimics Recognition in Video with

3-D Model

539

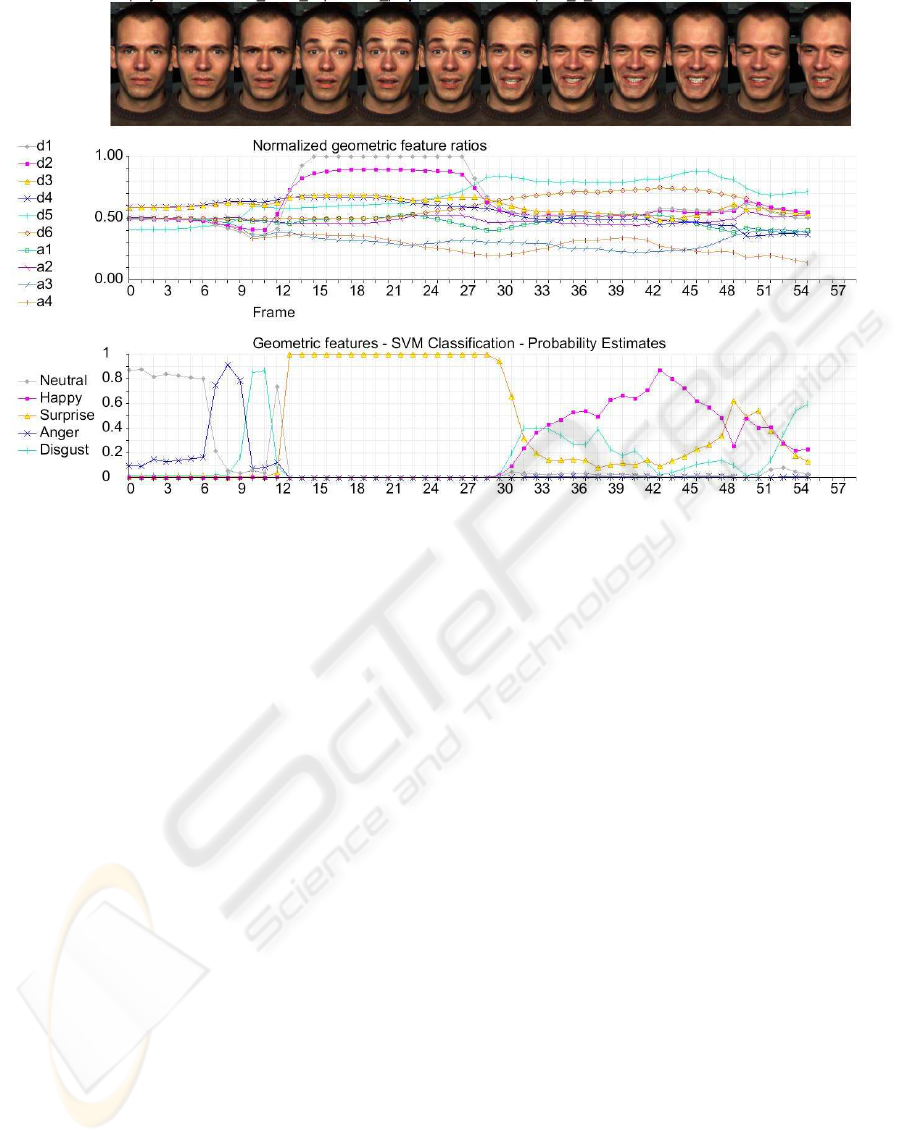

Figure 3: Example sequence: ’Neutral’-’Surprise’-’Happy’.

3.3 Classiﬁcation

After building the feature vector, classiﬁcation of the

expression is performed. We assumed a number C of

fundamental facial expressions. For the training and

classiﬁcation, a Support Vector Machine algorithm of

the package LIBSVM has been applied (Chang and

Lin., 2009) to the normalized feature data.

The SVM returns the class for each input sample.

We further compute the probability for every class

based on the training model and the method of pair

wise coupling (Wu and Lin, 2004) giving the input

for the post-processing unit.

3.4 Temporal Emotion Processing

In order to take temporal effects of emotion changes

into consideration we developed a deconvolution

method which is applied to the multi-channel sys-

tem of acquired emotions. Deconvolution techniques

are well known in signal and image processing (e.g.

(Jain, 1998)). We developed the idea for the multi-

channel system of emotions.

According to the test set-up (see 3.1) we can de-

ﬁne the expected emotion vector

exp



exp

c,1

··· e

exp

c,i

··· e

exp

c,N



containing the time-series of emotion values of chan-

nel c the test person has to imitate at time step i. This

way a training target of the temporal processing sys-

tem is given (ground truth).

t denotes the transposed. It has N elements ac-

cording to the number of time steps (number of pic-

tures in the training sequence).

In our case, we assumed bi-level emotions and a

single emotion at a certain time (exclusive emotions).

This is, the dicrete time function in the vectors e

exp

are binary steps and exactly one of the channels has

the value 1 at a certain time index i whereas all other

channels are zero. This corresponds to the idea that

the test person has to imitate one single facial expres-

sion at a certain time

is the corresponding vector of classiﬁcation

probability values of emotion channel c which has

been obtained by measuring, feature extraction and

classiﬁcation as described above. Optimal multi-

channel FIR Filters w

c,1···C

for every emotion chan-

nel are estimated by the optimal (least mean square)

solution of the equation system:

exp

∑

q=1



∗ w

c,q



+ r

(1)

with ∗ the discrete convolution operator. r

is the

residual vector in channel c that is the approximation

error when solving the over-determined equation sys-

tem of equation (1)).

The weight vectors w

c,q



c,q

··· w

c,q

··· w

c,q



of length M

according to the number of FIR ﬁlter taps consist of

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

540

5 10 15 20 25 30 35 40 45 50 55

0.5

Classification probability

Frame# i

5 10 15 20 25 30 35 40 45 50 55

0.5

Association

Frame# i

5 10 15 20 25 30 35 40 45 50 55

0.5

Classification probability

Frame# i

5 10 15 20 25 30 35 40 45 50 55

0.5

Association

Frame# i

5 10 15 20 25 30 35 40 45 50 55

0.5

Classification probability

Frame# i

5 10 15 20 25 30 35 40 45 50 55

0.5

Association

Frame# i

5 10 15 20 25 30 35 40 45 50 55

0.5

Classification probability

Frame# i

5 10 15 20 25 30 35 40 45 50 55

0.5

Frame# i

Association

neutral

happy

surprise

anger

digust

c,i

ass

c,i

ass

c,i

ass

c,i

ass

c,i

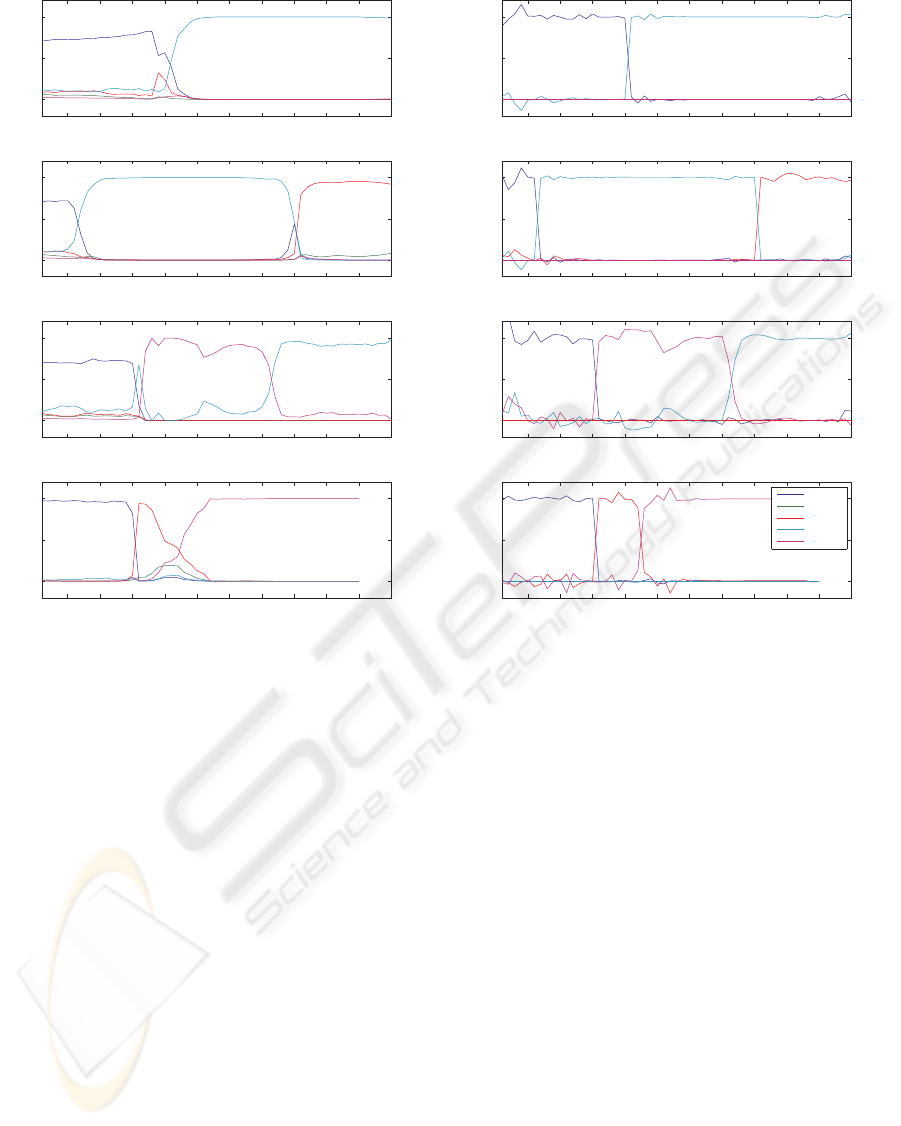

Figure 4: Classiﬁcation probabilities for 4 selected sequences: original values (left), association (right).

the ﬁlter coefﬁcients w

c,q

with index j and create the

multi-channel ﬁlter matrix

ass







1,1

1,C

. .

m,n

. .

C,1

C,C







(2)

which thus is of size M ·C by C. The calculated W

ass

can be considered as an associative memory because

it stores the associations for typical emotional tran-

sitions and how they can be interpreted. It is able

to suppress false classiﬁcation results when the rec-

ognized facial expression changes. The ﬁlters with

index m = n are the direct couplings whereas the

other ﬁlters are responsible for the cross-coupling be-

tween the channels. This way the emotion channels

are weighted automatically according to the expected

emotion.

The result of temporally processing the classiﬁca-

tion probabilities is obtained by recalling the emotion

associations:

ass

∑

q=1



∗ w

c,q



. (3)

4 EXPERIMENTAL RESULTS

In our problem we assumed ﬁve fundamental expres-

sions: ’Happy’, ’Surprise’, ’Anger’ and ’Disgust’ and

the neutral expression ’Neutral’ establishing our emo-

tion channels (c = 1···C, C = 5 ). These results also

include rotation of head and back and forth movement

scenarios. The confusion matrix of the classiﬁcation

part (Niese et al., 2008) shows high recognition rates

of over 90 percent for each class, which is presented

by diagonal elements, but also a certain mixing be-

tween different classes expressed by the non-diagonal

elements, in particular at the time of transition from

one emotion to another.

In order to further improve the classiﬁcation re-

sult we applied multi-channel deconvolution to the

probability values. In the example, acausal associa-

tion ﬁlters for each channel have been estimated that

SUPPRESSION OF UNCERTAINTIES AT EMOTIONAL TRANSITIONS - Facial Mimics Recognition in Video with

3-D Model

541

convolve a temporal neighborhood of 7 emotion sam-

ples (M = 7). For the consideration of multi-channel

effects each of the C ﬁlters has therefore C · M = 35

taps.

Fig. 3 shows a sample sequence. The image se-

quence (above) starts with the neutral facial expres-

sion. The candidate has then to imitate suprise and

happiness. Normalized feature data is shown in the

middle providing the input for the SVM classiﬁer.

Below the classiﬁcation probability values esti-

mated by pairwise coupling corresponding to the de-

tected features are depicted. It is clearly shown that at

the constant parts of the facial expression time line the

classiﬁcation gives stable results. But at the transition

from neutral to surprise false classiﬁcations are vis-

ible (Anger-Disgust-Neutral). When returning from

the happy to the neutral expression surprise and dis-

gust are detected which not has been intended.

Fig. 4 (left) shows the application of the asso-

ciative deconvolution to the classiﬁcation probabil-

ity values. The results show again how the SVM is

clearly deﬁning boundaries between different classes

when the facial expression is constant but fails at

the transitions. All time series start with the neu-

tral expression. In the upper sequence the expres-

sion changes to ’Happy’. In the second example two

transitions are included: from ’Neutral’ to ’Happy’

and from ’Happy’ to ’Surprise’. The third example

shows the transitions ’Neutral’-’Disgust’-’Anger’and

the forth ’Neutral’-’Surprise’-’Disgust’. In the right

half of Fig. 3, the association of the probabilities val-

ues is shown. It is obvious that false classiﬁcations at

the transitions from one emotion to the other are well

suppressed.

5 CONCLUSIONS AND

OUTLOOK

We have presented an efﬁcient framework for facial

expression recognition in human computer interaction

systems. Our system achieves robust feature detection

and expression classiﬁcation and can also cope with

variable head poses causing perspective foreshorten-

ing and changing face size of different skin colors.

The shown approach with a linear multi-channel

deconvolution shows the principle of inclusion of

temporal behavior. Additional inclusion of feature

data together with the classiﬁcation data should fur-

ther improve the results. Current work is also attempt-

ing to estimate additional dynamic features. Those

features are obtained by methods of motion analysis,

e.g. optical ﬂow techniques.

It is expected that other (non-linear) approaches

such as associative memories, known from the artiﬁ-

cial neural networks [e.g. (Kohonen, 1995)], could be

interesting.

ACKNOWLEDGEMENTS

This work has been supported by DFG-Project TRR

62/1-2009.

REFERENCES

Chang, C.-C. and Lin., C.-J. (2009). Libsvm: a library for

support vector machines.

Cohen, I., Sebe, N., Garg, A., Chen, L., and Huang, T.

(2003). Facial expression recognition from video se-

quences: Temporal and static modeling. Computer

Vision and Image Understanding, 91(1-2):160–187.

Ekman, P. (1994). Strong evidence for universals in fa-

cial expressions: a reply to russell’s mistaken critique.

Psychol. Bull Journal, pages 268–287.

Fragopanagos, N. and Taylor, J. G. (2005). Emotion recog-

nition in human-computer interaction. Neural Net-

works, Special Issue, 18:389–405.

Jain, A. (1998). Fundamentals of Digital Image Processing.

Prentice Hall. Prentice Hall.

Kohonen, T. (1995). Self-Organizing Maps. Springer.

Li, S. and Jain, A. (2001). Handbook of Face Recognition.

Springer.

Niese, R., Al-Hamadi, A., Aziz, F., and Michaelis, B.

(2008). Robust facial expression recognition based on

3-d supported feature extraction and svm classiﬁca-

tion. In Proc. of the IEEE International Conference on

Automatic Face and Gesture Recognition (FG2008,

Sept. 17-19).

Niese, R., Al-Hamadi, A., Panning, A., Brammen, D.,

Ebmeyer, U., and Michaelis, B. (2009). Towards

pain recognition in post-operative phases using 3d-

based features from video and support vector ma-

chines. International Journal of Digital Content Tech-

nology and its Applications, (in print).

Viola, P. and Jones, M. (2001). Rapid object detection us-

ing a boosted cascade of simple features. In Proceed-

ings of the IEEE Conf. on Computer Vision and Pat-

tern Recognition.

Wu, T. and Lin, C. (2004). Probability estimates for multi-

class classiﬁcation by pair wise coupling. Journal of

Machine Learning Research, 5:975–1005.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

542
