CYBER-DEFENSE TRAINING IN THE REAL

Design Principles and Architecture of the VNEL Cyber-training Platform

Riccardo Bettati, Lauren Cifuentes, Willis Marti, Ren

e Mercer, Youngwoo Ahn, Gaurav Yadav

Texas A&M University, College Station, TX, U.S.A.

Omar Alvarez

Department of Computer Science, Autonomous University of Baja California, Mexico

Keywords:

Case-based learning, Network engineering, Security training.

Abstract:

We present the Virtual Network Engineering Laboratory, which creates a high-ﬁdelity, multi-platform, re-

motely accessible environment where students obtain hands-on experience in network engineering and opera-

tion and in cyber defense and infrastructure protection. The facility focuses on access to real equipment in a

realistic yet isolated setting. isolation allows for a broad variety of activities without danger to the surrounding

operational networks, and it allows the students to learn from mistakes on equipment that is both real and well

protected. The Laboratory supports ﬁne-grained, detailed instrumentation of user activities and allows for

experiments on a wide variety of real networking equipment. Real equipment is emphasized over simulation

for the sake of (a) ﬁdelity of both intended and non-intended modes of operation, (b) extendability to other

protection domains such as cyber physical systems, and (c) instrumentability of student-system interactions to

support run-time assessment and on-demand scaffolding.

1 INTRODUCTION

We are realizing that our technical infrastructure de-

pends increasingly upon individuals and people run-

ning businesses coming to understand the cyber land-

scape and how to protect their investments and asses

as managed on computers. Such audiences are of-

ten geographically dispersed and served by instruc-

tional institutions that often cannot afford to design

or run high-value cyber security programs on their

own. Any comprehensive strategy for cyber security

requires training individuals and small businesses to

secure their own parts of cyberspace, as gaps in the

security of one group of cyber participants can be a

conduit through which other participants are attacked.

The VNEL replaces the physical contacts between

students and the machines with web-based access ses-

sions. Students focus on technical solutions in net-

work management without being distracted by less

relevant steps. The VNEL is instructionally innova-

tive in that it provides students with remote but real

time access to equipment during networking exercises

so that a large number of students can do their exer-

cises simultaneously and at their convenience. The

VNEL allows an instructor to choose the interplay

of operating system support, exercise semantics, and

network support to best meet curricular needs.

We have developed the VNEL as a case-based

learning environment to instruct learners in cyberse-

curity. The VNEL differs from conventional teach-

ing laboratories in that it does not require students

to be physically located with the network equipment

they are learning to manipulate. Instead, the VNEL

offers a technologically innovative environment for

computer engineering instruction in which students

remotely manipulate equipment in a real network and

conduct cased-based problem-solving exercises in a

controlled, high-ﬁdelity environment via the Internet

using their web browsers.

VNEL enables instruction to be efﬁciently and

effectively distributed across geographic regions,

thereby reaching greater numbers of students, in-

cluding traditionally underrepresented students, than

would be possible through traditional face-to-face or

on-site laboratory instruction. The VNEL provides

for both distributed expertise and equipment needed

for hands-on experience with networks.

493

Bettati R., Cifuentes L., Marti W., Mercer R., Ahn Y., Yadav G. and Alvarez O. (2010).

CYBER-DEFENSE TRAINING IN THE REAL - Design Principles and Architecture of the VNEL Cyber-training Platform.

In Proceedings of the 2nd International Conference on Computer Supported Education, pages 493-496

DOI: 10.5220/0002861604930496

 SciTePress

2 CASE-BASED LEARNING IN

VNEL

VNEL uses a case-based approach, where students

are given a particular problem scenario to solve. They

then work through a sequence of scenarios and exer-

cises. Within each exercise are performance objec-

tives, activities, and feedback. Activities typically in-

clude a small problem, a topology, tasks, deliverables,

and self-assessments. Once students have completed

the exercises, they should be able to perform the ter-

minal activity: solving the case in the scenario.

Case-based learning was chosen as the instruc-

tional model because novices needed to learn how to

gain and reﬁne their expertise at solving real-world

cybersecurity problems (Jonassen et al., 1999). In ef-

fective learning environments, that experience is scaf-

folded with expert case knowledge. A case serves

as a representation of real-world phenomena and is

a safe, yet meaningful environment in which students

can develop understanding of the complexity of net-

work engineering. Jonassen and Hernandez-Serrano

(Jonassen and Hernandez-Serrano, 2002) describe the

case-based reasoning cycle as the presentation of a

new problem-case to solve. Learners apply previ-

ous experiences and general knowledge to solve the

case, suggest solutions, test the solutions, revise their

suggestions, and conﬁrm solutions. During the cycle,

learners retrieve, reuse, revise, and retain understand-

ing until expertise is gained from the problem-case.

For the case of a Firewalls course unit, task analy-

sis indicated that network engineers need to be able to

align a network topology with security requirements,

conﬁgure network access control, and protect infor-

mation through encryption and VPNs. Once students

have mastered each of the skills, they should be able

to address the case in the problem scenario.

2.1 Remote Device Access in VNEL

The VNEL is not a simulation or an emulated environ-

ment. Rather, students remotely manipulate real net-

works and receive real-world feedback when the net-

work works or does not work effectively. It is instruc-

tionally innovative in that it provides students with

remote but real-time access to equipment during net-

working experiments so that a a large number of stu-

dents can perform their experiments simultaneously

and at their convenience. It also provides a complete

instructional system including quizzes, automated as-

sessment of simple student submissions, and oppor-

tunities for students to work collaboratively on larger,

poorly structure or unstructured, case studies.

Figure 1 describes the architecture of the VNEL.

The facility is accessed through a single publicly vis-

ible server, the Web Access Exercise System (WAES).

Actual equipment is organized into pools that can

be assigned to exercises on-the-ﬂy. The VNEL pro-

vides a set of network devices (switches, routers, or

ﬁrewalls) from a device pool and a set of hosts and

servers from a host pool. When students start an exer-

cise, the WAES brings in devices and hosts and con-

ﬁgures the network infrastructure accordingly. All de-

vices and hosts are connected through a virtual-LAN

capable switch infrastructure that can create whatever

connectivity is required by the exercises. This infras-

tructure cannot be seen by the students. Only the

connections established for the exercises are visible.

These connections are managed by the conﬁguration

management component of the WAES.

The WAES provides ﬁve services:

Courseware Access and Management. This com-

ponent of the WAES provides access to traditional,

non-exercise related, course material. It provides stu-

dents with descriptions of case studies and links to

reference material. It also provides the courseware

framework for students to access the “hands-on” ex-

ercises. Finally, it also offers opportunities to author

quizzes and other assessment mechanisms.

Resource Conﬁguration. Exercises are associated

with so-called resource sets, which deﬁne the network

devices and hosts needed for the particular exercise,

together with the interconnection topology as deﬁned

by the exercise. Devices and hosts are selected from

their respective pools and are appropriately conﬁg-

ured when the student starts the exercise.

Resource Management. Since the resource sets

represent physical resources, and there are only lim-

ited numbers available thereof, students are encour-

aged to reserve the required resource sets in advance.

Students do this by scheduling a particular exercise

for a given time, and are therefore not aware of the

detailed reservation issues. Given that the VNEL is

used by multiple institutions, it is important to guar-

antee fair access to the available resources, both at

student level and at institution level. Individual stu-

dents, or groups of students at an institution, should

be ﬂexible in how much time they want to spend on

some exercises. They should not be able, however, to

over-reserve resource sets at the expense of other stu-

dents or student groups at other institutions. We are

experimenting with hierarchical fair-share schedul-

ing algorithms to control over-allocation of resources.

Students and institutions are allocated a guaranteed

share of resources in number of reservation slots per

time period. Whenever the number of slots in share is

reached, no additional reservations are accepted until

the end of the period. For example, an institution may

CSEDU 2010 - 2nd International Conference on Computer Supported Education

494

!"#$%!&"'#"(''

FW#

)"(*$!+'

,"-.&"'/$$0'

1234'&5/560"'

#*.(&7.)8'

.)9!5#(!%&(%!"'

7$#('/$$0'

6!$*#"!'

("!:.)50'

":%05($!'

&$%!#"'&$)(")('

&$)#$0"'

#"!-"!'

;<'=>='

#(%,")('

?3@<''

9!$)(A"),'

14@2'

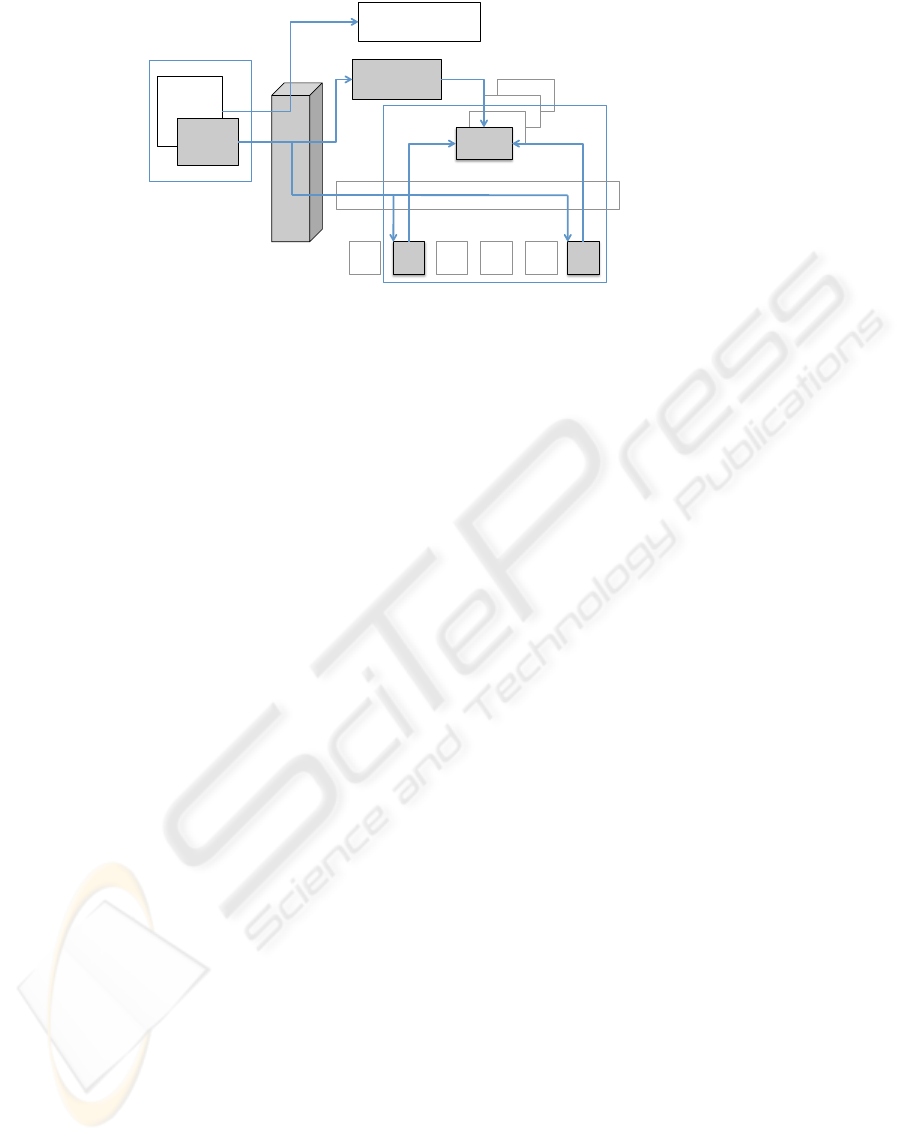

Figure 1: Architecture of the Virtual Network Engineering Laboratory.

request sixty one-hour slots of a particular resource

set per day. If students reserve slots starting at some

time t, and all sixty slots have been reserved by stu-

dents within, say, the ﬁrst three hours, no new reser-

vations can be made until time t + 24 if the system

is highly utilized by other institutions as well. Fair-

share algorithms do well in giving students or insti-

tutions more than their guaranteed share when excess

capacity is available, but do not handle well situations

with advance reservations. Heuristics must be studied

to allow for fair allocation of spare resources in the

presence of advance reservations.

Direct Device Access. Students operate on the as-

signed and conﬁgured devices and hosts through the

devices’ console or management interface, respec-

tively. In the case of a console access, the student’s

browser displays a telnet window, and the connec-

tion trafﬁc is routed by the WAES to a console server,

which in turn is connected through an serial cable to

the management console input of the device. In this

way, the student establishes secure and high-ﬁdelity

console access to network devices in a customized

conﬁguration and an isolated setting using a very ba-

sic Web browser. The WAES maintains session in-

formation and monitors and logs student activity for

immediate feedback and for subsequent analysis.

Functional Stress Testing. After completion of an

exercise (for example after a conﬁguration of a ﬁre-

wall to satisfy a given set of requirements,) the student

instructs the WAES to initiate functional testing. A

testing approach that is very popular with students are

so-called “attack scripts”, where the WAES triggers

carefully authored scripts on nodes inside the conﬁg-

ured network to simulate a red-team attack. Informa-

tion about success of these scripts is forwarded to the

WAES, which in turn provides a summary of the ef-

fect of the attack to the student.

Figure 1 illustrates the VNEL architecture with

the simple case of a ﬁrewall exercise. The resource set

in this case consists of a ﬁrewall (FW ) and two hosts

and H

,) which in turn represent the internal and

external portion of the internet. The VLAN capable

switch infrastructure connects the Host H

with the

internal port on the ﬁrewall FW and Host H

with the

external port of FW . The student is then led through

a series of scaffolded activities to conﬁgure the ﬁre-

wall. She manipulates the ﬁrewall through a browser-

provided terminal emulator, which communicates to

the WAES. The WAES in turn forwards the session

through a console server to the serial console access

on the device FW . The student triggers functional

testing by pushing a button on the browser window,

and the WAES initiates a number of scripts on both

Host H

and Host H

to test how well the inside net-

work is protected without cutting off critical services.

2.2 The VNEL in Practice

The VNEL facility was ﬁrst used in support of an

upper level undergraduate course in Networks and

Distributed Processing. This course was taught with

VNEL support twice a year from 2000 to 2005.

Reaching over 150 students a year, the VNEL at-

tracted signiﬁcant industry support. The lab con-

duced several trials focused on support for profes-

sionals’ continuing education. The VNEL also sup-

ported a graduate course in Advanced Network Secu-

rity, taught once a year. Part of this course included

a 3 month long scenario based exercise, where stu-

dent groups set up their own campus or e-business

and kept it in operation despite attacks by an exter-

nal Red Team. Students using the VNEL formed a

team that won the ﬁrst Southwest Regional Collegiate

Cyber Defense Competition (CCDC) (CCDC, 2009)

CYBER-DEFENSE TRAINING IN THE REAL - Design Principles and Architecture of the VNEL Cyber-training Platform

495

in 2005 and won the National CCDC in 2007.

Starting in 2007, the VNEL became a core com-

ponent of our efforts to bring cost-effective and high-

production-value cybersecurity training to commu-

nity colleges (VTECH, 2009). We are currently col-

laborating with 15 community colleges across the

U.S. to study the feasibility, the costs, and the effec-

tiveness of laboratory based cybersecurity education.

3 THE CASE AGAINST

VIRTUALIZATION

The beneﬁts of the VNEL over traditional physical

laboratories are evident, such as the naturally com-

plementary nature of remote access and web-based

teaching or the better isolation of sensitive cybersecu-

rity exercises from the operational network. Recently,

it virtual platforms have become increasingly popu-

lar for cybersecurity training. Their advantages are

primarily cost effectiveness, improved scalability, and

simpler management of the platforms. Non-negligible

is also the interest from vendors to increase the user

base for their virtualization technologies.

The VNEL largely avoids virtualization, and does

so for several reasons:

Fidelity. Fidelity of both intended and non-intended

modes of operation Computing and Server Nodes,

such as web servers, are easy to virtualize in a high-

ﬁdelity manner with the use of virtualization veneers

such as VMware Server or Xen. Other, operating

system-level, virtualization technologies such as

linux-VServer are less appropriate, since they do not

allow for networking-level virtualization, which in

turn affects ﬁdelity. Network devices, on the other

hand, cannot be virtualized using simple veneers.

Instead, such devices must be emulated. High-ﬁdelity

emulation of network-level devices is very difﬁcult to

achieve, as both intended and non-intended modes of

operation must be emulated, and network addressing

mechanisms must remain transparent to the user.

Integration with Cyber-physical Environments.

Increasingly, the Supervisory Control and Data

Acquisition (SCADA) systems of many critical

infrastructures have been moving towards open

systems solutions and the Internet. This has made

many of these systems highly vulnerable to security

attacks. SCADA systems are characterized by the

integration of traditional internetworks with physical

devices, typically at the edge of the networks. The

connection of such devices to the physical world

makes for very different security implications, and

traditional security mechanisms are not sufﬁcient.

We envision VNEL to extend into the area of training

for cyberinfrastructure protection in modern SCADA

systems, where a large variety of physical devices

will be integrated into the platform.

Instrumentation of User-system Interaction. In

its current form, the communication between the stu-

dent and the exercise network is open to the WAES

for inspection, monitoring, and logging. This enables

the WAES to respond to student activity in real-time.

We are currently developing a Mixed-Initiative Intel-

ligent Tutor that develops and maintains student ac-

tivity models in real-time, and that guides the stu-

dents that indicate the need for help. Human instruc-

tors take over when the Intelligent Tutor indicates low

conﬁdence. The combination of human instructor and

Intelligent Tutor will allow us to start experimenting

in so-called On-Demand Scaffolding, where students

are exposed to unstructured problems, and are imme-

diately offered scaffolding on-line if needed.

Cybertraining infrastructures that rely on virtual-

ization tend to use systems with very convenient inter-

faces but with proprietary communication protocols

(e.g. VMware Server). This makes the monitoring

of student activity very difﬁcult. As a result, students

have very little support during exercises.

ACKNOWLEDGEMENTS

This work was supported in part by the National Sci-

ence Foundation under award number OCI-0753408.

Any opinions, ﬁndings and conclusions or recommen-

dations expressed in this material are those of the au-

thor(s) and do not necessarily reﬂect those of the Na-

tional Science Foundation.

REFERENCES

CCDC (2009). National collegiate cyber defense competi-

tion. www.nationalccdc.org.

Jonassen, D. and Hernandez-Serrano, J. (2002). Case-based

reasoning and instructional design: Using stories to

support problem solving. Educational Technology Re-

search and Development, 50(2):65–77.

Jonassen, D. H., Tessmer, M., and Hannum, W. H.

(1999). Task Analysis Methods for Instructional De-

sign. Lawrence Erlbaum Associates.

VTECH (2009). Virtual tools for expanding the cyber hori-

zon (vtech). http://vtech.tamu.edu.

CSEDU 2010 - 2nd International Conference on Computer Supported Education

496
