AGILITY BY VIRTUE OF ARCHITECTURE MATURITY

Gouri Prakash

Business Risk Infrastructure Department, HSBC, U.S.A.

Keywords: Agile Software Process Models, Architecture Maturity.

Abstract: This position paper is to demonstrate how architecture maturity combined with the degree of agility

observed in software projects, results in four different types of projects, namely Experimental, Conservative,

Ceremonious and Optimizing and what the characteristics of each of these project types are. The paper puts

forth the position that project managers, should endeavour to elicit characteristics of software projects and

match them with the characteristics of the four project types, discussed in this paper, before embarking on

the project. By pursuing this approach, managers would be able to ascertain the benefits realized in pursuing

a particular project type for a given project and the difference between how things are and how things

should be and what factors can get them to a should-be position.

1 INTRODUCTION

Proponents of conservative methods of software

development that requires the observance of each

phase of software development ceremoniously, in

accordance with phases prescribed by the software

process model have low levels of acceptance for

agile methods, because agile methods accept the

notion of changing requirements and adapt to the

change. Agile practitioners on the other hand, are

reverent of experiential knowledge and regard

collaboration to be the guiding principle for current

and future software development endeavours, being

open to the idea of continuously learning while

adapting as the software project progresses. They

focus on adaptive development activities which can

be reactive in nature, with little or no regard to the

overall long term impact on the overall structural

framework of the architecture as long as customer

needs are meted on time. Agile software

methodology hence facilitates the deployment of

lightweight but disciplined methods of developing

software in timescales shorter than those

accomplished by the more traditional, conservative

approaches. Is the traditional, conservative approach

towards developing software a school of thought

separate from that of agile software development or

is it that there exist separate areas in the software

development lifecycle (SDLC) process, that

practitioners deliberately choose to focus on

depending on the purpose and the context within

which the software is developed. The move from

traditional, conservative approach for software

development to the more agile methods should be

observed when there is sufficient evidence to

support that the underlying system architecture is

mature enough to facilitate agile software

development. This is the recommended practice and

the central theme of this poster. Agility, when

observed in context of architecture maturity,

becomes a metric that measures it. Mature

architectures exemplify readiness for rapid

deployment of software in a way that is useful for

consumers of the software product.

2 ARCHITECTURE MATURITY

What is architecture maturity and what role does it

play in enabling agile software development?

Architecture maturity can be defined as the extent to

which a given conceptual schema of software

components serves as the representational design

pattern for a software development endeavour, by

virtue of past usage and performance of the schema

in multiple endeavours of a similar nature.

Architecture patterns that have a history of

successfully realizing a software product, in multiple

instances of software development projects, over a

long period of time, are mature enough to be

candidate architectures for existing and future

projects and thereby facilitate and enable agile

343

Prakash G. (2010).

AGILITY BY VIRTUE OF ARCHITECTURE MATURITY.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

343-346

DOI: 10.5220/0002863703430346

 SciTePress

software development methods. The architecture

pattern has been used so often in a variety of

projects that there is not much to be gained by trying

to “reinvent the wheel” by focusing on the system

architecture - instead the focus is on development

and maintenance activities and being able to respond

to changing requirements that meet the needs of

business in an agile manner, because such a focus

can be afforded, if the underlying architecture

pattern is mature. For example, the N-tier

architecture for developing an interactive website,

that makes use of the J2EE framework for realizing

the website implementation and that can be used

repetitively in a software project with similar goals,

is a mature architecture pattern.

The reason why agility is a function of

architecture maturity is because a mature

architecture reduces the technical risk associated

with a given design pattern upfront, giving software

practitioners more leeway in focusing on

development and maintenance activities as opposed

to architectural rightness as long as the experienced

agile practitioners on the team are well-versed with

the “ability” of the design pattern that is in use in the

project, its application in the correct context and the

extent to which the pattern can be stretched in

existing and future software development

endeavours. Additionally, from the standpoint of

project management, mature architectures shorten

the lead times required in delivering projects,

thereby resulting in timely delivery of software

projects. In short, mature architectures are “tried-

and-tested” structural frameworks that facilitate

agile software development.

2.1 Architecture Maturity and Agility

Matrix

Presented next, in Fig 1, is the Architecture Maturity

and Agility Matrix which shows the type of project

that ensues based on the relationship between the

degree of agility observed and the degree of maturity

of the underlying architecture in a given software

project.

Architecture maturity is on the X axis – and has

two discrete states - either the underlying

architecture for the software project is a “tried and

tested” framework and hence exhibits high maturity

or the underlying design pattern has not been around

long enough to qualify as a mature architecture for

software development projects and hence is

categorized as one with low maturity. Agility, here

on the Y axis represents the observance of agile

software development methods in software projects

and as such either agile methods are observed or not

observed – hence “low” indicates lack of observance

of agile development methods and “high” indicates

that agile methods dominate the software

development practices observed for the subject

project. Based on the degree of agility observed in

the software development project and the maturity of

the underlying architecture pattern, the matrix in Fig

1, indicates the resulting project types followed by a

description of these project types.

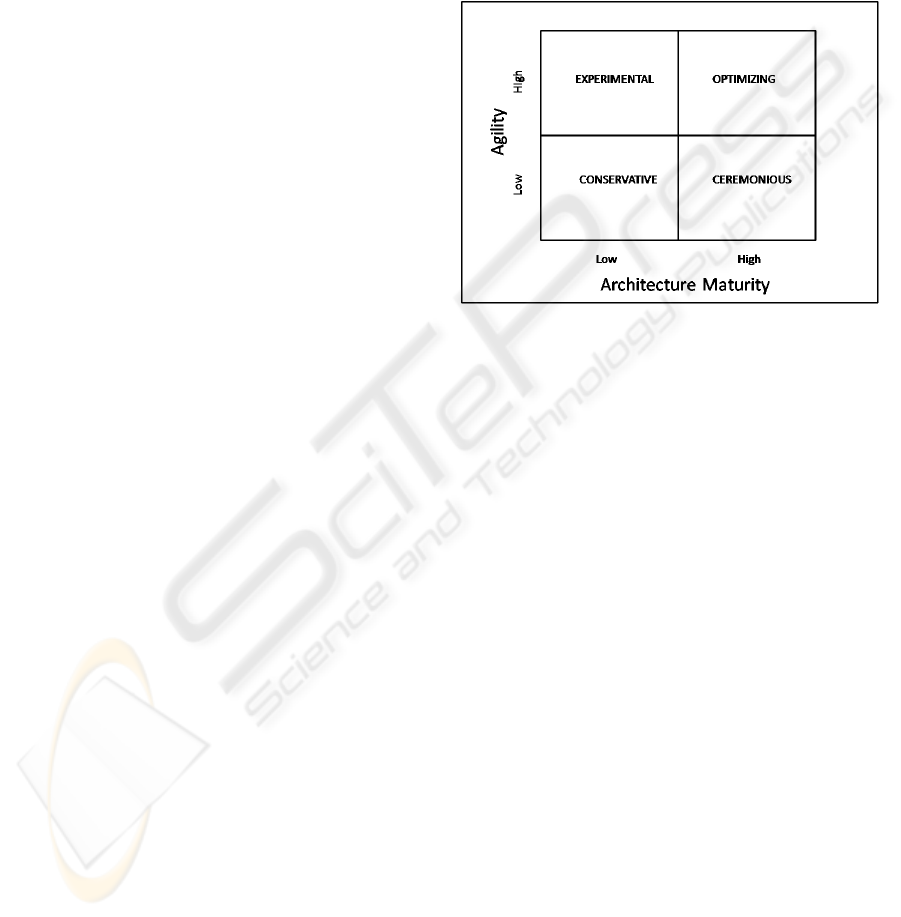

Figure 1: Architecture maturity and agility matrix.

2.1.1 Experimental

Software projects wherein the architecture maturity

is low but usage of agile methods pervasive are

primarily experimental projects wherein the team

members are not afraid to try new techniques in

order to quickly deliver on customer requirements.

They are open to the idea of experimenting with a

little known architecture pattern and choose to focus

on developing workable software that can be

delivered in short periods of time. For example, a

company that wants to develop an intranet solution

for its employees to keep them informed of the latest

events happening in the organization can potentially

adopt the Experimental model for doing the software

project. The software team would develop the

intranet using continuous feedback from their

customers, in this case the employees, to further

ascertain what content should be coded on the

intranet and what features the customers find useful.

2.1.2 Conservative

Software projects that have low architecture

maturity and where agile development methods are

not observed, are primarily conservative solutions

which take into account the high risk associated with

a lesser known and little used architectural pattern

and hence traditional methods for software

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

344

development are pursued for facilitating the software

project. For example, a state government wants to

install imaging systems at government controlled

toll gates, that accurately capture graphic images of

license plates of cars that pass through toll gates

without paying the toll, which would then be used

for generating letters sent to the person under whose

name the car is registered with a statement of fines

that the person of the car must pay to the

government, in order to avoid charges of breaking

the law purposefully. It is important that such a

system have a near zero rate of false positives and

false negatives and would have to be engineered

using conservative approaches before being put in

production. The project team implementing such a

project should use conservative techniques given

that the risks associated with system not working per

the goal is unacceptable and that the architecture

supporting the implementation has not been in use

long enough to qualify as a mature design pattern.

2.1.3 Ceremonious

When the architecture maturity is high, i.e. the

architecture is known to be robust in multiple

instances of software development projects and

when agile methods are conscientiously not

employed and practitioners choose the traditional

methods for software development, then the project

observes a high degree of ceremony – a practice

which can be revisited and re-assessed in the face of

high architecture maturity to determine whether

wastage of time and resources is occurring.

Conservative projects can also be ceremonious and

certainly vice versa, but conservatism in the former

case is driven primarily by low risk tolerance

associated with a little used design pattern and in the

latter case can be more attitudinal and cultural

however this may not necessarily always be the case.

For example, with the Sarbanes Oxley Act of 2002,

which applies to all organizations publicly traded on

any one of the US stock exchanges, firms are

expected to enforce detailed processes and extensive

documentation for all software projects implemented

within the organization and hence a culture of

conducting software projects ceremoniously is the

norm for these organizations.

2.1.4 Optimizing

Software development projects that make use of

mature architectures and deploy agile software

development methods are optimizing projects. These

projects leverage architecture maturity to eliminate

associated technical risks and make use of agile

methodology to adapt to and respond to changing

customer requirements. Software is developed

incrementally on a sound architectural foundation

with focus on implementing on-demand solutions in

short periods of time. Optimizing projects are thus

the result of high architecture maturity and high

degree of agility observed during software

development. Consider the case of context-aware IT

solutions, such as PeopleSoft that are created to

implement business processes relevant to a specific

domain – that of payroll processing.

2.2 Characteristics of the Project Types

Having discussed the four quadrants of the

architecture maturity and agility matrix, the question

is - is one quadrant superior to others when it comes

to deploying a project type that teams ought to

engage in, given a software development endeavour?

The answer is, it depends. Mature architectures were

also once nascent structural frameworks which

emerged borne out of the creative endeavours of

practitioners and with use over a period of time

proved to be mature enough to gain widespread

adoption in endeavours of a similar nature. At the

same time, different industries are subject to

different government policies and often legal and

compliance risks play a factor in choosing the more

traditional, conservative and ceremonious approach

to software development over agile methods. On the

other hand, experimental projects can yield highly

creative solutions and should not be discouraged if

the team is aware of the risks they are taking when

engaging in experimental software projects and the

fact that there is a possibility that such projects can

turn out to be of the “hit-or-miss” variety over the

long term.

The optimizing solution does tend to leverage

mature architectures – making use of agility in a

calculated manner, thereby being able to deliver

software in short cycles of time – a strong value

proposition for the customer or end users of the

software. It also leverages the maturity of the

underlying architecture which plays a fundamental

role in delivering reliable solutions. In fact, if the

underlying architecture is known to exhibit a high

degree of maturity, then agile methods should be

considered the best practice for software

development, unless there are other pressures or

forces in play that leave the team with no choice but

to adopt the ceremonious way of doing software

projects. It is also worthwhile noting, that as the

architecture maturity increases over a period of time,

development teams potentially first engage in

AGILITY BY VIRTUE OF ARCHITECTURE MATURITY

345

conservative projects, then potentially shift to

working on ceremonious projects and when the

architecture is mature enough, opt to engage in

optimizing projects. In the matrix, the move from

conservative to experimental to optimizing is less

likely than the move from conservative to

ceremonious to optimizing.

Table 1: Project Types and their characteristics.

Characteristic

Experimental

Conservative

Ceremonious

Optimizing

Project Pace Fast Slow Slow Fast

Resilience to

change

High Low Low High

Risk Appetite

of Stakeholders

High Low Low Moderate

Customer

involvement

High

Low to

Moderate

Low to

Moderate

High

Dominant

Solution type

Workable Facilitative Formal

Improvi-

sational

Technical Risk High High Moderate Low

Examples

SCRUM,

RUP,

Waterfall

RUP,

Waterfall

SCRUM,

The table above demonstrates the typical

characteristics of project types given the degree of

agility observed in performing the software project

and the maturity of the architecture chosen for

constructing the system.

3 CONCLUSIONS

Architectures that facilitate agility have the ability to

satisfy customer needs and requirements more

quickly and efficiently, but such architectures lie at

the end of a spectrum of proven technological

patterns. Emerging technologies and the consequent

architectural patterns that implement these

technologies as well as their widespread use and

adoption contribute to making the architecture

pattern mature which in turn creates a generation of

“experienced” practitioners who advocate agility.

There is scope for deploying agile methods for little

known architectural patterns as well and this choice

reflects the risks that the software development team

and the stakeholders of the project are tolerant of

when embarking on the software development

projects. The objective of this poster is to facilitate

conscientious decision-making when determining

whether to adopt a conservative or ceremonious

approach or an experimental or optimizing approach

given the maturity of underlying architecture

supporting the system under development.

The recommendation of this paper is for the

project management team to initially make an

evaluation related to the maturity of the architecture

pattern utilized for the software solution, and an

assessment of the level of risks involved and the

amount of governance required to perform the

project. Based on the evaluation and assessment a

conscientious decision can be made on whether to

use agile processes to implement the solution or

traditional process models and in doing so

implement a project type that is one of experimental,

conservative, ceremonious or optimizing.

ACKNOWLEDGEMENTS

I would like to thank the sponsors of ICEIS 2010,

for providing the opportunity to address and discuss

issues and solutions related to software engineering.

REFERENCES

H. Erdogmus, "Architecture Meets Agility," IEEE

Software, vol. 26, no. 5, pp. 2-4, Sep./Oct. 2009

K. Schwaber and M. Beedle, “Agile Software

Development with Scrum”, Prentice Hall, 2001

N. Rozanski and E. Woods, “Software Systems

Architecture: Working with stakeholders Using

Viewpoints and Perspectives”, Addison-Wesley, 2005

Sidky, A. and Smith, G., Becoming Agile in an imperfect

World , Manning Publications Co., Greenwich CT

2009

S. W. Ambler, “Agile Architecture: Strategies for scaling

Agile Development”, 2001-2008, http://www.

agilemodeling.com

W. Cunningham, “Manifesto for Agile Software

Development”, http://www.agilemanifesto.com

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

346
