INTELLIGENT DECISION-MAKING TIER IN SOFTWARE

ARCHITECTURES

D. Ong and S. Khaddaj

Faculty of Computing, Information Systems and Mathematics, Kingston University London, Kingston upon Thames, U.K.

Keywords: Software Architectures, Intelligent Decision Making, N-tier Architectures, Control Systems.

Abstract: Despite recent developments there are still many challenges in the application of intelligent control systems,

as intelligent decision-making providers in constructing many software architectures which are required in

many applications particularly in service-oriented computing. In this work we are particularly interested

with the use of intelligent decision making mechanisms for the management of software architectures. Our

research aims at designing and developing an intelligent tier which allows dynamic system architecture

configuration and provisioning. The tier is based on a number of logical reasoning and learning processes

which use historical data and a set of rules for its analysis and diagnosis in its attempt to offer a solution to a

particular problem.

1 INTRODUCTION

The adoption of a service-oriented architecture

(SOA) approach in the software development

lifecycle has increased significantly over recent

years. The SOA approach is an extension of

distributed computing, modular programming and

object-oriented programming concepts, where each

software component in the architecture can be

considered as a service provider. Each service

provider is able to operate as an individual

independent unit, as well as collaborate with other

services to fulfil a particular application objective. A

software package which is based on business

requirements and processes can be assembled via the

manipulation of these services.

For many applications, especially those based on

services, it is very important to have a system that is

able to reconfigure itself dynamically based on its

operational situation. To achieve this dynamism, this

paper proposes an intelligent decision-making

mechanism which can be incorporated into existing

n-tier architecture as i-tier to form new n(i)-tier

architecture.

We start by discussing intelligent decision

making mechanisms and processes. Then, the

different layers in typical software architectures are

described and some problems and challenges are

identified. The intelligent decision making layer is

then presented which offers dynamic optimisation of

the way services (resources) in the n-tier architecture

are utilised. Then, the layer potential use as an

intelligent service provider is discussed. We

conclude with some suggestions for future work.

2 INTELLIGENT DECISION

MAKING MECHANISMS

Most intelligent control systems have some form of

decision making mechanisms build into their

systems, but many obstacles remain as they are

usually built for a specific purpose / scenario,

relying heavily on predetermined algorithms, and

autonomous behaviour that is based on

preconfigured / static configurations (Kramer,

1985), (Sun , 2000), (Satoh, 2002), (Beckert, 2006).

Historically, the control unit of many intelligent

systems is not easily adapted to other architectures /

systems because it is statically designed to solve a

particular problem.

To overcome the above challenges, this work

proposes an intelligent control unit that is capable to

deploy a generic decision-making mechanism across

various software architectures. The intelligent

decision-making unit provides decision-making

functionality for the software architecture in the

form of system configuration and provisioning.

Based on the decision-making scope, the decision-

355

Ong D. and Khaddaj S. (2010).

INTELLIGENT DECISION-MAKING TIER IN SOFTWARE ARCHITECTURES.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

355-358

DOI: 10.5220/0002868103550358

 SciTePress

making unit is expected to make a sensible decision

upon every request, and to learn from its past

decisions via the received feedback.

The main obstacle in developing intelligent

decision-making mechanisms is to understand how

we perceive an “intelligent” entity (Ong and

Khaddaj, 2009). A general concept on how an

intelligent decision-making ability is achieved using

combined functionalities is shown in figure 1. This

is used as a general guideline in constructing the

proposed intelligent control unit where the learning

and logical reasoning processes use historical data

for its analysis and diagnosis as well as sets of rules,

both pre-defined and self-defined, to offer a solution

to a particular problem.

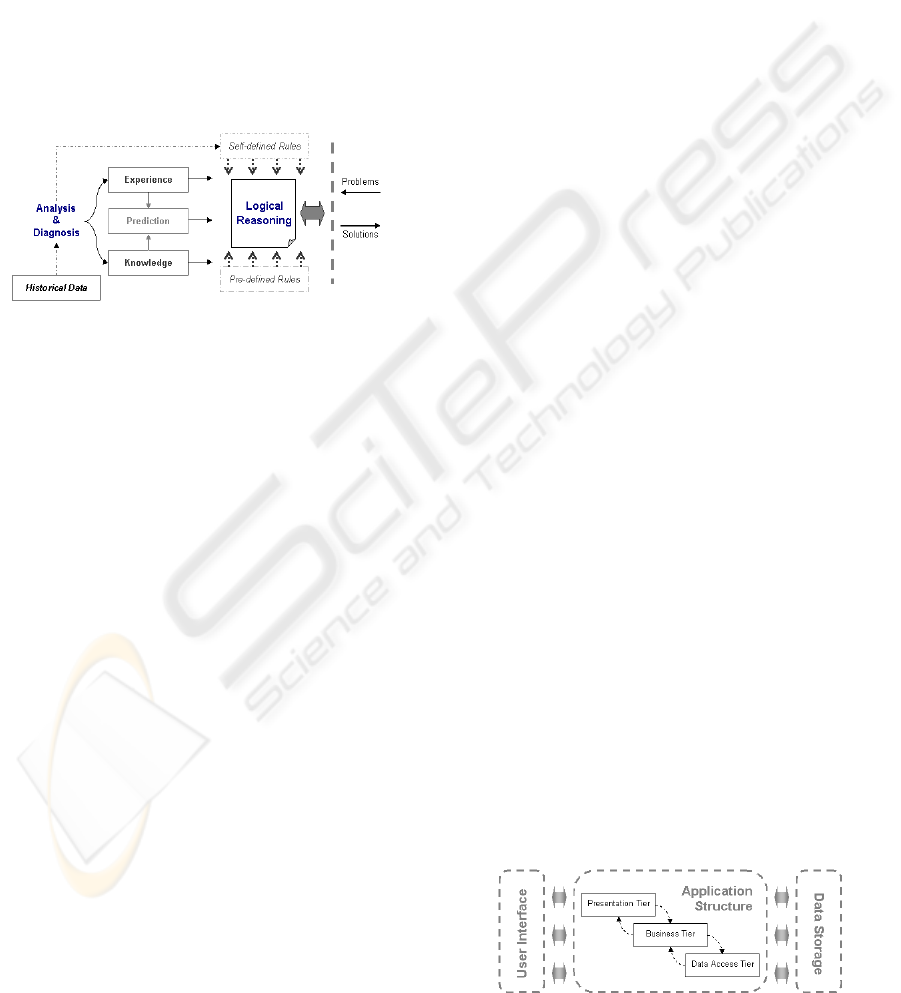

Figure 1: A decision-making ability.

3 SOFTWARE ARCHITETURES

The traditional software architectures have a

tendency toward developing computer applications

as standalone visible software (commodity), where it

can be sold as an off-the-shelf product. Typically, it

is designed for a specific business function (e.g. an

in-house payroll system) or a specialised general-

purpose application such as word processing,

desktop publishing, operating system, etc.

However, continuous growth in the integration

and globalisation of the current computer

infrastructures has offered a new opportunity for a

“next step” in software evolution. A service-oriented

architecture (SOA) has emerged as a popular

architectural platform, where it has moved

significantly from the traditional design (Choset,

2000). This has created a great opportunity for the

full integration of existing applications into one

universal service provider with each software

component capable of acting autonomously as a

service provider. This service provider can range

from a small task (e.g. statistical calculation, sorting

functions, etc.) to a larger enterprise solution, where

it can consist of an integration of various small tasks

to form a complex service such as online banking, e-

store, etc. Furthermore, any improvement or

deployment of this component to other solutions can

be accomplished without any noticeable effect to the

overall infrastructure (Pfister, 2002), (Gyurjyan,

2003), (Soundararajan, 2008), (Bar-Kana, 1989),

(Frankovic, 2009).

An n-tier concept is commonly used in designing

an SOA solution, where it is generally adopted and

implemented as a software development scheme

particularly for web services (e.g. the core design

concept of Microsoft .Net (Microsoft, 2007)).

3.1 N-tier Architecture

The n-tier architecture’s aim is to provide an

approach that unifies business, technical and data

access logics into one single flexible software

infrastructure. Business logic provides aims and

purposes of the software (e.g. content management

for different types of user, on-line payment and

billing solutions, etc.). Technical logic gives a

technical integration of the business logic into a

viable technical solution (e.g. interpretation and

transformation of screen display according to level

of information or privileges set by the business

logic). Lastly, data access logic provides a data

management solution for the software such as data

access solution, data storage solution, data

translation solution, etc.

The n-tier architecture utilises a component-

based approach in its design practices. This

approach permits the architecture to be more flexible

and acceptable to any changes with a minimal

impact to its structural integrity. The flexibility

offered by this approach enables the architecture to

reuse existing components, which has led to a large

reduction in the redundancy of functions (codes).

In general, n-tier architecture can be divided into

three main components – “User Interface”,

“Application Structure” and “Data Storage” (figure

2). The “user interface” component provides a

physical medium for a software solution to engage

with an end-user. The “application structure”

component incorporates business, technical and data

access logics into three integrated tiers to provide a

software solution. The “data storage” component

gives a data storage and management facility to an

“application structure” component.

Figure 2: General concept of n-tier architecture.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

356

4 AN INTELLIGENT DECISION-

MAKING LAYER

Earlier, it was indicated that there is a requirement to

design a system that can reconfigure itself

dynamically based on its operational situation. In

order to achieve this dynamism, a new n(i)-tier

architecture is proposed as an enhancement to the

current n-tier architecture, where a newly proposed

intelligent decision-making layer (i-tier) is

introduced. This i-tier is expected to take over the

responsibility of handling the architecture’s

communication medium (figure 3) by managing

every communication requirement autonomously

through an intelligent resources delivery and

management facility.

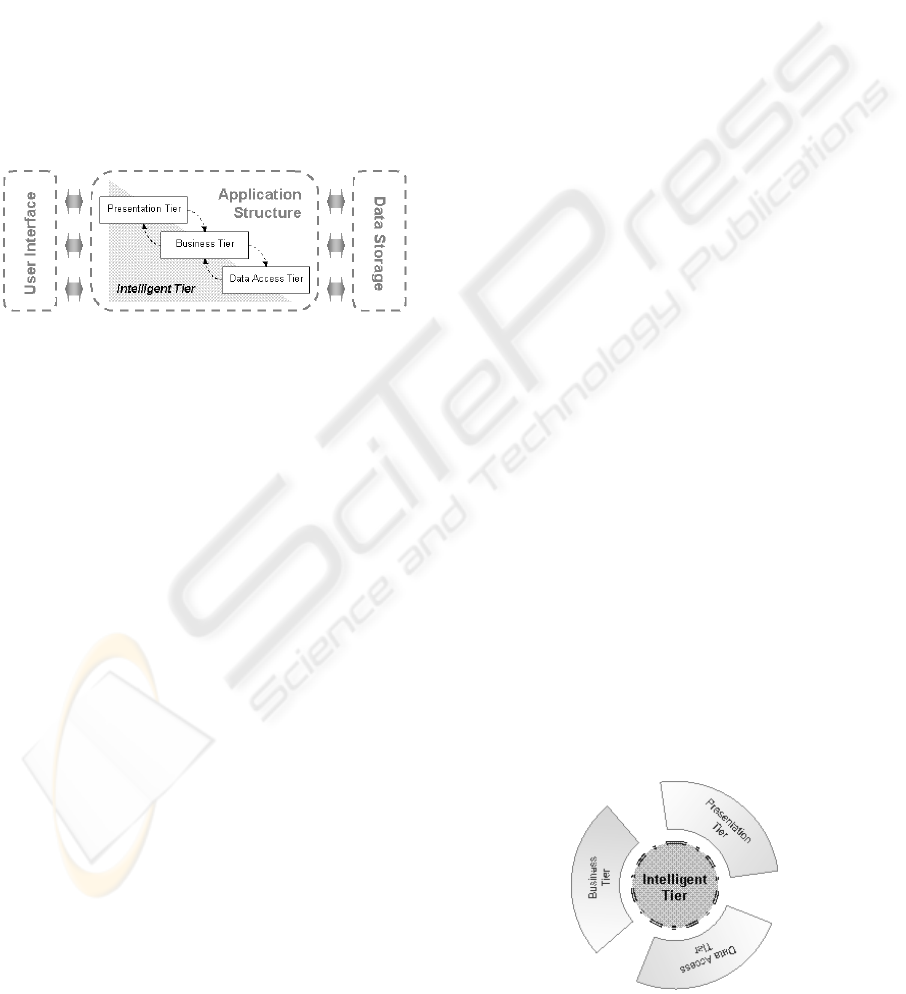

Figure 3: General concept of n(i)-tier architecture.
