GOAL, SOFT-GOAL AND QUALITY REQUIREMENT

Thi-Thuy-Hang Hoang and Manuel Kolp

Université Catholique de Louvain, Place des doyens, 1, 1348, Louvain-La-Neuve, Belgium

Keywords: Quality requirement, Goal, Hard-goal, Soft-goal, Functional requirement, Non-Functional Requirements.

Abstract: Requirements are input for the process of building software. Depending on the development methodology,

they are usually classified into several subclasses of requirements. Traditional approaches distinguish

between functional and non-functional requirements and the modern goal-based approaches use hard-goals

and soft-goals to describe requirements.

While non-functional requirements are known also as quality requirements, neither hard-goals nor soft-

goals are equivalent to quality requirements. Due to the abstractness of quality requirements, they are

usually described as soft-goals but soft-goals are not necessarily quality requirements. In this paper, we

propose a way to clear the problematic ambiguity between soft-goals and quality requirements in goal-based

context. We try to reposition the notion of quality requirement in the relations to hard-goals and soft-goals.

This allows us to decompose a soft-goal into a set of hard-goals (required functions) and quality

requirements (required qualities of function). The immediate applications of this analysis are quality-aware

development methodologies for multi-agent systems among which QTropos is an example.

1 INTRODUCTION

Requirements engineering is usually located at the

beginning of the development process of software.

During this stage, requirements on the system-to-be

are elicited and collected from the initial description

documents, then are analyzed to define the principal

components of the system. The requirement analysis

must determine what and how the system will have

to provide in order to meet the initial needs of

building the system. As a consequence, requirements

engineering has been playing the leading role of

every software development process.

Zave and Jackson (1997) provide what may

appear to be one of the most complete definitions of

Requirement Engineering (RE):

Requirement Engineering. “is the branch of

software engineering concerned with the real-world

goals for, function of, and constraints on software

systems. It is also concerned with the relationship of

these factors to precise specifications of software

behaviour, and to their evolution over time and

across software families“.

From the above definition, one can identify all

the main components of requirements: goals,

functions and constraints. However, this does not

provide a proper classification of requirements. To

classify better requirements, traditional approaches

distinguish between functional and non-functional

requirements while modern goal-based approaches

use hard-goals and soft-goals to describe

requirements.

Functional requirements describe WHAT the

system will have to perform and non-functional

requirements describe HOW the system will do its

jobs (Sommerville 2007). It can be known that some

requirements are first considered as non-functional

but after having being detailed they appear to be

functional. And for some other requirements, it is

rather unclear whether they are functional or non-

functional. However, it will be clearer if the

system’s boundary is well-defined and functional

requirements resulted from a non-functional

requirements are considered as additional operations

carried out to satisfy additional constraints. It is,

thus, preferable to refer functional requirements to

system services and non-functional requirements to

service quality requirements such as: accuracy,

security, availability, etc. to avoid any ambiguity.

In the meantime, goal-based requirements

engineering (Yu 1995) (Chung et al. 2000) divides

requirements into hard-goals and soft-goals. Both

type of goals represent states of affairs that software

Hoang T. and Kolp M. (2010).

GOAL, SOFT-GOAL AND QUALITY REQUIREMENT.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages 13-22

DOI: 10.5220/0002872100130022

 SciTePress

are expected to achieve. For hard-goals, there are

clear-cut criteria for whether they are achieved. But

there are no clear-cut criteria for soft-goals. It is then

usually very hard or even impossible to satisfy

completely a soft-goal. One might compare hard-

goals to functional requirements and soft-goals to

quality requirements. However, this is not an

adequate comparison since, for examples,

Availability (of system) requirement is, indeed, a

soft-goal but Happy Customers soft-goal is not a

quality requirement. As we will see, the relation

between soft-goals and quality requirements is not

simply an inclusion.

A recent approach presented in (Jureta,

Mylopoulos & Faulkner 2008) uses the notion

quality requirements to define well-defined and

measurable quality and uses soft-goals to define

abstract qualities that cannot be defined in a clear

cut way. Actually, these definitions only provide a

classification of quality requirement in to well-

defined qualities and abstract qualities and they do

not take into account other soft-goals than qualities.

Although this approach uses a very interesting

analysis, i.e. analysis of speech acts in

communicated content between stakeholders, to

ground its concepts, its applicability is still open and

depends on future applications.

In order to give quality requirements a new role

that is qualifier on hard-goals and soft-goals, we

propose, in this paper, a new definition for the three

most important notions: hard-goals, soft-goals and

quality requirements. We also propose the analysis

with this new definition to keep track of quality

requirement from early requirements until the final

products. As a result, quality requirements will play

a much more active role in the development process

than being just criteria for comparing design

alternatives. Goal decompositions with quality

requirements will be easy to be derived. The paper

will also reveal a clearer connection between hard-

goals/soft-goals and functional/non-functional

requirements.

From the analyses proposed by the paper, quality

requirements can be seen as an additional dimension

to the goal dimension. Goals elicit quality

requirements and qualities constrain goals in a

reinforcing relationship.

We start this paper by giving an overview, in the

Section 2, of goal-based requirements engineering.

In Section 3, we will reposition quality requirements

inside this framework in order to introduce the

quality-aware goal analysis. QTropos, a quality-

aware agent-oriented software development process

that keeps track of quality requirements from the

requirement analysis to the final products will be

briefly presented in Section 4. We will end this

paper with some concluding remarks.

2 GOAL-BASED REQUIREMENT

ENGINEERING

In software requirements engineering, goals have

become promising tools for requirements eliciting

and elaborating. Goals whose satisfaction criteria

can be formally described and correctly checked are

hard-goals; otherwise they are soft-goals. We can

satisfy hard-goals but only satisfice soft-goals

(Chung et al. 2000). Satisficing a goal is a weaker

notion of satisfaction where goals are only partly

satisfied. In practice, the term goal is used

extendedly for hard-goals in contrast to soft-goals.

This is sometimes very misleading. We will

explicitly use the terms hard-goal and soft-goal and

the term goal will used to specify the general

concept containing both hard-goals and soft-goals.

In the remaining part of this section, we will

outline some essential points that make goals really

attractive in requirements engineering.

First, goals are objectives that developers expect

the system-to-be to achieve. By definition, a goal

describes only a state of the world that the system

should bring about. Usually, a high level goal does

not contain any detail of what and how the system

should do to obtain it. Examples of such goals are

Market Share Increased, Happy Customer, etc.

These high-level goals can be found quite easily in

preliminary documents, interviews of stakeholders,

etc. Lower-level goals are then elicited through the

analysis of higher-level goals or through the

subsequent interactive communications between

developers and stakeholders. A common mistake is

to consider goals as function designs or algorithmic

sketches. Indeed, a goal is usually a description of

the outcome of an operation (posterior conditions),

while a function design is a plan of how to carry out

an operation. Given a goal, there can be zero, one or

more than one ways (plans or function descriptions)

to completely achieve it. It can be said that using

goals to model requirements can reduce the gap

between the stakeholders’ desires and the outcomes

of the system by starting directly from the needs and

imposing minimally, a priori, on the choice of

structure and technique to be used.

Second, goals provide a greater expressibility,

the ability to express, than functional and non-

functional requirements. Goals can be divided into

two classes based on their satisfiability. Compared

to traditional approaches, every functional

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

requirement, defining a function or a component of

software system, such as Turn on a Printer, Print a

Document can be described by hard-goals but

Patient Examined hard-goal is not a functional

requirement of a hospital management system.

Likewise, every non-functional requirement such as:

Security, Availability can be represented by means

of soft-goals, but Market Share Increased soft-goal

cannot be represented by a non-functional

requirement. This proves that hard-goals and soft-

goals are richer than functional and non-functional

requirements. Up till now, non-functional

requirements are considered as a sub-class of soft-

goals. However, this position can be revised, as done

later in this paper, while preserving the richness of

goal-based paradigm.

Third, representing requirements as hard-

goals/soft-goals can make use of the very efficient

goal decomposition analysis (Van Lamsweerde

2001) to break down the requirements. AND-

decomposition breaks a goal into a set of sub-goals

in which the satisfaction of the parent goal is met

only when all the sub-goals are satisfied. On the

other hand OR-decomposition defines a set of sub-

goals such that the satisfaction of only one sub-goal

is sufficient for the satisfaction of the parent goal. In

the literatures, the two above decompositions are

applied only for goals where the satisfaction can be

defined in a clear-cut way. For soft-goals, above

AND/OR links are not applied since, in most cases,

we can only satisfice soft-goals. Instead, one can use

contribution links by which sub-goals and/or sub-

soft-goals can contribute positively or negatively

with some degree to the parent soft-goal. Other types

of analysis are introduced by Tropos project (Castro,

Kolp & Mylopoulos 2002) using the i* framework

(Yu 1995) as modelling language. In such analysis,

requirements are modelled by dependencies (hard-

goal, soft-goal, task and resource) between system

stakeholders and between system agents.

Forth, conflicts between requirements can be

negotiated and cleared by weighing the potential

risks produced by each option. For example, Non-

Functional Requirement Framework (Chung et al.

2000) provides a way to propagate the

positive/negative effect up through the

decomposition tree in order to evaluate the risk

factor produced by an analysis option. The winner

will be the one that could produce less damages.

Fifth, at the lowest level, all hard-goals and soft-

goals can be exactly or approximately

operationalized. This will results in the functional

design of the system-to-be where hard-goals and

soft-goals are replaced by future functions of the

system.

Further implications of goal-based requirements

engineering can be found in (Castro, Kolp &

Mylopoulos 2002) (Letier 2001) (Hoang 2008). In

the following section, we present a way to separate

quality requirements from soft-goals in order to

emphasize the use of quality dimension in the

requirement engineering.

3 QUALITY REQUIREMENT

REPOSITIONING

To reposition quality requirements in the software

development process, we first consider the software

development in agent-oriented framework with its

typical quality requirements.

3.1 Quality Requirements in Reality

Being a promising development trend that can

replace traditional development techniques such as

structured and object-oriented, agent-oriented

software development has become a modern trend in

software engineering. Software agents are expected

to substitute human agents in a lot of tasks. To play

some human roles, they are given certain autonomy

and intelligence. Moreover, they are designed to live

in a virtual society in which agents interact with

each others to exchange their knowledge, to reason

about the environment and to act towards individual

goals as well as social goals. On the one hand, this

offers the flexibility and the extendibility to the

system, but on the other hand, the liberty of agents

may harm the integrity and the coherence of the

system. The security flaws will be also among the

principal concerns if such systems are deployed in a

large scale. These potential problems are probably

one of the main reasons why the agent-oriented

structure has not been widely used. To gain the

popularity, quality requirements such as: flexibility,

extensibility, integrity, etc. of the system as a whole

and of services of the system must be addressed.

Quality requirements describe not WHAT the

system will do but HOW the system will do its job.

For example, if Promptness is the only quality

requirement that have to be satisfied, then between

two systems that can do the same job, the one that

accomplishes the job in less time, given the same

condition, is normally chosen. Our objective is not

just using the quality requirements to compare

between already-built systems but to develop new

GOAL, SOFT-GOAL AND QUALITY REQUIREMENT

software systems that conform to the given quality

requirements. To do so for multi-agent systems,

when the overall behaviour depends on the atomic

interactions between agents, quality requirements

must be taken into account at both the system level

and agent level. This is crucial since traditional

approaches such as (Chung et al. 2000) often treat

the quality requirements only at the system level and

use quality requirements only as the criteria in

selecting the right option among alternatives. And

this seems not sufficient for multi-agent system.

Quality requirements must play more active roles

during the development process, especially in the

requirement analysis. This is the reason why we opt

not to analyze quality requirements as a sub-class of

soft-goals in order to pay sufficient attentions in the

quality aspects. In this new goal-based analysis, we

should redefine the roles of and the relations among

the three entities: hard-goals, soft-goals and quality

requirements.

3.2 Quality Requirements in Focus

We consider again the similarity between functional

requirements and hard-goals, between quality

requirements and soft-goals. This similarity is

strengthened by the fact that it is usually impossible

to define the satisfaction criteria of a quality, which

makes quality requirements similar to soft-goals.

However soft-goals are definitely not quality

requirements. One of the reasons is that quality

requirements are defined as attributes and/or

properties of system functions and are concerned

with the quality of services offered by the system,

while a soft-goal is a state that the system should

achieve. Soft-goals can, thus, describe indirectly

functions of a system but neither do quality

requirements (1).

To be more specific, soft-goals can be divided

into two classes based on their main concerns. When

a soft-goal describes a state related to services inside

of the system, it, in fact, describes directly or

indirectly some system functions (often with some

quality requirements on them). When a soft-goal

describes a state related to external actors of the

system, it should actually be reflected by some hard-

goals or soft-goals inside the system because this is

the only way the system can achieve that soft-goal.

For example, Happy Customer is a soft-goal that

acts on the external actor to the system (i.e.

Customer) while Transaction Treated in Security

and Reliability is a soft-goal related to services of

the system for which Security and Reliability are two

important qualities. And the latter together with

some others hard-goals and soft-goals can be the

reflection of the former, i.e. Happy Customer soft-

goal, inside the system. In other words, Transaction

Treated in Security and Reliability can make

Customers Happy.

As pointed out earlier that, a function (or object)

can be ascribed with some attributes or possesses

some properties that represent qualities of that

function (or object). This is to say that quality

requirements should act on a function (or an object)

inside/outside of the system-to-be. Or at least, they

act on the whole system, hence everything in the

system. As a consequence, it is improper to consider

quality requirements as states of the world without

specifying on which they act on (2).

The points (1) and (2) show us that the definition

of soft-goals and quality requirements, in which

quality requirement is a sub-class of soft-goal, that

we usually see in the literatures are no longer

applicable. We come to the following set of

definitions:

Definition 1. a hard-goal describes state of some

specified objects

that the system wants to achieve for

which the satisfaction criteria are precisely defined.

Definition 2. a soft-goal describes a state of some

specified objects

that the system wants to achieve for

which the satisfaction criteria are not defined in a

clear-cut way.

Definition 3. a quality requirement describes

constraints or perfection levels independent on

objects that are constrained to satisfy or satisfice it.

When a quality requirement constrains a hard-goal

(or soft-goal), it, in fact, constrains the means to

achieve that hard-goal (or soft-goal).

The term object in the above definitions is

referred to entities that can be ascribed with

attributes and/or can possess properties. Popular

objects in the context of software system are:

stakeholders of the system, system functions, system

resources, etc.

By examining the above definitions, we can

identify the following differences between these

definitions and other definitions in the literature:

• A hard-goal (or soft-goal) must be

associated with some specific objects. This

condition does not allow a quality

requirement to be goal.

• Quality requirements stay outside of hard-

goals and soft-goals and influence the way

that hard-goals and soft-goals to be

achieved.

We can illustrate this by some examples:

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

• Security is a quality requirement but not a

soft-goal.

• Secured Banking Transaction is a soft-goal

since it describes a state of banking

transaction of being secured.

• The Web Pages Served hard-goal is

constrained to have High Availability. Here

High Availability is a quality requirement

constrains the web server that serves web

pages.

In our point of view, the reason for which it is

difficult to define the satisfaction criteria of a soft-

goal is the presence of one or more quality

requirements inside the soft-goal, i.e. Security in

Secured Bank Transaction soft-goal. Moreover,

these quality requirements are abstract or implicitly

and indirectly stated, in general. Examples are: soft-

goals representing the state related to external actors

that the system-to-be must achieve, e.g. Happy

Customer soft-goal. Viewing this soft-goal in this

state, it is not clear how to relate this soft-goal to any

system functions and their quality requirements. In

these cases, the following observation can help to

draw a direction that guides our analysis of goal.

Observation. It is always possible and preferable to

transform any stand-alone soft-goal into hard-goals

of the system-to-be (on which none or some qualities

are required) and these derived qualified hard-goals

satisfy or at least satisfice the soft-goal. However,

this transform can be indirect in the sense that a

soft-goal can be transformed into sub-soft-goal

before being transformed into qualified hard-goals.

In this observation, we treat only stand-alone

soft-goals in order to rule out any possibility of

conflicts between soft-goals of which may hurt the

soft-goal satisfaction. More on conflict negotiation

technique will be discussed in the next section in

which several analyzing techniques are revised to

help developers to deal with the new quality

requirement concept. Now let us point out some

other important remarks that can be drawn from the

above definitions and observation:

• The notion of soft-goal does not play a

persistent role in the development process

since it is possible to transform into qualified

hard-goals. And we should do so since hard-

goals are clearer notions for describing the

system-to-be. Ideally, at some stages of the

development process, there will be no more

soft-goal. This allows us to have better

operationalizations.

• Quality requirements might not be stated

explicitly in the high level hard-goals/soft-

goals. But they can be elicited from the

transform from soft-goals to qualified hard-

goal.

• Quality requirements exist thorough the

development process and play the role of

qualifiers or constraints on goals. They may

constrain also soft-goals at the beginning of

the analysis process.

As we will keep the notion of quality

requirement along side with hard-goals and soft-

goals as an additional layer constraining hard-goals

and soft-goals, we will use the following graphical

notion for quality requirements in our analysis. We

call the link from quality requirements to goals

Qualification Link. In textual form, we use the

following predicate to show the qualification link:

QUALIFY([Quality], [Goal]).

in which, the name of goals and qualities are written

inside a pair of square brackets [.]. The link types

are in upper case. A set of elements are written

inside a pair of curly brackets {.} and are used as

abbreviations of individual link. In a link predicate,

the order of parameters defines the direction of the

arrow in the corresponding graphical representation.

Here we omit all the node predicates that specify the

node type, i.e. QUALITY(.), HARDGOAL(.) and

SOFTGOAL(.).

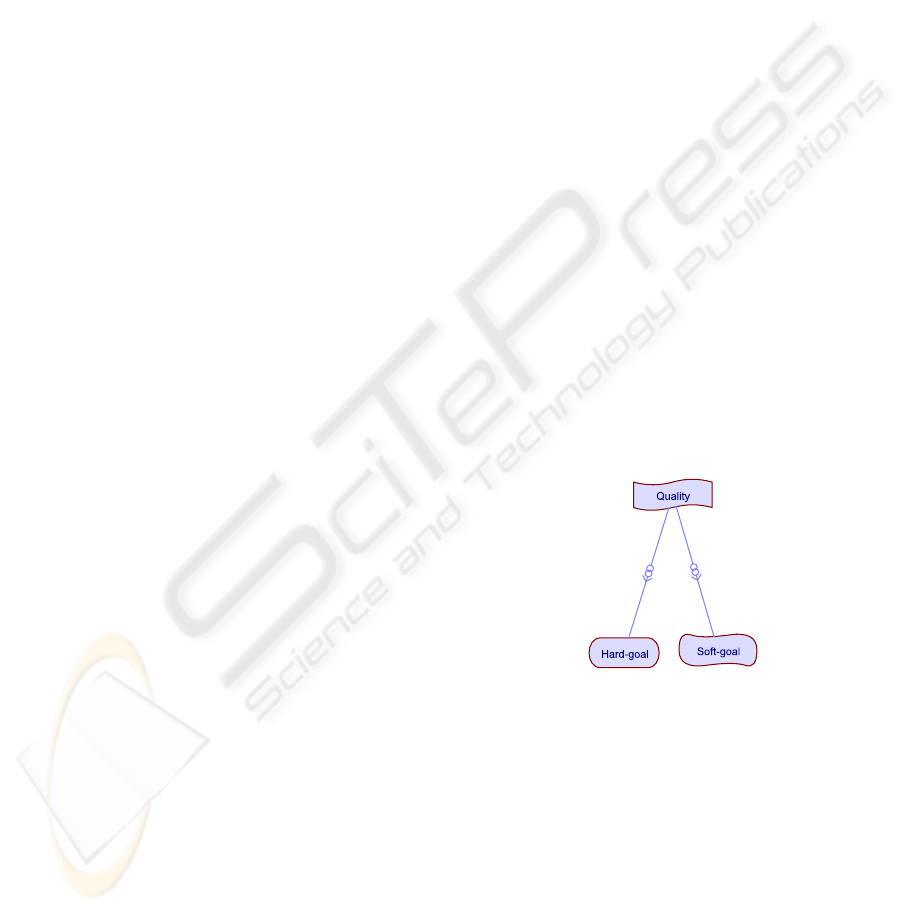

Figure 1: Quality on goal and soft-goal.

In the remaining part of the section, we present

how to deal with quality requirements in standard

techniques of goal analysis (Van Lamsweerde 2001).

Hard-goals and soft-goals are usually decomposed

using the goal refinement graph on which two basic

operations are: AND decomposition and OR

decomposition can be applied to goals and the

contribution analysis can be applied in cases where

soft-goals can only be approximated. Quality

requirements are propagated from the parent node to

the sub-nodes following the refinement tree and the

type of decomposition.

GOAL, SOFT-GOAL AND QUALITY REQUIREMENT

3.3 Goal Analysis with Quality

Requirements

With the presence of quality requirements, we will

introduce several new analyses such that:

qualification link, quality elicitation and quality

contribution together with the standard goal-based

operators: AND and OR decomposition.

Figure 2: OR decomposition with quality requirement.

3.3.1 OR Decomposition

OR decompositions represent alternatives to fulfil a

goal. In

Figure 2, the Invitation Sent hard-goal is

satisfied by either the Invitation Sent By Email hard-

goal or Invitation Sent by Post hard-goal or

Invitation Communicated By Telephone hard-goal.

Since the parent goal is required by Promptness

quality, all the alternatives should be also required

Promptness. In textual form, we write

OR (

{

[Invitation Sent by Email],

[Invitation Sent by Post],

[Invitation Communicated by Telephone]

[Invitation Sent]

QUALIFY(

[Promptness],

{

[Invitation Sent By Email],

[Invitation Sent By Post],

[Invitation Communicated by Telephone]

}

3.3.2 AND Decomposition

In AND decompositions, a goal is satisfied if and

only if all the leaf nodes of the decomposition tree

are satisfied. In

Figure 3, the Music Played hard-goal

with the Legality requirement is satisfied if and only

if Source File is found and downloaded legally.

Then the downloaded Music File is opened to send

Figure 3: AND decomposition with quality requirement.

sound to speakers. Textually, we write:

AND(

{

[Source Found],

[File Downloaded],

[Music File Opened]

[Music Played]

QUALIFY([Legality], [Music Played]).

QUALITY(

[Legality],

{[Source Found], [File Downloaded]}

Notice that, in this example, the hard-goal Music

File Opened is not required to have the Legality

quality since it can be completely satisfied by the

two other goals. In general case, when the quality Q

itself can be decomposed into several sub-qualities

(i.e. Q1, Q2, …), see, for example (Chung et al.

2000), for a taxonomy of quality requirements. The

AND decomposition can be rewrite differently if all

the sub-qualities are correctly distributed among the

leaf nodes.

Figure 4: AND decomposition and extended quality

requirement.

Figure 4 presents the extended version of AND

decomposition. The quality Economic is

decomposed in the two sub-qualities: Efficiency and

Reusability. To have Software Developed

Economically, it must (i) be designed by using old

and creating new reusable components, (ii) be

provided with an efficient bug management system.

The coding activities do not affect much the

development cost of the software. We then can

rewrite the decomposition of Software Developed

hard-goal as follow:

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

AND(

{[Efficiency], [Reusability]},

[Economic]

QUALIFY([Economic], [Software Developed]).

AND(

{

[Software Designed],

[Software Coded],

[Bug Managed]

[Software Developed]

QUALIFY([Efficiency], [Bug Managed]).

QUALITY([Reusability], [Software Designed]).

3.3.3 Quality Elicitation

As we have assumed that qualities can be implicitly

contained in soft-goals, it is possible that at some

stages, some quality requirements are elicited.

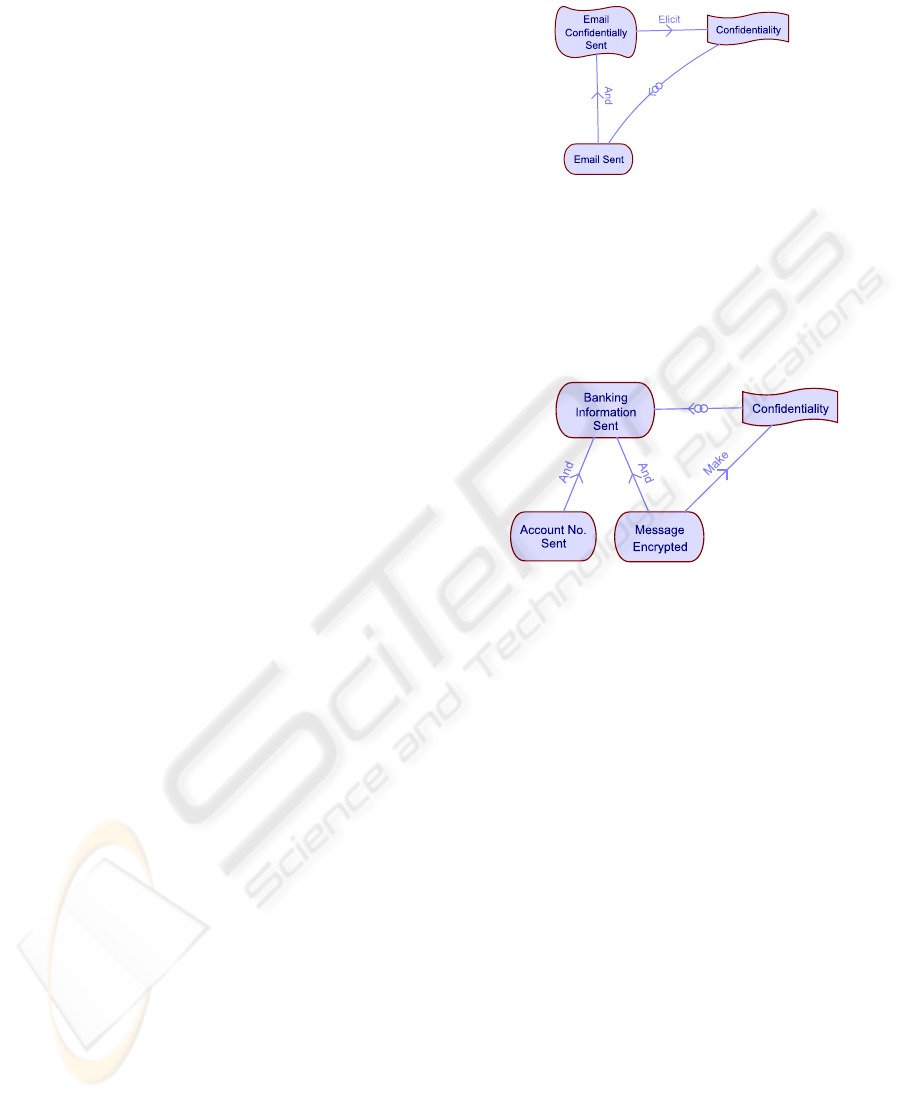

In Figure 5, the soft-goal Email Confidentially

Sent is decomposed into the Email Sent hard-goal

with the quality Confidentiality. Formally we write:

ELICIT(

[Email Confidentially Sent],

[Confidentiality]

AND([Email Sent], [Email Confidentially Sent]).

QUALIFY([Confidentiality], [Email Sent]).

Remarks. The three refinements above reveal the

link between the notions of functional/non-function

(quality) requirements and the notions of hard-

goals/soft-goals. This link can be summarized as

follow:

• A functional requirement can be represented by

a hard-goal. And every hard-goal at the lowest

level (right before the operationalization) can

be considered equivalent to a functional

requirement.

• A soft-goal is defined by a sub-tree of the

refinement tree. Starting from a soft-goal and

taking only the leaf nodes in the corresponding

sub-tree, one can extract all the possible

combinations of hard-goals and quality

requirement that can satisfice the soft-goal.

• Hard-goals and soft-goals tend to appear at the

root of refinement trees while functional and

quality requirements tend to be at the leaf

nodes.

• At the leaf nodes, there should not be any soft-

goal left. Instead, there should be only hard-

goals and quality requirements on them.

These allow us to reconfirm that hard-goals/soft-

goals are the better choice for requirement

engineering (compared to functional/non functional

requirements). Moreover, they provide a higher

degree of abstraction and expressibility and can be

used to capture the preliminary requirements only

from the very early intentions of the system’s

stakeholders.

Figure 5: Quality requirement elicitation.

3.3.4 Quality Requirement Fulfilment

To depict the fulfilment of a quality requirement

using a goal, we use the contribution link and the

following contribution labels (Chung et al. 2000): --

(break), - (hurt), + (help) and ++ (make).

Figure 6: Quality requirement fulfilment.

Figure 6

shows that the Message Encrypted hard-

goal sufficiently contributes in the fulfilment of the

Confidentiality quality requirement. Textually, we

can write:

QUALIFY(

[Confidentiality],

[Banking Information Sent]

AND(

{[Account No. Sent], [Message Encrypted]},

[Banking Information Sent]

CONTRIB<Make>(

[Message Encrypted],

[Confidentiality]

3.3.5 Conflict Negotiation

As pointed out earlier, quality requirements can

sometimes create conflicts. We take a simple

example of an online shop where the Online

Payment Offered hard-goal (pay for an online

purchase) is required to satisfy both Security and

Easy To Use quality requirements, as showed in

Figure 7. We have two possibilities to realize that

that hard-goal by either: In-House Service Built or

Third-Party Service Used.

GOAL, SOFT-GOAL AND QUALITY REQUIREMENT

In the one hand, with the option In-House

Service, the shop is free to design its own payment

service including the interface to simplify and

facilitate the customers’ payment. The accounting

data is also kept and easily controlled. However,

credit card process and management are very

complex and often very vulnerable to attacks.

Building and maintaining a secured payment system

solely for the store are very expensive.

Figure 7: Quality conflict negotiation.

In the other hand, existing third-party services

are very well built and maintained. Although it still

cannot provide a full guarantee for the security issue,

it can be considered a better choice than a self-

developed service. The inconvenient side of this

service is that it makes the payment process a more

complicated. The customers may need to jump back

and forth between the shop’s website and online

payment website to complete a payment.

To resolve conflicts among quality requirements,

one possible way is to define the priority of quality

requirements as a numerical value in an open scale.

A quality requirement that has a higher priority will

be fulfilled before other lower-priority ones are

fulfilled. In the above example, when issuing a

payment, the Security requirement is surely more

important than the fact that it is Easy to Use. We set,

for example, the priority of Security requirement

equal to 2 and of Easy to Use to 1. Then the tie is

broken as shown in Figure 8.

Figure 8: Priority or quality requirement.

Figure 9: Secured payment example.

3.4 All-in-one Example

To illustrate all the above analysis of goals in one

example, we consider, the soft-goal Secured

Payment Sent taken from a test case of an online

shop.

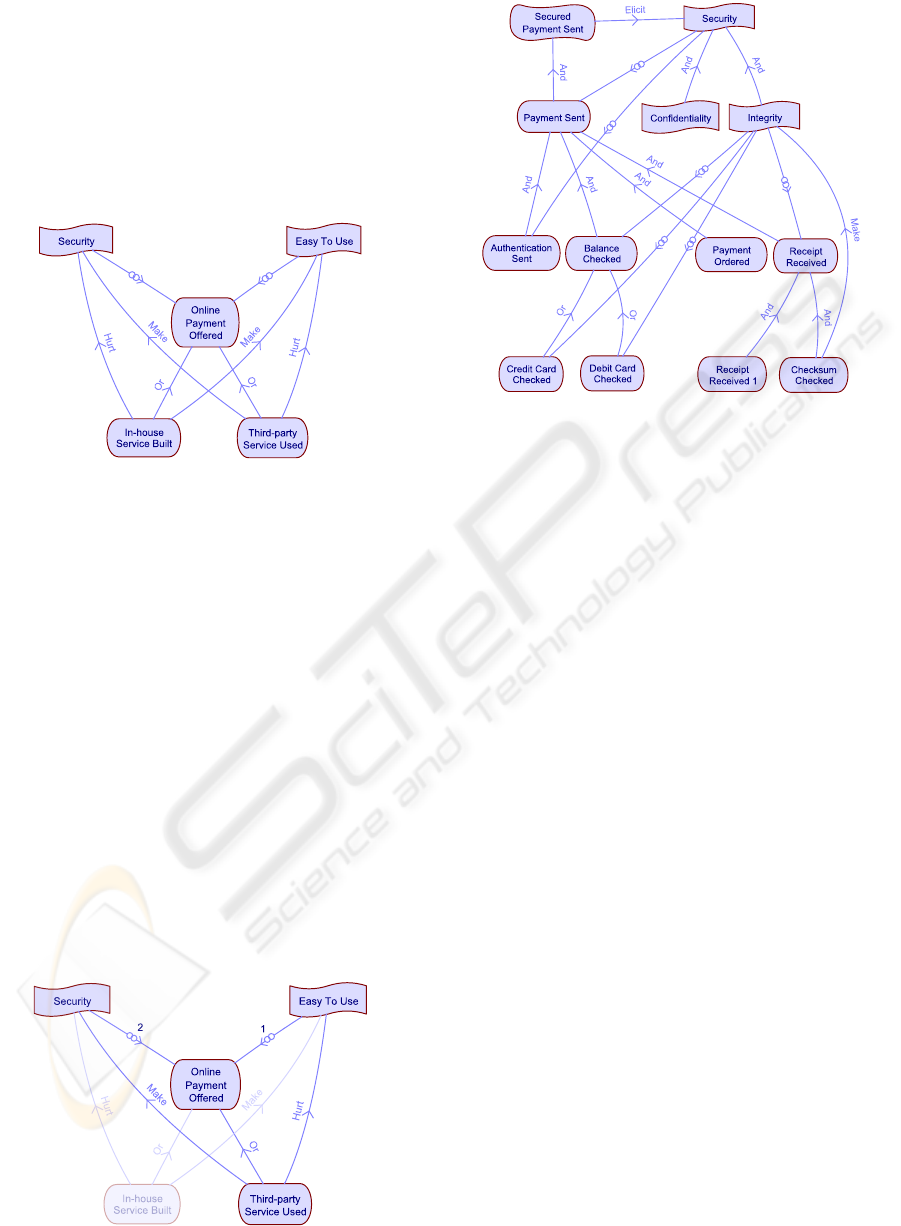

Figure 9 shows a part of the analysis of the soft-

goal Secured Payment Sent. Based on the defined

operations, the analysis of this soft-goal is carried

out through the following steps:

• Secured Payment Sent soft-goal is decomposed

into Payment Sent hard-goal and elicits

Security quality requirement. Payment Sent

hard-goal is then constrained by Security

requirement.

AND([Secured Payment Sent], [Payment Sent]).

QUALIFY([Security], [Payment Sent]).

• Security quality requirement is AND-

decomposed into Confidentiality and Integrity

quality requirements.

AND({[Confidentiality], [Integrity]}).

• Payment Sent hard-goal is AND-decomposed

Authentication Sent, Balance Checked,

Payment Ordered and Receipt Received.

AND(

{

[Authentication Sent],

[Balance Checked],

[Payment Ordered],

[Receipt Received]

[Payment Sent]

QUALIFY([Security], [Authentication Sent]).

QUALIFY(

[Integrity],

{[Balance Checked], [Receipt Received]}

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

• The Balance Checked hard-goal is OR-

decomposed into Credit Card Checked hard-

goal and Debit Card Checked hard-goal.

OR(

{[Credit Card Checked], [Debit Card Checked]},

[Balance Checked]

QUALIFY(

[Integrity],

{[Credit Card Checked], [Debit Card Checked]}

• The Receipt Received hard-goal is AND-

decomposed into Receipt Received 1 hard-goal

and Checksum Checked hard-goal, where

Checksum Checked fulfils sufficiently the

Integrity quality requirement.

AND(

{[Receipt Received 1], [Checksum Checked]},

[Receipt Received]

QUALIFY([Integrity], [Checksum Checked]).

CONTRIB<Make>([Checksum Checked], [Integrity]).

At the end of the goal refinement process, the

satisficing tree of Secured Payment Sent can be

summarized by the following two alternatives:

AND(

{

[Authentication Sent],

[Credit Card Checked],

[Payment Ordered],

[Receipt Received 1],

[Checksum Checked]

[Secured Payment Sent]

QUALIFY([Integrity], [Credit Card Checked]).

CONTRIB<Make>([Checksum Checked], [Integrity]).

AND(

{

[Authentication Sent],

[Dedit Card Checked],

[Payment Ordered],

[Receipt Received 1],

[Checksum Checked]

[Secured Payment Sent]

QUALIFY([Integrity], [Debit Card Checked]).

CONTRIB<Make>([Checksum Checked], [Integrity]).

Note that the above two possibilities of

satisficing Secured Payment Sent soft-goal does not

contain any OR-combination since all the OR-

decomposition in the refinement tree will be

translated into the alternative possibilities as done

for Balance Checked hard-goal.

One can argue that the bottom part of Figure 9 is

somewhat similar to the diagram of hard-goals/soft-

goals integration presented in (Mylopoulos et al.

2001). However, in their approach, soft-goals are

mainly quality requirements and hard-goals and soft-

goals are analyzed separately and are only correlated

very lately in the analysis process. Compared to this,

our approach offers the developers with a top-down

analysis of hard-goals, soft-goals and quality

requirements in an integrated scheme from the

earliest requirements to the latest design with a

sound reasoning procedure.

4 QTROPOS

The presented idea was applied successfully to the

Tropos methodology (Castro, Kolp & Mylopoulos

2002) to derive the Quality-Aware Tropos

(QTropos).

Tropos has become very popular. It uses i*

modelling framework introduced by (Yu 1995) as

the underlying analysis tool through its four phases

of software development, namely Early

Requirement, Late Requirement, Architecture

Design and Detailed Design. The process is often

completed with the implementation step using agent-

oriented programming languages among which

JACK agent would be the best suited.

i* uses the notion of distributed intentionality to

model the overall intention of a group of individuals

called actors. The connecting links are the

dependencies between these actors. A dependency is

formed if an actor (called depender) depends on

another actor (called dependee) to acquire a

dependum. There are four types of dependum: hard-

goal, soft-goal, task and resource.

A resource is a physical or informational entity

that can be delivered by the depender to the

dependee. A task is a list of operations that the

depender wants the dependee to carry out. Hard-

goals and soft-goals are exactly what we have used

in this paper but are put in the context of depender

and dependee.

In the original Tropos process, we can list here

some limitations in the quality treatment:

• Quality requirements are included in soft-goals.

• Qualities can be considered as early as in the

early requirement phase of Tropos. However,

the propagation and elicitation of quality soft-

goals from one analysis stage to the next one

are rather unclear.

• The use of social patterns at the architectural

design is not quality-aware.

• No social pattern designed for the fulfilment

and control of quality requirement.

To make it quality-aware, we have to separate

quality requirements from soft-goals in Tropos.

Since there are four different type of dependencies,

quality requirements can constrain on all the

dependency types. These dependencies can be seen

GOAL, SOFT-GOAL AND QUALITY REQUIREMENT

in the Strategic Dependency model whose results are

inputs for the Strategic Rationale model where the

mean-ends analysis and task decomposition take

place. These analyses can be easily adapted using

similar analyses to those in the previous section to

incorporate quality requirements. Only one

exception is that there are four different types of

nodes: Hard-goal, Soft-goal, Task and Resource.

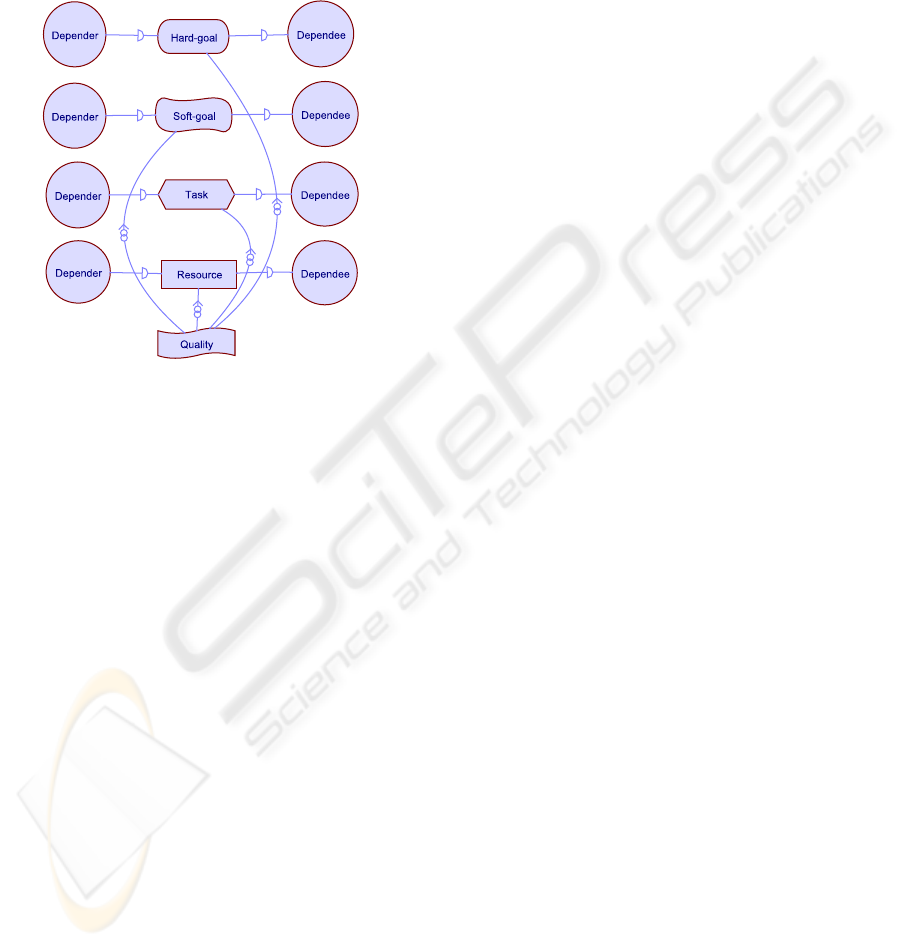

Figure 10: Qualified dependencies.

One of the powerful features of Tropos is that the

internal element to an actor can depend or can be

depended by other elements of other actors. This

allows Tropos models to represent the overall

intentions through individuals’ intentions.

Strategic Dependency and Strategic Rationale

models are used in the early and late requirement

stages of QTropos in order to clarify both intentions

of stakeholders and of the system-to-be. From these

intentional analysis, developers will be able to take

any design and architecture options to match the

initial intentions. With the quality requirements are

added into this process, QTropos can meet the

expectations of the stakeholders in terms of both the

functional aspects and the software qualities as well.

More details about QTropos and quality-aware

social patterns can be found in (Hoang 2008) and

(Hoang & Kolp 2009). A prototype of an analyzing

tool namely QTroposCase is also being developed

that includes all the developments in this paper as

well as other analyses for QTropos. All the figures

in this paper are exported from this tool.

5 CONCLUSIONS

Knowing the importance of quality requirement in

the context of multi-agent system and of goal-based

requirement engineering, this paper proposes a way

to elicit, to analyze and to validate the quality

requirements. This is done by separating gradually

quality requirements from soft-goals, which help the

developers to keep track of quality requirements

thorough the development process.

The proposed quality-aware goal analysis can be

applied to enrich many development processes

where goal-based requirement engineering plays the

leading role, such as (Q)Tropos.

REFERENCES

Castro, J, Kolp, M & Mylopoulos, J 2002, 'Towards

requirements-driven information system engineering:

the Tropos project', Information System Journal, no.

27, pp. 365-389.

Chung, L, Nixon, BA, Yu, E & Mylopoulos, J 2000, Non-

functional Requirements in Software Engineering,

Kluwer Academic Publishers.

Hoang, TTH 2008, 'Quality-aware agent-oriented software

development', Iinternal Report, Louvain School of

Management, Université catholique de Louvain.

Hoang, TTH & Kolp, M 2009, 'Social patterns for quality

control in agent-oriented systems', ICSOFT.

Jack, AOSPL 2002, 'JACK intelligent agents - User guide'.

Jureta, I, Mylopoulos, J & Faulkner, S 2008, 'Revisiting

the core ontology and problem in requirements

engineering', Proceedings of the 2008 16th IEEE

International Requirements Engineering Conference.

Letier, E 2001, 'Reasoning about Agents in Goal-Oriented

Requirements Engineering', PhD thesis, Université

catholique de Louvain, Belgium.

Mylopoulos, J, Chung, L, Liao, S, Wang, H & Yu, E 2001,

'Exploring alternatives during requirements analysis',

IEEE Software, vol 18, pp. 92-96.

Sommerville, I 2007, Software engineering, 8th edn,

Addison-Wesley.

Van Lamsweerde, A 2001, 'Goal-oriented requirements

engineering: A guided tour', Proceedings of the 5th

IEEE International Symposium on Requirements,

IEEE Computer Society, Washington, DC, USA.

Yu, E 1995, 'Modeling strategic relationships for process

reengineering', PhD Thesis, University of Toronto.

Zave, P & Jackson, M 1997, 'Four dark corners of

requirements engineering', ACM Transactions on

Software Engineering and Methodology (TOSEM), vol

6, no. 1, pp. 1-30.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems
