WEB SERVICES DEPLOYMENT ON P2P NETWORKS, BASED ON

JXTA

Marco Pereira, Marco Fernandes, Joaquim Arnaldo Martins and Joaquim Sousa Pinto

IEETA - Instituto de Engenharia Electr

onica e Telem

atica de Aveiro, Universidade de Aveiro, Aveiro, Portugal

Keywords:

Peer-to-peer, Digital libraries, Service oriented architecture.

Abstract:

Digital libraries require several different services. A common way to provide services to Digital Libraries is

with the use of Web Services but Web Services are usually based on centralized architectures. In our work we

propose that Peer-to-peer networks can be used to relieve the weight of centralized components on the Digital

Library infrastructure. One of the challenges of this approach is to develop a method that allows the integration

of existing web services into this new reality. In this paper we propose the use of a proxy that allows exposing

Web Services that are only accessible trough the peer-to-peer network to the outside world. This proxy also

manages interactions with existing external Web Services making them appear as part of the network itself,

thus enabling us to reap the beneﬁts of both architectures.

1 INTRODUCTION

Digital libraries require several support services.

Such services are often created as web services that

live in a central server and are accessed when needed.

A failure in this central server can be catastrophic to

the digital library, and to counter this menace services

are often replicated. In this scenario service replica-

tion happens within the same organisation with mul-

tiple copies of each service being offered to counter

possible failures. Service discovery and selection is

critical in this types of environments.

In our previous paper (Pereira et al., 2009) we in-

troduced a peer-to-peer (P2P) network based on the

JXTA ((JXTA), 2009) framework that can be used to

support Digital Libraries. Our P2P approach can be

used in two complementary scenarios: to create a dis-

tributed digital repository and to provide support ser-

vices. The distributed repository scenario can be seen

as an application of traditional ﬁle-sharing paradigm.

Peers store content in a replicated fashion to create a

robust repository. The system automatically taps into

this redundancy to provide multi-source ﬁle trans-

fers that increase overall speed of transfer. One of

the problems that we face in the traditional ﬁle shar-

ing paradigm is that querying capacity is limited, of-

ten relying on carefully constructed ﬁle names. To

overcome this limitation we used an Apache Lucene

((ApacheLucene), 2009) based indexing system that

allowed us to conduct rich queries across the network.

Providing support services came as a natural exten-

sion of the distributed digital repository. Digital li-

braries need support services, for example to convert

images between formats. Support services are also re-

quired if instead of using the P2P digital repository as

a front line storage space we wish to use it as a digital

preservation mechanism. By giving each peer a set of

services we create an environment where our reposi-

tory can be adapted to serve multiple purposes. When

providing support services, tasks that can be run in

parallel at multiple nodes (such as converting a set

of ﬁles to a different format) can be done faster than

if they were performed in sequence in a single node,

even when counting with network transfer overhead.

On the other hand if we wish to conﬁgure our digital

repository to act as a distributed preservation system

we will need to provide services that, for example,

preserve the integrity of the stored content and pro-

vide audit trails. By distributing the services through-

out the nodes we were also able to reduce the depen-

dency on centralised services, since if one node is un-

reachable there are others that can perform the same

task.

To provide services to the P2P network we ini-

tially used the JXTA-SOAP (Amoretti, 2009) library.

These services use the JXTA protocol for transport in-

stead of the traditional HTTP. The choice of the web

services paradigm was based on its ubiquity and sim-

plicity. By providing a known paradigm we wanted to

shield developers of the complexity of the underlying

423

Pereira M., Fernandes M., Arnaldo Martins J. and Sousa Pinto J. (2010).

WEB SERVICES DEPLOYMENT ON P2P NETWORKS, BASED ON JXTA.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

423-427

DOI: 10.5220/0002872704230427

 SciTePress

P2P network. This objective was partially achieved:

while we were able to create web services they pos-

sessed a number of restrictions and requirements that

can be seen as breaking the web services approach.

We were also disregarding existing web services: in a

scenario where only one peer has access to an existing

web service it was not possible to expose that service

to the network without implementing a service spe-

ciﬁc proxy. Service speciﬁc proxies were also needed

to expose the services that existed inside the P2P net-

work as true web services. Given the perceived lim-

itations of our initial approach it was decided that a

complementary solution was needed. Instead of cre-

ating services that were limited in scope to the P2P

network we now aim more at using its infrastructure

for transport only. With this approach services will

live outside the P2P network, and will be true web

services, developed with any of the standard meth-

ods. The P2P network will be an alternative access

method. This approach will enable us to use within

the network existing web services, and the creation

and deployment of semantically equal services across

different peers, providing web service replication.

2 SERVICE DISCOVERY ON

JXTA BASED PEER-TO-PEER

NETWORK

Resource discovery in JXTA is based on the con-

cept of advertisement ((JXTA), 2007). An adver-

tisement is a small XML document with information

about a particular resource. Advertisements possess a

pre-determined lifetime, and if they are not renewed

within that lifetime they expire. JXTA uses adver-

tisements to describe its own resources (such as peers

or communication channels) and applications are en-

couraged to used them as well. Being such a central

concept in JXTA, the ﬁrst step to locate a resource in

the network is always to ﬁnd a corresponding adver-

tisement by querying the network (or the local cache).

JXTA provides an advertisement family (Mod-

ule advertisements) specially crafted to describe ser-

vice implementations. From this family JXTA-SOAP

uses the ModuleSpecAdvertisement to describe its ser-

vices. This advertisement type provides a ﬁeld (the

name ﬁeld) that can be used in queries. We choose

to place the web service namespace in this ﬁeld. In

XML namespaces are used to differentiate between

elements with the same name. We will take advantage

of this concept and extend it: in order to fully identify

a web service request we will need both the names-

pace and the method to be invoked. This is done be-

cause in the same namespace can reside several ser-

vices that do not possess the same methods. In the

non queryable ﬁeld (description) we can place sev-

eral XML elements that describe the methods avail-

able in the service. This implies that to discover a ser-

vice we must search by its namespace and then reﬁne

the results by analysing the description ﬁeld from the

matching advertisements. An important detail about

ModuleSpecAdvertisements is that they carry within

them a PipeAdvertisement. This PipeAdvertisement is

used to communicate with the service provider with-

out having to do any extra queries to the network.

This service discovery architecture type allows

that several peers provide access to the same service.

We can explore this feature in order to provide web

service replication: each peer can be running a lo-

cal copy of the web service instead of just providing

a gateway to the centralised version of the web ser-

vice. Each time we need to access a service a list

of peers that offer that service is generated. If the

service fails (because the peer is no longer available

or due to a network error) the next peer on the list

can be contacted in order to execute the request. A

side effect of this replication will be the need for ad-

vanced peer selection policies. It should also be noted

that different service types can have different require-

ments. Some might require readily available storage

space where others will require quick response time

with both cases requiring a distinct approach to peer

selection.

3 JXTA-SOAP BASED WEB

SERVICES

In our P2P network we started to provide services

with the use JXTA-SOAP. JXTA-SOAP can be seen

as an extension to Apache Axis and as such the stan-

dard procedures to create Axis services are applyable,

with some extra steps. JXTA-SOAP deals both with

Axis service lifecycle management and JXTA adver-

tisement creation. In order to create a service with

this library it is necessary to create a service descrip-

tor with information relevant to the P2P network. We

also felt the necessity of creating a standard interface

that each service must implement to allow access to

conﬁguration settings. Both the service descriptor and

the interface requirement can be seen as points where

the illusion of being creating a “regular” web service

is broken. Creating a client requires the creation of

a service Call provided by JXTA-SOAP. This service

call is constructed from a ModuleSpecAdvertisement,

and it must be explicitly retreived from the P2P net-

work by the creator of the web service client. As an

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

424

aditional requirement we choose to force the imple-

mentation of a standardised interface to implement a

plug-in architecture for clients. Such requirements

also contribute to break the web services facade we

were striving to maintain.

We must admit that such facade breaking compro-

mises are to be expected when dealing with a library

that creates services within the P2P network. Initially

we were willing to cope with the requirements of the

JXTA-SOAP library (and our own) but we soon found

out the limitations of this strategy: No support for at-

tachments and no support for existing services. With-

out support for the use of attachments it becomes dif-

ﬁcult to handle large sets of binary data. Image for-

mat conversion services that we used as example in

our previous work suffered from a maximum image

size limit. This limitation can be circumvented by the

use of an external transmission mechanism, although

this is not a desired solution. The lack of support for

using existing web services is the major ﬂaw of this

approach. JXTA-SOAP main focus is the creation and

deployement of services within the P2P network, and

as such access to external services would have to be

provided with the use of a service speciﬁc proxy, that

would then be represented as a JXTA-SOAP based

service. This is a combersome approach that defeats

one of the goals that made us choose the web services

paradigm (developer familiarity). As such it is clear

that we needed a complementary approach to web ser-

vices.

4 PROVIDING ACCESS TO

EXTERNAL WEB SERVICES

Instead of creating our services inside the P2P net-

work we decided that it would be better if we created

regular web services. Developers should be able to

design new services exactly as they have done before

without having to worry about implementing speciﬁc

interfaces to allow the network to be service-aware.

Instead we will take onto our own hands the task

of creating an advertisement (also based on Module-

SpecAdvertisement) that describes the external web

service. When we wish to add a service to the net-

work we need three vital pieces of information: the

service namespace, methods and address. From that

information we can compose an advertisement that

will identify the service. Two distinct peers can now

deploy their copy of the service in their own applica-

tion server, and when notiﬁed the network will gener-

ate advertisements for each service. If they share the

same namespace and method collection they will be

recognised as the same service, even though the ad-

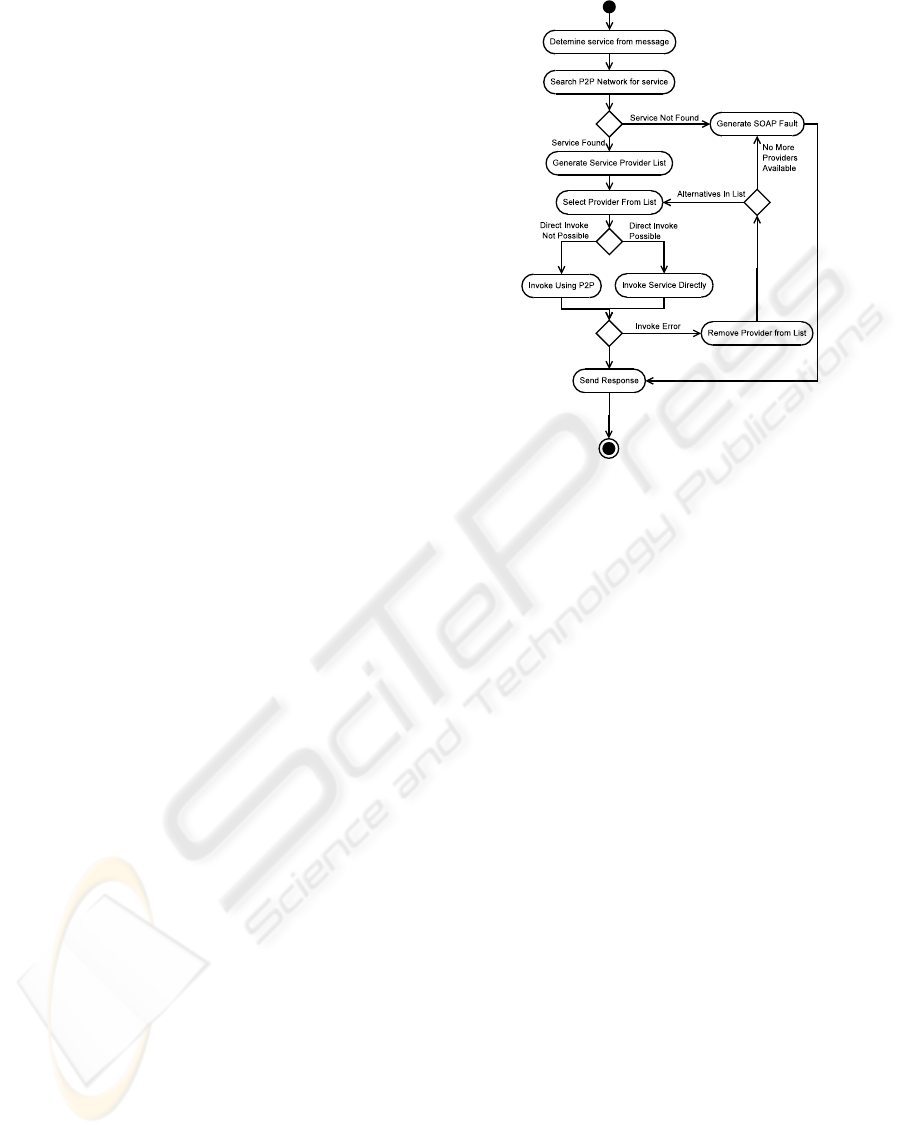

Figure 1: Decision model.

vertisement will contain a different random generated

ID and the peer speciﬁc PipeAdvertisement.

To maintain the web services paradigm, web

services clients must be created in the traditional

way, thus preserving compatibility with standard tools

provided to generate web services clients from the

WSDL of the service. To support this goal a transpar-

ent web services proxy was created. Each peer can be

conﬁgured to provide a small HTTP server whose sole

responsability is to capture SOAP messages. SOAP

messages have the necessary information to allow a

service to be located in the network: namespace and

method. With this information a peer can search the

network for a corresponding service and generate a

list of potential service providers. This strategy will

transform every peer that provides the service proxy

into a gateway to the network, but will require ser-

vice requests to be directed to the proxy. As was

stated before most client generating tools only require

a service WSDL to generate a client. Accordingly to

the W3C, WSDL is “an XML-based language for de-

scribing web services and how to access them”. This

description points out what we need to know in order

to divert a web service to our P2P network: we need

to know how to access it. The key element here is

the <soap:address> element of a binding. By alter-

ing the attribute location of this element we can divert

any request to our web-services proxy.

As for the actual invocation two strategies can be

applied: deferred contact and direct contact. The de-

cision to use one or another contact method is illus-

trated in Figure 1. The crucial part of this model is

WEB SERVICES DEPLOYMENT ON P2P NETWORKS, BASED ON JXTA

425

how to determine if a given service is directly acces-

sible or not. To do this we need to resolve the ser-

vice address. If we succeed it indicates that a direct

connection is available. Failure to resolve the address

has two possible meanings: either the service is only

available through the P2P network or the provider is

no longer available. Since both failure types are indis-

tinguishable we assume that the service will be avail-

able from the same provider through the use of the

P2P network (deferred contact strategy), dealing with

the possibility of the provider no longer being avail-

able as part of that strategy. When confronted with

a invoke error we choose another provider from the

potential service providers list, removing the one that

failed from it.

4.1 Direct Contact

When a service is directly accessible from the web

services proxy there is no need to take the extra step

of sending the SOAP message trough the P2P network

so that the peer can locally invoke the service. After

choosing a peer we will have access to the address

where the service resides. With this information and

with the use of the SOAP with Attachments API for

Java (SAAJ) ((SAAJ), 2009) we can send the SOAP

message directly to the intended service via HTTP

protocol. From the same library we can then obtain

the raw SOAP reply that the service sent thus allow-

ing us to redirect it back to the original calling peer.

This process is illustrated in Figure 2 by the solid lines

(that represent operations common to both scenarios)

and by the dotted line.

4.2 Deferred Contact

Although a service is listed on the P2P network, it

may not be accessible directly by conventional means.

This applies to machines that only allow access to the

services for example from the localhost. To overcome

this limitation it is possible to transfer the SOAP mes-

sage to the peer that is actually running the service

via JXTA-based transport. The message must be seg-

mented into chunks that offer guaranties that will not

be too large to be transported by JXTA. When in pos-

session of the complete SOAP message then the peer

can locally invoke the service, and return the gener-

ated SOAP message back to the calling peer. To ﬁ-

nalise the process the message is returned to the orig-

inal caller via HTTP response. This process is illus-

trated in Figure 2 by the solid lines (that represent op-

erations common to both scenarios) and by the dashed

lines.

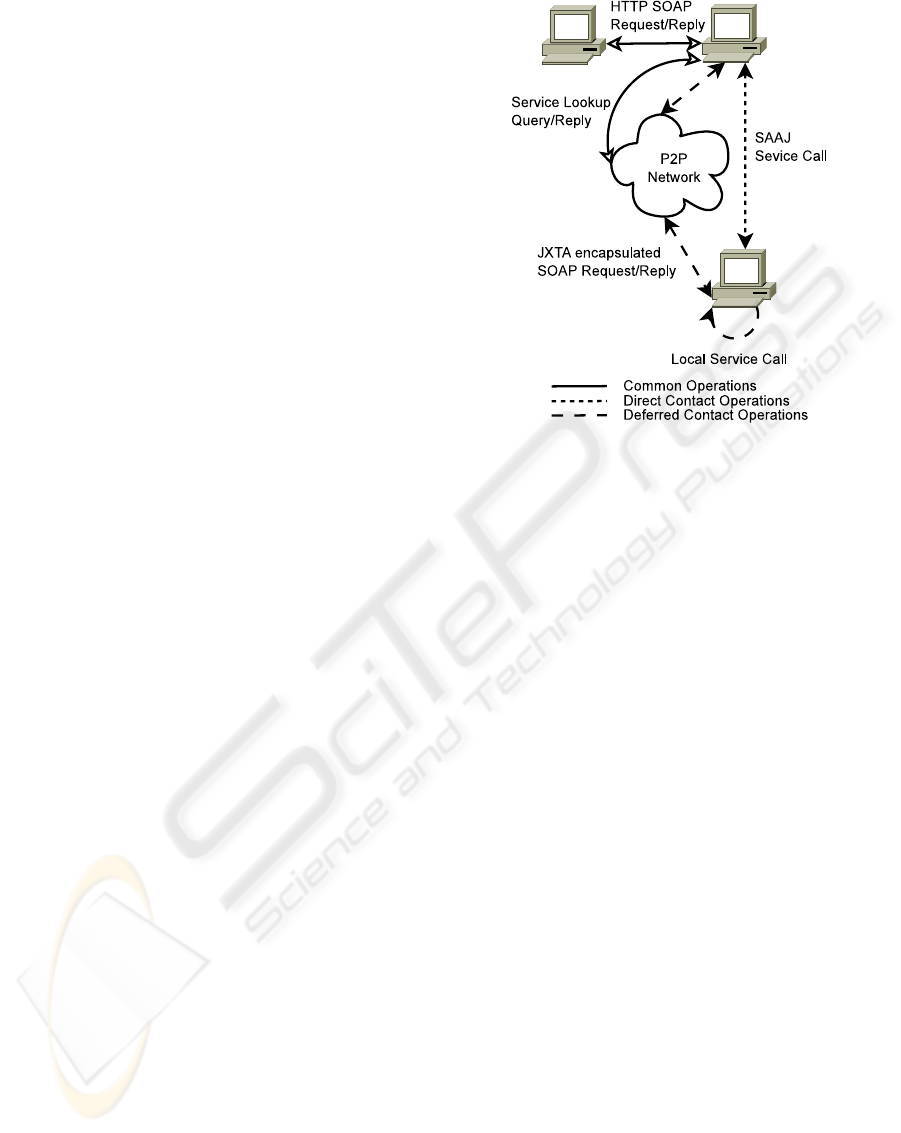

Figure 2: Direct contact and deferred contact.

5 RELATED WORK

Pure JXTA services are the native approach to ser-

vices deployment on JXTA based networks, thus con-

sciously exposing the underlying P2P structure. This

makes the approach suitable for internal network ser-

vices but difﬁcult to expose to the outside.

A JXTA based P2P web services composition

platform is introduced in (Zhengdong et al., 2009).

Semantic web services descriptions based on OWL-

S are distributed trough the peers. When the need

arises to perform a given task these descriptions are

looked up and composed into a new service described

in BPEL4WS format. This service must then be man-

ually integrated in the application that requires it.

An alternative approach to service replication can

be found on the form of SmartWS system (Jr. et al.,

2007). This system experiments with several server

selection policies in order to provide optimal perfor-

mance. This system relies on the creation of smart

proxies that intercept web service calls and select a

service provider. Unlike our approach this is done

on the client side, and at the time of the creation of

the smart proxy it must know all the available service

providers thus ignoring new providers that might ap-

pear after its creation.

6 FUTURE WORK

An interesting path of research would be the inclu-

sion of semantic aspects into the service discovery

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

426

mechanism. Traditional WSDL only provide a syn-

tactic description of the service. If a semantic de-

scription was used (with the introduction where pos-

sible of WSDL-S or OWL-S for example) it would

be possible to construct a semantic discovery mech-

anism that would allow more reﬁned queries. The

ultimate goal of this improved discovery mechanism

would be to create a scenario where it would be possi-

ble to swap a faulty service for a semantically equiva-

lent service (or a combination of services) that reside

in a different namespace all in an automated way (a

similar approach can be seen in PANIC (Hunter and

Choudhury, 2006)). The semantic description could

also be used to aid peer selection process to choose

between peers offering the exact same service by ap-

plying an appropriate peer selection algorithm based

on the service requirements. For example if the re-

quested service was a storage service it would beneﬁt

to be performed by a peer that has more available stor-

age space instead of one that offers more processing

power, leading to a more rational use of the available

hardware resources. It should be noted that having

advanced peer/service selection algorithms is of the

utmost importance to achieve performance gains and

is an important research topic (Xhafa et al., 2009),

(Mendonc¸a and Silva, 2005), (Dykes et al., 2000).

A critical component to the performance of the

system is the list of available providers. At this time

the list is generated dynamically each time a service

is requested. A possible improvement to the sys-

tem could be the introduction of a caching mecha-

nism. This would increase system performance for

frequently requested services. In this scenario peers

should not be permanently removed from the provider

list, instead they should be temporarily blacklisted

and moved to the bottom of the provider list. The time

that a peer is blacklisted should increase when we ex-

perience repeated failures, thus implying some sort of

failure counter. It is important to note that the counter

must be eventually be decreased in order to prevent

lasting impacts that a past transient network failure

might have provoked. The caching mechanism would

also need to be refreshed periodically to allow newly

discovered peers to join already created lists. Careful

tuning of when to perform a refresh and how to in-

crease and decrease the failure counter will be the key

to further performance gains.

ACKNOWLEDGEMENTS

This work was funded in part by the Portuguese

Foundation for Science and Technology grants

SFRH/BD/23976/2005 and GRID/GRI/81872/2006.

REFERENCES

Amoretti, M. (2009). Jxta-soap project.

(ApacheLucene) (2009). Apache lucene. http://lucene.

apache.org/java/docs/index.html.

Dykes, S., Robbins, K., and Jeffery, C. (2000). An em-

pirical evaluation of client-side server selection algo-

rithms. In INFOCOM 2000. Nineteenth Annual Joint

Conference of the IEEE Computer and Communica-

tions Societies. Proceedings. IEEE, volume 3, pages

1361–1370 vol.3.

Hunter, J. and Choudhury, S. (2006). Panic: an integrated

approach to the preservation of composite digital ob-

jects using semantic web services. Int. J. Digit. Libr.,

6(2):174–183.

Jr., J. G. R., do Carmo, G. T., Valente, M. T., and Mendonc¸a,

N. C. (2007). Smart proxies for accessing repli-

cated web services. IEEE Distributed Systems Online,

8(12).

(JXTA) (2007). Jxta v2.0 protocol speciﬁcation. https://

jxta-spec.dev.java.net/.

(JXTA) (2009). Jxta homepage. https://jxta.dev.java.net/.

Mendonc¸a, N. C. and Silva, J. A. F. (2005). An empiri-

cal evaluation of client-side server selection policies

for accessing replicated web services. In SAC ’05:

Proceedings of the 2005 ACM symposium on Applied

computing, pages 1704–1708, New York, NY, USA.

ACM.

Pereira, M., Fernandes, M., Martins, J. A., and Pinto, J. S.

(2009). Service oriented p2p networks for digital li-

braries, based on jxta. In Shishkov, B., Cordeiro, J.,

and Ranchordas, A., editors, ICSOFT (2), pages 141–

146. INSTICC Press.

(SAAJ) (2009). The soap with attachments api for java.

https://saaj.dev.java.net/.

Xhafa, F., Barolli, L., Daradoumis, T., Fern

andez, R., and

Caball

e, S. (2009). Jxta-overlay: An interface for ef-

ﬁcient peer selection in p2p jxta-based systems. Com-

put. Stand. Interfaces, 31(5):886–893.

Zhengdong, Z., Yahong, H., Ronggui, L., Weiguo, W., and

Zengzhi, L. (2009). A p2p-based semantic web ser-

vices composition architecture. In e-Business Engi-

neering, 2009. ICEBE ’09. IEEE International Con-

ference on, pages 403 –408.

WEB SERVICES DEPLOYMENT ON P2P NETWORKS, BASED ON JXTA

427
