INTEGRATION OF REPOSITORIES IN ELEARNING SYSTEMS

José Paulo Leal

and Ricardo Queirós

CRACS/INESC & DCC/FCUP, University of Porto, Porto, Portugal

CRACS/INESC & DI/ESEIG/IPP, Porto, Portugal

Keywords: eLearning, Repositories, Learning Objects, LMS, Interoperability.

Abstract: The wide acceptance of digital repositories today in the eLearning field raises several interoperability issues.

In this paper we present the interoperability features of a service oriented repository of learning objects

called crimsonHex. These features are compliant with the existing standards and we propose extensions to

the IMS interoperability recommendation, adding new functions, formalizing message interchange and

providing also a REST interface. To validate the proposed extensions and its implementation in crimsonHex

we developed a repository plugin for Moodle 2.0 that is expected to be included in the next release of this

popular learning management system.

1 INTRODUCTION

In recent years several initiatives to integrate

eLearning systems have emerged. The goal of these

initiatives, such as specifications and frameworks, is

to facilitate the integration between heterogeneous

systems. Learning objects (LO) are the corner stone

of interoperability in pedagogical eLearning

systems, thus the integration of repositories of LOs

is particular important in this context.

This paper builds upon previous work (Leal,

2009) on the design and implementation of

crimsonHex - a service oriented repository of LOs.

The repository provides standard compliant

repository services to a broad range of eLearning

systems, exposing its functions using two alternative

web services flavours. In this paper we highlight the

interoperability features of crimsonHex. For sake of

standard compliance these features are based on IMS

Digital Repositories Interoperability (DRI)

specification (DRI, 2003). Our experience in using

these recommendations lead us to propose

extensions to its set of functions and to the XML

binding that currently lacks a formal definition. To

evaluate the proposed extensions to the IMS DRI

specification and its implementation in the

crimsonHex repository, we developed a crimsonHex

plugin for the 2.0 release of the popular Moodle

LMS. Moodle 2.0 users will be able to download

LOs from crimsonHex repositories since this LMS is

expected to include the plugin described in this pa-

per in its distribution.

The remainder of this paper is organized as

follows: Section 2 traces the evolution of eLearning

systems with emphasis on the existing repositories.

In the following section we introduce the

crimsonHex repository and its application interfaces.

Then, we provide basic implementation details of a

crimsonHex plugin for Moodle 2.0 using the

proposed IMS DRI extensions. Finally, we conclude

with a summary of the main contributions of this

work and a perspective of future research.

2 LEARNING OBJECTS

REPOSITORIES

A learning object is a digital, self-contained,

reusable unit to support learning (Beck, 2008). A

learning object can be as small as a single image or

as large as a complete online course and usually

comes in the form of HTML/PDF files, Flash,

QuickTime movies and others (Casey, 2007).

Usually, they are described with standard metadata,

packaged and stored in digital repositories to be

easily searchable. The need for this kind of

repositories is growing as more educators are eager

to (re)use digital educational contents and more of it

is available.

A repository of LOs can be defined as a ‘system

that stores electronic objects and meta-data about

those objects’ (Holden, 2004). There are several

127

Leal J. and Queirós R. (2010).

INTEGRATION OF REPOSITORIES IN ELEARNING SYSTEMS.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

127-132

DOI: 10.5220/0002875001270132

 SciTePress

online repositories or collections of LOs worldwide

(e.g. MERLOT, Wisc-Online). The Jorum Team

made a comprehensive survey (JORUM, 2006) of

the existing repositories and noticed that most of

these systems do not store actual LOs. They just

store metadata describing LOs, including pointers to

their locations on the Web, and sometimes these

pointers are dangling.

The repositories usually offer several features

including upload/download, single/federated search,

comment/review and collection management.

Despite these features, existent repositories present

integration and interoperability issues. For example,

the LOs in the previously cited repositories must be

manually imported into an LMS. An evaluation

engine (EE) cannot query the repository and

automatically import the LOs it needs. In summary,

most of the current repositories are specialized

search engines of LOs and not adequate for

interoperating with other eLearning systems, such as

an automatic evaluation engine.

Surveys (Holden, 2004) show that users are very

concerned with interoperability issues. Some major

interoperability efforts (Hatala, 2004) were made in

eLearning, such as NSDL, POOL, EduSource and

IMS DRI. The IMS DRI specification was created

by the IMS Global Learning Consortium (IMS GLC)

and provides a functional architecture and reference

model for repository interoperability. The IMS DRI

provides recommendations for common repository

functions, namely the submission, search and

download of LOs. It recommends the use of web

services to expose the repository functions based on

the Simple Object Access Protocol (SOAP, 2007).

3 CRIMSONHEX REPOSITORY

In this section we introduce the crimsonHex

repository and we present its application interface

(API) used both internally and externally. Internally

the API links the main components of the repository.

Externally the API exposes the functions of the

repository to third party systems. To promote the

integration with other eLearning systems, the API of

the repository adheres to the IMS DRI specification.

The IMS DRI specifies a set of core functions and

an XML binding for these functions. In the

definition of API of crimsonHex we needed to create

new functions and to extend the XML binding with a

Response Specification language. The complete set

of functions of the API and the extension to the

XML binding are both detailed in this section.

3.1 Architecture

The architecture of the crimsonHex repository relies

on an API where the repository exposes a set of

functions implemented by a core component that

was designed for efficiency and reliability. All other

features are relegated to auxiliary components,

connected to the central component using this API.

Other eLearning systems can be plugged into the

repository using also this API. Thus, the architecture

of crimsonHex repository is based on the Core

component that exposes the main features of the

repository, both to external services, such as the

LMS and the EE, and to internal components - the

Web Manager and the Importer. In the remainder we

focus on the Core component, more precisely, its

API and we introduce a new language for message

interchange.

3.2 Applications Interface

The IMS DRI recommends exposing the functions

as SOAP web services. Although not explicitly

recommended, other web service interfaces may be

used, such as the Representational State Transfer

(REST) (Fielding, 2000). We chose to expose the

repository functions in these two distinct flavours.

SOAP web services are usually action oriented,

especially when used in Remote Procedure Call

(RPC) mode and implemented by an off-the-shelf

SOAP engine such as Axis. REST web services are

object (resource) oriented and implemented directly

over the HTTP protocol, mostly to put and get

resources. The reason to provide two distinct web

service flavours is to encourage the use of the

repository by developers with different

interoperability requirements. A system requiring a

formal an explicit definition of the API in Web

Services Description Language, to use automated

tools to create stubs, will select the SOAP flavour. A

lightweight system seeking a small memory

footprint at the expense of a less formal definition of

the API will select the REST flavour. The repository

functions exposed by the Core are summarized in

Table 1.

Each function is associated with the corresponding

operations in both SOAP and REST. The lines

formatted in italics correspond to the new functions

added to the DRI specification, to improve the

repository communication with other eLearning

systems.

To describe the responses generated by the

repository we defined a Response Specification as a

new XML document type formalized in XML Sche-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

128

Table 1: Core functions of the repository.

Function SOAP REST

Reserve XML getNextId(URL colectionl)

GET URL?nextId > URL

Submit XML submit(URL loid, LO lo)

PUT URL < LO

Request LO retrieve(URL loid)

GET URL > LO

Search XML search(XQuery query)

POST URL < XQUERY > XML

GET URL?name1=value1&…> XML

Alert RSS getUpdates()

GET URL?alert+seconds > RSS

Report XML Report(URL loid,Report rp)

PUT URL < LOREPORT

Create XML Create(URL collection)

PUT URL

Remove XML Remove(URL collection)

DELETE URL

Status XML getStatus()

GET URL?status > XML

ma. The advantage of this approach is to enable

client systems to achieve more information from the

server and be able to standardize the parsing and

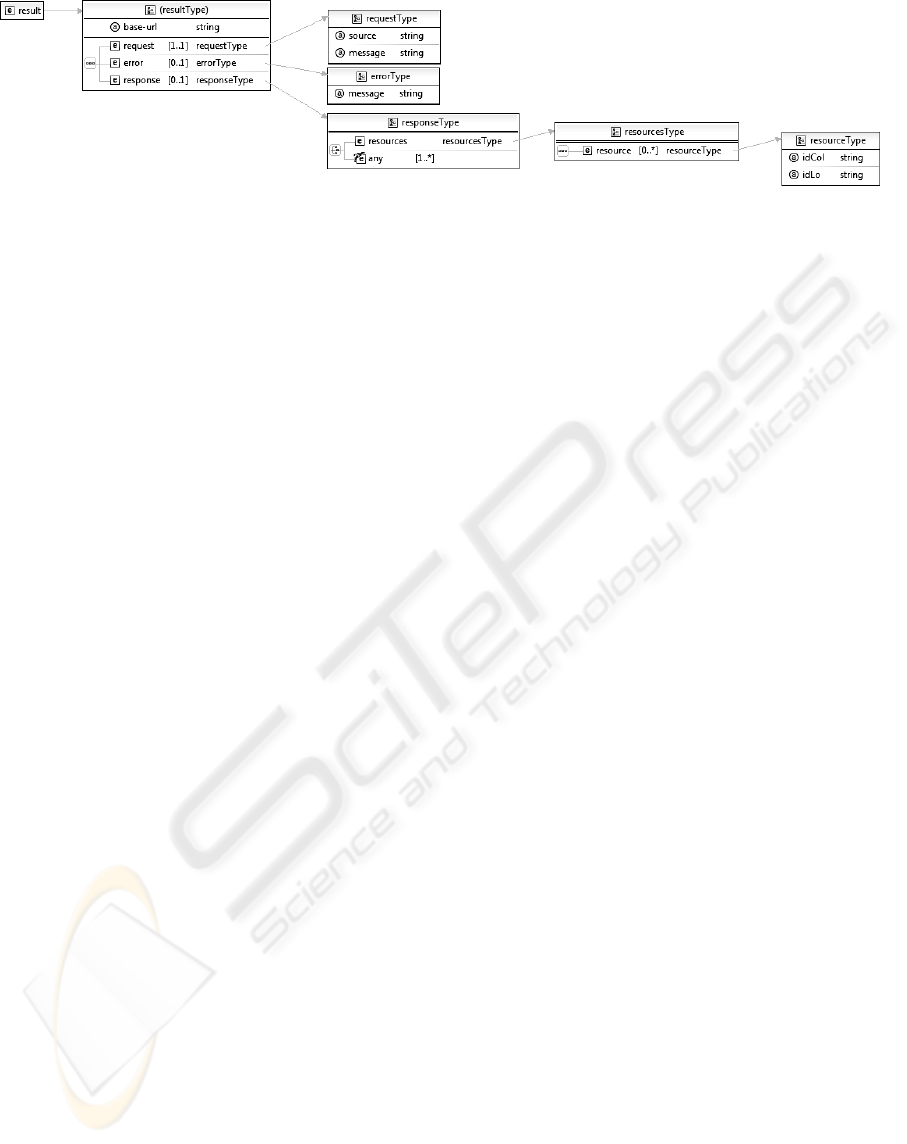

validation of the HTTP responses. Figure 1 depicts

the elements of the new language and their types.

The schema defines two top level elements:

result and rss. The former will be used by all the

functions except the Alert function that returns a

feed compliant with the Really Simple Syndication

(RSS) 2.0 specification. The

result element

contains the following child components:



base-url attribute, defining a base URL for

the relative URLs in the response;



request element, containing the full request

URL and an human readable request message;



error element, containing an error message -

client systems will search for this element to verify

the existence of errors;



response element, describing a successful

execution of the function - it’s composed by an

human readable response message and, for some

functions, by a

resources element that groups a set

of resources defined individually in

resource

elements.

resource element contains an identification

of the collection absolute path (attribute

idCol) and

an identification of the LO itself (attribute

idLo).

In the remainder of this section we enumerate the

Core functions of the repository, describing both the

request and response data. For sake of simplicity we

illustrate the requests using the REST interface since

these can be used as command lines in a Linux

system shell.

The Register/Reserve function requests a unique

ID from the repository. We separated this function

from Submit/Store in order to allow the inclusion of

the ID in the meta-data of the LO itself. This ID is

an URL that must be used for submitting or

retrieving an LO. The producer may use this URL as

an ID with the guarantee of its uniqueness and with

the advantage of being a network location from

where the LO can be downloaded.

This action is performed by sending a GET

HTTP request to the server, as in the next example.

GET http://server/ch/lo?nextId > URL

The HTTP response includes an XML file

complying with the Response Specification and

containing all the details of the response generated

by the Core. Nevertheless, in this particular function

and for convenience of programmers using REST,

the HTTP Location header contains the URL

returned by the server.

Location: http://server/ch/lo/3

The Submit/Store function uploads an LO to a

repository and makes it available for future access.

This operation receives as argument an IMS CP

compliant file and an URL generated by the Reserve

function. This operation validates the LO conformity

to the IMS Package Conformance and stores the LO

in the internal database. To send the LO to the server

we could use, in the REST flavour, the PUT or the

POST HTTP methods. An example using the POST

syntax is the following.

POST http://server/ch/lo/3 < LO

The repository responds with submission status

data compliant with the Response Specification.

The Search/Expose function enables the eLearning

systems to query the repository using the XQuery

language, as recommended by the IMS DRI. This

approach gives more flexibility to the client systems

to perform any queries supported by the repository's

data. To write queries in XQuery the programmers

of the client systems need to know the repository's

database schema. These queries are based on both

the LO manifest and its usage reports, and can

combine the two document types.

INTEGRATION OF REPOSITORIES IN ELEARNING SYSTEMS

129

Figure 1: Response specification schema.

The client developer needs also to know that the

database is structured in collections. A collection is a

kind of a folder containing several resources and

sub-folders. From the XQuery point of view the

database is a collection of manifest files. For each

manifest file there is a nested collection containing

the usage reports. As an example of a simple search,

suppose you want to find all the titles of LOs in the

root collection whose author is Manzoor. The

XQuery file would contain the data.

declare namespace imsmd = “http://...”;

for $p in //imsmd:lom

where contains($p//imsmd:author,’Manzoor’)

return $p//imsmd:title//text()

After creating the XQuery file you can use the

following POST request.

POST http://server/ch/lo < XQUERY

Alternatively, you can use a GET request with

the searched fields and respective values as part of

the URL query string, as in the following example.

GET http://server/ch/lo?author=Manzoor

Queries using the GET method are convenient

for simple cases but for complex queries the

programmer must resort to the use of XQuery and

the POST method. In both approaches the result is a

valid XML document such as the following.

<request

source="http://server/ch/lo/"

message="Querying repository" />

Hashmat the Brave Warrior

</resource>

Summation of Four Primes

</resource>

InCircle

</resource>

</resources>

</response>

</result>

The Report/Store function associates a usage

report to an existing LO. This function is invoked by

the LMS to submit a final report, summarizing the

use of an LO by a single student. This report

includes both general data on the student's attempt to

solve the programming exercise (e.g. data, number

of evaluations, success) and particular data on the

student’s characteristics (e.g. gender, age,

instructional level). With this data, the LMS will be

able to dynamically generate presentation orders

based on previous uses of LO, instead of fixed

presentation orders. This function is an extension of

the IMS DRI.

The Alert/Expose function notifies users of

changes in the state of the repository using a RSS

feed. With this option a user can have up-to-date

information through a feed reader. Next, we present

an example of a GET HTTP request.

GET http://server/ch/lo?alert+seconds > RSS

The repository responds with an RSS document.

The Create function adds new collections to the

repository. To invoke this function in the REST

interface the programmer must use the PUT request

method of HTTP. The only parameter is the URL of

the collection.

PUT http://server/ch/lo/newCol

The following is an example of the repository

response to a create function.

<request

source="http://server/ch/lo/newCol"

message="Creating new collection" />

</response>

</result>

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

130

The Remove function removes an existent

collection or learning object. This function uses the

DELETE request method of HTTP. The only

parameter is an URL identifying the collection or

LO, as in the following example.

DELETE http://server/ch/lo/123

The following is an example of the repository

response to a remove function.

<request

source="http://server/ch/lo/123"

message="Deleting a LO" />

</response>

</result>

The Status function returns a general status of the

repository, including versions of the components,

their capabilities and statistics. This function uses

the GET request method of HTTP, as in the

following example.

GET http://server/ch/lo?status

The repository responds with status data

compliant with the Response Schema Specification.

4 INTEGRATION WITH

MOODLE

To validate the interoperability features of the

crimsonHex repository we integrated it with

Moodle, arguably the most popular LMS nowadays.

In this section we present the new APIs for Moodle

2.0 plugins and we provide basic implementation

details of a plugin for crimsonHex repositories.

The development of this plugin was

straightforward. In terms of programming effort we

spent half a day to produce approximately 100 new

lines of code. This quick and simple integration

benefited from the new interoperability features of

the repository.

The beta version of Moodle 2.0 is due in

February 2010 and will include support for different

types of repositories. Several API are already

available to enable the development of plugins by

third parties, including:

File API for managing internal repositories;

Repository API for browsing and retrieving files

from external repositories;

Portfolio API for exporting Moodle content to

external repositories.

We chose the Repository API for testing the

integration features of the crimsonHex repository in

Moodle. The goal of this particular API is to support

the development of plugins to import content from

external repositories. The Repository API is

organized in two parts: Administration, for

administrators to configure their repositories, and;

File picker, for teachers to interact with the available

repositories. Each with its own graphical user

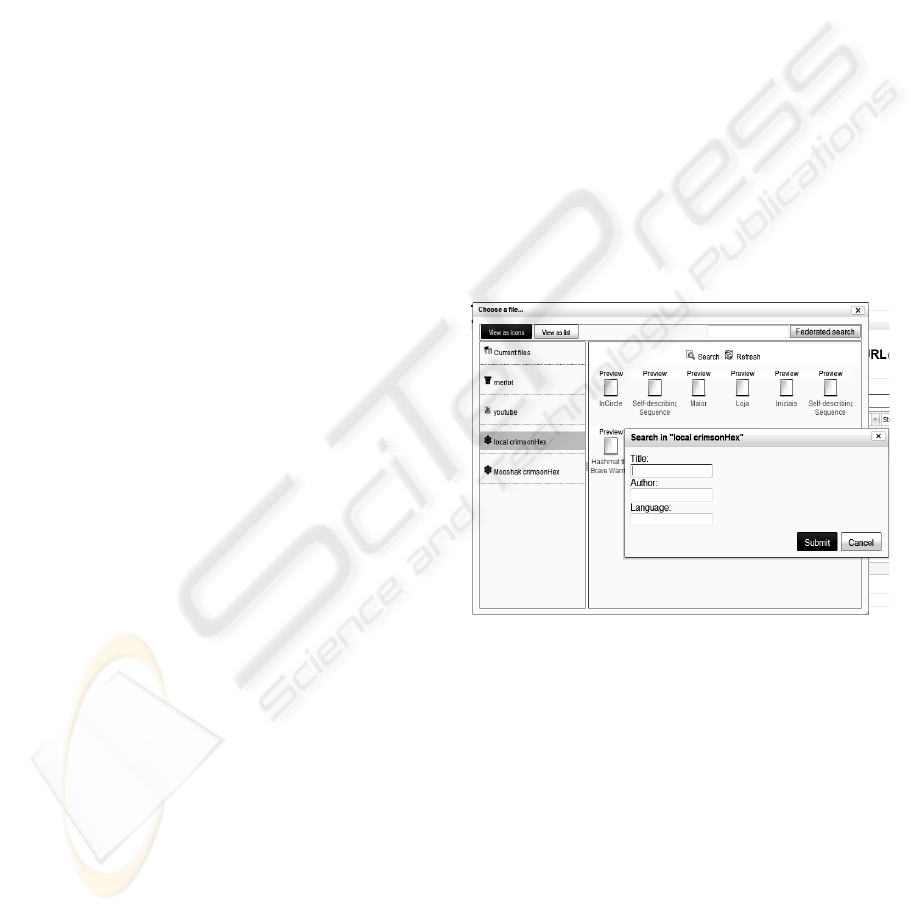

interface (GUI). In Figure 2 we present the file

picker GUI of the crimsonHex plugin. On the left

panel are listed the available repositories as defined

by the administrator. Two crimsonHex repository

instances are marked with label 1. Label 2 marks the

default listing of the selected repository. Pressing the

“Preview” link marked with 3 presents a preview of

the respective LO. Pressing the “Search” link pops-

up a simple search form, marked as 4 in Figure 2.

For federated search in all available crimsonHex

repositories is used the text box marked as 5.



















Figure 2: crimsonHex plugin interface.

5 CONCLUSIONS AND FUTURE

WORK

In this paper we present the interoperability features

of crimsonHex - a repository of learning objects.

These features were designed based on the IMS

Digital Repository Interoperability and we propose

several extensions to this specification. These

extensions include new functions and a formal

definition of a response specification for the

complete function set. To evaluate the proposed

extensions we implemented a plugin for 2.0 release

INTEGRATION OF REPOSITORIES IN ELEARNING SYSTEMS

131

of Moodle that uses the new interoperability features

of crimsonHex.

The main contributions of this work are the

proposed extensions to the IMS DRI specification,

the improved interoperability features and a plugin

to be included in the Moodle 2.0 distribution. The

improved interoperability of crimsonHex is expected

to support the development of new eLearning tools

requiring greater interoperability with repositories.

The repository plugin will facilitate the use of

crimsonHex by Moodle users. In its current status

crimsonHex is available for test and download at the

site of the project (crimsonHex, 2009).

Adding authoring features to the crimsonHex is

the next step in this research. Creating LOs with

metadata of good quality is a challenge since the

typical author of eLearning content usually lacks the

knowledge of metadata standards. This is also an

interoperability issue since the LMS is where

eLearning content is tested and used in first place

but repositories are the appropriate place to promote

content reuse as LOs. We plan to continue using

Moodle's repository APIs for that purpose, in

particular the Portfolio API. A plugin using this API

will enable the content author to upload learning

content to crimsonHex and create a new LO with the

essential metadata. Them, using the authoring

features of crimsonHex, the content author will be

assisted in refining the LO metadata.

REFERENCES

Leal, J. P., Queirós, R., 2009. CrimsonHex: a Service

Oriented Repository of Specialised Learning Objects.

In: ICEIS 2009: 11th International Conference on

Enterprise Information Systems, Milan.

IMS DRI - IMS Digital Repositories Interoperability,

2003. Core Functions Information Model, URL:

http://www.imsglobal.org/digitalrepositories.

Beck, Robert J., 2008. What Are Learning Objects?

Learning Objects, Center for International Education,

University of Wisconsin-Milwaukee.

Casey, J., McAlpine, M., 2007. Writing and Using

Reusable Educational Materials - A Beginners Guide.

CETIS Educational Content Special Interest Group.

URL: http://zope.cetis.ac.uk/educational-content/.

Holden, C., 2004. What We Mean When We Say

“Repositories” User Expectations of Repository

Systems. In: Academic ADL Co-Lab.

JORUM team, 2006. E-Learning Repository Systems

Research Watch. Technical report.

Hatala, M., Richards, G., Eap, T., Willms, J., 2004. The

EduSource Communication Language: Implementing

Open Network for Learning Repositories and Services.

In: ACM symposium on Applied computing.

SOAP (Simple Object Access Protocol), Version 1.2,

2007. Part 0: Primer, 2

edition. URL:

http://www.w3.org/TR/2007/REC-soap12-part0-

20070427/.

Fielding, R., 2000. Architectural Styles and the Design of

Network-based Software Architectures, Phd

dissertation. URL: http://www.ics.uci.edu/~fielding

/pubs/dissertation/rest_arch_style.htm.

crimsonHex – project web site, 2009. URL:

http://www.dcc.fc.up.pt/crimsonHex.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

132
