REUSING APPROACH FOR SOFTWARE PROCESSES
BASED ON SOFTWARE ARCHITECTURES
Fadila Aoussat, Mohamed Ahmed Nacer
Department of Computer Science, Saad Dahlab Blida University, BP270, Route Soumaa, Blida, Algeria
Department of Electronique and Computer Science, University of Sciences and Technology Houari Boumediène
BP32, ElAlia, BabEzzoua, Algeria
Mourad Oussalah
LINA Laboratoy, University of Nantes, CNRS UMR 6241, 2, Rue de la Houssinière, BP 92208, 44322, Nantes, France
Keywords: Reuse based component, Software processes domain ontology, SPEM metamodel, Software architecture
concepts.
Abstract: Capitalizing and reusing the knowledge in the field of software process engineering is the objective of this
work. In order to ensure a high quality for software process models, regarding to the specific needs of new
development techniques and methods, we propose an approach based on two essential points: The
Capitalization of the knowledge through a domain ontology, and the reusing of this knowledge across
handling software process models as software architectures.
1 INTRODUCTION
The fast growth of technology and development
tools added to the continuous change of
development practices and traditions (component-
oriented development, pair programming,...), often
suggests new methods and new development
processes (UP, XP, 2TUP.... ). Modeling software
processes with high-quality requires experience and
a confirmed expertise, regarding years of reflexion
and refinement. Reusing software processes that
have been previously developed, tested, used and
that have proven their efficiency is the main
objective of our work.
Several approaches for modeling software
processes based components have been proposed
(Gary,1998),(Avrilionis,1998),(Dami,1998),
(Hiltomi,1996),(Thu,2000), (Drai,2008), (Belkhatir,
1996), Most of these approaches use the concept of
"Component Software Process" described as a
fragment or a part of a software process. However,
as reusing components approaches, each approach
offers its own solution, addressing a particular
aspect of modeling and executing software
processes.
The major weakness of these approaches is that
the developed software process components are
specific to the environment; the use of the software
process components is limited to the environment
itself. Indeed, these environments operate
independently and do not reuse software process
components developed in other environments. In the
same context of reuse scope, the concept of software
process component On The Shelf "ready for use” has
not yet appeared; so the immaturity and newness of
this area is a logical justification for this work.
Based on the richness of the field in terms of
concepts and experiences, as well as the limitation of
existing approaches (software processes components
weakly reusable, architectural abstraction not taken
into account), we propose a new approach that has
as main goal to expand and to facilitate a relevant
reuse of software process models in term of
knowledge. Our solution is based on the use of a
domain ontology which capitalizes this knowledge
to allow an inference of new software process
models. By focusing on the architectural abstraction
and addressing the software process as pure software
architecture, solutions can be proposed for more
efficient reuse. Therefore, the software processes
that we develop are software processes based on
366
Aoussat F., Ahmed Nacer M. and Oussalah M. (2010).
REUSING APPROACH FOR SOFTWARE PROCESSES BASED ON SOFTWARE ARCHITECTURES.
In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages
366-369
DOI: 10.5220/0002876103660369
Copyright
c
 SciTePress

Table1: Approach oriented object characteristics.
Component Characteristics
Environment
RHODES
Framework OPC PYNODE ENDEAVORS APEL
Creating period Before the reuse During the reuse During the reuse
Adapted during the
execution.
Before the reuse
Processes Modeling
Language(PML)
PBOOL+ (Object
oriented)
Object oriented
languages
Object oriented
languages
ObjV based OOP
LISP
Not specific language.
Heterogeneity Homogeneous Syntaxic Syntaxic Homogeneous Syntaxic/Semantic
Assembling Static
Dynamic and
Incremental.
Dynamic and
Incremental.
Static No assembling
Metamodel
Use all concepts of the metamodel
SPEM
Basic elements
(role/activity/artifact)
Basic elements Basic elements
Basic elements (activity,
resource artifact)
Executing plateformes Same platform Same platform Same platform Multiple Multiple
Component identification Not assisted
Half assisted
Half assisted No identification.
Reusability scope Internal to the system
Configuration management
No management
(graphical representation of the assembly)
software architecture. So, for handling and
describing software architectures processes we will
inspire from the existing ADL (Architecture
Description Language).
The paper is organized as follows: Section 2
summarizes existing approaches for modeling
processes based on software components; the
objective is to focus on the strengths of these
approaches, and particularly, to detect their lacks.
Section 3 presents the general outlines of our
approach to modeling software process based
software architecture. Our approach is based on the
use of a domain ontology that contains software
process knowledge. Section 4 details the essential
points for creating the ontology and discusses the
encountered problems and the possible solutions.
We conclude the paper summarizing the work with
the future research.
2 EXISTING APPROACHES FOR
THE REUSE OF
SOFTWARE-BASED METHODS
OF COMPONENTS
We distinguish tow kind of approaches: approaches
of the model level (M1) of the OMG modeling
architecture, and approaches of the metamodel level
(M2).
2.1 Model Level
Several approaches to software process modeling
based components have been developed. Each
approach offers a particular solution, focusing on the
concerns of its user, as the heterogeneity of
languages process modeling software (Gary, 1998)
(Avrilionis, 1998), the heterogeneity of execution
platforms (Hiltomi, 1996 ), the distributed execution
(Dami, 1998) or the conformity with SPEM meta-
model(Thu, 2000). The major weakness of these
approaches is that the components are specific and
their use is limited to their original environment.
These systems typically operate so independently
and do not reuse "external" components of their
software processes. The studied approaches use
object-oriented languages for software process
modeling; they implement their components as
classes and use the object mechanisms (inheritance,
instantiation ...) (Table 1- line -2-).
2.2 Metamodel Level
SPEM (Software and Systems Engineering
Metamodel) (OMG-SPEM, 2008) is a metamodel
that describes a large range of software processes. Its
organization into multiple packages offers not only
several view points on the software processes
(method view, structure view, reuse view ...), but
also, facilitate the expansion and integration of new
concepts.
SPEM supports different types of reuse: on one
hand, while specifying "Process Behavior" package
to capture external behavior of software process
models that are not conform to SPEM metamodel,
and on the other hand, while introducing reuse based
on software process Components by providing
another package: “the Method Plugin package”.
However, reusing components in SPEM faces
several "recognized" problems that must be treated.
The most important are the interconnection
problems of components: heterogeneity of the
terminology used for the port component "Work
REUSING APPROACH FOR SOFTWARE PROCESSES BASED ON SOFTWARE ARCHITECTURES
367


Ontologydomain
forsortware
processes
Knowhowforandby
softwareprocess
engineering
Re
q
uest
3‐ Final
proposition
Result
Softwareprocess
developer
2‐Negociation
Iwant…,And….,Particulary…,Butnot…
I have it
Inferredsoftwareprocessstructure
1‐ request :
‐Basiccaracteristics.
‐Qualitativerequirements
‐Qualitativevaluesandacceptedlevel
Softwareprocessmodel
basedsoftwarearchitecture
4‐ softwarearchitecture
modeling


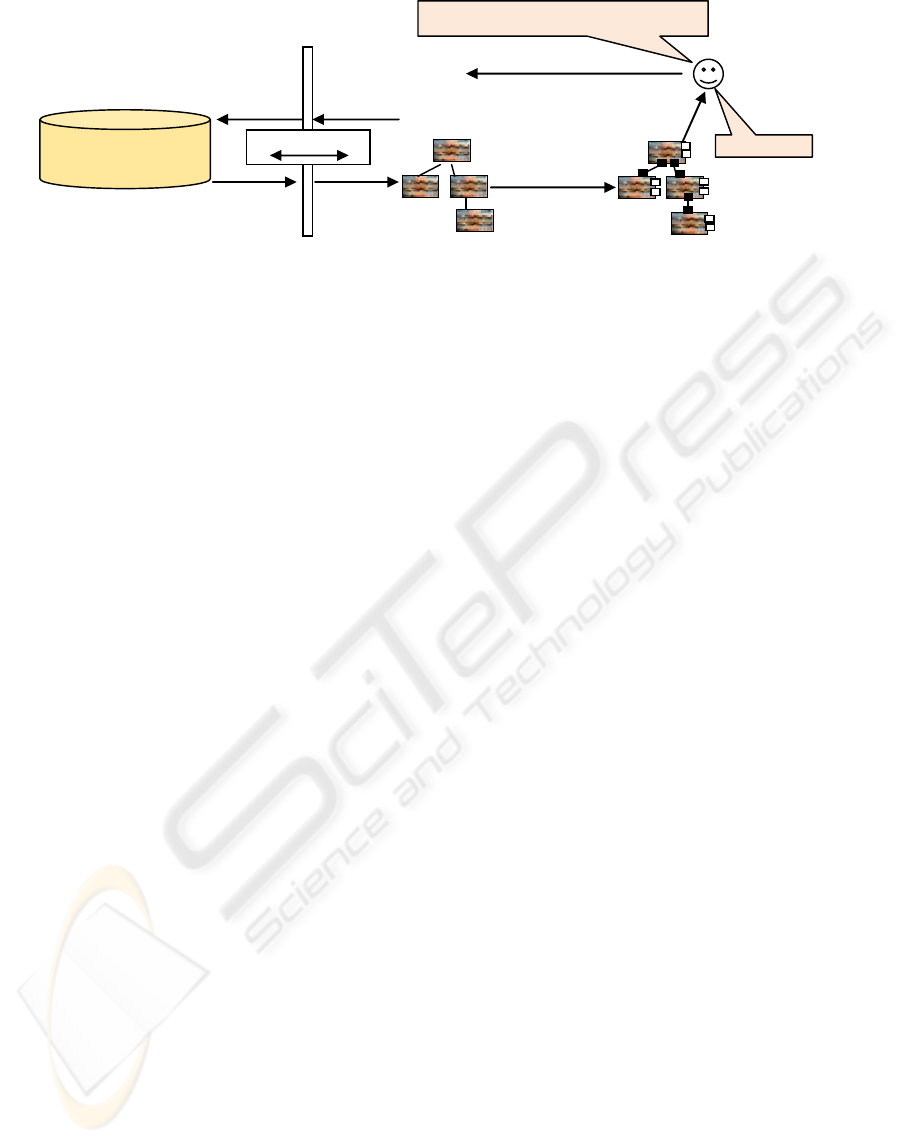

Figure 1: Software process modeling based on software architecture inferring.
Product Port”, the management of the number of
ports per component creates difficulties for
assembling components.
3 OUR APPROACH
The main contribution of our approach is that we
model software processes as software architectures
(
Boehm, 1996). We model the content of software
processes regardless of their structure, and we model
the logical structure independently from the software
process implementation. This separation is one of
the characteristics of software architectures; that’s
allows us greater flexibility during the modeling
process management and better control when
modeling different kinds of software processes.
3.1 Engineering for Reuse
This step attempts to remedy the low reusability of
software process components and to take advantages
of the maturity of the field in terms of experiences
and conceptualization. To capitalize the knowledge
of the domain, the proposed solution is the use of a
domain ontology including most concepts in the
software processes field. The ontology will form a
support that contains the knowledge of this area,
which will be reused regardless of their original
environment. The instantiated ontology becomes a
knowledge base, from which we can infer
principally new software process models based on
software architecture.
3.2 Engineering by Reuse
Engineering by reuse is occurring by the inference
of new software process models from the ontology
knowledge. The query must consider the request of
the process developer and then infers the knowledge
that matches developer requirements.
The query should allow the software process
architecture inference, should identify software
process components and their configuration
(assembly). The assembly can be conform to a
software process architectural style as it cannot be.

4 DOMAIN ONTOLOGY FOR
THE INFERENCE OF
PROCESSES BASED
SOFTWARE ARCHITECTURE
To capitalize the knowledge of software process
engineering, our solution is based on a domain
ontology. To collect the concepts of our ontology,
we exploit existing conceptualizations involving the
basic concepts for modeling and executing software
processes. Our work was oriented to the SPEM
metamodel, that is more general, not specific to an
environment and includes the concepts of several
software process types. To create our ontology, we
generate our ontology SPEMOntology
“automatically” from the SPEM metamodel, we use
the models transformation language ATL (ATL,
2006).
An ATL transformation is composed of ATL
modules. For our generation we use three existing
transformation modules: UML2OWL OWL2XML
and UML2Copy. However, for our work, this
transformation is not sufficient as it does not
transform a "stereotyped" UML model conforms to a
UML profile into an OWL model. The
transformation UML2OWL does not contain
transformation rules applied to profiles and their
constituents (stereotypes, constraints and tagged
values). Therefore, we define a new transformation
ICEIS 2010 - 12th International Conference on Enterprise Information Systems
368

(ATL1) which applies the profile SPEM model
SPEM. Finally, the successive transformation
(ATL1, ATL2) generate our SPEMOntology.
5 CONCLUSIONS
In this paper we explore the problem of limited reuse
for software processes. We first identified the
shortcomings of existing approaches; in fact, many
approaches was proposed for modeling software
processes based components, focusing however on a
particular problem. Also, as the reasoning on the
architectural abstraction level is not being a priority;
the representation of architectural concepts is
insufficient. The classification of these approaches
in engineering “for” reuse can justify the absence of
some concepts such as the logic configuration;
however, it does not justify the low representation of
other concepts.
Our paper introduces the general outlines of a
new approach to modeling software processes based
components. Our approach tempts to remedy the
shortcomings of existing approaches (low reusability
of software components, architectural concepts
poorly exploited) and to exploit the reuse to its
extreme: in fact, due to the rigidity and the
dependency of software process to their
development environment, high quality process
models are developed and are not "re" exploited.
We believe that the exploitation of the
architectural level of software processes will not
only allows the effective reuse of knowledge in
software process domain, but also, contributes
significantly to facilitate and to resolve the modeling
problems, the execution and the simulation of
different software process structures:
The validation of our proposition is underwork.
Mutiple points remain to be developed: the
extension of the ontology and the extension of
SPEM with architectural concepts for software
processes are the next targets of our work.
REFERENCES
Gary, K., Lindquist, T., Koehnemann, H., Derniame,
J.-C. 1998. Component-based software process
support. 13th IEEE AS E’98. Page(s):196- 199.
Avrilionis, D., Belkhatir, N., Cunin, P.-Y, 1996. A unified
framework for software process enactment and
improvement. ICSP’96. Page(s):102 – 111.
Dami, S., Estublier J., Amiour, M. January 1998. APEL:
A Graphical Yet Executable Formalism for Process
Modeling. ASE’98. Vol. 5, No. 1, pp. 61-96.
Hitomi, A. S., Bolcer G. A., Taylor, R. N., 1996.
Endeavors: A Process System Infrastructure. ICSE’96.
Thu, T. D., Bich Thuy, D. T., Coulette B., Cregut X.,
2000. Process component modeling: integration in the
RHODES environment. Journées francophones
d'ingénierie des connaissances, Toulouse, France.
pp.165-173.
Object Management Group, Software & Systems Process
Engineering Meta Model, v2.0 http://
www.omg.org/cgi-bin/doc?Formal/2008-04-01.
Zamli, K. Z., Mat Isa. N. A., 2004. A survey and analysis
of process modeling languages. Malaysian Journal of
Computer Science, Vol.17 No. 2 , pp. 68-89
Dai, F., Li, T., Zhao, N., Yu, Y., Huang B., 2008.
Evolution Process Component Composition Based on
Process Architecture, ISIITA Workshops. Volume 00,
Pages 1097-1100.
Borsoi, B. T., Becerra J. L. R., 2008. A Method to Define
an Object Oriented Software Process Architecture.
ASWEC’08, pages: 650-655.
Boehm, B., 1996. An Open Architecture for Software
Process Asset Reuse. ISPW’96.
ATLAS group LINA & INRIA ATL: Atlas
Transformation Language, 2006. ATL User Manual,
version 0.7, Nantes.
Belkhatir, N., Estublier, J., 1996, Supporting Reuse and
Configuration for Large Scale Software Process
Models. ISPW’96.
REUSING APPROACH FOR SOFTWARE PROCESSES BASED ON SOFTWARE ARCHITECTURES
369
