LEGS DETECTION USING A LASER RANGE FINDER FOR

HUMAN ROBOT INTERACTION

avio Garcia Pereira, Raquel Frizera Vassallo and Evandro Ottoni Teatini Salles

Department of Electrical Engineering, Federal University of Esp

ırito Santo

Av. Fernando Ferrari, 514, Goiabeiras, Vit

oria-ES, CEP 29075-910, Brazil

Keywords:

Human-robot interaction, Legs detection, Laser scanner.

Abstract:

The ability to detect humans is an important skill for service robots, especially if these robots are employed in

an environment where human presence is constant, for instance a service robot which works as a receptionist

in the hall of a hotel. The principal aim of the proposed method is to estimate the human position using data

provided by a Laser Range Finder (LRF). The method utilizes two Finite State Machines (FSMs) to detect

some leg patterns and, after that, it computes the probability of being a pair of legs for each detected pattern.

In order to validate the proposed method some experiments were performed and are shown.

1 INTRODUCTION

In recent years, great effort has been done in order

to improve Human-Robot Interaction (HRI) research

field. Researchers such as Bellotto and Hu (Bellotto

and Hu, 2009) claim that the studies of HRI are cur-

rently some of the most fascinating research field in

mobile robotics, and Bekey (Bekey, 2005) empha-

sizes the idea that cooperation and interaction among

men and robots are the big challenges of the next

years. Because that, the robots which will interact

with humans must have the skill to detect people. This

ability will enable robots to understand better and an-

ticipate human intentions and actions (Arras et al.,

2007). The main purpose of our work is to develop

a laser-based human detection in order to allow a mo-

bile robot to interact with people.

There are many researches concerning people de-

tection using laser scanners. The work done by (Car-

ballo et al., 2009) introduces a method for people de-

tection around a mobile robot using two layers of laser

scanners, thus two sets of features for each person

are detected. Based on these features and a previous

knowledge about human body shape, the human de-

tections is performed. In (Fod et al., 2002), the au-

thors present a technique to track moving objects in

a workspace covered by multiple lasers. The method

to detect people shown in (Arras et al., 2007), uses

a supervised learning technique to create a classifier

that facilitates such detection. The classifier is trained

using AdaBoost method. A way to detect line and cir-

cles from laser data in an indoor environment is in-

troduced by (Xavier et al., 2005). The authors still

perform leg detection by considering it as a circle

with some particularities like the diameter of the cir-

cle. The approach to track multiple moving objects

shown in (Schulz et al., 2001) uses laser data and

combines particle filters with existing approaches to

multi-target tracking. The system uses leg detection

and occupancy grids to detect people. Topp and Hen-

rik (Topp and Christensen, 2005) introduces the “Hu-

man Augmented Mapping” which represents an inte-

gration of automated map generation with learning of

environmental concepts. They propose a method sim-

ilar to the one presented in (Schulz et al., 2001) with

the difference that their method allows handling peo-

ple standing still, which is useful for interaction.

The authors of (Cui et al., 2005) present a system

that employs multiple laser scanner and one camera

to track multiple persons. They track people through

a meanshift method and laser tracking and fuse these

two information using a Bayesian formulation. The

work presented in (M

uller et al., 2007) implements a

fusion of laser, sonar and vision data to find and track

people by a mobile shopping assistance robot. A sys-

tem to track people in real time in uncontrolled envi-

ronments is presented in (Scheutz et al., 2004). This

system combines leg detection based on laser data and

face detection implemented in the specialized hard-

ware cellular neural network (CNN) universal ma-

chine. Reference (Bellotto and Hu, 2009) presents a

multisensor data fusion techniques for tracking peo-

129

Garcia Pereira F., Frizera Vassallo R. and Ottoni Teatini Salles E. (2010).

LEGS DETECTION USING A LASER RANGE FINDER FOR HUMAN ROBOT INTERACTION.

In Proceedings of the 7th International Conference on Informatics in Control, Automation and Robotics, pages 129-134

DOI: 10.5220/0002880501290134

 SciTePress

ple by a mobile robot using a laser scanner and one

monocular camera. They extract the features from a

laser scanner and look for some leg patterns. Vision is

used for face detection and the human tracking is per-

formed by fusing the two different sensor data. Luo

et al. (Luo et al., 2007) describe a method to find and

track a human using a monocular camera, which is re-

sponsible for finding the human face, and a laser scan-

ner assembled on their robot, whose function is to find

human body and arms. The data sensor is fused by

statistical independence. In (Kleinehagenbrock et al.,

2002) a hybrid method for integrating laser range and

vision data is presented. They use the laser data to de-

tect human legs and colored images to find skin color

and face. These information are fused to better per-

form the human tracking.

The approach we present in this paper is focused

in detecting human legs using a laser scanner and to

determine their position. If the legs detection is posi-

tive, the robot starts interacting with the human. Our

method to detect legs is similar to the approach devel-

oped in (Bellotto and Hu, 2009). Their system finds

human legs after identifying some legs patterns that

correspond to legs apart, forward straddle and legs to-

gether. In our case, only two patterns are considered

legs apart and legs together. In order to find these

two patterns we implemented a Finite State Machine

(FSM) and for each pattern found we calculate the

probability of being a pair of legs. The advantages of

the proposed method are the low computational cost

(the implemented method performs each detection in

approximately 35ms), the simplicity (it only uses two

FSMs and a probability function to classify a pair of

legs) and the low quantity of parameters that need to

be estimated (the distance between the legs and the

difference between their widths).

The remaining of this paper is organized as fol-

lows. Section 2 presents the method to find human

legs using a laser scanner. Section 3 illustrates the

results of some performed experiments and, at last,

the conclusions and future work are presented in Sec-

tion 4.

2 LEGS DETECTION

The method to detect legs that we are going to present

extracts features from a laser scanner and, as the

method shown in (Bellotto and Hu, 2009), identifies

patterns relative to the legs posture. These patterns

correspond to the following situations: legs apart

(LA) and two legs together (LT). The structure of the

legs detection algorithm can be seen in Figure 1.

In order to determine the most common leg posi-

Laser Measures

Variation

Z(X, X, R , d)

Pattern Generation

Detected Regions

Analysis

Finite State Machine

Legs Probability

P(E, L)

max

Figure 1: Structure of the proposed algorithm.

tion when a person stops and talks to another, some

people were observed. Figure 2 illustrates these situ-

ations.

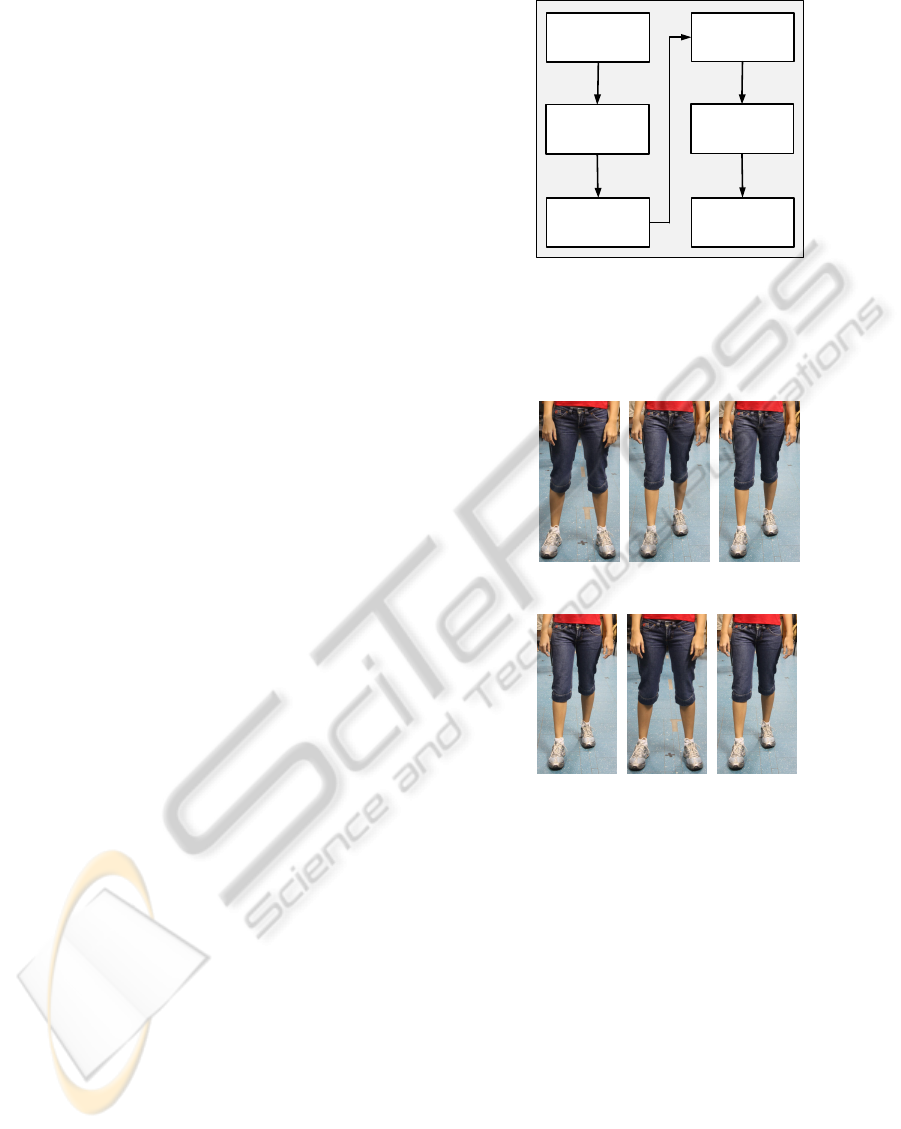

(a) (b) (c)

(d) (e) (f)

Figure 2: Legs position. Legs apart (a)-(c). Legs together

(d)-(f).

2.1 Transitions Array

The distance measures provided by the laser scan-

ner are stored in an array X = [x

,...,x

] where

is each distance measure captured and N is the

total number of readings. After that, an array with

the difference between two consecutive measures

(

X = [ ˙x

, ˙x

,..., ˙x

N−1

]) is calculated as ˙x

= x

i+1

−

, with i = 1,2,...,N − 1. Then, the array Z =

,...,z

N−1

], which stores the transitions related

with each measure in x

, is built. Z is created based

on X ,

X, R

max

and δ, where R

max

is the maximum

distance we are considering for the measures done by

the laser scanner (2m in this case) and δ is a distance

threshold. We define five different transitions:

• Transition 0: | ˙x

| < δ and x

= R

max

;

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

130

• Transition 1: | ˙x

| > δ and ˙x

< 0;

• Transition 2: | ˙x

| < δ and x

6= R

max

;

• Transition 3: | ˙x

| > δ, ˙x

> 0 and x

6= R

max

;

• Transition 4: | ˙x

| > δ, ˙x

> 0 and x

= R

max

Figure 3 illustrates these five transitions. The

dashed line indicates the maximum measure, i. e.,

2m.

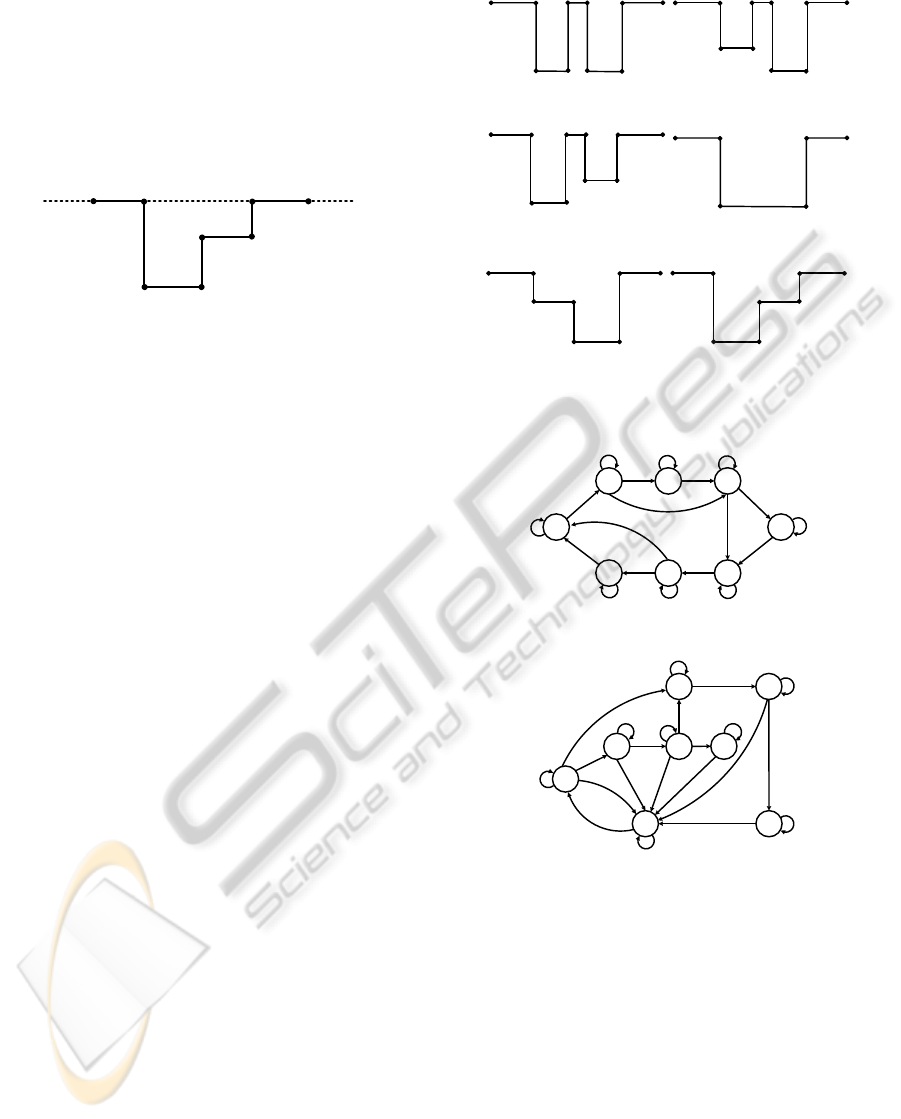

0 0

Figure 3: Defined transitions.

2.2 The Finite State Machines

After generating the array Z, it is performed a search

for leg candidates (LCs). These candidates are the re-

gions in Z that starts with a Transition 1 preceded by a

Transition 0 and finish with a Transition 4. Each can

be pre-classified either as single leg or as pair of legs

together candidate as follows. A LC is pre-classified

as a single leg if the distance between the extremities

is in the range (5cm,15cm). If this distance is big-

ger than 15cm and smaller than 32cm the LC is pre-

classified as a pair of legs together. Otherwise the LC

is discarded.

Once this pre-classification is accomplished, the

LCs are verified by two FSMs. One of them looks

for the LA pattern and the other for the LT. Each

state of these machines receives as input a value be-

tween 0 and 4, which represents the transitions al-

ready mentioned. A LA pattern is defined as a se-

quence 012401240 (Figure 4(a)-(c)), where the num-

bers represent the respective transitions. The LT pat-

tern can assume three different sequences: 0121240,

01240 and 0123240 (Figure 4(d)-(f)).

The patterns shown in Figure 4 correspond to the

legs position that appear in Figure 2.

Figures 5 (a) and (b) show, respectively, the FSMs

for detecting the LA and LT patterns. To simplify, the

inputs that take the FSMs to an invalid state are not

drawn in the schematics shown in those figures.

Notice that the numbers close to the arrows that

link the states are in the form input/output, where the

inputs are the values of the transitions in the vector

Z and the output can be either 0 (the pattern was not

identified) or 1 (recognized pattern).

2.3 Legs Probability

Once the detected patterns are classified by the FSMs,

some characteristics of the pair of legs are extracted

(a)

(b)

(c)

(d)

(e)

0 0

(f)

Figure 4: Leg patterns. Legs apart (a)-(c). Legs together

(d)-(f).

S1 S2 S3

S7 S6 S5

1/0

2/0

3/0

4/0

0/0

1/0

2/0

3/0

4/1

0/0

1/0

(a)

1/0

2/0

3/0

4/1

1/0

2/0

3/0

2/0

4/1

3/0

1/0

2/0

4/1

2/0

1/0

3/0

4/1

S2 S3

S4 S5

(b)

Figure 5: Finite State Machines. Legs apart (a) and legs

together (b).

in order to determine a probability of being legs, such

as the distance between the extremities (E) and the

difference between the width of each detected leg (L).

This probability was introduced to avoid situations

where, for example, there are two people near the

robot, one of them at the left extremity and the other

at the right extremity and, moreover, only one leg of

each one is detected. In this situation, the FSMs will

classify these legs as a pair of separate legs, but since

they are far from each other, they have low probabil-

ity of being a pair of legs which belongs to the same

person. Moreover, if a person stands still in front of

LEGS DETECTION USING A LASER RANGE FINDER FOR HUMAN ROBOT INTERACTION

131

the robot with legs apart and using a walking stick, it

could be interpreted as a leg. However, as the walk-

ing stick is thinner than a leg, it will not happen due

to the probability of being legs. This probability is

calculated as,

P(E,L) =

1 − tanh



(κL)

i

exp



−

(E −

2σ



(1)

where L is the difference between the width of each

leg, E is the distance of the exterior extremity of two

consecutive legs and κ is a positive constant. The av-

erage distance of human legs when they stop in front

of the laser and the standard deviation are given by

E and σ, respectively. Figure 6 shows the probabil-

ity of a pattern to be a pair of legs apart according to

variables E and L. For the situation where a pattern is

classified as a pair of apart legs by the FSMs, the pa-

rameters of Eq. 1 are

E = 0.3037m, σ = 0.028m, oth-

erwise the values are

E = 0.25m, σ = 0.0268m. The

adopted range for the variable E is [0.15m, 0.45m]

and for the variable L is [0, 0.1m]. The value of κ does

not change no matter the situation and it is κ = 15.

The graphic of being a pair of legs together is similar

to the legs apart and is not shown.

0.05

0.1

0.2

0.3

0.4

0.5

0.6

0.5

E [m]

L [m]

P(E, L)

Figure 6: Probability of being a pair of legs apart.

By observing the graphic presented in Figure 6, it

can be seen that the probability assumes its maximum

value when L is zero and E is equal to

3 EXPERIMENTAL RESULTS

The experiments were performed in an indoor en-

vironment using a mobile robot Pioneer 3-AT from

ActivMedia, equipped with a laser scanner Sick

LMS200. Even though the laser scanner provides dis-

tance measures from 0

◦

(right side of the robot) to

180

◦

(left side of the robot), the experiments were per-

formed using the measures from 60

◦

to 120

◦

, because

the aim is to detect people who are interested in in-

teracting with the robot. So, people who stop outside

the mentioned region, are not considered interested in

interacting.

The system was developed in C++ and runs in a

PC with MS Windows installed, a Core 2 Duo pro-

cessor 2.1GHz and 4GB RAM. This PC is capable

to execute around 25 loops per second, however we

fixed the execution time in 10 loops per second. The

robot used to perform experiments is shown in Fig-

ure 7.

Figure 7: Robot used to perform the experiments.

In order to show the reliability of the proposed

method, some experiments were performed. The

robot was positioned in a free area and, while the leg

detection algorithm was running, some people were

asked to stop in front of the robot in the same manner

they would stop when they want to talk to another per-

son and, sometimes, the experiment was performed

with more than one person. it were performed 152

detections and the algorithm was able to classify cor-

rectly 88.16% of the cases. Figure 8 shows a person

stopped in front of the robot and Figure 9 brings the

detection rates obtained during this experiment.

Figure 8: A person stopped in front of the robot.

Before showing the experimental results, it is

important to mention that during the tests nobody

stopped in front of the robot with the legs together.

Due to this, in order to perform a complete set of ex-

perimental results, some people were asked to stand

in front of the robot with their legs together. Follow-

ing subsections illustrate some experimental results of

the proposed leg detection algorithm.

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

132

89,5%

6,6%

3,9%

86,8%

5,3%

7,9%

Hit Rate

False Positive

Not Detected

Legs Detection Rates

Legs Together

Legs Apart

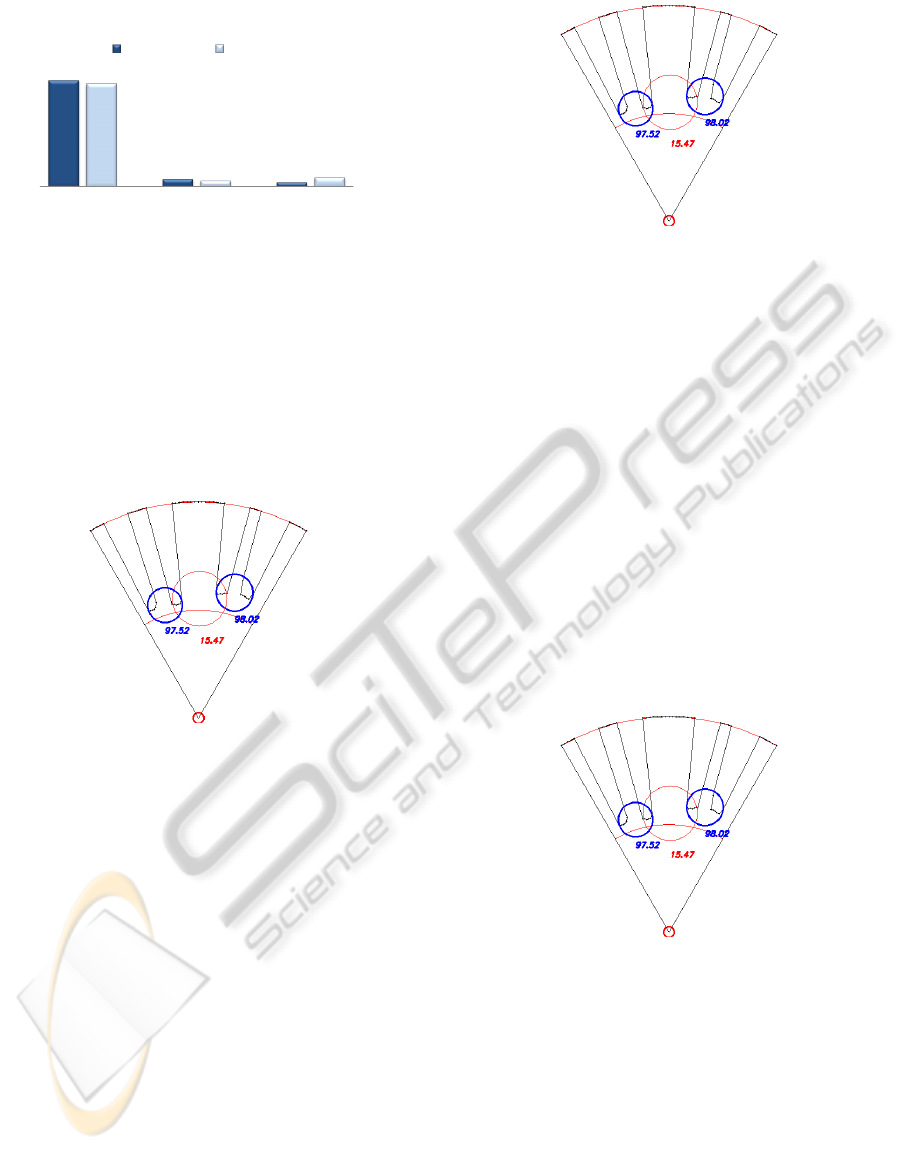

Figure 9: Detection Rates.

3.1 Experiment 01

In this experiment two people were standing still in

front of the robot with the legs apart. Figure 10 shows

the distances measures captured by the laser scanner

and the obtained result for the leg detection algorithm.

The circles represent the detected pair of legs by the

FSMs, and the numbers represent the probability of

being legs of each detected pair of legs.

Figure 10: Experiment 01 - obtained results.

Notice that in Figure 10 there are three circles,

i. e., the FSMs detected three possible pair of legs

apart. However, the second pair of legs detected by

the FSMs has a low probability (15.47%) and it is not

considered a pair of legs. Moreover the other two

pairs have probabilities greater than 97% (see Fig-

ure 10) and are classified as a pair of legs. However,

if the people were closer one from another, the algo-

rithm would detect three pair of legs instead of two. It

can be solved with a face detection algorithm.

3.2 Experiment 02

In this experiment three people stood in front of the

robot and one set of measures was captured by the

laser. Two of them have the legs apart and the third

one has the legs together. The person who is in the

middle is the one with the legs together. Figure 11

shows the distance measures captured by the laser

scanner and the pattern identification done by the

FSMs represented by the circles.

Figure 11: Experiment 02 - obtained results.

The probabilities of being a pair of legs, calculated

after the legs pattern identification, are also shown in

Figure 11. Notice that all the patterns have a high

probability of being a pair of legs, which means that

the leg detection algorithm classified correctly the

people’s legs.

3.3 Experiment 03

As the Experiment 1, this experiment shows the legs

detection result for two people stopped in front of the

robot. However, here one person has the legs apart

and the other one has the legs together. This exper-

iment has the particularity that these two people did

not stop in front of the robot with the legs parallel. In

this case, as can be seen in Figure 12, one of the legs

is closer to the robot.

Figure 12: Experiment 03 - obtained results.

For this experiment, the pattern detection by the

FSMs and the probabilities of being a pair of legs are

shown in Figure 12. Although the legs are not par-

allel, the algorithm was able do classify correctly the

patterns detected by the FSMs.

LEGS DETECTION USING A LASER RANGE FINDER FOR HUMAN ROBOT INTERACTION

133

4 CONCLUSIONS AND FUTURE

WORK

We proposed in this paper a method to find human

legs using a LRF. The method utilizes the distance

measures provided by the laser scanner and look for

some legs patterns using two FSMs and, after that,

calculates the probability of each detected pattern be-

ing a pair of legs.

Some experiments were presented to show the

performance of the proposed method. It was demon-

strated that the method can detect human legs with

accuracy, but since we used only laser sensor infor-

mation, some false positives can be detected. In or-

der to reduce this false positives and solve occlusion

cases, our future work is concerned in introducing a

face detection and, thus, performing human-robot in-

teraction.

REFERENCES

Arras, K., Mozos, O., and Burgard, W. (2007). Using

boosted features for the detection of people in 2d

range data. In 2007 IEEE International Conference on

Robotics and Automation (ICRA 2007), pages 3402–

3407.

Bekey, G. A. (2005). Autonomous Robots : From Biological

Inspiration to Implementation and Control (Intelligent

Robotics and Autonomous Agents). The MIT Press.

Bellotto, N. and Hu, H. (2009). Multisensor-based human

detection and tracking for mobile service robots. IEEE

Transactions on Systems, Man, and Cybernetics, Part

B: Cybernetics, 39(1):167–181.

Carballo, A., Ohya, A., and Yuta, S. (2009). Multiple peo-

ple detection from a mobile robot using a double lay-

ered laser range ﬁnder. In IEEE ICRA 2009 Workshop

on People Detection and Tracking, Kobe, Japan.

Cui, J., Zha, H., Zhao, H., and Shibasaki, R. (2005).

Tracking multiple people using laser and vision. In

2005 IEEE/RSJ International Conference on Intelli-

gent Robots and Systems, 2005. (IROS 2005)., pages

2116–2121.

Fod, A., Howard, A., and Mataric, M. (2002). A laser-based

people tracker. In Robotics and Automation, 2002.

Proceedings. ICRA ’02. IEEE International Confer-

ence on, volume 3, pages 3024–3029.

Kleinehagenbrock, M., Lang, S., Fritsch, J., Lomker, F.,

Fink, G., and Sagerer, G. (2002). Person tracking with

a mobile robot based on multi-modal anchoring. In

Robot and Human Interactive Communication, 2002.

Proceedings. 11th IEEE International Workshop on,

pages 423–429.

Luo, R., Chen, Y., Liao, C., and Tsai, A. (2007). Mobile

robot based human detection and tracking using range

and intensity data fusion. In Advanced Robotics and

Its Social Impacts, 2007. ARSO 2007. IEEE Workshop

on, pages 1–6.

uller, S., Erik, S., Scheidig, A., B

ohme, H.-J., and Gross,

H.-M. (2007). Are you still following me? In Pro-

ceedings of the 3rd European Conference on Mobile,

pages 211–216, Freiburg.

Scheutz, M., McRaven, J., and Cserey, G. (2004). Fast, reli-

able, adaptive, bimodal people tracking for indoor en-

vironments. In Intelligent Robots and Systems, 2004.

(IROS 2004). Proceedings. 2004 IEEE/RSJ Interna-

tional Conference on, volume 2, pages 1347–1352

vol.2.

Schulz, D., Burgard, W., Fox, D., and Cremers, A. (2001).

Tracking multiple moving targets with a mobile robot

using particle ﬁlters and statistical data association.

In Robotics and Automation, 2001. Proceedings 2001

ICRA. IEEE International Conference on, volume 2,

pages 1665–1670 vol.2.

Topp, E. and Christensen, H. (2005). Tracking for follow-

ing and passing persons. In Intelligent Robots and

Systems, 2005. (IROS 2005). 2005 IEEE/RSJ Interna-

tional Conference on, pages 2321–2327.

Xavier, J., Pacheco, M., Castro, D., Ruano, A., and Nunes,

U. (2005). Fast line, arc/circle and leg detection from

laser scan data in a player driver. In Robotics and Au-

tomation, 2005. ICRA 2005. Proceedings of the 2005

IEEE International Conference on, pages 3930–3935.

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

134
