APPLYING AND EVALUATING AN MDA PROCESS

MODELING APPROACH

Rita Suzana P. Maciel, Bruno C. da Silva and Ana Patrícia F. Magalhães

Federal University of Bahia, Salvador, Bahia, Brazil

Keywords: MDA, Process Specification, SPEM.

Abstract: In order to use the MDA approach, several software processes have been defined over recent years.

However, there is a need for specifying and maintaining MDA software process definitions systematically

which can also support process enactment, reutilization, evolution, management and standardization. Some

empirical investigations have been performed concerning the usage of several MDA-related approaches. In

this paper we describe our technique for MDA software process specification and enactment, including tool

support. We also present case studies and the concluding results on the application of our approach for

process modeling.

1 INTRODUCTION

Model Driven Engineering (MDE) is an approach

specially focused on modeling techniques. MDE

advocates that the models of a software system are

not only used for documentation, but they actually

serve as basis for the implementation phase. One of

the most well-known initiatives in this scenario is

Model-Driven Architecture (MDA) (OMG, 2003).

The use of MDA requires the definition of a

software process that guides developers in the

elaboration and generation of software models

(Mellor, 2004). Such a kind of software process,

which we refer to hereafter as MDA Process, evokes

definitions such as modeling phases, metamodels,

UML profiles and transformation rules, besides

traditional process elements such as iterations, tasks,

workproducts, roles and so on. Therefore, the

specification of an MDA process is not a trivial task.

In order to use the MDA approach several software

processes have been defined over recent years

(Koch, 2006; Maciel, 2006; OpenUP/MDD, 2008).

Most of them adopt ad hoc notations and different

concepts are used to define the activities and

artifacts for the software development life cycle.

In this context, our experience was on the

specification of an MDA process for the

development of domain-specific middleware

services (Maciel, 2006). When we started to specify

such an MDA process we became aware of the

difficulty in specifying the process with open

standards such as EDOC (Enterprise Distributed

Object Computing) (OMG, 2002) and RM-ODP

(Reference Model of Open Distributed Processing)

(ISO, 2004), and further searched for a

transformation engine well-suited to our needs.

Available MDA supporting tools usually have low

flexibility in the sense that the MDA process has to

adapt to the tool in order to have automated support.

Moreover, current MDA supporting tools are

particularly interested just in defining and executing

transformations which produce code and deployment

artifacts from models (eg, AndroMDA, oAW).

Indeed, other activities in a software process are

usually not considered, such as definition of

metamodels and UML profiles. Emerging from this

experience and scenario we defined the SPEM/MDA

approach (Maciel, 2009a; Maciel, 2009b) based on

MDA and SPEM standards. Our approach extends

the SPEM metamodel focusing on specific

definitions of the MDA in order to make the

instantiation of MDA concepts explicit as process

elements. We also provide an integrated supporting

tool for MDA process modeling and enactment,

called Transforms.

There is a specific process called OpenUP/MDD

(OpenUP, 2008) built on Eclipse Process

Framework (EPF) which focuses specially on the

model driven development. However, the

OpenUP/MDD is a process instance of the SPEM

metamodel concepts, while our approach is placed at

185

Suzana P. Maciel R., C. da Silva B. and Patrícia F. Magalhães A. (2010).

APPLYING AND EVALUATING AN MDA PROCESS MODELING APPROACH.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

185-190

DOI: 10.5220/0002889401850190

 SciTePress

a higher abstraction level. Consequently, we provide

a more flexible and extensible way to model and

specify (instantiate) model driven software processes

according to SPEM 2 and MDA standards.

Additionally, Bendraou et al. (2007) proposed an

extension to the SPEM 2.0 specification, called

xSPEM, in order to allow process enactment.

Although their work targets the enactment of process

models they don’t focus particularly on the process

modelling or enactment of MDA development

process.

Our main goal in this paper is to describe the

application of our SPEM/MDA approach and also to

report our resulting conclusions. Initially, we

performed preliminary experiments to assess our

approach. However, new empirical investigation

became necessary and thus we have worked in

different scenarios to evaluate our approach and

tool.

The rest of the paper is organized as follows:

Section 2 briefly presents our current approach and

tool for MDA process specification and enactment;

in Section 3 we describe the last case study we have

performed detailing the results; Section 4 concludes

the paper with final remarks.

2 SPEM/MDA APPROACH

Software process modeling using a unified and

consistent terminology should make communication,

understanding, reutilization, evolution, management

and standardization of the process possible

(Humprey, 1989). In order to achieve this, our

approach uses SPEM as PML (Process Modeling

Language). Figure 1 shows our metamodel

extending some SPEM 2.0 concepts for the MDA

context.

The process specification is divided into two

dimensions: the static concepts, which comprise

disciplines, tasks, steps, roles and workproducts,

called method content in the first part of Figure 1;

and the dynamic concepts, that comprise phases,

iterations and taskUse, called Process in the second

part of Figure 1.

A static definition represents best practices that

can be reusable in many process models. A

discipline groups a set of related tasks that are

performed by roles. A role defines responsibilities

and competences of an individual or a group of

individuals. A task may comprise many steps to

describe meaningful work. During the process

execution it can consume/produce workproducts as

input and output artefacts. In this approach a

workproduct can be specialized into four kinds of

artefacts: UML model, transformed / generated in

process execution; transformation rule, that contains

the rules for automatic model transformation and

code generation; extra model, textual specifications

or supplementary notation to document a project;

and profile, which gives the semantic for modelling

a system.

Based on the static definitions many processes

are modeled using the metamodel dynamic concepts.

A process may comprise many phases specialized in

CIM (Computational Independent Model), PIM

(Platform Independent Model), PSM (Platform

Specific Model) and Codification for the MDA

context. Furthermore, an ExtraPhase can be

specified representing an additional stage apart from

modeling and codification. The modeling phases can

be associated to profiles to give the semantic of a

specific domain. Each phase can contain one or

more iterations that specify the taskUses necessary

to carry out a task.

To better define the static and dynamic concepts

the approach specifies the use of three kinds of UML

diagrams: class, which models all the concepts and

is the base for the latter ones; use case, to associate

roles to specific tasks; and activity, to model the

process workflow behaviour in terms of process

execution.

2.1 Supporting Environment

We have developed a supporting environment called

Transforms taking into consideration the

SPEM/MDA metamodel illustrated in Figure 1.

The Transforms tool has two modules with

complementary features represented by the two main

components in Figure 2 called ProcessEditor and

ProcessExecutor. The first one is the module for

specifying MDA processes by creating and/or

editing Method Content and Process elements

according to our metamodel. This module

encompasses the visual modelling (DiagramsEditor

component) of process definitions and also he work

breakdown structure (WorkBreakDown

StructureEditors).

The second module offers a supporting

environment for the enactment of MDA processes

previously defined by the Process Editor. All the

processes are stored in the process repository and

they are accessible through the DataAccessInterface

provided by the PersistenceController component.

The subcomponent called ProjectExplorer is

responsible for monitoring and executing a project

following a process retrieved from the repository.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

186

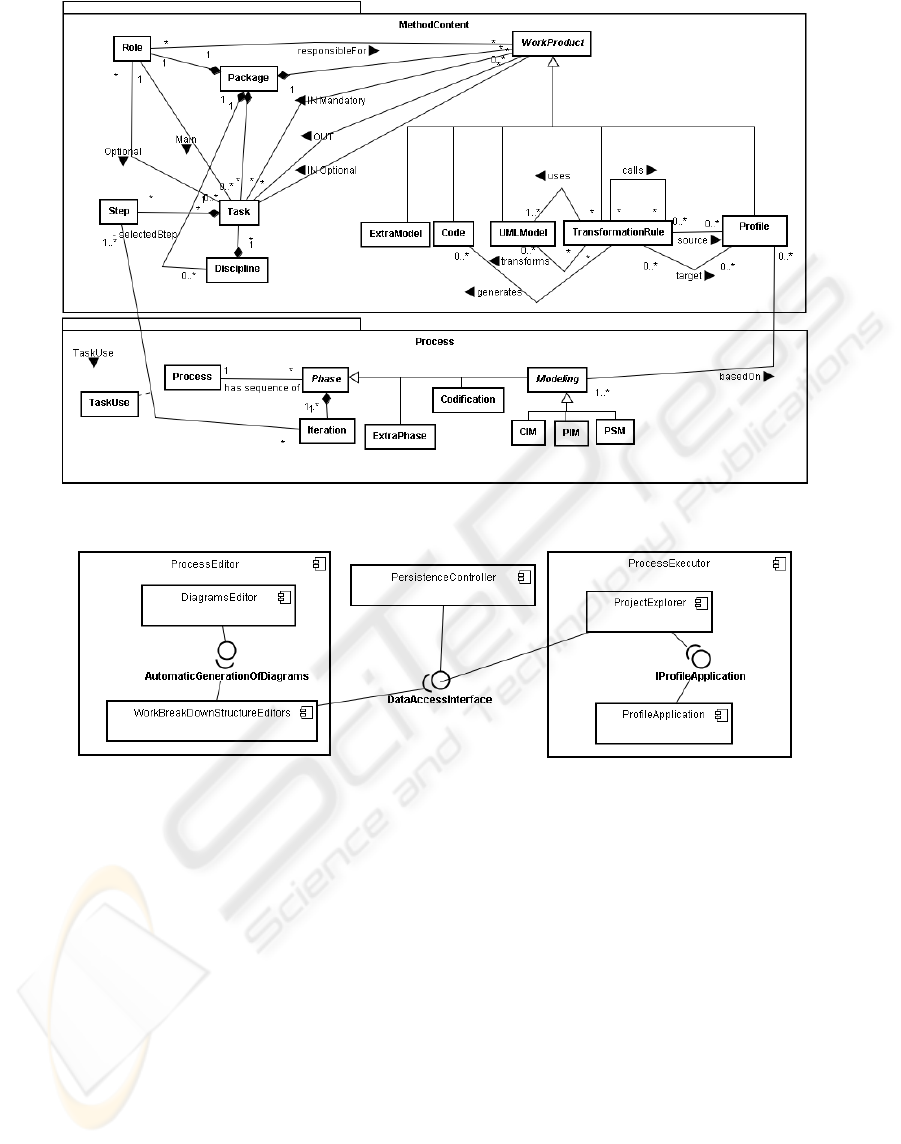

Figure 1: SPEM/MDA Metamodel.

Figure 2: Transform Tool Architecture.

The subcomponent called ProfileApplication

performs an automatic profile application whenever

there is a UML profile associated with the

corresponding modeling phase.

These modules were implemented as an Eclipse

RCP (Rich Client Platform) product. Thus, it was

possible to reuse the basic graphic structure as well

as several available plug-ins, such as: ATL (Atlas

Transformation Language), for elaboration and

execution of model-to-model transformations; GMF

(Graphical Modeling Framework), for creation and

generation of graphic editors of our customised

diagrams in conformance with our SPEM/MDA

metamodel; and also the UML2Tools, for modeling

the UML workproducts integrated with the process

executor.

3 EVALUATING MDA PROCESS

MODELING

This section presents the evaluation work we

performed on a case study in order to verify the

applicability of our approach and tool. The case

study results are described in the following

subsections.

As our initial experience we performed two case

studies on the evaluation of our approach. Both of

them focus on the technique of process specification

based on the SPEM/MDA metamodel.

The first one (Maciel, 2009a) explored the

specification of an MDA process for the

development of specific middleware services

previously defined in the literature (Maciel, 2006).

The second one (Maciel, 2009b) was the

specification of an MDA process for web-based

APPLYING AND EVALUATING AN MDA PROCESS MODELING APPROACH

187

applications and it was performed together with an

organization in the industry. The scenario and results

of a new case study are presented in the following

subsection.

3.1 Assessing the Authoring of MDA

Process

Our previous case studies were performed in our

laboratory and/or in conjunction with people from

PRODEB company as described in (Maciel, 2009a;

Maciel, 2009b). However, in the current case study

we elaborated a different scenario as our goal was

also to evaluate the applicability of the Transforms

tool regarding the MDA process specification

without our intervention.

The participants of this study were graduate

students with job positions in the industry. Most of

them were system analysts working for software

factories and banks.

First of all, we gave them some lectures about

MDA concepts, technologies and also training on

our approach and tool totalizing 16 hours divided

into 4 days in one week (4h/day). Then we

organized them into 4 groups and gave each group

the Transforms tool and asked them to specify an

MDA process motivated from their organizational

needs and reality.

The specification time was not restricted. They

had all the time they needed to organize themselves

in their groups to do the job and deliver the process.

After the process delivery, we also applied a

questionnaire and started to work analyzing the

process specification.

The questionnaire which was answered

individually by each participant was divided in two

parts: the first one concerning the SPEM/MDA

approach for process specification and modeling;

and the second one regarding the MDA Process

Editor from Transforms tool. The questionnaire had

a total of 15 questions. The collected results and our

analysis are presented in the following two

subsections.

3.1.1 Results Concerning the SPEM/MDA

Approach

The charts in Figures 3 and 4 show some results

from the questionnaire. The first one (Figure 3)

presents the answers related to questions about the

simplicity of defining tasks, roles, workproducts and

phases. While the second one (Figure 4)

demonstrates that the participants were divided in

suggesting or not the creation of new stereotypes for

phases and workproducts.

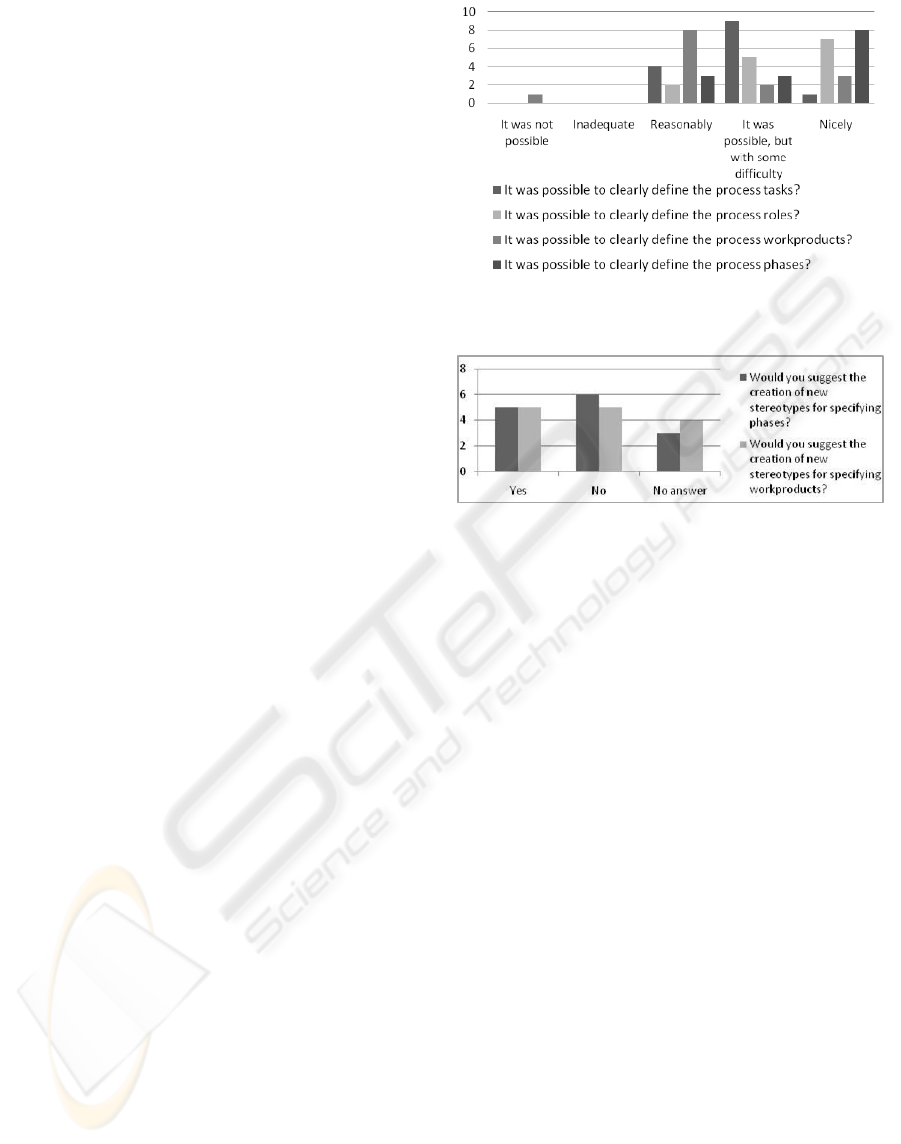

Figure 3: Answers about simplicity of defining tasks,

roles, workproducts and phases.

Figure 4: Suggesting or not new stereotypes.

Besides the aspects discussed from the results

summarized in the above charts, it was also possible

to observe that all the processes defined by the

participants had well-defined modeling (CIM, PIM

and PSM) and codification phases, including tasks

and steps, roles assignment, associated

workproducts and also transformation rules.

Therefore, it is possible to conclude that our

approach enabled process definition with expected

characteristics of a traditional software process

while also adding the peculiarities of an MDA

process.

3.1.2 Results Concerning the using of the

MDA Process Editor

The following figures show some results from

questions regarding tool support in the MDA process

specification.

Figure 5 indicates that most of the participants

agree that the effort put into the process

specification would not be repeated in the future

when using the Transforms tool for specifying new

process. That is, the time spent learning the

approach and tool would not be repeated. Also, we

can consider that the process definitions on the

method content stay available for reuse. This can

possibly reduce time and future effort in process

specifications.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

188

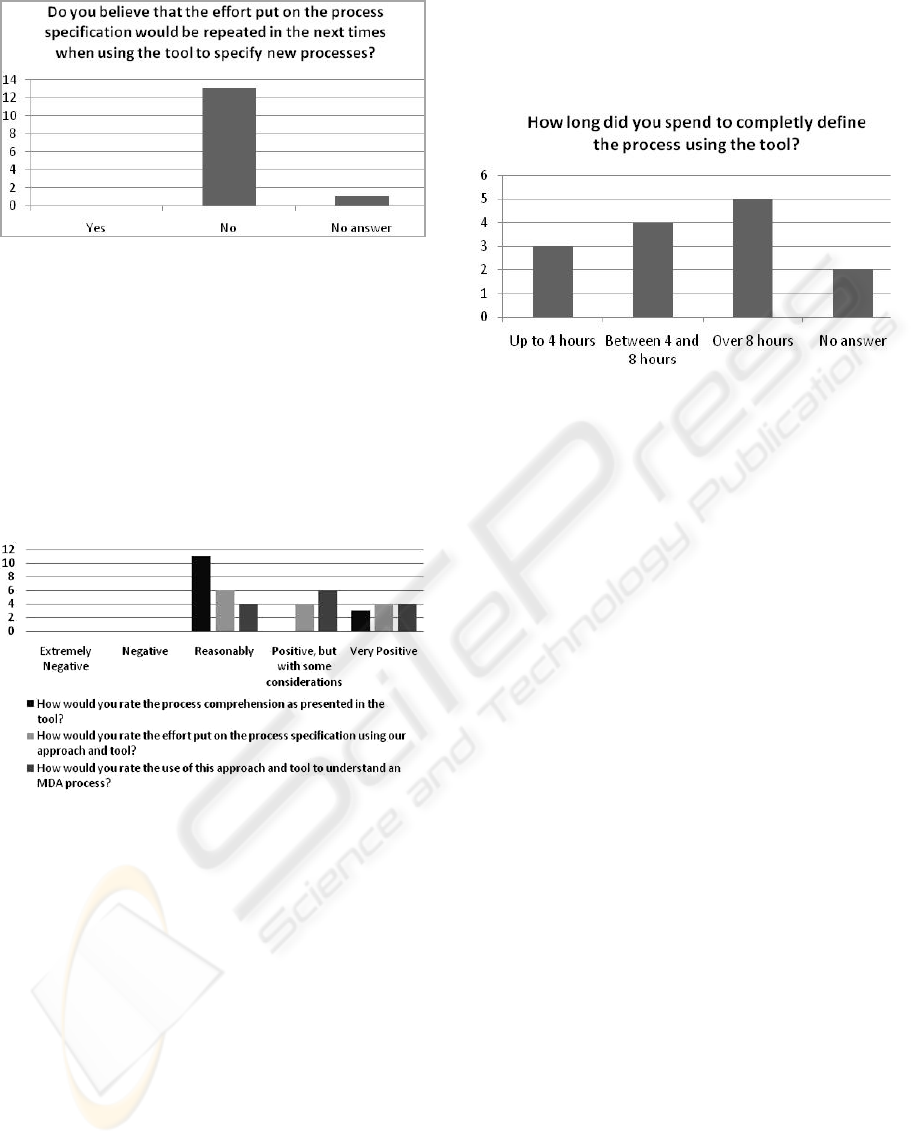

Figure 5: Repeated effort.

Some participants had difficulty understanding some

process definitions as presented in the tool, however,

none of them rated the process comprehension as

presented in the tool negatively. The effort put into

the process specification is valuable but necessary.

Most of them classified such effort as reasonable but

not enough to rate as a negative point. Besides, part

of that effort would not be repeated on future

occasions when using the tool as observed in the

results summarized in Figure 6.

Figure 6: Process presentation, expended effort and

process comprehension.

Another question was related to the preference

regarding the kind of the process visual

representation. The participants were equally

divided between the diagram and work breakdown

structure visualization. In general, we observed that

people who have at least a basic notion of UML

prefer the visual representation with diagrams, while

the others prefer the hierarchical representation of

the work breakdown structure.

During the experience of using the MDA Process

Editor of the Transforms tool most of the

participants used the on-line help which was

released on the web. It can be explained by the fact

that tool usage embeds several SPEM and MDA

concepts. From this observation we can invest more

time on improving the tool usability facilitating the

use of the SPEM/MDA concepts of our metamodel.

Finally the last chart in this study is presented in

Figure 7. It shows the time spent during the MDA

process specification using the tool. Few of the users

spent 4 hours on it, most of them spent more than 8.

Figure 7: Spent time on process specification.

3.2 Lessons Learned and Study

Constraints

Empirical assessment usually takes into account the

amount of data collected from the subjects.

However, in the case of an activity of process

specification it is difficult to involve a high number

of people in the experiments. There are few

professionals in organizations involved with this

kind of task. In general, many people enact on

processes but few of them specify or model a

software process. This observation has already been

identified in our previous studies and it is also

confirmed in our recent one. Accordingly, empirical

assessment in this area facilitates more qualitative

analysis than quantitative. Therefore, the assessment

of the process enactment is easier to collect bigger

amounts of data, facilitating a better quantitative

analysis in contrast with assessing process

specification.

Additionally, metrics to assess the process

enactment are more mature in the literature and are

also easier to apply in the software industry, such as

metrics to evaluate productivity and cost.

Nevertheless, metrics to assess the process modeling

and specification (apart from its enactment) need to

be better explored in the software engineering

community.

We should also highlight that the conclusions

obtained from our studies are restricted to the

particular set of participants. In other words, our

analysis regarding the advantages and drawbacks in

using our approach and tool may not be directly

generalized to other contexts. However, these

studies have allowed us to make useful assessments

about whether the specification of MDA processes

APPLYING AND EVALUATING AN MDA PROCESS MODELING APPROACH

189

with a supporting tool is worth studying further. As

one of PML goals is software process automation,

MDA may favor this.

In addition, the study have also allowed us to

make a useful evaluation of the applicability of the

SPEM/MDA approach and the Transforms tool

concerning the specification of MDA processes, as

detailed in Section 3.1.

4 CONCLUDING REMARKS

In general, the low level of flexibility of MDA

supporting tools makes the adoption of current

processes in organizations more difficult. Thus, this

can be one of the factors that hinders a wider

adoption of MDA in industry. A survey has been

performed and led by Lancaster University into what

affects the success of MDE in industry (EA-MDE,

2010). We believe that MDA adoption in industry

depends on the integration among well-established

enterprise software processes, MDA transformation

engines and approaches.

This paper presented our initiative which is

based on the need for process specification including

MDA concepts using a well-known standard called

SPEM. Our approach (Section 2) provides a means

for MDA process specification and enactment using

a supporting tool (Section 2.1). The case studies we

performed (Section 3) produced interesting results

regarding the applicability of our approach (Section

3.1). The SPEM/MDA metamodel and also our

supporting environment are suitable for the

empirical investigation that we have presented.

Future work includes (i) the adoption of an

approach for model-driven testing using the

Tranforms tool; (ii) investigation and building new

features for project management; and (iii) exploring

usability improvements of our tool. We also have

ongoing work on the execution of a new case study

concerning the MDA process enactment using our

approach and tool.

ACKNOWLEDGEMENTS

This work is partially funded by Fapesb, project

number 8694/2006, and grant number 0020/2006.

REFERENCES

Bendraou, R., Combemale, B., Cregut, X., and Gervais,

M. 2007. Definition of an Executable SPEM 2.0. In

Proc.s of the 14th Asia-Pacific Software Engineering

Conference, APSEC. IEEE Computer Society,

Washington, DC, 390-397.

ISO, 2004. Use of UML for ODP system specification.

Working Draft. ISO/IEC JTC1/SC7.

Koch, N., 2006. Transformation techniques in the model-

driven development process of UWE, In: Workshop

Proc. of the 6th intl Conference on Web Engineering.

ICWE '06, vol. 155. ACM, New York, 3.

EA-MDE, 2010. Empirical Assessment of the Efficacy of

the MDE. Available at: http://

www.comp.lancs.ac.uk/~eamde/

Humprey, W., Kelner,M. (1989). “Software Modeling:

Principles of Entity Process Models”. SEI. Software

Engineering Institute, Carnegie Mellon University.

Pittsburgh, Pennsylvania, (CMU/SEI-89-TR-2).

Maciel, R., Silva, B., and Mascarenhas, L., 2006. An

Edoc-based Approach for Specific Middleware

Services Development, In: 4

Workshop on MBD of

Computer Based Systems, Postdam, Germany. Proc.

IEEE Press, p:135–143.

Maciel, R., Silva, B., Magalhães, A. and Rosa, N., 2009a.

An Approach for Model-Driven Development Process

Specification, In: Proc. of the 11

Intl. Conference on

Enterprise Information Systems, Milan, Italy.

Maciel, R., Silva, B., Magalhães, A. and Rosa, N., 2009b.

An Integrated Approach for Model Driven Process

Modeling and Enactment, In: Proc. of the 23

Brazilian Symp. on Software Engineering, Fortaleza,

Brazil.

Mellor, S. et al., 2004. MDA Distilled. EUA, Addisson-

Wesley.

OMG, 2002. EDOC - UML Profile for Enterprise

Distributed Object Computing Specification. OMG

Adopted Specification (ptc/02-02-05).

OMG, 2003. MDA Guide. Version 1.0.1 (omg/2003-06-

01).

OpenUP Component – MDD, 2008. Available at: http://

www.eclipse.org/epf/openup_component/mdd.php.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

190
