A FRAMEWORK FOR FLEXIBILITY AT THE INTERFACE

Joining Ajax Technology and Semiotics

Frederico José Fortuna

, Rodrigo Bonacin

and Maria Cecília Calani Baranauskas

Institute of Computing, University of Campinas, UNICAMP, Caixa Postal 6176, 13083-970, Campinas, Brazil

CTI Renato Archer and Faculty of Campo Limpo Paulista, FACCAMP, MCT

Rodovia Dom Pedro I Km146, 6 13082-120, Campinas, Brazil

Keywords: Flexible Interfaces, Adjustable Interfaces, Tailoring, Norms, Human-computer Interaction.

Abstract: Different users have different needs and, especially in the web context, the user interfaces should deal with

these different needs. In this paper we propose a framework to support the design and development of

flexible, adjustable interfaces; the framework is grounded in the semiotic concept of norms and is developed

using Ajax technology. The framework was tested within the Vilanarede system, an inclusive social

network system developed in the context of e-Cidadania project. The test helped us to identify the

advantages and drawbacks of the proposed solution and the users provided us with important feedback to

improve it.

1 INTRODUCTION

In a web environment there are different users with

singular needs. They have different hardware,

software, network infrastructure, native language,

culture, geographical location and physical or

cognitive ability. These aspects impact on both

social and technological issues. Because of these

differences user interfaces should be flexible.

Web interfaces today, in general, are not flexible.

Most of them are static but there are some

exceptions such as iGoogle, Pageflakes, Netvibes

and MyYahoo! However the flexibility provided by

these interfaces is not enough when a vast and

diversified context of users is considered; the

adjustments are restricted to a short set of

possibilities and they are the same for all the users.

In addition, those interfaces do not consider the

social issues and they are not able to infer the user

needs.

Nowadays, adjustable web interfaces are

typically constructed using the Ajax technology

(Ajax stands for “Asynchronous JavaScript and

XML”). This technology enables developers to make

changes to a web interface without the need to

reload the page, what makes Ajax a very useful

technology for the development of flexible

interfaces.

Ajax is a powerful technology; however it

doesn’t help in informing which interface elements

should be adjusted and how it should be done to fit

the user needs. Consequently it is necessary a

theoretical referential, a design methodology and a

development framework to encompass those

adjustments.

We argue that Semiotics can provide us with

theoretical and methodological fundamentals for this

task (Bonacin et. al 2009). This work proposes to

employ the concept of norms, from MEASUR

(Methods for Eliciting, Analyzing and Specifying

User’s Requirements) (Stamper, 1993), to describe

which elements should be adjusted, and how and in

which situation they should be adjusted for every

user or group of users.

Norms describe the relationships between an

intentional use of signs and the resulting behavior of

responsible agents in a social context; they may also

describe beliefs, expectations, commitments,

contract, law, culture, as well as business. Norms are

useful and powerful because they may be used to

describe important aspects of the user context.

Our hypothesis is that if we put together Ajax

and norms we potentially create really flexible

interfaces. So in this paper we present a framework

to develop flexible interfaces using Ajax and norms.

This framework has been applied in the Vilanarede

social network system, in order to validate it.

Vilanarede is a social network system developed in

José Fortuna F., Bonacin R. and Cecilia Calani Baranauskas M. (2010).

A FRAMEWORK FOR FLEXIBILITY AT THE INTERFACE - Joining Ajax Technology and Semiotics.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Human-Computer Interaction, pages 30-37

DOI: 10.5220/0002889700300037

 SciTePress

the context of the e-Cidadania project (Baranauskas,

2007) in order to help creating a digital culture

among as many categories of users as possible,

people with different needs and interests.

The paper is structured as follows: Section 2

presents the background and clarifies terms and

concepts used in this work; section 3 presents the

proposed framework including its architecture and

implementation technology; section 4 presents and

discusses results from the application of the

framework; section 5 concludes this paper.

2 BACKGROUND

In this section we detail the main background work

used to delineate the proposed framework. Section

2.1 introduces the concept of flexible interfaces,

including a short overview on the research work on

this field. Section 2.2 presents the Ajax concepts and

features. Section 2.3 presents the concept of Norms

and prior attempts to use norms in order to provide

flexible interfaces, which support this work.

2.1 Flexible Interfaces

According to the IEEE standard computer

dictionary, flexibility is the ease with which a

system or component can be modified for use in

applications or environments other than those for

which it was specifically designed (Institute of

Electrical and Electronics Engineers, 1990). From

this definition, we could expect that flexible user

interfaces should be easily modified for different

contexts of use. We understand that to meet this

requirement, both technical and social issues must

be addressed in designing the system and the

interaction.

Literature in Human–Computer Interaction

(HCI) has pointed out different alternatives to

provide flexibility in the user interface. Dourish

(1996) argues that we cannot dissociate the technical

and social disciplines in systems design. The

relationship between them is considerably more

intricate than the traditional view suggests, where

requirements and constraints do not have

consequences beyond the application, and

sociological insights do not apply inside the system.

Tailoring is a concept closely related to our

notion of flexibility; it can be understood as ‘‘the

activity of modifying a computer application within

the context of its use’’ (Kahler et al. 2000: 1).

Research in tailorable systems usually presupposes

that the user should be in charge of the tailoring task

(Teege et al. 1999; Morch and Mehandjiev 2000). A

challenge in tailoring is how to provide users with

high-level interfaces in which relevant changes can

be made quickly without the necessity of advanced

technical skills.

Among other approaches, the context-aware

applications (Moran and Dourish, 2001) collect and

utilize information regarding the context in which

provision of services is appropriate to particular

people, place, time events, etc. Context refers to the

physical and social situations in which

computational devices are embedded. Fischer et al.

(2004) have proposed the concept of ‘‘Meta-

Design’’, a vision in which design, learning, and

development become part of everyday working

practices of end-users.

2.2 Ajax – Rich Interfaces

Ajax can be understood as a new style to develop

web applications, which includes several web

technologies. It is not a new technology by itself, it

emerged in software industry as a way to put

together some existing technologies in order to

provide “richer web interfaces”.

The term Ajax was coined by Garrett (2005) and

incorporates the following technologies:

• Standards-based presentation using XHTML

and CSS;

• Dynamic display and interaction using the

Document Object Model;

• Data interchange and manipulation using XML

and XSLT;

• Asynchronous data retrieval using

XMLHttpRequest;

• JavaScript binding everything together.

Ajax changes substantially the client-server

interaction. The classic synchronous model where

each user request is followed by a page reload is

substituted by an asynchronous independent

communication where the user does not need to wait

in a “black page” for the server processing.

Part of the processing can be executed at the client

side. This aspect can minimize the server and mainly

the communication workload. Many applications

that initially were restricted to desktop platforms due

to the limitations of the standard html development

can be transposed to the web by using Ajax

resources. For example, we can drag and drop

images, apply filters on them and change their sizes

without reloading the page. Regarding the interface

flexibility, Ajax enables to change the features,

A FRAMEWORK FOR FLEXIBILITY AT THE INTERFACE - Joining Ajax Technology and Semiotics

remove or include any interface object at a webpage

without the necessity of reloading the page.

Some of the first very popular applications using

Ajax are Google Suggest, Google Maps and Gmail.

Nowadays, Ajax is widely used in web development

and many platforms and development tools support

Ajax. The World Wide Web Consortium (W3C) is

also now working to standardize key Ajax

technologies such as the XMLHttpRequest

specification (W3C, 2009).

2.3 Norms and Flexible Interfaces

From the conceptual and theoretical points of view,

the proposed framework is based on Norm Analysis

Method (NAM) from MEASUR. Norms describe the

relationships between an intentional use of signs and

the resulting behaviour of responsible agents in a

social context; they also describe beliefs,

expectations, commitments, contract, law, culture, as

well as business.

“Norms can be represented in all kinds of signs,

whether in documents, oral communication, or

behaviour, in order to preserve, to spread and to

follow them. However, one cannot always put one’s

hands conveniently on a norm, as one might grasp a

document that carries information through an

organization. A norm is more like a field of force

that makes the members of the community tend to

behave or think in a certain way.” (Stamper et al.

2000, p. 15)

Besides the description of the agents’

responsibilities in the organisational context, Norm

Analysis can also be used to analyse the

responsibilities of maintaining, adapting and

personalising the system features.

Norms can be represented by the use of natural

language or Deontic Logic in the late stages of

modelling. The following format is suitable for

specifying behavioural norms (Liu, 2000):

<Norm>::= whenever <condition> if <state> then

Where <D> is a deontic operator that specifies that

the action is obligatory, permitted or prohibited. The

norms are not necessarily obeyed by all agents in all

circumstances; they are social conventions (laws,

roles and informal conventions) that should be

obeyed. For example: a norm specifies that the

agents are obliged to pay a tax; if an agent has no

money it will not pay, but usually there is a cost

when an agent does not obey the norms.

Bonacin et al. (2009) present the foundations, a

framework, and a set of tools for personalized

service provision using norms simulation. Part of

their framework is used in this proposal; however

their framework is limited by using “thin client”

solutions, since a page reload is necessary for each

interface change. This work expands the possibilities

from the technological and practical points of view

by using the Ajax technology. In addition it is

provided an easier and more productive way to

develop flexible interfaces. In this work norms can

be evaluated during interaction with the system and

be immediately reflected in interface changes.

We propose to simulate the norms and deduce

the expected behavior of users and organizations

during the user interaction (real-time). For example,

if someone accesses an e-Government portal, and is

obliged to pay a tax, then he/she will probably be

interested in accessing information about the

payment procedure. So the system can be

immediately adapted according to the user needs and

preferences.

Norms are susceptible to changes in the

organizational context and in carrying the intentions

of agents in society. In the proposed approach,

domain specialists, designers and users maintain the

norms specifications according to the changes in

their socio-pragmatic (Stamper, 1973) context.

3 THE FRAMEWORK

PROPOSAL

In order to help the development of flexible

interfaces we propose FAN: an Ajax framework

using norms. FAN stands for Flexibility through

Ajax and Norms. The framework’s architecture is

described in section 3.1 and its execution aspects are

explained in section 3.2.

3.1 Framework Architecture

The framework we propose provides powerful

capabilities but it has a relatively simple architecture

which is shown in Figure 1. Basically, the

framework is composed of four modules:

Perception, SOAP Client, Action and Users’ Facts

Storage. These modules are responsible for tasks

such as creating, storing and loading contexts and

facts about the users, capturing events on the

presentation layer (interface, which is usually

constructed with HTML and CSS), accessing

NBIC/ICE web services (which maintain and

interpret Norms) and customizing the interface.

Regarding the development technologies, the

Perception, SOAP Client and Action modules were

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

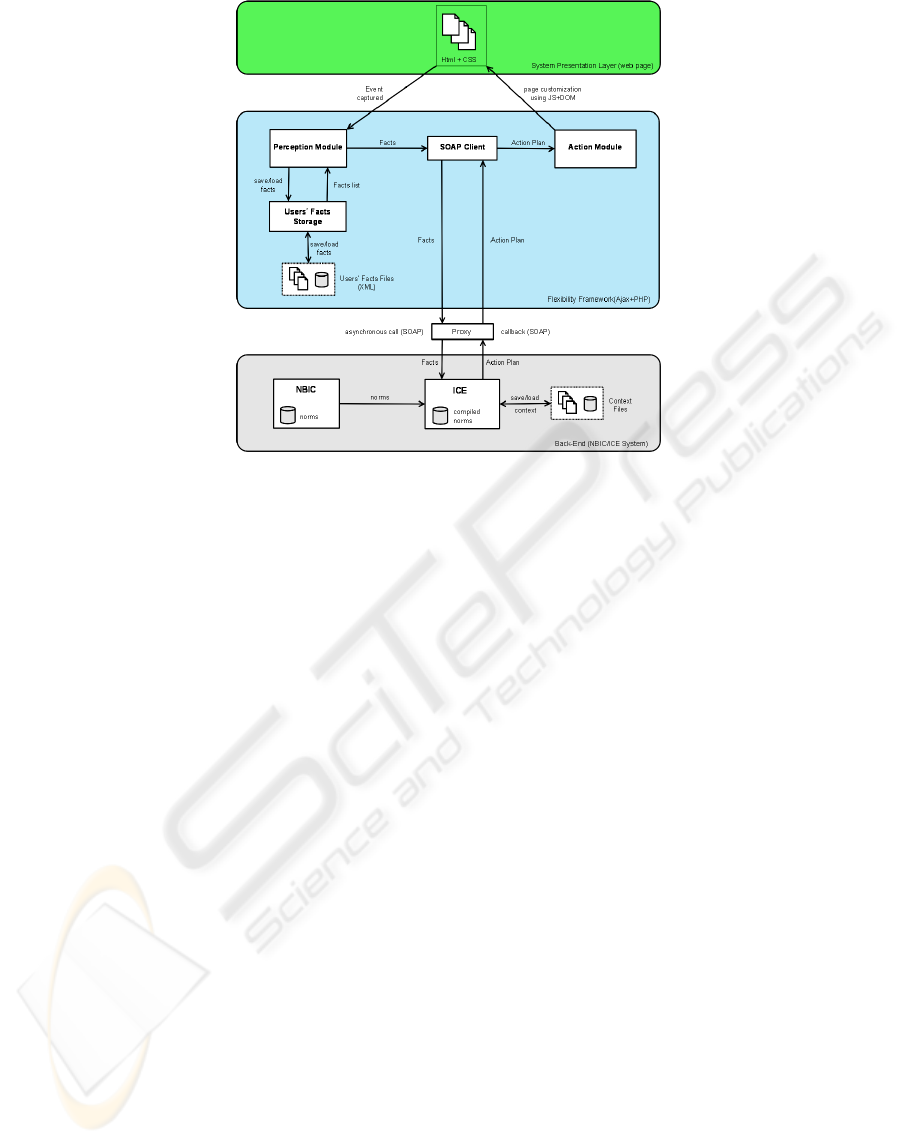

Figure 1: Framework architecture.

developed using Ajax, running on the client side,

because of its potential and capacity of giving

developers capabilities to modify a web page

without the need of reloading it, and the Users’ Facts

Storage module was developed in Ajax and PHP.

The PHP code runs on the server side to store facts

related to every user.

The Perception module is responsible for

capturing events generated by the users on the

presentation layer, such as mouse clicks over buttons

or images. Also it is responsible for generating facts

related to these events. Examples of facts: the user

has difficulty to use the mouse due to many clicks

on non-clickable regions or the user is a sign

language reader due to many demands on sign

language videos.

The SOAP Client module is responsible for the

communication between the proposed framework

and NBIC/ICE System, which is responsible for

maintaining and evaluating the norms. This module

handles synchronous and asynchronous requests

made by the Perception module and it accesses

NBIC/ICE web services using SOAP calls.The third

module, Action, is responsible for changing the

system’s interface according to an Action Plan

generated by ICE. An Action Plan is a XML that

stores interface objects IDs that should be modified

and how the modifications should be done, which

attributes of an interface object should be modified,

what are new values of these attributes or a

JavaScript code that must be executed.

The last module, Users’ Facts Storage, is in charge

of storing, loading and erasing users’ facts generated

by the Perception module. It stores facts on XML

files associated to each user and/or each system

page.

The NBIC/ICE System has two components: NBIC

and ICE. NBIC stands for Norm Based Interface

Configurator and it is responsible for storing and

managing norms. ICE means Interface

Configuration Environment. This component is

responsible for making inferences, using Jess

inference machine, over norms stored by NBIC and

creating action plans, according to the inferences

made, describing how the interface should be

customized. In other words, which interface

elements should me modified and how it should be

done or which elements should be removed or

added.

A proxy is used in the communication between

the framework and NBIC/ICE System in order to

avoid a JavaScript-related security issue. Some web

browsers don’t execute JavaScript codes stored in a

Server different from the Server that hosts the

current web Page.

3.2 How it Works

Every time a page is loaded the Perception module

creates a new context by making an asynchronous

call to ICE. A context stores information such as the

user id, the system name (or system id) and some

information about the page that the user is visiting.

A FRAMEWORK FOR FLEXIBILITY AT THE INTERFACE - Joining Ajax Technology and Semiotics

After the context is created or loaded, the norms

related to the system are loaded in that context. After

creating the context and loading the norms, the

Perception module makes a request to Users’ Facts

Storage module to load all the facts related to the

current user and current web page (node). If the

Users’ Facts Storage finds facts of the current user

and node, this module will build a list with these

facts, otherwise it will build an empty list. This list

is, then, returned to the Perception module. If the list

is not empty, this module will start the customization

process described as follows, for each fact in order

to adjust the interface so that it looks and behaves

like in the last time the user visited or adjusted that

page.

When an event on the interface (e.g. mouse

click over a button) is captured by the Perception

module, as shown in Figure 2, this module creates

predicates related to the event and the actual context.

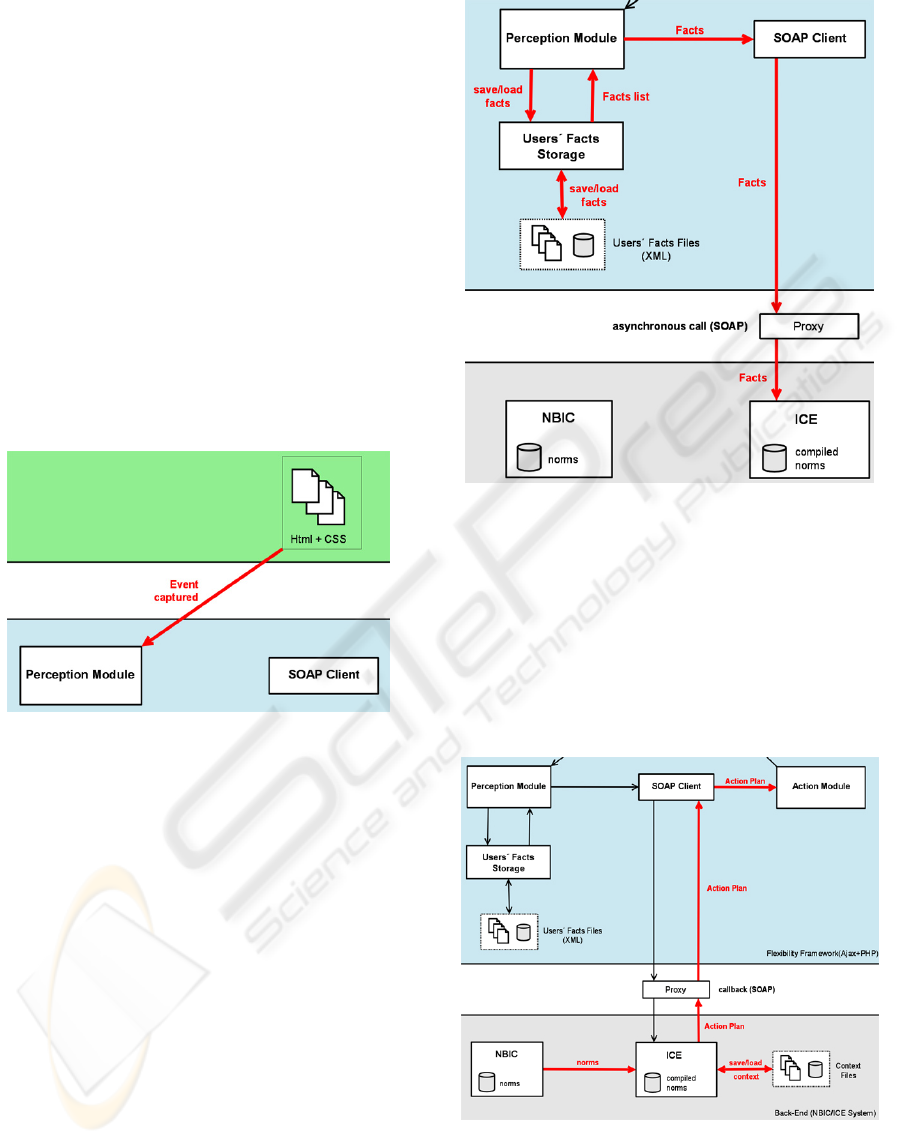

Figure 2: Event captured by Perception.

After creating predicates, the Perception module

uses an ICE service, making an asynchronous call,

via SOAP Client module, to generate a new fact

based on the generated predicates, as shown on

Figure 3. A fact is basically a collection of

predicates. Also the Perception module requests

Users’ Facts Storage to store the predicates on a

XML as a new fact so that the new adjustment may

be saved.

After creating a new fact, ICE starts to make

inferences over the norms, stored by NBIC and

related to the context and fact, and then it builds an

action plan, an XML file that stores interface objects

IDs that should be modified and how the

modifications should be done. The action plan is

then sent to SOAP Client module, which calls the

Action module to modify the interface according to

the action plan generated by ICE. These steps are

shown in Figure 4.

Figure 3: Perception making requests to Users’ Facts

Storage and ICE.

The Action module parses the XML file (action

plan), as shown in Figure 5, to look for interface

objects ids and attributes values or JavaScript code

that should be executed. This module then accesses

the found interface objects using DOM and modifies

their attributes according to the new values found on

the action plan. Also, this module executes any

JavaScript code found in the Action Plan.

Figure 4: NBIC/ICE generating an Action Plan.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

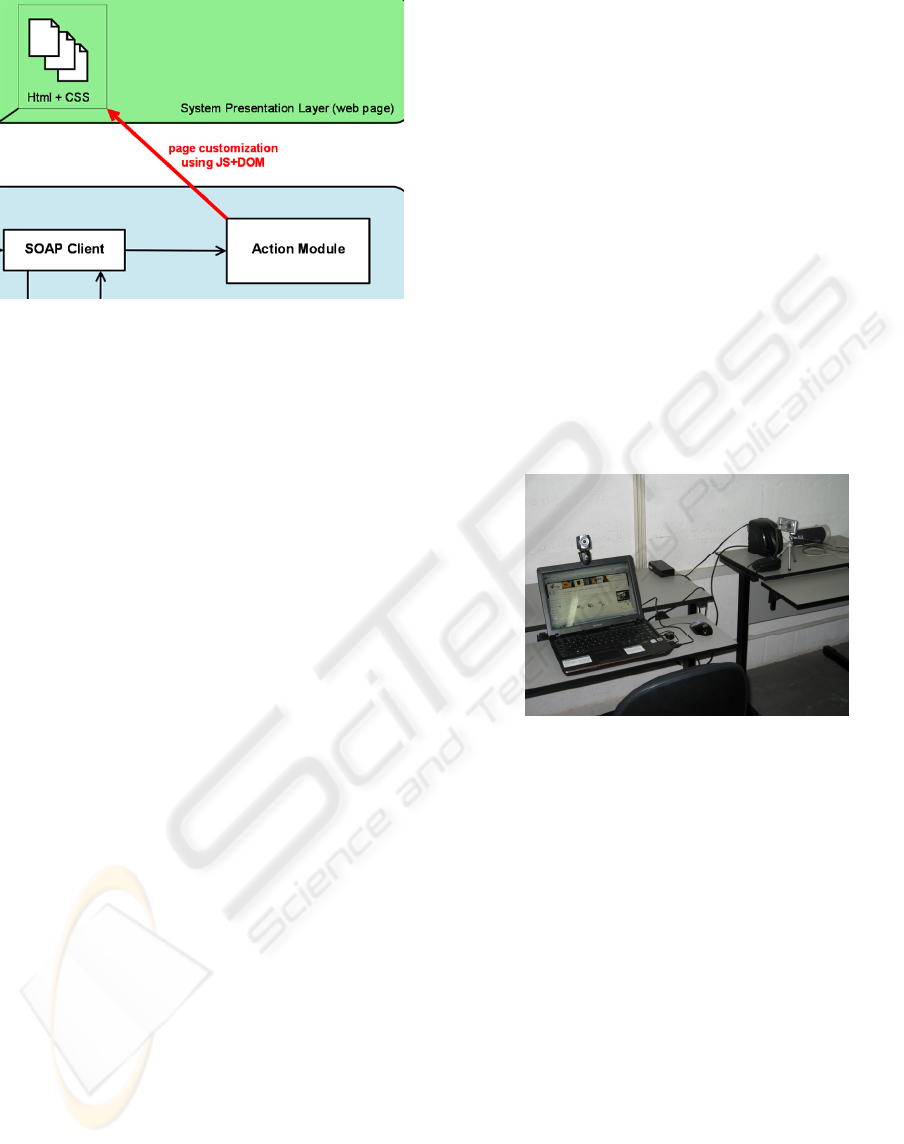

Figure 5: Action module customizes the interface

according to the Action Plan.

4 APPLYING THE FRAMEWORK

The framework is being used and tested in the

Vilanarede system. Vilanarede is a social network

system developed in the inclusive context of e-

Cidadania project.

The framework for flexibility we propose should

help Vilanarede system to achieve its objectives

because it may give each user the possibility to

adjust the system interface according to his or her

needs or interests. As an example, the framework

may enable a user to change the type of the main

menu, changing the way he or she will see it. Using

inference the framework may discover that a user

has some kind of sight problem and them the

framework may change the size of interface

elements like images and texts, making them bigger.

The framework was tested for the first time with

users on a participatory activity organized by the e-

Cidadania project with Vilanarede users. During the

activities, 7 users were asked to do some tasks at

Vilanarede system or tasks related to the system.

After each participatory activity researchers

analyzed the data collected.

Further analysis of users’ facts files showed that

at least 21 of approximately 270 users of Vilanarede

system already made at least one adjustment in the

interface, using the framework.

4.1 Tests and Results

On the activity organized to test the framework,

practitioners used a notebook station with

Vilanarede system already loaded, as shown in

Figure 6, and they were asked to fill their profile at

Vilanarede with some personal information such as

their level of education, level of experience with

web navigation and how frequent they change the

font size in the system. If a user selected that he or

she makes the page font bigger most of the time or

always, the framework would infer that it would be

useful to make the font bigger for that user, so the

font would be bigger on every page as soon as the

user saved his profile.

After filling profile information, users were

asked to change the type of the page’s main menu

from a default list of icons to a circular menu. In

order to do this, users should first click on a special

button in the page so that adjustment buttons would

be shown on the page. These buttons would enable

the user to modify some interface elements. After

that, users should find and click on the correct

button to change the menu type from a linear list to a

circular set of options. Figure 7 shows the menu

types and the buttons to change from one type to the

other.

Figure 6: Station set used by Vilanarede users to test the

framework.

Everything the users said and their emotions during

the activity were recorded by a digital camera and a

webcam. All the things they did on the interface

(mouse movements, clicks etc) were recorded with

Camtasia Studio, a desktop screen recorder. Also, e-

Cidadania researchers observed the users during the

activity and they wrote down on paper forms some

important information regarding their interaction

with the system. They wrote information such as

whether a user noticed the font becoming bigger

(automated adjustment) depending on the

information he or she filled in his or her profile and

how difficult it was for each user to locate the

special button that enables adjustment buttons and

how difficult it was for them to change the main

menu type and the steps the users took to complete

the task. Also, researchers observed users’

suggestions to change the appearance and position of

that special button and which new adjustments they

would like to be able to make on the interface.

A FRAMEWORK FOR FLEXIBILITY AT THE INTERFACE - Joining Ajax Technology and Semiotics

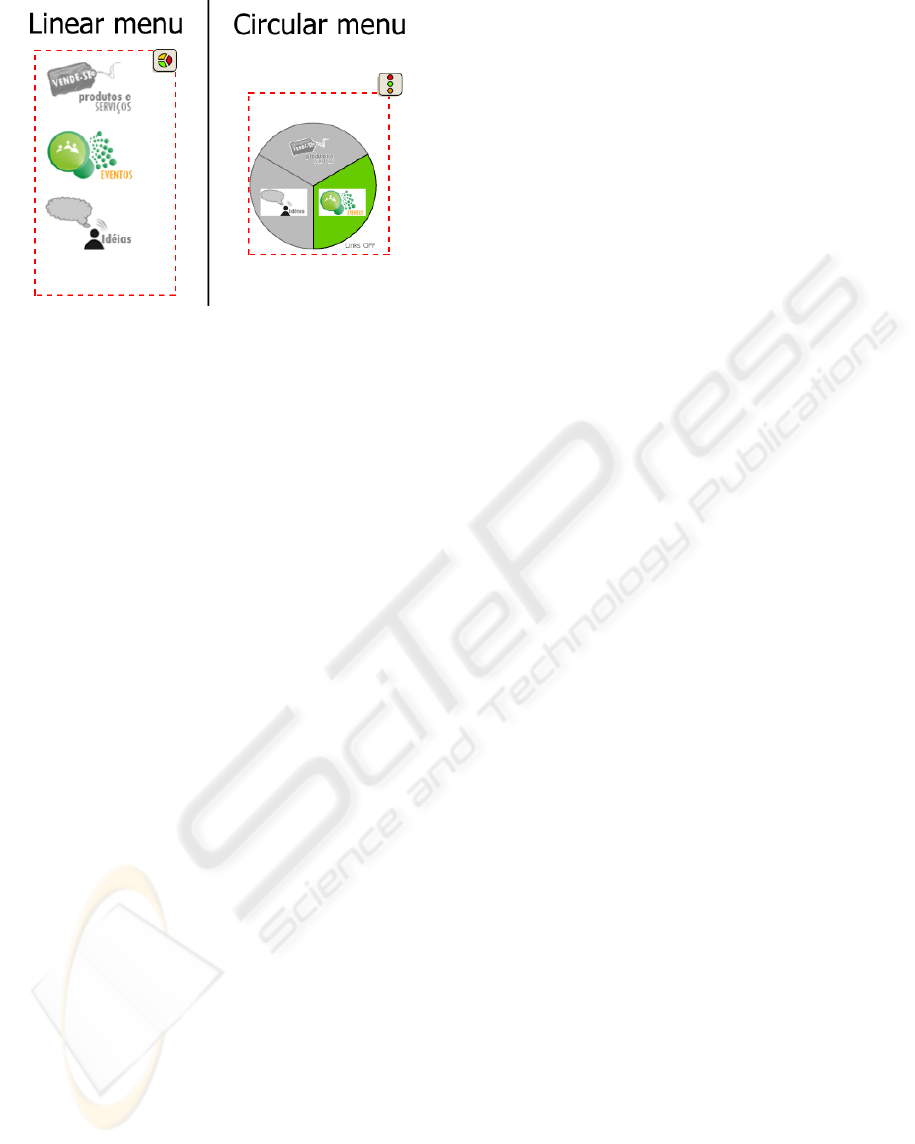

Figure 7: Alternative ways to see the Vilanarede’s main

menu – a linear way and a circular one.

The data collected by the researchers, the cameras

and the screen recorder showed that almost all the

users who tested the adjustments provided by the

framework enjoyed being able to adjust the interface

according to some of their interests and needs, as

one of the users said “it’s very good to have the

possibility to change the interface”. Also, the data

showed that the majority of the users preferred the

new type of menu offered by the framework.

Despite the advantages of using the framework

and the good and interesting data collected, before

and during the activity it was possible to identify

some problems, some drawbacks and the users

pointed out some aspects of the adjustment process

that could be improved. Many users didn’t like the

appearance and position of the button they needed to

click on in order to make adjustment buttons visible.

In general, they would like to see a bigger button in

a different position so that it would be easier to find,

indentify and click on it.

During the activity it was possible to notice that

one of the drawbacks of the framework is

performance. The framework may take a few

seconds to adjust a system’s interface if the system

has many complex norms or if the NBIC/ICE server

is not so fast. The framework may also have

problems with performance especially if the user

(client) has a very poor internet connection as the

framework may suffer from connection timeouts if

packets got lost or corrupted or if they take so much

time in their way from the client to the server and

back.

Another drawback is that it is not easy to

synchronize the requests made by the perception

module to ICE/NBIC via SOAP Client so that

ICE/NBIC returns the correct and expected data.

Also, the framework enables developers to make

almost all elements in the interface adjustable, using

simple norms, but developing JavaScript code to

implement the adjustable behavior of certain

elements may be not that simple.

5 CONCLUSIONS AND FUTURE

WORK

Different users have different needs and it is

essential that user interfaces meet these different

needs. In order to deal with this diversity, interfaces

should be adjustable. To help the design and

development of flexible, adjustable interfaces we

proposed a framework, developed using Ajax and

PHP, grounded in the concept of norms. This

framework was successfully used and tested in

Vilanarede system during a participatory activity

organized by e-Cidadania project. The test helped us

to identify the advantages and drawbacks of using

the framework and the users gave us important

feedback to help improving the framework.

As future work a norm modeler using web

technologies is being developed in order to make it

easier and more accessible for developers to include

new norms into NBIC or changing the existing ones.

In order to enhance the performance of the process

of changing the interface according to users’ needs,

we could look for a more powerful and faster server

with a faster broadband internet connection to run

NBIC/ICE system as it is running, at the moment, in

an old Pentium4 server with a limited broadband

connection.

One powerful idea we consider as future work is to

integrate the framework with semantic web. Instead

of storing norms and facts inside files or databases at

NBIC/ICE system we may use technologies like

RDFS or SWRL (Semantic Web Rule Language) to

store norms and facts on the web. Queries over

norms may be done using SparQL, a RDF query

language. Instead of using NBIC/ICE to make

inferences over norms we may use RDF/RDFS,

OWL and SWRL to do it. That way, users may store

information about their needs (facts) on RDF files

and store them on the web. The framework may use

the facts stored on these files to make inferences and

adjust a system’s interface according to users’ needs.

ACKNOWLEDGEMENTS

This work is funded by Microsoft Research -

FAPESP Institute for IT Research (proc. n.

2007/54564-1 and n. 2008/52261-4).

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

REFERENCES

Baranauskas, M.C.C.: e-Cidadania: Systems and Methods

for the Constitution of a Culture mediated by

Information and Communication Technology.

Proposal for the Microsoft Research-FAPESP

Institute, (2007).

Bonacin, R. ; Baranauskas, M. C. C. ; Liu, K. ; Sun, L. .

Norms-Based Simulation for Personalized Service

Provision. Semiotica (Berlin), v. 2009, p. 403-428,

2009.

Dourish, P. (1996) Open implementation and flexibility in

CSCW toolkits. Ph.D. Thesis, University College

London, ftp://cs.ucl.ac.uk/darpa/jpd/dourish-

thesis.ps.gz, last access October 17, 2007.

Fischer, G., Giaccardi, E., Ye, Y., Sutcliffe, A.G., and

Mehandjiev, N. (2004) Meta-Design: a Manifesto for

End-User Development. Communications of the ACM,

vol. 47, Issue 9.

Garrett, J.J. Ajax: A New Approach to Web Applications,

Adaptive Path, February 18, 2005.

http://www.adaptivepath.com/ideas/essays/archives/00

0385.php, last access December, 21, 2009.

Institute of Electrical and Electronics Engineers. (1990)

IEEE Standard Computer Dictionary: A Compilation

of IEEE Standard Computer Glossaries. New York,

NY: 1990

Kahler, H, Morch, A., Stiemerling, O. and Wulf, V. (2000)

Special Issue on Tailorable Systems and Cooperative

Work, Computer Supported Cooperative Work, 1, 9,

Kluwer Academic Publishers.

Liu K. (2000) Semiotics in information systems

engineering, Cambridge University Press.

Moran, T. and Dourish, P. (2001) Introduction to the

special issue on Context-Aware Computing. Human-

Computer Interaction, 16 (2), 2-3, Lawrence Erlbaum

Associates.

Morch A. e Mehandjiev N. (2000) Tailoring as

Collaboration: the Mediating Role of Multiple

Representations and Application Units. Kahler, H,

Morch, A., Stiemerling, O., Wulf, V. (Eds), Special

Issue on Tailorable Systems and Cooperative Work,

Computer Supported Cooperative Work, v. 9, Issue 1,

Kluwer.

Stamper, R. K. (1973) Information in Business and

Administrative Systems, NY, USA: John Wiley &

Sons, Inc.

Stamper, R., 1993. Social Norms in Requirements

Analysis – an outline of MEASUR. In Jirotka, M.,

Goguen, J. and Bickerton, M. (eds.), Requirements

Engineering, Technical and Social Aspects. Academic

Press. New York.

Stamper, R., Liu, K., Hafkamp, M. and Ades, Y., (2000)

Understanding the roles of signs and norms in

organizations – a semiotic approach to information

system design, Behaviour & Information Technology,

19, 1, 15-27, Taylor & Francis.

Teege, G., Kahler, H. and Stiemerling, O. (1999)

Implementing Tailorability in Groupware, In

SIGGROUP Bulletin, 20, 2, 57-59, Association for

Computing Machinery.

W3C, XMLHttpRequest, W3C Working Draft, November,

19, 2009, http://www.w3.org/TR/XMLHttpRequest/,

last access December, 21, 2009.

A FRAMEWORK FOR FLEXIBILITY AT THE INTERFACE - Joining Ajax Technology and Semiotics
