TECHNIQUES FOR VALIDATION AND CONTROLLED

EXECUTION OF PROCESSES, CODES AND DATA

A Survey

Dipankar Dasgupta, Sudip Saha and Aregahegn Negatu

Department of Computer Science, The University of Memphis, Memphis, TN 38152, U.S.A.

Keywords: Trusted Execution Technology, Trusted Platform Module, Digital Signature, Code Signing, Watermarking,

Integrity Checker, Magic Cookie.

Abstract: Various security mechanisms are available to validate, authenticate and permit codes, data and scripts for

executing in a computing device. Accordingly, different techniques and tools have been developed to

preserve integrity and confidentiality at the process, protocol, system and communication levels. For

example, Trusted Platform Module, Intel Trusted Execution Technology and Windows Vista Kernel Mode

security ensure system level integrity and security, whereas, Digital Signature, Code Signing,

Watermarking, Integrity Checker and Magic Cookies address integrity of data and executables in transit. A

brief survey of these techniques is described here with how these techniques help to secure computing

environment.

1 INTRODUCTION

Many techniques have been proposed and

implemented to address various security issues (Lin

and Loui, 1998, Gong and Schemers, 1998; Gong

and Dageford, 2003). For example, security features

have been implemented at the hardware level as in

Trusted Platform Module (TPM) (Pearson, 2003;

TCG, n.d.), Trusted Execution Technology (TXT)

(Intel, n.d.). Specifically, TPM is a microcontroller

that can securely store artifacts for authentication of

code to run in a device (PC, mobile phones, network

equipment, or any embedded device). These artifacts

can include passwords, certificates, or encryption

keys. The main feature of TPM is that security

credentials are stored in hardware as it can better

protect from cyber attacks. Such storage can hold

platform measurements that help ensuring

trustworthiness of the platform. Authentication and

attestation (a process to prove that the platform has

not been breached) are necessary steps to ensure

safer computing environments. Many PCs and

servers are now shipped with TMP, and many

applications are being developed to establish a

secure execution environment, protect data at rest or

in transit, and demonstrate compliance with

numerous data security regulations. Software and

hardware manufacturers are also finding new ways

to put the TPM to work (TCG, n.d.)

Intel’s TXT (Intel, n.d.) is a set of extensions, which

integrates new security features and capabilities into

the processor, chipset and other platform

components. TXT supports many capabilities

including integrity, confidentiality, measurement,

protection, attestation, and protected execution, at

the hardware level so that a chain of trust for an

execution environment can be built upon.

Prior to the introduction hardware-level security

support (McCune et al, 2008), many system and

application level security techniques have been in

use. Most system level applications use isolation

mechanism also sometimes called Domain

Separation Mechanism (Rushby, 1984). Virtual

machines (VM), such as Xen (Dragovic et al, 2003),

and VMWare (Waldspurger, 2002) provide coarse-

grained isolation, provide address space separation

and restricted external interfaces. Such logically

isolated environments enable applications running as

if on different hardware.

However, other system level isolation techniques

are implemented inside the kernel or at the

application level, via system call interposition.

Kernel Module Security (Conover, 2006; Microsoft,

2006) and Linux Security Module (LSM) (Wright et

Dasgupta D., Saha S. and Negatu A. (2010).

TECHNIQUES FOR VALIDATION AND CONTROLLED EXECUTION OF PROCESSES, CODES AND DATA - A Survey.

In Proceedings of the International Conference on Security and Cryptography, pages 77-85

DOI: 10.5220/0002889800770085

 SciTePress

al, 2002) are examples of kernel-level security

techniques. System level security via system call

interposition techniques (Goldberg et al 1996;

Garfinkel, 2003; Liang et al 2003) are widely used

and used to create sandboxes, perform intrusion

detection, prevent damages by untrusted code, or

variable tuning of privileges. While kernel

techniques are typically fast, interposition

techniques have the advantage of flexibility.

Sandboxing provides protection at the granularity of

processes. There are many sandboxing based

operating systems. AppArmor (AppArmor, n.d.) is a

sandboxing technique designed as kernel (LSM)

enhancement to better protect Linux operating

systems such as Ubuntu-9. Sandboxing is also

becoming a preferred method as the security model

for application development platforms such as java

(Gong and Dageford, 2003). Sandboxing isolation

mechanism limits the damage from untrusted

programs by reducing a process’s privileges to the

minimum and thwarts threats, whether it comes from

a malicious program or security vulnerability of a

program. Integrity checker is one of the earliest

security techniques to prevent host intrusions such as

detection of Trojan programs and backdoors (e.g.

Rootkits).

Security at communication is very hard to

ensure; but sophisticated techniques like digital

signature, code signing, magic cookies etc. go a long

way to secure the process of data communication

and access control. While malicious access and

alteration of resource is important and is addressed

by the methods mentioned so far, it is also important

to secure the right on those resources. Digital

Watermarking handles this issue. To have trusted

computing environment security measures should be

put in place that spans the entire cross section of

information technology (from hardware to

applications and their network transactions). Here

follows a brief description of representative security

modules and techniques.

2 CONTROLLED EXECUTION

ENVIRONMENT

Trusted Platform Module (TPM) often called the

"TPM chip" or "TPM Security Device" is a

hardware device for key management (generation,

creation, encryption and decryption, and storage).

Furthermore, it can perform a hash of a summary of

the current hardware and software configuration of

the machine to ensure that it is sealed, and that no

alteration has been brought to it. It can be used for

full disk encryption as it is fast enough to perform

this seamlessly for the user. Software-wise, it is

unbreakable, as any alteration to software can be

detected and blocked, and the encryption keys are in

kernel-space and hard to reach. It can, however, be

broken by hardware means via a cold-boot attack

(before the information disappears from memory,

the system is booted in a small OS off a USB stick

and the memory dumped; the keys are in system

memory and can be retrieved easily, it has been

proved that this is achievable with no special

equipment). The cold boot attack relies on the

machine being powered on, in sleep mode, or just

been powered off. TPM can be thought of a small

microcontroller that performs system integrity

operation. It has the following capabilities (Bajikar,

2002; Parno, 2008)

¾ Crypto Capabilities

¾ RSA Accelerator

¾ Engine for SHA-1 hash algorithm

¾ Random number Generator

¾ Limited NVRAM for TPM contents

The cryptographic computation occurs inside

TPM hardware and outside environment cannot have

access to that execution; only I/O communication is

performed. For authentication, digital signing and

key wrapping operations TPM provides the facility

of RSA encryption/decryption, too. SHA-1

procedure is implemented to provide hashing

facilities. All these features make TPM a powerful

small hardware entity to maintain system security.

TPM maintains an internal hardware protected

storage of sensitive secret information to provide

security facilities. These include keys for PKI

communication, Attestation Identity key and various

certificates. Three types of certificates are stored in

TPM – endorsement certificate, platform certificate

and conformance certificate. The contents are

illustrated in the following diagram of (Bajikar,

2002).

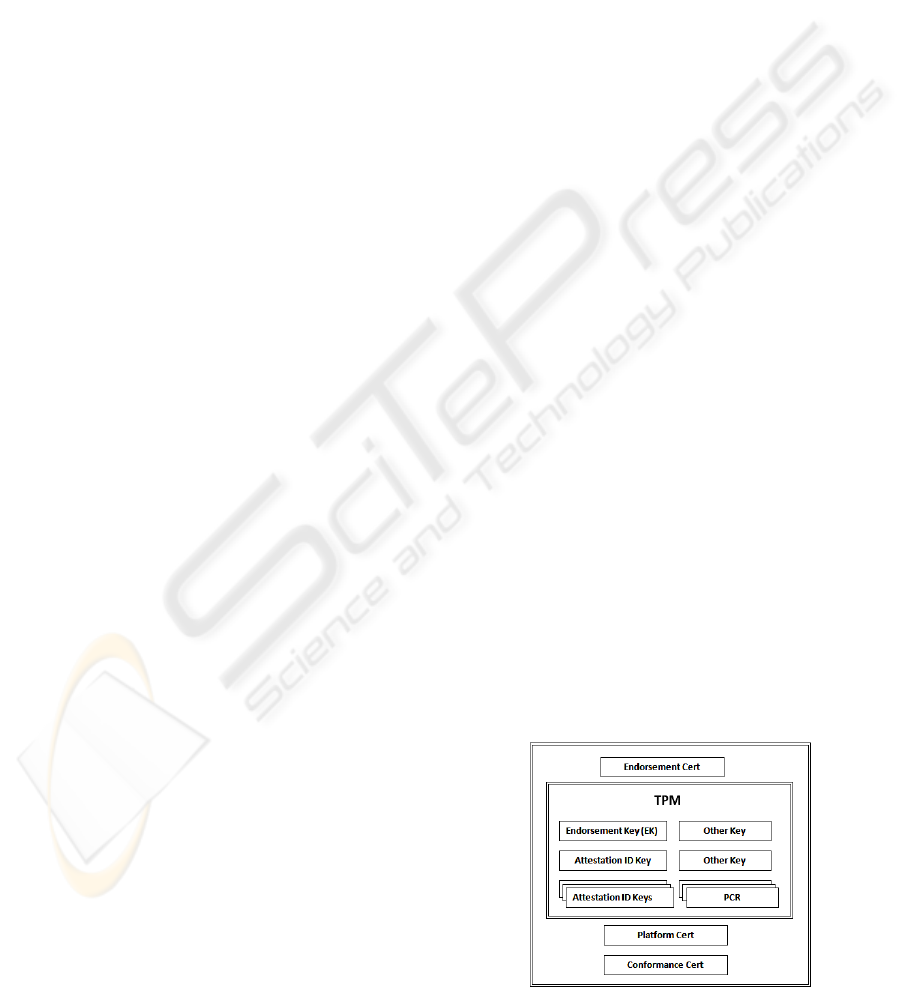

Figure 1: Contents of TPM storage (Bajikar, 2002).

SECRYPT 2010 - International Conference on Security and Cryptography

TPM is a useful concept for PCs. But, it is more

important in the context of notebooks because

several threats concerning notebooks are addressed

by TPM. Notebooks have various threats in higher

order than PCs. Physical data theft is one of them.

As notebooks often need to access internet from

outside of the organization firewall, so there is a

higher danger of data communication attack. Here is

a threat matrix described in (Bajikar, 2002) that

indicates how TPM addresses these issues.

Table 1: Threat matrix for notebooks and TPM (adopted

from (Bajikar, 2002)).

Threats

Current

Solutions

Weakness

TPM

Solutions

Data Theft

Data

Encryption

(EFS,

VPN,

Encrypted

email, etc.)

Encryption

keys are

stored on the

hard disk and

are

susceptible to

tampering

Protected

storage of

keys

through

hardware

Unauthorized

access to

platform

Username/

Password

Biometrics

and

external

tokens for

user

authenticat

ion

Subject to

dictionary

attacks

Biometrics

can be

spoofed

Authenticatio

n credentials

not bound to

platform

Protection

authenticati

credentials

by binding

them to

platform

Unauthorized

access to

network

Windows

network

logon,

IEEE

802.1x

Can be

bypassed

Certification

can be

spoofed

Authenticatio

n data is

stored on the

hard disk and

is susceptible

to tampering

PKI based

method for

platform

authenticati

Hardware

protection

authenticati

on data

Trusted Execution Technology (TXT): is a

hardware extension to some Intel microprocessors,

meant to improve security. It is made up of two

major components, TMP (as described above) and

DMA (Direct Memory Access) page protection.

Also, it improves upon the previous microprocessor

and chipset technology of Intel such that each

application runs in a concealed environment, which

cannot be accessed by other applications; and data

sent to and from an I/O device can only be read by

the desired recipient. The capabilities of Intel

Trusted Execution Technology include (Greene,

n.d.):

¾ Protection of execution and memory spaces;

¾ Sealed storage of encryption keys;

¾ Attestation which ensures proper invocation of

TXT environment and provides a verified

measurement of the software running in the

protected space.

The benefits provided by TXT are modeled by three

strategies.

• Local verification which uses the measurement

capability of TXT environment to make local

user confident about the proper configuration of

the system.

• Remote verification makes remote entities

assured of the platform configuration.

• Multi-level operation takes advantage of TXT

memory protection to run two or more

applications or operating systems safely.

Kernel-Mode Security: The kernel is the most

central part of an operating system. It is the first

piece of code to boot up a computer; it enables the

computer software to talk to the computer hardware;

and it is responsible for low-level OS tasks such as

memory management, multiprocessor

synchronization and scheduling/launching of

processes. Keeping the integrity of the kernel is

critical for the performance, reliability and security

of the entire computer. Windows Vista adds a set of

security measures to prevent the kernel from being

altered, or at least discontinue running once the

kernel had been compromised. The improvements

consist of checks being performed on the files to be

run, based on a signed certificate containing the

correct hashes for the files. As the certificates cannot

be faked, an attacker must attempt to bypass these

rather than trying to break. The kernel

(NTOSKRNL.EXE) is loaded (and can only be

loaded) by WINLOAD.EXE which performs checks

on itself, the kernel, and all the essential and non-

essential boot drivers. The checks on itself and the

non-essential boot drivers can be ignored or disabled

by being in kernel debug mode. NTOSKRNL.EXE

depends on CI.DLL that handles Code Integrity.

This dependency is the essential part of boot drivers

and run-time drivers checked by WINLOAD.EXE.

This file checks that every application that has a

certificate embedded into it has not been altered.

These checks can be disabled by system

administrators if desired. NTOSKRNL.EXE has an

internal part called PatchGuard that performs the

self-check based on a 5-10 min timer that cannot be

TECHNIQUES FOR VALIDATION AND CONTROLLED EXECUTION OF PROCESSES, CODES AND DATA - A

Survey

disabled. The kernel does not allow any program in

user space to access physical memory directly.

Windows Vista kernel mode security includes the

following features (Conover, 2006):

¾ Driver Singing,

¾ PatchGuard,

¾ Kernel-mode code integrity checks,

¾ Optional Support for secure Bootup using a

TPM hardware chip,

¾ Restricted User mode access to

\Device\Physical Memory.

Driver signing mechanism requires any driver to

be installed in kernel to have a certificate from a

trusted third party. As long the certificate giving

process is secured no malicious driver will be

installed in the kernel. However, if any certificate is

published or compromised, then the overall security

becomes vulnerable.

The PatchGuard is designed to prevent kernel

patching, which degrade security, reliability and

performance. The kernel-mode code integrity check

protects the operating system by verifying system

binaries haven't been tampered with and by ensuring

that there are no unsigned drivers running in kernel

mode. Other security steps e.g. secure bootup and

limited user access to physical memory adds extra

protection to the kernel mode security.

Microsoft, by the integration of these security

features in its OS, has raised the security bar to a

higher level by preventing injection of unsigned,

possibly malicious code. Enforcement of the security

measure rests on the stated impossibility of disabling

these component functions of the Kernel-Mode

Security. But, as Symantec’s research (Conover,

2006) shows, there is limit to the effectiveness of

these security measures. These protections can be

disabled by patching the kernel (NTOSKRNL.EXE).

Once this is patched, WINLOAD.EXE will refuse to

load it, so loader also needs to be patched. During

execution, if PatchGuard manages to perform the

self-check, it will halt Windows as it found the

patched system files, so it needs to be disabled too.

Disabling PatchGuard does not need patching. There

is a subtle way to forcefully disable a timer, which

PatchGuard relies upon to wake up and execute its

checking, so that it never signals an event. This

means, although the kernel-mode security has

enhanced the security of Windows OS to prevent

most of the malicious codes, it does not provide an

iron-clad security.

Sandboxing.

Sandboxing (Singh, 2004) is any

technique used to separate running programs. The

term is general, and can refer to virtual machines

such as general purpose machines like VMware or

KVM, or application-specific, such as JVM or CLR

in Windows. It can also refer to protecting system

calls by trapping them and limiting their use to

specific applications; these can be outside the kernel,

and hook into it or loaded as modules. Modern OS

virtual memory also separates processes from each

other by running each of them in a separate address

space.

Java development environment uses sandboxing

to incorporate security measures. JVM could run

local as well as remote (usually applets) executable

codes. The sandbox provides a restricted

environment in which limitations are enforced on the

system resources untrusted code can access or

request. So, as used in other platforms, sandbox in

Java is used for safe running of untrusted code,

which comes from untrusted source. In Java 2

security model (Sun, 1997), untrusted code does not

imply just applets; security check is extended to all

java programs including applications. Java 2 allows

fine-grained access control with easily configurable

security policy as well as easily extensible access

control structures.

As such Java 2 does not just a sandbox with a

fixed boundary but provides multiple sandboxing

environments each with different access control

settings or permissions. Java’s overall security is

enforced via three-tier defense: a) bytecode verifier

– along with the JVM, ensures legitimacy of

bytecode and guarantees language safety and

baseline security at run time; b) class loader –

provide an important security feature of separating

name spaces for various software classes and using

separate class loaders, a degree of isolation is

established between the instances of classes; c)

security management – this is a mechanism (security

manager, access controller) for applications to check

the current effective policy and perform access

control states.

Figure 2 depicts the java sandboxing mechanism.

The important concept in the mechanism is the

protection domain, which is a domain that encloses

classes whose instance objects that are directly

accessible by a principal (an entity – individual,

corporation, login ID) to which a set of permissions

are granted. Security policy is a mapping from

classes (and their instances) to protection domains,

which in turn is mapped to corresponding set of

permissions. Protection domains can be bound to

static set of permission that is granted despite the

current dynamic policy setting. The protection

domain can also be initialized to use the static

permission as well as the dynamic security policy

SECRYPT 2010 - International Conference on Security and Cryptography

(editable by a policy tool). Protection domains fall

into two distinct categories: system domain through

which all protected external resources such as file

and network I/Os must be accessed; and application

domain that encloses rest of the resources. The

protection domain and its associated set of

permission define a specific sandbox. The

CodeSource (the URL of a class and certificate used

in code signing) binds an application (bytecode) to a

sandbox. An executable that runs in the sandbox

environment under defined policy, gets access to the

granted application and system domain resources.

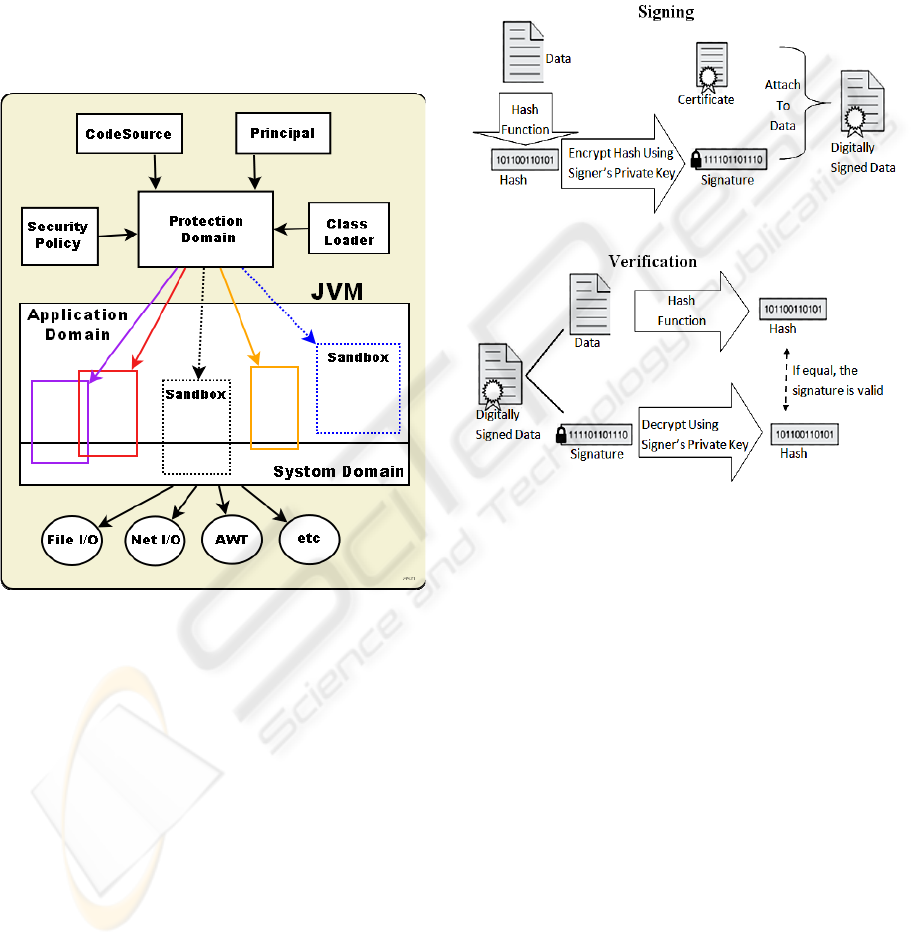

Figure 2: Sandboxing Mechanism of Java 2.

3 VERIFICATION AND

VALIDATION METHODS

Digital Signature (Lysyanskaya, 2002). It is a

digital code that is attached to an electronic

document which uniquely identifies the sender and

ensures integrity. It is like a hand written signature,

which is used to check the authenticity of the sender

of a document. Digital signature can be used on any

document once it is stored digitally. For example,

emails and digital contracts use this scheme

extensively. Particularly for ecommerce transactions

digital signature is very important.

Digital signature is realized by cryptographic

techniques. Three processes are involved: key

generation, signing and signature verification. The

key generation process produces a public-private

key pair. The sender signs the document with the

private key. The receiver verifies it by using the

corresponding public key. Several cryptographic

algorithms are used in this regard, e.g., RSA, DSA

and ECDSA. A diagram illustrating digital

signature by RSA is shown in Figure 3

(Lysyanskaya, 2002).

Figure 3: Signing and Verification in RSA digital

signature (Lysyanskaya, 2002).

Digital signature is being widely used to ensure

authenticity of documents. The first highly used

software package offering digital signature was

IBM’s Lotus Notes 1.0 released in 1989.

Code Signing. Digital Signature when applied on

codes is called code signing. It is a form of verifying

authenticity of codes. The author digitally signs

executables and scripts so that the end user can

confirm the author of the code and make sure it has

not been corrupted after deployment. In this way, the

process ensures security of codes while deploying.

Usually, it works by a public key infrastructure

(PKI). The author signs the document with a secret

private key. The end user uses the public key to

verify the signature. Many publicly available

executables are distributed after code signing. For

example, Linux and Windows update services use

code signing to ensure that malicious updates or

patches are not installed at client system. The

processes of code signing and code verification are

TECHNIQUES FOR VALIDATION AND CONTROLLED EXECUTION OF PROCESSES, CODES AND DATA - A

Survey

illustrated in (Fleischman, n.d.) are shown in Figures

4(a) and Figure 4(b).

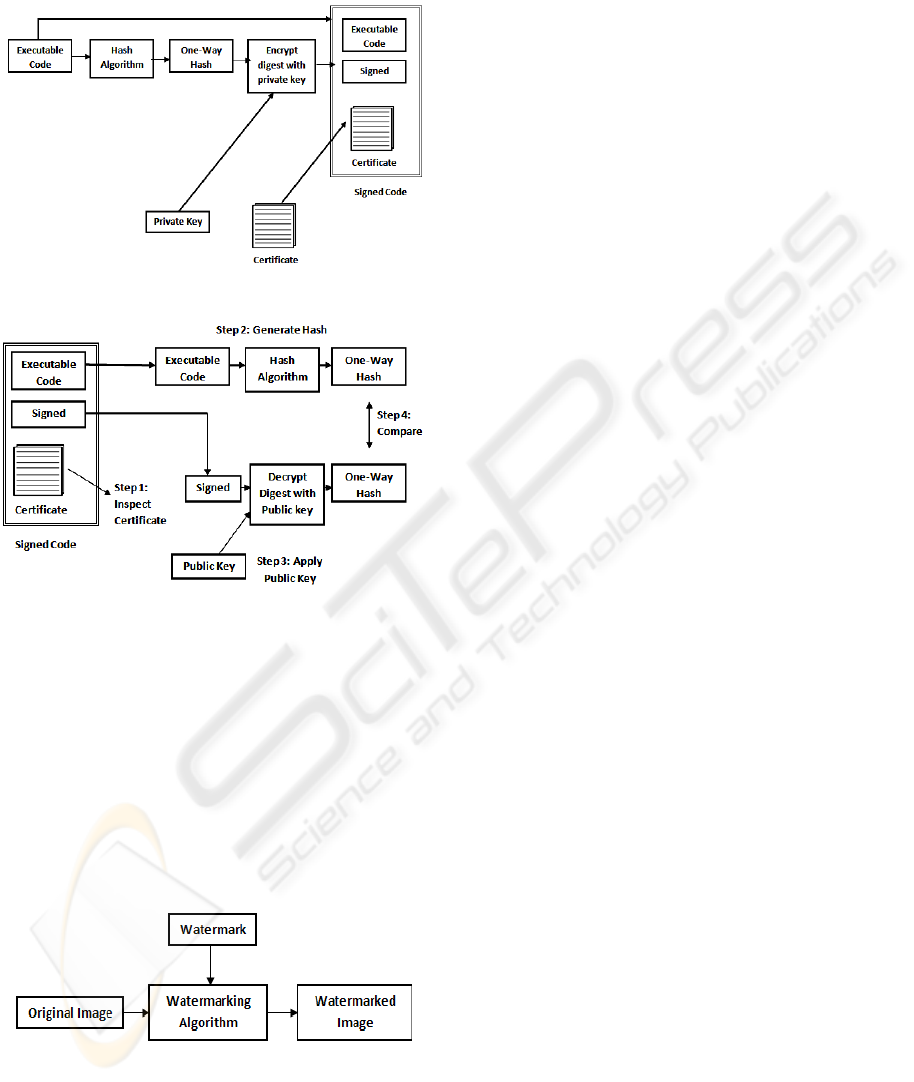

Figure 4(a): Code-Signing Process (Fleischman, n.d.).

Figure 4(b): Code Verification Process (Fleischman, n.d.).

Digital Watermarking (Cox et al, 2008): is the

process of embedding additional information into a

digital signal, e.g., image, audio or video. The

information that is embedded is a bit pattern that

infers its validity or copyright information. The

term was derived from faintly visible watermarks of

producer information seen on stationary products.

Unlike this printed watermarking, invisible signal is

embedded in case of digital watermarking. It is

invisible in case of image or video clips, it is

inaudible in case of audio clips.

Figure 5: Diagram showing steps involved in

watermarking (WolfGang and Podilchuk, 1999).

When a file being watermarked is copied, the

watermark information is also copied and the

watermark can be retrieved from that copied file. A

robust watermark should sustain malicious

modification made by a copier, so that it can be

retrieved. Watermarking has important applications

in copyright protection and stegonography (hidden

message).

Integrity Checker: is simple application software

that checks the integrity of files. At first the known

size of a file is stored. A hash is computed from the

contents of the file and it is also stored. Later, if a

file violates these two data kept by the Integrity

Checker, then a flag pops up that indicates probable

file integrity violation. There exists many host-based

integrity checking or change auditing tools, which

include Tripwire, AIDE, AFICK and Samhain. Here,

we will briefly discuss the former two.

Tripwire: is an integrity verification tool which

automatically detects unauthorized or unintended

changes of critical system files and allows system

administrators to immediately be aware of the

compromise so that remedial steps can be taken. In

general, it is a process of detecting changes by

comparing an image of a system with an optimal

baseline security setting to the image of the same

system running at any operational state. Tripwire’s

basic configuration and operations are shown in the

figure 6 below. The first step is to setup a baseline

secure system with tripwire installed on it and

identify the files that need to be checked for

integrity. Second, edit and save general Tripwire

configuration (location of database, number of

reports, etc) and Tripwire policy (what and how to

monitor). Once the initializations of the reference

database with the pristine or baseline information of

the monitored files are configured, the Tripwire

system is ready for integrity checking. The checking

process involves the comparison of current copies of

files with that in the reference database. After

installation of new software or change of system

configuration, the system administrator should

update the reference database and this is done by

updating the reference database with a new snap-

shot of the monitored files. Enterprise Tripwire, the

commercial version, provides quicker remediation

and alert by detecting, reconciling and reporting

changes over large quantity and type of data

elements.

AIDE (Advanced Intrusion Detection Environment):

is another open-source competition to Tripwire but

with additional features: a) its database stores

various file attributes including permissions, inode

number, user, group, file size, mtime and ctime,

atime, growing size, number of links and link name

as well as an easy way of mixing attributes for

SECRYPT 2010 - International Conference on Security and Cryptography

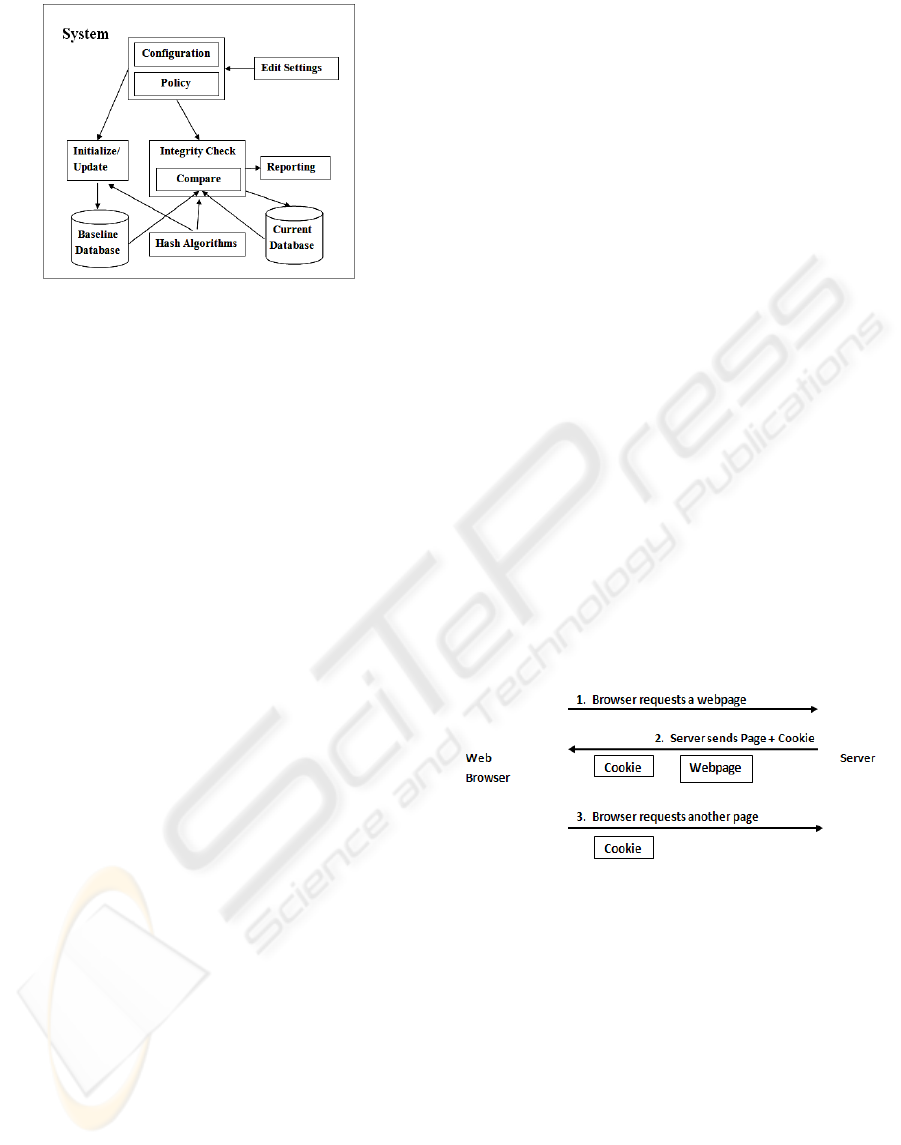

Figure 6: Integrity checking process.

setting up different set of monitoring policies; and b)

creates hash of each file using one or a combination

of its many message digest algorithms. Except these

enhancements, AIDE is similar to Tripwire in

editing configuration and monitoring policy,

initializing and updating of databases, checking of

integrity, and the qualitative nature of reporting.

Security Content Automation Protocol (SCAP):

System administrators and security managers spend

many man hours in the identification, remediation,

and reporting of system security vulnerabilities.

While many organizations implement well defined

processes to enhance security, most processes still

involve manual processing. To enhance efficiency

and quality of information security, a set of standard

approaches and their integration process has been

devised. In the past, Department of Defense (DoD)

has been using a vulnerability management process

(with a number of manual tasks) called IANA -

Information Assurance Vulnerability Alerts (Martin,

2005). This process encompasses the steps: i)

discovering the new software security flaw (New

IAVA requirement); ii) assessment of the flaw; iii)

deporting the status of the flaw; iv) remediation of

the flaw; and v) implementing the change and

subsequent return to complaint state. Without

standards and automatic processing, it is difficult for

big organizations to maintain and streamlined

vulnerability control and removal.



Security Content Automation Protocol (SCAP) is

a method for using specific standards to enforce

policy compliance evaluation and automated

vulnerability management (CVE, n.d.; CPE, n.d.;

CCE, n.d.; CVSS, nd.). It consists of a number of

open standards that are used to determine the

number of software flaws and configuration issues

related to security. These standards measure

systems’ vulnerabilities and offer methods to

evaluate the possible impact. Accordingly, SCAP

can be used for maintaining the security of the

enterprise systems. In particular, it can be used to

automate the verification of patch installation,

checking system security configuration settings, and

examining the overall system. SCAP validates the

specific versions of vendor products based on the

platforms they support. It reconciles software flaws

from US CERT and MITRE repositories. The

Information Assurance Vulnerability Alerts (IAVA)

process (Martin, 2005) that had been used by DoD

earlier are streamlined and automated by

transforming the IANA process using a set of SCAP

standards, which enable secure information flow

between machines.

Magic Cookies: Are tokens or tickets that are

passed between communicating parties for

performing some operation. Cookies are used for

authentication in communication. A server leaves a

cookie on the client side first time the client

authenticates and accesses it. That cookie serves as a

token of authentication. Later, the client shows this

cookie to avoid authentication again. The content of

the cookie is opaque to the client but the server uses

it for its purpose. It is encrypted so that no

unauthorized party can pretend with its own cookie.

At present, magic cookies are important part of

worldwide web. When cookies are stored on user’s

computer by the web browser it is called http cookie.

An illustration of http cookie is shown in Figure 7.

Figure 7: HTTP Cookie: Interaction between web browser

and server (Lin and Loui, 1998).

4 SUMMARY

Ensuring computer security depends on securing it

in all aspects such as execution, storage,

communication. This survey puts forward the most

common techniques/tools that try to provide the

secure environment in computing (Austin and Durbi,

2003) – application security, file security, process

security, and system level security. In order to

harden systems from sophisticated attacks, it is very

important to know the available techniques to

protect systems in a layered fashion and thus to

TECHNIQUES FOR VALIDATION AND CONTROLLED EXECUTION OF PROCESSES, CODES AND DATA - A

Survey

Table 2: Summary of various techniques and their applicability in securing computing systems.

At which Layer Name of tool/Technique Example Vendors Validation mechanism

Application

TXT (Greene, n.d.) Intel

Multi-level operation

Cryptographic hashing through PKI

Code Signing (Dean, 1999) VeriSign

System

TPM (Bajikar, 2002)

Trusted Computing

group

Encryption mechanisms

Local verification

Driver signing, PatchGuard, Kernel mode

integrity checks, Restricted access to

physical memory

TXT (Greene, n.d.) Intel

Kernel Mode Security (Conover, 2006) Windows Vista

Process/

executables/

scripts

Sandboxing (Singh, 2004) VMware, JVM, CLR

Mechanism of separation

Cryptographic hashing through PKI

Code Signing (Dean, 1999) VeriSign

Network/Traffic

TPM (Bajikar, 2002)

Trusted Computing

Group

PKI based methods

Remote Verification

Token-based security operations

TXT (Greene, n.d.) Intel

Magic Cookies (Magic Cookies, n.d.) X Windows System

Data/File/
