AN OPEN SOURCE SOFTWARE BASED LIBRARY

CATALOGUE SYSTEM USING SOUNDEXING RETRIEVAL

AND QUERY CACHING

Zhenghui Pan

Penrith City Library, 601 High Street Penrith Civic Centre, Penrith, NSW 2750, Australia

Yan Zhang, Jiansheng Huang

School of Computing and Math, University of Western Sydney, Sydney, NSW 1797, Australia

Keywords: Open Source Software, Library Catalogue System, Soundexing Retrieval, Query Caching.

Abstract: It has been a challenge to apply effective knowledge management tools in information systems for modern

libraries that deliver the most up-to-date, relevant information to end users in a quick, efficient, and user-

friendly manner. In this paper, the authors present the design of a library catalogue system using principally

open source software. The integrated web-based library system takes client/server architecture with multiple

tiers. For performance enhancement with respect to error tolerance, searching speed and scalability,

techniques of soundexing retrieval and query caching were applied. With the support of an appropriately

designed soundex algorithm, the catalogue system can largely increase its recall while not compromising the

search precision. On the other side, the introduced query cache speeds up the system response significantly.

1 INTRODUCTION

Catalogue systems of modern libraries are getting

more complicated than ever before. Collections of

catalogue systems are now containing CD-ROMs,

DVDs and e-books, in addition to the conventional

printed materials. Not only collections of the

catalogue systems have been expanded, but also

their users and service time. All these call for a more

efficient and user friendly service. Based on the

survey on local council libraries in Western Sydney

area, a wide existence of some common problems

concerned with searching speed and accuracy, and

user interface was found, all closely related to the

performance of the catalogue system. The library

information systems of these libraries are usually

decades old. The current marketing price (including

maintenance costs) for a library catalogue system

can be prohibitively high. Improving and updating

the information systems of these libraries using open

source software might provide a better solution.

Soundex is an algorithm for encoding a word so

that similarly sounding words are encoded the same.

The soundex algorithm was initially invented by

Robert Russell and Margaret Odell in 1918

(Wikipedia, 2007). Since then, the soundex

algorithm has been updated with some variations

and used principally in census systems for searching

people’s names (U.S. National Archives, 2007). To

improve the performance of library catalogue

systems with respect to response speed and

scalability, database caching is a very cost-effective

method. (Lempel, 2003).

This paper presents open source software based

library catalogue system using soundexing

algorithms and query caching. The paper is

organised as follows: Section 2 outlines the library

catalogue system. Section 3 briefs the soundexing

algorithms for error tolerance. Section 4 describes

the steps of embedding the soundex search into a

traditional library catalogue system. The limitations

of soundex search and the countermeasures are also

discussed in the Section. Section 5 explains the

adopted caching technique and the system design.

The eviction and start-up processes are discussed in

Section 6. Section 7 gives experiments results and

discussions, and Section 8 summarizes and

concludes the paper.

182

Pan Z., Zhang Y. and Huang J. (2010).

AN OPEN SOURCE SOFTWARE BASED LIBRARY CATALOGUE SYSTEM USING SOUNDEXING RETRIEVAL AND QUERY CACHING.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

182-189

DOI: 10.5220/0002891201820189

 SciTePress

2 OPEN SOURCE SOFTWARE

BASED SYSTEMS

The developed open source software-based library

system takes a client/server architecture with

multiple tiers. The prototype system runs on the

Windows XP of a laptop computer with 1.5 GHz

processor and 512 MB, see Figure 1.

2.1 MySQL Database

The database uses MySQL version 1.5. The database

contains the following tables:

 Title

 Item

 Title-index

 Request-history

 Request-summary

2.2 Tom Cat Server and JVM

Environment

The system is installed with the JRE 1.5 to provide

the JVM environment. The Tomcat server is used as

the application and the web server. One package of

Java classes forms the core of the applications,

containing two main parts: the search engine module

and the background process module. The

background process module runs three processes,

system booting, query-log processing and cache

items evicting.

Figure 1: Outline of Library System.

3 SOUNDEXING ALRORITHM

Soundex algorithms convert words into their

phonetic versions. For examples, ‘m’ and ‘n’, and

‘ph’ and ‘f’ are coded the same as the former is a

common typing error, and the latter is pronounced

the same.

The basic soundex algorithm is very straight

forward as outlined below:

 Retain the first letter of the string (word )

 Remove all occurrences of the following letters,

unless it is the first letter: a, e, h, i, o, u, w, y

 Assign numbers to the remaining letters (after

the first) as follows

o b, f, p, v = 1

o c, g, j, k, q, s, x, z = 2

o d, t = 3

o l = 4

o m, n = 5

o r = 6

 If two or more letters with the same number

were adjacent in the original word (before step 1), or

adjacent except for any intervening h and w, omit all

but the first.

 Return the first four characters, right-padding

with ‘]’ if there are fewer characters.

As demonstrated in the following three case

studies, the soundexing algorithm applied in a

library catalogue system can greatly increase its

recall while maintaining the search precision.

Table 1: Search results with input “hary poter rawling”.

# Title Author Publication…

1 Harry Potter and the

Half-Blood Prince / by

J. K. Rowling

J. K.

Rowling

…

2 Harry Potter and the

Prisoner of Azkaban

y J. K. Rowling an

read by Stephen Fry

J. K.

Rowling;

Stephen Fry

…

3 Harry Potter and the

Order of the Phoenix

y J. K. Rowling an

read by Stephen Fry

J. K.

Rowling;

Stephen Fry

…

4 … … …

Case 1: Keying in words “hary poter rawling” to

search for the series of Harry Potter books by J.R.

Rowling. Even though all the three input words were

spelled wrongly, the search results using the

soundex based catalogue system returned the correct

results to the user, as given in Table 1 (including

only the first 3 records). This was due to the fact that

“hary” and “harry”, “poter” and potter”, “rawling”

and “rowling” were converted into the same

character string using the presented algorithm.

Case 2: Search results with the input “napaen rever

water polootion”. By using the same algorithm, the

AN OPEN SOURCE SOFTWARE BASED LIBRARY CATALOGUE SYSTEM USING SOUNDEXING RETRIEVAL

AND QUERY CACHING

183

search results were returned as though the correct

key words “Nepean River Water Pollution” were

inputted.

Case 3: Search results with the input “enciclopedia

scince”. Again, the algorithm avoided search failure

and returned results that were all the same as those

for “encyclopaedia science”.

Soundex searches, however, may have certain

limitations, like bringing about irrelevant

information, as to be addressed later in the paper.

4 SOUNDEX CATALOGUE

SYSTEMS

By employing the soundex algorithms, the search on

a library catalog system will be carried out with the

specified “sounds” rather than the entered words.

For such a soundex search, two main concerns

should be focused upon in the system design: the

performance and the accuracy.

4.1 Soundex Search

In the traditional catalog system, as illustrated by

Figure 2(a), the index data is built as an additional

part of the catalog database to improve the system

performance. (Dvorský, Krátký, Skopal, and Snásel,

2003). The search will be carried out on the index

data first to find the matched catalogue records, and

the catalogue details will then be returned to the user

as the search results.

It is straightforward to embed the soundex search

into the catalog system: the word index data are just

replaced by the soundex data with the latter being

generated from the catalogue records by using the

conversion algorithm given Section 3. Once the

search engine receives the request from a user, it

converts the request into the string of soundex first.

Then it will search the soundex data in the database

for the matching soundex and get the list of

catalogue keys. The final search results, i.e., the

catalogue details, are obtained according to the list

of keys, as illustrated by Figure 2 (b).

4.2 Limitation of Soundex Algorithms

and Countermeasures

In nowadays, the catalogue system is no longer a

tool only for librarians; it is often used by the public

in OPAC (Online Public Access Catalogue) systems

that are widely accessible through the Internet.

Consequently the search failures caused by spelling

or typing errors become a major concern for the

developers of such OPAC systems. Studies indicated

that over 20% of catalog search failures come from

typos of the catalogue users. (Jean, 1984).

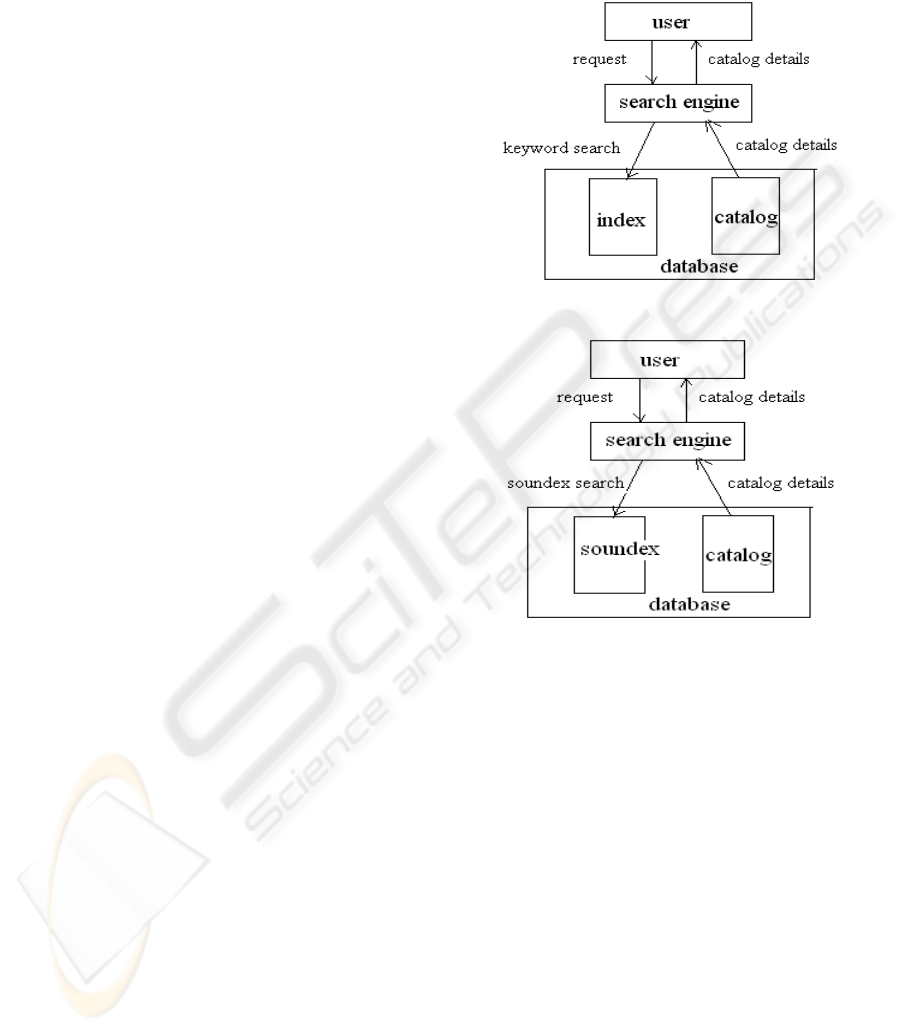

Figure 2 (a): Traditional Catalogue System.

Figure 2 (b): Soundex Catalogue System.

To extend the soundexing search from

conventional census systems to more general

applications, ensuring the search accuracy is not a

trivial task. As soundexing is a hashing system with

one soundex mapping to many words, therefore, a

soundex search may bring about irrelevant results

and thus reduce the precision of the search. It is just

this limitation that restrict the application of the

soundexing techniques in general information

systems. Some measures have been adopted in our

project to ameliorate this limitation.

A multiple-word search will be conducted by

performing a Boolean ‘AND’ operation. The search

result is generated by combining all sub-results of

the soundex search. Thus most of the irrelevant

results will be filtered out as they hardly have any

overlap. In most of the search cases, words entered

by users are two or more so that the search results

are quite acceptable. Study result from RankStat

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

184

indicated that more than 86.5% of queries were two

or more word searches. (RankStat, 2007).

One-word searches remain problematic, which

explains why the original soundex was only used

implicitly for two or more word searches, such as in

searching a person’s name that usually contains at

least the first and the last names. One

countermeasure to this limitation is to turn off the

soundex search automatically in the case of a one-

word search. To avoid search failures, however, the

soundex search could be turn on again, should no hit

results be returned with the initial non-soundex

search.

Another area that has been investigated in the

project is the improvement of the soundex algorithm

itself. The following measures are adopted to make

the soundex more specific:

 Increasing the length of the soundex of a word

from 4 to 5;

 Adopting Celko algorithms and/or Pfeifer

algorithms. (Holmes and McCabe, 2002);

 Applying Stemming technique. (Porter, 2006);

 Using Phonix technique. (Gadd, 1990).

By adopting the above measures, search

accuracy can be improved significantly.

4.3 Soundex Catalog Search

Implementation

There are three major tasks in the implement of the

soundex search:

 A set of program packages to convert a word

string into soundex string;

 Persistent data structure (relational database

tables) to store the soundex data of the catalogue

records;

 A set of programs (the search engine) to carry

out the soundex search.

In the project, all the major types of catalogue

searches are included to store the soundex data, such

as searches on titles, authors, subjects, or on full

records. In the project, the study library catalogue

system takes the following structure (columns):

 catalog_key

 title_description

 author_description

 series_description

 subject_description

 publication_details

 isbn

 physical_description

 cost

 dewey_number

 contents

 summary

The corresponding catalog_soundex table is thus

created with the following columns:

 catalog_key

 title_soundex

 author_soundex

 series_soundex

 subject_soundex

 all_field_soundex

Data in all the above columns correspond

respectively to the columns of title_description,

author_description, series_description, subject_

description, and the catalogue table itself. By using

the catalog_soundex table, the process of soundex

search becomes very simple. Soundex based

searches can be applied to title, author, series,

subject or even all keywords from the whole

catalogue record.

Suppose that the entered string is “hary poter

rawling”, the same as Case 1 in Section 3. The

system will convert this string into a soundex string

“H5]] P25] R346”. Following that the system makes

a sql-query on the database:

select catalog_key from

catalog_soundex where

match(all_field_soundex)

against(‘+H5]] +P25] +R346’ in

Boolean mode)

The search results are as given in Table 1

(Section 3). It is apparent that the input “hry poter

rawling” may lead to a search failure with a normal

catalogue system.

The soundex search function can be easily

embedded into the catalogue by following the steps

given below:

 Add the soundex processing function into the

cataloguing module;

 Generate the soundex data of a catalogue

record;

 Commit it to the database after the catalogue

record has been added to the system;

 Modify the search engine by adding the

soundex processing function;

AN OPEN SOURCE SOFTWARE BASED LIBRARY CATALOGUE SYSTEM USING SOUNDEXING RETRIEVAL

AND QUERY CACHING

185

 Perform the sql-query on the database with

generated soundex.

5 THE CACHING TECHNIQUE

While the soundexing is introduced for a better

performance in error tolerance, the caching

techniques are adopted to improve searching speed

of the catalogue system. There are two main

categories of cache, data cache and query cache.

(Luo, Krishnamurthy, Mohan, Pirahesh, Woo,

Lindsay and Naughton, 2002). In information

systems, the query cache provides users with data in

memory based on users’ previous requests, and the

caching levels can be at different places, either on

client side, server side or proxy side, either at

database tier, application server tier or web server

tier (Fagni, Perego, Silvestri and Orlando, 2006). All

these caches can be used separately and

independently, or used together in certain

combinations.

5.1 Database Design

To implement a cache in an information retrieval

system the following mechanisms need to include:

defining the structure of cache, adding items into

cache, searching the cache, continuing a search

when a cache missing occurs. Once the cache size

exceeds the limit, the cache system should remove

certain items out of the cache known as the cache

replacement, during which, the system should keep

the cached items that are likely to be requested in the

near future.

The proposed library catalogue system adopts s

query cache (Figure 3). There are two key

components in the system, the search engine module

and the cache manager module. Apart from the

catalogue data, the database of the system includes

some additional data like request history, request

summary and cached requests that are used by the

cache manger for updating the cache. There are two

data structures kept in the main memory: the query

cache and the query log. While the query cache

contains cached catalogue objects, the query log

temporarily holds the current catalogue search

requests for further processing by the cache

manager. The search engine module is responsible

for retrieving user’s required information. The cache

manager module has two roles: using requests in the

query-log to update the request-history and the

request-summary table and adding new catalogue

items to the cache. The module is also responsible

for removing items out of the cache whenever the

cache size is over the limit.

Figure 3: Catalogue System with Query Cache.

Basically the database includes the catalogue

core data, catalogue index data (soundexing) and

data for supporting the cache search. Thus the

database contains five main tables: item, title, title-

index, request-history and request-summary. The

field “in_cache_flag” of request-summary table

indicates whether a request has been cached. Full

details of the database design are beyond the subject

of this paper. Only the tables related to the caching

processes will be described here. (Pan, Zhang and

Huang, 2008).

The request-history has a very simple structure

with two fields:

 request

 timestamp

The table will hold all requests together with the

timestamp when the request entered. Data in the

table is used for updating table request-summary.

The request-summary table of the database

provides a list of all valid (a request that leads to at

least one catalogue object being retrieved) and

identical requests in conjunction with their

properties, i.e., the most recent time and the total

times this request was called. The request-summary

table also provides the system criteria for adding or

removing catalogue objects into or from the cache

according to the field “activity rate”. The table has

the following structure:

 request_id

 request

 been_called_total

 last_called_time

 activity_rate

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

186

 in_cache_flag

With this database structure, the system can keep

track of users’ requests, and select the requests with

the highest activity rates to cache.

5.2 Data Structures in Main Memory

There are two data structures staying in the system

memory to support the cache catalogue search:

query-log and query-cache. Like the request-history,

the query-log has a very simple structure with only

two fields:

 request

 timestamp

The query-log therefore can be implemented as a

hash-table or an array-list since there is not much

operations performed on it. If the query-log is

implemented in an array-list, the following

command can be used to write a request to the log:

log.add ({request, timestamp})

To get an object from the log, the command is like:

log.get(i)

where i is the index for the array-list. The following

command is to empty the log:

log = new ArrayList ( )

The query-cache holds cached catalogue objects

together with their correspondent requests. The

query-cache is better to be implemented in a hash-

table. With this data structure one can easily perform

operations of search, add or remove to the query-

cache. Search and retrieve data from the hash-table

(named QC) use the command like:

data = QC.get(hash-key)

If the query-cache is in a hash-table format, it

will have the following two fields:

 request, as the hash key and

 a set of catalogue objects corresponding to the

request

With this data structure support, the command to

retrieve required catalogue objects is like:

QC.get(request)

In this system context, both the query-log and the

query-cache need to be the global variables. It makes

the processes behave like the search engine and the

cache manager and the system start-up processes be

very simple since the global data structures are

independent of any processes.

5.3 The Searching Process

When the search engine receives a search request, it

uses the request as a hash-key and searches the

cache (the hash-table). If the searching is successful,

it gets the set of catalogue objects and returns the

results to the user. Otherwise, the search engine

continues to search the database. At the end of the

process, the search engine always writes the request

accompanied with the timestamp to the query-log.

The query log process can be scheduled to run in

background. On each run, the cache manger moves

all requests from the query-log to the request-history

table. After adding new requests with the

timestamps to the request-history table, the cache

manager uses them to update the request-summary

table. For a valid request (invalid entries will be

ignored), the cache manager will further check if the

request already exists in the request-summary table.

If existing, the properties for this request

(been_called_total and t_called_time) will be

modified. If the request is not found in the table, a

new entry for this request is created. The cache

manager will then check if the new request was

already loaded into the cache, and do this if not.

6 ADAPTIVE EVICTION

PROCESS

The system defines two variables, the maximum-

cache-size and minimum-cache-size. The maximum-

cache-size is the maximum number of requests that

can be loaded into the cache while the minimum-

cache-size is the minimum number of requests kept

in the cache at any time.

6.1 Eviction Process

There are a few of cache replacement algorithms

often used in information retrieval systems like

LRU, LFU and some hybrid replacement algorithms.

Adaptive cache replacement algorithm is an

algorithm with better performance. The algorithm,

used in the designed system, is implemented by

keeping track of both frequently used and recently

used cached items in conjunction with the recent

eviction history. (Santhanakrishnan, Amer,

Chrysanthis and Li 2004).

As aforementioned, the cache manager is also

responsible for replacement. Each time the process

runs, the cache manager checks if the maximum-

cache-size is exceeded. If it happened, the cache

AN OPEN SOURCE SOFTWARE BASED LIBRARY CATALOGUE SYSTEM USING SOUNDEXING RETRIEVAL

AND QUERY CACHING

187

manager starts the cache eviction process. The

number of objects to be removed is:

Current_cache_size–inimum_cache_size

This work can be done in several steps. The

process first calculates the activity-rate for all

requests in the request-summary table. The requests

with the smallest activity-rates will be removed. The

activity-rate calculation is based on two attributes of

a request, the been_called_total and

last_called_time. If a visit one day more recent is

equally important as three more visits, a variable

time/times ratio @ can then be calculated :

@ = 3/86400000

where 86400000=24 * 3600 * 1000, i.e., million

seconds in a day. If using T as the base time, a

variable last_called_credit can be calculated as:

last_called_credit =

(last_called_time – T) * @

Then the activity-rate of a request can be calculated

as:

activity_rate =been_called_total +

last_called_credit

6.2 System Start-up Module

Like the search engine and the cache manager

modules, the system start-up module is also

responsible for cache loading when the system re-

starts. The process works similar to the cache

replacement process. It first calculates activity-rate

for all the requests in the request-summary table.

According to the initial loading level (minimum-

cache-size), the module loads the requests with

highest activity-rates into the cache.

7 SIMULATION RESULTS

AND DISCUSSIONS

Once the Tomcat server is running, users can access

the system through a web browser. If a user enters

the following key words like “19th century”, “abc”,

etc., the response time for each normal search is

given in Table 2. The average response time =

664.18 ms. In the simulation, about 7,000 requests

are initially selected and loaded into the cache

(based on the activity-rate of the requests) from a

total of 13,500 requests in the table request-

summary. With the caching, the responding time is

less than 1 ms if the required item is found in the

cache.

Because about 50% of requests are loaded into

the cache (with the corresponding catalogue

objects), the minimum cache hits rate is about 50%.

Although the cache missing rate is still high, the

whole system throughput is improved significantly.

Table 2: Experiment on searching.

Request

Response time

(ms)

Request

Response

time (ms)

19th century 1828 Bats 468

abc 1343 bev harvey 203

aboriginal

dreaming

609 bill hurter 156

aboriginal

language

421 biochemistry 109

addict 375 bob marley 234

African tears 78 brown 2328

alexandre dumas 328 burke 1140

alternative

medicine

797 cam jansen 94

amy jenkins 140 carol odell 109

8 CONCLUSIONS

Using open source software like MySQL and

Tomcat could be a better solution in updating library

catalogue systems for organizations with limited

resources. To improve the performance, some

techniques are investigated in the paper. Soundex

algorithms are potentially a powerful tool applicable

to library catalogue systems, as the algorithms, when

appropriately developed, can greatly increase

recalling capability while not compromising search

precision. As verified in this paper, the soundex

search can be cost-effectively embedded into a

traditional library catalogue system using

client/server and relational database technology. The

proposed soundex library system will greatly

improve efficiency and error tolerance.

Using caching techniques can effectively

improve the catalogue system in terms of responding

speed and scalability. To increasing the cache hit

rate, some methods are investigated, such as taking

into account more factors in the eviction process and

introducing a caching-index to the system for query

normalization.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

188

While there is still room for further

improvement, the test results are encouraging and

meet the expectation of the project.

REFERENCES

Wikipedia, (2007). Soundex, from http://en.wikipedia.org/

wiki/Soundex#Rules.

U.S. National Archives, (2007). from http://www.archives.

gov/genealogy/census/soundex.html.

Lempel, R., Moran, S., (2003). Predictive Caching and

Prefetching of Query Results in Search Engines.

WWW 2003, May 20-24, 2003, Budapest, Hungary.

Dvorský, J., Krátký, M., Skopal, T., Snásel, V., (2003).

Term Indexing in Information Retrieval Systems,

Communications in Computing, 2003.

Jean, D., (1984). An Analysis of User Errors in Searching

an Online Catalog. Cataloging & Classification

Quarterly, Volume 4, Issue 3 March 1984 , 19 – 38.

RankStat, (2007). from http://www.rankstat.com/html/

en/seo-news1-most-people-use-2-word-phrases-in-

search-engines.html.

Holmes, D. and McCabe, M. C., (2002). Improving

Precision and Recall for Soundex Retrieval.

Information Technology: Coding and Computing,

2002. Proceedings. International Conference on,

Volume, Issue , 8-10 April 2002, 22 - 26.

Porter, M. F., (2006). An algorithm for suffix stripping.

Program: electronic library and information systems,

2006 Volume: 40 Issue: 3, 211 – 218, ISSN: 0033-

0337.

Gadd, T., (1990). PHONIX: The algorithm. Program:

automated library and information systems, 24(4):

363-366.

Luo, Q., Krishnamurthy, S., Mohan, C., Pirahesh, H.,

Woo, H., Lindsay, B. G., Naughton, J. F., (2002).

Middle-Tier Database Caching for e-Business

discussed. ACM SIGMOD’2002, June 4-6, 2002,

Madison, Wisconsin, USA.

Fagni, T., Perego, R., Silvestri, F., Orlando, S., (2006).

Boosting the Performance of Web Search Engines:

Caching and Prefetching Query Results by Exploiting

Historical Usage Data. ACM Transactions on

Information Systems, Vol. 24, No.1, January 2006, 51-

78.

Pan, Z., Zhang, Y., Huang, J., (2008). Application of

Database Caching in a Library Catalogue System.

2008 International Conference on Computer Science

and Software Engineering (CSSE 2008), Wuhan,

China, 12-14, December 2008

Santhanakrishnan, G., Amer, A., Chrysanthis, P. K., Dan

Li, (2004). GD-Ghost: A Goal-Oriented Self-Tuning

Caching Algorithm. SAC 2004, March 14-17, Nicosia,

Cyprus.

AN OPEN SOURCE SOFTWARE BASED LIBRARY CATALOGUE SYSTEM USING SOUNDEXING RETRIEVAL

AND QUERY CACHING

189
