MULTIPLE-VIEWPOINT IMAGE STITCHING

Kai-Chi Chan and Yiu-Sang Moon

Department of Computer Science and Engineering, The Chinese University of Hong Kong, Shatin, N.T., Hong Kong

Keywords:

Image stitching, Feature matching.

Abstract:

A wide view image can be generated from a collection of images. Its ﬁeld of view can be expanded as much

as to capture a 360

◦

scene. Common approaches, like panorama, mosaic, assume all source images are taken

at the same camera center by pure rotation. However, this assumption limits the quality and feasibility of the

generated images. In this paper, the problem of generating a wide view image from multiple viewpoint images

is formulated. A simple and novel way is proposed to loosen the single viewpoint constraint. A wide view

image is generated by 1) transforming images from different viewpoints into a uniﬁed viewpoint using SIFT

feature matching, etc; 2) stitching the transformed images together by overlapping. Test results demonstrate

that the proposed method is an efﬁcient way for stitching images from different viewpoints.

1 INTRODUCTION

To synthesize a wide view image, a common approach

is to create a panorama (Brown and Lowe, 2003).

However, images have to be taken at the same camera

center to create a realistic view. There are two com-

mon ways to generate a panorama. In the ﬁrst way, the

images are taken by a panning camera. However, the

scene captured has to be static so that images taken

by the panning camera are consistent. In the second

way, multiple cameras with different camera centers

are used to create a wide view dynamic scene. In

this case, the scene captured can be dynamic but the

multiple-viewpoint panoramic image will be blurred

or distorted because the image transformation (rota-

tion and translation) in the panorama generation is as-

sumed to be constant among pixels. This assumption

is invalid on different camera centers.

In this paper, a novel method is proposed to stitch

images from different viewpoints. First, images from

different camera centers are transformed to a refer-

ence camera center. Then, a wide view image is gen-

erated by overlapping them together. Also, we im-

prove the quality of panorama by inputting the trans-

formed images sharing the same viewpoint. We es-

sentially 1) formulate the relationships of image pairs

from different viewpoints; 2) derive a self-veriﬁcation

method for SIFT feature matching; 3) derive a novel

method to stitch images from different viewpoints to-

gether.

2 RELATED WORKS

At Stanford University, large camera arrays (Wilburn

et al., 2005) created photographs from combinations

of images taken by a number of cameras. The cam-

eras were placed closely to each other so that the im-

ages taken by each camera were assumed to share a

single center of projection. The parallax was com-

pensated using software. Although the computation

of depth information can be saved, the conﬁguration

of cameras is limited and there is a lot of redundant

information among their images. Peleg, et al. (Peleg

and Herman, 1997) proposed a manifold projection

method to overcome the difﬁculties caused by arbi-

trary camera motion. In the manifold projection, only

1-D strips in the center of images were used for image

alignment and panorama creation. In this approach,

the transformations among 1-D strips were still ﬁxed

when the camera motion involved translation and ro-

tation. However, other strips not in the center of im-

ages were ignored and wasted. Also, the scene be-

ing captured should be static and the camera motion

should be continuous.

190

Chan K. and Moon Y. (2010).

MULTIPLE-VIEWPOINT IMAGE STITCHING.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 190-193

DOI: 10.5220/0002893401900193

 SciTePress

3 MULTI-VIEW PERSPECTIVE

PROJECTION

The mapping between a point I (I

, I

) on the image

and a point W (W

, W

) in the 3D world is given



















− f

0 u

0 − f

0 0 1



















, (1)

where ( f

, f

) is the focal length, (u

, v

) is the camera

center and s is a scaling factor.

Let P be the projection matrix. Equation (1) can be

rewritten as

I = P

Subscripts are now added to the above equation to in-

dicate the viewpoint of an image. If the relationship

between two different viewpoints are given by

= R

T , (2)

where R is a rotation matrix and

T is a translation

vector. After simplifying the equations, images can

be transformed to another viewpoint by transforming

every pixel

in images by

= s

−1

+ P

T (3)

4 IMAGE SYNTHESIS

In our approach to stitch images, images captured

from different viewpoints are transformed as if they

are captured from a uniﬁed viewpoint. This can be

achieved by ﬁrst computing the relationships (rotation

and translation) among them. Then, the scaling factor

is estimated in every pixel. Finally, pixels from one

image are warped to another image captured from the

uniﬁed viewpoint.

4.1 Viewpoint Correspondence

Viewpoint correspondence can be treated as transfor-

mations among 3D coordinate systems of cameras.

Images from different viewpoints correspond to cam-

eras located in different places and directions. In this

way, the viewpoint relationship between image pair is

the transformation between 3D coordinate systems of

two cameras. As a result, the viewpoint correspon-

dence problem can be solved by estimating the trans-

formation of each camera pair in a 3D coordinate sys-

tem. By taking each camera as the center of its 3D co-

ordinate system, the rotation and translation between

camera pair can be estimated using stereo camera

calibration technique as in (Zhang, 1999) (Heikkila,

2000).

4.2 Scaling Factor Estimation

The scaling factor of a pixel in Equation (1) is the

depth of the corresponding object in the 3D world.

The depth of an image can be computed by single

view modeling (Criminisi, 2002) or stereo triangula-

tion (Davis et al., 2003).

Given a pair of pixels from two stereo images, the

depth of the corresponding object can be estimated

by stereo triangulation. An automatic depth estima-

tion process can be achieved by automatically mark-

ing features from two different images and matching

them. In this paper, SIFT (Lowe, 2004) features are

used because they are invariant to rotation. They also

provide robust matching to the change in 3D view-

point and illumination. The matching process is im-

plemented using K-d tree (Bentley, 1990) to reduce

the searching time.

In the matching process, two features from an

image pair are matched if the Euclidean distance

between them is the shortest among other feature

pairs. As mismatches among features may exist, to

increase the robustness of the matching process, Fea-

ture Matching Veriﬁcation, which will be explained

later, is adopted in our work.

After the depth of every feature is computed,

the depth of the remaining pixels can be com-

puted through interpolation (Lee and Schachter,

1980) (Boissonnat and Cazals, 2002) (Lee and Lin,

1986). Then, they can be put together in a matrix

(scale map) with the dimension equal to that of the

image. Practically, the errors from depth estimation

and interpolation can be reduced by smoothing using

a Gaussian ﬁlter (Shapiro and Stockman, 2001), with

the assumption that the change of depth between ad-

jacent pixels is smooth or continuous.

4.2.1 Feature Matching Veriﬁcation

To increase the accuracy of feature matching, two ad-

ditional rules are added after the Euclidean distance

matching.

1. The depth estimated (D) is set to be bounded

by predeﬁned minimum (M

min

) and maximum

max

) values determined from the information of

the scene.

min

< D < M

max

2. The estimated depth (D) will be passed to Equa-

tion (3) to compute the the location of the trans-

MULTIPLE-VIEWPOINT IMAGE STITCHING

191

formed pixel (P

). The transformed pixel loca-

tion should be equal to the corresponding feature

location (F

). Since the estimated depth is not

exact, the distance between (P

) and (F

)

is non-zero and is set to be smaller than a prede-

ﬁned threshold (T

) determined from the infor-

mation of the scene.

− F

| < T

& |P

− F

| < T

5 EXPERIMENTS

In our experiments, two cameras (QuickCam



Sphere AF) placed side by side were used. The res-

olution of each image was 800 × 600. The cameras

were calibrated using Camera Calibration Toolbox for

Matlab



(Bouguet).

5.1 Feature Matching Veriﬁcation

In this experiment, the effectiveness of the Feature

Matching Veriﬁcation method was tested. Two tests

were carried out. In these tests, the distance between

each object and cameras along Z-axis was at least

60cm away. So, the lower bound of the depth was set

to be 60cm (no upper bound). For each feature point

on the left image, the distance between the pixel loca-

tion calculated from Equation (3) and the correspond-

ing matching feature on the right image was calcu-

lated. If the distance was larger than 5 pixels (which

was found empirically) along X or Y axis on the right

image, the matching pair would be eliminated.

The number of feature matching pairs before and

after pruning is shown in Table 1. Under sampling,

the accuracy of feature matching with conﬁdence

level 95% and conﬁdence interval 10% is shown in

Table 2.

Table 1: Number of matching pairs before and after veriﬁ-

cation.

Before After

Test 1 1158 476

Test 2 1820 97

Table 2: Matching accuracy before and after veriﬁcation

(No. of sampling).

Before After

Test 1 57% (89) 95% (80)

Test 2 41% (91) 88% (49)

5.2 Viewpoint Synthesis

In this experiment, the performance of the proposed

synthesis method is examined. The tests were done

in two scenarios. In each scenario, the image cap-

tured by the left camera was transformed to the image

from the right camera viewpoint using the parameter

settings in Section 5.1. Then the transformed image

and the right image were overlapped and cropped for

comparison. Also, the images were used to generate

a panorama. The results are shown in Figure 1 and

Figure 2. Notice that the image misalignment effect

(shown in rectangular boxes) is reduced using the pro-

posed method compared with the overlapping of the

source images. This indicates that, after viewpoint

synthesis, the viewpoint of the left image is success-

fully transformed to that of the right image. This ap-

proach also reduces the distortion induced by differ-

ent viewpoints in the panorama.

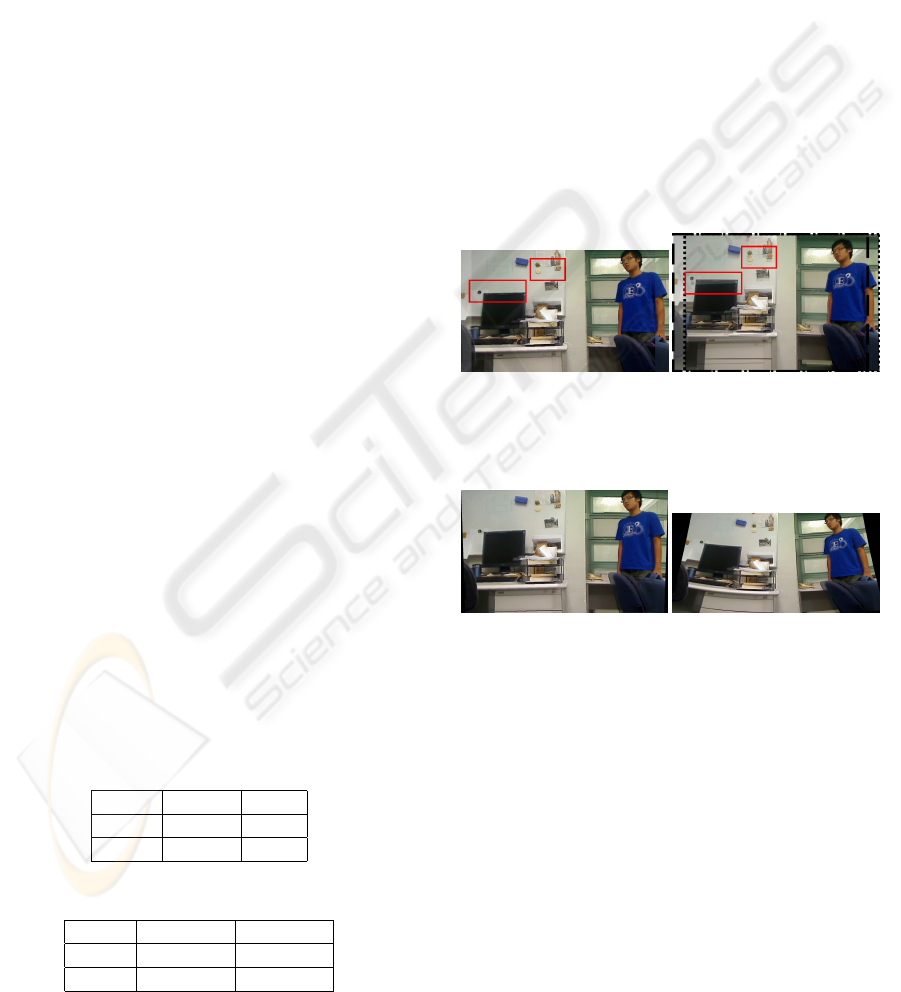

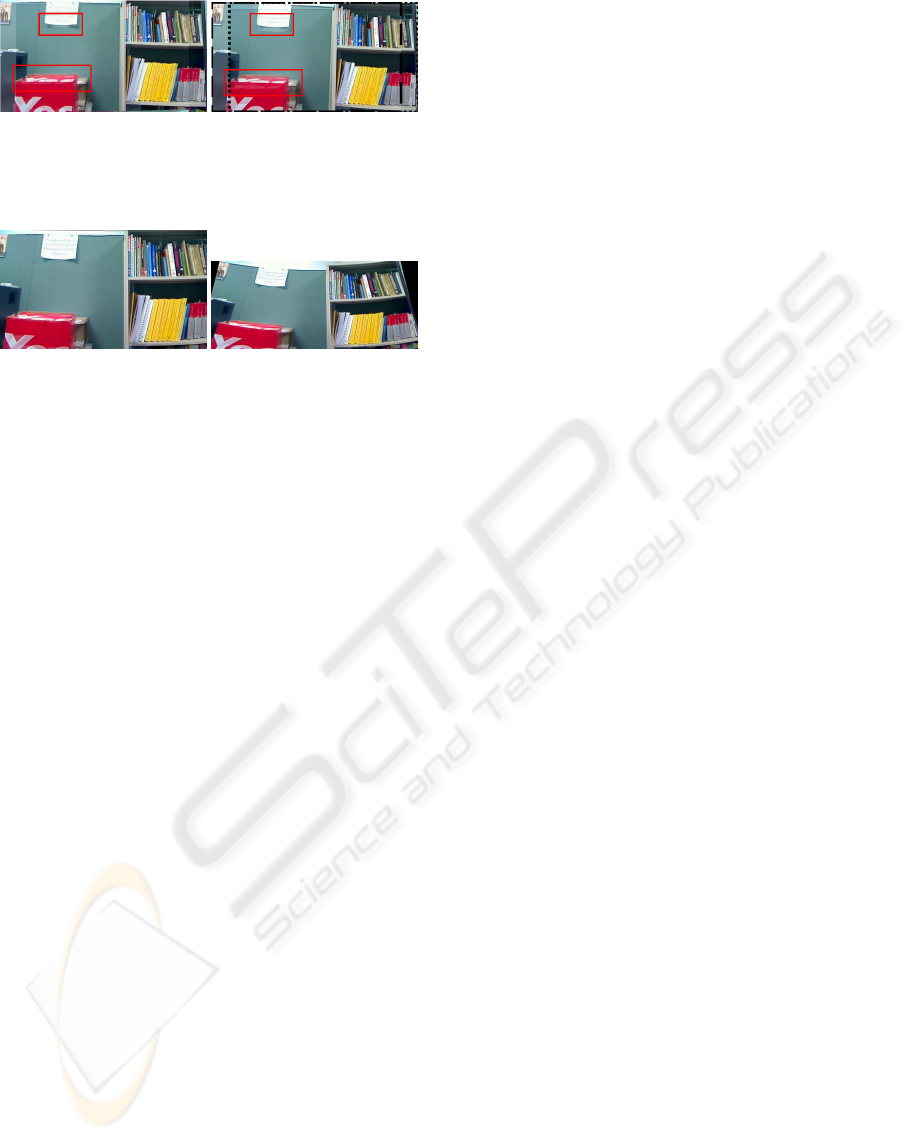

(a) Overlapping using pro-

posed method

(b) Overlapping without

using proposed method

(dashed line region: left

image; dotted line region:

right image)

posed method

(d) Panorama without using

proposed method

Figure 1: Test 1 synthesis result.

6 CONCLUSIONS

We have presented a novel method to generate a wide

view image by stitching individual images from dif-

ferent viewpoints together. The method involves three

steps (viewpoint correspondence, scaling factor esti-

mation and image warping). In viewpoint correspon-

dence, images taken from different viewpoints are re-

lated to each other by rotation and translation. Then,

the scaling factors are estimated by matching the SIFT

features in each image pair. Finally, images are syn-

thesized as if they are captured at a single viewpoint.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

192

(a) Overlapping using pro-

posed method

(b) Overlapping without

using proposed method

(dashed line region: left

image; dotted line region:

right image)

posed method

(d) Panorama without using

proposed method

Figure 2: Test 2 synthesis result.

The feature matching veriﬁcation which involves

depth and pixel locality veriﬁcations is derived. It

prunes mismatching pairs and is essential in depth es-

timation.

Although this method eliminates the single view-

point constraint and can be used not only in static

but dynamic scene, there are limitations on our work.

The quality of the wide view image depends on the

numbers of features in the overlapping regions of im-

age pairs. Also, this method takes longer execution

time compared with the panoramic approach because

it takes one more step to estimate the depth of every

pixel.

The preliminary test results demonstrate that it is

a feasible method for wide view image creation. It

also improves the feasibility and quality of panorama

using multiple-viewpoint images.

ACKNOWLEDGEMENTS

The work described in this paper was substantially

supported by a grant from the MPECENG(SEEM).

REFERENCES

Brown, M. and Lowe., D.G. (2003). Recognising Panora-

mas. In ICCV’03, 9th IEEE International Conference

on Computer Vision. IEEE Computer Society Press.

Wilburn, B., Joshi, N., Vaish, V., Talvala, E.V., Antunez,

E., Barth, A., Adams, A., Horowitz, M., Levoy, M.

(2005) High performance imaging using large camera

arrays. In ACM SIGGRAPH’05, ACM Transactions

on Graphics (TOG). ACM Press.

Peleg, S. and Herman, J. (1997) Panoramic mosaics

by manifold projection. In CVPR’97, Conference

on Computer Vision and Pattern Recognition. IEEE

Computer Society Press.

Zhang, Z. (1999) Flexible Camera Calibration by Viewing

a Plane from Unknown Orientations. In ICCV’99, 7th

IEEE International Conference on Computer Vision.

IEEE Computer Society Press.

Heikkila, J. (2000) Geometric Camera Calibration Using

Circular Control Points. In IEEE Transactions on Pat-

tern Analysis and Machine Intelligence. IEEE Com-

puter Society Press.

Criminisi, A. (2002) Single-View Metrology: Algorithms

and Applications. In Lecture Notes in Computer Sci-

ence, 24th DAGM Symposium on Pattern Recognition.

Springer-Verlag Press.

Davis, J., Nehab, D., Ramamoorthi, R., Rusinkiewicz, S.

(2003) Spacetime Stereo: A Unifying Framework

for Depth from Triangulation. In IEEE Transactions

on Pattern Analysis and Machine Intelligence. IEEE

Computer Society Press.

Lowe, D. G. (2004) Distinctive Image Features from Scale-

Invariant Keypoints. In International Journal of Com-

puter Vision. Kluwer Academic Press.

Bentley, J. L. (1990) K-d trees for semidynamic point sets.

In Annual Symposium on Computational Geometry,

6th annual symposium on Computational geometry.

ACM Press.

Lee, D. T. and Schachter, B. J. (1980) Two algorithms

for constructing a Delaunay triangulation. In Inter-

national Journal of Parallel Programming. Springer

Netherlands Press.

Boissonnat, J. D. and Cazals, F. (2002) Smooth surface

reconstruction via natural neighbour interpolation of

distance functions. In Annual Symposium on Compu-

tational Geometry, 16th annual symposium on Com-

putational geometry. ACM Press.

Lee, D. T. and Lin, A. K. (1986) Generalized delaunay

triangulation for planar graphs. In Discrete and Com-

putational Geometry. Springer New York Press.

Shapiro, L. G. and Stockman, G. C. (2001) Computer Vi-

sion. Prentice Hall.

Bouguet, J. Y. Complete Camera Calibration Toolbox for

Matlab. http://www.vision.caltech.edu/bouguetj/calib

doc/index.html

MULTIPLE-VIEWPOINT IMAGE STITCHING

193
