MIGRATING LEGACY SYSTEMS TO A SERVICE-ORIENTED

ARCHITECTURE WITH OPTIMAL GRANULARITY

Saad Alahmari, Ed Zaluska and David De Roure

School of Electronics and Computer Science University of Southampton, Southampton, U.K.

Keywords: Service-Oriented Architecture, Service Granularity, Software Evolution, Legacy Systems, Architecture

Modelling.

Abstract: The enhanced interoperability of business systems based on Service-Oriented Architecture (SOA) has

created an increased demand for the re-engineering and migration of legacy software systems to SOA-based

systems. Existing approaches focus mainly on defining coarse-grained services corresponding to business

requirements, and neglect the importance of optimising service granularity based on service reusability,

governance, maintainability and cohesion. An improved migration of legacy systems onto SOA-based

systems requires identifying the ‘right’ services with an appropriate level of granularity. This paper

proposes a novel framework for the effective identification of the key services in legacy code to provide

such an optimal mapping. The framework focuses on identifying these services (based on standardized

modelling languages UML and BPMN) and provides effective guidelines for identifying optimal service

granularity over a wide range of possible service types.

1 INTRODUCTION

The difficulty of accommodating technology

evolvement and rapid business changes is a

significant problem with existing legacy software

systems. In the past, software systems were typically

developed with embedded business rules and logic,

scattered and duplicated code, unstructured modules,

and tightly-coupled functions. Such legacy systems

nevertheless often represent a considerable

investment by the underlying business which will

frequently rely on the software for many day-to-day

business activities. Service-Oriented Architecture

(SOA) is a modern approach to implementing (and

re-implementing) such systems as a set of robust and

interoperable services. There are many different

interpretations of the ‘best’ approach to build a SOA

system (Kontogiannis et al, 2007).

Typical SOA modelling lifecycles include the

phases of service identification, service

specification, and service realization (Arsanjani,

2004). Our research emphasizes the importance of

the service identification phase for defining the right

service because mistakes made here can lead the

overall failure of the resulting SOA-based system.

The success critically depends on the correct

identification, presentation and definition of the key

services, because the exposed functionalities in a

service define the service granularity. It is important

to appreciate that achieving an optimal level of

service granularity requires a compromise between

many elements, both technical and non-technical. In

particular, the optimal granularity of key services

can be expected to vary at various layers with

different service types (Kulkarni et al, 2008) or

service layers (Reldin et al, 2007; Ramollari et al,

2007).

Recent research conducted by (Kohlborn, 2008)

on thirty modern service analysis approaches

showed that 76% of those approaches introduced

two types of services (e.g. business service, software

service or generic service). The other approaches

defined between one and eleven types of services.

All of the approaches studied applied one of the

development strategy techniques (e.g. top-down,

bottom-up and meet-in-the-middle), although the

services identified were significantly different from

one approach to another. This means that defining

service granularity, which is a very challenging task,

requires considering not only service characteristics

but also provisional service types. For example, an

infrastructure service that is concerned with

providing heterogeneous underlying capabilities to

other services should be fine-grained for high

198

Alahmari S., Zaluska E. and De Roure D. (2010).

MIGRATING LEGACY SYSTEMS TO A SERVICE-ORIENTED ARCHITECTURE WITH OPTIMAL GRANULARITY.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

198-207

DOI: 10.5220/0002896401980207

 SciTePress

reusability and encapsulation. On the other hand, a

business service will typically be implemented as a

coarse-grained service for maximizing business

value and traceability of business processes.

Our approach analyses legacy systems using two

formal models: firstly a Unified Modelling

Language (UML) representation and secondly a

Business Process Modelling Notation (BPMN)

representation. Although these present two different

views of complex software systems, we started

initially with a transformation from a static model

(e.g. UML class diagram) to a behaviour model

(BPMN) for two reasons. First, a significant number

of current legacy systems are Object-Oriented

systems. Second, there is already a wide acceptance

of business process modelling for service-oriented

systems [Rolland et al, 2007; Erradi et al, 2006;

Erradi et al 2007] . However, BPMN and UML can

be expected to overlap when considering workflow

patterns and also to share significant deficiencies

such as informal semantics and imprecise resource

definitions. This is an important motivation for the

investigation of a combined approach in this

research, because relying on a single approach

cannot be expected to produce the required ‘optimal’

result. The key contributions of this paper are:

 To provide a framework and guidelines for

identification of services from legacy code with

proper level of granularity.

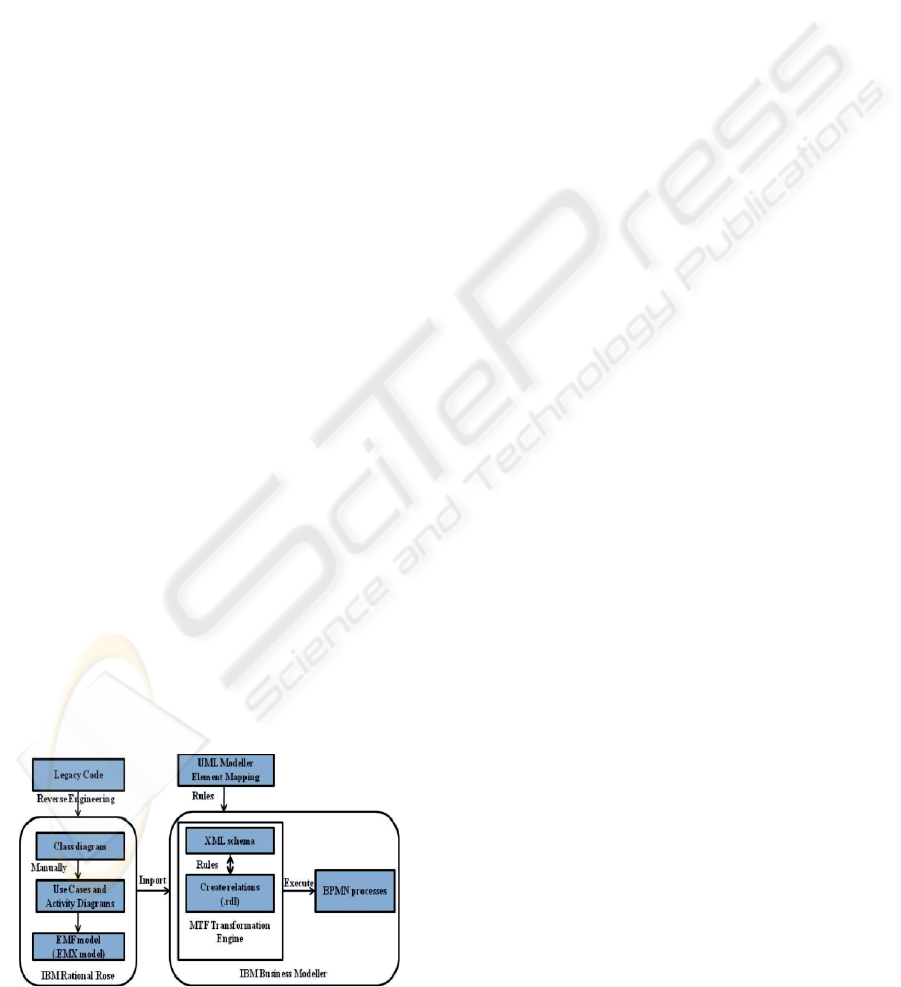

 To propose an automated and simple

transformation from a static model (UML) to a

behaviour model (BPMN).

The rest of this paper is organized as follows: in

section 2 related work is discussed. In section 3 the

service types and proposed approach are introduced.

Section 4 presents an example of an application,

followed by an example evaluation in section 5.

Sections 6 presents the conclusions.

2 RELATED WORK

Research conducted in the arena of migrating and

integrating legacy systems for support of SOA has

proposed several different approaches from different

perspectives: the technical domain, the business

domain, and the conceptual (Ramollari et al, 2007).

Reference (Zhang et al, 2004) proposes a

hierarchical clustering algorithm to extract

independent services from procedural software

systems into an object-oriented (OO) model. This

approach uses a grey-box strategy which is a

combination of system wrapping with the key

business logic. However, the drawback of this

approach is that it identifies target services at two

different architectural levels without a

reconsolidation process. In addition, it requires

human intervention to identify and assess the

appropriate services.

Reference (Chen et al, 2005) discusses the

transforming of legacy systems developed with

Object-Oriented Design (OOD) or Component

Based Design (CBD) into SOA applications using

feature analysis. The feature analysis consist of three

stages: identifying system features, constructing the

feature models, and tracing the relationship between

the defined services. The identified service

operations are exposed by class delegations using a

tool called a Web Service Wrapper. The authors

claim that feature analysis bridges the gap between

abstraction architecture and source code, whereas

business requirements are excluded. In addition, this

approach does not cover service classifications and

granularity aspects. Reference (Zou et al, 2001)

provides a framework to transform legacy systems

into a web-enabled environment by means of a

CORBA wrapper (CORBA IDL, SOAP, WSDL, and

UDDI). This approach is accomplished in three

stages. This approach does not provide enough detail

on how to identify services along with new business

requirements and the targeted service characteristics.

Reference [Jianzhi et al, 2005] develops a

framework ICENI (Imperial College e-Science

Network Infrastructure) to leverage components of

legacy systems into a grid environment. It applies

reverse engineering techniques to components using

a Java Native Interface (JNI) wrapper to encapsulate

code and Commerce eXtensible Markup Language

(CXML) to describe specifications for

communication with the ICENI workflow. The

drawback of this approach is that they lack an

understanding of the problem domain. It migrates

independent blocks of code directly into services

that cannot interoperate using a bottom up approach.

Reference (Zhang et al, 2005) proposes an

architecture-based service-oriented reengineering

approach that uses a hierarchical clustering method

to identify services from legacy systems based on

mapped requirements in UML models. This

approach requires human supervision to assist in

determining the optimal service granularity along

with the clustering technique.

Reference (Galster et al, 2008) proposes a graph-

based framework that discovers service granularity

according to business goals during the design phase.

However, this approach does not define fine-grained

services and quantifies coarse-grained services using

MIGRATING LEGACY SYSTEMS TO A SERVICE-ORIENTED ARCHITECTURE WITH OPTIMAL

GRANULARITY

199

a non-technical description. Reference (Suntae et al,

2008) focuses mainly on how to define the right

services in the analysis phase considering business

change factors and goals. Reference (Rolland et al,

2007) introduces an approach that depends on

exploring the purposes of a business process in order

to identify a service. As a result, this approach

defines a new type of service called an “Intentional

Service” which considers business goals, pre- and

post-conditions, and variant interpretations instead

of the technical aspects of interfaces, behaviour, and

composition of services respectively.

Reference (Sneed et al, 2006) refers to the

importance of granularity in defining web services

without suggesting any particular solution.

Reference (Fareghzadeh, 2008) attempts to solve the

gap between service provider and requester

regarding to the service agreements. A Unified

Service Model (USM) is proposed along with a

service operational model to specify business

services from a business people perspective.

Although the authors of this approach claim that the

USM defines business services at multiple levels of

granularity, no metrics or guidelines are provided to

identify the service granularity. Reference

(Arsanjani et al, 2006) outlines set of activities in the

analysis phase that lead to adequate broad

foundation for service identification. The author

classifies service types in three layers; orchestration

layers (process service), business layer (task and

entity service), and application service layer. Even

though the author emphasizes the importance of the

key principles of service-oriented, no details have

been given as to how those principles can be applied

to guaranteed optimized services

In a real-world project in an Energy Management

System (ESM), reference (Xiaofeng et al, 2007)

utilizes specific enterprise service hierarchy patterns

for selected business processes to determine the

service granularity. These patterns failed to provide

effective guidelines to enhance the service

granularity. References (Arsanjani, 2004; Lawson,

2009) propose a comprehensive approach with a

high-level service architectural classification and

iterative processes. It consists of three phases:

identification, specification, and realization; the later

reference added components and flow. Although

these approaches were successful in highlighting the

broadly architectural aspects, they failed to provide

detailed guidance.

Reference (Erradi et al, 2006) introduces the

Service Oriented Architecture framework (SOAF)

with five conceptual levels: information elicitation,

service identification, service definition, service

realization, and roadmap with planning. Each level

requires inputs to proceed with a set of activities that

deliver outputs as inputs for the next layer. For

service identification, it defines the design tasks to

be performed (e.g. specifying service policy). It also

scales service granularity levels by means of the

grouping of the number of invoked components or

services via an operation on a service interface and

the number of updated sources. Finally,

transformation strategies are defined along with the

plan for service implementation. Reference (Erradi

et al, 2007) extends the service design concepts of

the SOAF framework (Erradi et al, 2006) with a

business-driven approach based on a meta-model to

define service granularity. It highlights broad

guidelines for enhancing the service granularity such

as reusability, business-alignment, designing for

assembly, and reducing the ripple effects of

application changes.

Reference (Dwivedi et al, 2008) introduces a

semi-automated approach to identify services on

process-oriented systems. It converts the UML based

business process models into XMI. The XMI reader

“NSUML” is used to produce the MOF (Meta

Object Facility) for mapping XMI meta-model. The

algorithm used runs over an XMI meta-model

developed a statistic based approach which helped in

creating APIs to query candidate services. Although

this approach provides a good definition of the

service identification issues and presents an

interesting tool, it fails to demonstrate how the tool

will integrate the service hierarchy layers and

properties. Reference (Shirazi et al, 2009) attempts

to categorize services based on operational state of

services and logical presentations, i.e. differentiating

between application and business services. However,

this approach is incomplete because authors do not

consider important elements that effect service

identification phase such as granularity and

complexity.

By analysing all of this related work, it is found

that none of the previous approaches has enabled

accurate service identification, in terms of when

services should be coarse-grained and fine-grained.

Although the approaches studied usually conclude

with various service design principles, they do not

provide well-defined and effective mechanisms to

accomplish these principles. However, all of the

references agree on the complexity of considering all

applicable factors to fulfil both the business and the

technical aspects. We believe that service granularity

is a key aspect of service design that has a

significant impact on other aspects such as

reusability, maintainability, performance and

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

200

flexibility. As confirmed by this literature review,

there are no close approaches to the work reported in

this paper.

3 SERVICE IDENTIFICATION

FRAMEWORK

3.1 Defining Service Types

The functional scope of different services is a key

element required to construct service taxonomy. A

service should accomplish certain goals that can be

quantified correspond to a business or a technical

requirement. Our classification is concerned

primarily with defining right level of granularity for

every service type. This classification will guide the

service identification framework to define roles and

properties for each service type. It will be also used

along with the proposed metric in indentifying the

right service with optimal granularity. The closest

service type classification to that in our approach is

the work by (Kulkarni et al, 2008a, 2008b), who

identify eight generic service types from a

hierarchical perspective of the enterprise layers. In

contrast, our classification focus is on defining the

purpose of the service, i.e. what the service is

expected to expose to the service consumer. Table 1

shows service types with different levels of

granularity from the functional perspective. We

define seven service types; process service, business

service, composite service, transactional-data

service, master-data service, utility service, and

infrastructure service. The services are defined from

the most granular (e.g. process service) to the least

granular (e.g. infrastructure service).

The purpose of the service can be defined as

CRUD (create, retrieve, update, delete) functions or

business logic or specific domain functions (e.g. a

service for customer credit check) or infrastructure

capabilities. The data nature is also considered as a

function of the frequency of data modification. This

consideration facilitates data exposure and process

access functions through flexible and reusable

services (Lawson, 2009). Based on the concept of

the Business Intelligence (BI) meaning of data we

define two new types of services: master-data

service and transactional-data services. For example,

master data (such as customer data name and

address) is not likely to change on a frequent basis,

hence few data parameters are manipulated, and

there is no verification or compensation mechanism

required (Haesen et al, 2008). In contrast, with a

transactional data (such as “items ordered”) always

changes (e.g. when the customer places a new

order), hence such a service requires more

communications to process.

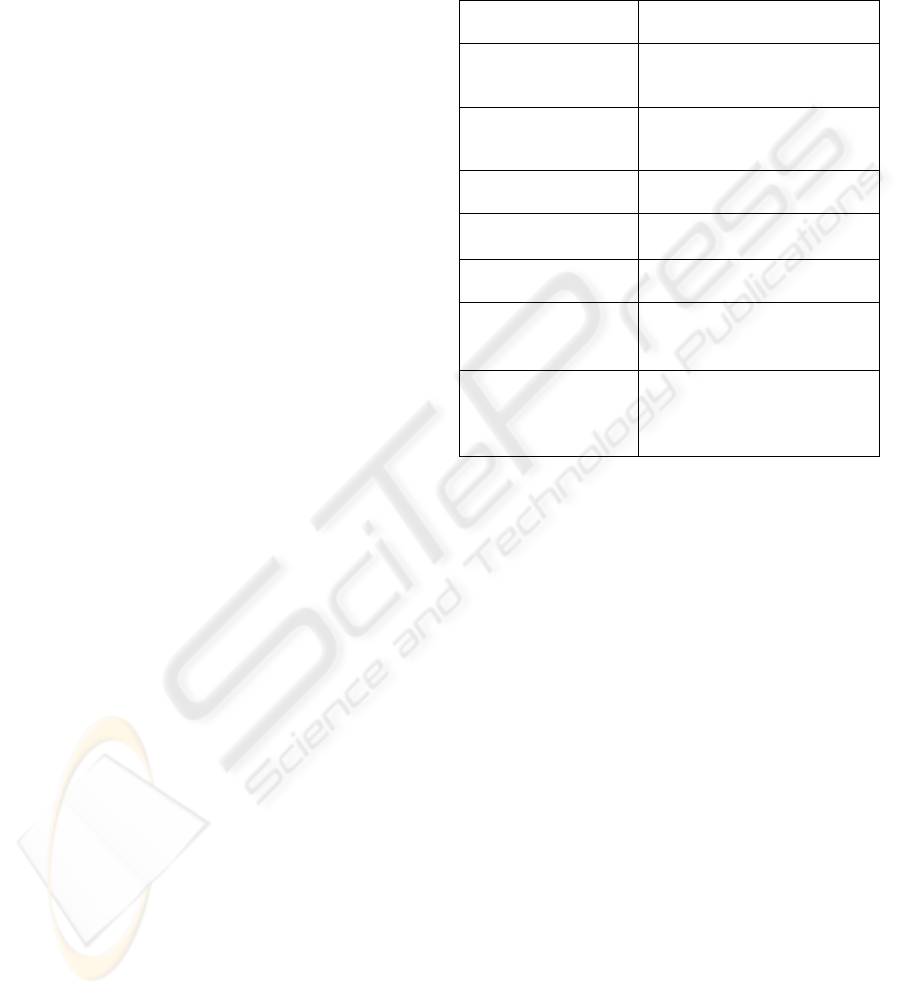

Table 1: Service types.

Service type Functional scope

Process Service Processing sequenced tasks in a

pre-defined flow of business

process (coarse-grained).

Business Service Presenting business logic of a

transaction or a business entity

(coarse-grained).

Composite Service Aggregating several services in

the enterprise (coarse-grained).

Transactional-data

Service

Processing CRUD functions of

transitional data (fine-grained).

Master-data Service Processing CRUD functions of

master-data (fine-grained).

Utility Service Providing business domain

functionalities to other services

(fine-grained).

Infrastructure Service Providing essential technical

functionalities for other

services and the architectural

enterprise (fine-grained).

3.2 Proposed Approach

A service definition is inevitably derived from

business processes or business functions (Steghuis,

2006). This paper aims to develop an SOA

architectural framework to assist service

identification for migrated legacy systems with

optimal service granularity. The framework is based

on process portfolios that are derived from the UML

and BPMN standards in addition to an optional

knowledge portfolio (as shown in figure 1). In the

case of new system requirements, business processes

in BPMN models are updated. Then, a cluster

metrics is used to generate services based on the

proposed previously service types classification. The

SOA meta-model provides a comprehensive

description of service types integrating the semantic

of business processes. It provides effective standards

for service granularity quantification after capturing

potential services.

In many practical legacy system migrations, there is

no available information about the legacy system

apart from the code. Thus, assuming that only the

code is available (as an extreme scenario); our

approach consists of three main stages as follows:

First stage: the analysis and reengineering stage

has the following activities:

MIGRATING LEGACY SYSTEMS TO A SERVICE-ORIENTED ARCHITECTURE WITH OPTIMAL

GRANULARITY

201

1. If any documentation, expertise, or staff

interviews are available, an analysis model can be

produced to provide a knowledge portfolio

(optional).

2. Transforming the legacy system codes into a

formal representation using UML models by

reverse-engineering techniques to obtain a static

model automatically (using modelling tools such

as IBM Rational Rose). The reverse-engineering

process results in class diagrams which can then

be produced to activity diagrams of the legacy

system.

3. Transforming the UML models into BPMN

models automatically using model driven

development (MDD) techniques in order to define

a business processes portfolio. The Relation

Definition Language (RDL) describes the

transformation rules as part of the Eclipse

Modelling Framework (EMF) which utilizes the

IBM Model Transformation Framework (MTF)

running on the IBM WebSphere Business

Modeler. Standards for mapping elements between

UML activity diagram and BPMN diagrams are

identified according to the pattern-based BPMN

analysis (Russell et al, 2006; Griffen et al, 2007).

Second stage: the services elements identification

stage has the following activities:

4. Defining atomic processes and business entities

(Teale et al, 2004) from the processes portfolio;

applying a clustering metrics on atomic processes

to define fine-grained services based on CRUD

functions (Griffen et al, 2007) and business logic

metrics.

Third stage: the services evaluation stage has the

following activities:

5 Evaluating coarse-grained and fine grained

services against the SOA meta-model.

Figure 1: Service identification framework.

3.2.1 Analysis and Re-engineering Stage

To construct a sufficient underpinning for the

service identification, the analysis and re-

engineering stage consists of three models. First, the

analysis model provides high-level system

understanding and support for the business

requirements. Secondly, the activity portfolio

provides the structure of the legacy system. Thirdly,

the process portfolio describes the behaviour of the

legacy system.

The analysis model is based on understanding

what the system does from the legacy code only is

not sufficient. Legacy software systems were

typically developed with embedded business rules

and logic, scattered and duplicated code,

unstructured modules, and tightly-coupled functions.

The aim is to discover the system main functions

and components via workshops, questionnaires,

interviews and available documents. The outputs

will complement the modelling of the atomic

processes in BPMN and also capture additional

information of non-functional requirements such as

performance and reusability.

The UML model ensures decomposed units are

relative and coarse-grained. Here our aim is to

partition the class diagrams in terms of business

functions in order to determine primitive functions

and then atomic processes; the class diagrams are

derived from the legacy code using IBM Rational

Rose and reverse-engineering techniques. Business

functions are defined from the knowledge portfolio

process. We describe the structural and behaviour of

the legacy system using UML class diagrams and

activity diagrams respectively. Firstly, the reverse-

engineering process results in a class diagram that

shows the defined classes of the legacy code

providing a static model. Secondly, after

automatically generating the class diagram of the

legacy code, use cases and activity diagrams are

defined manually. It is important to guarantee

consistency, completeness, and correctness when

devising a behavioural diagram (e.g. activity

diagram) from a structural diagram (e.g. class

diagram), otherwise all subsequent diagrams would

inherit the same issues. Several approaches attempt

to check the rightness of UML diagrams using

different techniques such as verification rules and

meta-models (Kyu et al, 2003), profiling

inconsistency and evaluation (Egyed, 2007).

However, no tools in the industry yet are sufficient

to solve these issues and in addition current

approaches are time-consuming and affected always

by model changes (Egyed, 2007). To resolve this

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

202

issue in our approach, the legacy code is reviewed

manually line by line after identifying targeted

classes.

The BPMN model is used to depict the business

processes of the legacy system and also new

requirements. The adoption of process modelling

using BPMN as a modelling language in this

research is motivated by several factors. First,

relevant research agrees that process-oriented

modelling provides a good basis for SOA (Rolland

et al, 2007; Erradi et al, 2006; Erradi et al 2007).

Secondly, UML 2.0 Activity Diagrams for business

process modelling introduced by OMG suffers from

limitations on modelling related resource and

representing various types of control-flow constructs

(Russell et al, 2006). It is important to note that

BPMN has specific advantages over UML in

describing complex scenarios such as richer

constructs (Recker et al, 2009).

The use of MDD is a growing trend, as it

provides capabilities to transform a model notation

to other models (Griffen et al, 2007; Kalnins et al,

2006). Our transformation uses the concept of MDD

in terms of converting a model to different level of

abstraction using an alogrithm. Since most (if not

all) legacy systems are based on functional

decomposition, the UML standards are adequate for

capturing the detailed design of legacy systems by

the reverse-engineering technique. Reference

(Griffen et al, 2007) introduces the capabilities of

using WebSphere Business Modeler to automatically

transform UML activity diagrams into business

processes. This capability is used to achieve the

transformation between UML activity diagrams and

business processes in BPMN standards by

modifying the proposed XMI content elements.

Figure 2 shows the entire process of the

transformation using MTF and EMF models.

The IBM WebSphere Business Modeler tool is used

to perform the conversion (Griffen et al, 2007). It

includes a general XML schema which supports the

mapping of an XML file to business processes.

Figure 2: UML and BPMN transformation method.

This paper utilizes the structure of the XML schema

provided with different interpretation of the business

processes. After defining our EMF model using the

Rational Rose tool, the transformation rules are

developed in RDL. The MTF (a set of tools

facilitating transformations between EMF models)

parses the written relations rules. The transformation

engine then executes the rules to match both models:

the source (UML) model and target (BPMN) model.

3.2.2 Service Elements Identification Stage

The service identification stage is an essential step

for the architecture of service-oriented systems. The

term optimal service or ‘right service’ refers to a

service that offers an acceptable size of

functionalities without interfering with the pre-

defined service properties. The service properties

will be established according the service agreements

between service provider and consumer. The

properties can be expressed in terms of absolute

number (e.g. execution time of service), or scale

(e.g. the security of a service). For example, a

service that requires a very strong security policy is

likely to have lower performance. In this example,

the service properties should include a high scale for

the security and a rational execution time. We need

to deduce the underpinning elements that assist in

identifying ‘optimal’ services from the three models

(e.g. UML, BPMN and the analysis model). Those

elements are atomic processes and relative data

entities (objects). A bottom-up analysis is conducted

to reveal functions and data structure as part of the

knowledge portfolio. The results of this stage will be

a set of services implementing various service types

derived from the activity and process portfolios

respectively.

Transforming UML activity diagrams to business

processes in BPMN provides the basis for capturing

existing business activities. It is also a shift from an

object-oriented architecture (in this case study) or

functional decomposition to a process-oriented

methodology for SOA. Using BPMN fills the gap

between business process design and process

realizations. As a basis for the BPMN diagrams,

transformed activity diagrams have been refined

with the detailed flow of processes using

information from the knowledge portfolio. BPMN

models help to describe granular business activities

in details or sub-processes implying cohesively the

optimal granularity. For example, the “pool”

notation in BPMN represents a business entity or

business role in a process which is linked to another

entity with “message flow” arrows. In SOA, this can

MIGRATING LEGACY SYSTEMS TO A SERVICE-ORIENTED ARCHITECTURE WITH OPTIMAL

GRANULARITY

203

help to identify initially the size of exchange

messages among business entities in a service or

different services.

In order to define optimal services, a set of

distinct metrics is designed. Metrics include number

of atomic processes and relative data entities

(objects). Reference (Jamshidi et al, 2008) uses

CRUD functions to define the affinity between

assumed elementary business processes and business

entity. Our metrics are derived from the metric

proposed by reference (Jamshidi et al, 2008) with

several main changes. Firstly, our atomic processes

are automatically driven from a legacy system using

revere re-engineering technique. Secondly, in the

cluster technique distinct CRUD functions and

business logic are used. Thirdly, we establish rules

for the identification of optimal services. Finally, our

metric is service type classification dependent.

Eventually, this classification will provide guidance

to an intensive description of each service (e.g.

messages data types). We focus on what the atomic

processes are, not how they are performed.

Gathering similar behaviour atomic processes leads

to high cohesion and loose coupling among services.

Encapsulating atomic processes and relevant data

entities increases reusability and eliminates

redundancy. The aim is to disunify groups of atomic

processes and data entities into services according to

specific rules. These rules will be applied as follow:

 A service can have CRUD and executed business

logic for either one entity and any number of

processes or any number of entities and one

process.

 A process that has CRUD functions for many

entities can be encapsulated in a service with

other similar processes and entities.

 A service can not cover CRUD functions and

executed business logic for one entity if they are

provided by different processes. Those processes

which provide CRUD functions will be defined

by a service.

 Every data entity must have at least one creation

operation and each atomic process presents a

coherent functionality. Every atomic process

invokes at least one entity.

The CRUD functions and business logic identify the

relationship between an atomic process and an entity

as following:

 "C" means this atomic process CREATES an

instance of this data entity.

 "R" means this atomic process READS an

instance of this data entity.

 "U" means this atomic process UPDATES an

instance of this data entity.

 "D" means this atomic process DELETES an

instance of this data entity

 “BL” means this atomic process has business

logic belongs to an instance of this data entity.

3.2.3 Service Evaluation Stage

Classification and categorizing service types

establish a basis to define the service granularity.

Elements such as a service contract, an

implementation, and an interface (Steghuis, 2006).

They can all contribute to this classification and

definition. Every service type is inherently

associated with a specific level of abstract and

implementation descriptions. Defining service types

is always an independent task from the service

identification process, if it is considered. Although

the SOA architecture view of the enterprise logically

presents potential service types, our proposed

methodology need to comprise all service scenarios

to be complete. We develop a SOA meta-model that

describes service types along with the semantics of

our approach. The SOA meta-model shown in figure

3 presents the relationship between business process

characteristics and different service types. We have

assumed that the optimal granularity level of the

service can be identified based on our classification

and method together.

The SOA meta-model provides a comprehensive

understanding of two major characteristics: a

business process and a service. When we apply our

SOA meta-model (see case study), we will have a

new set of services with optimal level of granularity.

To classify the identified services in a process-

oriented system, we define the following rules:

 Breaking down activities of every process to

atomic activities (only systematic activities are

considered).

 Specifying the service type depends on the

process functionality (purpose) and

interoperability with other processes.

 Every business process can be modelled as one

operation or more of a service or as a service

itself.

 A high-level business process can be modelled as

a service process type.

 A service can be equal to one or more operations.

 An operation encapsulates either business logic

or CRUD functions.

 Business logic can be implemented by a business

service or by many business services as part of

service composition.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

204

 One or many business service is orchestrated by

a process service and supported by one or many

utility services.

 CRUD functions can be implemented by either a

transactional service or a master-data service

depend on the type of the data entity or as part of

collaborative similar services in service

composition.

 One or more infrastructure service can be

invoked directly or as part of a service

composite. Any type of service can be part of

one or many composite service.

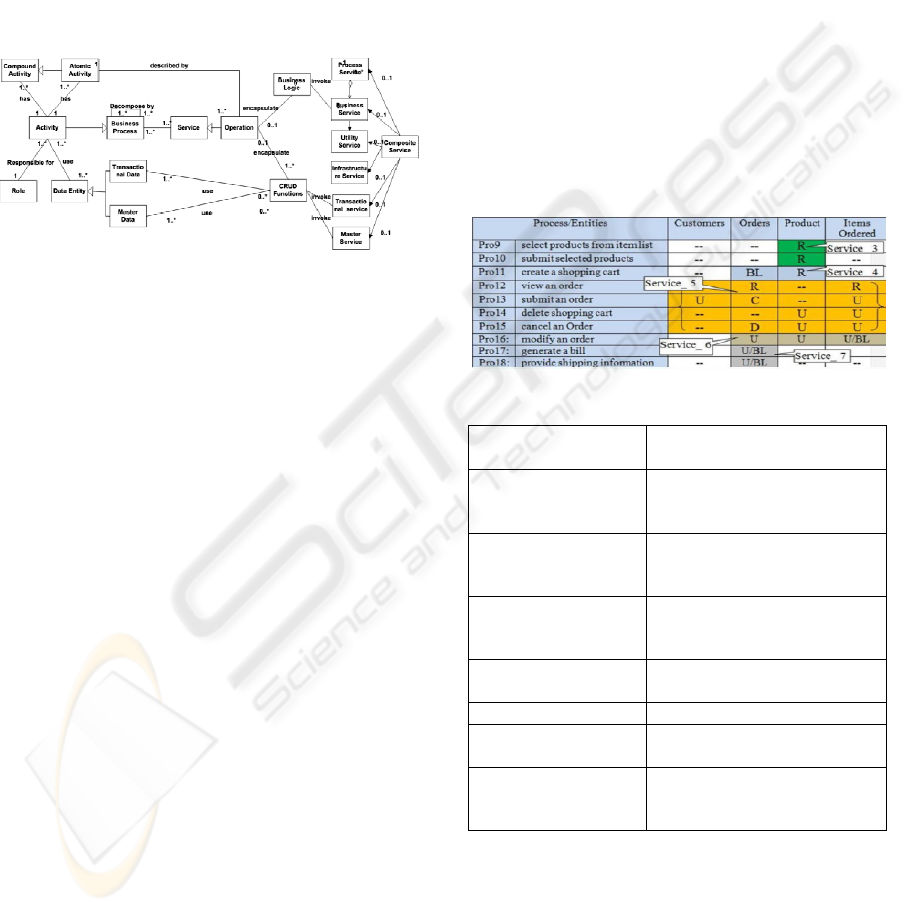

Figure 3: SOA meta-model.

4 EXAMPLE CASE STUDY

This section describes and discusses a pilot

application of our framework to re-engineer a legacy

code implementing an e-commerce project

(Alahmari, 2002). The aims of the project were to

build a servlet-based, object-oriented, three-tier

architecture, dynamic e-commerce, customizable

website that offers online customers and an internal

administrator a wide range of functionalities. The

webstore consists of six java packages which have a

total of twenty-eight classes. For brevity, we

selected the main four java classes (as a sample)

from the legacy code to apply our approach.

In the analysis and reengineering stage: after the

legacy code is reversed to java class diagrams, the

activity diagrams are created manually as part of the

UML model. The activity diagrams are transformed

automatically to business processes in BPMN (as

described previously). The transformation results in

two main business processes with twenty one sub-

processes and tasks.

In the service elements identification stage: the

proposed method (section 3.2.2) is applied to the

atomic processes and data entities. A set of a coarse-

grained services (business and process services) are

identified implementing cohesive functions with

wide range of granularity. Table 2 shows the

aggregation of relative atomic processes and data

entities against candidate identified (coarse-grained)

services.

In the service evaluation stage, the identified

services from the second stage are evaluated using

the SOA meta-model definitions and rules. This

stage produces a new set of various types of

candidate services with optimal range of coarse-

grained and fine-grained services. Table 3 includes

two columns: The first column shows processes

identified from the processes portfolio after adopting

the BPMN standards. The second column lists

candidate services with the optimal level of

granularity. For example, Pro9 has previously only

one service (service_3), after evaluation it has a

composite service which includes a business service

(service_3_A) and a transactional service. Both

defined services present optimal level of granularity.

Table 2: The cluster matrix.

Table 3: Optimal candidate services.

Service type Functional scope

Pro9: select products

from a list

business service (service_3_A)

transactional-data service

(service_3_B)

Pro10:submit selected

products

business service (service_3_C)

transactional-data service

(service_3_D)

Pro11:create a

shopping cart

business service (service_4_A)

transactional-data service

(service_4_B)

Pro12: view an order Transactional-data service

(service_5_A)

Pro13: submit an order business service (service_5_B)

Pro14: delete shopping

cart

Transactional-data service

(service_5_C)

Pro15: cancel an Order business service (service_5_D)

transactional-data service

(service_5_E)

5 CASE STUDY EVALUATION

As the case study illustrated, to define the right

services with optimal granularity from legacy code,

knowledge portfolio and distinct functionalities need

to be captured in underlying formal representations

MIGRATING LEGACY SYSTEMS TO A SERVICE-ORIENTED ARCHITECTURE WITH OPTIMAL

GRANULARITY

205

(e.g. UML and BPMN). Having defined business

processes and data entities for such system, a metric

method can now assist the process of service

identification. Because there are no agreed

definitions and standards for a service, it is

appropriate to use metric measurements. The metric

assists in deriving optimal services considering the

service purpose (e.g. CRUD functions, and business

logic) and granularity rules. Because of the different

interpretation of a business process and level of

abstraction, we define an additional different set of

rules for the process portfolio.

The SOA meta-model provides a foundation for

defining the optimal granularity by encapsulating a

service type classification and also the method

metric. Through our evaluation process indicates

that the purpose of the service can assist in defining

the right service for a process or activity, we must

also note that there are other elements can be

considered along with the purpose of the service.

Adding those elements (e.g. service contract, and

service interface) will provide a better foundation for

defining the service granularity. The technique used

shows that having a well-defined meta-model

considering all service definition aspects (e.g.

service types) and process definitions can enhance

the service identification stage. An outcome and a

possible limitation of this approach is that it was not

possible to introduce automatic mapping from UML

activity diagram to BPMN models. It is a subject of

further research aimed at creating a bidirectional

MDD transformation between UML class diagrams

and activity diagrams.

6 CONCLUSIONS

With the increased need to expose disturbed system

functions as interoperable services across

enterprises, research has been focusing on providing

a general approach for different service-oriented

modelling lifecycle phases. Our research emphasizes

the importance of the service identification phase for

defining the right service, because any faults at the

service definition stage can lead to failure of the

entire SOA project. The main contribution of this

paper is a framework and guidelines for

identification of specific services from legacy code

with the appropriate levels of granularity. It also

introduces an intensive meta-model that defines

uniquely the characteristics of business processes

and service types in the way that definitions are

mapped. The paper also emphasizes the importance

of the classification of service types to define service

properties. Our future work will be to expand the

service to automate the service identification process

and hence generate the optimal level of service

granularity automatically.

ACKNOWLEDGEMENTS

We acknowledge helpful discussions with Rob

Phippen and Kim Clark (IBM Hursley Park, UK).

REFERENCES

Arsanjani, A., 2004. Service-oriented modeling and

architecture: How to identify, specify, and realize

services for your SOA, [Online], Available at:

http://www.128.ibm.com/developerworks/webse

rvices /library/ws-soa-design1/ [Accessed

30/12/2009]

Arsanjani, A., Allam, A., 2006. Service-oriented

modeling and architecture for realization of an SOA.

Proc. 2006 IEEE International Conference on

Services Computing, pp.1, IEEE Computer Soc.

Chen, F., Li, S., Yang, H., Wang, C., Chu, W., 2005.

Feature analysis for service-oriented reengineering.

Proc. 12th Asia-Pacific Software Engineering

Conference, IEEE Computer Soc.

Dwivedi, V., Kulkarni, N., 2008. A model driven service

identification approach for process centric systems.

Proc. 2008 IEEE Congress on Services Part II

(SERVICES-2), pp. 65-72. IEEE Computer Soc.

Egyed, A., 2007. UML/analyzer: a tool for the instant

consistency checking of UML models. Proc. 29th

International Conference on Software Engineering

(ICSE'07), pp.787-790. IEEE Computer Soc.

Erradi, A., Anand, S., Kulkarni, N., 2006. SOAF: An

architectural framework for service definition and

realization. Proc. IEEE Services Computing

Workshops, pp. 151-158. IEEE Computer Soc.

Erradi A., Kulkarni N, Naveen., Maheshwari, P., 2007.

Service design process for reusable services: financial

services case study, ICSOC, pp.606-617.

Fareghzadeh,N. 2008. Service identification approach to

SOA development. Proceedings of World Academy of

Science, Engineering and Technology, 35, ISSN 2070-

3740.

Galster, M., Bucherer, E., 2008. A Business-Goal-Service-

Capability Graph for the Alignment of Requirements

and Services. Proc. IEEE Congress on Services,

pp.399-406. IEEE Computer Soc.

Griffen, C., Huang, R., Sen, Z., Fiammante, M., 2007.

Transforming UML «Activity» diagrams to

WebSphere Business Modeler processes. IBM

WebSphere Developer Technical Issue 10.6, Journal

July 18.2007.

Haesen,R., Snoeck, M., Lemahieu, W., Poelmanset, S.,

2008. On the definition of service granularity and its

architectural impact. Proc. Advanced Information

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

206

Systems Engineering. 20th International Conference,

CAiSE 2008, pp. 375-389. Springer-Verrlag.

Jamshidi, P., Sharifi, M., Mansour, S., 2008. To establish

enterprise service model from enterprise business

model. Proc. IEEE International Conference on

Services Computing, pp. 93-100. IEEE Computer Soc.

Jianzhi, L., Zhang, Z., Yang, H., 2005. A grid oriented

approach to reusing legacy code in ICENI framework.

Proc. Proceedings of the 2005 IEEE International

Conference on Information Reuse and Integration,

IEEE Computer Soc.

Kalnins, A., Vitolins, V., 2006. Use of UML and model

transformations for workflow process definitions.

Vilnius Gediminas Technical Univ Press. Proc. 7th

International Baltic Conference on Databases and

Information Systems, pp. 3-14. Technika,

Kohlborn, T., 2008. A consolidated approach for service

analysis. Master’s thesis. Westfalische-Wilhelms

University Munster.

Kontogiannis, K., Lewis, G.A., Smith, D.B., Litoiu, M.,

Muller, H., Schuster, S., Stroulia, E., 2007. ‘The

landscape of service-oriented systems: a research

perspective’. 2007 International Workshop on Systems

Development in SOA Environments. Minneapolis,

MN, IEEE Computer Soc.

Kulkarni, N., Dwivedi, V., 2008. The role of service

granularity in a successful SOA realization - A Case

Study. IEEE Congress on Services. Honolulu, HI,

IEEE Computer Soc.

Kyu, H., L-K., Kang, B-W., 2003. Meta-Validation of

UML structural diagrams and behavioral diagrams

with consistency rules. Proc. of IEEE Pacific Rim

Conf on Communications, Computers and Signal

Processing, PACRIM, 2, pp. 28-30.

Lawson, J., 2009. Data services in SOA: maximizing the

Benefits in enterprise architecture. Oracle published,

[Online] April, 2009. Available at:

http://www.oracle.com/technology/pub/articles/j_laws

on_soa_data.html [Accessed 30/12/2009].

Ramollari, E., Dranidis, D. ,Simons, A.J.H., 2007. A

Survey of Service Oriented Development

Methodologies. 2nd European Young Researchers

Workshop on Service Oriented Computing.

Recker, J., Muehlen, M., Siau, K., John, J., Indulska

,M., 2009. Measuring method complexity : UML

versus BPMN. 15th Americas Conference on

Information Systems, San Francisco, California.

Reldin, P., Sundling, P., 2007. Explaining SOA Service

Granularity: How IT-strategy shapes services.

Master’s thesis.

Rolland, C., Kaabi, R.S., 2007. An intentional perspective

to service modeling and discovery. Proc. 31st Annual

International Computer Software and Applications

Conference, IEEE Computer Soc. Institute of

Technology Linkoping University.

Russell, N., Van der Aalst, W.M.P., Ter Hofstede,

A.H.M., Wohed, P., 2006. On the suitability of UML

2.0 activity diagrams for business process modelling.

BPM Centre Report BPM-06-03, BPMcenter.org.

Shirazi, H.M., Fareghzadeh, N., Seyyedi, A., 2009. A

combinational approach to service identification in

SOA. Journal of Applied Sciences Research, INSInet

Publication, 5(10): pp.1390- 1397.

Sneed, H.M., 2006. Integrating legacy software into a

service oriented architecture. Proc. 10th European

Conference on Software Maintenance and

Reengineering, IEEE Computer Society.

Steghuis, C., 2006. Service granularity in SOA projects: a

trade-off Analysis. Master’s thesis. University of

Twente.

Suntae,K. , Kim, M., Park, S., 2008, Service identification

using goal and scenario in service oriented

architecture. Proc. 2008 15th Asia-Pacific Software

Engineering Conference, IEEE Computer Soc.

Teale, Ph., Jarvis, R., 2004. Business patterns for software

engineering use, Part 2. The Architecture Journal,

[Online], Available at:

http://msdn.microsoft.com/enus/arcjournal/aa480036.a

spx, [Accessed30/12/2009].

Xiaofeng, W., Hu, S., Haq, E., Garton, H., 2007.

Integrating legacy systems within the service-oriented

architecture. Proc. 2007 IEEE Power Engineering

Society General Meeting, pp.7. IEEE Computer Soc.

Zhang, Z., Ruimin, L., Yang, H., 2005. Service

identification and packaging in service-oriented

reengineering. Proceedings of the 17th International

Conference on Software Engineering and Knowledge

Engineering, IEEE Computer Soc.

Zhang, Z., Yang, H., 2004. Incubating services in legacy

systems for architectural migration. Proc. Proceedings.

11th Asia-Pacific Software Engineering Conference,

IEEE Computer Society.

Zou, Y., Kontogiannis, K., 2001. Towards a Web-centric

legacy system migration framework. The 3rd

International Workshop on Net-Centric Computing

(NCC): Migrating to the Web, International

Conference on Software Engineering (ICSE'01),

Toronto, Canada.

MIGRATING LEGACY SYSTEMS TO A SERVICE-ORIENTED ARCHITECTURE WITH OPTIMAL

GRANULARITY

207
