WORK PRODUCT-DRIVEN SOFTWARE DEVELOPMENT

METHODOLOGY IMPROVEMENT

Paul Bogg, Graham Low

School of Information Systems, Technology and Management, University of New South Wale, Sydney, NSW 2052, Australia

Brian Henderson-Sellers

School of Software, University of Technology of Sydney, PO Box 123 Broadway, Sydney, NSW 2007, Australia

Ghassan Beydoun

School of Information Systems and Technology, University of Wollongong, Wollongong, NSW 2522, Australia

Keywords: Software Development Methodologies, Method Engineering, Software Process Improvement, MOBMAS.

Abstract: A work product is a tangible artifact used during a software development project; for example, a

requirements specifications or class model diagram. Towards a general approach for evaluating and

potentially improving the quality of methodologies, this paper proposes utilizing a work product-based

approach to method construction known as the “work product pool” approach to situational method

engineering to accomplish this quality improvement. Starting from the final software application and

identifying work product pre-requisites by working backwards through the methodology process, work

product inter-dependencies are revealed. Using method fragments from a specific methodology (here,

MOBMAS), we use this backward chaining approach to effectively recreate that methodology. Evaluation

of the artificially recreated methodology allows the identification of missing and/or extraneous method

elements and where process steps could be improved.

1 INTRODUCTION

Methodologies for software development involve

key elements of user roles, tasks they perform and

work products they produce and consume. In the

development stage of a methodology, either for

general, widespread use (e.g. as published in text

books) or for a specific organization, the traditional

approach has been to focus initially on the work that

is done (often given labels such as tasks, activities or

processes). Only secondarily is consideration given

to the work products that are either produced or

consumed. [A work product is a tangible artefact

used during a software development project, for

instance, requirements specifications, class model

diagrams, and use case specifications.] In other

words, the focus is on a methodology as a series of

connected transformation engines where each of

these transformation engines has one or more input

work products and one or more output work

products. The network of work units and work

products will ultimately lead to a work product that

is the final application but it does not guarantee that

there will be no cul de sacs i.e. by identifying first a

work unit in the early stages of the methodology’s

lifecycle, then taking the output (a work product) of

this work unit and making it the input of a second

work unit – and so on – we derive a network of work

units and work products that may culminate in a

work product that is of no value whatsoever. In other

words, this is a Taylorian approach by which

methodology is equivalent to a series of work units

that may include several non-essential elements.

As an alternative, arguing that the most

important element of software development is the

final application (a work product), we can invert the

argument and ensure that our final work product is

the target software application by working

backwards from this clearly necessary final work

Bogg P., Low G., Henderson-Sellers B. and Beydoun G. (2010).

WORK PRODUCT-DRIVEN SOFTWARE DEVELOPMENT METHODOLOGY IMPROVEMENT.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 5-13

DOI: 10.5220/0002898200050013

 SciTePress

product to ask what work products are prerequisites

to it and then, and only then, what are the work units

(tasks acting as transformation engines, for example)

that will link this prerequisite work product (input)

to the output work product. Having established this

work product and work unit, we continue chaining

backwards until the initial requirements statements

are identified. This is the so-called “work product

pool” (WPP) approach, recently argued (Gonzalez-

Perez and Henderson-Sellers, 2008) to provide a

higher quality methodology – in the sense of

containing no redundant elements.

The WPP approach supports methodology

creation from method fragments (Harmsen et al.,

1994) within the auspices of the situational method

engineering (SME) paradigm (e.g. Ralyté et al.,

2007). SME is the engineering discipline aimed at

creating a methodology from the contents of a

previously constructed methodbase (Saeki et al.,

1993) specifically attuned to the project (or set of

projects) at hand. Furthermore, SME has a flexibility

that can be capitalized upon in the context of

software process improvement (Henderson-Sellers et

al., 2007). The analysis presented here of our case

study methodology can be regarded in the same

context of software process improvement (SPI)

although, generally, methods for SPI are process-

oriented rather than work product focussed and have

a wider scope for potential improvements than those

discussed here i.e. our approach makes a minor

contribution to SPI.

Although the WPP approach can be argued to be

generally applied in all kinds of software

development (and perhaps, arguably, to a wider

range of human-intensive methods than just

software), in this paper we make a choice – and

investigate its application in a case study of a single

agent-oriented software engineering (AOSE)

methodology: MOBMAS (Methodology for

Ontology-Based Multi-Agent Systems

Development: Tran et al., 2006; Tran and Low,

2008). MOBMAS has been constructed with the

traditional mindset of retaining a focus on work

units as transformation engines. Here, we

investigate, firstly, whether the WPP approach can

be successfully used in re-constructing MOBMAS

using backward chaining rather than the forward

chaining implicit in the methodology descriptions in

the MOBMAS literature and, secondly, whether the

WPP approach can give added insights and perhaps

improvements to MOBMAS. For example, a

backward chained, reconstructed MOBMAS may

have additional work products or we may be able to

identify unnecessary work products as postulated by

Tran and Low (2008) but which the WPP approach

identifies as having little or no value in creating the

final software application work product.

In the next section, we outline the overall

background to software development methodology

creation followed by an evaluation of how a work-

product-driven approach may be applied to the issue

of methodology improvement and possible

improvement. Section 4 then applies the general

arguments of Section 3 to the chosen MOBMAS

methodology. Final discussions and conclusions are

to be found in Section 5.

2 WORK PRODUCT DRIVEN

METHODOLOGY

EVALUATION AND SPI

When members of a software development team use

a methodology, they need to be assured of its

quality, particularly in terms of completeness and,

conversely, in ensuring that they do not undertake

any tasks that provide no real value. Here, we apply

the WPP approach, as outlined above, as an

evaluative tool for existing software development

methodologies. In this section we describe the way

in which quality assessment could be undertaken

and, in Section 4, we illustrate this with a case study

of one specific methodology from the literature –

MOBMAS (Tran and Low, 2008) as being one that

is familiar to us.

The decision to undertake this methodology

evaluation could be either as a simple quality check

for a newly constructed methodology or because

there is some indication that the methodology in use

either lacks elements or contains extraneous

elements. Whatever the reason for deciding to

undertake a methodology assessment, the result of

the assessment will have the same format:

recommendations for “improvements”, which may

loosely be called SPI.

We propose a four step assessment process:

1. Work Product elicitation – identifying work

product types, and relationships (inter-

dependencies) between work product types: both

then stored as method fragments in a

methodology-specific repository or methodbase

(Saeki, et al., 1993).

2. Using the backward chaining approach of the

WPP approach, and using only method

fragments (identified in step 1) from the

methodology-under-investigation, recreate the

target methodology. This we will call the “WPP-

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

reconstituted methodology” or WPPM.

3. Analyze the WPPM for missing elements or for

work product types that are outputs only (using

the rule that all work products output during a

development must necessarily also be inputs to

some other process element – excepting the final

deliverable software of course).

4. Draw up a document making suggestions for

revising the methodology for presentation to

decision-makers such as in-house methodologist,

CTO, project manager.

These steps are detailed in the following.

2.1 Step 1: Work Product Type

Elicitation and Specification

Work product type elicitation begins by considering

(a model of) a software application. Then, by

working backwards through the methodology

process, work product pre-requisites are identified.

The elicitation of work products enables

identification of the process steps required to

produce them and is guided by definitions for four

key methodology components:

 Work Product type – specification of an artefact

of interest, to be of use for a methodology

instance

 Work Product Group – a group of closely

interrelated work product types

 Task type – specification of a small-grained job

performed within a methodology instance,

including production of work products

 Process steps – a collection of task types that

produce a work product type

The elicitation of work product types, work

product groups, task types and process steps is the

basis upon which evaluations (in Step 3) are

conducted on the methodology as a whole. For each

Work Product type, we then identify the following:

 Work Product type dependencies between pairs

of work product types. There are two types:

▫ Production dependencies – where this work

product type is (partially) derived from

another work product type.

▫ Verification dependencies – where a work

product type specifies retrospective

verification with another work product type.

Verification might mandate further revision

to work product types to bring about

consistency. Consistency is important for

ensuring the integrity of the development

process (i.e. requirements are addressed with

analysis, and ultimately in design).

Verification may require that work products

are mutually revised to ensure consistency.

Consequently we can identify:

 Task types that produce the work product types

 Work Product Groups – where work product

types are closely related by similarity

Work product types are identified from the

published literature on the target methodology. Each

work product type is defined, and: production and

verification dependencies identified.

Once these model fragments have been identified

in isolation and stored in a methodology-specific

methodbase, in Step 2 we now use them to

reconstruct the methodology following the WPP

approach for method construction.

2.2 Step 2: Develop WPPM

In Step 2, the WPPM is constructed from the work

product types, connected using task types. The

WPPM may make use of work product groups to

provide a higher-level overview, which is

particularly beneficial when making global, project

wide comparisons to a methodology.

Conducting the reconstruction process may

identify methodology problems when:

 Work products are redundant;

 Work product dependencies are missing or

unnecessary;

 Work products are introduced at an inappropriate

point in the process

These problems may mandate methodology

revision if they cause inefficiencies for project

contexts. Where one or more of these problems

arise, further analysis can determine how they

should be resolved. Suggestions on how to address

the problems are discussed in Step 3 and formalized

in Step 4.

2.3 Step 3: Analyze the WPPM

The aim of this step is to detail possible areas for

improvement, elaborating on those areas identified

in Step 2 as potentially problematical and/or identify

new concerns. Two types of analysis are:

i) Identifying whether work products can be

developed in parallel

ii) Identifying types of skill sets necessary for

enacting the methodology

Where traditional software development

processes are enacted in a linear order,

recommendations for methodology improvement

may be made to improve coordination of software

WORK PRODUCT-DRIVEN SOFTWARE DEVELOPMENT METHODOLOGY IMPROVEMENT

development. For i), identifying that two work

product groups can be developed in parallel might

be beneficial for streamlining software development.

For ii), identifying skill sets might be beneficial for

understanding in what parts of the development

process particular skills are needed. Management

recommendations are proposed amendments to the

methodology that may improve the efficiency of

methodology enactments (Step 4).

2.4 Step 4: Document and Formalize

the Recommended Improvements

to the Methodology

Where problems have been identified in Steps 2 and

3, methodology revisions might be needed. It is

recommended that further analysis is made to

understand the significance of problems identified.

For significant problems, the following heuristics

may be used to formalize problems:

Where a Work Product type has no dependencies

of any kind, it is removed

 Where a Work Product type has missing

dependencies, then add a task type connection

 Where a Work Product type has unnecessary

dependencies, remove a task type connection

 Where two similar Work Product types have the

same dependencies to other work products,

attempt to identify whether the two Work

Product typescanb e consolidated to one.

 Where Work Product types have been introduced

at inappropriate points, use the dependencies to

work out the best place to introduce them in the

methodology process

There are notable exceptions to these heuristics.

For instance, initial work products will not have

dependencies and may not need to be removed.

Ultimately, revision to the methodology should only

be undertaken when it is certain that the revision will

lead to an improvement to the methodology as a

whole.

3 REVISING MOBMAS

The application of this WPP-driven revision of a

methodology is further illustrated by one specific

case study – the analysis of MOBMAS.

In MOBMAS, the MAS development starts with

a domain ontology, used initially to identify goals

and roles of the system to index an appropriate set of

problem solving capabilities from an appropriate

existing library of capabilities. Individual ontologies

corresponding to the knowledge requirements of

each capability are then extracted from the initial

common ontology to provide knowledge

representation and allow reasoning by individual

agents. Those ontologies form the basis for an

iterative process to develop a common

communication ontology between all agents and

verify the knowledge requirements of chosen

capabilities. Individual, localised ontologies may

require incremental refinement during the iterative

process. Appropriate ontology mappings are needed

between local ontologies and the communication

ontology. The development of an MAS using

MOBMAS has five activities (Figure 1). Each

focuses on one of the following key area of MAS

development: Analysis, Organization Design, Agent

Internal Design, Agent Interaction Design and

Architecture Design.

Analysis Activity: This aims to form a

conception of the target MAS from the domain

ontology and the system requirements, giving a first-

cut identification of the roles and tasks that compose

the MAS. It consists of developing the following

five models: System Task Model, Organizational

Context Model, Role model, Ontology Model as

well as identification of Ontology-Management

Role. The Role Model is developed in a highly

iterative manner with the System Task Model, given

the association between roles, role tasks and system

tasks. The Ontology Model is used to refine and

validate those models (and vice versa). This activity

also specifies the ontological mappings between the

MAS Application Ontologies.

MAS Organization Design: This refines the

organizational structure of the target MAS and

identifies a set of agent classes composing the

system. If the MAS is a heterogeneous system that

contains non-agent resources, these are also

identified and their applications are conceptualized.

It consists of the following four steps: Specify the

MAS Organizational Structure, Develop the Agent

Class Model; Develop the Resource Model; and

Refine the Ontology Model of the previous activity.

The developer also specifies the mappings between

Resource Application Ontologies and relevant MAS

Application Ontologies, to enable the integration of

these resources into the MAS application and to

support the interoperability between heterogeneous

resources.

Agent Internal Design: For each agent class, this

activity specifies belief conceptualization, agent

goals, events, plan templates and reactive rules. It

consists of the following five steps: Specify Agent

Class’ Belief Conceptualization identifying which

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

1. Develop System Task Model

2.Analyze organi zat ional

context (optional)

3. Develop Role

Model

4. Develop Ontology Model

5.Identify ontology management role

ANALYSIS

AGENT INTERNAL DESIGN

1.Specify agent class’ belief

conceptualization

2.Specify agent goals

3.Specify events

4.Develop Agent Behavior

Model

AGENT INTERACTION DESI GN

2.Develop Agent Interaction

Model

1.Select interaction mechanism

MAS ORGANISATION DESIGN

2.Develop Agent Class

Model

1.Specify organizational structure

3.Specify resources (optional)

4.Extend Ontology Model to include

Resource application ontologies

(optional)

4.Instantiate agent classes

3.Specify infrastructure facilities

2.Select agent architecture

1.Identify agent-environment interface

requirements

ARCHITECTURE DESIGN

5.Develop Deployment Diagram

1. Develop System Task Model

2.Analyze organi zat ional

context (optional)

3. Develop Role

Model

4. Develop Ontology Model

5.Identify ontology management role

ANALYSIS

AGENT INTERNAL DESIGN

1.Specify agent class’ belief

conceptualization

2.Specify agent goals

3.Specify events

4.Develop Agent Behavior

Model

AGENT INTERACTION DESI GN

2.Develop Agent Interaction

Model

1.Select interaction mechanism

MAS ORGANISATION DESIGN

2.Develop Agent Class

Model

1.Specify organizational structure

3.Specify resources (optional)

4.Extend Ontology Model to include

Resource application ontologies

(optional)

4.Instantiate agent classes

3.Specify infrastructure facilities

2.Select agent architecture

1.Identify agent-environment interface

requirements

ARCHITECTURE DESIGN

5.Develop Deployment Diagram

Figure 1: MOBMAS development process: Solid arrows represent the flow of steps within and across activities; dotted

arrows indicate potential iterative cycles of steps. Models produced or refined by each step are shown in square brackets.

part(s) of the Ontology Model are needed by an

agent class to conceptualize its run-time beliefs;

Specify Agent Goals identifying the states of the

world that an agent class aims to achieve or satisfy

using the Role Model; Specify Events in the

environment that agents need to respond to at run-

time; Develop Agent Behaviour Model specifying

how each agent class behaves to achieve or satisfy

each agent goal as planning behaviour or reactive

behaviour; and Update the Agent Class Diagram

with the details identified in the previous three steps.

The Agent Behaviour Model is checked for

consistency against the Ontology Model and vice

versa.

WORK PRODUCT-DRIVEN SOFTWARE DEVELOPMENT METHODOLOGY IMPROVEMENT

Agent Interaction Design: This models the

interactions between agent instances, by selecting a

suitable interaction mechanism for the target MAS

and modelling the interactions. It has two steps:

Decide which interaction mechanism is best suited

to the target MAS (direct or indirect); and then

Define how agents interact depending on the

selected interaction mechanism. The resultant Agent

Interaction Model is represented by a set of

Interaction Protocol Diagrams. The developer

validates the Agent Interaction Model against the

Ontology Model. The Agent Class Model is also

checked to ensure that all communicating agent

classes share the same application ontologies that

govern their interactions. Lastly, the Agent

Relationship Diagram is updated to show descriptive

information about each interaction pathway between

agent classes.

Architecture Design: This activity deals with

various design issues relating to agent architecture

and MAS architecture. It has the following five

steps: Identify Agent-Environment interface

requirements; Select Agent Architecture for the most

appropriate architecture(s) for agents in the MAS;

Specify MAS Infrastructure facilities identifying

system components that are needed to provide

system-specific services; Instantiate agent classes;

and Develop MAS deployment plan.

The application of Step 1 is the elicitation of

work products from the MOBMAS methodology,

beginning from the final work product, MAS

Deployment Diagram. Each work product type that

is identified (as a method fragment) is shown in

Table 1, together with an allocated ID number.

These IDs are then used in the fourth and fifth

columns of this matrix table to identify the work

product types with which the work product type in

column 2 has a dependency (either a production

dependency or a verification dependency).

To simplify the analysis in this proof-of-concept

example, we group the various models in MOBMAS

as shown in column 1 of Table 1.

Step 2 focuses on the construction of a WPPM

for MOBMAS. To limit our discussion here, rather

than individual work products, we propose to

continue to use work product groups.

Starting with the deliverable software

application, the immediately precedent models are

those of the Architecture Group. In order to be able

to create these models, it is necessary to have in

hand the models of the Agent Interaction Model,

Agent Class Model and Agent Behaviour Model

groups. We then link these with available

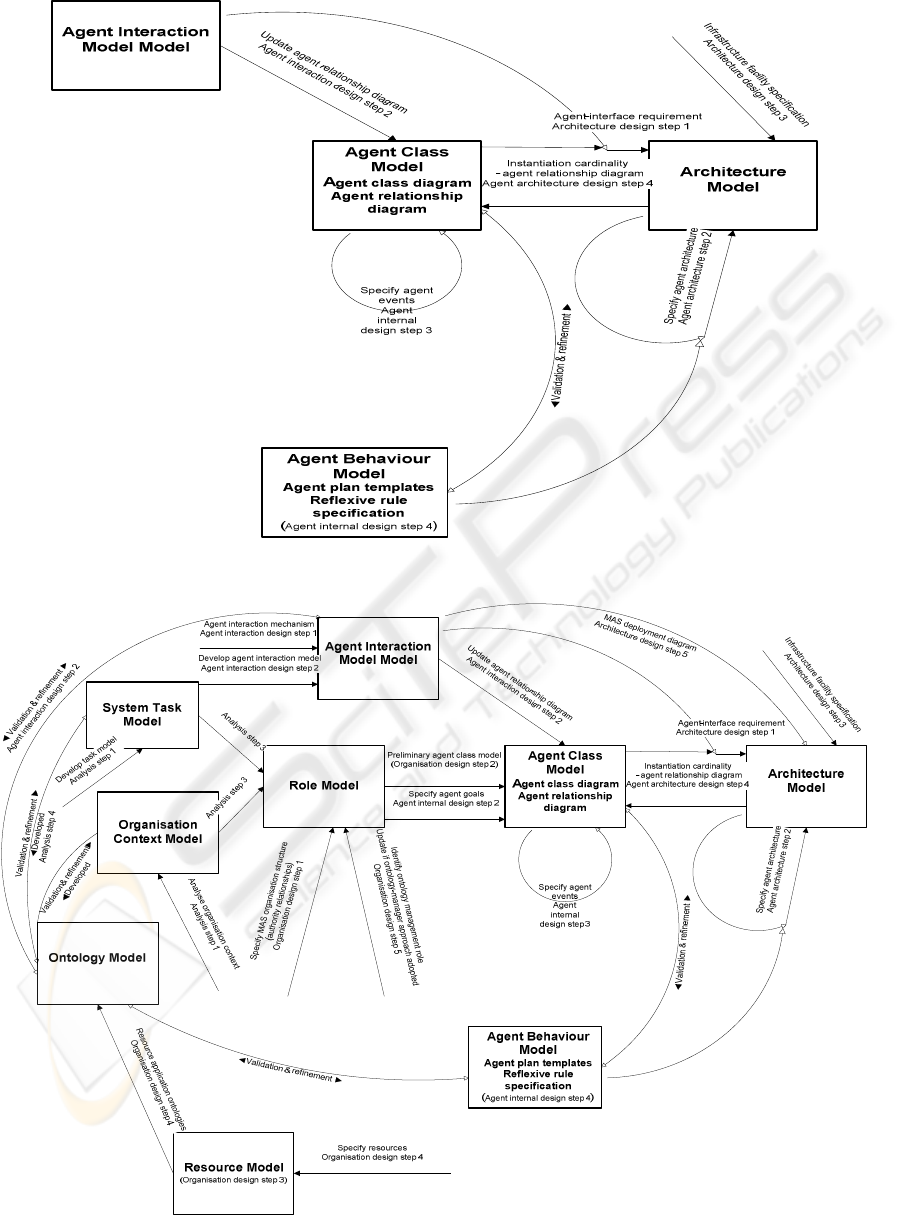

relationship types (dependencies) — Figure 2.

This reconstruction continues iteratively until the

full methodology is created (Figure 3) with work

product types connected to task types.

Analysis of this diagram (Step 3) reveals there

are four work product types (System Task Model,

Organisation Context Chart, Agent Tuple-Centre

Diagram and Agent Architecture Diagram) that do

not have dependencies on other work products. For

these, further analysis is required to determine

whether they contribute to the overall methodology.

The first three each have work product types that are

dependent on them while the fourth, Agent

Architecture Diagram, documents the selected

architecture to be used. MOBMAS recommends the

adoption of an existing architecture where possible.

This closer analysis suggests no changes are

required.

A number of work products may also have

unnecessary work product dependencies:

 Interaction Protocol Diagram

 Agent-Tuple-Space Interaction Diagram

If both of these work product types are derived from

Agent Plan Template, Reflexive Rule Specification

and Agent Plan Diagram, then they should already

be consistent with work products used previously;

these were already verified against the same work

products as suggested for the Interaction Protocol

Diagram and Agent-Tuple Space Interaction

Diagram work products. By identifying unnecessary

verification dependencies that may lead to

development process overhead, methodology

revision is suggested to perhaps remove some of the

verification steps.

By analysing the WPPM, it is possible to suggest

two sets of groups that can be developed in parallel

without hampering the methodology:

 System Task Model Group and Organisational

Context Model Group

 Role Model Group and Ontology

Model/Resource Model Group

For the first, neither work product groups have

dependencies. Since both are also initial work

products, then they can be developed in parallel. In

the case of the second, there are no direct task links

between the two groupings. A further check on

production dependencies also confirms that no

relationship between the two groupings exists;

consequently they could be developed in parallel.

In assessing whether any other work product

groups could be developed in parallel, the only other

possibility is the Agent Interaction Model Group and

Agent Behaviour Model Group. Although neither

are exclusively dependent on one another, they both

require mutual verification (and possible revision)

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

Table 1: Work Product Types and their Dependencies.

Model Group

Work Product Types elicted

(ID)

Production Dependencies

(by ID)

Verification & Refinement

Dependencies

(by ID)

Architecture Model MAS Deployment Diagram 1 6, 7, 8, 9, 10, 11, 12, 13 -

Class Instantiation 2 13 -

Infrastructure facility specification 3 - 6, 7, 8, 9, 10, 11

Agent architecture diagram 4 - -

Environment Interface 5 6, 7, 8 -

Agent Interaction Interaction Protocol Diagram 6 9, 10, 11 12, 13, 14, 15, 16, 17, 18, 19

Agent-Tuple-Space Interaction Diagram 7 9, 10, 11 12, 13, 14, 15, 16, 17, 18, 19

Agent TupleCentre Diagrams (Optional) 8 - -

Agent Behaviour Agent Plan Template 9 11, 14, 15, 16, 17, 18, 19 12, 13, 15, 16, 17, 18, 19

Reflexive Rule Specification 10 15, 16, 17, 18 12, 13, 14, 15. 16, 17, 18, 19

Agent Class Agent Plan Diagram 11 19 -

Agent Class Diagram 12 14, 15, 16, 17, 18, 19 -

Agent Relationship Diagram 13 12, 19 -

Agent Goal Diagram (optional) 14 19 -

Ontology Application Domain Ontology 15 19, 21 -

Application Task Ontology 16 19, 21 -

Resource Resource Ontology 17 18 -

Resource Diagram 18 19, 21 -

Role Role Diagram 19 20, 21 15, 16

Organisation Organisation Context Chart 20 -

System Task System task model 21 - 15, 16

of the Agent Class Model Group and Ontology

Model Group. This mutual verification may make it

difficult to develop any further work products in

parallel.

In Step 4, these recommendations are formalized,

ensuring that they reach the appropriate decision

maker(s): in this case the authors of MOBMAS (one

author of which kindly agreed to co-author this

paper). A formal recommendation might thus have

the following form and content.

 The System Task model and the Organisational

Context diagram can be developed in parallel.

These work products do not depend on any other

work products. Furthermore, the Role Diagram

and the Domain, Task and Resource Ontologies

are also able to be developed in parallel. It should

be noted that parallel development requires that

both System Task model and Organisational

Context Diagrams have both been completed.

 Omit the verification dependencies for the

Interaction Protocol Diagram and Agent-Tuple-

Space Interaction Diagram work products.

4 DISCUSSION AND

CONCLUSIONS

A work product pool approach (Gonzalez-Perez &

Henderson-Sellers, 2008) was adapted for use in

devising a method to identify weaknesses in

methodologies, and subsequently recommend

revision(s). The rationale is that, since the final work

product is the most important aspect of the

methodology (as opposed to the process steps that

produce the final work product and all necessary

intermediate work products), a work product focus

to methodology revision is well suited.

Methodology revision proposed in this paper is

WORK PRODUCT-DRIVEN SOFTWARE DEVELOPMENT METHODOLOGY IMPROVEMENT

Figure 2: Initial version of the WPPM for the MOBMAS methodology.

Figure 3: Group-level WPPM for the MOBMAS methodology.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

fragments from the target methodology, recreating

the target methodology from the fragments using the

work product pool approach, identifying weaknesses

in the methodology (both between work products,

and globally across the whole methodology), and

making recommendations for methodology revision

aimed at minimising weaknesses. Work product

dependencies are used as the basis upon which

weaknesses are identified where work products are

inadequate or missing, or process steps could be

improved upon. Work product group models are

used as the basis upon which management level

recommendations are made to improve the

enactment of a methodology instance.

The proposed methodology revision approach

can also be placed within the context of method

engineering and software process improvement

(SPI). It is a distinct form of method engineering

that focuses on work products rather than

method/process components in order to engineer a

better suited method. It is distinct from SPI because

refinements are not project-specific – these are

generic refinements. It is also distinct from SPI

because SPI addresses general qualities of a

methodology, such as efficiency or reusability i.e.

the contribution made to SPI is of a relatively minor

nature.

An important factor presented here is that the

revision of the methodology was based on

improving process steps for achieving work

products. Further work includes addressing revising

methodologies based on improving the work

products themselves. However, in order to do this,

an objective means of identifying the quality of

work products is necessary.

REFERENCES

Gonzalez-Perez, C & Henderson-Sellers, B 2008, ‘A

Work Product Pool Approach to Methodology

Specification and Enactment,’ Journal of Systems and

Software, vol. 31, no. 8, pp. 1288-1305.

Harmsen, F, Brinkkemper, S & Oei, JLH 1994,

‘Situational Method Engineering for Informational

System Projects Approaches,’ in Methods and

Associated Tools for the Information Systems Life

Cycle, Proceedings of the IFIP WG8.1 Working

Conference on Methods and Associated Tools for the

Information Systems Life Cycle, eds AA Verrijn-Stuart

& TW Olle, Elservier Science, New York, pp.169-194.

Henderson-Sellers, B, Serour, M K, Gonzalez-Perez, C &

Qumer, A 2007, ‘Improving Agile Software

Development by the Application of Method

Engineering Practices,’ in Proceedings of the 25th

Conference on IASTED International Multi-

Conference: Software Engineering, ed W Hasselbring,

ACTA Press, Calgary, Canada, pp. 55-60.

Ralyté, J, Brinkkemper, S & Henderson-Sellers, B (eds)

2007, Situational Method Engineering: Fundamentals

and Experiences, Proceedings of the IFIP WG 8.1

Working Conference, Springer, New York.

Saeki, M, Iguchi, K, Kuo, W Y & Shinohara, M 1993, ‘A

Meta-Model for Representing Software Specification

& Design Methods,’ in Information System

Development Process, Proceedings of the IFIP WG8.1

Working Conference on Information Development

Process, eds N Prakash, C Rolland & B Pernici,

North-Holland, pp. 149-166.

Tran, Q N N & Low, G C 2008, ‘MOBMAS: A

Methodology for Ontology-Based Multi-Agent

Systems Development,’ Information Software and

Technology, vol. 50, no.708, pp. 697-722.

Tran, Q N N, Low, G C & Beydoun, G 2006, ‘A

Methodological Framework for Ontology Centric

Oriented Software Engineering,’ International Journal

of Computer Systems Science and Engineering, vol.

21, no. 2, pp. 117-132.

WORK PRODUCT-DRIVEN SOFTWARE DEVELOPMENT METHODOLOGY IMPROVEMENT
