BALANCED TESTING SCORECARD

A Model for Evaluating and Improving the Performance of Software Testing

Houses

Renata Alchorne

1,2

, Rafael Nóbrega

1,2

, Gibeon Aquino

, Silvio Meira

and Alexandre Vasconcelos

Informatics Center of Federal University of Pernambuco, Recife, PE, Brazil

Inmetrics, São Paulo, SP, Brazil

Keywords: Performance measurement, Balanced scorecard, Software testing.

Abstract: Many companies have invested in the process of testing to improve the test team's performance. Although

Testing Maturity Models aim at tackling this issue, they are unpopular among the many of the highly

competitive and innovative companies because they encourage displacing the true goals of the mission of

“achieving a higher maturity level”. Moreover, they generally have the effect of blinding an organization to

the most effective use of its resources, as they focus only on satisfying the requirements of the model. This

article defines the Balanced Testing Scorecard (BTSC) model. This aims to evaluate and improve the test

team’s performance. The model, based on Balanced Scorecard and Testing Maturity Models, is capable of

aligning clients’ and financial objectives with testing maturity goals in order to improve the test team's

performance and client’s performance. The model was based on and developed from the specialized

literature and was applied in a software testing house as a case study.

1 INTRODUCTION

According to Hutcheson (2003), the test effort has to

provide not only the proof of performance, but also

to show that it adds enough value to the product to

justify its budget. Testing Maturity Models are used

to evaluate and improve the performance of test

teams. However, this approach focuses on measures,

analysis and actions to improve the process of

testing (Sogeti, 2008, Burnstein, Suwanassart &

Carlson, 1996), without aligning them with the

mission or future vision of the organization.

According to James Bach (1994), Maturity

Models encourage the displacement of goals from

the true mission to the artificial one of achieving a

higher maturity level, which generally has the effect

of blinding an organization to the most effective use

of its resources. According to Kaplan & Norton

(2004), it is common to find indicators of internal

processes, such as those derived from testing

maturity models, which are not related to the value

that internal and external customers have been

advised to expect.

By using a model for evaluating and improving

performance that occasions the alignment of goals

from different perspectives (those of finance,

customers, and processes), the management of test

teams can be optimized. This is because it allows an

the organization to improve its processes to meet its

clients’ needs and its own strategic planning, thereby

increase its overall performance.

This article defines the Balanced Testing

Scorecard (BTSC) model, which aims to evaluate

and improve a test team’s performance. The model,

based on Balanced Scorecard and Testing Maturity

Models, enables clients’ and financial objectives to

be aligned with testing maturity goals so as to

improve the test team's performance.

2 BALANCED TESTING

SCORECARD

Balanced Testing Scorecard (BTSC) was based on

the Generic Strategy Map put forward by Kaplan

and Norton (2004).

BTSC consists of two main components: a map

for the strategic plan and a procedure for

customization of the processes.

370

Alchorne R., Nóbrega R., Aquino G., Meira S. and Vasconcelos A. (2010).

BALANCED TESTING SCORECARD - A Model for Evaluating and Improving the Performance of Software Testing Houses.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

370-378

DOI: 10.5220/0002899703700378

 SciTePress

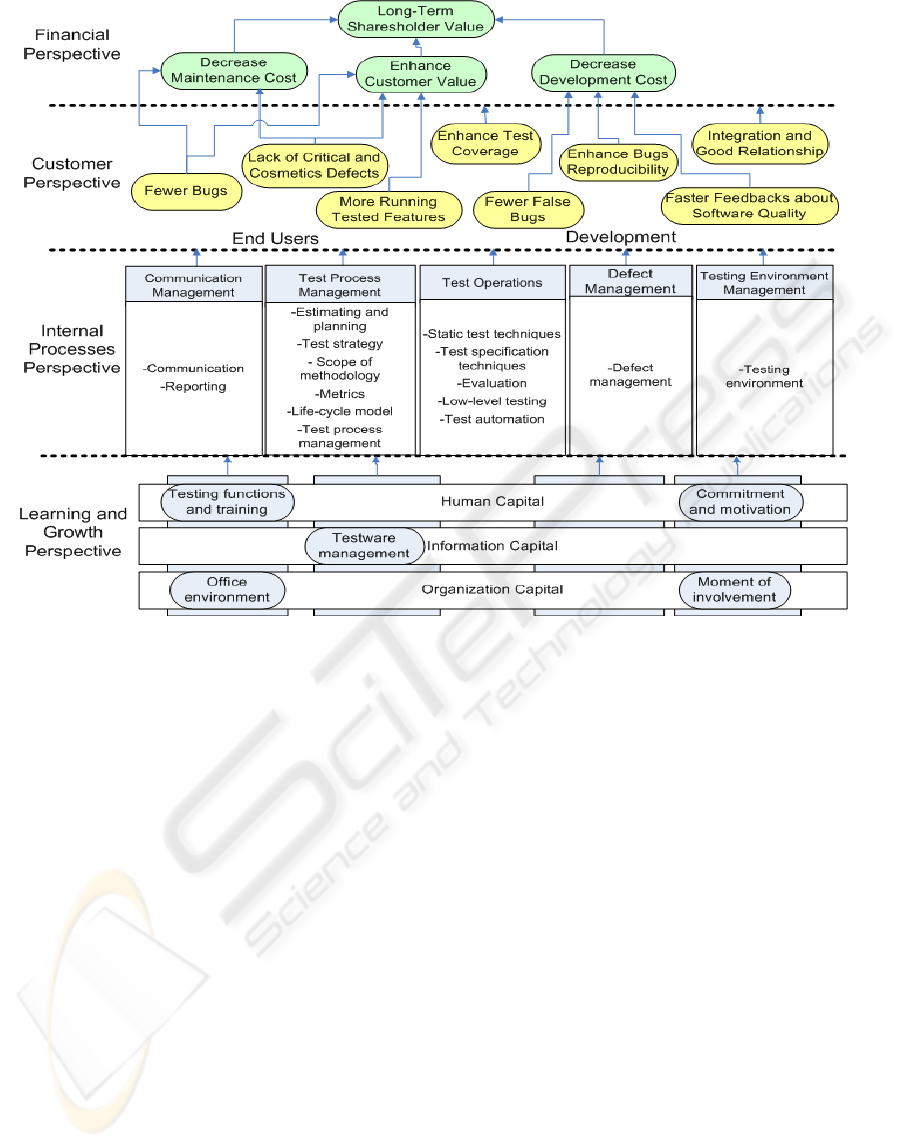

Figure 1: Overview of BTSC perspectives.

The BTSC Strategy Map records objectives,

which will provided indicators, covering different

perspectives (Finance, Customer, Internal Processes

and, Learning and Growth) for the managers of test

teams.

For the management of internal activities

(Internal Processes and, Learning and Growth), a

testing maturity model is used. In this study, the TPI

- Test Process Improvement model was chosen

(Sogeti, 2008), but other models, such as TIM or

TMM, for instance, may be used as all of them have

a similar structure with key-areas and checkpoints.

The Strategy Map was developed based on the

literature and was refined by 21 experts in software

testing, each having at least 2 years’ experience in

this area, besides their having the profile of a

manager or leader of test teams. These refinements

are not explained in this article, for which see

(Nobrega, 2008).

As the BTSC is a generic model, a customization

process is needed to tailor it into a specific Strategy

Map. This process, based on (Amaratunga, Haigh,

Sarshar & Baldry, 2002) and (Kaplan & Norton,

1997) is explained in Section 2.1.

2.1 Strategy Map

Within each perspective of the BTSC Strategy Map,

goals are set to guide the construction of a specific

strategy map for a specific testing organization or

project.

2.1.1 Overview

Figure 1 gives an overview of the BTSC Strategy

Map. Each perspective is explained below.

2.1.2 Financial Perspective

The Financial Perspective indicates how the

software testing process and initiatives to improve

them will add more value to the organization.

To achieve the main objective of the financial

perspective of the BTSC, we have how to

demonstrate how Long-Term Value for

Shareholders will be achieved.

To achieve this goal, three other goals must be

achieved. The first is to Decrease Maintenance

Costs, the second is to Decrease Development

Costs and the third to Enhance Value for Clients.

BALANCED TESTING SCORECARD - A Model for Evaluating and Improving the Performance of Software Testing

Houses

371

The objectives of Long-Term Value for

Shareholders and Enhance Value for Clients were

based on the Generic Strategy Map (Kaplan &

Norton, 2004). The other two goals were defined

based on the financial impacts of customers' goals

which are described below.

2.1.3 Customer Perspective

Under the Customer Perspective, BTSC enables one

to identify what internal and external clients expect

from the test team to be identified.

As the first activity, it is necessary to define who

the clients of the test team are.

According to Kaner et al (2001), a test team has

several internal and external clients. They are:

Project Manager, Programmers, Technical Writers,

Technical Support, Senior Management, Marketing;

and End Users, respectively.

In order to simplify the problem, the Project

Managers, Programmers, Technical Writers,

Technical Support and Senior Management were

grouped as the Development Team. As Kaner et al

(2001) say the marketing area needs to know when

an issue will affect a feature that is vital to end users.

Who may, for example, be companies, public sector,

bodies or individuals. They were grouped as a single

client: End Users.

After having defined the test team’s client, their

expectations need to be determined. According to

Gupta and Aggarwal (2005), the test team must

pursue the goal of delivering software with as Fewer

Bugs as possible. According to them, the number of

defects in a production process is a very important

metric for determining the effectiveness of the test

process. Thus, the fewer bugs there are in

production, the greater will be the possibility of

reducing the cost of maintenance software, a goal of

the Financial Perspective of BTSC.

In the same article, Gupta et al (2005) define that

there must be Fewer False Bugs identified by Test

Team to the Development Team. Consequently, this

will reduce the cost of software development.

According to Kaner et al (2001), another want

Development Teams express is to have a Faster

Feedback about Software Quality. When software

is changed, the test team should test it quickly so

that the tests do not create a "bottleneck" in the

project.

The Financial Perspective indicates how the

software testing process and initiatives for

improving it will add more value to the organization.

Finally, the objective that both developers and

end users of software set is that the software has

increasingly More Running Tested Features.

According to Jeffries (2004), Running Tested

Features can be explained as:

(i) Running means that the features are shipped

in a single integrated product.

(ii) Tested means that the features are

continuously undergoing tests provided by

the requirements givers – the customers in

XP parlance.

(iii) Features means real end-user features,

pieces of the given client requirements, not

techno-features like "Install the Database" or

"Get Web Server Running".

2.1.4 Internal Process Perspective

This Perspective is concerned with identifying the

most critical activities that achieve the goals of the

test team's clients and the financial goals of the

organization.

This Perspective's objectives are represented by

key areas of the Test Process Improvement (TPI)

related to the internal processes of a test team. The

key areas were organized into five main areas so to

have the same representation as the Strategy Map.

The content of the main areas are showed in the

Table below.

Table 1: Main Areas of BTSC and Key Areas of TPI.

Main Areas Ke

Areas of TPI

Communication

Management

Communication

Reporting

Test Process

Management

Test strategy

Life-cycle model

Estimating and planning

Metrics

Scope of methodology

Test process management

Test Operations

Test specification techniques

Static test techniques

Test automation

Evaluation

Low-level testing

Defect Management Defect management

Test Environment

Management

Test environment

2.1.5 Learning and Growth Perspective

The last Perspective of BTSC, Learning and Growth,

identifies the infrastructure the test team must build

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

372

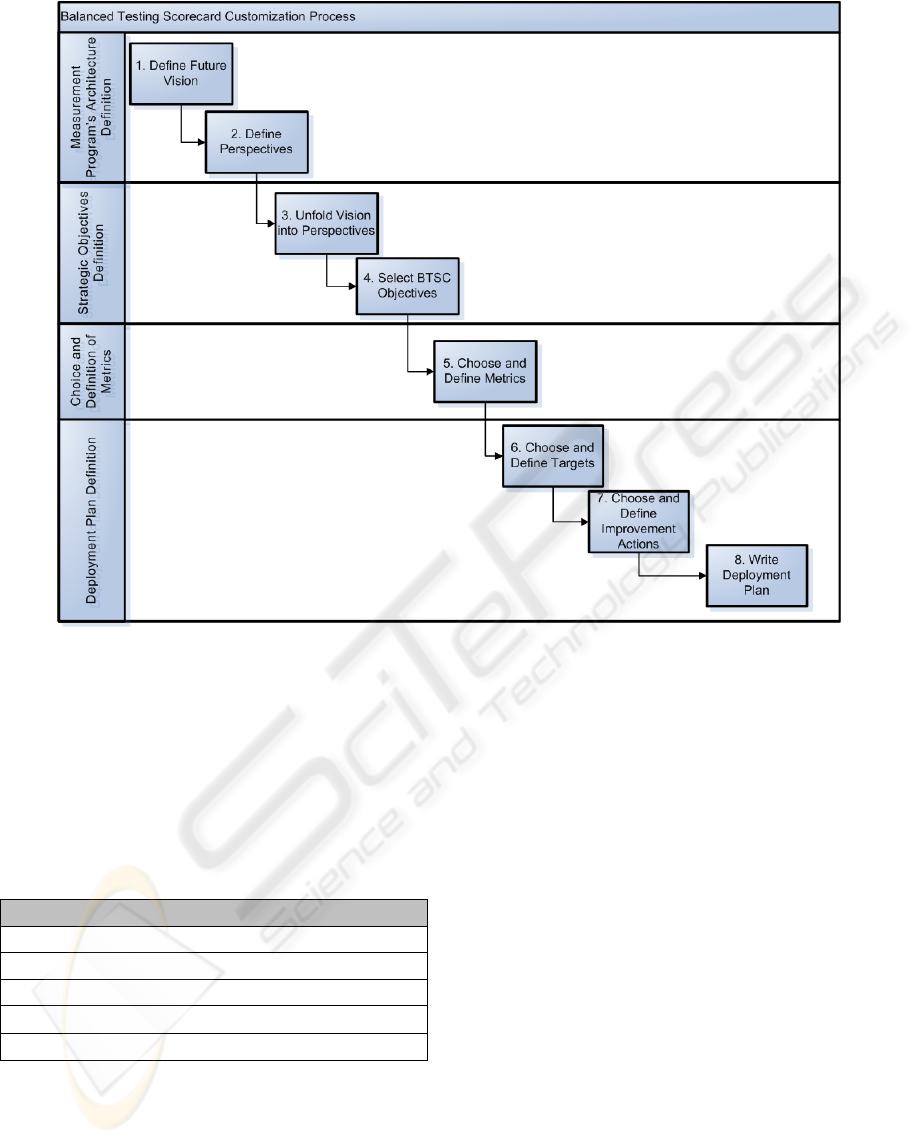

Figure 2: BTSC’s Customization Process.

to generate growth and improvements in the long

term.

To define this perspective several key areas of

TPI were used, related to the Learning and Growth

of the test team. They are listed in the Table 2

below.

Table 2: Key Areas of TPI related to Learning and

Growth.

Key Areas of TPI

Moment of Involvement

Office Environment

Commitment and Motivation

Testing Functions and Training

Testware Management

2.2 Customization Process

As BTSC is a generic model, it must be customized

in order to be used. Thus, a process of customization

has been set up, which is detailed as follows.

The customization process of BTSC was based

on the customization process of BSC, presented in

(Kaplan & Norton, 1997) and (Amaratunga et al,

2002) is divided into the following steps:

• Step 1: Defining the Architecture of the

Measurement Program;

• Step 2: Defining Strategic Objectives

Definition;

• Step 3: Choice and Definition of Metrics;

• Step 4: Defining the Deployment Plan.

Each step has its own specific activities as can be

seen in Figure 2.

These steps as well as their activities are

detailed as follows.

Step 1 – Defining the Architecture of the

Measurement Program:

The major aim of this step is to promote an

understanding and a critical analysis of the future

vision of business and the test team.

This step will be divided into the following

activities:

(i) Defining the Future Vision of the Test

Team: The first activity to start the

strategic planning is to define the future

vision of the test team.

BALANCED TESTING SCORECARD - A Model for Evaluating and Improving the Performance of Software Testing

Houses

373

(ii) Defining Perspectives: After defining the

future vision, it is necessary to define

which perspectives should represent the

global management of test team’s activities.

The BTSC suggests 4 perspectives:

Finance, Customer, Internal Processes and

Learning and Growth. However, these

perspectives can be removed, altered or

extended.

Step 2 – Defining the Strategic Objectives:

The activities of this step will allocate the

strategic objectives under the perspectives of the

BTSC. To perform this step, the following activities

should be undertaken:

(i) Examine the future vision within each

perspective so as to set general

objectives: To define the strategic

objectives, a first interview can be carried

out to define the strategic objectives of the

software testing team.

(ii) Select the BTSC objectives that need to

be achieved within each perspective:

After general objectives are set for each

perspective, secondary objectives based on

BTSC may be added for each perspective.

Step 3 - Choice and Definition of Metrics:

In this step, the metrics that will be used to

measure whether a particular strategic objective has

been achieved are identified.

This stage includes the following activity:

(i) Choose and Define Metrics: For each

strategic objective, a metric or a set of

metrics must be defined that best captures

and communicates its intentions. For each

proposed metric, the sources of information

and actions necessary to make such

information available it should be identified

and detailed. And for every perspective,

identify the critical relationships between

its metrics, and between this perspective

and all others.

Step 4 – Defining the Deployment Plan:

After having defined the metrics associated with

different strategic objectives, defining targets, plans

of action and who is responsible for guiding the

implementation of the strategy should be

undertaken.

(i) Choose and Define Targets: Targets should

be set for each metric. The organization

needs to verify whether a goal has been

reached or if it is necessary to take

corrective action (Improvement Action).

(ii) Choose and Define Improvement Actions:

To help the improvement process, the BTSC

has several suggestions for improvements

that can be used; however, new suggestions

may be added. Based on the objectives

chosen for each perspective, improvement

actions must be documented in order to

facilitate its initiatives.

(iii) Write Deployment Plan: This activity will

develop a deployment plan for the BTSC.

The difficulties of implementing this new

management model, which aims at

evaluating and improving the performance

of software testing teams should be taken

into account.

3 CASE STUDY

This section shows the implementation of a case

study in a Factory Test organization type. This case

study concerns the first phase of the deployment

project BTSC within the organization studied. Due

to the phase that the project is, will present the

partial results concerning the implementation of

some objectives mapped in Balanced Testing

Scorecard. Below is showed the plan of the case

study, its implementation and obtained results so far.

3.1 Scenarios and Objectives

This case study was conducted with the main

objective to assess the adoption of BTSC - Balanced

Testing Scorecard to evaluate the performance of

both the Factory Test where the case study was used

as the customer’s suppliers seeking increasing of

efficiency.

The organization where was applied the BTSC is

Inmetrics, a company that has in its staff of about

100 employees, including researchers, test

architects, testers, performance analysts and quality

analysts.

The idea of deploying a methodology for

assessing organizational performance appeared from

the service format of the company studied. Its largest

customer (accounting for 70% of revenues) is an

organization that has a Software Factory as part of

their IT infrastructure. The Software Factory, in

turn, hires suppliers to develop modules of their

systems, performing functional tests and acceptance

tests of the developed systems. Because it is a

client of international magnitude, it has a

consolidated methodology of software development

that extends to their suppliers, including. Thus, all

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

374

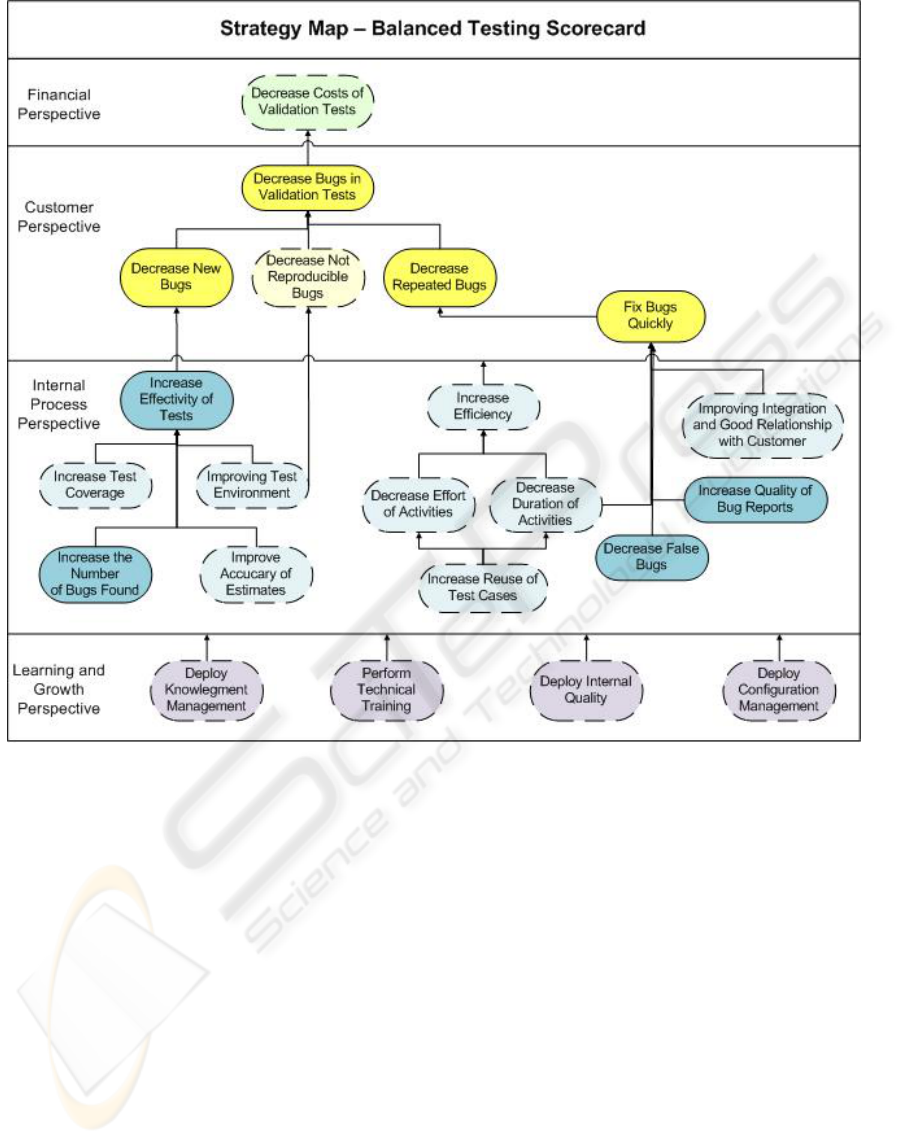

Figure 3: Strategy Map of Inmetrics.

service providers should adopt a standard software

development methodology. In addition, suppliers

will be evaluated periodically in agreement with

Guide of Performance Measurement-defined by the

processes core of the customer. Thus, all suppliers

should work following the same pattern, creating the

evidences in the same format and providing the

metrics established by the customer to evaluate the

performance of its suppliers.

At this time Inmetrics observed that only way to

differentiate themselves from other suppliers would

be through increased efficiency in service delivery

of functional tests keeping quality standard and

offers to customer value-added information for your

self-knowledge and allowing decision making for

the customer in concerning of their suppliers.

To this end, was created a BTSC specific for

Inmetrics, but with the customer's perspective

aligned. Another important point that was taken into

consideration is that this is aligned to BTSC metrics

Guide of Performance Measurement defined by

customer.

3.1.1 BTSC Deployment Planning

The implementation of BTSC has become a project

at Inmetrics and was divided into phases. As a first

step, drew up a strategy map for the BTSC

Inmetrics, as shown in Figure 3.

Since the creation of strategy map, some goals

were prioritized to be implemented in the first phase

of the project. The goals are represented in the full

line ellipses located in the blue perspective –

Internal Process. The implementation of these goals

allows an action started internally under control of

Inmetrics, allowing the effects be reflected in the

customer.

For the prioritization of goals, were adopted two

criteria: speed in the visibility of results and ease of

BALANCED TESTING SCORECARD - A Model for Evaluating and Improving the Performance of Software Testing

Houses

375

data extraction without having significant changes

for the structure of the tools used. This last factor

was called "Impediments". Basically, the goals

without impediments were pre-selected.

To help this work were drawn a table with all the

objectives in the map, where for each goal, were

defined metrics aligned to Guide of Performance

Measurement, the priority and the impediments to

measure the goal. The table below shows four goals

of full line in blue, located in the Internal Process

perspective.

Table 3: Prioritization of Goals.

ID Goal Metric Priority Impediment

01 Increase

Number

of Bugs

Found

Number of

Bugs Found

1 No

02 Increase

Test

Effective

ness

% of Test

Effectivenes

1 We do not

have access to

bug details.

03 Decrease

False

Bugs

% of False

Bugs

1 It needs active

participation

of Client to

validate the

bug reported.

04 Improve

Quality of

Bug

Reports

% of Bugs

Reported

Incorrectly

1 No

Among the objectives listed in the table, was

observed that, according to criteria adopted, two of

the four goals have no impediments. That is, they are

ready to be worked out. As the priorities of all of

them were set to 1, i.e., they have a quick visibility

to the customer. Were chosen those two that have no

impediments. They are: “Increase Number of Bugs

Found” and “Improving Quality of Bug Reports”.

3.1.2 Collected Data

In this first phase of the BTSC project deployment,

the main objective is to know the numbers of

Inmetrics and his customer. So, will be measure

“Number of Bugs Found” and “% of Bugs Reported

Incorrectly”, related to selected objectives.

The metric “Number of Bugs Found” derived

from the goal “Increase Number of Bugs Found”

measures the amount of problems identified by the

Factory Test at the phase called “Integrated Test”

which is the stage prior to the Validation Test phase.

The amount of problems is obtained from the

extraction of the data reported in Mantis tool, “a

popular free web-based bug tracking system”. In a

first measurement, were detected the following

problems:

(i) The customer’s suppliers who develop

modules of the system are not properly

identified at the time of bug report;

(ii) There is not a definition of the cause of bug

identified, ie, whether it was caused by an

environmental issue, problem of access to

the system, problem of mass data, the lack

of documentation available for testing or if

it really is a system failure.

Based on these two issues identified by the first

data extraction performed, two actions were taken

allowing obtain more accurate data that provide

information for customer decision-making:

(i) Was created a custom field in Mantis, to

indicate the supplier responsible for

developing the system in which the bug

was detected;

(ii) Was created a field to categorize the causes

of bugs detected. This field is "validated"

by the supplier responsible for the bug

reported as a way to wake up the problem

detected.

Table 4: Number of Bugs by Supplier.

Name Number of Bugs

Supplier 1 165

Supplier 2 137

Supplier 3 101

Supplier 4 69

The table above allows not only identify the

amount of bugs found, but indicate to the customer

the level of bugs generated by its suppliers of

software development.

Table 5: Causes of Bugs.

Name Access

Proble

Doubt

Data

Mass

Failur

Supplier 1 0 11 0 154

Supplier 2 4 2 11 120

Supplier 3 1 1 0 99

Supplier 4 0 2 0 67

The table above shows a categorization of the

causes of bugs found by the supplier, allowing

identifying the main causes of failure in tests, giving

visibility to the customer about what aspects he

should pay more attention.

The metric “% of Bugs Reported Incorrectly”,

derived from the objective “Improving Quality of

Bug Reports” measures the amount of bugs that

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

376

were reported without being bugs, in fact. That is,

bugs were reported by misunderstanding of the

business, problems occurred only in the test

environment, but that does not occur in the

production environment, among others. Currently,

each project team reports bugs differently.

As a first action to mitigate this problem, was

created a standard reporting format that includes key

information of the bug detected in order to avoid

misconceptions, and additional effort to clarify the

bug between Software Factory and Test Factory.

Following is showed the standard format

adopted:

Summary:

Write a <summary> of the request that will appear

under the same;

Standard adopted:

(i) Location: Where the error occurred.

Example: Screen Name, System, Program,

Job, etc.

(ii) Error: Error Message, Error Code, etc.

(iii) Error Summary: Describe the problem

occurred.

Description:

Describe in more detail the problem ocurred.

Example: “The system has an error when trying to

delete parameter in the purge screen XPTO”.

“There was no description corresponding to the

message identifier MSG”.

Steps to reproduce: Inform the steps to reproduce

the problem.

Example:

1 – Access menu X Æ Y Æ Z;

2 – Fill "Product" and "Sub product" fields with

valid data;

3 – Click the "Search" button;

4 – Select the product listed and click "Delete".

Expected Result: Describe the output that was

expected.

Example: The system deletes the parameter

successfully.

Obtained Result: Describe the obtained result.

Example: Error trying deleting parameter.

“There was no description corresponding to the

message identifier MSG”.

With respect to the metric "% of Bugs Reported

Incorrectly" has not been generated numbers that

showed the effects caused by this action because it

was recently established through training of testers

and architects and publication of the handbook for

employees.

3.1.3 Obtained Results

The results presented in the previous section show

that through simple actions on the existing historical

basis and with the support of a tool its possible

generates information for decision-making.

The BTSC deployment, besides serving as an

evaluation tool for internal performance of

Inmetrics, it focuses on increase of efficiency and

provides metrics to evaluate the customer’s software

development suppliers.

Note that this is the first step in implementing the

project of BTSC deployment and therefore the

metrics generated so far should be considered in

careful when taking into account other factors that

may explain the behavior of the numbers presented.

4 CONCLUSIONS

This paper presented the Balanced Testing

Scorecard - BTSC, based on the methodology for

assessing organizational performance BSC. By

implementing this methodology, was possible

conduct a case study to demonstrate simple actions

possible to be implemented to evaluate and improve

organizational performance.

4.1 Future Works

Continuing this work, was carried out a planning for

implementation of all goals full line placed on the

strategy map. For each of them will be specify the

activities necessary for the extraction and

measurement of metrics related to the goals and

structure of the measurement process.

As an immediate activity to be presented, will be

measure the metric “% of Bugs Reported

Incorrectly”, it was implemented the standard format

for reporting bugs.

After that, the other objectives of this first group

will be implemented through a new project that will

cover the goals in dashed line. This work has an

effect in the medium and long-term involving

impacts related to changes in culture primarily on

the customer and its suppliers of software

development, further structural changes in the tools

used.

REFERENCES

Amaratunga, D, Haigh, R, Sarshar, M & Baldry, D, 2002,

‘Application of the balanced score-card concept to

BALANCED TESTING SCORECARD - A Model for Evaluating and Improving the Performance of Software Testing

Houses

377

develop a conceptual framework to measure facilities

management performance within NHS facilities’,

International Journal of Health Care Quality

Assurance, vol. 15, issue 4, p. 141-151.

Bach, J, 1994, ‘The Immaturity of CMM’, American

Programmer. vol. 7(9), p. 13-18.

Burnstein, I, Suwanassart, T, Carlson, C, R, 1996a,

‘Developing a Testing Maturity Model’, Part I,

CrossTalk.

Burnstein, I, Suwanassart, T, Carlson, C, R, 1996a,

‘Developing a Testing Maturity Model’, Part I,

CrossTalk.

Gupta, V, K, K, Aggarwal, Y, S, 2005, ‘Objectively

Managing Software Testing Projects’, Journal of

Conceptual Modeling.

Hutcheson, M, L, 2003, ‘Software Testing Fundamentals:

Methods and Metrics’, John Wiley & Sons, p.408.

Jeffries, R, 2004, A Metric Leading to Agility, viewed 6

May 2008, < http://www.xprogramming.com/xpmag/

jatRtsMetric.htm.>

Kaner, C, Bach, J, Pettichord, B, 2001, ‘Lessons Learned

in Software Testing’, Wiley.

Kaplan, R, S, Norton, D, P, 1997, ‘Strategy in Action:

Balanced Scorecard’, Rio de Janeiro: Campus, 20.ed.

Kaplan, R, S, Norton, D, P, 2004, ‘Strategic Maps:

Converting intangible assets into tangible results’, Rio

de Janeiro, 6.ed.

Nobrega, R, O, 2008, ‘Balanced Testing Scorecard: A

Model for Assessment and Improvement of Software

Testing Teams’ Performance’, MSc Dissertation.

Sogeti, 2008, ‘TPI – Testing Process Improvement’,

viewed 29 April 2008, <http://www.sogeti.nl/Home/

Expertise/Testen/TPI.jsp>

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

378
