A CONTRACT-BASED EVENT DRIVEN MODEL

FOR COLLABORATIVE SECURITY IN FINANCIAL

INFORMATION SYSTEMS

Roberto Baldoni, Giorgia Lodi

Department of Computer Science, University of Rome ”La Sapienza”, Rome, Italy

Gregory Chockler, Eliezer Dekel

Haifa IBM Research Lab, Haifa, Israel

Barry P. Mulcahy

WIT, Waterford, Ireland

Giuseppe Martuﬁ

ElsagDatamat, Genova, Italy

Keywords:

Financial information systems, Collaborative systems, Contracts, P2P systems, Complex event processing.

Abstract:

This paper introduces a new collaboration abstraction, called Semantic Room (SR), speciﬁcally targeted to

facilitating sharing and processing large volumes of data produced and consumed in real time by a collection of

networked participants. The model enables constructing ﬂexible collaborative event-driven distributed systems

with well-deﬁned and contractually regulated properties and behavior. The contract determines the set of

services provided by SR, the software and hardware resources required for its operation along with a collection

of non-functional requirements, such as, data protection, isolation, trust, security, availability, fault-tolerance,

and performance. We show how the SR model can be leveraged for creating trusted information processing

systems for the sake of protecting ﬁnancial institutions against coordinated security threats (e.g., stealthy scans,

worm outbreaks, Distributed Denial of Service). To this end, we present several use-cases demonstrating

a variety of the SR administration task ﬂows, and brieﬂy discuss possible ways of implementing the SR

abstraction using the collaborative intrusion detection as an example.

1 INTRODUCTION

Context and Motivation. Financial institutions in-

creasingly rely on Information and Communication

Technology (ICT) systems and networks, which may

also consist of publicly accessible communication

mediums such as the Internet, in order to manage their

internal processes and offer their services to ﬁnancial

actors, businesses and ordinary people worldwide.

Financial institutions have exploited these infras-

tructural changes in order to deliver innovative and

high quality services, and increase their revenues,

thus preserving efﬁciency and cost-effectiveness. The

beneﬁts have been enormous for both public institu-

tions and private organizations. However, increased

reliance on networked systems has exposed ﬁnancial

institutions and their infrastructure to a variety of se-

curity related risks, such as increasingly sophisticated

cyber attacks aiming at capturing high value (or, oth-

erwise, sensitive) information, or disrupting the ser-

vice operation for various purposes.

Today, attacks are distributed in space by be-

ing coordinated on a large scale basis and originat-

ing from multiple geographically dispersed locations.

They are also distributed in time often consisting of

a preparation phase spanning over several days or

weeks, and involving multiple preparatory steps aim-

ing at identifying vulnerabilities and attack vectors

147

Baldoni R., Lodi G., Chockler G., Dekel E., P. Mulcahy B. and Martuﬁ G. (2010).

A CONTRACT-BASED EVENT DRIVEN MODEL FOR COLLABORATIVE SECURITY IN FINANCIAL INFORMATION SYSTEMS.

In Proceedings of the 12th International Conference on Enterpr ise Information Systems - Software Agents and Internet Computing, pages 147-153

DOI: 10.5220/0002900001470153

 SciTePress

(such as accidentally open ports).

For instance, on 25 January 2003 a memory-

resident worm called Slammer began propagating it-

self from East Asia throughout the entire Internet

(Moore et al., 2003a). In the U.S. and Canada approx-

imately 13,000 Bank of America ATMs, which use

the Internet for sending encrypted information, had to

be shut down, due to their inability to correctly com-

plete transactions.

Such security attacks result in both short and

long term economic losses due to the lack of service

availability and infrastructural resilience, and the de-

creased level of trust on behalf of the customers. Fi-

nancial institutions are sensitive to such attacks and

related damages. They are categorized as an opera-

tional risk in the ﬁrst pillar of the Basel II accord (bas,

2009) saying that ﬁnancial institutions that address

the speciﬁc requirements developed for each risk cat-

egory can potentially lower their risk capital require-

ments.

However, due to massive scale of the attacks, indi-

vidual ﬁnancial institutions would often lack the nec-

essary infrastructure and resources to effectively han-

dle the vast amounts of information that should be

collected and analyzed in real time to enable effec-

tive protection. It is therefore, desirable to provide

ﬁnancial institutions with the necessary tools and ab-

stractions to enable them to consolidate their physical

resources and collaborate on sharing and processing

information in a trusted and controllable fashion. In

this paper, we introduce one such abstraction, called

Semantic Room (SR).

Each SR has an objective and is associated with

a contract that speciﬁes the set of services pro-

vided by that Semantic Room, rights and obligations

of the semantic room members (including hardware

and software requirements) along with the data pro-

tection, isolation, trust, security, availability, fault-

tolerance, and performance requirements. Using this

abstraction, contractually regulated cooperation envi-

ronments can be created in a structured and controlled

way.

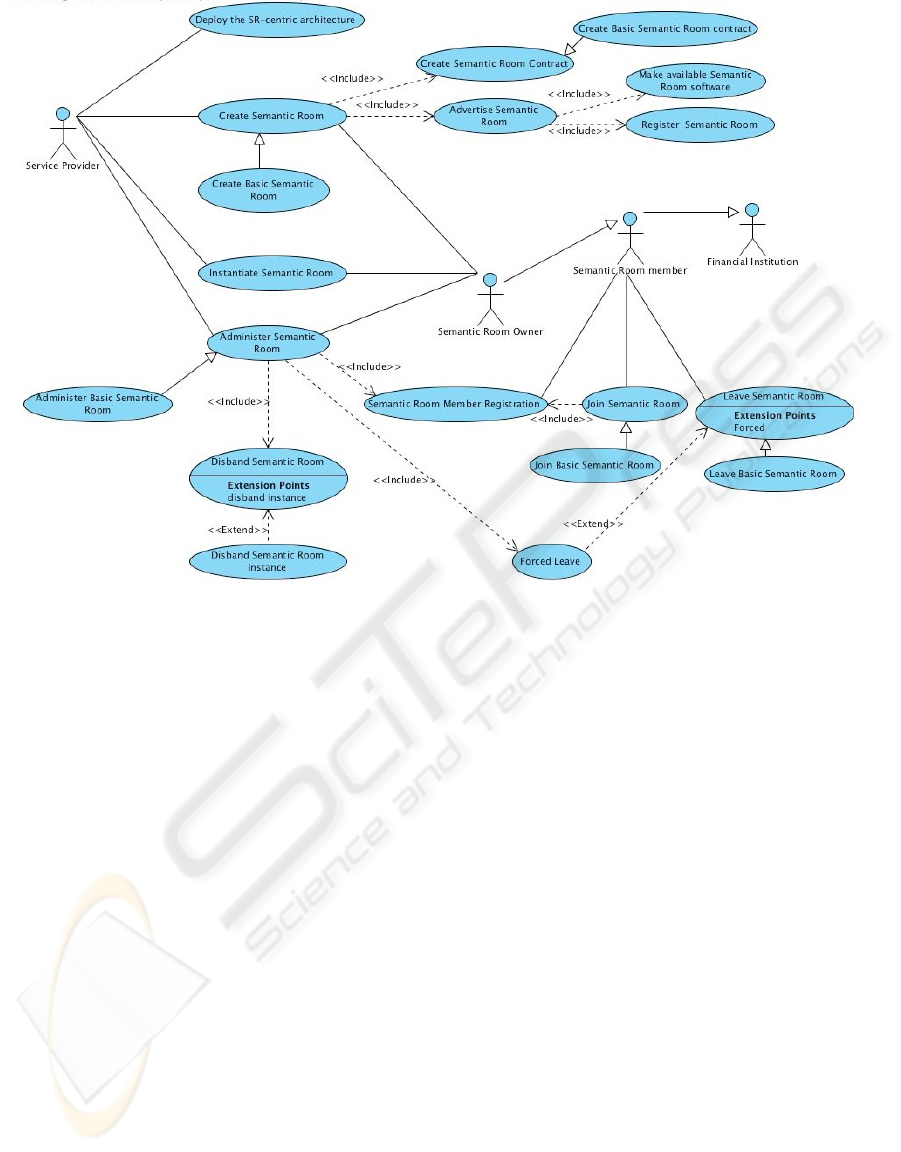

We show the UML use case that describes the

steps to be performed for creating and instantiating

SR and we highlight the ﬂexibility of the SR model

discussing different instantiations of the speciﬁc SR

that realizes a collaborative intrusion detection sys-

tem.

Related Work. The need for collaborative systems

for coping with current generation of threats and se-

curity attacks is highlighted in a number of works

that can be found in the literature (e.g., (Kr

ugel et al.,

2001)(Xie et al., 2006)(Locasto et al., 2005)) and spe-

ciﬁc systems have been built. However, these sys-

tems do not address organizational issues, thus limit-

ing their effectiveness as employed by federations of

organizations, this is noted in (Moore et al., 2003b).

The semantic room model includes both technical

(e.g., complex event processing and data privacy) and

organizational aspects (e.g., contract management).

We expect the latter can foster security collaboration

among ﬁnancial institutions.

From the point of view of contract-based coop-

eration, the semantic rooms model is similar to the

one proposed in the MEDUSA system introduced in

(Balakrshnan and Stonebraker, 2004). MEDUSA is a

distributed framework for managing the load in fed-

erated systems. It is based on pairwise contracts ne-

gotiated between on-line participants. Contracts set

tightly bounded prices for migrating each unit of load

between two participants and they specify the set of

tasks that each is willing to execute on behalf of the

other. The federated systems described in (Balakrsh-

nan and Stonebraker, 2004) are similar to our SRs;

however, the federation model regulated by contracts

of (Balakrshnan and Stonebraker, 2004) is not used

for complex event processing purposes as in our case.

The rest of this paper is organized as follows. Sec-

tion 2 describes the Semantic Room abstraction, the

roles of Semantic Room members and the contracts

that are used to regulate Semantic Rooms. Section

3 describes the UML use case we have designed for

SR creation, instantiation and management purposes.

An example of a possible usage of an SR is also dis-

cussed. Finally Section 4 concludes the paper and

outlines some future work.

2 THE SEMANTIC ROOM

ABSTRACTION

A Semantic room is a federation of ﬁnancial institu-

tions formed for the sake of information processing

and sharing. The partners participating in a speciﬁc

SR are referred to as the members of the SR.

Each SR is associated with a contract that deﬁnes

the set of processing and data sharing services pro-

vided by that SR along with the data protection, iso-

lation, trust, security, dependability, and performance

requirements. The contract also contains the hard-

ware and software requirements a member has to pro-

vision in order to be admitted into the semantic room.

The SR abstraction embodies the Event-Driven

Architecture (EDA) paradigm (Chandy, 2006), which

applies a loosely coupled communication pattern

among application components. EDAs typically con-

sist of a sensing module which gathers data from var-

ious sources. Data is then correlated and analyzed in

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

148

order to determine whether appropriate actions have

to be taken (responding building block) in a timely

response to what has been sensed (Chandy, 2006)

(e.g, sending alerts, invoking applications). The sens-

ing module employs an event dissemination layer

(e.g. publish/subscribe systems, group communica-

tion etc) which communicates events in an intelligent

way from one entity to another. The collected sensor

data is supplied to the processing module which might

encapsulate various types of data processing services

(such as on-line complex event processing, or long-

running analytics and intelligence extraction).

In Figure 1 SR members provide raw data to the

SR they are part of. The raw data are then processed

in order to produce processed data. Raw data may

include real-time data, inputs from human beings,

stored data (e.g., historical data), queries, and other

types of dynamic and/or static content.

Semantic Room!

Event Dissemination!

Complex Event Processing!

Internet!

!"#$%&&%'(')*)(

!"#$%&#'()

*+#,-./0+#1))

!"#$%&&%'(')*)((

!%2$%&#'()*+#,-./0+#1))

3'4)5'$')

Figure 1: The Semantic Room model based on EDA.

Processed data can be used for internal consump-

tion within the SR: in this case, derived events, mod-

els, proﬁles, blacklists, alerts and query results can

be fed back into the SR so that the members can take

advantage of the intelligence provided by the process-

ing. SR members can use this data to properly instruct

their local security management software in order to

trigger timely reactions to threats, for example. In ad-

dition, a (possibly post-processed) subset of data can

be offered for external consumption. The processed

data can be rendered by means of Graphical User In-

terfaces (GUIs) or Dashboard applications.

Semantic Room members have full access to both

the raw data that the members agreed to contribute

to by contract, and the data being processed and thus

output by the SR. The members can also be in charge

of performing processing and dissemination.

In addition to the SR members, there can exist

clients of the SR. These clients cannot contribute raw

data directly to the SR; however they can be the con-

sumers of the processed data the SR is willing to

make available for external consumption (see Figure

1). One of the SR members is designated as the owner

of that SR. The SR owner is in charge of the man-

agement and administration of that SR (note that the

SR owner can delegate the administration to a third

party). This might include the following:

• creating the SR;

• deﬁning the contract that regulates the SR;

• registering the contract (so that the contract can be

publicly available);

• terminating the contract (and thus disbanding the

SR)

• managing the SR membership.

SRs can communicate with each other. In particu-

lar, processed data produced by an SR can be injected

into another SR (e.g., through the SR client role above

regulated by the contract). The interested readers can

refer to (Lodi et al., 2010b) for further information

about SRs communications.

2.1 Semantic Room Contract

An SR contract is used to deﬁne the set of rules for ac-

cessing and using data processed within the SR. There

is a contract for each SR. Partners willing to partici-

pate in the SR must sign the contract. The contract

content is deﬁned during the SR creation phase. It

includes four main parts: (1) details of the parties in-

volved in the SR contract, (2) a collection of contrac-

tual clauses, (3) a collection of Service Level Speciﬁ-

cations (SLS), and (4) the signatures of the involved

parties. For the sake of brevity, in the following, we

only describe the main components of the SR con-

tract. (In the actual implementation, the SR contracts

are speciﬁed in XML and are generated using an SLA

deﬁnition and speciﬁcation language named SLAng

(Lamanna et al., 2003)).

The contract of an SR is a binding contract for the

SR members. To this end, it includes:

1. Owner: unique identiﬁer of the SR owner;

2. Members of the SR: list of SR members. This al-

lows SRs to guarantee membership transparency.

Nevertheless, this ﬁeld can be optional or properly

masked in order to accommodate cases in which

complete SR anonymity has to be met;

3. Other business entities: unique identiﬁers of other

business entities that can be involved in a speciﬁc

SR (e.g., software provider, SR clients);

4. Signatures: signatures of the members, and other

business entities if included.

The remaining content of the SR contract can vary de-

pending on the services offered by the SR, and on the

elements and requirements speciﬁed by the members.

In particular, the contractual clauses included in the

contract specify:

A CONTRACT-BASED EVENT DRIVEN MODEL FOR COLLABORATIVE SECURITY IN FINANCIAL

INFORMATION SYSTEMS

149

1. Name of the SR: a descriptive name in natural lan-

guage (it represents the objective of the SR);

2. SRID: an identiﬁer that uniquely identiﬁes the SR;

3. Services: a description of the services offered by

the SR and the rules for accessing the services

(note that in case of an SR client, the SR can be

paid by the client for the service offering. The

rights and obligations that regulate this type of re-

lationship can be included in this contract clause);

4. Penalties: the actions to be performed in case

members, clients, or other business entities vio-

late the contract.

The Service Level Speciﬁcations section of the

contract includes all the technical requirements and

the associated metrics. This section can be thought

of as consisting of the following two main parts: (1)

the requirements related to the quality of the informa-

tion being processed and disseminated by the SR, and

(2) the requirements related to the SR performance,

as described below:

1. Data Format: the raw and processed data format

required by the SR (e.g. attributes, types, etc.);

2. Data Sharing, Processing, and Storage restric-

tions within the SR and for Outgoing/incoming

Data: the data exchange and usage must be pro-

tected against unauthorized accesses. Therefore,

requirements for data exchange and usage can be

deﬁned as follows:

• Information Security Rules: deﬁne the policies

required for data encryption within the SR and

for data exiting the SR (data disclosure policies

can be included in these rules);

• Anonymization rules: deﬁne the level of

anonymity required for data that enter and exit

the SR;

• Processing Rules: deﬁne the rules for process-

ing data exchanged in the SR or received from

outside;

• Dissemination Rules: deﬁne the rules for data

exchange and sharing within and outside the

SR, and across SRs;

• Data storage rules: deﬁne the rules for record-

ing data and logs within the SR.

3. Resource Sharing Relationships: specify the re-

quirements for resource sharing with other SRs;

4. Minimum Requirements for Joining the SR:

amount of resources and data that a joining part-

ner must provide to be part of the SR. This could

be a minimum set of raw data that the partner

commits to provide to the SR and a minimum set

of hardware and software resources (peer-to-peer

approach);

5. QoS Requirements for Processing: specify the

minimum level of quality of service expected for

the processing activity within the SR with the re-

lated metrics;

6. QoS Level for Dissemination: specify the mini-

mum level of quality of service expected for the

dissemination activity within and outside the SR

with the related metrics;

7. QoS Level for Data Storage: specify the minimum

level of quality of service expected for data stor-

age within the SR with the related metrics.

3 USE CASE: SR CREATION AND

INSTANTIATION

The UML use case of Figure 2 depicts the steps that

are performed for creating, instantiating and manag-

ing Semantic Rooms.

In our system there exists a service provider re-

sponsible for deploying the middleware solution that

supports the construction of what we refer to as Se-

mantic Room-enabled environment; that is, an en-

vironment consisting of SRs possibly communicat-

ing with one another. An example of a service

provider could be SWIFT (Society for Worldwide In-

terbank Financial Telecommunication) or any other

third-party service provider. The service provider is

also in charge of creating the Basic Semantic Room,

thus becoming its owner and administering it.

The basic Semantic Room is a special type of Se-

mantic Room that can be created, instantiated and ad-

ministered as any other kind of Semantic Room. It

provides basic services to ﬁnancial institutions that

wish to be part of the Semantic Room-enabled envi-

ronment and is regulated by a basic Semantic Room

contract. Basic services include among others the ca-

pabilities to (i) create other semantic rooms, (ii) in-

stantiate SRs that have been created, (iii) join existing

SRs that have been instantiated and have a SR owner,

and (iv) monitoring activities carried out within some

SRs. Finally, the service provider can create, instanti-

ate and administer any type of Semantic Room.

A ﬁnancial institution that wishes to be part of the

SR-enabled environment has to ﬁrst join the basic SR.

In order to join the basic SR a ﬁnancial institution

has to register as a basic SR member with the Service

Provider responsible for administering the basic SR.

Once the registration is completed and approved, the

ﬁnancial institution becomes a semantic room mem-

ber (i.e., a basic SR member): from that moment on

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

150

Figure 2: SR creation and management use case.

the member can take advantage of the earlier men-

tioned basic services, creating, instantiating, adminis-

tering, joining, leaving and monitoring other semantic

rooms. In particular, the basic SR member can:

• create new (specialized) SRs. The creation phase

consists of the following two main steps: (1) the

creation of the Semantic Room contract, where

the precise objective for which the SR has been

created and all the contract requirements are de-

ﬁned; and (2) the SR advertising. The advertis-

ing step is being further broken down as follows:

the Semantic Room is registered using a discov-

ery service, and the SR software is made available

through the same service. The SR software is the

software necessary to realize the speciﬁc SR logic

and achieve the objective deﬁned in the SR con-

tract.

A member of the basic SR that creates a special-

ized SR might become the owner of that SR pro-

vided it wishes to assume that speciﬁc role;

• instantiate an SR that has been previously created

(for example by the service provider or other SR

basic members). In this speciﬁc case, it is manda-

tory for the member that instantiates the SR to be-

come the SR owner.

The SR administration responsibilities lay with

the SR owner, and include the following: manag-

ing member registration (see below), disbanding

the SR, forcing some member(s) to leave the SR

(this speciﬁc case can occur when some member

is behaving maliciously) and monitoring whether

the members comply with the SR contract clauses.

The disbanding of a Semantic Room can involve

an instance of a speciﬁc SR. In this case, disband-

ing that SR implies closing the SR and deleting

its membership. In addition, the disbanding of a

Semantic Room can include deleting the created

SR, (i.e., removing it from the discovery service

previously mentioned).

• join existing SRs that have been instantiated by

the SR owner. In order to execute the join opera-

tion, a basic SR member shall register with the SR

owner. The SR owner will check if the member

has the right credentials to be part of the SR and,

if so, the member is included in the membership

of that SR. At that point, the member can down-

load the speciﬁc SR software required for gaining

the intelligence from the SR.

• voluntary leave SRs the member is part of (in this

case, the SR owner deletes the member from the

membership), or voluntary leave the entire SR-

enabled environment by revoking its participation

in the basic Semantic Room.

A CONTRACT-BASED EVENT DRIVEN MODEL FOR COLLABORATIVE SECURITY IN FINANCIAL

INFORMATION SYSTEMS

151

3.1 SR Usage Example

In this section we present an applied example of an

SR formed by ﬁnancial institutions that wish to use

and exploit the SR model in order to implement a

basic intrusion detection mechanism. The output of

this mechanism is a blacklist contains IP addresses

or range of IP addresses that may have attempted to

break into various ﬁnancial institution sites.

The scenario we consider here is that of an in-

truder that executes stealthy scans across multiple

ﬁnancial sites (attack subjects can be external web

servers in the demilitarized zone of the SR ﬁnancial

members). The goal of the intruder is to identify TCP

and UDP ports of ﬁnancial institutions that may have

been left open and to use those ports as intrusion vec-

tors to access the services listening on those ports.

From a technical viewpoint, detecting these types

of attacks requires the ability to analyze and process a

large number events per second, and correlate them in

a very large time window. The added value of the

SR abstraction is manifested through the ability to

correlate the sensor data coming from multiple sites

which enables identifying intrusion attempts where

the number of ports tried within each individual SR

participant is below the local threshold. The speciﬁc

heuristic being used looks for the pattern of unusu-

ally high total number of requests originating from

a speciﬁc source IP address and directed to distinct

the pairs [host, port]. The SR then disseminates the

processed information to the SR members and raises

an alert that a speciﬁc IP address is performing ma-

licious activities. It will be the responsibility of each

individual ﬁnancial institution to undertake the proper

countermeasures to protect itself.

There can be different approaches to be used in

order to achieve these objectives. One approach can

be fully centralized (esp, 2009): every ﬁnancial in-

stitution sends its own raw data to a central location

responsible for carrying out the correlation and anal-

ysis of the data. This approach has the advantage to

increase the detection accurancy; however, it exhibits

the inherent drawbacks of a central system. In con-

trast to the above approach, another one can be to

apply a fully decentralized system architecture where

the processing and storage load is spread over the en-

tire population of the SR members thus avoiding per-

formance hot-spots and parallelizing the processing.

In our current implementation we have favored a fully

decentralized approach. For the sake of brevity we

do not describe the system here. The interested read-

ers can refer to (Lodi et al., 2010a) for a detailed de-

scription and preliminary evaluation of this system.

However, it is worth noting that the SR abstraction

described in this paper can be used to deploy all the

various aforementioned system architecture schemes:

a created SR can be associated with potentially more

than one instance according to the various deployed

technologies, used in turn to realize the SR complex

event processing.

4 CONCLUDING REMARKS

In this paper we have presented a new architectural

abstraction, called Semantic Room, which can be

used to construct collaborative security systems. We

have applied the SR abstraction in the context of the

ﬁnancial infrastructure protection. In particular, we

demonstrated how the SR model can be used to assist

ﬁnancial institutions in forming federations aimed to

protect against security threats, such as intrusion.

The SR functionality is determined by their ob-

jectives and is regulated by contracts. The contracts

deﬁne the set of rules that govern the participation in

the SRs along with all the security, isolation, trust and

performance requirements that are to be met in order

to perform the information processing and sharing.

SRs can be customized; that is, the SR logic that

allows it to achieve the objective speciﬁed in the con-

tract is to be made available for the use by the SR

members. Being customizable, SRs may deploy var-

ious system architecture schemes (e.g., a centralized

scheme, a fully decentralized one). Our current ef-

fort is centered on the experimental evaluation of the

centralized and decentralized approaches. Although

the results of this evaluation are not shown in this

paper, it seems that when high volumes of data are

to be correlated and analyzed and no complex event

correlation patterns are to be detected, a fully decen-

tralized approach would be favorable as it provides

a coarse-grained detection and copes with scalabil-

ity requirements crucial to accommodate high rates of

the incoming events. In contrast, when complex event

correlation in time and space is required and the vol-

umes of data are not signiﬁcantly high, a centralized

approach can be effectively exploited.

ACKNOWLEDGEMENTS

This research is partially funded by the EU project

CoMiFin (Communication Middleware for Monitor-

ing Financial Critical Infrastructure). The authors

wish to thank their project colleagues for their valu-

able comments and suggestions on the described Se-

mantic Room model.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

152

REFERENCES

(2009). Basel II Accord. http://www.bis.org/bcbs/ bcb-

scp3.htm.

(2009). Where Complex Event Processing meets Open

Source: Esper and NEsper. http://esper.codehaus.org/.

Balakrshnan, B. M. and Stonebraker, H. M. (2004).

Contract-based load management in federated dis-

tributed systems. In 1st Symposium on Networked Sys-

tems Design and Implementation, San Francisco, CA,

USA.

Chandy, M. K. (2006). Event-Driven Applications: Costs,

Beneﬁts and Design Approaches. Presented at the

Gartner Application Integration and Web Services

Summit, http://www.infospheres.caltech.edu/node/

38.

ugel, C., Toth, T., and Kerer, C. (2001). Decentralized

event correlation for intrusion detection. In ICISC,

pages 114–131.

Lamanna, D., Skene, J., and Emmerich, W. (2003). Slang:

A language for deﬁning service level agreements. In

FTDCS ’03: Proceedings of the The Ninth IEEE

Workshop on Future Trends of Distributed Comput-

ing Systems, page 100, Washington, DC, USA. IEEE

Computer Society.

Locasto, M. E., Parekh, J. J., Keromytis, A. D., and Stolfo,

S. J. (2005). Towards collaborative security and p2p

intrusion detection. In IEEE Workshop on Informa-

tion Assurance and Security, United States Military

Academy, West Point, NY.

Lodi, G., Baldoni, R., Bortnikov, V., Chockler, G., Dekel,

E., Laventman, G., and Angori, E. G. (2010a). A

Collaborative Environment for Customizable Com-

plex Event Processing in Financial Information Sys-

tems. Technical Report MIDLAB 5/2010.

Lodi, G., Baldoni, R., Elshaaﬁ, H., Mulcahy, B., Csertain,

G., and Gonczy, L. (2010b). Trust Management in

Monitoring Financial Critical Information Infrastruc-

tures. In The 2nd International Conference on Mobile

Lightweight Wireless Systems - Critical Information

Infrastructure Protection Track.

Moore, D., Paxson, V., Savage, S., Shannon, C., Stani-

ford, S., and Weaver, N. (2003a). Inside the Slammer

Worm. IEEE Security and Privacy, 1(4):33–39.

Moore, D., Shannon, C., Voelker, G. M., and Savage, S.

(2003b). Internet quarantine: Requirements for con-

taining self-propagating code. In INFOCOM.

Xie, Y., Sekar, V., Reiter, M. K., and Zhang, H. (2006).

Forensic analysis for epidemic attacks in federated

networks. In ICNP, pages 43–53.

A CONTRACT-BASED EVENT DRIVEN MODEL FOR COLLABORATIVE SECURITY IN FINANCIAL

INFORMATION SYSTEMS

153
