PROCESS-BASED DATA STREAMING IN SERVICE-ORIENTED

ENVIRONMENTS

Application and Technique

Steffen Preissler, Dirk Habich and Wolfgang Lehner

Dresden University of Technology, Database Technology Group, Dresden, Germany

Keywords:

Stream, Service, Business process, SOA.

Abstract:

Service-oriented environments increasingly become the central point for enterprise-related workﬂows. This

also holds for data-intensive service applications, where such process types encounter performance and re-

source issues. To tackle these issues on a more conceptual level, we propose a stream-based process execution

that is inspired by the typical execution semantics in data management environments. More speciﬁcally, we

present a data and process model including a generalized concept for stream-based services. In our evaluation,

we show that our approach outperforms the execution model of current service-oriented process environments.

1 INTRODUCTION

In order to support analyses and managerial deci-

sions, business people extensively describe the struc-

tures and processes of their environment using busi-

ness process management (BPM) tools (Graml et al.,

2007). The area of business processes is well-

investigated and existing tools support the life-cycle

of business processes from their design, over their ex-

ecution, to their monitoring today. Business process

modeling enables business people to focus on busi-

ness semantic and to deﬁne process ﬂows with graph-

ical support. Prominent business process languages to

express such workﬂows are WSBPEL (OASIS, 2007)

and BPMN (OMG, 2009).

The control ﬂow semantic, on which BPM lan-

guages and their respective execution engines are

based on, has been proven to ﬁt very well for tradi-

tional business processes with small-sized data ﬂows.

Typical example processes are ”order processing” or

”travel booking”. However, the characteristics of

business processes are continuously changing and the

complexity grows. One observable trend is the adop-

tion of more application scenarios with more data-

intensive processes like business analytics or data in-

tegration. Thereby, the volume of data that is pro-

cessed within a single business process increases sig-

niﬁcantly (Kouzes et al., 2009).

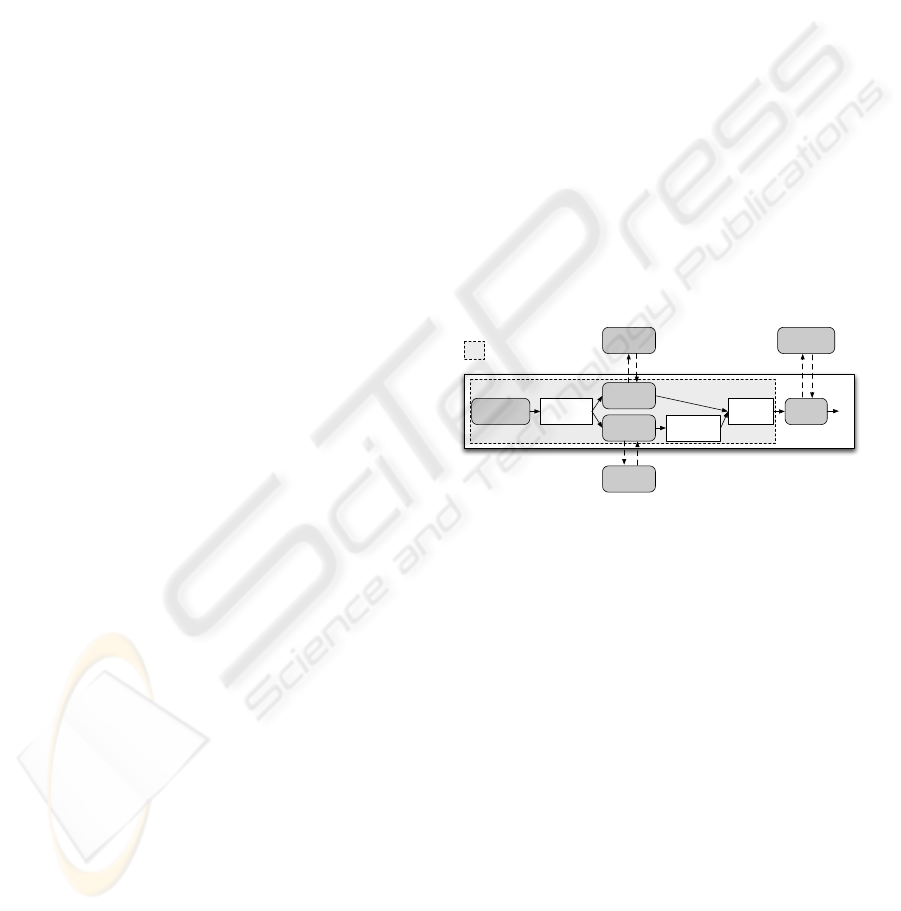

Figure 1 depicts an example process in the area of

business analytics that illustrates the trend to an in-

creased data volume. The process extracts data from

getCustInfos

[receive]

getInvoices

[invoke]

joinIDs

[assign]

analyze

[invoke]

transform

[assign]

getOrders

[invoke]

filterOrders

[assign]

getInvoices

[service]

getOrders

[service]

analyze

[service]

...

typical data management

process

Figure 1: Customer data integration scenario.

different sources and analyzes it in succeeding tasks.

First, the process receives a set of customer informa-

tion as input (getCustInfos) which may include cus-

tomer id, customer name and customer address. Sec-

ond, the customer ids are extracted and transformed

to ﬁt the input structure of both succeeding activi-

ties (transform). In a third step, the customer ids

are enriched concurrently with invoice information

(getInvoices) and current open orders (getOrders)

from external services. All open orders are ﬁltered

(filterOrders) to get only approved orders. Af-

terwards all information for invoices and orders are

joined for every customer id (joinIDs) and analyzed

(analyze). Further activities are executed for differ-

ent purposes. Since they are not essential for the re-

mainder of the paper, they are denoted by ellipses.

The activity type for every task is stated in square

brackets ([]) beneath the activity name. These types

are derived from BPEL as standard process execution

language for Web services.

As highlighted in Figure 1 by the dotted shaded

Preissler S., Habich D. and Lehner W. (2010).

PROCESS-BASED DATA STREAMING IN SERVICE-ORIENTED ENVIRONMENTS - Application and Technique.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages 40-49

DOI: 10.5220/0002903000400049

 SciTePress

rectangle, this part of the business process is very

similar to typical integration processes within the data

management domain with data extraction, data trans-

formation and data storage. In this domain, avail-

able modeling and execution concepts for data man-

agement tasks are aligned for massive data processing

(Habich et al., 2007). Considering the execution con-

cept, Data stream management systems (Abadi et al.,

2005) or Extract-Transform-Load (ETL) tools (Vas-

siliadis et al., 2009) as prominent examples incorpo-

rate a completely different execution paradigm. In-

stead of using a control ﬂow semantic, they utilize

data ﬂow concepts with a stream-based semantic that

is typically based on pipeline parallelism. Further-

more, large data sets are split into smaller subsets.

This execution has been proven very successfully for

processing large data sets.

Furthermore, many existing work, e.g. (Machado

and Ferraz, 2005; Habich et al., 2007; Suzumura

et al., 2005), has been demonstrated and evaluated

that the SOA execution model is not appropriate

for processes with large data sets. Therefore, the

changeover from the control ﬂow-based execution

model to a stream-based execution model seams es-

sential to react on the changing data characteristics of

current business processes. Nevertheless, the key con-

cepts of SOA like ﬂexible orchestration and loosely

coupled services have to be preserved. This paper

contributes to this restructuring by providing a ﬁrst in-

tegrated approach of a stream-based extension to the

service and process level.

Contribution and Outline. Within this paper we

make the following contributions: First, we summa-

rize drawbacks of current concepts and present con-

ducted research in the direction of streaming exe-

cution in SOA (Section 2). Second, the data ﬂow-

based process execution model is presented that al-

lows stream-based data processing (Section 3). Fur-

thermore, our approach for stream-based service invo-

cation in (Preissler et al., 2009) is extended to enable

orchestration and usage of web services as streaming

data operators (Section 4). Finally, we evaluate our

approach in terms of performance (Section 5), present

related work (Section 7) and conclude the paper (Sec-

tion 8).

2 PROBLEM DESCRIPTION

This section consists of two important parts in a sur-

vey style. While the ﬁrst part reviews the current

control ﬂow-based execution semantics of today’s

SOA environments and highlights shortcomings (Sec-

tion 2.1), the second part brieﬂy describes already

conducted work in the direction of streaming seman-

tic in SOA (Section 2.2). There, we summarize open

issues which we address in the remainder of the paper.

2.1 Control-ﬂow Semantics in SOAs

The area of business-oriented workﬂows in SOA is

based on the control ﬂow execution of speciﬁed pro-

cess plans. Formally, a process plan P is deﬁned as

P = (C, A,S), where C is the process context, A is

the set of activities that are connected as an acyclic,

directed graph and S is the set of services that the

process plan interacts with. Furthermore, the process

context C is deﬁned as C = (S

,V ) where S

is a set of

system properties like runtime state or process id and

V is a set of variables with V = (v

,. ..,v

,. .. ,v

In general, there are two major drawbacks for

data-intensive business processes with current SOA

concepts. Both are related to control ﬂow-based pro-

cess execution: (1) on the process level with the step-

by-step execution model in conjunction with an im-

plicit data ﬂow and (2) on the service level with the

inefﬁcient, resource consuming communication over-

head for data exchange with external services based

on the request–response paradigm and XML as data

format.

Process Level. Existing process engines execute

process plans by applying the speciﬁed control ﬂow to

every incoming message separately. For n messages,

this leads to single process instances P

with 1 ≤ i ≤ n

and P

= (C

) that are executed serialized in the

order of message arrival to preserve data consistency.

Every instance is executed as a single thread and the

control ﬂow is applied to the message in a step-by-

step fashion, where a task is invoked, the response is

received and then the next succeeding task is executed

in a similar way (Bioernstad et al., 2006).

This single-threaded step-by-step execution in

conjunction with the request–response paradigm for

service invocation prevents implicit chunking of large

data between activities. Thus it also prevents the low-

ering of peak resource requirements and an increased

throughput. In addition, it uses the set V of variables

that is located in the process context C for temporal

storage and that hides the explicit data ﬂow. Every

activity a ∈ A in process plan P is connected to one

ore more variables in V to store outgoing or incoming

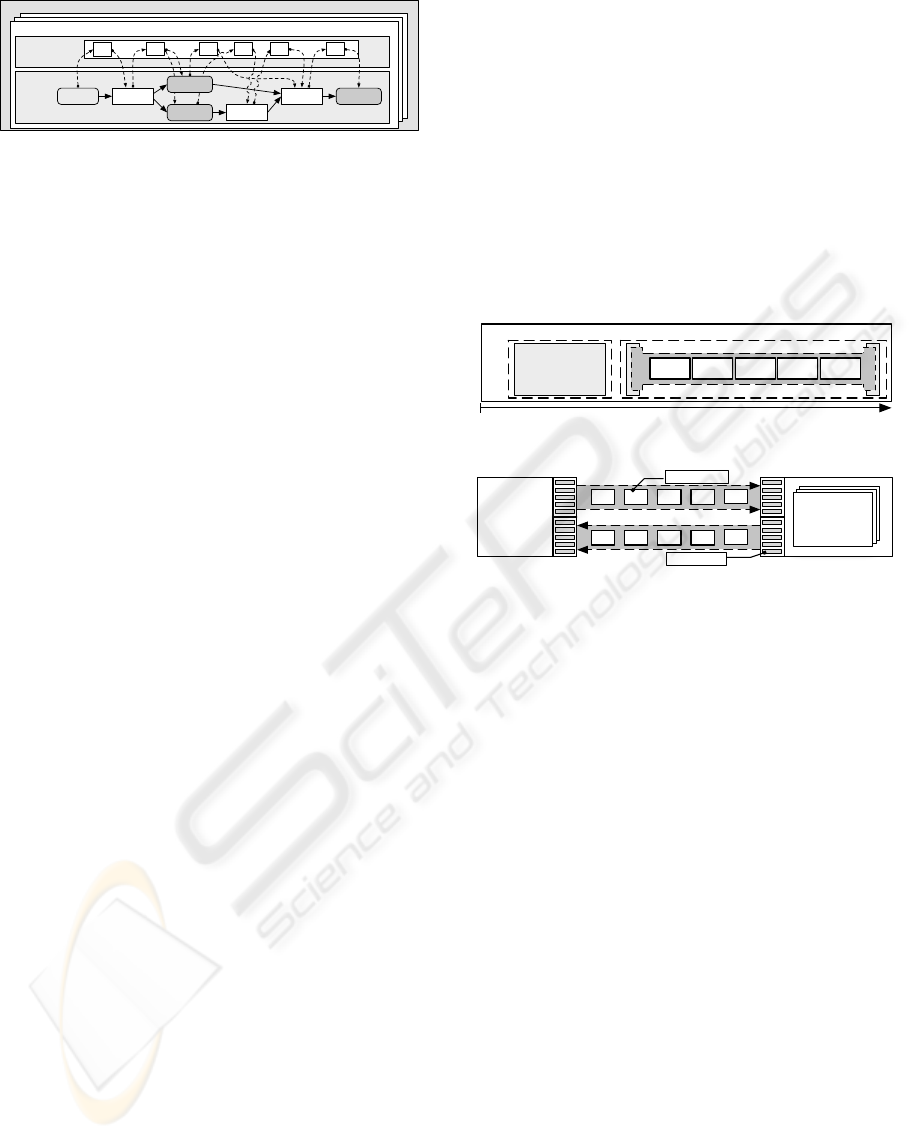

data for that activity. Figure 2 depicts the architecture

of the control ﬂow-based execution with the variable-

based data ﬂow between the activities. Thereby, all

data that is received, transformed and exchanged by

every P

is stored in different variables v

of V

PROCESS-BASED DATA STREAMING IN SERVICE-ORIENTED ENVIRONMENTS - Application and Technique

Process Engine

Process Instance P

process

context C

control

flow A

receive assign invokeassign

invoke assign

invoke

Figure 2: Control ﬂow-based process execution.

Clearly, the implicit, variable-based data ﬂow

leads to resource bottlenecks if data structures be-

come large. Considering our application scenario, the

efﬁcient execution depends heavily on the number of

customer IDs and the number of invoices/orders that

are returned for every customer id.

Service Level. On service level, the message-based

request-response paradigm between service compo-

nents in conjunction with XML as data representation

poses already well investigated resource problems es-

pecially for large and complex structures (Kouzes

et al., 2009; Machado and Ferraz, 2005). Quite a lot

of research has been proposed that either deals with

efﬁcient marshaling and unmarshaling of XML-based

content (Suzumura et al., 2005) to reduce communi-

cation costs or that considers the partitioning of large

messages into smaller chunks (Srivastava et al., 2006;

Gounaris et al., 2008) to work around the memory

consumption problem. While the former approaches

do not consider large message sizes and their in-

memory processing, the latter approaches introduce

correlation problems when all data that is distributed

over many chunks has to be processed in one common

context.

The Bottom Line. To conclude this part, the con-

trol ﬂow-based execution is not appropriate for data-

intensive business processes. The implicit, variable-

based data ﬂow and the step-by-step process execu-

tion lead to high peak requirements for data storage

and decreases throughput. Furthermore, communica-

tion overhead between services prevents an efﬁcient

implementation and execution of data-intensive busi-

ness processes. Up to today, services are used as data

sources and data sinks in most cases, but the utiliza-

tion as distributed operators with arbitrary function-

ality that can be composed with common techniques

would extend the applicability of SOA infrastructures

to more application domains. Additionally, common

business orchestration languages focus on traditional

business processes and do not provide native activi-

ties for data-related operations like sort, aggregation

or join, as e.g. required in our running example.

2.2 Streaming Semantics in SOA

In (Preissler et al., 2009), we described the aspect of

changing the execution semantic in SOA and intro-

duced the concept of stream-based Web service invo-

cation to overcome the resource restriction with large

data sizes. We recall the core concept brieﬂy and

point out limitations of this work.

The fundamental idea for the stream-based Web

service invocation is to describe the payload of a

message as ﬁnite stream of equally structured data

items. Figure 3(a) depicts the concept in more de-

tail. The message retains as the basic container that

time

{meta data}

Message

...

Stream S

Header Payload

(a) Stream-based message container.

Web Service

Client

Instance

...

I,j

O,j

Web Service

Instance j

Web Service

Instance j

Web Service

Instance W

bucket queue

stream bucket

(b) Stream-based message interaction.

Figure 3: Stream-based service invocation.

wraps header and payload information for requests

and responses. However, the payload forms a stream

that consists of an arbitrary number n of stream buck-

ets b

with 1 ≤ i ≤ n. Every bucket b

is an equally

structured subset of the application data that usually

is an array of sibling elements. Inherently, one com-

mon context is deﬁned for all data items that are trans-

ferred within the stream. The client controls the in-

sertion of data buckets into the stream and closes the

stream on its own behalf. Figure 3(b) depicts the in-

teraction between client and service. Since the con-

cept can be applied bidirectional, a request is deﬁned

as input stream S

I, j

whereas a response is deﬁned as

output stream S

O, j

with j denoting the corresponding

service instance. By adding bucket queues to the com-

munication partners, sending and receiving of stream

buckets are decoupled from each other (in contrast to

the traditional request–response paradigm) and inter-

mediate responses result.

It has been evaluated, that this concept reduces

communication overhead in comparison to message

chunking by no need for single message creation. In

addition, it provides a native common context for all

stream items and context sensitive data operations like

aggregation can be implemented straightforward. The

main drawback of the proposed concept is that it as-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

sumes all stream buckets to be application data and

equal in structure. This does not take dynamic ser-

vice parameterization into account. Hence it is not

applicable for a more sophisticated stream environ-

ment with generalized services operators.

To conclude this section, the stream-based service

invocation approach represents only one step in the

direction of streaming semantic in service-oriented

environments. While the proposed step considers the

service level to overcome resource limitations, the

process level is obviously an open issue. Therefore,

we are going to present a data ﬂow-based process

approach for messages processing in the following

section. In Section 4, we are extending the service-

level streaming technique to cover new arising re-

quirements from the process perspective.

3 STREAM-BASED PROCESS

EXECUTION

Fundamentally, our concept for stream-based process

execution advances the process level with data ﬂow

semantics and introduces a corresponding data and

process model for stream-based data processing.

3.1 Data Model

When processing large XML messages, available

main memory becomes the bottleneck in most cases.

One solution is to split the message payload into

smaller subsets and to process them consecutively.

This reduces memory peaks by not having to build the

whole message payload in memory. To allow native

subset processing, we introduce the notion of process-

ing buckets, that enclose single message subsets and

that are used transparently in the processing frame-

work. Let B be a process bucket with B = (d,t, p

where d denotes a bucket id, t denotes the bucket

type and p

denotes the XML payload in dependence

on the bucket type t. The basic bucket type is data,

that identiﬁes buckets that contain actual data from

message subsets. Of course, a processing bucket can

also enclose the complete message payload p

with

== p

, as it is the case when the message payload

initially enters the process or if p

is small in size.

Nevertheless, for large message payloads it would be

beneﬁcial to split them into a set of process buckets b

with p

t,i

⊆ p

Since buckets carry XML data, XPath and

XQuery expressions can be used to query, modify

and create the payload structure. As entry point for

such expressions, we deﬁne two different variables

$ bucket and $ system that deﬁne different access

split

for $cust in $_bucket/custInfos/customerInfo

return $cust

bucket b

...

</customerInfo>

...

</custInfos>

...

</customerInfo>

...

</customerInfo>

bucket b'

i,1

...

</customerInfo>

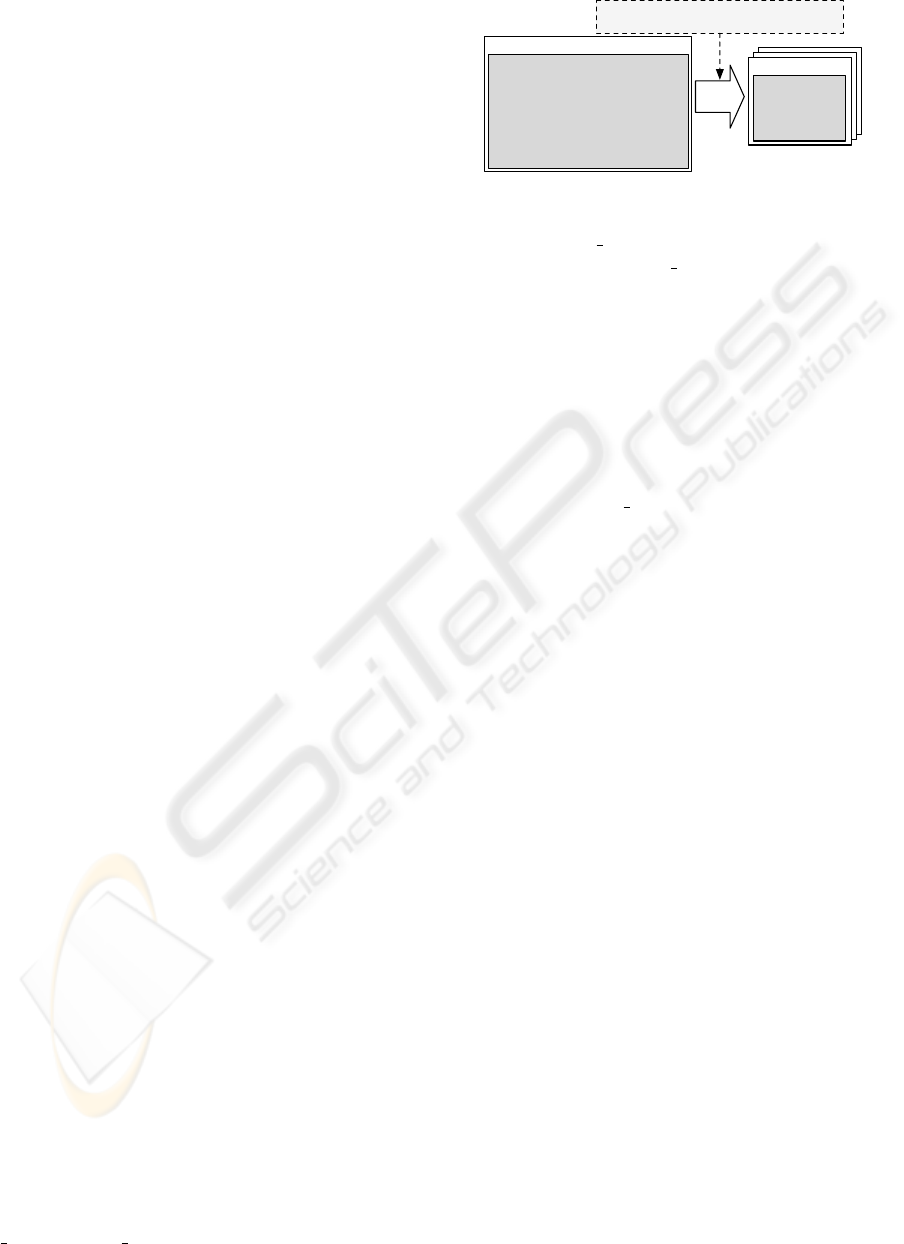

Figure 4: Payload splitting.

paths. Variable $ bucket is used to access the bucket

payload while variable $ system allows access to

process-speciﬁc variables like process id or runtime

state.

Example 1. Payload Splitting. Consider the activ-

ity getCustInfos from our application scenario

in Figure 1. It receives the message with the pay-

load containing a set of customer information. Fig-

ure 4 depicts the splitting of this payload into several

smaller process buckets. The split is described by a

very simple XQuery expression with setting the re-

peating element to $ bucket/custInfos/customerInfos.

It creates one process bucket for every customer in-

formation in the resulting sequence that can be pro-

cessed consecutively by succeeding activities.

3.2 Process Model

Instead of using a control ﬂow-based process execu-

tion, our process model uses a data ﬂow-based pro-

cess execution that is based on the pipes-and-ﬁlters

execution model found in various systems like ETL

tools, database management systems or data stream

management systems. Using the pipes-and-ﬁlters ex-

ecution model all activities a

∈ A of a control ﬂow-

based process plan P are executed concurrently as

independent operators o

of a pipeline-based process

plan P

. All operators are connected to data queues q

between the operators that buffer incoming and outgo-

ing data. Hence, a pipeline-based process plan P

can

be described via a directed, acyclic ﬂow graph, where

the vertices are operators and the edges between oper-

ators are data queues. Figure 5 depicts the execution

model of the pipeline-based version of our scenario

process. Since the data ﬂow is modeled explicitly, the

implicit, variable-based data ﬂow from Figure 2 has

been removed. This requires the usage of the addi-

tional operator copy that copies the incoming bucket

for every outgoing data ﬂow.

We deﬁne our stream-based process plan P

= (C,O, Q,S) with C denoting the process context,

O with O = (o

,. .. ,o

) denoting the set of op-

erators o

, Q with Q = (q

,. .. ,q

) denoting

the set of data queues between the operators and S de-

PROCESS-BASED DATA STREAMING IN SERVICE-ORIENTED ENVIRONMENTS - Application and Technique

noting the set of services the process interacts with.

An operator o is deﬁned as o = (i,o, f , p) with i de-

noting the set of incoming data queues, o denoting the

set of outgoing data queues, f denoting the function

(or activity type, in reference to traditional workﬂow

languages) that is applied to all incoming data and p

denoting the set of parameters that is used to conﬁg-

ure f and the operator, respectively.

Figure 6 depicts two succeeding operators o

and

j+1

that are connected by a data queue and that are

conﬁgured by their parameters p

and p

j+1

. Since

the operator o

j+1

processes the data of its predeces-

sor o

, the payload structure of buckets in queue q

must match the structure that is expected by opera-

tor o

j+1

. Queues are not conceptually bound to any

speciﬁc XML structure. This increases the ﬂexibil-

ity of data that ﬂows between the operators and can

simplify data ﬂow graphs by allowing operators with

multiple output structures. Nevertheless, for model-

ing purposes a set of different XML schemas can be

registered to every operator’s output that can be used

for input validation for the succeeding operators.

Example 2 . Schema-free bucket queues. Consider

an XML ﬁle containing books and authors as sib-

ling element types. The receive operator produces

buckets with either the schema of books or authors.

Since the bucket queues between operators are not

conceptually schema-bound, both types can be for-

warded directly and, e.g., processed by a routing op-

erator that distributes the buckets to different process-

ing ﬂows.

For parameter set p, we use the respective query

languages that where deﬁned with our data model to

conﬁgure the operator or to retrieve and modify the

payload. Clearly, a concrete parameter set of an op-

erator o is solely deﬁned by function f . For f , we

deﬁne a set of predeﬁned algorithms that are needed

for sophisticated data processing. Inspired by (B

ohm

et al., 2009), we deﬁne three classes of basic functions

that semantically provide a foundation for data pro-

cessing: These classes are interaction-oriented func-

tions including invoke, receive and reply, control-

ﬂow-oriented functions including route, copy, and

signal and data-ﬂow-oriented functions including

assign, split, join, union, orderby, groupby,

sort and filter. All functions work on the gran-

ularity of process bucket B and are implemented as

Process Engine

Pipes-and-Filter-based Process Plan P

S,i

data flow

receive

assign

invoke

assign

invoke assign

invoke

data queues

copy

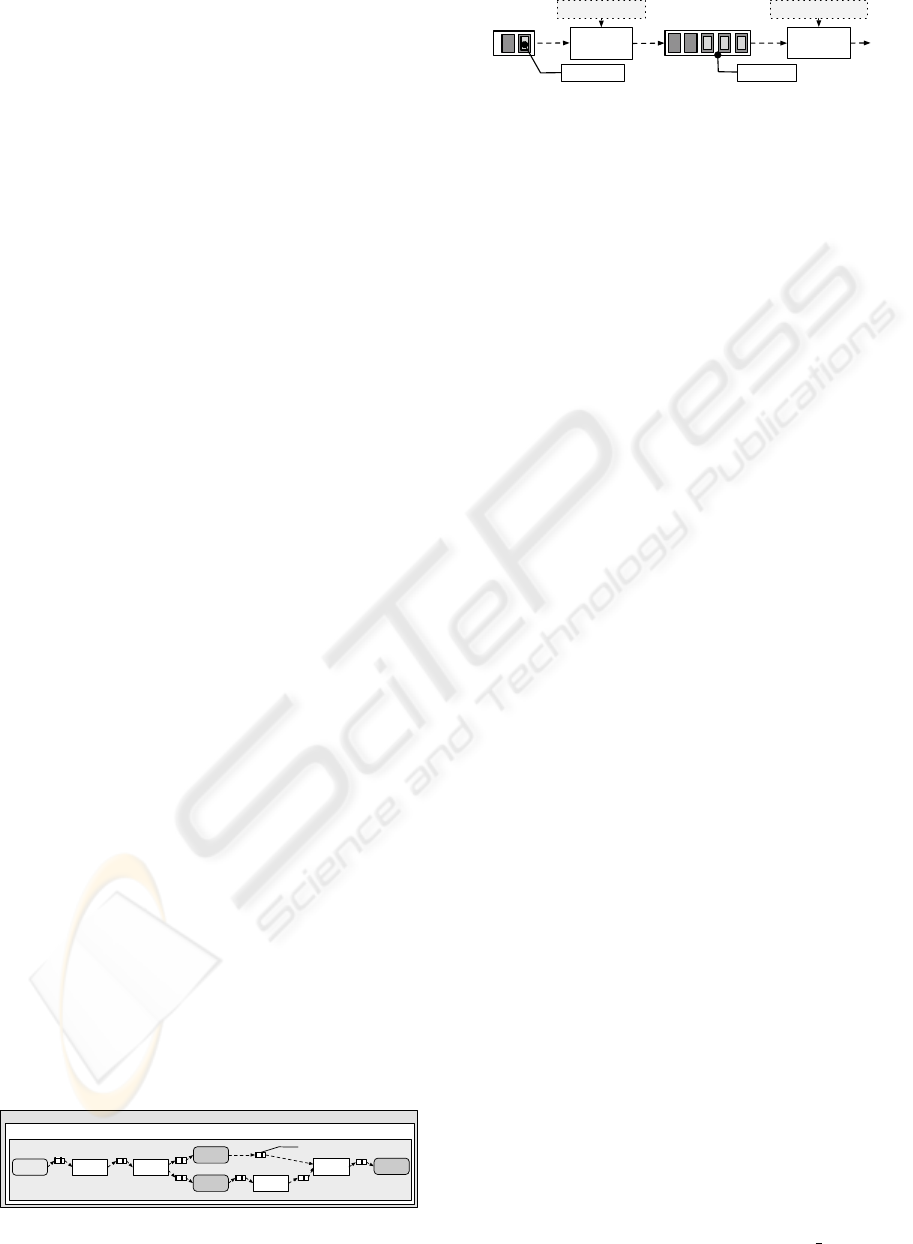

Figure 5: Pipeline-based execution of process plan P

j+1

queue q

parameter p

j+1

bucket b

Figure 6: Operators and Processing Bucket queue.

operators.

Now, we discuss the semantics of example opera-

tors for every function class in more detail. In partic-

ular, this will be receive, for the class of interaction-

oriented functions, copy, for the class of control-ﬂow-

oriented functions, and join, for the class of data-ﬂow-

oriented functions.

Receive Operator. The most important operator for

preparing incoming messages is the receive opera-

tor. This operator gets one bucket with the payload of

the incoming message to process. As parameter p, a

split expression in XPath or XQuery must be speciﬁed

to create new buckets for every item in the resulting

sequence. It is closely related to the split operator.

While split is used within the data ﬂow to subdivide

buckets, receive is linked to the incoming messages

and usually starts the process. Please, refer to Exam-

ple 1 for the usage of the receive operator.

Copy Operator. The copy operator, as it is used

in our application scenario, has one input queue and

multiple output queues. It is used to execute con-

current data ﬂows with the same data. For l output

queues it creates l − 1 copies of every input bucket

and feeds them all output queues.

Join Operator. The join operator can have different

semantics and usually joins two incoming streams of

buckets. For this paper, we describe an equi-join that

is implemented as a sort-merge join. This requires the

join keys to be ordered. In our application scenario,

this ordering is given inherently by the data set. Al-

ternatively, the receive operator can be parameterized

to order all items by a certain key. If this requirement

cannot be fulﬁlled, another join algorithm has to be

chosen. The set of parameters for a join operator in-

cludes (1) paths to both input bucket stream elements,

(2) the paths to both key values that have to be equal

and (3) the paths to the target destination in the output

structures of the join operator.

Example 3. Merge Join Operator. Figure 7 de-

picts the join operator joinIDs that joins the pay-

load of order buckets and invoice buckets into one

bucket for each customer id. Thus, the customer

id attribute is the join key in both input streams.

The join key paths are denoted by $left key and

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

bucket b'

bucket b

join operator

222

getInvoices

stream

getOrders

stream

left stream

right stream

3345

3455

$left_source := $_bucket/invoice

$left_key:=$_bucket/invoice/@custId

$right_source: $_bucket/order

$left_key:=$_bucket/orders/@custId

$left_target:=$_bucket//invoices

$right_target:=$_bucket//orders

...

</invoice>

...

</order>

...

</invoice>

...

</invoices>

...

</order>

...

</orders>

</customer>

Figure 7: Join operator.

$right key. Although the invocation of stream-

based services will be discussed in the next section,

assume that the getInvoices operator produces

one bucket for every invoice per customer id. Thus,

buckets with equal customer id arrive in a grouped

fashion due to the preceding invoke operators. The

join algorithm takes every incoming bucket from both

input streams and compares the id that is currently

joined. In our example, the current id is 3. If

the bucket ids equal the current id, the payloads

according $left

source and $right source

are extracted from that buckets and inserted into

the new output bucket according the target paths

$right target and $right target. If the ids

of both streams become unequal, the created bucket

is passed to the succeeding operator as it is already

done for id 2.

4 GENERALIZED

STREAM-BASED SERVICES

Taking the presented process execution as our founda-

tion, we address the communication between process

and services in this section. The general idea is to

develop stream-based services that operate 1) as ef-

ﬁcient, stream-based services for traditional service

operations like data extraction and data storage and 2)

as stream operators for data-oriented functionalities

and for data analysis. This enables our stream-based

process model to integrate and orchestrate such ser-

vices natively as remote operators. Thus, the process

can decide whether to execute an operator locally or

in distributed fashion on a different network node.

4.1 Service Invocation Extension

The main drawback of the presented stream-based

service invocation approach from Section 2.2 is the

missing support for service parameterization. Only

raw application data and thus only one data struc-

ture without metadata is supported. Parameters are

not considered speciﬁcally and the only way to pass

parameters to the service is to incorporate them into

the application data structure (see Figure 8a). This

blurs the semantics of both distinct structure types and

creates overhead if the parameter only initializes the

service instance. Furthermore, a mapping between

stream buckets with its blurred structure on the ser-

vice level and our processing buckets on the process

level has to be applied.

Example 4. Drawback of Single Bucket Structure. In

our application scenario, the parameter for the ser-

vice getInvoices would be a time frame deﬁni-

tion, in which all returned invoices had to be cre-

ated. Although this one time frame is valid for all

customer ids that are processed by the service, it has

to be transmitted with every stream bucket.

We extend the stream item deﬁnition by deploy-

ing the proposed process bucket deﬁnition B from our

data model directly into the invocation stream. Re-

member, a process bucket is described by its type t

and the payload p

that depends on t. Hence, we de-

note buckets that carry application data with t = data.

We introduce parameter buckets for service initializa-

tion or reconﬁguration by adding a new type t with

t = param. Thus, parameters are separate buckets

that have their own payload and that are processed by

the service differently. Figure 8b depicts the concept

of parameter separation. Besides a more clear sepa-

ration, this concept generalizes stream-based service

implementations by allowing to deploy parameteriz-

able functions as Web services that are executed on

stream buckets.

Furthermore, it enables us to incorporate these ser-

vices as remote operators into our process model. A

parameter set p that is currently used to conﬁgure a

local operator o

can be transferred to the service via

dedicated parameter buckets. Hence, this service can

act as a remote operator, if it implements the same

function f . The conceptual distinction between re-

mote service and local operator becomes almost neg-

ligible.

Example 5. Generalized Filter Service. Consider the

filterOrders operator in our application sce-

nario. It ﬁlters incoming order buckets according to

the order’s status. The ﬁlter expression is described

Client Service

Client

Service

data parameter

Figure 8: Extended bucket concept.

PROCESS-BASED DATA STREAMING IN SERVICE-ORIENTED ENVIRONMENTS - Application and Technique

as XPath statement in its parameter set p. If the ﬁl-

ter algorithm f is deployed as a Web service, it is

conﬁgured with p using the parameter bucket struc-

ture. Thus, a service instance can ﬁlter arbitrary XML

content according to the currently conﬁgured ﬁlter ex-

pression.

Of course, central execution will certainly domi-

nate the communication overhead compared to a dis-

tributed execution. But further research should inves-

tigate this in more detail.

4.2 Classiﬁcation and Applicability

In order to integrate stream-based services as data

sources and as remote operators into our process ex-

ecution, we ﬁrst have to classify our deﬁned pro-

cess operators according incoming and outgoing data

ﬂows. In a second step, we investigate how to map

these operator classes to stream-based services. Fol-

lowing (Vassiliadis et al., 2009), we can classify most

operators into unary operators (one input edge, one

output edge, e.g.: invoke, signal and groupby) and

binary operators (two input edges, one output edge,

e.g.: join and union). Furthermore, unary operators

can have an input–output relationship of 1:1, 1:N and

N:1.

Applicability as unary operator: Naturally, a

stream-based service has one input stream and one

output stream. Therefore, it can be directly mapped

to an unary operator. Since the receiving and send-

ing of process buckets within a service instance are

decoupled, the input–output relationships of 1:1, 1:N

and N:1 are supported in straightforward fashion.

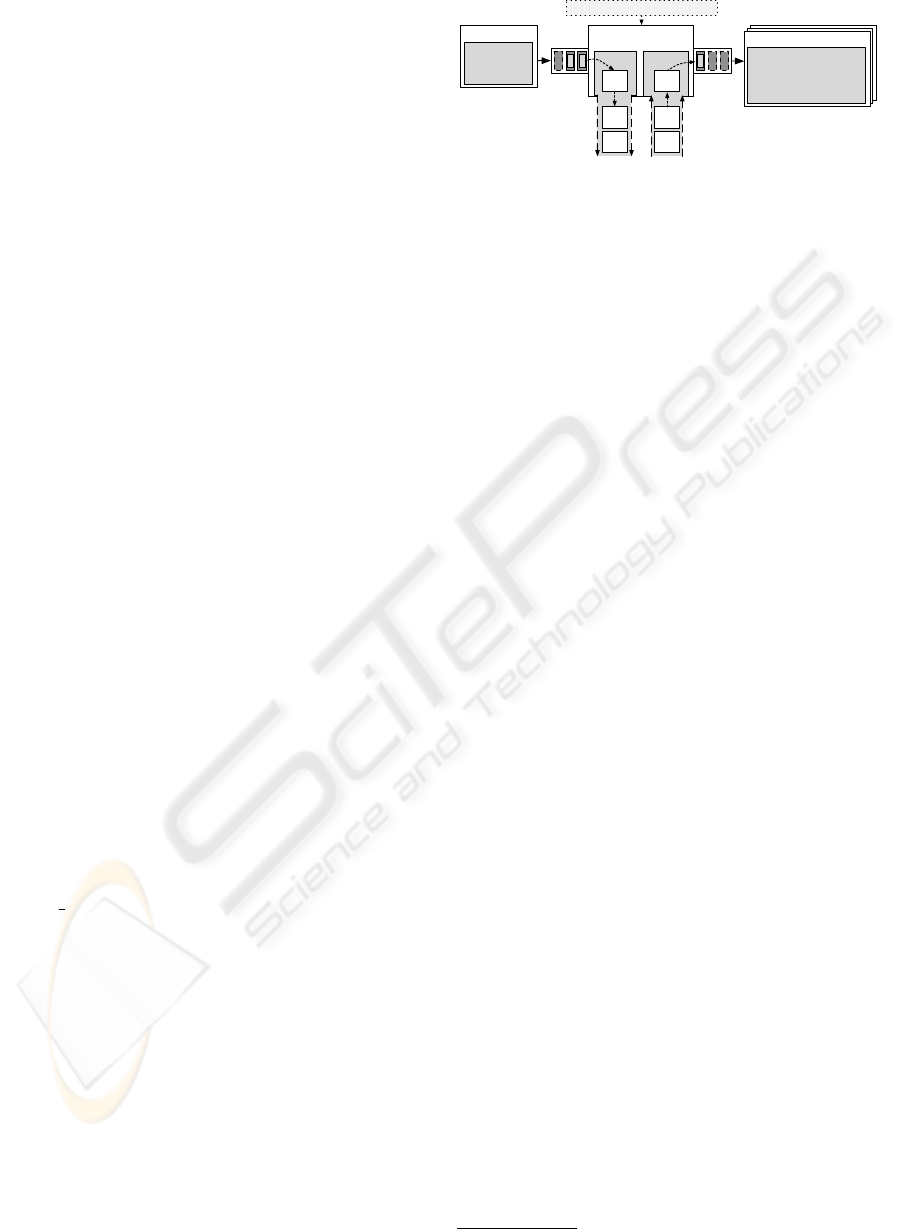

Example 6. 1 : N Relationship. Consider our

data source getInvoices. The corresponding

invoke operator is depicted in Figure 9.First, the

service is conﬁgured using the parameter set with

$valid year=2009 as predicate, so that only in-

voices that were created in 2009 will be returned. Sec-

ond, since the service directly accepts process buck-

ets, input buckets containing single customer ids are

streamed to the service. These customer id buckets are

the result of the split in the getCustInfos opera-

tor and the succeeding transform operator. The

service retrieves all invoices and returns every in-

voice for every customer id in one separate response

bucket. Hence, the presented service realizes a 1 : N

input-output relationship. Since the service returns

process buckets, they can be directly forwarded to the

joinIDs operator.

Applicability as binary operator: Since a stream-

based service typically provides only one input

bucket b

invoke

operator

send

receive

i-1

i-2

j+1

j+2

...

</invoice>

bucket b

</customerId>

1 N

parameter $valid_year=2009

Figure 9: Invoke operator.

stream, it cannot be mapped directly to binary oper-

ators. A simple approach to map the stream-based

service to the type of a binary operator is to place

all buckets from both input queues to the one request

stream to the service and to let the service validate

which bucket belongs to which operator input. As

a ﬁrst step, we focus on this approach and also im-

plemented it for our evaluation in Section 5. Further

research should investigate if a more sophisticated

approach, e.g., one that implements two concurrent

streams for one service instance, would be more ap-

plicable.

5 EVALUATION

In this section, we provide performance measure-

ments for our stream-based process execution. In gen-

eral, it can be stated that the stream-based message

processing leads to signiﬁcant performance improve-

ments and scales for different data sizes.

5.1 Experimental Setup

We implemented our concept using Java 1.6 and the

Web service framework Axis2

, and we ran our pro-

cess instances on a standard blade with 3 GB Ram and

four cores at 2 GHz. The data sources were hosted on

a dual core workstation with 2 GB Ram connected in

a LAN environment. Both nodes were assigned 1.5

GB Ram as Java Heap Size. All experiments were ex-

ecuted on synthetically generated XML data and were

repeated 30 times for statistical correctness.

We used our running process example. For the

traditional process execution, the process graph con-

sists of seven nodes: one receive activity, three assign

activities (transform, filterOrders and joinIds),

and three invoke activities (getInvoices, getOrders

and analyze). For our stream-based process execu-

tion the process graph consists of eight nodes. We ad-

ditionally have the copy operator that distributes the

customer ids to both invoke operators. Furthermore,

http://ws.apache.org/axis2/

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

we replace the assign operators filterOrders and

joinIds with the respective ﬁlter and join operator.

We use n as the number of customer information

that enter the process. In addition, we ﬁx the number

f n of invoices and orders returned for each customer

id from the services getInvoices and getOrders

to 10 for all conducted experiments. This leads to

20 invoices/orders for every processed customer id.

The textual representation of one customer informa-

tion item that enters the process is about 1kb in size.

It gets transformed, enriched and joined to about 64kb

throughout the process. Although real-world scenar-

ios for data integration often exhibit larger message

sizes, these sizes are sufﬁcient for comparing the pre-

sented approaches.

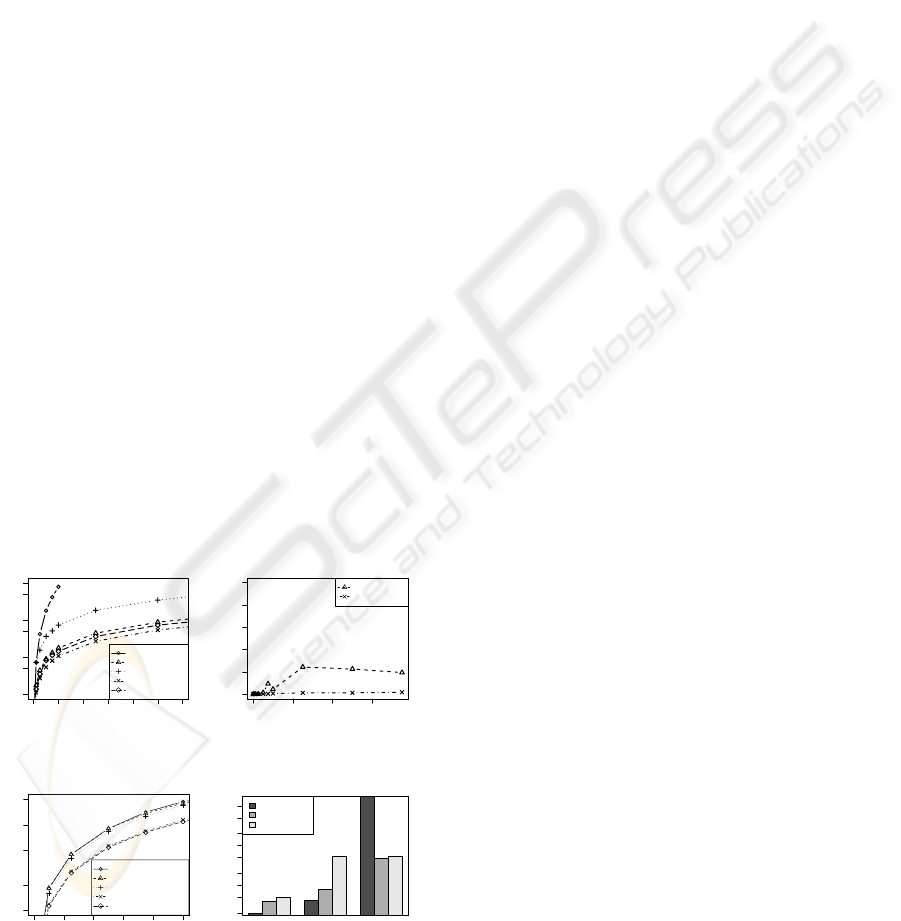

5.2 Performance Measurements

For scalability over n, we measured the process-

ing time for the traditional control-ﬂow-based pro-

cess execution (CPE) and our stream-based process

execution (SPE) in Figure 10(a) with a logarith-

mic scale. Thereby, CPE denotes the control-ﬂow-

based execution which processes all customer infor-

mation n in one process instance. CPE chunk10 and

CPE chunk100 uses the CPE but distribute n items

over n/chunkSize service calls with chunkSize =

{10,100}. SPE local represents our stream-

based process execution with only getInvoices,

getOrders and analyze being stream-based invoke

operations to external Web services. In contrast, SPE

distributed replaces the join operator joinIDs with a

binary invoke operator described in Section 4.2 and

implements the join as stream-based service instance.

0 1000 2000 3000 4000 5000 6000

1 5 50 500

# customer infos n

processing time [in s]

CPE

CPE chunk10

CPE chunk100

SPE local

SPE distributed

(a) Scalability Over n.

0 2000 4000 6000

0e+00 4e+05 8e+05

# customer infos n

variance

CPE chunk10

SPE local

(b) Variance over n.

0 200 400 600 800 1000

1 2 5 10 20

# customer infos n

processing time [in s]

CPE chunk10 1core

CPE chunk10 4cores

SPE 1core

SPE 2cores

SPE 4cores

transform getOrders joinIds

CPE

CPE chunk10

SPE local

Operators

processing time [in s]

0.2 1.0 5.0 20.0 100.0

(d) Execution Times.

Figure 10: Experimental performance evaluation results.

We can observe, that CPE does not scale over 1.000

customer ids with its 20.000 invoices/orders due to

main memory limit of 1.5 GB and its variable-based

data ﬂow which stores all data. In contrast, CPE

chunk10 and CPE chunk100 scale for arbitrary data

sizes whereas a chunk size of 10 customer informa-

tion per process call offers the shortest processing

time. Nevertheless, this data chunking leads to mul-

tiple process calls for a speciﬁc n and alters the pro-

cessing semantic by executing each process call in an

isolated context and thus assuming independency be-

tween all n items. Furthermore, it also exhibits a more

worse runtime behavior than SPE local and SPE dis-

tributed Since chunking scales for arbitrary data sizes,

we will focus on these approaches in our following

experiments.

Figure 10(b) depicts the variance of runtimes for

CPE chunk10, CPE chunk100 and SPE local. While

the variance of both chunk-based control-ﬂow execu-

tion concepts offers a higher variance for larger n, the

variance of our stream-based execution shows signif-

icantly lower. This is due to the fact, that with higher

n the number of service calls increases for the CPE

approaches, which also involves service instance cre-

ation and the all new routing of the message the ser-

vice endpoint. In contrast, our stream-based service

invocation only creates one service instance per in-

voke operator and the established streams are kept

open for all n that ﬂow through the process.

In Figure 10(c) we measured the runtime perfor-

mance with different numbers of dedicated CPU cores

to the process instances. We can observe, that the

number of cores does not affect the CPE approaches

signiﬁcantly. This is due to the fact that at most 2

threads are executed concurrently (both concurrent in-

vokes for getInvoices and getOrders in the pro-

cess graph). Furthermore, waiting times for the return

of the service calls (processing, creation and trans-

mission of invoices and orders) does even not fully

utilize one core and makes the presence of the re-

maining three cores obsolete. For the SPE approach,

we have 12 threads (8 operator nodes with one thread

per operator plus an additional thread for every invoke

(+3) and join (+1) operator). The execution time for

different n is signiﬁcantly higher with only using one

CPU core. Nevertheless, the SPE also outperforms

the CPE with one single CPU core. Again this points

to the fact of dominating waiting times for service

calls in CPE-based processes. The assignment of two

CPU cores speeds up the SPE signiﬁcantly whereas 4

CPU cores do not increase performance that may jus-

tify its dedicated usage.

As a last experiment, Figure 10(d) depicts ex-

ecution times for different operators of CPE, CPE

PROCESS-BASED DATA STREAMING IN SERVICE-ORIENTED ENVIRONMENTS - Application and Technique

chunk10 and SPE local in a logarithmic scale. Here

we ﬁx n = 500 and measured the time the operators

ﬁnish to process all items. In general, the execution of

SPE operators takes more time than the correspond-

ing activities in the CPE environment. This is due to

overhead for operator scheduling, queue synchroniza-

tion and bucket handling. Furthermore, the operator

getOrders has nearly the same execution time like

its succeeding operator joinIDs for SPE local. This

points to the fact, that the getOrders operator is the

most time consuming operator and joinIDs operator

has to wait for buckets. As for the joinIDs activity

in the CPE, is the most time and resource consuming

step. We used a standard Java XPath library to imple-

ment the join for the CPE. Thereby, all invoices and

orders for every customer id are retrieved from vari-

able v3 and v5 (see Figure 2) and stored in variable

v6. For our SPE implementation, we used the same

library and algorithm but process only small message

subsets. This seemed to speed up the whole data pro-

cessing signiﬁcantly.

6 DISCUSSION

In general, the evaluation in Section 5 has shown, that

the pipeline-based execution in conjunction with the

stream-based Web service invocation yields signif-

icant performance and scalability improvements for

our application scenario. In the following section we

discuss implications and challenges for our process-

based data streaming approach. In particular, there

are three topics that consider different aspects of our

approach:

Applicability and Application Scenarios. In our

presented application scenario, we considered equally

structured items.This is a typical data characteristic in

data-intensive processes. However, if items are not

equally-structured, our process model supports this

by schema-less data queues (see Example 2). Another

quite interesting application domain is the process-

based inter-message processing in the area of message

stream analysis. It has to be investigated, how deci-

sion rules can be mapped to process graph and how

Complex Event Processing (CEP) can be embedded

in this context.

Intra-process Optimization. Since our approach

allows for data splitting, it scales for arbitrary data

sizes. However, the scalability depends on the bucket

payload size and the number of buckets within the

process. Since all data queues block access if they be-

come empty or full, the maximum number of buckets

within the process is implicitly deﬁned by the sum of

slots in all data queues. Furthermore, if a customer id

and its invoices/orders are processed completely, their

buckets are consumed by the analyze operator and

discarded afterwards. Another implication in terms

of bucket payload sizes is that the receive operator

does not build the incoming message payload in mem-

ory completely. Instead, it reads the message payload

from an internal storage and parses the XML ﬁle step

by step, according the split path in the receive op-

erator. Of course, this may restrict the expressiveness

of XQuery statements.

Inter-process Optimization. Currently, the

pipeline-based execution is only deployed on an

intra-process-based level. Thereby, every incoming

message is processed in a pipeline-based, but dif-

ferent incoming messages are executed in separate

instances in a serialized fashion. One optimization

would be to allow new messages to be processed in

the same instance as the previous messages. This

leads to the processing of a new message while the

previous message is still be processed. However, the

process has to distinguish between single messages to

maintain separate contexts. To mark the end of an old

message and the start of new message, respectively,

we can use punctuation buckets as described in

(Tucker et al., 2003) that are injected into the stream

between two messages. In these bucket types, mes-

sage meta data like request id or response endpoints

are included. Additionally, the process model has

to be extended to allow punctuations to reconﬁgure

operators via parameter sets for every message.

If punctuations are not used at all, payloads from

different messages can be processed in one shared

context which allows new application scenarios in

the area of message stream analysis.

7 RELATED WORK

In general, there exist several papers addressing the

optimization of business processes. The closest

related work to ours is (Bioernstad et al., 2006).

They investigate runtime states of activities and their

pipelined execution semantics. However, their pro-

posal is more a theoretical consideration with regard

to single activities. They describe how activities have

to be adjusted to enable pipelined processing, whereas

they do not consider 1) message splitting for efﬁcient

message processing and 2) communication with ex-

ternal systems. Furthermore, (B

ohm et al., 2009)

addresses the transparent rewriting of instance-based

processes to pipeline-based processes by consider-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

ing cost-based rewriting rules. Similar to (Bioernstad

et al., 2006), they do not address the optimization of

data-intensive processes.

The optimization of data-intensive business pro-

cesses is investigated in (Maier et al., 2005; Vrhovnik

et al., 2007) and (Habich et al., 2007). While

(Maier et al., 2005) proposes to extend WSBPEL

with explicit database activities (SQL-statements),

(Vrhovnik et al., 2007) describes optimization tech-

niques for such SQL-aware business processes. In

contrast to our work, their focus is on database oper-

ations in tight combination with business processes.

(Habich et al., 2007) presents an overall service-

oriented solution for data-intensive applications that

handles the data ﬂow separately from process ex-

ecution and uses database systems and specialized

data propagation tools for data exchange. However,

the execution semantics of business processes is not

touched and only the data ﬂow is optimized with spe-

cial concepts – restricting the general usability of this

approach in a wider range.

8 CONCLUSIONS

In this paper we presented the concept of stream-

based XML data processing in SOA using common

service-oriented concepts and techniques. There, we

used pipeline parallelism to process data in smaller

chunks. In addition, we addressed the communication

between process and services and introduced the con-

cept of generalized stream-based services that allows

the process to execute services as distributed opera-

tors. In experiments we showed the applicability of

these concepts in terms of performance. Future work

should address 1) the modeling aspects of such pro-

cesses in more detail and 2) a cost model that con-

siders communication overhead, complexity of func-

tions, and complexity and size of data structures to

determine the remote or local execution of operators.

REFERENCES

Abadi, D. J., Ahmad, Y., Balazinska, M., Cetintemel, U.,

Cherniack, M., Hwang, J.-H., Lindner, W., Maskey,

A. S., Rasin, A., Ryvkina, E., Tatbul, N., Xing, Y.,

and Zdonik, S. (2005). The Design of the Borealis

Stream Processing Engine. In CIDR.

Bioernstad, B., Pautasso, C., and Alonso, G. (2006). Con-

trol the ﬂow: How to safely compose streaming ser-

vices into business processes. In IEEE SCC.

ohm, M., Habich, D., Preissler, S., Lehner, W., and

Wloka, U. (2009). Cost-based vectorization of

instance-based integration processes. In ADBIS.

Gounaris, A., Yfoulis, C., Sakellariou, R., and Dikaiakos,

M. D. (2008). Robust runtime optimization of data

transfer in queries over web services. In ICDE.

Graml, T., Bracht, R., and Spies, M. (2007). Patterns of

business rules to enable agile business processes. In

EDOC.

Habich, D., Richly, S., Preissler, S., Grasselt, M., Lehner,

W., and Maier, A. (2007). Bpel-dt - data-aware exten-

sion of bpel to support data-intensive service applica-

tions. In WEWST.

Kouzes, R. T., Anderson, G. A., Elbert, S. T., Gorton, I.,

and Gracio, D. K. (2009). The changing paradigm of

data-intensive computing. IEEE Computer.

Machado, A. C. C. and Ferraz, C. A. G. (2005). Guide-

lines for performance evaluation of web services. In

WebMedia.

Maier, A., Mitschang, B., Leymann, F., and Wolfson, D.

(2005). On combining business process integration

and etl technologies. In BTW.

OASIS (2007). Web services business process execution

language 2.0 (ws-bpel). http://www.oasis-open.

org/committees/wsbpel/.

OMG (2009). Business process modeling language 1.2.

http://www.omg.org/spec/BPMN/1.2/PDF/.

Preissler, S., Voigt, H., Habich, D., and Lehner, W. (2009).

Stream-based web service invocation. In BTW.

Srivastava, U., Munagala, K., Widom, J., and Motwani, R.

(2006). Query optimization over web services. In

VLDB.

Suzumura, T., Takase, T., and Tatsubori, M. (2005). Opti-

mizing web services performance by differential de-

serialization. In ICWS.

Tucker, P. A., Maier, D., Sheard, T., and Fegaras, L. (2003).

Exploiting punctuation semantics in continuous data

streams. IEEE Trans. on Knowl. and Data Eng.,

15(3):555–568.

Vassiliadis, P., Simitsis, A., and Baikousi, E. (2009). A

taxonomy of etl activities. In DOLAP.

Vrhovnik, M., Schwarz, H., Suhre, O., Mitschang, B.,

Markl, V., Maier, A., and Kraft, T. (2007). An ap-

proach to optimize data processing in business pro-

cesses. In VLDB.

PROCESS-BASED DATA STREAMING IN SERVICE-ORIENTED ENVIRONMENTS - Application and Technique
