SPECIFICATION AND INSTANTIATION OF DOMAIN SPECIFIC

PATTERNS BASED ON UML

Saoussen Rekhis Boubaker, Nadia Bouassida and Rafik Bouaziz

MIRACL-ISIMS, Sfax University, BP 1030, 3018 Sfax, Tunisia

Keywords: UML Notation, Domain-specific Patterns, Pattern Specification, Pattern Instantiation.

Abstract: Domain-specific design patterns provide for architecture reuse of reoccurring design problems in a specific

software domain. They capture domain knowledge and design expertise needed for developing applications.

Moreover, they accelerate software development since the design of a new application consists in adapting

existing patterns, instead of modeling one from the beginning. However, some problems slow their

expansion because they have to incorporate flexibility and variability in order to be instantiated for various

applications in the domain.

This paper proposes new UML notations that better represent the domain-specific design patterns. These

notations express variability of patterns to facilitate their comprehension and guide their reuse. The UML

extensions are, then, illustrated in the process control system context using an example of an acquisition

data pattern.

1 INTRODUCTION

Reusable design patterns can be classified as general

or domain-specific. General patterns (Gamma et al.,

1994) support horizontal reuse, that is, they can be

used in a variety of application domains. Due to the

fact that general patterns are too abstract, their use

can result in systems that do not correspond to

reality. Moreover, their instantiation remains a

difficult task since it is hard to determine in which

context or in which part of the system the patterns

can be used (Port, 1998). On the other hand, a

domain-specific design pattern captures particular

software domain knowledge, and thus supports

vertical reuse. It offers a flexible architecture with

clear boundaries, in terms of well-defined and highly

encapsulated parts that are in alignment with the

natural constraints of the domain (Port, 1998).

In fact, while horizontal reuse is widely spread,

Prieto-Diaz (Prieto-Diaz, 1993) states that vertical

reuse which benefits from a high quality domain

experience can result in more significant

improvement in the development cycle-time and

better software quality.

However, domain-specific patterns suffer from

representation problems since they have to express

certain concepts specific to patterns such as their

flexibility and their reuse traceability, which can not

expressed with UML. These reasons motivated

several works on domain-specific patterns

representation (Kim et al., 2004) (Montero et al.,

2005) (Couturier, 2005) (Díaz et al., 2008). They

propose new notations based on UML to facilitate

patterns specification. However, none of them

distinguishes between the extensions used in pattern

instantiation from those used in pattern specification,

which reduces their expressivity. Moreover, these

notations lack clarity since they do not focus on the

identification of the elements, the structure and the

roles played by the elements of a pattern. In

addition, they do not guide the user when adapting a

pattern to a specific application since they do not

identify the elements that may differ from one

pattern instantiation to another.

This paper proposes new UML extensions for

domain-specific design patterns. It has two-fold

objectives. Our first objective is to cope with the

representation of patterns at the specification level.

At this level, our design language offers the

following advantages: (i) it is expressive since it

facilitates the comprehension of design patterns

instantiation and guides a designer in deriving a

particular application, (ii) it shows variability since

it differentiates the fixed parts from the optional and

variable parts in the pattern (iii) it allows domain

related constraints definition.

230

Rekhis Boubaker S., Bouassida N. and Bouaziz R. (2010).

SPECIFICATION AND INSTANTIATION OF DOMAIN SPECIFIC PATTERNS BASED ON UML.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

230-235

DOI: 10.5220/0002904002300235

 SciTePress

Our second objective is patterns expression at the

instantiation level. In fact, when several patterns are

instantiated to design an application, our profile

identifies clearly the elements belonging to each

design pattern in order to ensure the traceability.

Moreover, it avoids ambiguity when composing

patterns by showing the role played by each pattern

element.

The remainder of this paper is organized as

follows. Section 2 overviews currently proposed

design languages and their extensions. Section 3

presents our proposition to represent an UML profile

for domain specific design patterns. Section 4

illustrates the design language through the definition

of the acquisition data pattern for the process control

system. Section 5 concludes the paper and outlines

future work.

2 RELATED WORK

Design patterns have mostly been described using

natural language, complex mathematical or logic

based formalisms (Eden et al., 1999) (Mikkonen,

1998) which are not easily understood by an

inexperienced designer. This leads to complications

in incorporating design patterns effectively into the

modelling of a new system. To remediate to this

difficulty, the solution is using an expressive visual

notation based on UML to specify patterns. This

improves the pattern specification quality because

UML allows to easily visualise, define and

document the artefacts of the system under

development.

Several works for pattern representation based on

UML have been proposed.

Kim et al., (Kim et al., 2004) propose a Role

Based Modeling Language (RBML). This language

is interested only on representing patterns at the

specification level. It specifies patterns using a

structure of roles. Each role is associated with a

UML metaclass that is called its base. The properties

expressed in a role define a subset of the base

metaclass instances. For example, a role whose base

is the Classifier metaclass expresses properties that

define a subset of UML classifiers (instances of

Classifier). Properties in a classifier role can be

expressed in structural feature roles or behavioral

feature roles specifying respectively the attributes

and operations of conforming classifiers.

This approach treats domain patterns as

templates where the parameters are roles. The

constraint templates are used to specify semantic

properties associated with features that conform to

structural and behavioral feature roles. The RBML

defines well the properties that must be instantiated

by each application in the pattern domain, but it does

not focus on expressing variability. Moreover,

RBML does not offer mechanisms for patterns

composition in a domain.

Unlike the previous work, the UML profile

proposed by Arnaud (Arnaud et al., 2007) focuses

on the variability expression in the functional,

dynamic and static views. The functional model

fragment (use case diagram) is the entrance point for

the instantiation process, where the application

designer selects a functionality variant. However,

the use case diagram is too abstract and can not be

used as an input model for the patterns instantiation.

In fact, the use case diagram is at a high level of

abstraction and thus the designer cannot identify, for

example, the optional attributes or methods

according to its needs. Thereby, this profile is not

very expressive and it makes the patterns

composition more difficult since the static view of a

pattern is decomposed into very elementary

separated packages which contain one or two

classes. Each package is relative to one use case of

the functional diagram.

Overall, currently proposed UML based design

languages for patterns are more interested in the

patterns specification level than in the instantiation

one. Moreover, they do not express variability nor

composition aspects. Thus, they do not offer an

expressive notation guiding the designer in pattern

instantiation.

3 DOMAIN-SPECIFIC DESIGN

PATTERNS PROFILE

In the present work, we offer UML extensions

(OMG (b), 2007) distinguishing between domain-

specific design patterns representation at the

specification and instantiation levels. At the

specification level, our profile facilitates the pattern

instantiation through the expression of pattern

variability and the definition of the constraints to be

fulfilled when the designer adapts the patterns

according to its needs. At the instantiation level, our

profile offers extensions for comprehension,

traceability and composition purposes through the

identification of the roles played by each pattern

element in the application instantiating it.

In the following, we present some UML 2.1.2

(OMG, 2007) basic concepts expressing the

variability in the static and behavioral views. Then,

SPECIFICATION AND INSTANTIATION OF DOMAIN SPECIFIC PATTERNS BASED ON UML

231

we show our UML extensions to represent domain-

specific design patterns.

In the class diagram, the generalization

relationship represents variation points which are

defined by an abstract class and a set of subclasses

that constitute the different variants. At least, one of

these subclasses is chosen in a pattern instantiation.

There are two types of UML constraints that can be

applied on the generalization relation:

- {incomplete}: this constraint indicates that the

design provides only a sample of subclasses and

that the user may add other subclasses in an

instantiation.

- {xor}: this constraint indicates that the designer

must choose one and only one variant among the

presented subclasses during the instantiation.

In addition, the interface concept allows to express

variability since the designer can choose a particular

interface realization among the various possibilities.

In the sequence diagram, an interaction sequence

can be grouped into an entity, called combined

fragment. This latter defines a set of interaction

operators, particularly (alt: alternative) and (opt:

optional) operators. The interaction operator (alt)

indicates that a set of interactions are alternative. It

is used with an associated guard that informs the

user that only one set of interactions will be chosen.

While the interaction operator (opt) indicates that a

set of interactions represents an optional behavior

that can be omitted in a model instance.

Domain-specific design pattern are generic

designs intended to be specialized and reused by an

application. For this reason, in addition to the UML

variability concepts, we need new notations

distinguishing the commonalities and differences

between applications in the pattern domain.

Moreover, we need new concepts for the explicit

representation of the pattern elements roles in order

to trace back to the design pattern from a complex

design diagram.

In the next section, we describe the extensions

that we propose to take into account these new

concepts.

3.1 Extensions for Specifying Design

Patterns

In this section, we propose new stereotypes showing

the optional and fundamental elements participating

in a pattern and assisting the designer in pattern

reuse. Thus, the class diagram Metamodel is

extended with the following stereotypes:

• Stereotype <<optional>> (applied to the Feature

UML Metaclass): This stereotype is used to specify

optional features in UML class diagram. When an

attribute (or method) is stereotyped optional, then it

can be omitted in a pattern instance.

Each method or attribute which is not stereotyped

<<optional>> means that it is an essential element

that plays an important role in the pattern.

• Stereotype <<mandatory>> (applied to the UML

Metaclasses: Class, Association, Interface, Lifeline

and ClassAssociation): This stereotype is used to

specify a fundamental class or relation (association,

aggregation,…) that must have at least one instance

in a specific application model. A fundamental

element in the pattern is drawn with a highlighted

line like this class .

Each relation or class which is not highlighted

means that it is an optional element, except the

generalization relation that permits to represent

variant elements.

• Stereotype <<extensible>> (applied to the UML

Metaclasses: Class, Interface and ClassAssociation):

This stereotype is inspired from {extensible} tagged

value proposed in (Bouassida et al., 2006). It

indicates that the class interface may be extended by

adding new attributes and/or methods. Moreover,

two properties related to the extensible stereotype

are proposed, in order to specify the type of features

(attribute or method) that may be added by the

designer.

- Extensible Attribute tag: It takes the value false,

to indicate that the designer cannot add new

attributes when he instantiates the pattern.

Otherwise, this tag takes the value true.

- Extensible Method tag: It indicates if the designer

may add new methods when he instantiates the

pattern. The default value is true.

• Stereotype <<variable>> (applied to the

Operation UML Metaclass): This stereotype has the

same meaning with the {variable} tagged value

proposed in (Bouassida et al., 2006). It indicates that

the method implementation varies according to the

pattern instantiation.

Note that the designer can add constraints describing

properties inherent to the pattern domain. These

constraints are expressed in OCL (Object Constraint

Language) (OMG (a), 2003).

3.2 Extensions for Instantiating Design

Patterns

Some of the existing notations, such as a UML

profile (Dong & Yang, 2003), provide support on

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

232

how to keep trace of the pattern when instantiated.

These notations focus only on generic design

patterns for which it is difficult to recognize the

pattern instance when it is composed with others in a

particular design. Thus, it is essential to hold the

pattern name and the role played by each element

(class, attribute and method) in the instantiation.

However, a domain specific pattern is

instantiated in the scope of a domain. Therefore, it is

easy to retrieve the pattern-related information even

after the pattern is applied or composed with other

patterns. We assume that omitting both the name and

the role of pattern attributes and operations will not

create any ambiguity. For this reason, we propose to

present only the pattern name and the roles of the

classes in order to avoid having overloaded models.

In fact, pattern-related information should be

minimized in the class and sequence diagrams for

readability.

We propose to define two new stereotypes for

the explicit visualization of patterns in an application

design:

• <<Pattern Class>> stereotype: It is applied to the

Class UML metaclass in order to indicate that it is

an instantiated pattern class and not originally

defined by the designer. Two properties, relative to

this stereotype, are defined:

- patternName tag : indicates the pattern name,

- participantRole tag : indicates the role played by

the class in a pattern instance.

This stereotype allows to eliminate any confusion

when patterns are composed. That is, when two or

more classes represent the overlapping part of the

composition, the proposed stereotype shows the

roles that these classes play in each pattern.

• <<Pattern Lifeline>> stereotype: It is applied to

the Lifeline metaclass in order to distinguish

between the objects instantiated from the pattern

sequence diagram and those defined by the designer.

This stereotype has the same properties than

<<patternClass>> stereotype.

4 CASE STUDY

To illustrate our profile, we have chosen the process

control systems domain. In fact, applications in this

domain monitor and control the values of certain

variables through a set of components that work

together to achieve a common objective or purpose

(Reinhartz-Berger et al., 2009). Application areas

within this domain include engineering and

industrial control systems, financial derivation-

tracking products, and so on. They perform several

processes among which: the data acquisition and the

data control processes. We focus in this paper on

representing a pattern for the data acquisition

process using our UML profile. Then, at the

instantiation level, the pattern is reused through an

example of an industrial control application. Due to

space limitation, only the extensions to the UML

class diagram are illustrated.

4.1 Pattern Specification

The variety within the process control system

domain is quite large. Applications in the domain

defer in the number of the observed elements, the

number and type of controlled values and sensors,

whether the history of measurements is recorded or

not, etc (Reinhartz-Berger et al., 2009).

Nevertheless, all applications in the process control

domain should define at least one sensor to acquire

data from the environment. A sensor is defined as a

device that measures or detects a physical

phenomenon. This detected measure is usable for

command ends. The sensors can be classified

according to their functioning principle. Some

applications use passive sensors and others use

active sensors.

Figure 1 represents the data acquisition pattern at

the specification level. As indicated in this figure,

the different types of sensors present variants for the

sensor abstract class.

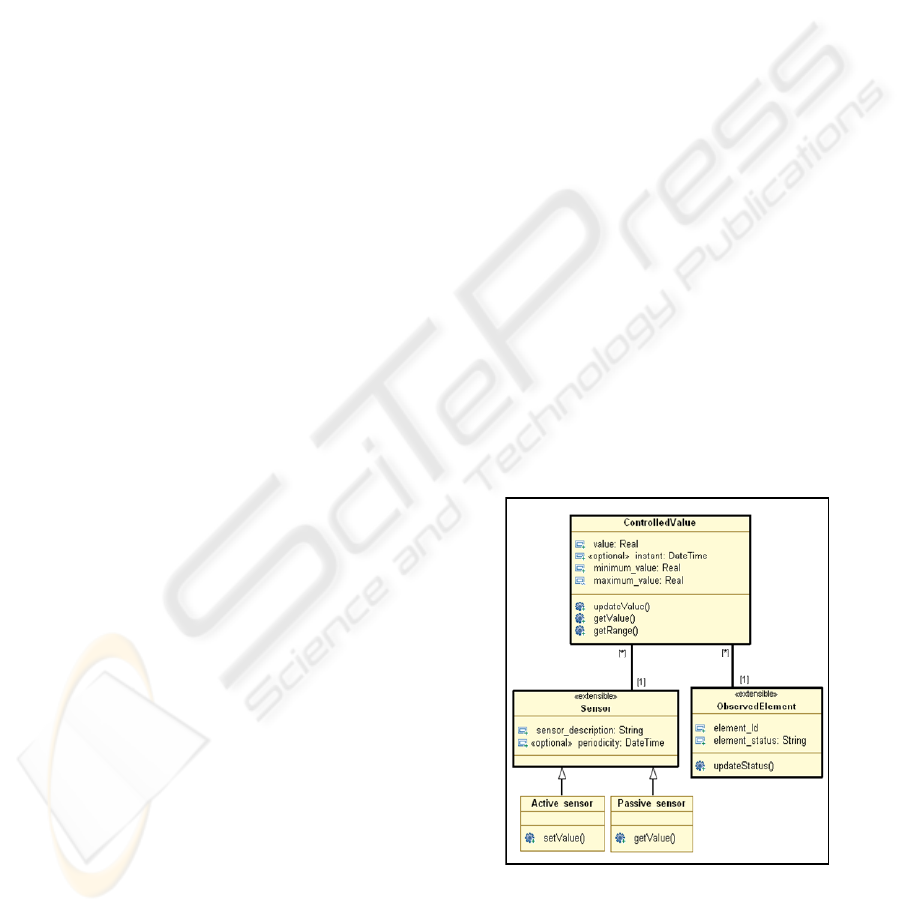

Figure 1: Specification of the data acquisition pattern.

An active sensor takes the transmission initiative of

its current value (push mechanism).

It must be able

to transmit a signal setValue to one object or to a

group of objects in order to update the value of a

SPECIFICATION AND INSTANTIATION OF DOMAIN SPECIFIC PATTERNS BASED ON UML

233

measure. While a passive sensor, it can transmit its

value only on demand of an operator (pull

mechanism). It must have a method getValue to read

the current value.

In addition, a process control application should

have at least one observed element and at least one

ControlledValue class. An ObservedElement class

represents the description of a physical element that

is supervised by one or more sensors. It has an

identity and status attributes specifying the evolution

of its status according to the variation of the

controlled values. Thus, the ControlledValue class

has an attribute named Value containing the final

value captured by the related updateValue ()

method, two attributes specifying its range

constraints and at least one operation for getting

these ranges. The range constraints define the

minimum and the maximum values for which the

system does not detect an anomaly. The

ControlledValue class has also an optional attribute

named Instant containing the last time at which the

value was produced.

4.2 Pattern Instantiation: An Example

The purpose of the water level control of an

industrial regulation system is to monitor and control

the water levels in tanks, ensuring that the actual

water level of tank

is always in the closed range

[Low-level, High-level] (Reinhartz-Berger et al.,

2009). If a problem occurs and some of the tanks do

not satisfy their boundary constraints, the system

tries to resolve the problem internally, for example,

by rebooting the system. However, if the problem

cannot be resolved internally, the system requires a

special treatment of an external exception handler.

The actual levels of the different tanks are

measured by boundary sticks sensors. Each acquired

measure is characterized by a value, a minimum

value and a maximum value of the desired water

level in the tank. When the water height in the tank

reaches its low (or high) desirable limit, the filling

(or emptying) faucet is activated to inject water into

the tank (or to drain water from the tank).

Figure 2 illustrates the data acquisition process

of the water level control application. The design of

this application is facilitated by the reuse of the

pattern specification example. In fact, the designer

instantiates first the elements that play a significant

role in the data acquisition pattern (drawn with a

highlight line in Figure 1) and substitutes them by

specific elements adapted to the context of the water

level control application. This application controls

one type of elements (tanks) and monitors one type

of controlled value, which is the water height in

tanks, through the boundary sticks passive sensors.

The passive sensor variant is chosen because all

sensors used in this application can not publish their

values spontaneously.

After that, the optional elements are identified in

order to determine those that can be omitted. For

example, the instant optional attribute is omitted

since the time of the measured water heights is not

recorded in this application.

Moreover, the pattern name and its role are

indicated by using respectively the tagged values

patternName and participantRole of the stereotype

<<patternClass>>. For example, the instantiated

class Tank plays the role of an ObservedElement in

the data acquisition pattern. Thus, the patternName

tag value is AcquisitionData and the participantRole

tag value is Observed Element.



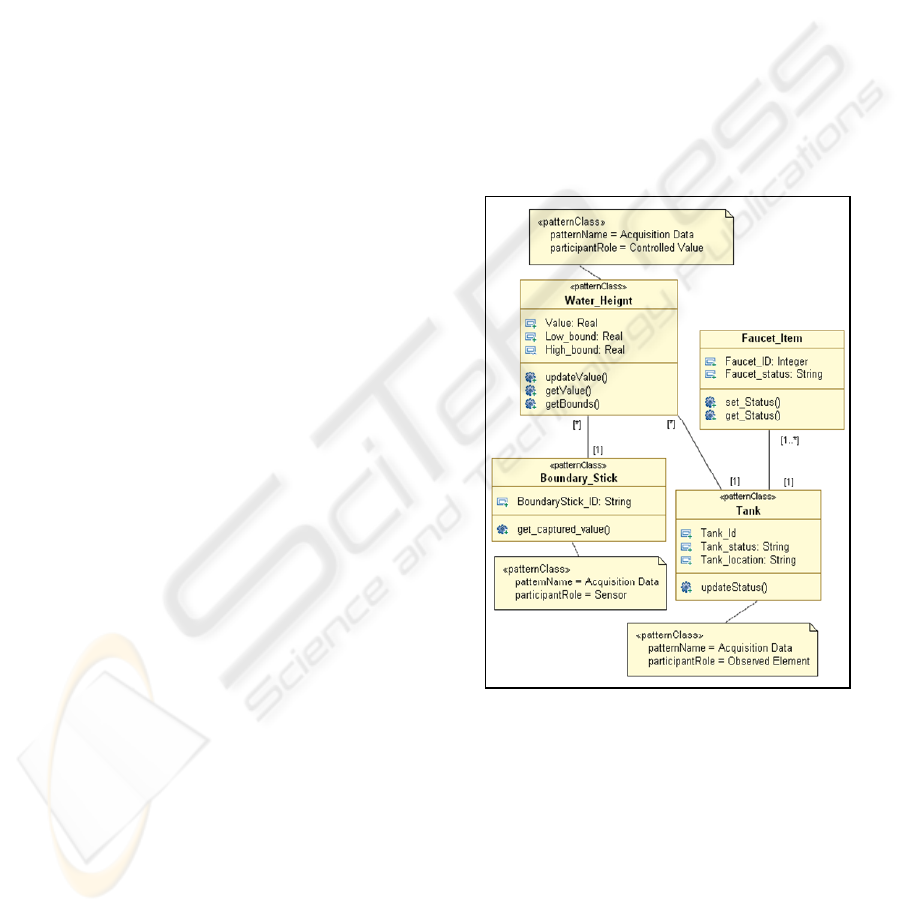

Figure 2: Example of data acquisition pattern instantiation.

Finally, specific elements related to the designed

application are added. New attributes (or methods)

can be added only for the pattern classes stereotyped

<<extensible>> and tagged with extensibleAttribute

(or extensible-Method). Notice that in the water

level control application, a Location attribute

characterizing the Tank class is added since the

corresponding ObservedElement class in the pattern

is declared extensible. In addition, the class

Faucet_item is added. This class is characterized by

the faucet-ID attribute and faucet-Status attribute

indicating if a faucet is opened or closed.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

234

5 CONCLUSIONS

This paper presented a UML profile for domain-

specific design patterns. The proposed extensions

allow distinguishing clearly between the different

parts constituting the pattern in order to guide the

designer in determining the variable elements that

may differ from one application to another. It allows

also to identify, easily, design patterns when they are

applied to model a particular application in the

pattern domain. The paper illustrated the proposed

profile through the data acquisition pattern for the

process control system domain.

Our future works include the definition of a

process for the creation and specification of domain-

specific design patterns through the unification of

the existing applications in the domain. This allows

to reduce the costs of domain patterns engineering

activities and to improve their profitability.

REFERENCES

Arnaud N., Front A.and Rieu D., Expression et usage de la

variabilité dans les patrons de conception, Revue des

sciences et technologies de l'information, série :

Ingénierie des Systèmes d'Information, vol. 12/4, pp.

21-24, 2007.

Bouassida N., Ben-Abdallah H., Extending UML to guide

design pattern reuse, Sixth Arab International

Conference On Computer Science Applications,

Dubai, 2006.

Díaz P., Aedo I., Beth Rosson M., Visual representation of

web design patterns for end-users, Proceedings of the

working conference on Advanced visual interfaces,

pages 408-411, 2008.

Couturier V., Pattern analysis for the cooperative

information system engineering, Revue Lavoisier,

ISSN 1262-1137, vol. 11, no 4, pages 141-175, 2005.

Dong J. and Yang S., Visualizing design patterns with a

UML profile, proceedings of IEEE Symposium on

Human Centric Computing Languages and

Environments, pp: 123-125, 2003.

Eden A.H., Gil J., Hirshfeld Y., Yehudai A., Towards a

mathematical foundation for design patterns,

Technical report, dept.of information technology,

U.Uppsala, 1999.

Gamma E., Helm R., Johnson R.E, Vlissides J., Design

patterns: Elements of Reusable Object-Oriented

Software, Addison-Wesley Edition, 1994.

Kim D.K., France R., Ghosh S., A UML-based language

for specifying domain-specific patterns, Journal of

Visual Languages and Computing, 15 (2004) pp. 265–

289, 2004.

Mikkonen T., Formalizing Design Patterns, Proc. 20th

International Conference on Software Engineering—

ICSE, pp. 115–124, 1998.

Montero S., Díaz P., Aedo I.,

A Semantic Representation

for Domain-Specific Patterns, Springer-Verlag Berlin

Heidelberg, vol 3511, pages 129-140, 2005.

OMG (a), UML 2.0 OCL specification, 2003

OMG (b), Unified Modeling Language (UML)

Infrastructure: v2.1.2, formal/2007-11-04, 2007.

Port D., Derivation of Domain Specific Design Patterns.

USC Center for software engineering, 1998.

Prieto-Diaz R., Status report: software reusability, IEEE

Software 10 (3) pp. 61–66, 1993.

Reinhartz-Berger I., Sturm A., Utilizing domain models

for application design and validation, Information and

Software Technology, vol 51, pages 1275-1289, 2009.

Yacoub S. M., Ammar H., Pattern-Oriented Analysis and

Design: Composing Patterns to Design Software

Systems, Published by Addison-Wesley Professional,

August 2003.

SPECIFICATION AND INSTANTIATION OF DOMAIN SPECIFIC PATTERNS BASED ON UML

235
