INTENTION DRIVEN SERVICE COMPOSITION WITH PATTERNS

Emna Fki, Chantal Soul´e Dupuy

Universit´e de Toulouse, IRIT-UMR 5505, UT1, 2 rue du Doyen-Gabriel-Marty 31042 Toulouse Cedex 9, France

Sa¨ıd Tazi

CNRS, LAAS, 7 avenue du colonel Roche, F-31077 Toulouse, France

Universit´e de Toulouse, UT1, UPS, INSA, INP, ISAE, LAAS, F-31077 Toulouse, France

Mohamed Jmaiel

Uiversity of Sfax, ReDCAD Research Unit, B.P. 1173, 3038 Sfax, Tunisia

Keywords:

SOA, User intentions, Service patterns, Service composition.

Abstract:

Service-oriented architecture (SOA) is an emerging approach for building systems based on interacting ser-

vices. Services need to be discovered and composed in order to meet user needs. Most of the time, these needs

correspond to some kind of intentions. Therefore these needs are not expressed in a technical way but in an

intentional way. We note that available service descriptions and those of their composition are rather techni-

cal. Matching user needs to these services is not a simple issue. This paper deﬁnes an intention driven service

description model. It introduces a service composition mechanism which provides the intention achievement

of a user within a given context. We consider service patterns and we investigate how these patterns can be

used in representing reusable generic services and in generating speciﬁc composite services.

1 INTRODUCTION

The service-oriented architecture (SOA) is a logi-

cal way of creating loosely coupled, interoperable

services, via published and discoverable interfaces

(Weerawarana et al., 2005). Services are described,

published, discovered and can be assembled to create

complex service based systems and applications (Pa-

pazoglou, 2008). The most used technology for SOA

implementation is web services. These offer open

and standardized interfaces, allowing the encapsula-

tion and componentization of software and applica-

tions, thereby enabling relatively easy conﬁguration

or reconﬁguration of software applications. The ﬁrst

generation of service speciﬁcation standards such as

WSDL inevitably focused on the description of the

procedures that a service offers. A WSDL service

speciﬁcation is essentially a description of the signa-

tures of the procedures offered by the service includ-

ing the types of their parameters and return values.

Thus, this kind of descriptions is low level and tech-

nical. At the same time, there is a need to map user’s

(high level) objectives to the objectives that services

may help to provide. The user’s objectives expression

is intentional, but services objectives are expressed

in operational manner. As a consequence, it seems

necessary to bridge the gap between existing service

deﬁnition and user’s needs objective expression. Fur-

thermore, services have to be composed in order to

provide more complex and more useful solutions that

meet user’s objectives. In order to reduce the com-

plexity of service composition, various approaches

have been developed for automatic service composi-

tion. However, these approaches focused on compo-

sition aspects and have not taken into account user

intention and related context.

In this paper, we propose an intention based

composition mechanism to provide the composition

schema that achieves the user’s intention within a

given context. We based our deﬁnition of the inten-

tion on the one proposed by (Kanso et al., 2008). So,

the intention corresponds to a structured expression

of user needs in terms of goals, means and reasons.

We introduce service patterns as generic services de-

236

Fki E., Soulé Dupuy C., Tazi S. and Jmaiel M. (2010).

INTENTION DRIVEN SERVICE COMPOSITION WITH PATTERNS.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

236-241

DOI: 10.5220/0002904102360241

 SciTePress

scribed with goals. This allows users to express their

intentions as an abstract high-level goal, and then let

the system automatically satisfy this intention by as-

sembling services, on-the-ﬂy. Service pattern is cre-

ated at design time and is permanently stored in the

system. The instantiation of service patterns at com-

position run time enables personalization of the pro-

cesses based on user intentions.

This paper is organized as follows: In Section 2,

we present an overview of related work. Section 3 in-

troduces the service pattern concept and we present

our speciﬁcation of service patterns. In Section 4, we

propose a service composition mechanism for build-

ing tailored processes and we illustrate it by an exam-

ple. Finally, we conclude by an assessment and future

work.

2 RELATED WORK

Generally speaking, research on service description

and composition is relevant for our work. It repre-

sents a very active research and development area. In

this section, we focus on semantic web related works

that present an interesting contribution in services de-

scription. We focus also on SOA and middleware ap-

proaches.

In order to cope with limitation of basic service

descriptions, approaches relying on Semantic Web

technology emerge to support service discovery and

composition. OWL-S (Web Ontology Language for

Web Services ) (Martin et al., 2004) takes up the chal-

lenge of representing the functionalities of Web ser-

vices. Most of the Web services speciﬁed with OWL-

S are related to concrete Web services, and hence,

the composition reasoning process has to deal with

very large search spaces. In WSMO (Web Service

Modeling Ontology) (De Bruijn et al., 2005), func-

tional descriptions are called capabilities that are de-

ﬁned in terms of preconditions, assumptions, postcon-

ditions, and effects. WSDL-S (Akkiraju et al., 2005)

only partially realizes the SWS (Semantic Web Ser-

vices) approach, therewith it can be considered as a

light-weight framework. However, it follows the tra-

dition of extending existing technologies standardized

by the W3C.

Most approaches address service discovery by se-

mantic matchmaking of formally described requested

and provided functionalities, i.e. OWL-S service pro-

ﬁles or WSMO capabilities as explained above. This

allows clients to determine whether a Web service can

solve the given request with respect to the precon-

ditions and effects. However, these approaches lack

methods of increasing the level of abstraction.

The authors in (Rolland et al., 2007) propose a

move towards a description of services in terms of the

designer intentions. They refer to these services as in-

tentional services and present a model for intentional

service modeling. They propose a methodologyto de-

termine intentional services that meet business goals.

This work focuses on capturing service needs from

exploring business goals. In our work, emphasis has

been placed on service composition by adding rules

and the use of context information in our composition

approach. Indeed, from our point of view, intentions

are speciﬁc to individual users. Hence we consider

service patterns as generic and reusable components

which are utilized to compose services based on spe-

ciﬁc user intentions.

Regarding service composition approaches, they

can be categorized according to the research area they

base their methods on: AI Planning introduces the

principles of Artiﬁcial Intelligence into service com-

position like Situation calculus in, Hierarchical task

networksand Finite state machines.

We can ﬁnd another composition approach based

on patterns. Patterns can be deﬁned as sets of generic

rules which can be used to make or generate a solution

to a problem. The use of patterns in service composi-

tion is introduced in (Tut and Edmond, 2002). Anal-

ysis of service usage patterns can identify sets of ser-

vices which are good candidates for the creation of

new composite services tailored to user requirements.

Authors do not give a formal description of the pat-

tern, and do not show how instantiation is done. The

use of patterns for the coordination of services from

different participants from a workﬂow-based view-

point is proposed in (Zirpins et al., 2004). We use

service patterns in our work to facilitate the matching

between user intention and existing services.

The creation of generic service patterns at design-

time and their instantiation dynamically at run-time

seem to be a promising approach for service composi-

tion activities. Instantiation of service patterns based

on user needs leads to the creation of a speciﬁc com-

posite service that in the end is transformed into an

executable composite service (generally called exe-

cutable process).

3 SERVICE PATTERNS

Within our work, we propose a model of service pat-

tern. According to our point of view, a service pattern

is a generic service which has generic and reusable

descriptions.

INTENTION DRIVEN SERVICE COMPOSITION WITH PATTERNS

237

Service instance

Instantiates

Service pattern

Search for a mean

of transport

Book a bus

seat

Book a train

seat

Book

a flight

Search for a mean

of transport

Book a flight

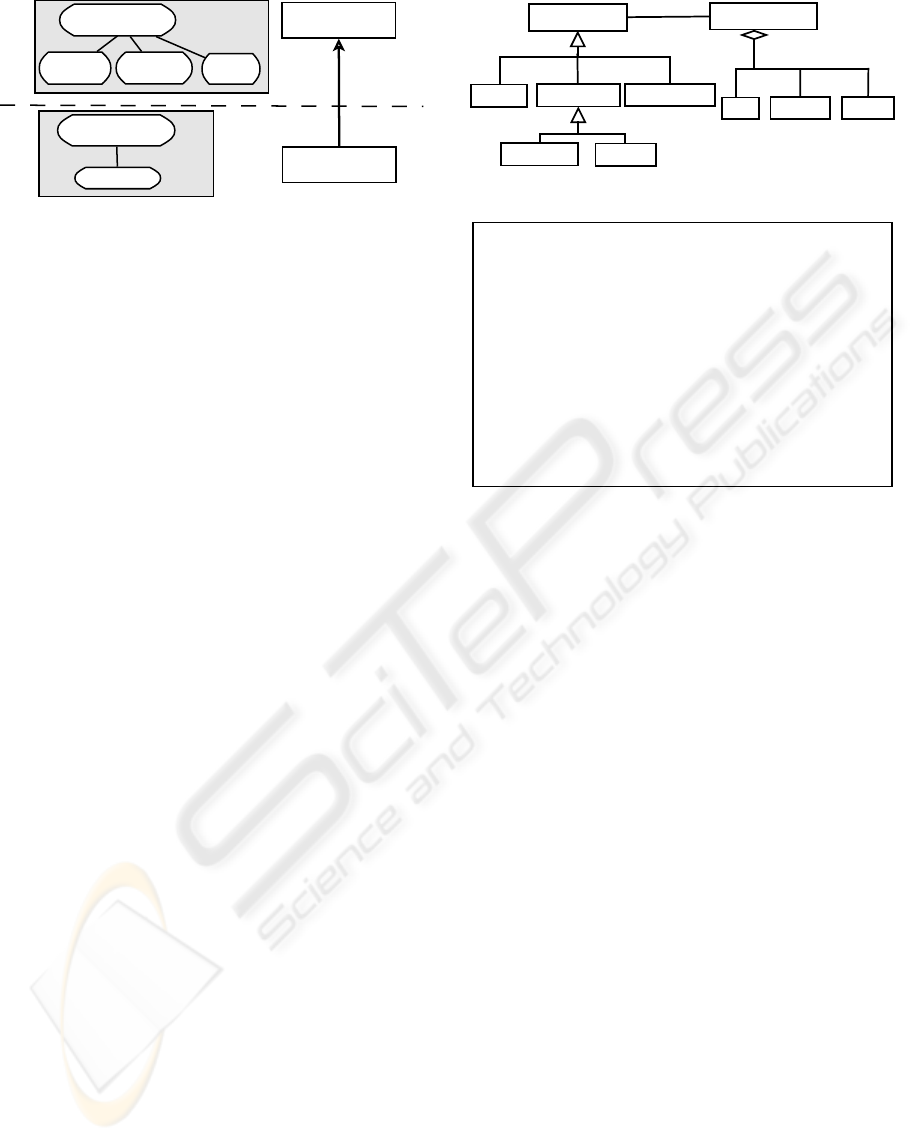

Figure 1: Service pattern and service instance.

3.1 Service Pattern Presentation

Service patterns are stored permanently in the system.

Their creation and management reside mainly at de-

sign time.

A service instance is created by the instantiation of

a service pattern with inputs representing contextual

information (or user preferences). User preferences

are a set of parameters that correspond to the choice

made by the user in relation to the activity he will

do. For example, in the case of traveling service, the

user can give priority order to means of transport that

can be used (plane, car, train, boat), or in relation to

activities that he would make (riding, golf , visits).

Figure 1 illustrates the basic idea of service in-

stantiation of the service “Plan a travel”. The service

pattern deﬁnes three means to accomplish the goal of

“Searching a mean of transport”. Based on user re-

quest and contextual information, this service is in-

stantiated to generate the service “Book a ﬂight”.

The proposed service pattern is motivated by the

following principal aspects:

• The need to facilitate the matching between user

intentions and available services.

• The need of ﬂexibility in composing services to

satisfy particular needs.

• The importance of reusability of services.

3.2 Service Pattern Model

The diagram depicted in Figure 2 shows the model of

the service pattern. In the following, we explain the

key concepts that constitute the service pattern. The

service pattern is composed of a goal, one or more

activities, and some rules. A service pattern is associ-

ated with a service type that can be atomic, composite

or conditional.

Goal. Our approach for designing service patterns

is based on a “user” perspective. Users think also in

terms of the problem in addition to the result that will

be delivered by a solution. Hence, we have chosen to

Service pattern

goal

activity

Service type

Rules

1..*

0..*

atomic

composite

Conditional

parallel

sequence

1..*

Figure 2: Service pattern model.

: search for a mean of transportGoal

Activities :

- Book a bus seat

- Book a train seat

- Book a flight

Rules:

Service type:

Conditional

if user preference. mean of transport = train

then chosen activity= Book a train seat

else if distance (origin, destination) > 500 km

then activity= book a flight

Default activity= Book a bus seat

Figure 3: Service pattern “search for a mean of transport”.

use the goal in the service pattern description. It em-

phasizes the problem that the service pattern solves.

It corresponds to the service interface which will be

used during discovery and selection of services to es-

tablish the correspondence between the intention ex-

pressed by the request and potential services allowing

to realize it.

Rules. Rules are needed to drive the selection of al-

ternative activities in the service pattern. Flexibility

comes from the fact that the process of service com-

position is governed and guided by the rule mecha-

nism (see Figure 3). Rules are set by a domain expert.

They can be adapted after feedback and learning from

service usage.

Activity. This part of the service pattern character-

izes the manner to solve the problem. It speciﬁes pos-

sible activities which can participate in the request

satisfaction. The manner in which a service pattern

is formed of activities is in relation with the service

type.

Service Type. We distinguish three types of ser-

vices: atomic, composite, and conditional. The

atomic service realizes an elementary goal. It is not

decomposable into sub goals. It can be directly im-

plemented by a concrete Web service. A compos-

ite service corresponds to a complex goal. It is nec-

essarily completed by a composition of several ser-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

238

vices. In this case, the service pattern is constituted

of more than one activity. Execution of these activi-

ties may be in sequence or in parallel. Each activity

corresponds to another service pattern. And ﬁnally,

a conditional service proposes several alternative ac-

tivities to achieve a goal. Introduction of variability

in service modeling is justiﬁed by the need to intro-

duce ﬂexibility in goal achievement and adaptability

in service composition process. At composition time,

one or several activities will be selected. Context in-

formation and rules in the service pattern are used to

drive the selection of alternative activities.

4 COMPOSITION APPROACH

Figure 4 shows the proposed service composition ap-

proach. It is composed of two major steps: the com-

position schema generation and the execution plan

generation. The composition schema is a high level

service process model. It deﬁnes a ﬂow of activities

and their control ﬂows without identifying the con-

crete services to be invoked. The execution plan is

a realized composition schema where concrete, out-

sourced Web services are assigned to activities. This

latter step will not be discussed in this paper.

The generation of the composition schema con-

sists in composing a set of service patterns in order to

satisfy a request. Service patterns are considered as

process fragments, so they can be composed to build

complex processes. Service patterns are stored in the

service patterns base. They are pre-deﬁned by a do-

main expert. His knowledge of the domain is primor-

dial for the design of service patterns. This knowledge

is structured in a domain ontology. This latter pro-

vides the deﬁnitions for important concepts and their

relationships in a dedicated domain.

Request

Analyzer

Module

SSM

SAM

Service

patterns

base

Intention

Request

Composition Engine

WS Selector

Context

Composition

schema

Execution plan

QoS constraints

user

Service

pattern

Request

UDDI

Execution Engine

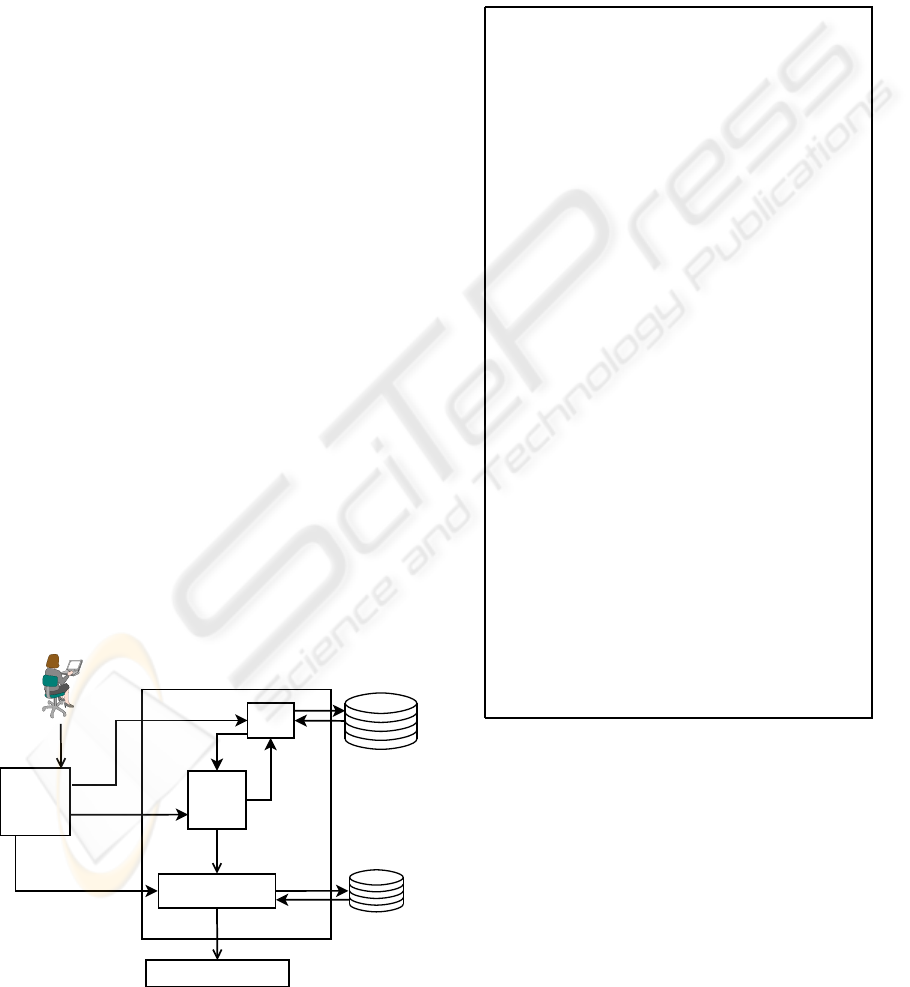

Figure 4: Composition mechanism.

4.1 Composition Approach

Architecture

In what follows, we present our composition approach

architecture and an algorithm (see Table1) that han-

dles the generation of the composition schema.

Table 1: Generic algorithm for composition schema gener-

ation.

1 CS : Composition Schema

2 SP : service pattern

3 Algorithm :

4 CS=empty

5 search SP that corresponds to user goal

6 if SP is atomic then CS= activity of SP

7 else

{

9 if SP is composite then CS=the set of

10 activities in SP

11 if SP is conditional then

{

13 use rules of SP to instantiate it

14 CS=selected activity

}

16 For each untreated activity in CS

{

18 consider activity as a goal

19 search SP that corresponds to this goal

20 if SP is composite then CS= CS with

21 activity substituted by the

22 set of activities in SP

23 if SP is conditional then

{

25 use rules of SP to instantiate it

26 CS=CS with activity substituted by

27 selected activity

}

29 if SP is atomic then mark activity as treated

}

The objective of service composition is to create

speciﬁc processes by the combination of processes

through existing service patterns.

The input of the composition schema process is

constituted by two important aspects: (a) the intention

that the user seeks to realize, and (b) the context in-

formation. We deﬁne a service user intention by these

elements: the user’s goal, means to achieve the goal

and constraints. They will be used by the composition

engine to create the composition schema that fulﬁlls

the requirements of the user as well as possible.

INTENTION DRIVEN SERVICE COMPOSITION WITH PATTERNS

239

4.2 Composition Engine Description

The architecture depicted in Figure 4 shows a Re-

quest Analyzer Module that deals with the recogni-

tion and the extraction of the intention expressed by

the request, and the related contextual information.

In addition to the functional requirements, a service

requester may have non-functional ones: QoS con-

straints. QoS are related to execution constraints (for

example: execution time of a service). They can be

also related to security. For example, a service re-

quiring authentication may be requested by the user.

These QoS constraints can be deduced by the request

analyzer or by observing user behavior. User inten-

tion, context, and QoS requirements will serve as in-

puts to the composition engine. This latter contains

three modules:

1. Service Search Module (SSM): this module deals

with the search for service patterns in the service

base. Seeking for a service is establishing coinci-

dence between the goal the user intends to reach,

and the goal expressed by the service pattern.

2. Service Assembler Module (SAM): this module

assembles service patterns and builds the process

that satisﬁes user intention. In case of conditional

services, this module uses rules of the service pat-

tern to decide which activity to select. It uses also

means and constraints parts of the user intention

to select appropriate activities.

3. The WS (Web Service) selector takes the compo-

sition schema, and user QoS constraints as inputs

and generates an execution plan that satisﬁes the

user’s QoS requirements as the output. It assigns

to every activity of the composition schema a con-

crete Web service from the UDDI registry.

Given a user request, the RAM extracts the inten-

tion expressed by the request, then it sends it to the

SSM. It extracts also, from the request, eventual infor-

mation that could help the SAM in instantiating ser-

vices. So, this information constitutes an input of the

SAM. The SSM deals with the search for service pat-

tern in the base. It establishes a comparison between

the goal expressed by the intention and the goal of the

service pattern. The selected service will be returned

to the SAM. This module will eventually use informa-

tion provided by the RAM: means and constraints ex-

pressed by the intention. The SAM creates the service

instance which will provide the process answering to

the request. It builds a composition schema by sub-

stituting activities by corresponding service patterns.

Three cases can arise:

i) The service pattern is composed of only one ac-

tivity corresponding to an atomic service; in this case

: Plan a travelGoal

Activities :

- Search for a mean of transport

- Book a hotel room

Service type: parallel

- Plan for an excursion

Figure 5: “Plan a travel” service.

the SAM provides the process directly.

ii) The service pattern represents a composite ser-

vice. All its activities must be analyzed in their turn.

If one of these activities corresponds to a complex

goal, the service patterns base is explored again in or-

der to ﬁnd the corresponding service pattern. To do

this, the SAM calls again the SSM.

iii) The service pattern represents a conditional

service; this type of service implies a choice between

the proposed activities. This choice is carried out at

composition run time based on rules provided by the

service pattern and provided information. This allows

adaptation to user intention. Services corresponding

to selected activities which can be atomic, composite,

or conditional, are treated by applying rules deﬁned

in i),ii) or iii).

It should be noted from the above description of

the composition process that the composition mecha-

nism is not treated as a one-shot activity. It is based

on partial and recurrent instantiations. The process

of composition is stopped when all activities obtained

correspond to atomic services. The generated process

corresponds to the composition of the activities of low

level to satisfy the high level intention.

4.3 Illustration

This section is dedicated to an illustration example

that details the execution of the generic algorithm (see

Table 1). We focus particularly on the two modules

SSM and SAM (see Figure 4).

We consider the request of a user based in

Toulouse (France) that plans to spend the next holi-

days in Andorra. This request is treated by the com-

position engine. The RAM extracts user intention and

contextual information. The intention structure of the

user is as follows:

• Goal: travel to Andorra

• Mean 1: take the train.

• Mean 2: lodge in a hotel.

• Constraint1: arrive as quickly as possible.

• Constraint2: do not spend much money.

The SSM contacts the service base to ﬁnd a ser-

vice pattern matching the user goal (see Table 1 line

5). It returns the service pattern named “Plan a

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

240

Plan a travel

Choose

schedules

Book a train seat

Choose

a hotel

room

Pay the hotel

byelectronic

transfer

List free sites

to visit

Choose

schedules

Book a train seat

Choose

a hotel

Pay the hotel

by electronic transfer

List free sites

to visit

: parallel

: sequence

Start

Finish

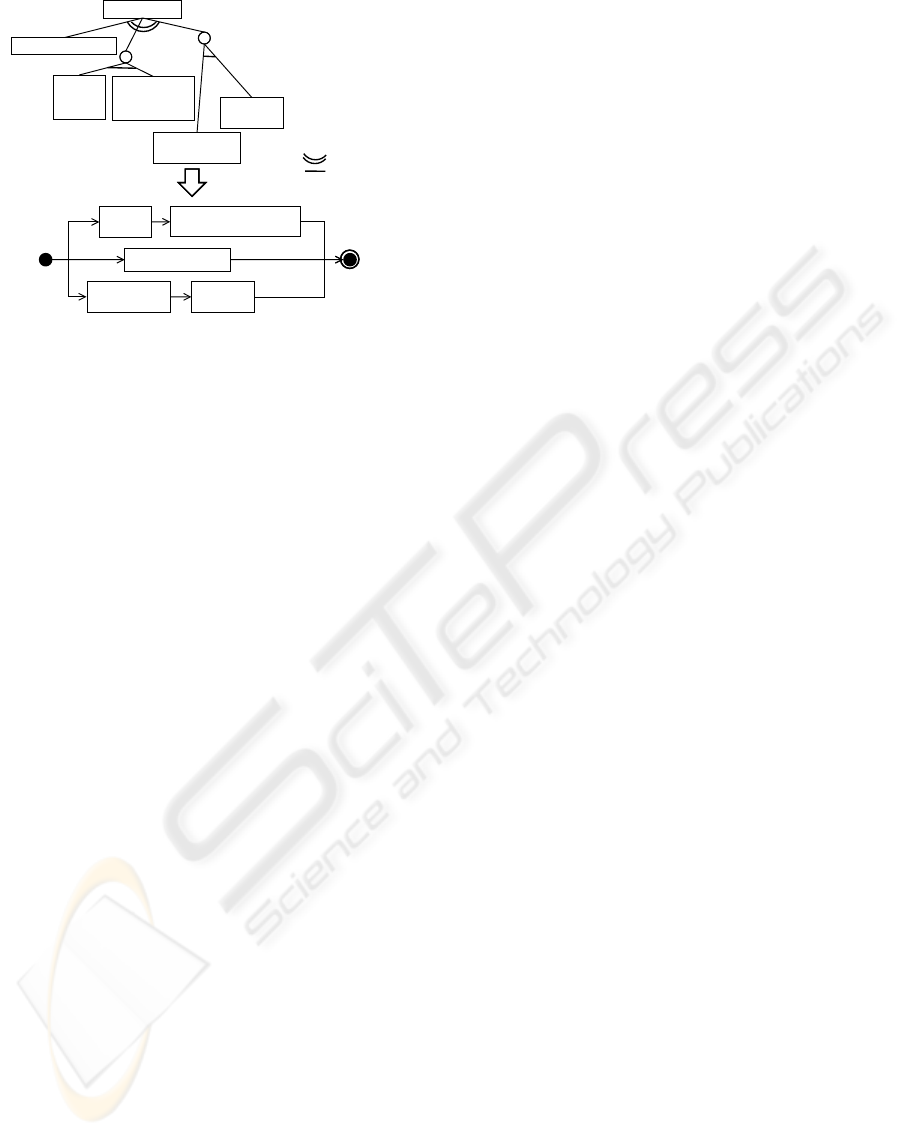

Figure 6: Generation of the composition schema.

travel”. This service pattern is composed of three ac-

tivities shown in Figure 5.

The SAM asks for research of service patterns cor-

responding to “Search for a mean of transport” and

“Book a hotel”, and so on (see Table 1 line 18 and 19)

until all activities correspond to atomic patterns.

For the service pattern “Search for a mean of

transport” (see Figure 3), the SAM needs to use the

rule part because this pattern is conditional (see Table

1 lines 23, 24, 25, 26, 27 and 28). The result here

is the service pattern “Book a train seat”. The ser-

vice patterns “Book a hotel room” and “Plan for an

excursion” are composite service patterns. The SAM

executes on them the instructions in lines 20, 21 and

22 of the algorithm in Table 1.

All obtained service patterns are atomic except

“Pay the hotel” and “List the sites to visit” which are

conditional service patterns. The SAM executes the

instructions in lines 23, 24, 25, 26, 27 and 28.

Based on Constraint2 of the user intention, the

SAM chooses the activity “List free sites” of the con-

ditional service pattern “List the sites to visit” using

the corresponding rules.

The SAM generates the composition schema, in

which, activities correspond to obtained atomic ser-

vice patterns (see Figure 6). In this process we have

three branches in parallel. This is due to the organiza-

tion of the activities in the composite service pattern

“Plan a travel”. Indeed, the control ﬂow of the gener-

ated process is deduced from service patterns.

5 CONCLUSIONS

This paper proposed the use of service patterns for

representing generic services. The proposed speciﬁ-

cation of these services is important for their reusabil-

ity. In addition, the proposed speciﬁcation facilitates

the matching between user intentions and available

services. This helps in efﬁciently ﬁnding relevant ser-

vices. Besides, service patterns can be conditional,

which allows the instantiation of generic processes in

different situations according to users intention and

context. We introduced a composition engine which

generates on the ﬂy a process allowing to achieve the

user intention based on contextual information and

user preferences.

Future research will focus on further reﬁnements

of the composition engine: how to acquire contex-

tual information, and how can rules of service pat-

terns evolve dynamically to adapt to different com-

plex user intentions and contexts? We intend to study

the correspondence between high level services stud-

ied in this work and the concrete Web services which

allow physical implementation of user intention.

REFERENCES

Akkiraju, R., Farrell, J., Miller, J., Nagarajan, M., Schmidt,

M.-T., Sheth, A., and Verma, K. (2005). Web service

semantics - wsdl-s. W3C Member Submission.

De Bruijn, J., Bussler, C., Domingue, J., Fensel, D., Hepp,

M., Keller, U., Kifer, M., K¨onig-Ries, B., Kopecky, J.,

Lara, R., Lausen, H., Oren, E., Polleres, A., Roman,

D., Scicluna, J., and Stollberg, M. (2005). Web ser-

vice modeling ontology (wsmo). W3C Member Sub-

mission.

Kanso, H., Elhore, A., Soul-Dupuy, C., and Tazi, S. (2008).

Semi-Automatic Analyzer to Detect Authorial Inten-

tions in Scientiﬁc Documents. Journal of Computer

Science, 3(1):19–24. ISSN 1306-4428.

Martin, D., Burstein, M., Hobbs, J., Lassila, O.,

McDermott, D., McIlraith, S., Narayanan, S.,

Paolucci, M., Parsia, B., Payne, T., et al.

(2004). OWL-S: Semantic Markup for Web Services.

http://www.w3.org/Submission/OWL-S/.

Papazoglou, M. P. (2008). Web Services: Principles and

Technology. Pearson, Prentice Hall.

Rolland, C., Kaabi, R. S., and Kra¨ıem, N. (2007). On isoa

intentional services oriented architecture. In CAiSE,

pages 158–172.

Tut, M. T. and Edmond, D. (2002). The use of patterns in

service composition. In CAiSE ’02/ WES ’02: Revised

Papers from the International Workshop on Web Ser-

vices, E-Business, and the Semantic Web, pages 28–

40, London, UK. Springer-Verlag.

Weerawarana, S., Curbera, F., Leymann, F., Storey, T., and

Ferguson, D. F. (2005). Web Services Platform Ar-

chitecture: SOAP, WSDL, WS-Policy, WS-Addressing,

WS-BPEL, WS-Reliable Messaging and More. Pren-

tice Hall PTR, Upper Saddle River, NJ, USA.

Zirpins, C., Lamersdorf, W., and Baier, T. (2004). Flexi-

ble coordination of service interaction patterns. In IC-

SOC ’04: Proceedings of the 2nd international con-

ference on Service oriented computing, pages 49–56,

New York, NY, USA. ACM Press.

INTENTION DRIVEN SERVICE COMPOSITION WITH PATTERNS

241
